Keys, Doors and Windows 2-5
3. Remove the rubber mat inthe instrument panel storage.
Extend the key blade on the new
transmitter and insert the key
blade into the transmitter slot. 4. Press and hold the POWER
O
button on the center stack
for two seconds. When the
transmitter is programmed, the
DIC will show that it is ready to
program the next transmitter.
5. Remove the transmitter from the transmitter slot and press
Kon
the transmitter.
To program additional
transmitters, repeat Steps 3
through 5.
When all additional transmitters
are programmed, press and
hold the POWER
Obutton
for 10 seconds to exit
programming mode. Programming without a
Recognized Transmitter
Non-Canadian (U.S.) owners
are permitted to program a
new transmitter to their vehicle
when a recognized transmitter
is not available. The Canadian
regulations require that Canadian
owners see their dealer for
programming new transmitters
when two recognized transmitters
are not available. If there are no
currently recognized transmitters
available, follow this procedure to
program up to five transmitters.

Black plate (6,1)Chevrolet Volt Owner Manual - 2011
2-6 Keys, Doors and Windows
This procedure will take
approximately 30 minutes to
complete. The vehicle must be
off and all of the transmitters
must be in the vehicle.

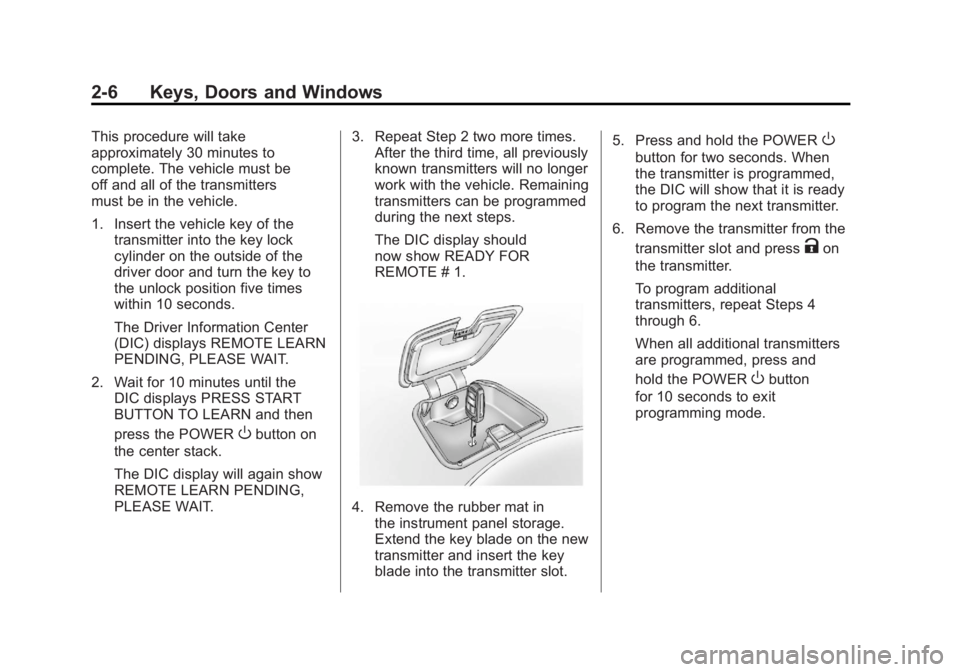

1. Insert the vehicle key of thetransmitter into the key lock
cylinder on the outside of the
driver door and turn the key to
the unlock position five times
within 10 seconds.
The Driver Information Center
(DIC) displays REMOTE LEARN
PENDING, PLEASE WAIT.
2. Wait for 10 minutes until the DIC displays PRESS START
BUTTON TO LEARN and then
press the POWER
Obutton on
the center stack.
The DIC display will again show
REMOTE LEARN PENDING,
PLEASE WAIT. 3. Repeat Step 2 two more times.
After the third time, all previously
known transmitters will no longer
work with the vehicle. Remaining
transmitters can be programmed
during the next steps.
The DIC display should
now show READY FOR
REMOTE # 1.
4. Remove the rubber mat in
the instrument panel storage.
Extend the key blade on the new
transmitter and insert the key
blade into the transmitter slot. 5. Press and hold the POWER
O
button for two seconds. When
the transmitter is programmed,
the DIC will show that it is ready
to program the next transmitter.
6. Remove the transmitter from the transmitter slot and press
Kon
the transmitter.
To program additional
transmitters, repeat Steps 4
through 6.
When all additional transmitters
are programmed, press and
hold the POWER
Obutton
for 10 seconds to exit
programming mode.

Black plate (7,1)Chevrolet Volt Owner Manual - 2011
Keys, Doors and Windows 2-7

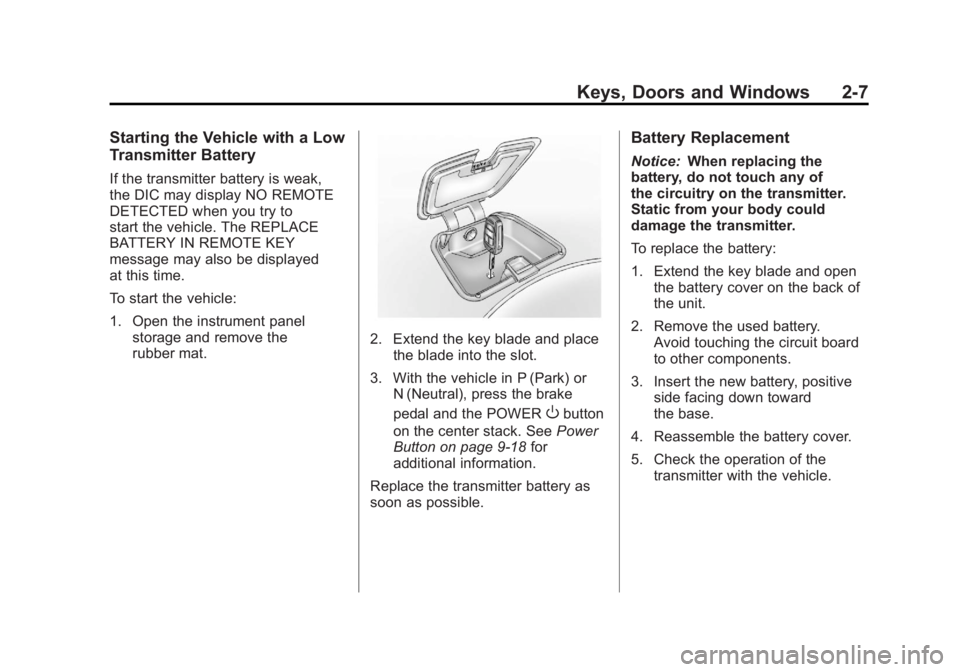

Starting the Vehicle with a Low
Transmitter Battery
If the transmitter battery is weak,
the DIC may display NO REMOTE
DETECTED when you try to
start the vehicle. The REPLACE
BATTERY IN REMOTE KEY
message may also be displayed
at this time.
To start the vehicle:
1. Open the instrument panelstorage and remove the
rubber mat.
2. Extend the key blade and placethe blade into the slot.
3. With the vehicle in P (Park) or N (Neutral), press the brake
pedal and the POWER
Obutton
on the center stack. See Power
Button on page 9‑18 for
additional information.
Replace the transmitter battery as
soon as possible.
Battery Replacement
Notice: When replacing the
battery, do not touch any of
the circuitry on the transmitter.
Static from your body could
damage the transmitter.
To replace the battery:
1. Extend the key blade and open the battery cover on the back of
the unit.
2. Remove the used battery. Avoid touching the circuit board
to other components.
3. Insert the new battery, positive side facing down toward
the base.
4. Reassemble the battery cover.
5. Check the operation of the transmitter with the vehicle.

Black plate (8,1)Chevrolet Volt Owner Manual - 2011
2-8 Keys, Doors and Windows
Remote Start
This feature starts the heating or
air conditioning systems and rear
window defogger from outside the
vehicle. Use remote start to heat or
cool the interior when the vehicle
plugged in to maximize the electric
range by utilizing electricity from the
electrical outlet. Normal operation
of the system will return after the
vehicle has been turned on.
B(Remote Start):This button is
on the RKE transmitter.
During remote start:
.The climate control system
will typically default to the last
climate settings. If Fan Off or
Fan Only were selected, the
air conditioning or heat will turn
on as needed. See Automatic
Climate Control System on
page 8‑1 for more information.
.If the vehicle has heated
seats, and this feature has
been enabled through vehicle
personalization, the heated
seats will turn on during
colder outside temperatures.
See“Remote Start Heated
Seats” underHeated Front
Seats on page 3‑6 andVehicle
Personalization on page 5‑53
for additional information.
.The rear defogger will turn
on during colder outside
temperatures.
.Selecting1during colder
outside temperatures before
shutting the vehicle off will
help windshield clearing.
.Shutting the vehicle off in ECO
Mode without
1selected will
minimize the impact to electric
range. Shutting the vehicle off
in other modes will maximize
heating or air conditioning.
.The engine may start to provide
energy for heating and cooling,
independent of the vehicle being
plugged in or completely
charged.
.Vehicle range may decrease
if the vehicle is not plugged
into an electrical outlet. If the
vehicle is plugged in, much of
the energy needed to support
this feature will be provided from
the utility, not from the high
voltage battery.
Laws in some communities
may restrict the use of features
that remotely start the engine.
For example, some laws may
require a person using the remote
start feature to have the vehicle in
view when doing so. Check local
regulations for any requirements
on remote starting of vehicles.

Black plate (9,1)Chevrolet Volt Owner Manual - 2011
Keys, Doors and Windows 2-9
With the remote start feature, the
RKE transmitter functions will have
an increased range of operation.
However, the range may be less
while the vehicle is running.
Other conditions can affect the
performance of the transmitter.
SeeRemote Keyless Entry (RKE)
System on page 2‑3 for additional
information.

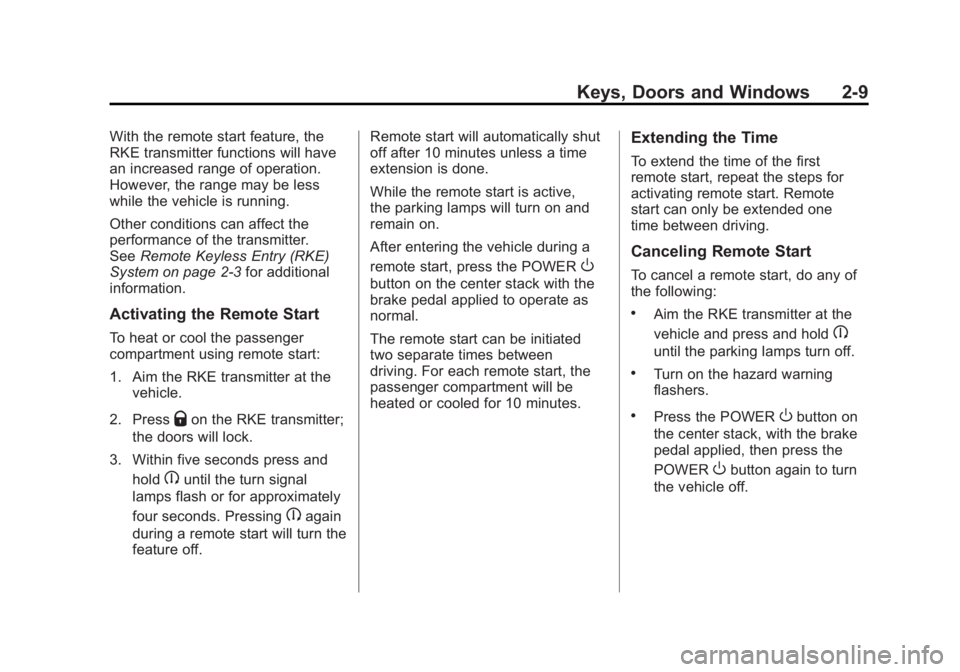

Activating the Remote Start
To heat or cool the passenger
compartment using remote start:
1. Aim the RKE transmitter at the vehicle.
2. Press
Qon the RKE transmitter;
the doors will lock.
3. Within five seconds press and hold
Buntil the turn signal
lamps flash or for approximately
four seconds. Pressing
Bagain
during a remote start will turn the
feature off. Remote start will automatically shut
off after 10 minutes unless a time
extension is done.
While the remote start is active,
the parking lamps will turn on and
remain on.
After entering the vehicle during a
remote start, press the POWER
O
button on the center stack with the
brake pedal applied to operate as
normal.
The remote start can be initiated
two separate times between
driving. For each remote start, the
passenger compartment will be
heated or cooled for 10 minutes.
Extending the Time
To extend the time of the first
remote start, repeat the steps for
activating remote start. Remote
start can only be extended one
time between driving.
Canceling Remote Start
To cancel a remote start, do any of
the following:
.Aim the RKE transmitter at the
vehicle and press and hold
B
until the parking lamps turn off.
.Turn on the hazard warning
flashers.
.Press the POWERObutton on
the center stack, with the brake
pedal applied, then press the
POWER
Obutton again to turn
the vehicle off.

Black plate (10,1)Chevrolet Volt Owner Manual - 2011
2-10 Keys, Doors and Windows
Conditions in Which Remote
Start May Not Work
Conditions in which a remote start
may not occur include:
.An open hood.
.Vehicle propulsion system
fault conditions, including an
emission control system
malfunction.
.High voltage battery fault
conditions.
A second remote start or extension
will not occur if the fuel level is low.
During a remote start, conditions
in which a remote start may be
canceled include:
.Vehicle propulsion system
or high voltage battery fault
conditions.
.Low engine oil pressure.
.Engine coolant temperature that
is too high.
Door Locks
{WARNING
Unlocked doors can be
dangerous.
.Passengers, especially
children, can easily open the
doors and fall out of a moving
vehicle. The chance of being
thrown out of the vehicle in
a crash is increased if the
doors are not locked. So, all
passengers should wear
safety belts properly and
the doors should be locked
whenever the vehicle is
driven. (Continued)
WARNING (Continued)
.Young children who get into
unlocked vehicles may be
unable to get out. A child can
be overcome by extreme heat
and can suffer permanent
injuries or even death from
heat stroke. Always lock the
vehicle whenever leaving it.
.Outsiders can easily enter
through an unlocked door
when slowing or stopping
the vehicle. Lock the doors
to help prevent this from
happening.
To lock or unlock the door, use
the Remote Keyless Entry (RKE)
transmitter or the key from outside
the vehicle. Use the door lock knob
or switch from inside the vehicle.

Black plate (11,1)Chevrolet Volt Owner Manual - 2011
Keys, Doors and Windows 2-11

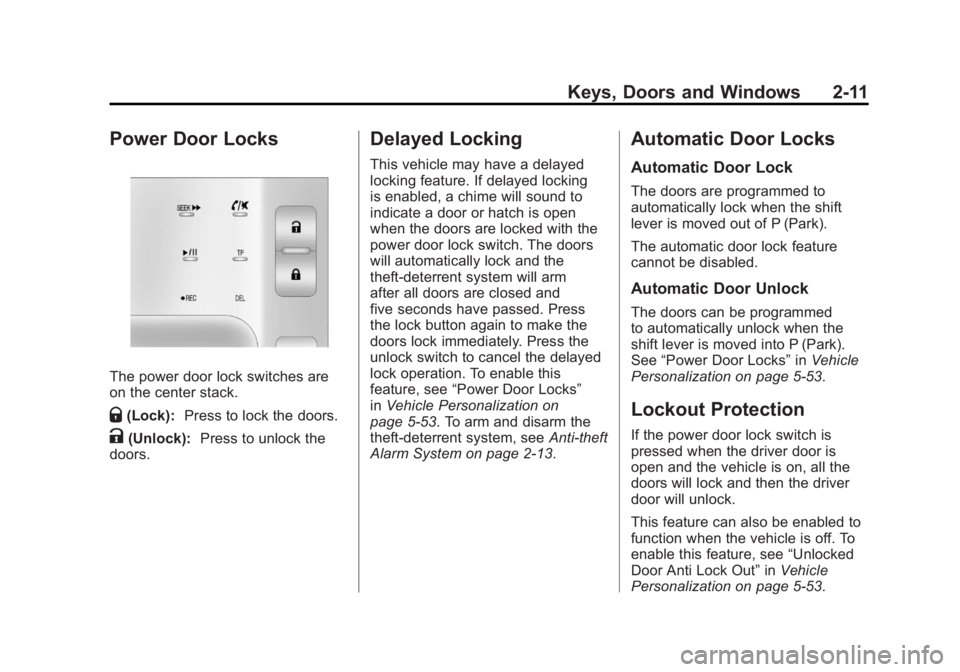

Power Door Locks
The power door lock switches are
on the center stack.
Q(Lock):Press to lock the doors.
K(Unlock): Press to unlock the
doors.
Delayed Locking
This vehicle may have a delayed
locking feature. If delayed locking
is enabled, a chime will sound to
indicate a door or hatch is open
when the doors are locked with the
power door lock switch. The doors
will automatically lock and the
theft-deterrent system will arm
after all doors are closed and
five seconds have passed. Press
the lock button again to make the
doors lock immediately. Press the
unlock switch to cancel the delayed
lock operation. To enable this
feature, see “Power Door Locks”
in Vehicle Personalization on
page 5‑53. To arm and disarm the
theft-deterrent system, see Anti-theft
Alarm System on page 2‑13.
Automatic Door Locks
Automatic Door Lock
The doors are programmed to
automatically lock when the shift
lever is moved out of P (Park).
The automatic door lock feature
cannot be disabled.
Automatic Door Unlock
The doors can be programmed
to automatically unlock when the
shift lever is moved into P (Park).
See “Power Door Locks” inVehicle
Personalization on page 5‑53.
Lockout Protection
If the power door lock switch is
pressed when the driver door is
open and the vehicle is on, all the
doors will lock and then the driver
door will unlock.
This feature can also be enabled to
function when the vehicle is off. To
enable this feature, see “Unlocked
Door Anti Lock Out” inVehicle
Personalization on page 5‑53.

Black plate (12,1)Chevrolet Volt Owner Manual - 2011

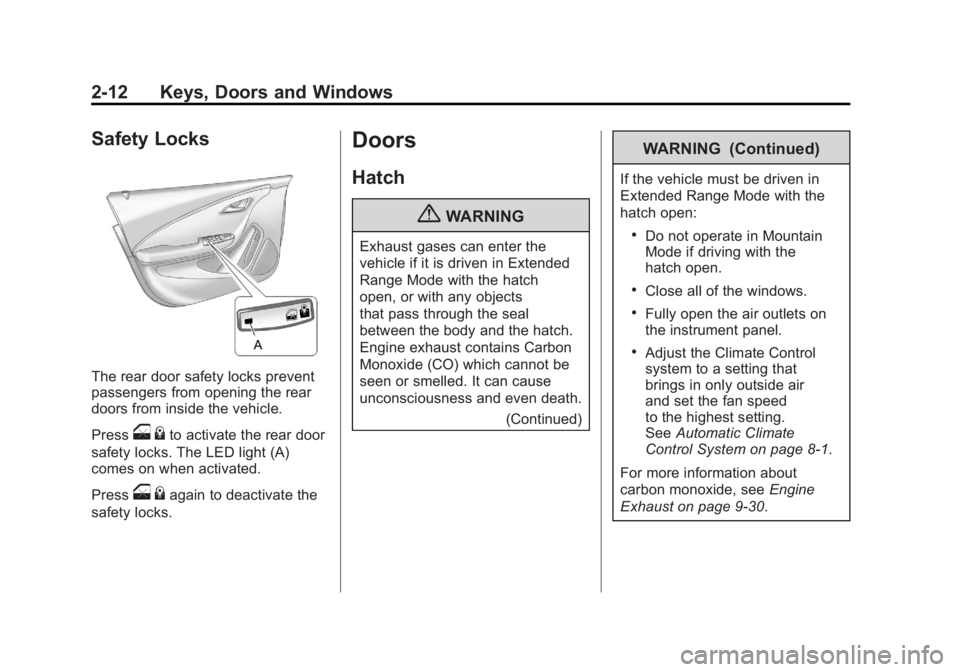

2-12 Keys, Doors and Windows
Safety Locks
The rear door safety locks prevent
passengers from opening the rear
doors from inside the vehicle.
Press
o{to activate the rear door
safety locks. The LED light (A)
comes on when activated.
Press
o {again to deactivate the
safety locks.
Doors
Hatch
{WARNING
Exhaust gases can enter the
vehicle if it is driven in Extended
Range Mode with the hatch
open, or with any objects
that pass through the seal
between the body and the hatch.
Engine exhaust contains Carbon
Monoxide (CO) which cannot be
seen or smelled. It can cause
unconsciousness and even death.
(Continued)
WARNING (Continued)
If the vehicle must be driven in
Extended Range Mode with the
hatch open:
.Do not operate in Mountain
Mode if driving with the
hatch open.
.Close all of the windows.
.Fully open the air outlets on
the instrument panel.
.Adjust the Climate Control
system to a setting that
brings in only outside air
and set the fan speed
to the highest setting.
SeeAutomatic Climate
Control System on page 8‑1.
For more information about
carbon monoxide, see Engine
Exhaust on page 9‑30.

Black plate (13,1)Chevrolet Volt Owner Manual - 2011

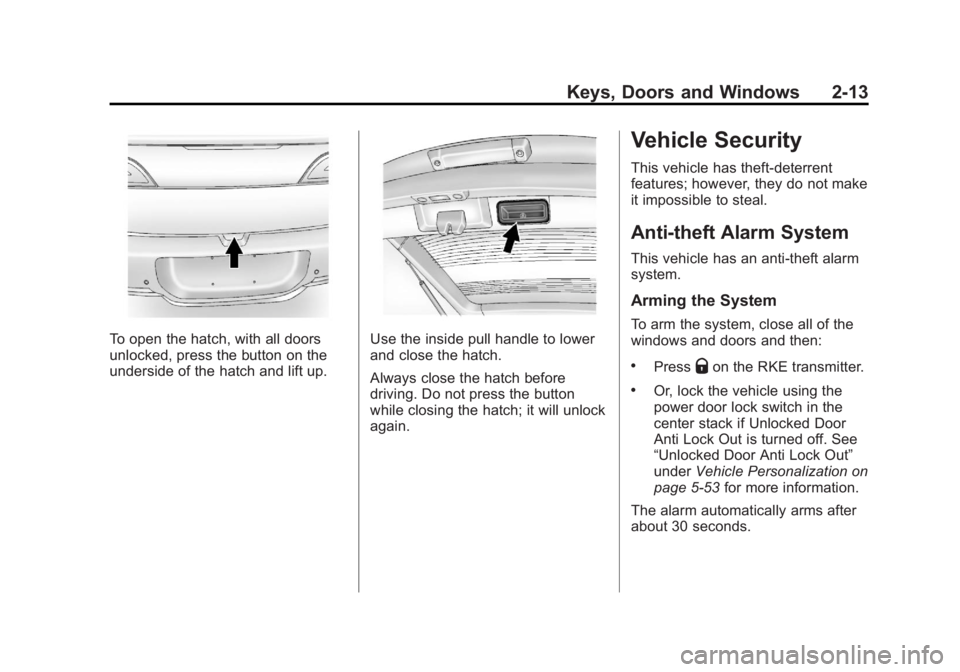

Keys, Doors and Windows 2-13
To open the hatch, with all doors
unlocked, press the button on the
underside of the hatch and lift up.Use the inside pull handle to lower
and close the hatch.
Always close the hatch before
driving. Do not press the button
while closing the hatch; it will unlock
again.
Vehicle Security
This vehicle has theft-deterrent
features; however, they do not make
it impossible to steal.
Anti-theft Alarm System
This vehicle has an anti-theft alarm
system.
Arming the System
To arm the system, close all of the
windows and doors and then:
.PressQon the RKE transmitter.
.Or, lock the vehicle using the
power door lock switch in the
center stack if Unlocked Door
Anti Lock Out is turned off. See
“Unlocked Door Anti Lock Out”
underVehicle Personalization on
page 5‑53 for more information.
The alarm automatically arms after
about 30 seconds.

Black plate (14,1)Chevrolet Volt Owner Manual - 2011

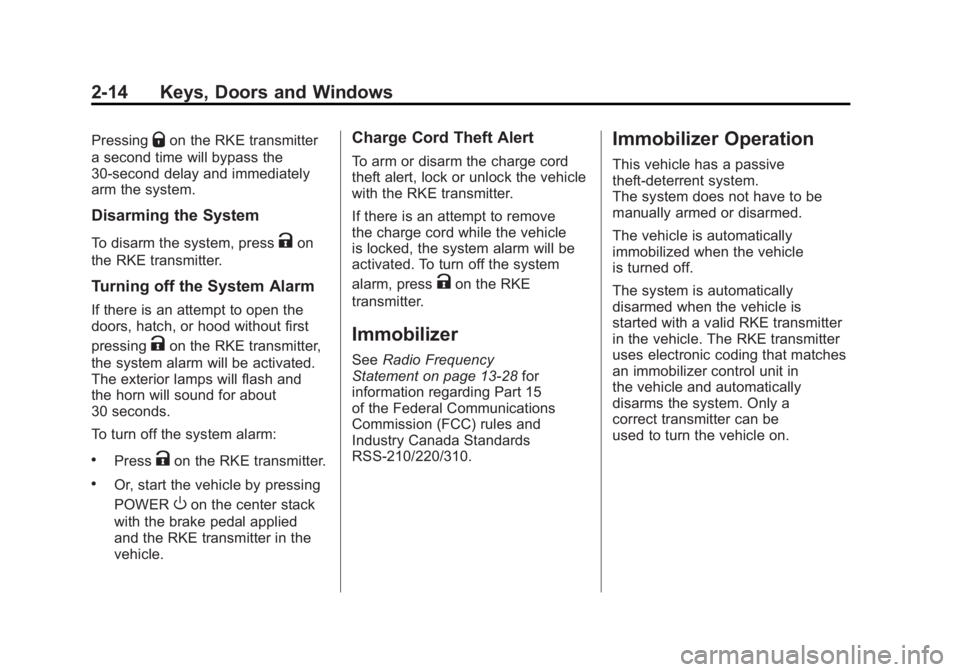

2-14 Keys, Doors and Windows
PressingQon the RKE transmitter
a second time will bypass the
30-second delay and immediately
arm the system.
Disarming the System
To disarm the system, pressKon
the RKE transmitter.
Turning off the System Alarm
If there is an attempt to open the
doors, hatch, or hood without first
pressing
Kon the RKE transmitter,
the system alarm will be activated.
The exterior lamps will flash and
the horn will sound for about
30 seconds.
To turn off the system alarm:
.PressKon the RKE transmitter.
.Or, start the vehicle by pressing
POWER
Oon the center stack
with the brake pedal applied
and the RKE transmitter in the
vehicle.
Charge Cord Theft Alert
To arm or disarm the charge cord
theft alert, lock or unlock the vehicle
with the RKE transmitter.
If there is an attempt to remove
the charge cord while the vehicle
is locked, the system alarm will be
activated. To turn off the system
alarm, press
Kon the RKE
transmitter.
Immobilizer
See Radio Frequency
Statement on page 13‑28 for
information regarding Part 15
of the Federal Communications
Commission (FCC) rules and
Industry Canada Standards
RSS-210/220/310.
Immobilizer Operation
This vehicle has a passive
theft-deterrent system.
The system does not have to be
manually armed or disarmed.
The vehicle is automatically
immobilized when the vehicle
is turned off.
The system is automatically
disarmed when the vehicle is
started with a valid RKE transmitter
in the vehicle. The RKE transmitter
uses electronic coding that matches
an immobilizer control unit in
the vehicle and automatically
disarms the system. Only a
correct transmitter can be
used to turn the vehicle on.
