CHEVROLET VOLT 2011 Owner's Guide

Black plate (25,1)Chevrolet Volt Owner Manual - 2011
In Brief 1-25

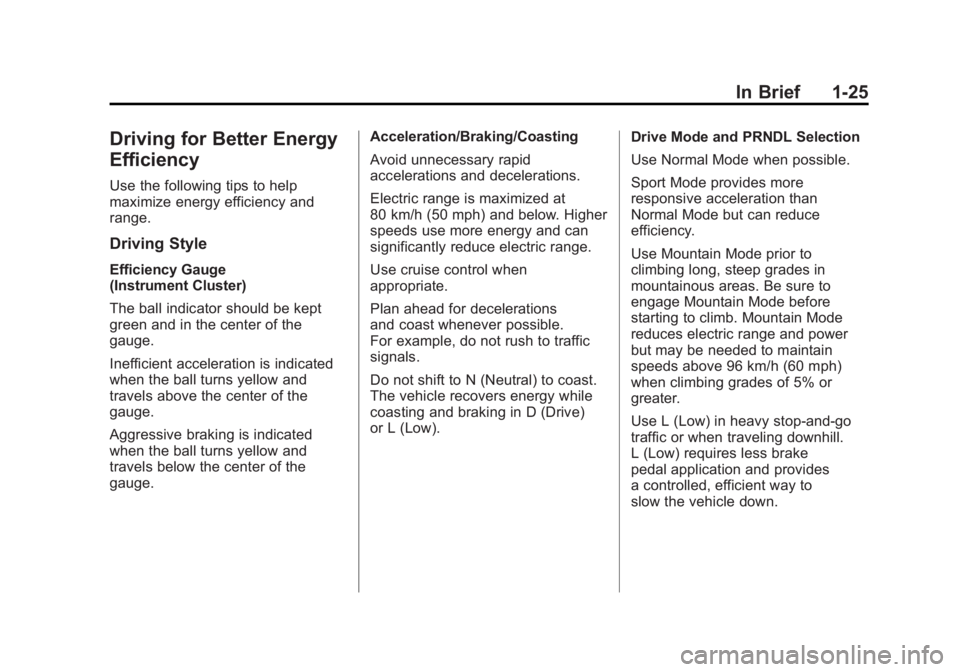

Driving for Better Energy
Efficiency
Use the following tips to help
maximize energy efficiency and
range.
Driving Style
Efficiency Gauge
(Instrument Cluster)
The ball indicator should be kept
green and in the center of the
gauge.
Inefficient acceleration is indicated
when the ball turns yellow and
travels above the center of the
gauge.
Aggressive braking is indicated
when the ball turns yellow and
travels below the center of the
gauge.Acceleration/Braking/Coasting
Avoid unnecessary rapid
accelerations and decelerations.
Electric range is maximized at
80 km/h (50 mph) and below. Higher
speeds use more energy and can
significantly reduce electric range.
Use cruise control when
appropriate.
Plan ahead for decelerations
and coast whenever possible.
For example, do not rush to traffic
signals.
Do not shift to N (Neutral) to coast.
The vehicle recovers energy while
coasting and braking in D (Drive)
or L (Low).
Drive Mode and PRNDL Selection
Use Normal Mode when possible.
Sport Mode provides more
responsive acceleration than
Normal Mode but can reduce
efficiency.
Use Mountain Mode prior to
climbing long, steep grades in
mountainous areas. Be sure to
engage Mountain Mode before
starting to climb. Mountain Mode
reduces electric range and power
but may be needed to maintain
speeds above 96 km/h (60 mph)
when climbing grades of 5% or
greater.
Use L (Low) in heavy stop‐and‐go
traffic or when traveling downhill.
L (Low) requires less brake
pedal application and provides
a controlled, efficient way to
slow the vehicle down.

Black plate (26,1)Chevrolet Volt Owner Manual - 2011
1-26 In Brief
Climate Setting
Using the heat and air conditioning
systems decreases the energy
available for electric driving.
Optimal energy efficiency is
achieved with the heat, air
conditioning, and fan turned off.
Less energy is used at low fan
speeds. When using the fan:
.Fan Only is the most energy
efficient climate setting as long
as
0is not selected.
.ECO is for moderate air
conditioning and heater
operation and is the next most
energy efficient setting as long
as
0is not selected.
.Comfort provides the most
comfort but is the least energy
efficient.Use the auto heated seat feature
instead of climate settings. Heating
the seat uses less energy than
heating the vehicle interior.
Use remote start to heat or cool
the interior when the vehicle is
plugged in to maximize the electric
range by utilizing electricity from the
electrical outlet.
In hot weather, avoid parking in
direct sunlight or use sunshades
inside the vehicle.
Turn off the front and rear window
defog/defrost when they are no
longer needed.
Avoid driving with the windows open
at highway speeds.Vehicle Charging/Maintenance
Charging
Keep the vehicle plugged in, even
when fully charged, to keep the
battery temperature ready for the
next drive. This is important when
outside temperatures are extremely
hot or cold. Maintenance
Always keep the tires properly
inflated and the vehicle properly
aligned.
The weight of excess cargo in the
vehicle affects efficiency and range.
Avoid carrying more than is needed.
If fuel is not regularly used, consider
keeping the fuel tank only one‐third
full. Excess fuel weight impacts
efficiency and range.
Use premium fuel.
Avoid unnecessary use of electrical
accessories. Power used for
functions other than propelling the
vehicle will reduce EV range.
Using a rooftop carrier will reduce
efficiency due to additional weight
and drag.

Black plate (27,1)Chevrolet Volt Owner Manual - 2011
In Brief 1-27
Roadside Assistance
Program
U.S.:1-888-811-1926
TTY Users: 1-888-889-2438
Canada: 1-800-268-6800
As the owner of a new Chevrolet,
you are automatically enrolled in
the Roadside Assistance program.
This program provides security
and convenience in the event of
an on-road failure or emergency
situation. Service is provided
24 hours a day, 365 days a year for
the 5 year/160 000 km (100,000 mi)
coverage period.
See Roadside Assistance Program
on page 13‑6 for more information. Roadside Assistance and OnStar
If you have an active OnStar
subscription, press theQbutton
and the current GPS location will
be sent to an OnStar advisor who
will assess your problem, contact
Roadside Assistance, and relay
your exact location to get the help
you need.
Online Owner Center
The Online Owner Center is a
complimentary service that includes
online service reminders, vehicle
maintenance tips, online owner
manual, special privileges,
and more.
Sign up today at:
www.chevyownercenter.com
(U.S.) or www.gm.ca (Canada).
OnStar®
For vehicles with an active OnStar
subscription, OnStar uses several
innovative technologies and live
Advisors to provide a wide range
of safety, security, navigation,
diagnostics, and calling services.
Automatic Crash Response
In a crash, built‐in sensors
automatically alert an OnStar
Advisor who is immediately
connected to the vehicle to
see if you need help.

Black plate (28,1)Chevrolet Volt Owner Manual - 2011
1-28 In Brief
How OnStar Service Works
Q:Push this blue button to
connect to a specially trained
OnStar Advisor to verify your
account information and to
answer questions.
]: Push this red emergency
button to get priority help from
specially trained OnStar Emergency
Advisors.
X: Push this button for hands‐free,
voice‐activated calling and to give
voice commands for Hands‐Free
Calling and Turn‐by‐Turn
Navigation.
Automatic Crash Response,
Emergency Services, Crisis Assist,
Stolen Vehicle Assistance, Vehicle
Diagnostics, Remote Door Unlock,
Roadside Assistance, Turn‐by‐Turn
Navigation, and Hands‐Free Calling
are available on most vehicles. Not
all OnStar services are available on
all vehicles. For more information
see the OnStar Owner's Guide
or visit www.onstar.com (U.S.) or
www.onstar.ca (Canada), contact OnStar at 1-888-4-ONSTAR
(1‐888‐466‐7827) or TTY
1‐877‐248‐2080, or push
the
Qbutton to speak with an
OnStar Advisor 24 hours a day,
seven days a week.
For a full description of OnStar
services and system limitations,
see the OnStar Owner's Guide in
the glove box.
OnStar service is subject to the
OnStar Terms and Conditions
included in the OnStar Glove
Box Kit.
OnStar service requires wireless
communication networks and the
Global Positioning System (GPS)
satellite network. Not all OnStar
services are available everywhere
or on all vehicles at all times.
OnStar service cannot work unless
your vehicle is in a place where
OnStar has an agreement with
a wireless service provider for
service in that area, and the
wireless service provider has
coverage, network capacity, reception, and technology
compatible with OnStar service.
Service involving location
information about your vehicle
cannot work unless GPS signals
are available, unobstructed,
and compatible with the OnStar
hardware. The vehicle must have
a working electrical system and
adequate 12‐volt battery power for
the OnStar equipment to operate.
OnStar service may not work if the
OnStar equipment is not properly
installed or you have not maintained
it even if your vehicle is in good
working order and in compliance
with all government regulations.
If you try to add, connect, or modify
any equipment or software in your
vehicle, OnStar service may not
work. Other problems beyond
OnStar's control may prevent
service to you, such as hills,
tall buildings, tunnels, weather,
electrical system design and
architecture of your vehicle, damage
to important parts of your vehicle
in a crash, or wireless phone
network congestion or jamming.

Black plate (29,1)Chevrolet Volt Owner Manual - 2011
In Brief 1-29
SeeRadio Frequency
Statement on page 13‑28 for
information regarding Part 15
of the Federal Communications
Commission (FCC) rules and
Industry Canada Standards
RSS-210/220/310.
OnStar Steering Wheel
Controls
This vehicle may have talk and
mute buttons that can be used to
interact with OnStar Hands-Free
Calling. See Steering Wheel
Controls on page 5‑6 for more
information.
On some vehicles, the mute button
can be used to dial numbers into
voice mail systems, or to dial phone
extensions. See the OnStar Owner's
Guide for more information.
Your Responsibility
Increase the volume of the radio
if the OnStar Advisor cannot be
heard.
If the light next to the OnStar
buttons is red, the system may
not be functioning properly.
Push
Qand request a vehicle
diagnostic check. If the light
appears clear or no light appears,
your OnStar subscription has
expired and all services have been
deactivated. Push
Qto confirm that
the OnStar equipment is active.
OnStar®
If the vehicle is equipped with
an active OnStar system, that
system may also record data in
crash or near crash-like situations.
The OnStar Terms and Conditions
provides information on data
collection and use and is available
in the OnStar Glove Box Kit,
at www.onstar.com (U.S.) or
www.onstar.ca (Canada), or by
pushing
Qand speaking to an
Advisor.

Black plate (30,1)Chevrolet Volt Owner Manual - 2011
1-30 In Brief
2NOTES

Black plate (1,1)Chevrolet Volt Owner Manual - 2011
Keys, Doors and Windows 2-1
Keys, Doors and
Windows
Keys and Locks
Keys . . . . . . . . . . . . . . . . . . . . . . . . . . 2-2
Remote Keyless Entry (RKE)System . . . . . . . . . . . . . . . . . . . . . . 2-3
Remote Keyless Entry (RKE) System Operation . . . . . . . . . . . 2-3
Remote Start . . . . . . . . . . . . . . . . . . 2-8
Door Locks . . . . . . . . . . . . . . . . . . 2-10
Power Door Locks . . . . . . . . . . . 2-11
Delayed Locking . . . . . . . . . . . . . 2-11
Automatic Door Locks . . . . . . . 2-11
Lockout Protection . . . . . . . . . . . 2-11
Safety Locks . . . . . . . . . . . . . . . . . 2-12
Doors
Hatch . . . . . . . . . . . . . . . . . . . . . . . . 2-12
Vehicle Security
Vehicle Security . . . . . . . . . . . . . . 2-13
Anti-theft Alarm System . . . . . . 2-13
Immobilizer . . . . . . . . . . . . . . . . . . 2-14
Immobilizer Operation . . . . . . . 2-14
Exterior Mirrors
Convex Mirrors . . . . . . . . . . . . . . 2-15
Power Mirrors . . . . . . . . . . . . . . . . 2-15
Folding Mirrors . . . . . . . . . . . . . . . 2-16
Heated Mirrors . . . . . . . . . . . . . . . 2-16
Interior Mirrors
Automatic Dimming Rearview Mirror . . . . . . . . . . . . . . . . . . . . . . . 2-16
Windows
Windows . . . . . . . . . . . . . . . . . . . . . 2-16
Power Windows . . . . . . . . . . . . . 2-17
Sun Visors . . . . . . . . . . . . . . . . . . . 2-19

Black plate (2,1)Chevrolet Volt Owner Manual - 2011
2-2 Keys, Doors and Windows
Keys and Locks
Keys
{WARNING
Leaving children in a vehicle with
the Remote Keyless Entry (RKE)
transmitter is dangerous for many
reasons; children or others could
be badly injured or even killed.
They could operate the power
windows or other controls or
even make the vehicle move.
The windows will function with
the RKE transmitter in the vehicle
and they could be seriously
injured or killed if caught in
the path of a closing window.
Do not leave the RKE transmitter
in a vehicle with children.The key that is part of the RKE
transmitter can be used for all locks.
Press the key release button on the
RKE transmitter to extend the key.
Press the key release button and
fold the key blade to retract the key.
The key has a bar-coded key tag
that the dealer or qualified locksmith
can use to make new keys. Store
this information in a safe place, not
in the vehicle.
See your dealer if a replacement
key or an additional key is needed.
Notice:
If the keys get locked
in the vehicle, it may have to be
damaged to get them out. Always
carry a spare key.
If locked out of the vehicle, call the
Roadside Assistance Center. See
Roadside Assistance Program on
page 13‑6. With an active OnStar
subscription, an OnStar Advisor
may remotely unlock the vehicle.
See OnStar
®on page 1‑27.

Black plate (3,1)Chevrolet Volt Owner Manual - 2011
Keys, Doors and Windows 2-3
Remote Keyless
Entry (RKE) System
SeeRadio Frequency
Statement on page 13‑28 for
information regarding Part 15
of the Federal Communications
Commission (FCC) rules and
Industry Canada Standards
RSS-210/220/310.
If there is a decrease in the RKE
operating range:
.Check the distance.
The transmitter may be
too far from the vehicle.
.Check the location. Other
vehicles or objects may be
blocking the signal.
.Check the transmitter's battery.
See “Battery Replacement” later
in this section.
.If the transmitter is still not
working correctly, see your
dealer or a qualified technician
for service.
Remote Keyless Entry
(RKE) System Operation
The RKE transmitter functions will
work up to 60 m (195 ft) away from
the vehicle.
Keep in mind that other conditions,
such as those previously stated,
can impact the performance of the
transmitter.
K(Unlock): Press once to unlock
the driver door. Press a second time
within five seconds to unlock all
doors. The hazard warning lamps will
flash twice each time the button
is pressed and the anti-theft
alarm system will be disarmed.
See
Anti-theft Alarm System on
page 2‑13.
Q(Lock): Press to lock all doors.
The hazard warning lamps will flash
once and the anti-theft alarm system
will be armed. See Anti-theft Alarm
System on page 2‑13.
If the driver door is open when
Qis
pressed, all doors lock and then
the driver door will unlock if the
Unlocked Door Anti Lock Out
feature is enabled through
the vehicle personalization.
See “Unlocked Door Anti Lock
Out Feature” underVehicle
Personalization on page 5‑53 for
more information. This may vary
based on vehicle personalization.

Black plate (4,1)Chevrolet Volt Owner Manual - 2011
2-4 Keys, Doors and Windows
7(Panic Alarm):Press and
release one time to locate the
vehicle. The exterior lamps flash
and the horn chirps three times.
Press and hold for three seconds
to sound the panic alarm. The horn
sounds and the turn signals flash for
30 seconds. Press again to cancel
the panic alarm.
B(Remote Start): PressQand
then press and hold
Bwithin
five seconds to start the vehicle's
heating or air conditioning systems
and rear window defogger from
outside the vehicle using the RKE
transmitter. See Remote Start on
page 2‑8 for more information.
The auto heated seats, if equipped,
can be programmed to come
on when the vehicle is remotely
started. See Vehicle Personalization
on page 5‑53 for more information.
Also see “Auto Heated Seats” under
Heated Front Seats on page 3‑6.
A(Charge Port Door): Press
to open the charge port door.
See Plug-In Charging on page 9‑49
for more information.
Programming Transmitters to
the Vehicle
Only RKE transmitters
programmed to this vehicle
will work. If a transmitter is lost
or stolen, a replacement can be
purchased and programmed through
your dealer. When the replacement
transmitter is programmed to this
vehicle, all remaining transmitters
must also be reprogrammed.
Any lost or stolen transmitters
will no longer work once the
new transmitter is programmed.
Each vehicle can have up to
five transmitters matched to it. Programming with a Recognized
Transmitter
A new transmitter can be
programmed to the vehicle
when there is one recognized
transmitter. For vehicles sold
in Canada, two recognized
transmitters are required to program
a new transmitter. To program,
the vehicle must be off and all
of the transmitters, both currently
recognized and new, must be in
the vehicle.
1. Place the recognized
transmitter(s) in the cupholder.
2. Insert the vehicle key of the new transmitter into the key lock
cylinder on the outside of the
driver door and turn the key to
the unlock position five times
within 10 seconds.
The Driver Information Center
(DIC) displays READY FOR
REMOTE #2, 3, 4 OR 5.
