CHRYSLER ASPEN 2007 2.G Owners Manual

Courtesy/Reading Lights
Near the front of the console are two courtesy/reading
lights.
Both lights illuminate as courtesy lights when a door is
opened, when the dimmer control is rotated to the
courtesy light position (fully upward position), or when
the UNLOCK button is pressed on the Remote Keyless
Entry transmitter, if so equipped. These lights are also
operated individually as reading lights by pressing the
recessed area of the corresponding lens.
NOTE:The courtesy/reading lights will remain on until
the switch is pressed a second time, so be sure they have
been turned off before leaving the vehicle. If the interior
lights are left on after the vehicle is turned OFF, they will
extinguish after 15 minutes.
OVERHEAD CONSOLE WITH ELECTRONIC
VEHICLE INFORMATION CENTER (EVIC) — IF
EQUIPPED
The overhead console contains dome/reading lights, and
an Electronic Vehicle Information Center (EVIC).
Dome/Reading Lights
Located in the overhead console are two dome/reading
lights.
The dome/reading lights illuminate when a door is
opened or when the interior lights are turned on by
rotating the dimmer control located on the Headlight
Switch.
The reading lights are activated by pressing on the
recessed area of the corresponding lens.
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 151
3

NOTE:The dome/reading lights will remain on until
the switch is pressed a second time, so be sure they have
been turned off before leaving the vehicle.Electronic Vehicle Information Center (EVIC) — If
Equipped
Pressing the menu button will change the
display to one of the following features:Overhead Console
152 UNDERSTANDING THE FEATURES OF YOUR VEHICLE

Trip Functions
Pressing the STEP button allows you to scroll through
one of the following Trip Function features:
•TRIP – Shows the total distance traveled since the last
reset. To reset the TRIP function, press and hold the
RESET button.
•ELAPSED TIME – Shows the total elapsed time of
travel since the last reset. Elapsed time will increment
when the ignition switch is in the ON/RUN or START
positions.
•UNIT IN US/METRIC – Press the RESET button to
toggle between US and METRIC.
•AVG. MPG – Shows the average fuel economy since
the last reset. When the fuel economy is reset, the
display will show dashes for two seconds. Then the
history information will be erased, and the averaging
will continue from the last fuel average reading beforethe reset. (Example: If your Electronic Vehicle Informa-
tion Center (EVIC) displays 18 AVG. MPG and the
RESET button is pressed, the previous averaging his-
tory will be erased and the display will return to the 18
AVG. MPG, not to 0 AVG. MPG). The display may take
several miles for the value to change dependent upon
driving habits.
•MI TO EMPTY (Distance To Empty) – Shows the
estimated distance that can be traveled with the fuel
remaining in the tank. This estimated distance is
determined by a weighted average of fuel economy,
according to the current fuel tank level. MI TO EMPTY
cannot be reset through the RESET button.
NOTE:Significant changes in driving style or vehicle
loading will greatly affect the actual drivable distance of
the vehicle, regardless of the DTE displayed value.
•When the DTE value is less than 30 miles (48 km)
estimated driving distance, the DTE display will
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 153
3

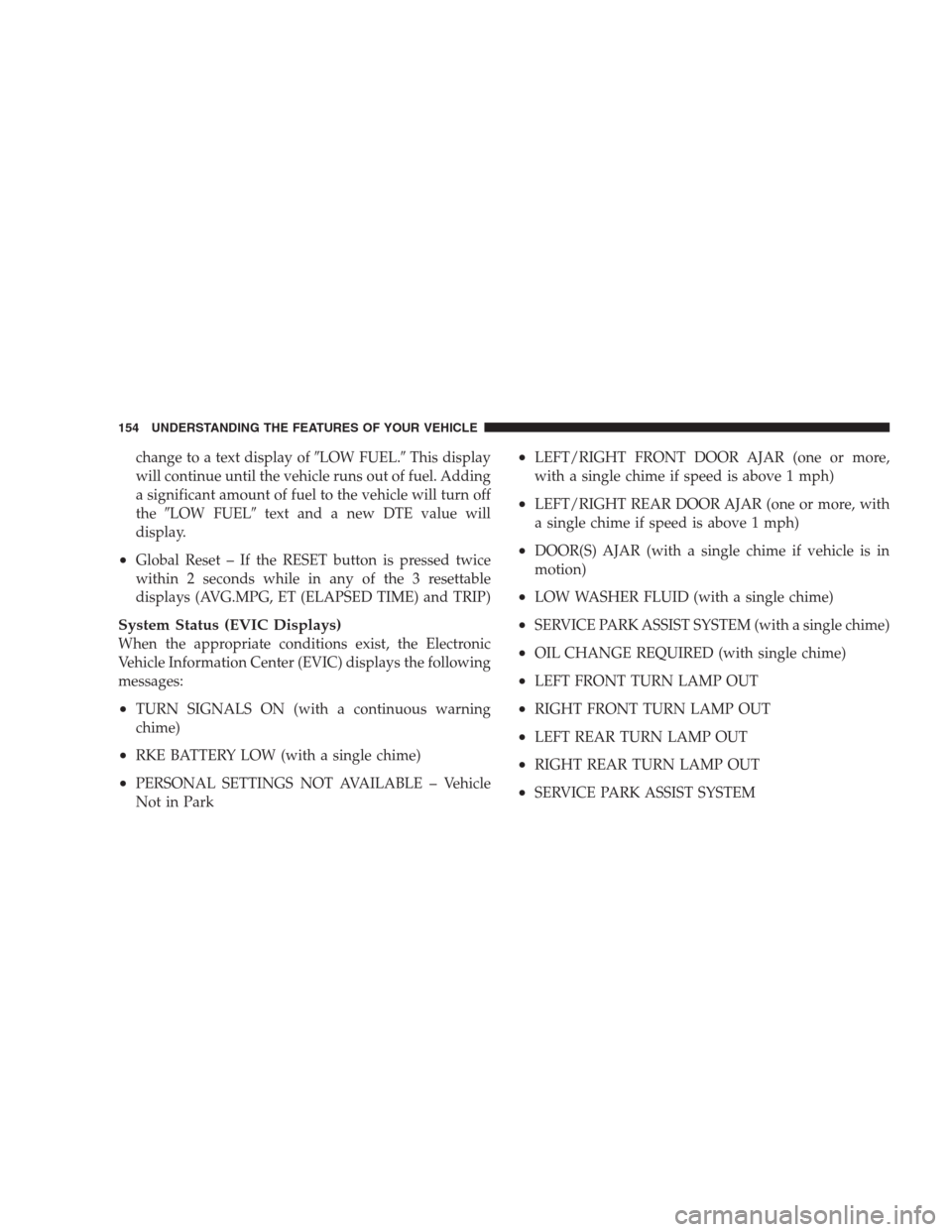

change to a text display ofLOW FUEL.This display
will continue until the vehicle runs out of fuel. Adding
a significant amount of fuel to the vehicle will turn off
theLOW FUELtext and a new DTE value will
display.
•Global Reset – If the RESET button is pressed twice
within 2 seconds while in any of the 3 resettable
displays (AVG.MPG, ET (ELAPSED TIME) and TRIP)
System Status (EVIC Displays)
When the appropriate conditions exist, the Electronic
Vehicle Information Center (EVIC) displays the following
messages:
•TURN SIGNALS ON (with a continuous warning
chime)
•RKE BATTERY LOW (with a single chime)
•PERSONAL SETTINGS NOT AVAILABLE – Vehicle
Not in Park
•LEFT/RIGHT FRONT DOOR AJAR (one or more,
with a single chime if speed is above 1 mph)
•LEFT/RIGHT REAR DOOR AJAR (one or more, with
a single chime if speed is above 1 mph)
•DOOR(S) AJAR (with a single chime if vehicle is in
motion)
•LOW WASHER FLUID (with a single chime)
•SERVICE PARK ASSIST SYSTEM (with a single chime)
•OIL CHANGE REQUIRED (with single chime)
•LEFT FRONT TURN LAMP OUT
•RIGHT FRONT TURN LAMP OUT
•LEFT REAR TURN LAMP OUT
•RIGHT REAR TURN LAMP OUT
•SERVICE PARK ASSIST SYSTEM
154 UNDERSTANDING THE FEATURES OF YOUR VEHICLE

•COOLANT LOW
•ESP SYSTEM DEACTIVATED
•LIFTGATE OPEN
Personal Settings (Customer Programmable
Features)
Personal Settings allows the driver to set and recall
features when the transmission is in PARK. If the trans-
mission is not in PARK the EVIC will display NOT
AVAILABLE and VEHICLE NOT IN PARK.
Press and release the menu button until the
Personal Settings displays on the EVIC.
Use the STEP button to display one of the following:
•“LANGUAGE” – When in this display you may select
one of three languages for all display nomenclature,
including the trip functions. Press the RESET buttonwhile in this display to select English, Espanol, or
Francais. Then, as you continue, the information will
display in the selected language.
•“AUTO DOOR LOCKS > YES” – When ON is selected,
all doors will lock automatically when the vehicle
reaches a speed of 15 mph (24 km/h). To make your
selection, press and release the RESET button until
“ON” or “OFF” appears.
•“AUTO UNLOCK ON EXIT > YES” – When ON is
selected, all doors will unlock when the vehicle is
stopped and the transmission is in the P (Park) or N
(Neutral) position and the driver’s door is opened. To
make your selection, press and release the RESET
button until “ON” or “OFF” appears.
•“RKE UNLOCK DRV DR 1st” – WhenDRV DR 1stis
selected, only the driver’s door will unlock on the first
press of the remote keyless entry unlock button. When
Driver Door 1st Press is selected, you must press of the
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 155
3

remote keyless entry unlock button twice to unlock the
passenger’s doors. To make your selection, press and
release the RESET button until “DRV DR 1st ” appears.
•“RKE UNLOCK ALL DR 1ST” – When AllALL DR
1STis selected, all of the doors will unlock on the first
press of the remote keyless entry unlock button. To
make your selection, press and release the RESET
button until “All DR 1st” appears.
•MEM. RECALL WITH RKE > YES – When ON is
selected, pressing the unlock button on the RKE will
recall the memory settings for the seat, mirror and
radio.
•“SOUND HORN W/LOCK > YES” – When ON is
selected, a short horn sound will occur when the
remote keyless entry “Lock” button is pressed. This
feature may be selected with or without the flash lightson lock/unlock feature. To make your selection, press
and release the RESET button until “ON” or “OFF”
appears.
•“FLASH LAMPS w/LOCK >YES” – When ON is
selected, the front and rear turn signals will flash when
the doors are locked or unlocked with the remote
keyless entry transmitter. This feature may be selected
with or without the sound horn on lock feature
selected. To make your selection, press and release the
RESET button until “ON” or “OFF” appears.
•“HEAD LAMP OFF DELAY > 0 SEC” – When this
feature is selected, the driver can choose to have the
head lamps remain on for 0, 30, 60, or 90 seconds when
exiting the vehicle. To make your selection, press and
release the RESET button until “0,” “30,” “60,” or “90”
appears.
NOTE:The head lamp switch must be in the “A” auto
mode before this feature will work.
156 UNDERSTANDING THE FEATURES OF YOUR VEHICLE

•HEADLAMPS W /WIPERS > YES – When ON is
selected, the headlamps will automatically turn on
when the wiper switch is activated.
•EASY EXIT SEAT > YES – When ON is selected, and
the key is removed from the ignition, the driver’s seat
will automatically move rearward to allow easy exit.
•TILT MIRRORS IN “R” > YES – When On is selected,
and the transmission is put in reverse, the outside
mirrors will tilt downward.
•“KEY OFF POWER DELAY > OFF” – When this
feature is selected, the power window switches, radio,
hands–free system (if equipped), and power outlets
will remain active for up to 60 minutes after the
ignition switch is turned off. Opening a vehicle door
will cancel this feature. To make your selection, press
and release the RESET button until “Off,” “45 sec.,” “5
min.,” “10 min.” appears.
•“ILLUMINATED APRCH > OFF” – When this feature
is selected, the headlights will activate and remain on
for up to 90 seconds when the doors are unlocked with
the remote keyless entry transmitter. To make your
selection, press and release the RESET button until
“OFF,” “30 sec.,” “60 sec.,” or “90 sec.” appears.
•PARK ASST. SYSTEM > YES – When YES is selected,
the Park Assist System is activated when the vehicle is
in Reverse. When No is selected, the Rear Park System
is turned off.
•“UNIT IN > US/METRIC” – The EVIC, odometer can
be changed between English and Metric units of
measure. To make your selection, press and release the
RESET button until “US” or “METRIC” appears.
•“COMPASS VARIANCE > 1” – Press the RESET
button to change the compass variance setting. Set this
to your current location. If you change location,
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 157
3

change your variance according to your variance on
the variance map. Refer to Compass Variance, in this
section for additional information.
•“COMPASS CALIBRATE > YES” – Press the RESET
button to manually calibrate the compass. Refer to
Manual Compass Calibration, in this section for addi-
tional information.
Compass/Temperature Button
Pressing the Compass/Temperature button
will return the display to the normal compass/
temperature display.
NOTE:Temperature accuracy can be effected from heat
soak. For best accuracy, the vehicle should be driven at a
speed greater than 20 mph (32 km/h) for several min-
utes.
Automatic Compass Calibration
This compass is self-calibrating, which reduces the need
to calibrate the compass manually. When the vehicle is
new, the compass may appear erratic and the EVIC will
display “CAL” until the compass is calibrated. You may
also calibrate the compass by completing one or more
360° turns (in an area free from large metal or metallic
objects) until the “CAL” message displayed in the EVIC
turns off. The compass will now function normally.
Manual Compass Calibration
If the compass appears erratic and the “CAL” message
does not appear in the EVIC display, you must put the
compass into the Calibration Mode manually as follows:
1. Turn the ignition switch to the ON/RUN position.
2. Press the menu button until Personal Set-
tings is displayed.
158 UNDERSTANDING THE FEATURES OF YOUR VEHICLE

3. Press the STEP button until “Calibrate Compass YES”
is displayed.
4. Press and release the RESET button to start the cali-
bration. The message “CAL” will display on the compass
temperature screen in the EVIC.
5. Complete one or more 360° turns (in an area free from
large metal or metallic objects) until the “CAL” message
turns off. The compass will now function normally.
Compass Variance
Compass Variance is the difference between magnetic
North and Geographic North. In some areas of the
country, the difference between magnetic and geographic
North is great enough to cause the compass to give false
readings. If this occurs, the compass variance must be set
using the following procedure:
NOTE:Magnetic materials should be kept away from
the overhead console. This is where the compass sensor is
located.
Compass Variance Map
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 159
3

1. Turn the ignition switch to the ON/RUN position.
2. Press the menu button until Personal Set-
tings is displayed.
3. Press the STEP button until “Compass Variance” is
displayed.
4. Press and release RESET button until the proper
variance zone is selected according to the map.
5. Press and release the compass button to exit.
GARAGE DOOR OPENER — IF EQUIPPED
The HomeLinkWireless Control System replaces up to
three remote controls (hand held transmitters) that oper-
ate devices such as garage door openers, motorized
gates, or home lighting. It triggers these devices at thepush of a button. The Universal Transceiver operates off
your vehicle’s battery and charging system; no batteries
are needed.
For additional information on HomeLink, call 1–800–
355–3515, or on the internet at www.homelink.com.
160 UNDERSTANDING THE FEATURES OF YOUR VEHICLE
