CHRYSLER ASPEN 2009 2.G Owners Manual

To disable another RKE transmitter linked to either
memory position, repeat steps 1-3 for each RKE transmit-
ter.
NOTE:The capability to link RKE transmitters to
memory is enabled when delivered from the factory. The
capability to link RKE transmitters to memory can be
disabled (or later re-enabled) by a qualified Chrysler LLC
representative. For vehicles equipped with the Electronic
vehicle Information Center (EVIC), refer to ªPersonal
Settings (Customer Programmable Features)º under
ªOverhead Console with Electronic Vehicle Information
Center (EVIC) ± If Equippedº in Section 3.
Self-Limiting Control
To improve vehicle reliability, the memory system in-
cludes a self-limiting control for full travel positioning of
power seat and adjustable pedal movement (all direc-
tions). This self-limiting control may, however, develop
an unintended movement limitation if an obstruction isencountered sometime during usage. One example of
such an occurrence may include a box or package ob-
structing the full rearward movement of the driver's seat.
Once the obstruction is removed, the self-limiting control
may be restored to maximum position. The self-limiting
control may be restored by first reaching the recently
limited or obstructed position, then release and reactivate
the same button or buttons. Continued seat travel beyond
the obstructed position will indicate the recently encoun-
tered self-limitation has been cleared.
Driver Easy Exit and Easy Entry Control
This additional feature provides automatic driver's seat
positioning which will enhance driver mobility out of
and into the vehicle. The seat cushion will move rear-
ward approximately 2.5 in (60 mm) when the key is
removed from the ignition switch. The seat will move
forward approximately 2.5 in (60 mm) when the key is
placed into the ignition and turned out of the LOCK
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 139
3

position. Each stored memory setting will have an asso-
ciated Easy Exit and Easy Entry position. The Easy Exit
and Easy Entry feature may be automatically disabled if
the seat is positioned rearward enough and there is no
benefit in moving the seat any farther rearward.
NOTE:The Easy Entry/Easy Exit feature can be en-
abled or disabled through the programmable features in
the Electronic Vehicle Information Center (EVIC). For
details, refer to ªPersonal Settings (Customer Program-
mable Features)º under ªOverhead Console with Elec-
tronic Vehicle Information Center (EVIC) ± If Equippedº
in Section 3.TO OPEN AND CLOSE THE HOOD
To open the hood, two latches must be released:
1. Pull the hood release lever located under the left side
of the instrument panel.
Hood Release Lever
140 UNDERSTANDING THE FEATURES OF YOUR VEHICLE

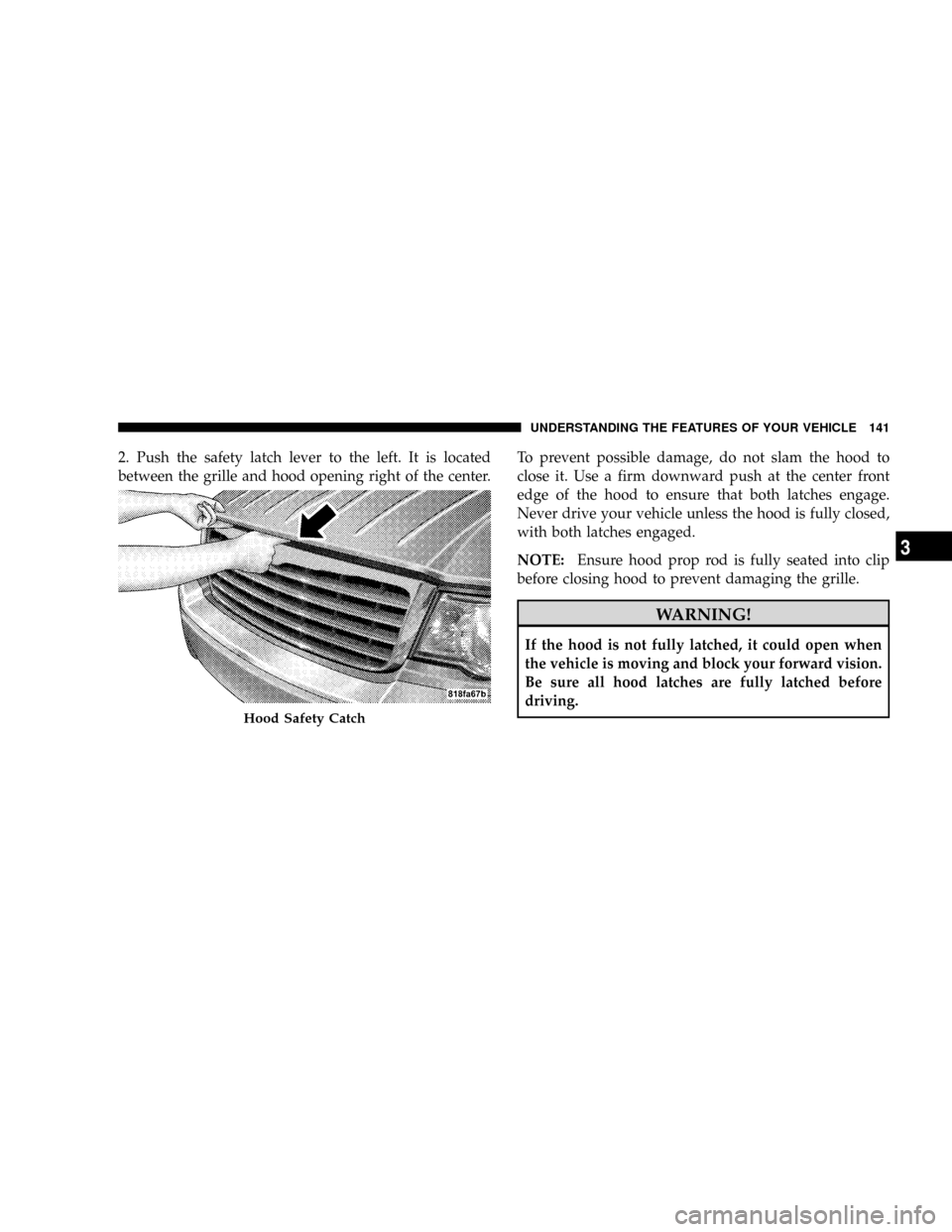

2. Push the safety latch lever to the left. It is located
between the grille and hood opening right of the center.To prevent possible damage, do not slam the hood to
close it. Use a firm downward push at the center front
edge of the hood to ensure that both latches engage.
Never drive your vehicle unless the hood is fully closed,
with both latches engaged.
NOTE:Ensure hood prop rod is fully seated into clip
before closing hood to prevent damaging the grille.
WARNING!
If the hood is not fully latched, it could open when
the vehicle is moving and block your forward vision.
Be sure all hood latches are fully latched before
driving.
Hood Safety Catch
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 141
3

LIGHTS
Headlight Switch
Headlights, Parking Lights and Instrument Panel
Lights
The headlight switch is located next to the steering
wheel, on the left side of the instrument panel.
The headlight switch controls the operation of the head-
lights, automatic headlights (if equipped), parking lights
and instrument panel lights.
Headlight Switch Location
142 UNDERSTANDING THE FEATURES OF YOUR VEHICLE

Rotating the headlight switch clockwise to the first
position will turn on the parking lights, taillights, side
marker lights, license plate light and instrument panel
lights. To turn on the headlights, rotate the switch clock-
wise into the second position.NOTE:
²Your vehicle is equipped with plastic headlight lenses
that are lighter and less susceptible to stone breakage
than glass headlights.
²Plastic is not as scratch resistant as glass and therefore
different lens cleaning procedures must be followed.
²To minimize the possibility of scratching the lenses
and reducing light output, avoid wiping with a dry
cloth. To remove road dirt, wash with a mild soap
solution followed by rinsing.
²Do not use abrasive cleaning components, solvents,
steel wool or other abrasive materials to clean the
lenses.Headlight Switch
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 143
3

Automatic Headlights Ð If Equipped
Automatic headlights can be activated by rotating the
rotary headlight switch to the symbol ªA.º The head-
lights will turn on when the engine is running and the
ambient light sensor indicates that the headlights should
be activated. The headlights will turn off if the headlight
switch is rotated to the OFF position or 90 seconds after
the ignition is turned to OFF.
Headlight Delay
To aid in your exit, your vehicle is equipped with a
headlight delay that will leave the headlights on for 90
seconds. This delay is initiated when the ignition is
cycled off while the headlight switch is on, and then the
headlight switch is cycled off. The headlights will remain
on for 90 seconds. Headlight delay can be canceled by
either turning the headlight switch ON then OFF or by
turning the ignition ON.The headlight delay time is programmable on vehicles
equipped with the Electronic Vehicle Information Center
(EVIC). For details, refer to ªPersonal Settings (Customer
Programmable Features)º under ªOverhead Console
with Electronic Vehicle Information Center (EVIC) ± If
Equippedº in Section 3.
Interior Lights
The brightness of the instrument panel lighting can be
regulated by rotating the dimmer control up (brighter) or
down (dimmer). When the headlights are ON you can
supplement the brightness of the odometer, trip odom-
eter, radio and overhead console by rotating the control
up until you hear a click. This feature is termed the
9Parade9mode and is useful when headlights are re-
quired during the day.
144 UNDERSTANDING THE FEATURES OF YOUR VEHICLE

Courtesy and dome lights are turned on when the front
doors are opened, when the dimmer control is rotated to
the second upward detent position or when the UN-
LOCK button is pressed on the Remote Keyless Entry
(RKE) transmitter. When a door is open and the interior
lights are on, rotating the dimmer control all of the waydown to the OFF detent will cause all the interior lights to
go out. This allows the doors to stay open for extended
periods of time without discharging the vehicle's battery.
Battery Saver
To protect the life of your vehicle's battery, load shedding
is provided for both the interior and exterior lights.
If the ignition is off and any door is left ajar for eight
minutes or the dimmer control is rotated upwards for 15
minutes, the interior lights will automatically turn off.
If the headlights remain on while the ignition is cycled
off, the exterior lights will automatically turn off after
eight minutes. If the headlights are turned on and left on
for eight minutes while the ignition is off, the exterior
lights will automatically turn off.
NOTE:Battery Saver mode is cancelled if the ignition is
ON.
Dimmer Control
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 145
3

NOTE:While the engine is running, the system will
deactivate the fog lights and heated seats if a low battery
system voltage is detected.
Illuminated Entry
The headlights turn will turn on for 90 seconds when the
RKE transmitter UNLOCK button is pressed.
The illuminated entry time is programmable on vehicles
equipped with the Electronic Vehicle Information Center
(EVIC). For details, refer to ªPersonal Settings (Customer
Programmable Features)º under ªOverhead Console
with Electronic Vehicle Information Center (EVIC) ± If
Equippedº in Section 3.
Daytime Running Lights (Canada Only)
The headlights on your vehicle will illuminate when the
engine is started and the transmission is not in PARK.
This provides a constant ªLights ONº condition until the
ignition is turned OFF or the transmission returned to
PARK. The lights illuminate at reduced intensity. If the
parking brake is applied the Daytime Running Lights
(DRLs) will turn off. If the headlights are activated, the
DRL feature will transition to the normal headlight
operating mode.
Lights-On Reminder
If the headlights, parking lights or courtesy lights are left
on after the ignition is turned OFF, a continuous fast
chime will sound when the driver's door is opened.
146 UNDERSTANDING THE FEATURES OF YOUR VEHICLE

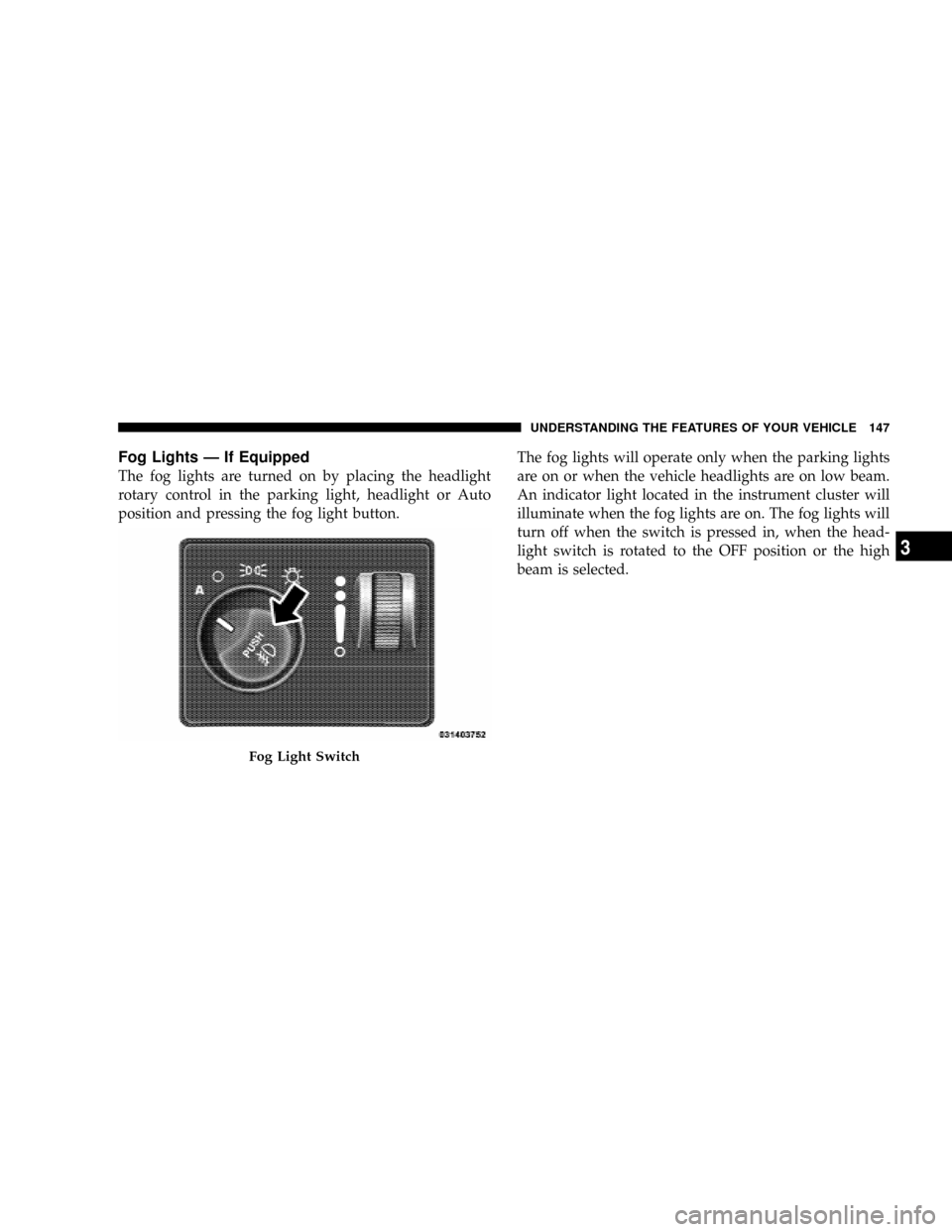

Fog Lights Ð If Equipped
The fog lights are turned on by placing the headlight
rotary control in the parking light, headlight or Auto
position and pressing the fog light button.The fog lights will operate only when the parking lights
are on or when the vehicle headlights are on low beam.
An indicator light located in the instrument cluster will
illuminate when the fog lights are on. The fog lights will
turn off when the switch is pressed in, when the head-
light switch is rotated to the OFF position or the high
beam is selected.
Fog Light Switch
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 147
3

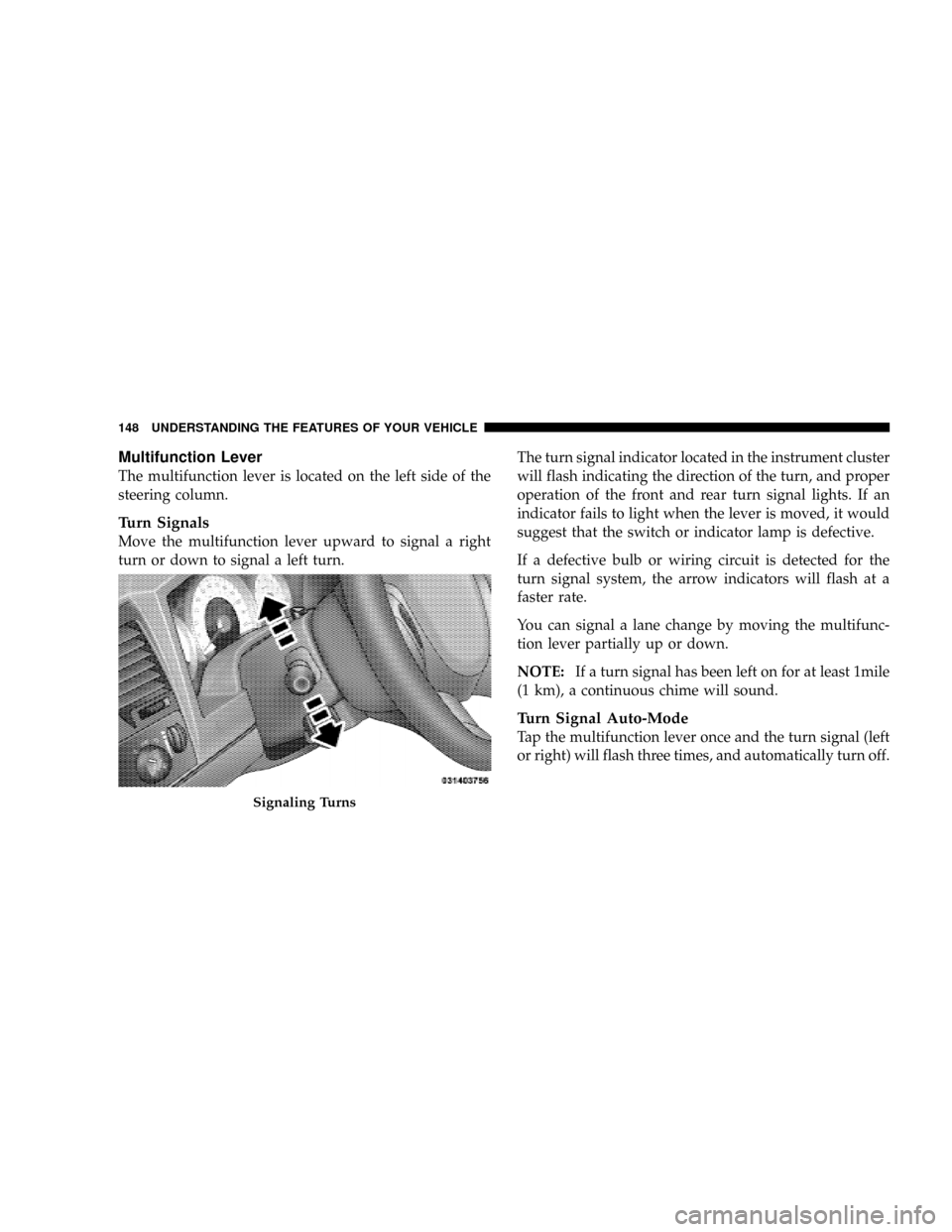

Multifunction Lever
The multifunction lever is located on the left side of the
steering column.
Turn Signals
Move the multifunction lever upward to signal a right
turn or down to signal a left turn.The turn signal indicator located in the instrument cluster
will flash indicating the direction of the turn, and proper
operation of the front and rear turn signal lights. If an
indicator fails to light when the lever is moved, it would
suggest that the switch or indicator lamp is defective.
If a defective bulb or wiring circuit is detected for the
turn signal system, the arrow indicators will flash at a
faster rate.
You can signal a lane change by moving the multifunc-
tion lever partially up or down.
NOTE:If a turn signal has been left on for at least 1mile
(1 km), a continuous chime will sound.
Turn Signal Auto-Mode
Tap the multifunction lever once and the turn signal (left
or right) will flash three times, and automatically turn off.
Signaling Turns
148 UNDERSTANDING THE FEATURES OF YOUR VEHICLE
