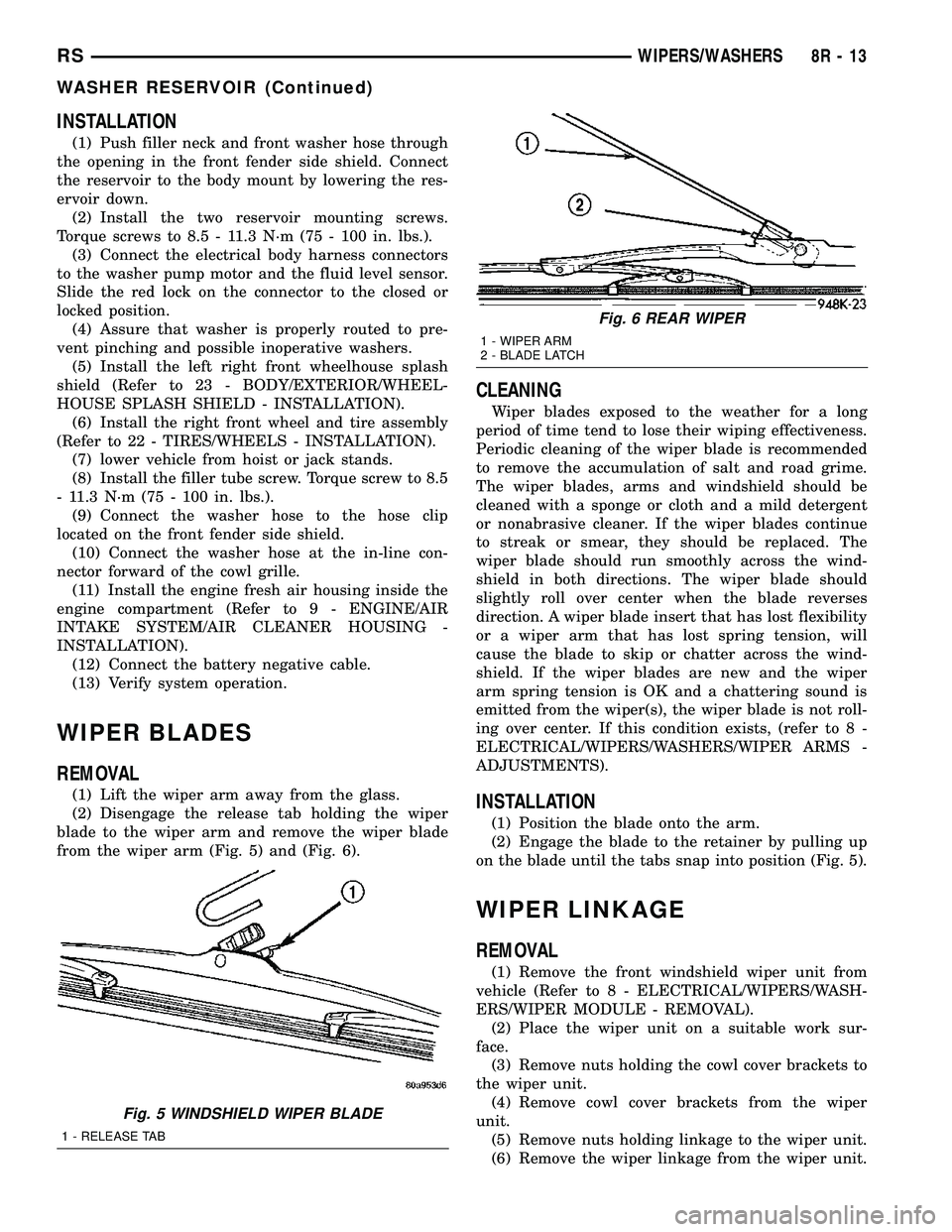

INSTALLATION
(1) Push filler neck and front washer hose through
the opening in the front fender side shield. Connect
the reservoir to the body mount by lowering the res-
ervoir down.
(2) Install the two reservoir mounting screws.
Torque screws to 8.5 - 11.3 N´m (75 - 100 in. lbs.).
(3) Connect the electrical body harness connectors
to the washer pump motor and the fluid level sensor.
Slide the red lock on the connector to the closed or
locked position.
(4) Assure that washer is properly routed to pre-
vent pinching and possible inoperative washers.
(5) Install the left right front wheelhouse splash
shield (Refer to 23 - BODY/EXTERIOR/WHEEL-
HOUSE SPLASH SHIELD - INSTALLATION).
(6) Install the right front wheel and tire assembly
(Refer to 22 - TIRES/WHEELS - INSTALLATION).
(7) lower vehicle from hoist or jack stands.
(8) Install the filler tube screw. Torque screw to 8.5
- 11.3 N´m (75 - 100 in. lbs.).
(9) Connect the washer hose to the hose clip
located on the front fender side shield.
(10) Connect the washer hose at the in-line con-
nector forward of the cowl grille.
(11) Install the engine fresh air housing inside the
engine compartment (Refer to 9 - ENGINE/AIR
INTAKE SYSTEM/AIR CLEANER HOUSING -
INSTALLATION).
(12) Connect the battery negative cable.
(13) Verify system operation.
WIPER BLADES
REMOVAL
(1) Lift the wiper arm away from the glass.
(2) Disengage the release tab holding the wiper
blade to the wiper arm and remove the wiper blade
from the wiper arm (Fig. 5) and (Fig. 6).
CLEANING
Wiper blades exposed to the weather for a long
period of time tend to lose their wiping effectiveness.
Periodic cleaning of the wiper blade is recommended
to remove the accumulation of salt and road grime.
The wiper blades, arms and windshield should be
cleaned with a sponge or cloth and a mild detergent
or nonabrasive cleaner. If the wiper blades continue
to streak or smear, they should be replaced. The
wiper blade should run smoothly across the wind-
shield in both directions. The wiper blade should
slightly roll over center when the blade reverses
direction. A wiper blade insert that has lost flexibility
or a wiper arm that has lost spring tension, will
cause the blade to skip or chatter across the wind-
shield. If the wiper blades are new and the wiper
arm spring tension is OK and a chattering sound is
emitted from the wiper(s), the wiper blade is not roll-
ing over center. If this condition exists, (refer to 8 -
ELECTRICAL/WIPERS/WASHERS/WIPER ARMS -
ADJUSTMENTS).
INSTALLATION
(1) Position the blade onto the arm.
(2) Engage the blade to the retainer by pulling up
on the blade until the tabs snap into position (Fig. 5).
WIPER LINKAGE
REMOVAL
(1) Remove the front windshield wiper unit from
vehicle (Refer to 8 - ELECTRICAL/WIPERS/WASH-
ERS/WIPER MODULE - REMOVAL).
(2) Place the wiper unit on a suitable work sur-
face.
(3) Remove nuts holding the cowl cover brackets to
the wiper unit.
(4) Remove cowl cover brackets from the wiper
unit.
(5) Remove nuts holding linkage to the wiper unit.
(6) Remove the wiper linkage from the wiper unit.
Fig. 5 WINDSHIELD WIPER BLADE
1 - RELEASE TAB
Fig. 6 REAR WIPER
1 - WIPER ARM
2 - BLADE LATCH
RSWIPERS/WASHERS8R-13
WASHER RESERVOIR (Continued)
Page 582 of 2339
8W-02 COMPONENT INDEX
Component Page
A/C Compressor Clutch................. 8W-42
A/C Compressor Clutch Relay............ 8W-42
A/C Pressure Sensor................... 8W-42
A/C-Heater Control.................... 8W-42
Accelerator Pedal Position Sensor......... 8W-30
Accessory Relay....................... 8W-10
Adjustable Pedals Motor................ 8W-56
Adjustable Pedals Relay................ 8W-56
Adjustable Pedals Sensor............... 8W-56
Adjustable Pedals Switch............... 8W-56
Airbag.............................. 8W-43
Airbag On/Off Indicator Lamp............ 8W-43
Airbag Squibs........................ 8W-43
Ambient Temperature Sensor............ 8W-49
Amplifier............................ 8W-47
Antenna............................ 8W-47
ATC Remote Sensor.................... 8W-42
Auto Shut Down Relay................. 8W-30
Auto Temp Control.................... 8W-42
B-Pillar Switches...................... 8W-61
Back-Up Lamp Switch.................. 8W-51
Battery............................. 8W-20
Battery Temperature Sensor............. 8W-20
Belt Tension Sensor.................... 8W-43
Blend Door Actuators.................. 8W-42
Blower Motors........................ 8W-42
Blower Motor Relays................... 8W-42
Blower Motor Resistor.................. 8W-42
Body Control Module................... 8W-45
Boost Pressure Sensor.................. 8W-30
Brake Fluid Level Switch............... 8W-35
Brake Lamp Switch................. 8W-30, 51
Brake Transmission Shift Interlock
Solenoid........................... 8W-31
Cabin Heater Assist................... 8W-30
Camshaft Position Sensor............... 8W-30
CD Changer......................... 8W-47
Center High Mounted Stop Lamp......... 8W-51
Cinch/Release Motors.................. 8W-61
Clockspring.............. 8W-30, 33, 41, 43, 47
Clutch Pedal Interlock Switch............ 8W-21
Clutch Pedal Upstop Switch............. 8W-30
Controller Antilock Brake............... 8W-35
Crank Case Ventilation Heater........... 8W-30
Crankshaft Position Sensor.............. 8W-30
Cylinder Lock Switches................. 8W-39
Data Link Connector................... 8W-18
Defogger Relay....................... 8W-48
Door Ajar Switches.................... 8W-39
Door Courtesy Lamps.................. 8W-44
Door Lock Motor/Ajar Switches........... 8W-61
Door Lock Switches.................... 8W-61Component Page
Dosing Pump......................... 8W-30
DVD Screen.......................... 8W-47
DVD/CD Changer..................... 8W-47
ECM/PCM Relay...................... 8W-30
EGR Solenoid........................ 8W-30
Electronic Control Unit................. 8W-64
Engine Control Module................. 8W-30
Engine Coolant Temp Sensor............. 8W-30
Engine Oil Pressure Sensor.............. 8W-30
Engine Oil Pressure Switch.............. 8W-30
EVAP/Purge Solenoid.................. 8W-30
Evaporator Temperature Sensor.......... 8W-42
Floor Console Lamp................... 8W-44
Fog Lamps.......................... 8W-50
Folding Mirror Relay................... 8W-62
Front Blower Module.................. 8W-42
Front Cigar Lighter.................... 8W-41
Front Control Module.................. 8W-10
Front Fog Lamp Relay................. 8W-50
Front Intrusion Sensor................. 8W-39
Front Reading Lamps/Switch............ 8W-44
Front Wiper High/Low Relay............. 8W-53
Front Wiper On/Off Relay............... 8W-53
Fuel Heater.......................... 8W-30
Fuel Heater Relay..................... 8W-30
Fuel Injectors........................ 8W-30
Fuel Pressure Sensor.................. 8W-30
Fuel Pressure Solenoid................. 8W-30
Fuel Pump Module.................... 8W-30
Fuel Pump Relay...................... 8W-30
Full Open Switches.................... 8W-61
Fuselink............................ 8W-10
Fuses............................... 8W-10
Generator........................... 8W-20
Glow Plug Relay...................... 8W-30
Glow Plugs.......................... 8W-30
Grounds............................ 8W-15
Hands Free Module................. 8W-47, 55
Headlamp Leveling Motors.............. 8W-50
Headlamp Switch..................... 8W-50
Headlamp Washer Pump Motor.......... 8W-53
Headlamp Washer Relay................ 8W-53
Headlamps.......................... 8W-50
Heated Seat Backs.................... 8W-63
Heated Seat Cushions.................. 8W-63
Heated Seat Modules.................. 8W-63
High Beam Lamps..................... 8W-50
High Note Horn....................... 8W-41
Hood Ajar Switch..................... 8W-39
Horn Relay.......................... 8W-41
Horn Switch......................... 8W-41
Idle Air Control Motor.................. 8W-30
RS8W-02 COMPONENT INDEX8W-02-1
Page 583 of 2339
Component Page
Ignition Coil......................... 8W-30
Ignition Switch....................... 8W-10
Impact Sensors....................... 8W-43
Inlet Air Temperature Sensor............ 8W-30
Instrument Cluster.................... 8W-40
Instrument Panel Switch
Bank.................. 8W-43, 44, 52, 53, 63
Integrated Power Module............... 8W-10
Knock Sensor........................ 8W-30
Lamp Assemblies...................... 8W-51
License Lamp..................... 8W-51, 61
Lift Pump Motor...................... 8W-30
Lift Pump Relay...................... 8W-30
Liftgate Ajar Switch................ 8W-39, 61
Liftgate Cinch/Release Motor............ 8W-61
Liftgate Flood Lamps.................. 8W-44
Liftgate Pinch Sensors................. 8W-61
Low Beam Lamps..................... 8W-50
Manifold Absolute Pressure Sensor........ 8W-30
Mass Air Flow Sensor.................. 8W-30
Memory Seat/Mirror/Adjustable Pedals
Module...................... 8W-56, 62, 63
Memory Set Switch.................... 8W-63
Message Center.................... 8W-40, 46
Mode Door Actuator................... 8W-42
Multi-Function Switch............ 8W-50, 52, 53
Natural Vacuum Leak Detection Assembly . . 8W-30
Occupant Classification Module.......... 8W-43
Occupant Restraint Controller........... 8W-43
Overhead Console..................... 8W-49
Oxygen Sensors....................... 8W-30
Park Assist Display.................... 8W-56
Park Assist Module.................... 8W-56
Park Assist Sensors.................... 8W-56
Park Lamp Relay..................... 8W-10
Park Lamps.......................... 8W-50
Park/Turn Signal Lamps................ 8W-50
Parking Brake Switch.................. 8W-40
Power Folding Mirror Switch............ 8W-62
Power Liftgate Module................. 8W-61
Power Liftgate Motor.................. 8W-61
Power Mirror Switch................... 8W-62
Power Mirrors........................ 8W-62
Power Outlets........................ 8W-41
Power Seat Circuit Breaker.............. 8W-10
Power Seat Motors.................... 8W-63
Power Seat Position Sensors............. 8W-63
Power Seat Switches................... 8W-63
Power Window Circuit Breaker........... 8W-10
Power Window Motors.................. 8W-60
Power Window Switches................ 8W-60
Powertrain Control Module........... 8W-30, 31
PTCs............................... 8W-10
Radiator Fan Relaies................... 8W-42Component Page
Radiator Fans........................ 8W-42
Radio............................... 8W-47
Reading Lamps....................... 8W-44
Rear A/C-Heater Unit.................. 8W-42
Rear Auto Temp Control Switch.......... 8W-42
Rear Blower Control Switches............ 8W-42
Rear Blower Motor Power Module......... 8W-42
Rear Dome Lamp..................... 8W-44
Rear Intrusion Sensor.................. 8W-39
Rear Mode Motor..................... 8W-42
Rear Temperature Motor................ 8W-42
Rear View Mirror................ 8W-49, 55, 62
Rear Window Defogger Grid............. 8W-48
Rear Wiper Motor..................... 8W-53
Recirculation Door Actuator............. 8W-42
Remote Radio Switches................. 8W-47
Repeater Lamps...................... 8W-52
Seat Belt Switches.................... 8W-43
Seat Belt Tensioners................... 8W-43
Seat Weight Sensor.................... 8W-43
Sentry Key Remote Entry Module......... 8W-39
Siren............................... 8W-39
Sliding Door Control Modules............ 8W-61
Sliding Door Latch Sensing Switches...... 8W-61
Sliding Door Lock Motors............... 8W-61
Sliding Door Motors................... 8W-61
Speakers............................ 8W-47
Speed Control Servo................... 8W-33
Speed Control Switches................. 8W-33
Speed Sensors........................ 8W-31
Splices.............................. 8W-70
Starter Motor........................ 8W-21
Starter Motor Relay................... 8W-21
Sunroof Module....................... 8W-64
Sunroof Switch....................... 8W-64
Thatcham Alarm Indicator.............. 8W-39
Thatcham Alarm Module................ 8W-39
Throttle Position Sensor................ 8W-30
Traction Control Switch................. 8W-35
Trailer Tow Connector.................. 8W-54
Transmission Control Module............ 8W-31
Transmission Control Relay............. 8W-31
Transmission Range Sensor.............. 8W-31
Transmission Solenoid/Pressure Switch
Assembly.......................... 8W-31
Turn Signal Lamps.................... 8W-52
Vehicle Speed Sensor................... 8W-30
Vent Motors.......................... 8W-60
Visor/Vanity Lamps.................... 8W-44
Washer Fluid Level Switch.............. 8W-53
Washer Pump Motor................... 8W-53
Water In Fuel Sensor.................. 8W-30
Wheel Speed Sensors................... 8W-35
Wiper Module........................ 8W-53
8W - 02 - 2 8W-02 COMPONENT INDEXRS
Page 584 of 2339
8W-10 POWER DISTRIBUTION
Component Page
A/C Compressor Clutch...... 8W-10-22, 24, 45, 48
A/C Compressor
Clutch Relay......... 8W-10-22, 24, 44, 45, 48
Accessory Relay............... 8W-10-16, 31, 65
Adjustable Pedals Relay........... 8W-10-47, 60
Adjustable Pedals Switch.......... 8W-10-40, 47
Ambient Temperature Sensor.......... 8W-10-62
Amplifier....................... 8W-10-32, 50
Auto Shut Down Relay............ 8W-10-21, 41
Auto Temp Control.................. 8W-10-40
Back-Up Lamp Switch............... 8W-10-66
Battery............... 8W-10-13, 14, 15, 41, 48
Blower Motor Resistor............ 8W-10-19, 38
Body Control Module....... 8W-10-25, 40, 45, 49,
50, 52, 54, 55, 56, 57, 67, 68
Brake Fluid Level Switch............. 8W-10-65
Brake Lamp Switch........... 8W-10-26, 52, 67
Brake Transmission Shift Interlock
Solenoid........................ 8W-10-63
Cabin Heater Assist........... 8W-10-23, 43, 60
Camshaft Position Sensor............. 8W-10-44
Center High Mounted Stop Lamp....... 8W-10-67
Clockspring........................ 8W-10-61
Clutch Pedal Interlock
Switch.............. 8W-10-18, 37, 54, 55, 61
Controller Antilock
Brake...... 8W-10-18, 25, 36, 37, 50, 56, 62, 67
Crank Case Ventilation Heater......... 8W-10-49
Data Link Connector........... 8W-10-35, 62, 68
Defogger Relay............ 8W-10-19, 20, 39, 64
Driver Heated Seat Module........... 8W-10-50
Driver Power Seat Switch............ 8W-10-50
Driver Power Window Switch....... 8W-10-33, 34
DVD/CD Changer................... 8W-10-40
ECM/PCM Relay................. 8W-10-23, 43
EGR Solenoid...................... 8W-10-44
Engine Control Module . . . 8W-10-18, 23, 24, 37, 43,
44, 48, 62, 67
Floor Console Lamp................. 8W-10-32
Floor Console Power Outlet........ 8W-10-32, 35
Front Blower Module............. 8W-10-19, 38
Front Blower Motor Relay.... 8W-10-18, 19, 38, 64
Front Cigar Lighter.............. 8W-10-16, 32
Front Control Module....... 8W-10-15, 16, 17, 18,
19, 20, 22, 24, 26, 27,
28, 29, 30, 31, 35, 36,
37, 38, 39, 45, 47, 48,
53, 54, 55, 58, 59, 60,
61, 62, 63, 64, 65, 66,
67, 68, 69
Front Fog Lamp Relay......... 8W-10-15, 27, 64
Front Wiper High/Low Relay.... 8W-10-16, 30, 65Component Page
Front Wiper On/Off Relay....... 8W-10-16, 30, 60
Fuel Heater....................... 8W-10-49
Fuel Heater Relay............. 8W-10-24, 48, 65
Fuel Injector No. 1.................. 8W-10-42
Fuel Injector No. 2.................. 8W-10-42
Fuel Injector No. 3.................. 8W-10-42
Fuel Injector No. 4.................. 8W-10-42
Fuel Injector No. 5.................. 8W-10-42
Fuel Injector No. 6.................. 8W-10-42
Fuel Pressure Solenoid............... 8W-10-44
Fuel Pump Module............... 8W-10-22, 45
Fuel Pump Relay............. 8W-10-22, 45, 65
Fuse 1...................... 8W-10-15, 16, 27
Fuse 2...................... 8W-10-15, 28, 29
Fuse 3...................... 8W-10-15, 28, 29
Fuse 4................... 8W-10-15, 16, 17, 30
Fuse 5......................... 8W-10-16, 31
Fuse 6......................... 8W-10-16, 31
Fuse 8......................... 8W-10-17, 35
Fuse 9................ 8W-10-17, 18, 19, 36, 37
Fuse 10........................ 8W-10-19, 38
Fuse 11........................ 8W-10-16, 31
Fuse 12........................ 8W-10-19, 38
Fuse 13........................ 8W-10-20, 39
Fuse 14............ 8W-10-20, 21, 23, 39, 47, 60
Fuse 15......... 8W-10-20, 21, 22, 23, 24, 41, 43
Fuse 16.................. 8W-10-21, 23, 41, 43
Fuse 17............ 8W-10-21, 22, 23, 24, 45, 48
Fuse 18............... 8W-10-22, 24, 25, 45, 48
Fuse 19............... 8W-10-22, 24, 25, 26, 50
Fuse 20........................ 8W-10-25, 50
Fuse 21........................ 8W-10-25, 50
Fuse 22........................ 8W-10-25, 50
Fuse 23..................... 8W-10-25, 54, 55
Fuse 24........................ 8W-10-25, 52
Fuse 26..................... 8W-10-25, 26, 52
Fuse 27........................ 8W-10-26, 52
Fuse 28........................ 8W-10-16, 31
Fuse 30........................ 8W-10-26, 53
Fuse 31........................ 8W-10-26, 53
Fuse 32........................ 8W-10-26, 53
Fuselink....................... 8W-10-13, 14
G100............................. 8W-10-56
G101....................... 8W-10-41, 48, 68
G103............................. 8W-10-68
G300.......................... 8W-10-58, 59
Generator................... 8W-10-13, 14, 44
Glow Plug Relay................. 8W-10-13, 44
Hands Free Module................. 8W-10-40
Headlamp Switch................ 8W-10-29, 63
Headlamp Washer Pump Motor..... 8W-10-26, 53
Headlamp Washer Relay........ 8W-10-26, 53, 64
RS8W-10 POWER DISTRIBUTION8W-10-1
Page 585 of 2339
Component Page
High Note Horn................. 8W-10-17, 35
Horn Relay.................. 8W-10-17, 35, 60
Ignition Coil....................... 8W-10-42
Ignition Switch . . . 8W-10-18, 25, 36, 37, 45, 46, 49,
54, 55, 61
Instrument Cluster............... 8W-10-25, 52
Instrument Panel Switch Bank........ 8W-10-69
Integrated Power Module . 8W-10-3, 4, 5, 13, 15, 16,
17, 18, 19, 20, 21, 22, 23, 24, 25, 26, 27, 28, 29,
30, 31, 32, 35, 36, 37, 38, 39, 40, 41, 42, 43, 44,
45, 47, 48, 49, 50, 52, 53, 54, 55, 56, 57, 58, 59,
60, 61, 62, 63, 64, 65, 66, 67, 68, 69
Left Fog Lamp.................. 8W-10-15, 27
Left Front Park/Turn
Signal Lamp............ 8W-10-15, 28, 57, 66
Left Headlamp..................... 8W-10-58
Left Headlamp Leveling Motor . . . 8W-10-29, 63, 66
Left High Beam Lamp............... 8W-10-59
Left Low Beam Lamp................ 8W-10-59
Left Park Lamp.............. 8W-10-29, 59, 66
Left Power Mirror................... 8W-10-39
Left Rear Lamp Assembly....... 8W-10-28, 29, 66
Left Repeater Lamp................. 8W-10-52
Left Sliding Door Control Module.... 8W-10-26, 53
Left Turn Signal Lamp............... 8W-10-57
License Lamp................ 8W-10-28, 29, 66
Lift Pump Motor................. 8W-10-23, 43
Lift Pump Relay................. 8W-10-23, 43
Mass Air Flow Sensor................ 8W-10-44
Memory Seat/Mirror/Adjustable Pedals
Module......................... 8W-10-50
Message Center.................... 8W-10-52
Occupant Classification Module........ 8W-10-69
Occupant Restraint Controller...... 8W-10-64, 69
Overhead Console................... 8W-10-40
Park Assist Module............... 8W-10-45, 54
Park Lamp Relay.......... 8W-10-15, 28, 29, 60
Passenger Airbag On/Off Indicator
Lamp.......................... 8W-10-69
Passenger Folding Mirror
Relay.................. 8W-10-22, 24, 45, 48
Passenger Heated Seat Module........ 8W-10-51
Passenger Power Seat Switch.......... 8W-10-51
Passenger Power Window Switch....... 8W-10-31
Power Liftgate Module............ 8W-10-26, 53
Power Mirror Switch........ 8W-10-22, 24, 47, 48
Power Outlet...................... 8W-10-35
Power Seat Circuit Breaker........ 8W-10-25, 50Component Page
Power Window Circuit Breaker...... 8W-10-16, 31
Power Window Switch............... 8W-10-33
Powertrain Control Module . . 8W-10-18, 21, 22, 36,
41, 42, 45, 56, 62, 63, 68
PTC4 ......................... 8W-10-20, 39
PTC7 ................... 8W-10-16, 17, 18, 35
Radiator Fan Relay............ 8W-10-26, 52, 56
Radiator Fan Relay No. 1.......... 8W-10-13, 44
Radiator Fan Relay No. 2....... 8W-10-26, 44, 52
Radiator Fan Relay No. 3............. 8W-10-44
Radio......................... 8W-10-32, 40
Rear A/C-Heater Unit............. 8W-10-19, 38
Rear Blower Motor Power Module . . . 8W-10-19, 38
Rear Blower Motor Relay.... 8W-10-19, 20, 38, 64
Rear Power Outlet............ 8W-10-16, 31, 32
Rear Window Defogger Grid........ 8W-10-20, 39
Rear Wiper Motor................ 8W-10-16, 31
Right Fog Lamp................. 8W-10-15, 27
Right Front Park/Turn
Signal Lamp............ 8W-10-15, 28, 57, 61
Right Headlamp.................... 8W-10-58
Right Headlamp Leveling Motor . . 8W-10-29, 61, 63
Right High Beam Lamp.............. 8W-10-59
Right Low Beam Lamp............... 8W-10-59
Right Park Lamp............. 8W-10-29, 59, 61
Right Power Mirror................. 8W-10-39
Right Rear Lamp
Assembly............ 8W-10-15, 28, 29, 61, 67
Right Repeater Lamp................ 8W-10-52
Right Sliding Door Control Module . . . 8W-10-26, 53
Right Turn Signal Lamp.............. 8W-10-57
Sentry Key Remote Entry
Module.............. 8W-10-40, 46, 49, 54, 55
Siren............................. 8W-10-40
Starter Motor.......... 8W-10-13, 14, 18, 36, 37
Starter Motor Relay...... 8W-10-18, 36, 37, 54, 55
Sunroof Module.................. 8W-10-31, 53
Thatcham Alarm Module . . 8W-10-40, 46, 49, 55, 68
Trailer Tow Connector............ 8W-10-28, 66
Transmission Control Module....... 8W-10-13, 62
Transmission Control Relay..... 8W-10-13, 21, 41
Transmission Solenoid/Pressure Switch
Assembly....................... 8W-10-41
Vehicle Speed Sensor................ 8W-10-43
Washer Fluid Level Switch............ 8W-10-61
Washer Pump Motor................. 8W-10-69
Wiper Module................ 8W-10-16, 30, 60
8W - 10 - 2 8W-10 POWER DISTRIBUTIONRS
Page 654 of 2339
8W-15 GROUND DISTRIBUTION
Component Page
A/C Compressor Clutch...................8W-15-2, 9
A/C-Heater Control....................8W-15-10, 12
Adjustable Pedals Switch...................8W-15-11
Amplifier............................8W-15-27
Auto Temp Control......................8W-15-10
Back-Up Lamp Switch...................8W-15-2, 4
Battery...........................8W-15-2, 3, 4
Body Control Module.....................8W-15-24
Brake Fluid Level Switch..................8W-15-18
Brake Lamp Switch......................8W-15-18
Cabin Heater Assist......................8W-15-9
CD Changer...........................8W-15-13
Center High Mounted Stop Lamp.............8W-15-30
Clutch Pedal Interlock Switch................8W-15-18
Clutch Pedal Upstop Switch.................8W-15-19
Controller Antilock Brake.................8W-15-2, 4
Crank Case Ventilation Heater................8W-15-9
Crankshaft Position Sensor..................8W-15-4
Data Link Connector..................8W-15-3, 4, 18
Dosing Pump...........................8W-15-9
Driver Door Courtesy Lamp...............8W-15-15, 21
Driver Door Lock Switch.................8W-15-15, 21
Driver Heated Seat Cushion.................8W-15-17
Driver Heated Seat Module.................8W-15-17
Driver Power Seat Switch..................8W-15-17
Driver Power Window Switch..............8W-15-15, 21
DVD/CD Changer.......................8W-15-11
EGR Solenoid..........................8W-15-3
Engine Control Module.....................8W-15-4
Floor Console Lamp......................8W-15-28
Floor Console Power Outlet.................8W-15-28
Front Blower Module.....................8W-15-12
Front Cigar Lighter......................8W-15-10
Front Control Module................8W-15-2, 8, 9, 19
Front Reading Lamps/Switch................8W-15-22
Fuel Heater...........................8W-15-28
Fuel Heater Relay........................8W-15-4
Fuel Pump Module......................8W-15-28
G100..............................8W-15-2, 4
G101..............................8W-15-2, 4
G102.............................8W-15-5, 6, 7
G103................................8W-15-9
G200..........................8W-15-10, 11, 12
G201...............................8W-15-13
G202...............................8W-15-13
G300....................8W-15-12, 14, 16, 17, 18, 19
G301......................8W-15-20, 21, 22, 24, 25
G302..........................8W-15-26, 27, 28
G303..........................8W-15-28, 29, 30
Generator.............................8W-15-2
Hands Free Module......................8W-15-11
Headlamp Switch.......................8W-15-10
Headlamp Washer Pump Motor...............8W-15-7
High Note Horn.........................8W-15-6
Hood Ajar Switch.......................8W-15-19
Horn Switch..........................8W-15-12
Instrument Cluster......................8W-15-10
Instrument Panel Switch Bank...............8W-15-10
Integrated Power Module...........8W-15-2, 3, 4, 8, 9, 19
Left B-Pillar Switch......................8W-15-18
Left Cinch/Release Motor..................8W-15-14
Left Cylinder Lock Switch................8W-15-15, 16
Left Fog Lamp..........................8W-15-6
Left Front Door Ajar Switch.................8W-15-16
Left Front Door Lock Motor/Ajar Switch.......8W-15-15, 16
Left Front Park/Turn Signal Lamp.............8W-15-6
Left Full Open Switch....................8W-15-14
Left Headlamp.........................8W-15-19
Left Headlamp Leveling Motor................8W-15-7
Left High Beam Lamp...................8W-15-8, 19
Left Liftgate Flood Lamp...................8W-15-29
Left Low Beam Lamp...................8W-15-8, 19
Left Mid Reading Lamp...................8W-15-23
Left Park Lamp.......................8W-15-8, 19
Left Power Mirror.......................8W-15-12
Left Rear Lamp Assembly..................8W-15-28
Left Rear Reading Lamp...................8W-15-23
Left Sliding Door Control Module.............8W-15-14
Left Sliding Door Latch Sensing Switch..........8W-15-14
Left Sliding Door Lock Motor................8W-15-14
Left Sliding Door Lock Motor/Ajar Switch........8W-15-14
Left Sliding Door Motor...................8W-15-14Component Page
Left Turn Signal Lamp....................8W-15-19
Left Visor/Vanity Lamp....................8W-15-23
License Lamp.......................8W-15-26, 29
Lift Pump Motor........................8W-15-28
Liftgate Ajar Switch......................8W-15-30
Liftgate Cinch/Release Motor..............8W-15-26, 30
Liftgate Right Pinch Sensor.................8W-15-26
Memory Seat/Mirror/Adjustable Pedals Module.....8W-15-17
Natural Vacuum Leak Detection Assembly.......8W-15-2, 3
Occupant Classification Module...............8W-15-24
Occupant Restraint Controller...............8W-15-13
Overhead Console.......................8W-15-22
Oxygen Sensor 1/1 Upstream.................8W-15-3
Oxygen Sensor 1/2 Downstream...............8W-15-3
Park Assist Display......................8W-15-28
Park Assist Module......................8W-15-28
Passenger Door Courtesy Lamp............8W-15-16, 21
Passenger Door Lock Switch..............8W-15-16, 21
Passenger Heated Seat Back................8W-15-25
Passenger Heated Seat Cushion..............8W-15-25
Passenger Heated Seat Module...............8W-15-25
Passenger Power Seat Switch................8W-15-25
Power Folding Mirror Switch................8W-15-12
Power Liftgate Module..................8W-15-26, 28
Power Liftgate Motor.....................8W-15-26
Power Mirror Switch.....................8W-15-12
Power Outlet..........................8W-15-10
Power Window Switch....................8W-15-15
Powertrain Control Module..................8W-15-3
Radiator Fan No. 1.......................8W-15-5
Radiator Fan No. 2.......................8W-15-5
Radiator Fan Relay.......................8W-15-5
Radiator Fan Relay No. 3...................8W-15-5
Radio...............................8W-15-13
Rear Auto Temp Control Switch..............8W-15-18
Rear Blower Front Control Switch.............8W-15-12
Rear Blower Motor Power Module.............8W-15-28
Rear Blower Rear Control Switch.............8W-15-18
Rear Dome Lamp.....................8W-15-22, 23
Rear Power Outlet.......................8W-15-28
Rear View Mirror.....................8W-15-11, 22
Rear Window Defogger Grid.................8W-15-30
Rear Wiper Motor.......................8W-15-29
Right B-Pillar Switch.....................8W-15-24
Right Cinch/Release Motor..................8W-15-20
Right Cylinder Lock Switch.................8W-15-21
Right Fog Lamp.........................8W-15-6
Right Front Door Ajar Switch................8W-15-21
Right Front Door Lock Motor/Ajar Switch........8W-15-21
Right Front Park/Turn Signal Lamp............8W-15-6
Right Full Open Switch...................8W-15-20
Right Headlamp........................8W-15-19
Right Headlamp Leveling Motor...............8W-15-7
Right High Beam Lamp..................8W-15-8, 19
Right Liftgate Flood Lamp..................8W-15-29
Right Low Beam Lamp..................8W-15-8, 19
Right Mid Reading Lamp..................8W-15-23
Right Park Lamp......................8W-15-8, 19
Right Power Mirror....................8W-15-11, 12
Right Rear Lamp Assembly...............8W-15-27, 28
Right Rear Reading Lamp..................8W-15-23
Right Sliding Door Control Module............8W-15-20
Right Sliding Door Latch Sensing Switch.........8W-15-20
Right Sliding Door Lock Motor...............8W-15-20
Right Sliding Door Lock Motor/Ajar Switch.......8W-15-20
Right Sliding Door Motor..................8W-15-20
Right Turn Signal Lamp...................8W-15-19
Right Visor/Vanity Lamp...................8W-15-23
Sentry Key Remote Entry Module.............8W-15-11
Siren...............................8W-15-11
Speed Control Servo......................8W-15-2
Sunroof Module........................8W-15-27
Sunroof Switch.........................8W-15-23
Thatcham Alarm Module...................8W-15-11
Traction Control Switch...................8W-15-11
Trailer Tow Connector....................8W-15-27
Transmission Control Module.................8W-15-4
Transmission Control Relay................8W-15-3, 4
Washer Fluid Level Switch..................8W-15-5
Wiper Module..........................8W-15-18
RS8W-15 GROUND DISTRIBUTION8W-15-1
Page 690 of 2339
8W-20 CHARGING SYSTEM
Component Page
Auto Shut Down Relay................ 8W-20-2
Battery.......................... 8W-20-2, 4
Battery Temperature Sensor......... 8W-20-2, 4
ECM/PCM Relay.................... 8W-20-4
Engine Control Module................ 8W-20-4
Fuse 16.......................... 8W-20-2, 4
Fuse 17............................ 8W-20-2Component Page
Fuselink......................... 8W-20-2, 4
G100............................ 8W-20-2, 4
G101.......................... 8W-20-2, 3, 4
Generator...................... 8W-20-2, 3, 4
Integrated Power Module............ 8W-20-2, 4
Powertrain Control Module.......... 8W-20-2, 3
Starter Motor..................... 8W-20-2, 4
RS8W-20 CHARGING SYSTEM8W-20-1
Page 698 of 2339
8W-30 FUEL/IGNITION SYSTEM
Component Page
A/C Compressor Clutch.............. 8W-30-20
A/C Compressor Clutch Relay........ 8W-30-4, 20
A/C Pressure Sensor........... 8W-30-13, 18, 27
Accelerator Pedal Position Sensor.... 8W-30-32, 34
Ambient Temperature Sensor........... 8W-30-8
Auto Shut Down Relay.... 8W-30-4, 11, 14, 16, 19
Battery.............. 8W-30-2, 6, 10, 15, 20, 28
Battery Temperature Sensor......... 8W-30-8, 27
Body Control Module.............. 8W-30-5, 21
Boost Pressure Sensor............... 8W-30-27
Brake Lamp Switch............ 8W-30-7, 23, 33
Cabin Heater Assist................. 8W-30-24
Camshaft Position Sensor........... 8W-30-8, 26
Clockspring................... 8W-30-5, 25, 32
Clutch Pedal Interlock Switch.......... 8W-30-7
Clutch Pedal Upstop Switch........... 8W-30-32
Crank Case Ventilation Heater......... 8W-30-21
Crankshaft Position Sensor...... 8W-30-12, 17, 26
Data Link Connector.............. 8W-30-3, 24
Dosing Pump...................... 8W-30-24
ECM/PCM Relay........ 8W-30-20, 22, 26, 28, 30
EGR Solenoid................... 8W-30-15, 30
Engine Control Module . . . 8W-30-20, 21, 22, 23, 24,
25, 26, 27, 28, 29, 30, 31, 32, 33, 34, 35
Engine Coolant Temp Sensor.... 8W-30-13, 18, 27
Engine Oil Pressure Sensor........... 8W-30-23
Engine Oil Pressure Switch............ 8W-30-7
EVAP/Purge Solenoid................. 8W-30-4
Front Control Module......... 8W-30-2, 5, 24, 32
Fuel Heater....................... 8W-30-31
Fuel Heater Relay................ 8W-30-21, 31
Fuel Injector No. 1............ 8W-30-14, 19, 29
Fuel Injector No. 2............ 8W-30-14, 19, 29
Fuel Injector No. 3............ 8W-30-14, 19, 29
Fuel Injector No. 4............ 8W-30-14, 19, 29
Fuel Injector No. 5.................. 8W-30-19
Fuel Injector No. 6.................. 8W-30-19
Fuel Pressure Sensor................ 8W-30-33
Fuel Pressure Solenoid............... 8W-30-22
Fuel Pump Module................ 8W-30-5, 21
Fuel Pump Relay.................... 8W-30-5
Fuse 15........................ 8W-30-24, 31
Fuse 16 . . 8W-30-4, 11, 14, 16, 19, 20, 22, 26, 28, 30
Fuse 17.................... 8W-30-2, 5, 21, 31
Fuse 18........................... 8W-30-20
Fuse 26........................... 8W-30-33
Fuselink.......................... 8W-30-28Component Page
G100...................... 8W-30-2, 6, 15, 21
G101................. 8W-30-2, 6, 7, 10, 15, 20
G103....................... 8W-30-20, 21, 24
G300........................ 8W-30-7, 23, 32
G302........................ 8W-30-5, 21, 31
Generator....................... 8W-30-4, 21
Glow Plug No. 1.................... 8W-30-28
Glow Plug No. 2.................... 8W-30-28
Glow Plug No. 3.................... 8W-30-28
Glow Plug No. 4.................... 8W-30-28
Glow Plug Relay.................... 8W-30-28
Idle Air Control Motor................ 8W-30-9
Ignition Coil.................... 8W-30-11, 16
Ignition Switch..................... 8W-30-10
Inlet Air Temperature Sensor....... 8W-30-12, 17
Integrated Power Module . . 8W-30-2, 3, 4, 5, 10, 11,
14, 16, 19, 20, 21, 22, 24,
26, 28, 30, 31, 32, 33
Knock Sensor....................... 8W-30-9
Left Speed Control Switch.......... 8W-30-5, 25
Lift Pump Motor.................... 8W-30-31
Lift Pump Relay.................... 8W-30-31
Manifold Absolute Pressure Sensor . . . 8W-30-13, 18
Mass Air Flow Sensor................ 8W-30-22
Natural Vacuum Leak Detection
Assembly....................... 8W-30-10
Oxygen Sensor 1/1 Upstream........... 8W-30-6
Oxygen Sensor 1/2 Downstream......... 8W-30-6
Powertrain Control Module . . 8W-30-2, 3, 4, 5, 6, 7,
8, 9, 10, 11, 12, 13, 14,
15, 16, 17, 18, 19
Radiator Fan Relay............... 8W-30-11, 16
Radiator Fan Relay No. 1............. 8W-30-33
Radiator Fan Relay No. 2............. 8W-30-33
Radiator Fan Relay No. 3............. 8W-30-33
Right Speed Control Switch......... 8W-30-5, 25
Speed Control Servo.................. 8W-30-7
Starter Motor Relay............... 8W-30-5, 21
Throttle Position Sensor........... 8W-30-12, 17
Transmission Control
Module................ 8W-30-28, 32, 34, 35
Transmission Control Relay........... 8W-30-28
Transmission Range Sensor........... 8W-30-32
Vehicle Speed Sensor.............. 8W-30-9, 30
Water In Fuel Sensor................ 8W-30-32
RS8W-30 FUEL/IGNITION SYSTEM8W-30-1
Page 734 of 2339
8W-31 TRANSMISSION CONTROL SYSTEM
Component Page
Accelerator Pedal Position Sensor...... 8W-31-12
Battery................ 8W-31-2, 5, 6, 7, 10, 11
Brake Transmission Shift Interlock
Solenoid....................... 8W-31-3, 8
Data Link Connector................ 8W-31-12
Engine Control Module............. 8W-31-8, 12
Front Control Module.......... 8W-31-3, 6, 8, 12
Fuse 15.......................... 8W-31-2, 5
Fuselink..................... 8W-31-7, 10, 11
G101........................ 8W-31-2, 5, 6, 7Component Page
Input Speed Sensor................ 8W-31-4, 9
Integrated Power Module . . . 8W-31-2, 3, 5, 6, 8, 12
Output Speed Sensor............... 8W-31-4, 9
Powertrain Control Module..... 8W-31-2, 3, 4, 5, 6
Transmission Control
Module.............. 8W-31-7, 8, 9, 10, 11, 12
Transmission Control Relay . . 8W-31-2, 5, 7, 10, 11
Transmission Range Sensor...... 8W-31-3, 4, 8, 9
Transmission Solenoid/Pressure Switch
Assembly............. 8W-31-2, 5, 6, 7, 10, 11
RS8W-31 TRANSMISSION CONTROL SYSTEM8W-31-1
Page 746 of 2339
8W-33 VEHICLE SPEED CONTROL
Component Page
Brake Lamp Switch.................. 8W-33-3
Clockspring....................... 8W-33-2, 4
Engine Control Module................ 8W-33-4
G101.............................. 8W-33-3
Input Speed Sensor.................. 8W-33-2
Left Speed Control Switch........... 8W-33-2, 4
Output Speed Sensor................. 8W-33-2Component Page
Powertrain Control Module.......... 8W-33-2, 3
Right Speed Control Switch.......... 8W-33-2, 4
Speed Control Servo.................. 8W-33-3
Transmission Control Module........... 8W-33-4
Transmission Range Sensor............ 8W-33-4
Vehicle Speed Sensor................. 8W-33-2
RS8W-33 VEHICLE SPEED CONTROL8W-33-1
