CHRYSLER PACIFICA 2007 1.G Warranty Booklet

2007 Passenger Cars
Retailer Copy
Remove and attach to Repair Order
26-92-02-01 3N.

Maintenance Service
Schedule “B”
Odometer Reading
Date
175,000 km Maintenance Service Schedule “B”
175,000 km
 Change engine oil and engine oil filter (or every 3 months, whichever occurs first).
 Inspect the engine air cleaner filter, replace if necessary (Sebring and PT Cruiser only).*
 Replace the engine air cleaner filter (Pacifica and Minivan only).
 Inspect and adjust the power steering pump belt tension (Caravan 2.4L engine only).
 Change the All-Wheel Drive (AWD) power transfer unit fluid (Pacifica only).
 Change the All-Wheel Drive (AWD) rear carrier fluid (Pacifica only).
 Inspect the serpentine drive belt, replace if necessary (Town & Country/Caravan 3.3L and
3.8L engines and Pacifica only).
‡
 Inspect the generator belt on 2.4 L engines, replace if necessary (Caravan only).
INSPECT THE FOLLOWING:
 Inspect the brake hoses.
 Inspect the CV joints and front and rear suspension components.
 Check the coolant level, hoses and clamps.
 Inspect the exhaust system.
 Check the manual transmission fluid level (if equipped) (Sebring only).
 Check the manual transaxle fluid level and fill plug condition (PT Cruiser only).
 Check the automatic transaxle fluid level (PT Cruiser only).
 Check the automatic transmission fluid level.
*This maintenance is recommended by the manufacturer, but not required to maintain the emissions warranty.‡This maintenance is not required if previously replaced.

2007 Passenger Cars
DAIMLERCHRYSLER
R
ETAILER STAMP
Signature of authorized DaimlerChrysler Canada Retailer
Odometer Reading
Date
Repair Order No.  Change engine oil and engine oil filter (or every 3 months,
whichever occurs first).
 Inspect the engine air cleaner filter, replace if necessary (Sebring and
PT Cruiser only).*
 Replace the engine air cleaner filter (Pacifica and Minivan only).
 Inspect and adjust the power steering pump belt tension (Caravan
2.4L engine only).
 Change the All-Wheel Drive (AWD) power transfer unit fluid
(Pacifica only).
 Change the All-Wheel Drive (AWD) rear carrier fluid (Pacifica only).
 Inspect the serpentine drive belt, replace if necessary (Town &
Country/Caravan 3.3L and 3.8L engines and Pacifica only).
‡
 Inspect the generator belt on 2.4L engines, replace if necessary
(Caravan only).
INSPECT THE FOLLOWING:
 Inspect the brake hoses.
 Inspect the CV joints and front and rear suspension components.
 Check the coolant level, hoses and clamps.
 Inspect the exhaust system.
 Check the manual transmission fluid level (if equipped) (Sebring
only).
 Check the manual transaxle fluid level and fill plug condition (PT
Cruiser only).
 Check the automatic transaxle fluid level (PT Cruiser only).
 Check the automatic transmission fluid level.
*This maintenance is recommended by the manufacturer, but not required to
maintain the emissions warranty.
‡This maintenance is not required if previously replaced.
Maintenance Service Schedule “B”
175,000 km

2007 Passenger Cars
Retailer Copy
Remove and attach to Repair Order
26-92-02-01 3N.

Maintenance Service
Schedule “B”
Odometer Reading
Date

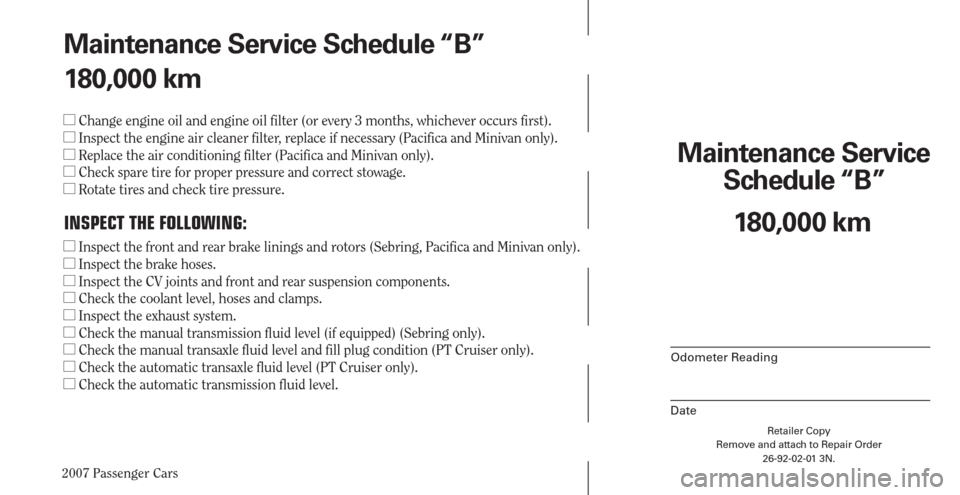

180,000 km Maintenance Service Schedule “B”
180,000 km
 Change engine oil and engine oil filter (or every 3 months, whichever occurs first).
 Inspect the engine air cleaner filter, replace if necessary (Pacifica and Minivan only).
 Replace the air conditioning filter (Pacifica and Minivan only).
 Check spare tire for proper pressure and correct stowage.
 Rotate tires and check tire pressure.
INSPECT THE FOLLOWING:
 Inspect the front and rear brake linings and rotors (Sebring, Pacifica and Minivan only).
 Inspect the brake hoses.
 Inspect the CV joints and front and rear suspension components.
 Check the coolant level, hoses and clamps.
 Inspect the exhaust system.
 Check the manual transmission fluid level (if equipped) (Sebring only).
 Check the manual transaxle fluid level and fill plug condition (PT Cruiser only).
 Check the automatic transaxle fluid level (PT Cruiser only).
 Check the automatic transmission fluid level.

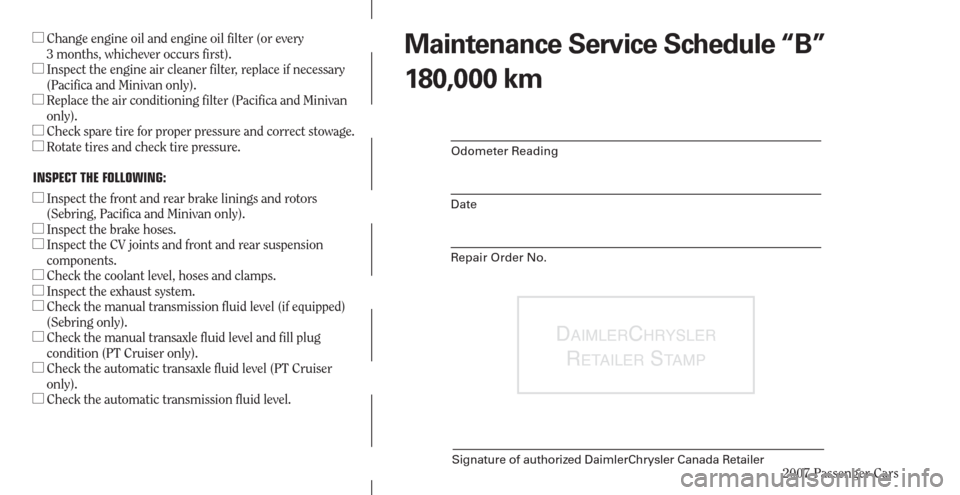

2007 Passenger Cars
DAIMLERCHRYSLER
R
ETAILER STAMP
Signature of authorized DaimlerChrysler Canada Retailer
Odometer Reading
Date
Repair Order No.
 Change engine oil and engine oil filter (or every
3 months, whichever occurs first).
 Inspect the engine air cleaner filter, replace if necessary
(Pacifica and Minivan only).
 Replace the air conditioning filter (Pacifica and Minivan
only).
 Check spare tire for proper pressure and correct stowage.
 Rotate tires and check tire pressure.
INSPECT THE FOLLOWING:
 Inspect the front and rear brake linings and rotors
(Sebring, Pacifica and Minivan only).
 Inspect the brake hoses.
 Inspect the CV joints and front and rear suspension
components.
 Check the coolant level, hoses and clamps.
 Inspect the exhaust system.
 Check the manual transmission fluid level (if equipped)
(Sebring only).
 Check the manual transaxle fluid level and fill plug
condition (PT Cruiser only).
 Check the automatic transaxle fluid level (PT Cruiser
only).
 Check the automatic transmission fluid level.Maintenance Service Schedule “B”
180,000 km

2007 Passenger Cars
Retailer Copy
Remove and attach to Repair Order
26-92-02-01 3N.

Maintenance Service
Schedule “B”
Odometer Reading
Date
185,000 km Maintenance Service Schedule “B”
185,000 km
 Change engine oil and engine oil filter (or every 3 months, whichever occurs first).
 Inspect the engine air cleaner filter, replace if necessary (Pacifica and Minivan only).
INSPECT THE FOLLOWING:
 Inspect the brake hoses.
 Inspect the CV joints and front and rear suspension components.
 Check the coolant level, hoses and clamps.
 Inspect the exhaust system.
 Check the manual transmission fluid level (if equipped) (Sebring only).
 Check the manual transaxle fluid level and fill plug condition (PT Cruiser only).
 Check the automatic transaxle fluid level (PT Cruiser only).
 Check the automatic transmission fluid level.

2007 Passenger Cars
DAIMLERCHRYSLER
R
ETAILER STAMP
Signature of authorized DaimlerChrysler Canada Retailer
Odometer Reading
Date
Repair Order No.
 Change engine oil and engine oil filter (or every
3 months, whichever occurs first).
 Inspect the engine air cleaner filter, replace if necessary
(Pacifica and Minivan only).
INSPECT THE FOLLOWING:
 Inspect the brake hoses.
 Inspect the CV joints and front and rear suspension
components.
 Check the coolant level, hoses and clamps.
 Inspect the exhaust system.
 Check the manual transmission fluid level (if equipped)
(Sebring only).
 Check the manual transaxle fluid level and fill plug
condition (PT Cruiser only).
 Check the automatic transaxle fluid level (PT Cruiser
only).
 Check the automatic transmission fluid level.Maintenance Service Schedule “B”
185,000 km

2007 Passenger Cars
Maintenance Service
Schedule “B”
Odometer Reading
Date
Retailer Copy
Remove and attach to Repair Order
26-92-02-01 3N.

Maintenance Service
Schedule “B”

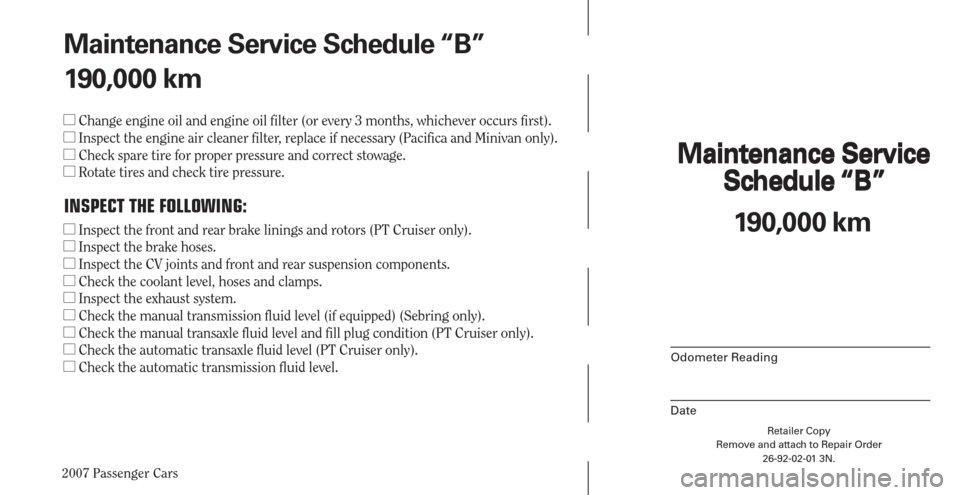

190,000 km Maintenance Service Schedule “B”
190,000 km
 Change engine oil and engine oil filter (or every 3 months, whichever occurs first).
 Inspect the engine air cleaner filter, replace if necessary (Pacifica and Minivan only).
 Check spare tire for proper pressure and correct stowage.
 Rotate tires and check tire pressure.
INSPECT THE FOLLOWING:
 Inspect the front and rear brake linings and rotors (PT Cruiser only).
 Inspect the brake hoses.
 Inspect the CV joints and front and rear suspension components.
 Check the coolant level, hoses and clamps.
 Inspect the exhaust system.
 Check the manual transmission fluid level (if equipped) (Sebring only).
 Check the manual transaxle fluid level and fill plug condition (PT Cruiser only).
 Check the automatic transaxle fluid level (PT Cruiser only).
 Check the automatic transmission fluid level.

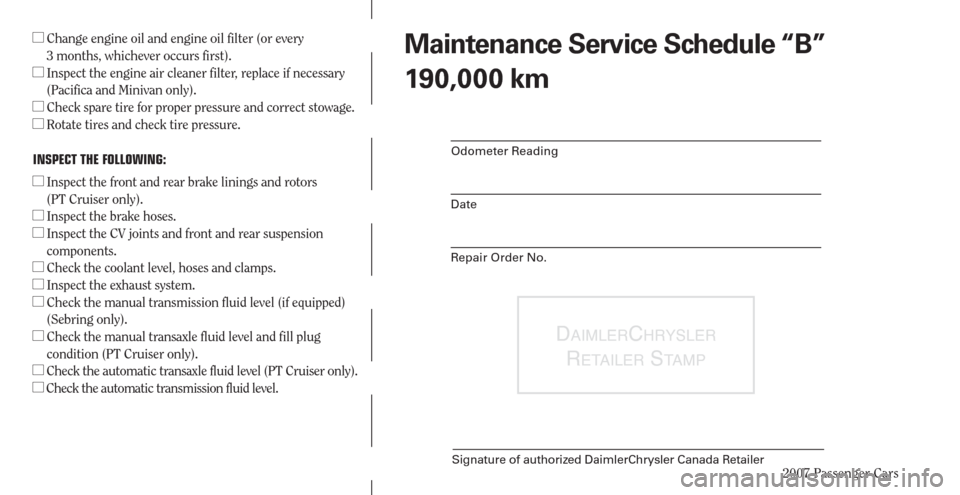

2007 Passenger Cars
DAIMLERCHRYSLER
R
ETAILER STAMP
Signature of authorized DaimlerChrysler Canada Retailer
Odometer Reading
Date
Repair Order No.
 Change engine oil and engine oil filter (or every
3 months, whichever occurs first).
 Inspect the engine air cleaner filter, replace if necessary
(Pacifica and Minivan only).
 Check spare tire for proper pressure and correct stowage.
 Rotate tires and check tire pressure.
INSPECT THE FOLLOWING:
 Inspect the front and rear brake linings and rotors
(PT Cruiser only).
 Inspect the brake hoses.
 Inspect the CV joints and front and rear suspension
components.
 Check the coolant level, hoses and clamps.
 Inspect the exhaust system.
 Check the manual transmission fluid level (if equipped)
(Sebring only).
 Check the manual transaxle fluid level and fill plug
condition (PT Cruiser only).
 Check the automatic transaxle fluid level (PT Cruiser only).
 Check the automatic transmission fluid level.Maintenance Service Schedule “B”
190,000 km

2007 Passenger Cars
Retailer Copy
Remove and attach to Repair Order
26-92-02-01 3N.

Maintenance Service
Schedule “B”
Odometer Reading
Date
195,000 km Maintenance Service Schedule “B”
195,000 km
 Change engine oil and engine oil filter (or every 3 months, whichever occurs first).
 Inspect the engine air cleaner filter, replace if necessary (Pacifica and Minivan only).
INSPECT THE FOLLOWING:
 Inspect the front and rear brake linings and rotors (Pacifica and Minivan only).
 Inspect the brake hoses.
 Inspect the CV joints and front and rear suspension components.
 Check the coolant level, hoses and clamps.
 Inspect the exhaust system.
 Check the manual transmission fluid level (if equipped) (Sebring only).
 Check the manual transaxle fluid level and fill plug condition (PT Cruiser only).
 Check the automatic transaxle fluid level (PT Cruiser only).
 Check the automatic transmission fluid level.

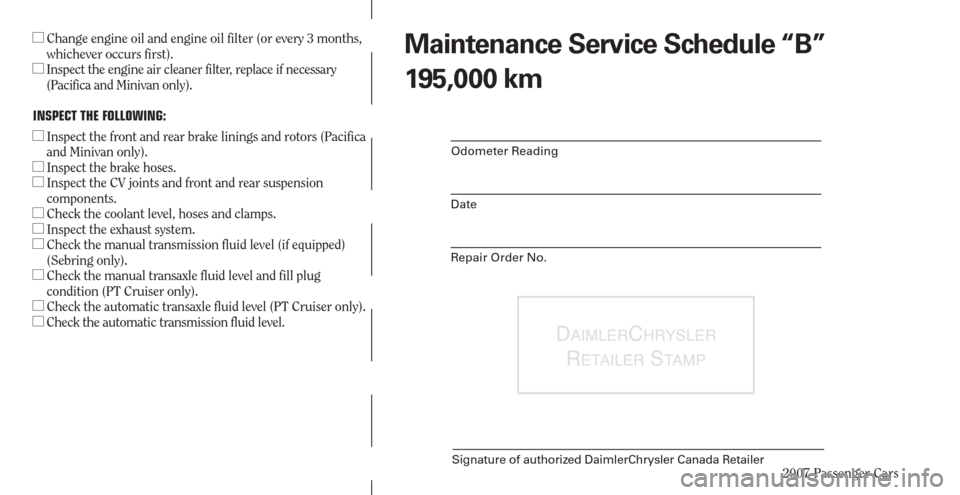

2007 Passenger Cars
DAIMLERCHRYSLER
R
ETAILER STAMP
Signature of authorized DaimlerChrysler Canada Retailer
Odometer Reading
Date
Repair Order No.
 Change engine oil and engine oil filter (or every 3 months,
whichever occurs first).
 Inspect the engine air cleaner filter, replace if necessary
(Pacifica and Minivan only).
INSPECT THE FOLLOWING:
 Inspect the front and rear brake linings and rotors (Pacifica
and Minivan only).
 Inspect the brake hoses.
 Inspect the CV joints and front and rear suspension
components.
 Check the coolant level, hoses and clamps.
 Inspect the exhaust system.
 Check the manual transmission fluid level (if equipped)
(Sebring only).
 Check the manual transaxle fluid level and fill plug
condition (PT Cruiser only).
 Check the automatic transaxle fluid level (PT Cruiser only).
 Check the automatic transmission fluid level.Maintenance Service Schedule “B”
195,000 km
