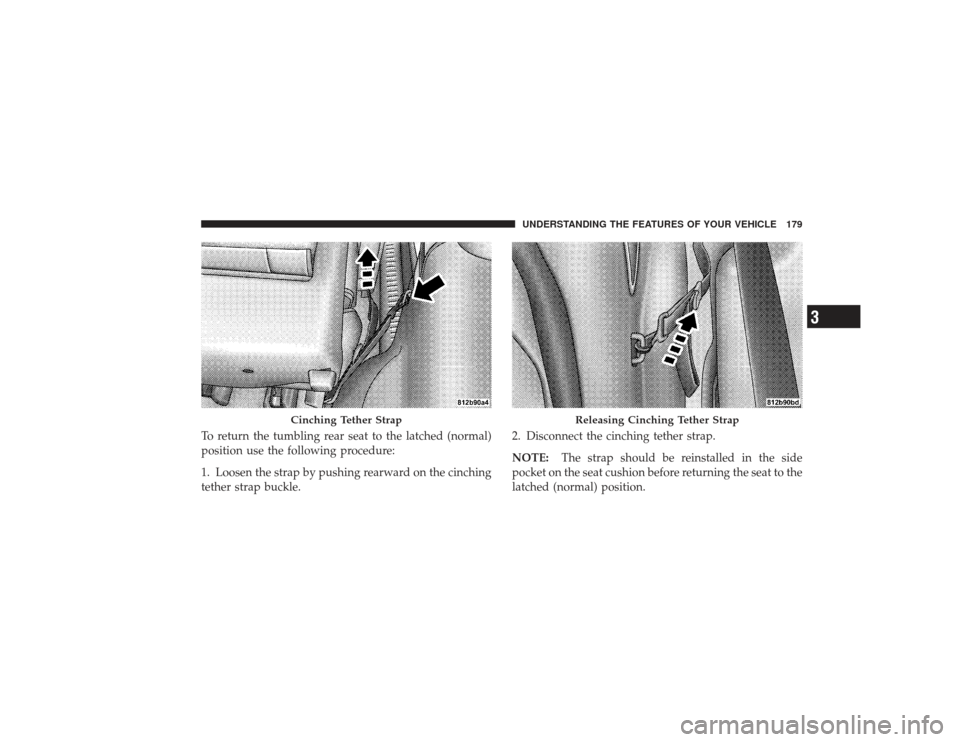

To return the tumbling rear seat to the latched (normal)
position use the following procedure:
1. Loosen the strap by pushing rearward on the cinching
tether strap buckle.2. Disconnect the cinching tether strap.
NOTE:
The strap should be reinstalled in the side
pocket on the seat cushion before returning the seat to the
latched (normal) position.
Cinching Tether Strap
Releasing Cinching Tether Strap
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 179
3

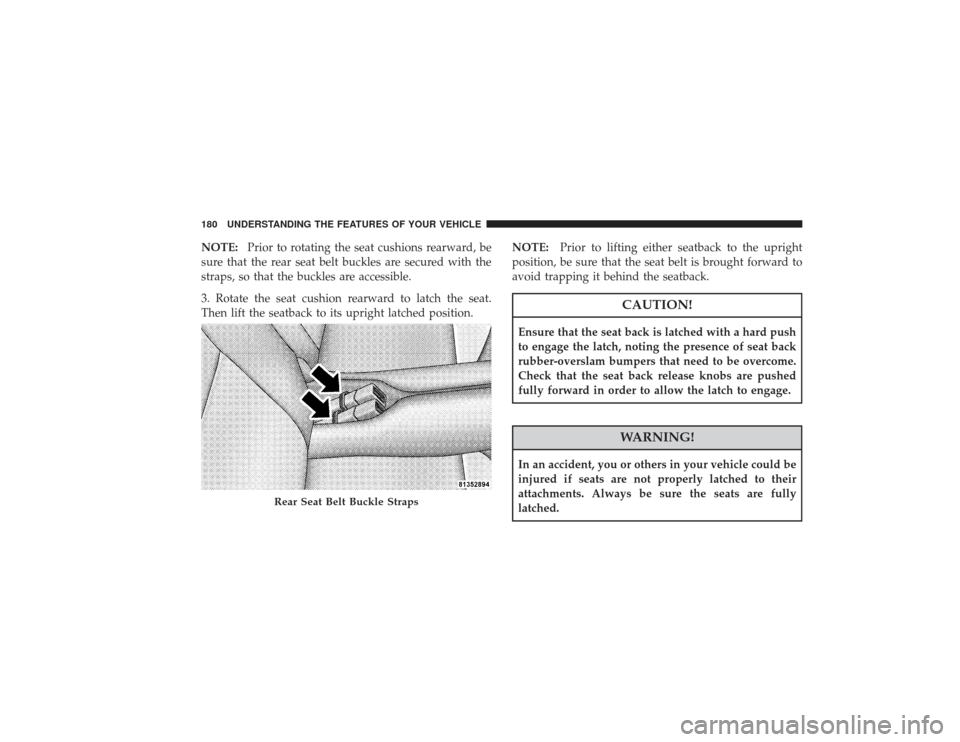

NOTE:Prior to rotating the seat cushions rearward, be
sure that the rear seat belt buckles are secured with the
straps, so that the buckles are accessible.
3. Rotate the seat cushion rearward to latch the seat.
Then lift the seatback to its upright latched position. NOTE:
Prior to lifting either seatback to the upright
position, be sure that the seat belt is brought forward to
avoid trapping it behind the seatback.
CAUTION!
Ensure that the seat back is latched with a hard push
to engage the latch, noting the presence of seat back
rubber-overslam bumpers that need to be overcome.
Check that the seat back release knobs are pushed
fully forward in order to allow the latch to engage.
WARNING!
In an accident, you or others in your vehicle could be
injured if seats are not properly latched to their
attachments. Always be sure the seats are fully
latched.
Rear Seat Belt Buckle Straps
180 UNDERSTANDING THE FEATURES OF YOUR VEHICLE

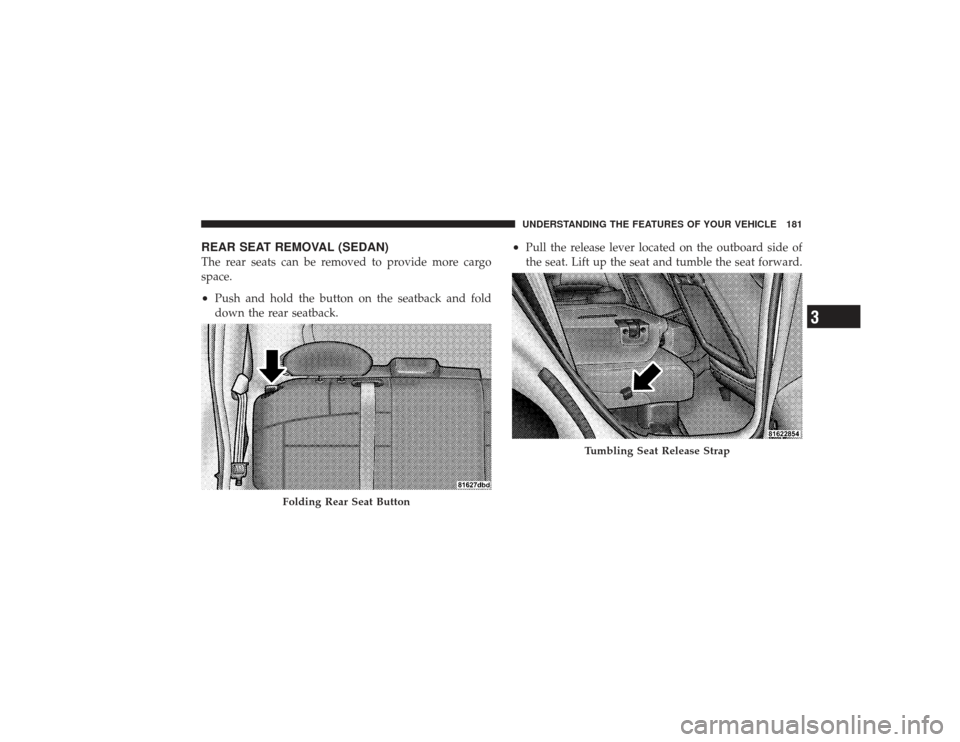

REAR SEAT REMOVAL (SEDAN)The rear seats can be removed to provide more cargo
space.•
Push and hold the button on the seatback and fold
down the rear seatback.
•
Pull the release lever located on the outboard side of
the seat. Lift up the seat and tumble the seat forward.
Folding Rear Seat Button
Tumbling Seat Release Strap
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 181
3

•
Lift up the release levers to disengage the seat from the
floor attachments.
•
Using the handle on the seat, the seat assembly can
now be lifted and removed from the vehicle.NOTE:
Small rollers on the bottom of the folded seat
and a handle at the top allow the seat to be easily moved
when removed from the vehicle.
To reinstall the rear seat, insert the seat into the floor
attachments. Lower the release levers of the seat to latch
the front floor attachments and rotate the seat rearward
to latch the seat. Lift the seat back to its upright latched
position.
WARNING!
In an accident, you or others in your vehicle could be
injured if seats are not properly latched to their floor
attachments. Always be sure the seats are fully
latched.
Release Lever Location
182 UNDERSTANDING THE FEATURES OF YOUR VEHICLE

TO OPEN AND CLOSE THE HOODTo open the hood, two latches must be released. First pull
the primary hood release lever located under the left side
of the instrument panel.Then move the secondary hood latch (safety latch) lo-
cated under the front edge of the hood, slightly to the
right of center, and raise the hood.
Primary Hood Release Lever
Secondary Hood Latch
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 183
3

Use the hood prop rod clipped to the driver’s side of the
engine compartment to secure the hood in the open
position. Place the hood prop at the location stamped into
the inner hood surface.
To prevent possible damage, do not slam the hood to
close it. Lower the hood until it is open approximately 20
cm (8 inches) and then drop it. This should secure both
latches. Never drive your vehicle unless the hood is fully
closed, with both latches engaged.
WARNING!
If the hood is not fully latched it could fly up when
the vehicle is moving and block your forward vision.
You could have a collision. Be sure all hood latches
are fully latched before driving.
LIGHTS
Map/Reading Lights (Sedan)These lights are mounted between the sun visors above the
rear view mirror. Each light is turned ON by pressing the
button. Press the button a second time to turn the light OFF.
The lights also come on when a door is opened or the dimmer
control is turned fully upward, past the second detent.
184 UNDERSTANDING THE FEATURES OF YOUR VEHICLE

NOTE:The lights will remain on until the switch is
pressed a second time, so be sure they have been turned
off before leaving the vehicle. They will not turn off
automatically.Map/Reading Lights (Convertible)When the ignition switch is in the ON position, these
lights, located under the rearview mirror can be turned
on by switches located at the base of the rearview mirror.
NOTE:The lights will remain on until the switch is
pressed a second time, so be sure they have been turned
off before leaving the vehicle. They will not turn off
automatically.
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 185
3

Multi-Function Control LeverThe Multi-Function Control Lever controls the operation
of the headlights, parking lights, turn signals, headlight
beam selection, instrument panel light dimming, interior
lights, the passing lights, and fog lights. The lever is
located on the left side of the steering column.
Headlights, Parking Lights, Instrument Panel
LightsTurn the end of the Multi-Function Control Lever to the
first detent for parking light operation. Turn to the
second detent for headlight operation.
Headlamp Control
186 UNDERSTANDING THE FEATURES OF YOUR VEHICLE

To change the brightness of the instrument panel lights,
rotate the center portion of the Multi-Function Control
Lever up or down.
Daytime Running Lights (DRL) — If EquippedThe high beam lights will come on as Daytime Running
Lights (DRL) at DRL intensity (lower), whenever the
ignition is on, the engine is running, the headlight switch
is off, the parking brake is off, the turn signal is off, and
the gear shift is in any position except park.
NOTE:On this vehicle, the daytime running light will
automatically turn off when the turn signal is in opera-
tion and automatically turn back on when the turn signal
is not operating.Lights-on ReminderIf the headlights or parking lights are on after the ignition
is turned OFF, a chime will sound to alert the driver
when the driver’s door is opened.
Dimmer Control
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 187
3

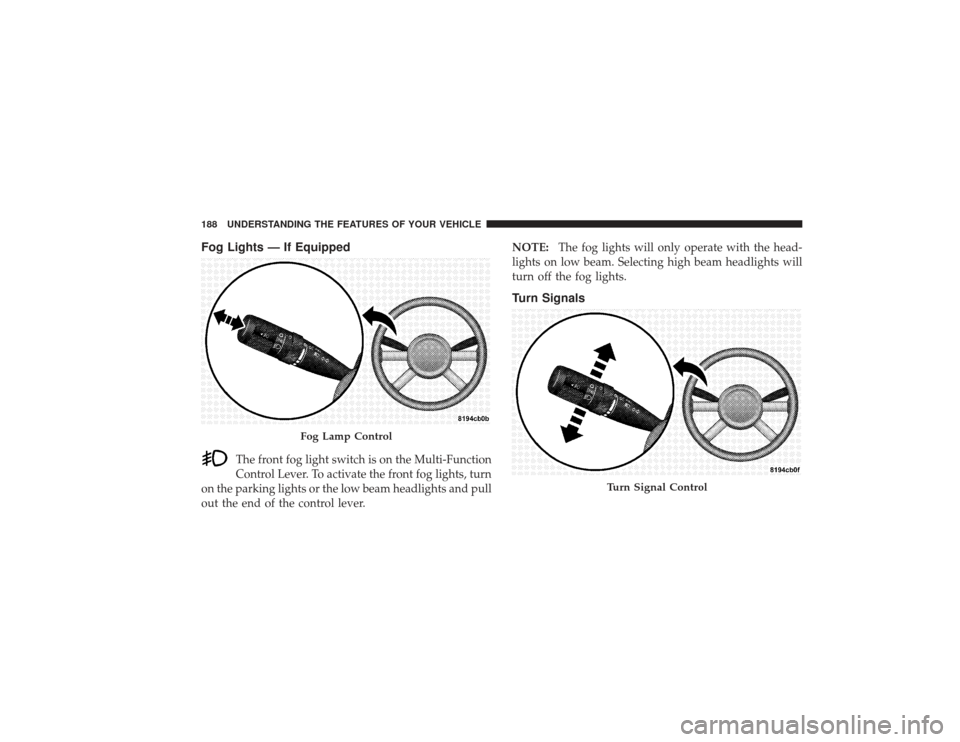

Fog Lights — If Equipped
The front fog light switch is on the Multi-Function
Control Lever. To activate the front fog lights, turn
on the parking lights or the low beam headlights and pull
out the end of the control lever. NOTE:
The fog lights will only operate with the head-
lights on low beam. Selecting high beam headlights will
turn off the fog lights.
Turn Signals
Fog Lamp Control
Turn Signal Control
