CHRYSLER PT CRUISER 2008 1.G Owner's Manual

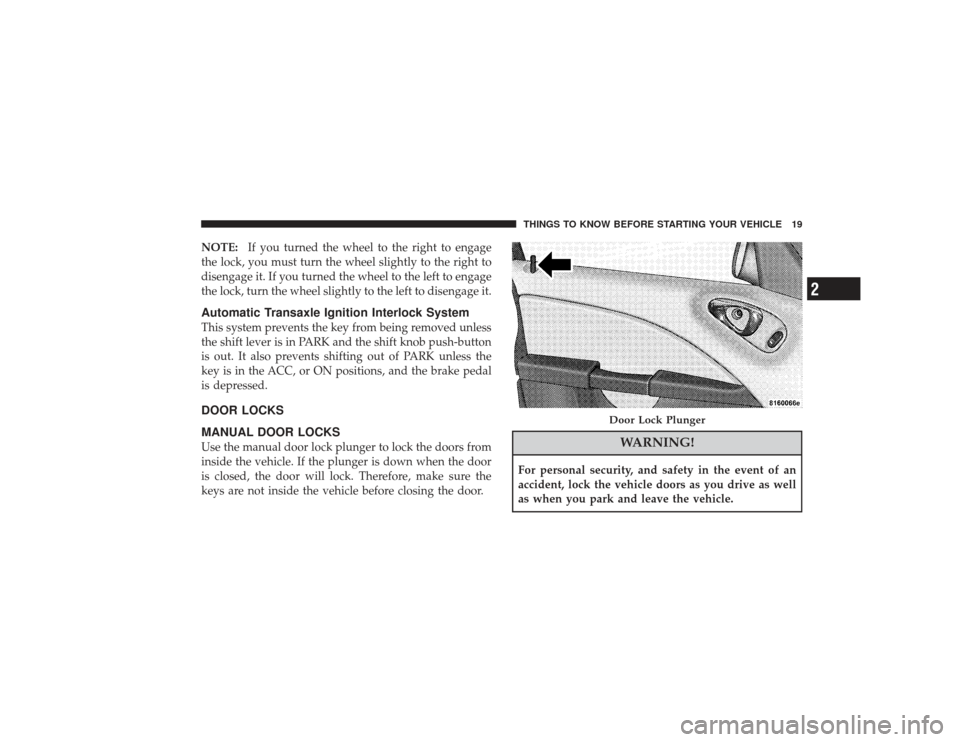

NOTE:If you turned the wheel to the right to engage
the lock, you must turn the wheel slightly to the right to
disengage it. If you turned the wheel to the left to engage
the lock, turn the wheel slightly to the left to disengage it.Automatic Transaxle Ignition Interlock SystemThis system prevents the key from being removed unless
the shift lever is in PARK and the shift knob push-button
is out. It also prevents shifting out of PARK unless the
key is in the ACC, or ON positions, and the brake pedal
is depressed.DOOR LOCKS
MANUAL DOOR LOCKSUse the manual door lock plunger to lock the doors from
inside the vehicle. If the plunger is down when the door
is closed, the door will lock. Therefore, make sure the
keys are not inside the vehicle before closing the door.
WARNING!
For personal security, and safety in the event of an
accident, lock the vehicle doors as you drive as well
as when you park and leave the vehicle.
Door Lock Plunger
THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 19
2

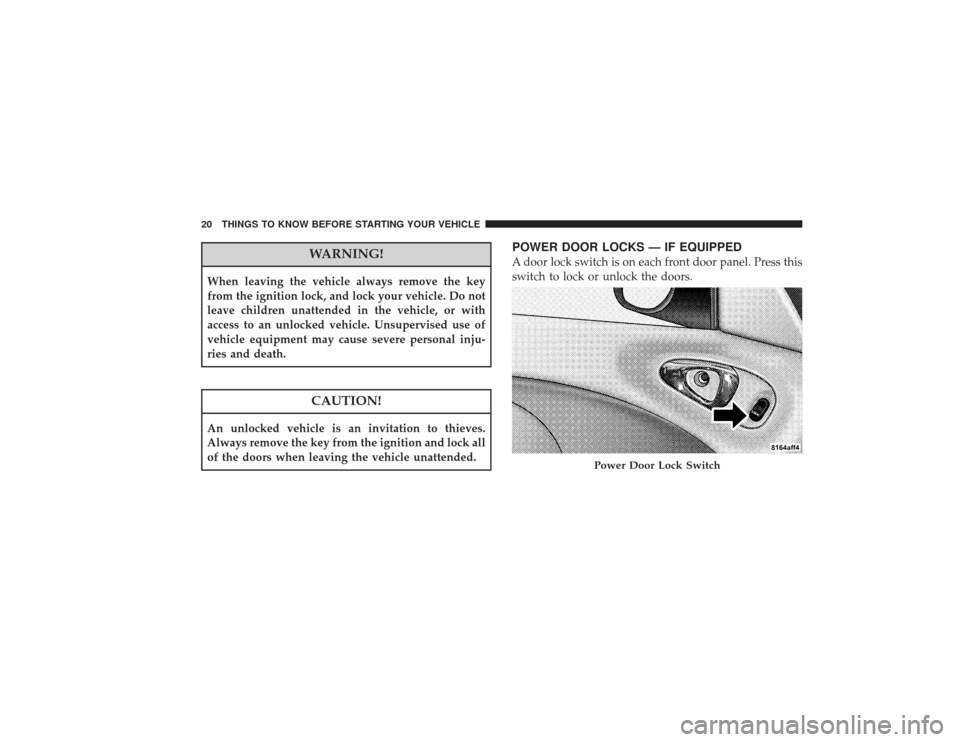

WARNING!
When leaving the vehicle always remove the key
from the ignition lock, and lock your vehicle. Do not
leave children unattended in the vehicle, or with
access to an unlocked vehicle. Unsupervised use of
vehicle equipment may cause severe personal inju-
ries and death.
CAUTION!
An unlocked vehicle is an invitation to thieves.
Always remove the key from the ignition and lock all
of the doors when leaving the vehicle unattended.
POWER DOOR LOCKS — IF EQUIPPEDA door lock switch is on each front door panel. Press this
switch to lock or unlock the doors.
Power Door Lock Switch
20 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE

AUTOMATIC DOOR LOCKS — IF EQUIPPEDThe doors will lock automatically on vehicles with power
door locks if all of the following conditions are met:
1. The Auto Lock feature is enabled.
2. The transmission is in gear.
3. All doors are closed.
4. The throttle is pressed.
5. The vehicle speed is above 15 mph (24 km/h).
6. The doors were not previously locked using the power
door lock switch or remote keyless entry transmitter.
The Automatic Door Lock feature can be enabled or
disabled. Refer to “Personal Settings” (Customer Pro-
grammable Features) in the Electronic Vehicle Informa-
tion Center (EVIC) — if equipped section of this manual
for details.For vehicles not equipped with the EVIC the Automatic
Door Locks can be enabled or disabled by performing the
following procedure:
1. Close all doors and place the key in the ignition.
2. Cycle the ignition switch between LOCK and ON and
back to LOCK four times ending up in the LOCK
position.
3. Depress the power door lock switch to lock the doors.
4. A single chime will indicate the completion of the
programming.
Auto UnlockThe doors will unlock automatically on vehicles with
power door locks if:
1. The Auto Unlock feature is enabled.
2. The transmission was in gear and the vehicle speed
returned to 0 mph (0 km/h).THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 21
2

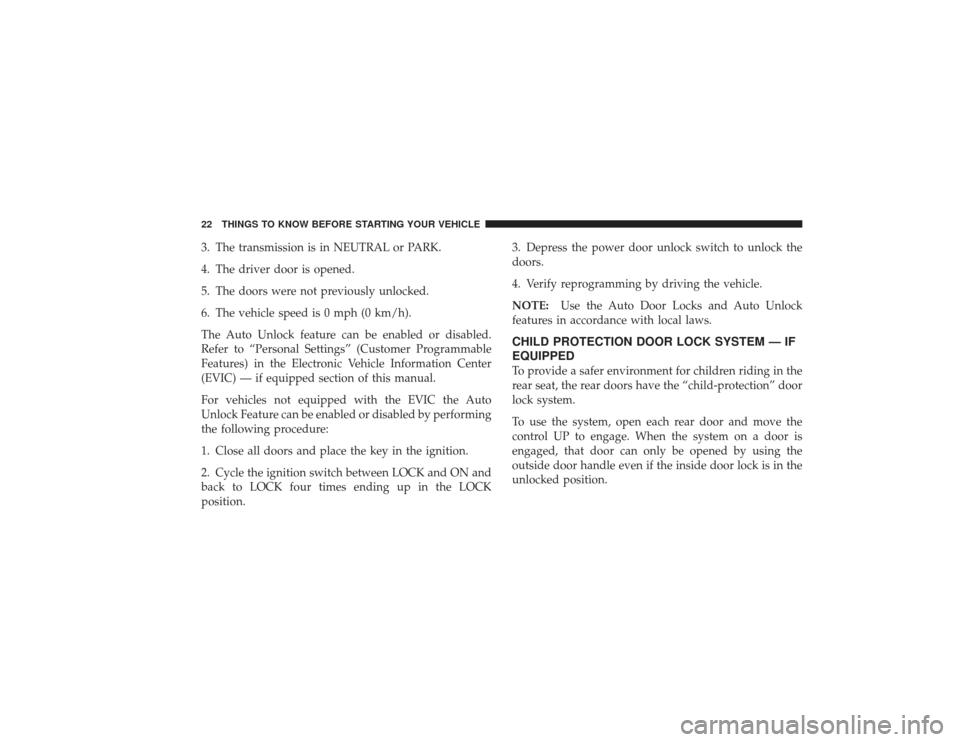

3. The transmission is in NEUTRAL or PARK.
4. The driver door is opened.
5. The doors were not previously unlocked.
6. The vehicle speed is 0 mph (0 km/h).
The Auto Unlock feature can be enabled or disabled.
Refer to “Personal Settings” (Customer Programmable
Features) in the Electronic Vehicle Information Center
(EVIC) — if equipped section of this manual.
For vehicles not equipped with the EVIC the Auto
Unlock Feature can be enabled or disabled by performing
the following procedure:
1. Close all doors and place the key in the ignition.
2. Cycle the ignition switch between LOCK and ON and
back to LOCK four times ending up in the LOCK
position.3. Depress the power door unlock switch to unlock the
doors.
4. Verify reprogramming by driving the vehicle.
NOTE:
Use the Auto Door Locks and Auto Unlock
features in accordance with local laws.
CHILD PROTECTION DOOR LOCK SYSTEM — IF
EQUIPPEDTo provide a safer environment for children riding in the
rear seat, the rear doors have the “child-protection” door
lock system.
To use the system, open each rear door and move the
control UP to engage. When the system on a door is
engaged, that door can only be opened by using the
outside door handle even if the inside door lock is in the
unlocked position.
22 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE

WARNING!
Avoid trapping anyone in a vehicle in a collision.
Remember that the rear doors can only be opened
from the outside when the child protection locks are
engaged.
NOTE: For emergency exit with the system engaged,
move the lock plunger up (unlocked position), roll down
window and open the door with the outside door handle.
Child Lock Control
THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 23
2

REMOTE KEYLESS ENTRY (SEDAN)This system allows you to lock or unlock the doors and
liftgate or activate the panic alarm from distances a
minimum of 66 feet (20 meters) using a hand held radio
transmitter. The transmitter need not be pointed at the
vehicle to activate the system.NOTE:
The line of transmission must not be blocked
with metal objects.
TO UNLOCK THE DOORS AND LIFTGATE:Press and release the UNLOCK button on the keyfob
once to unlock only the driver’s door or twice to unlock
all the doors and liftgate. When the UNLOCK button is
pressed, the illuminated entry will initiate, and the
parking lights will flash on twice. The time for this
feature is programmable on vehicles equipped with the
Electronic Vehicle Information Center (EVIC). Refer to
“Turn Headlamps on with Remote Key Unlock” under
“Personal Settings” in the Electronic Vehicle Information
Center (EVIC) section of this manual for details.
NOTE: The system can also be programmed to unlock
all doors on the first press of the UNLOCK button. On
electronic vehicle information center (EVIC) equipped
vehicles refer to “Remote Unlock Driver’s Door 1st”
Three Button Key
24 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE

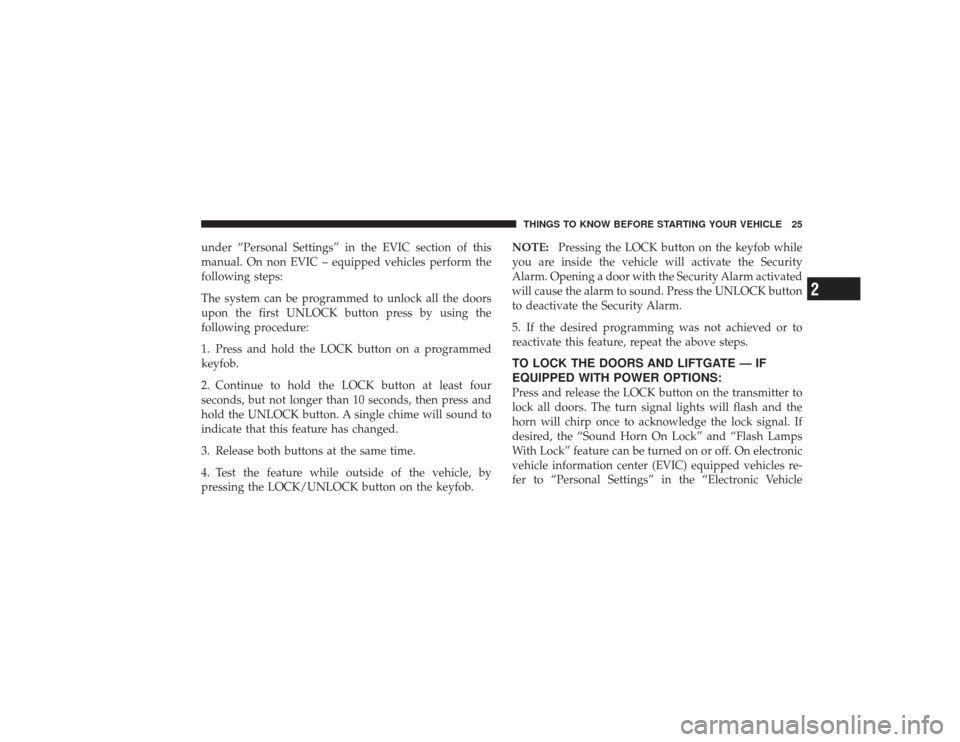

under “Personal Settings” in the EVIC section of this
manual. On non EVIC – equipped vehicles perform the
following steps:
The system can be programmed to unlock all the doors
upon the first UNLOCK button press by using the
following procedure:
1. Press and hold the LOCK button on a programmed
keyfob.
2. Continue to hold the LOCK button at least four
seconds, but not longer than 10 seconds, then press and
hold the UNLOCK button. A single chime will sound to
indicate that this feature has changed.
3. Release both buttons at the same time.
4. Test the feature while outside of the vehicle, by
pressing the LOCK/UNLOCK button on the keyfob.NOTE:
Pressing the LOCK button on the keyfob while
you are inside the vehicle will activate the Security
Alarm. Opening a door with the Security Alarm activated
will cause the alarm to sound. Press the UNLOCK button
to deactivate the Security Alarm.
5. If the desired programming was not achieved or to
reactivate this feature, repeat the above steps.
TO LOCK THE DOORS AND LIFTGATE — IF
EQUIPPED WITH POWER OPTIONS:Press and release the LOCK button on the transmitter to
lock all doors. The turn signal lights will flash and the
horn will chirp once to acknowledge the lock signal. If
desired, the “Sound Horn On Lock” and “Flash Lamps
With Lock” feature can be turned on or off. On electronic
vehicle information center (EVIC) equipped vehicles re-
fer to “Personal Settings” in the “Electronic VehicleTHINGS TO KNOW BEFORE STARTING YOUR VEHICLE 25
2

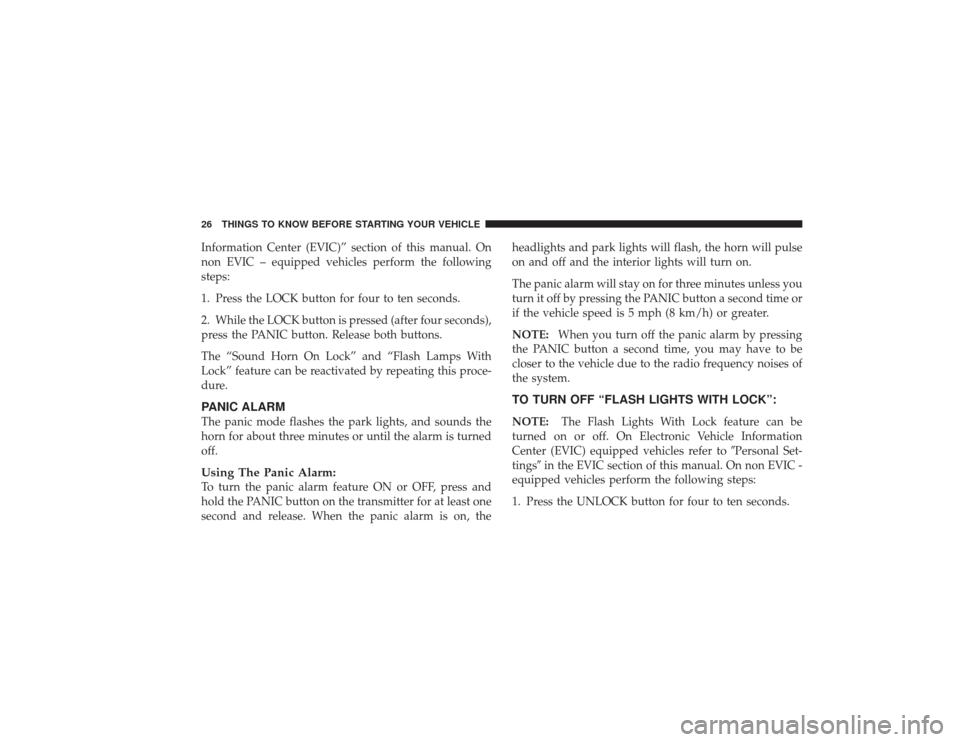

Information Center (EVIC)” section of this manual. On
non EVIC – equipped vehicles perform the following
steps:
1. Press the LOCK button for four to ten seconds.
2. While the LOCK button is pressed (after four seconds),
press the PANIC button. Release both buttons.
The “Sound Horn On Lock” and “Flash Lamps With
Lock” feature can be reactivated by repeating this proce-
dure.PANIC ALARMThe panic mode flashes the park lights, and sounds the
horn for about three minutes or until the alarm is turned
off.Using The Panic Alarm:To turn the panic alarm feature ON or OFF, press and
hold the PANIC button on the transmitter for at least one
second and release. When the panic alarm is on, theheadlights and park lights will flash, the horn will pulse
on and off and the interior lights will turn on.
The panic alarm will stay on for three minutes unless you
turn it off by pressing the PANIC button a second time or
if the vehicle speed is 5 mph (8 km/h) or greater.
NOTE:
When you turn off the panic alarm by pressing
the PANIC button a second time, you may have to be
closer to the vehicle due to the radio frequency noises of
the system.
TO TURN OFF “FLASH LIGHTS WITH LOCK”:NOTE: The Flash Lights With Lock feature can be
turned on or off. On Electronic Vehicle Information
Center (EVIC) equipped vehicles refer to Personal Set-
tings in the EVIC section of this manual. On non EVIC -
equipped vehicles perform the following steps:
1. Press the UNLOCK button for four to ten seconds.
26 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE

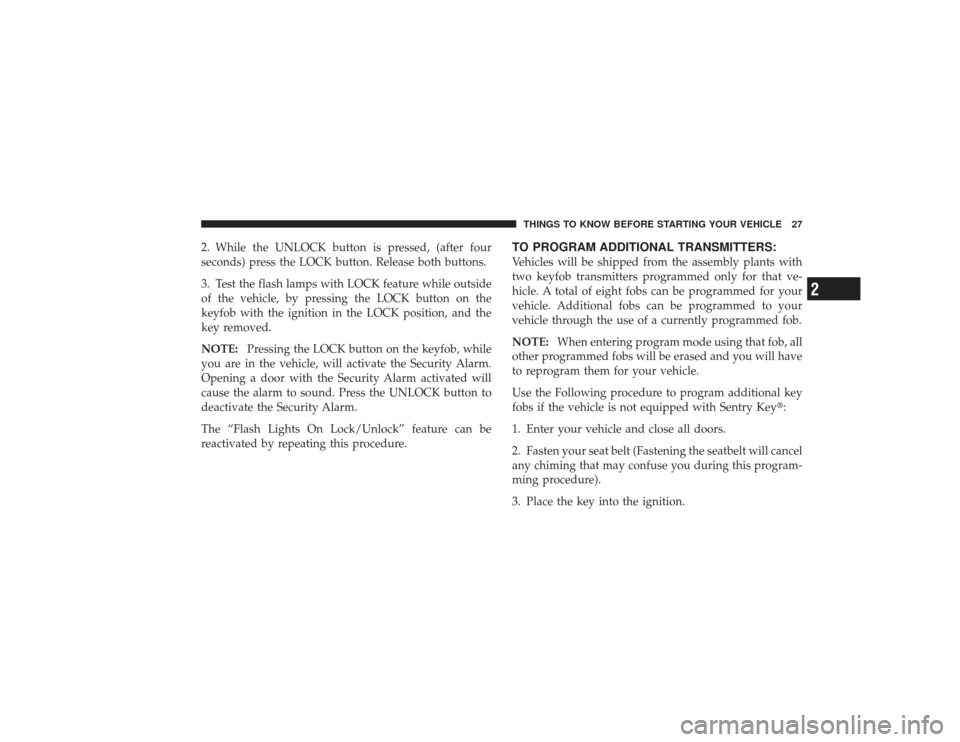

2. While the UNLOCK button is pressed, (after four
seconds) press the LOCK button. Release both buttons.
3. Test the flash lamps with LOCK feature while outside
of the vehicle, by pressing the LOCK button on the
keyfob with the ignition in the LOCK position, and the
key removed.
NOTE:Pressing the LOCK button on the keyfob, while
you are in the vehicle, will activate the Security Alarm.
Opening a door with the Security Alarm activated will
cause the alarm to sound. Press the UNLOCK button to
deactivate the Security Alarm.
The “Flash Lights On Lock/Unlock” feature can be
reactivated by repeating this procedure.
TO PROGRAM ADDITIONAL TRANSMITTERS:Vehicles will be shipped from the assembly plants with
two keyfob transmitters programmed only for that ve-
hicle. A total of eight fobs can be programmed for your
vehicle. Additional fobs can be programmed to your
vehicle through the use of a currently programmed fob.
NOTE: When entering program mode using that fob, all
other programmed fobs will be erased and you will have
to reprogram them for your vehicle.
Use the Following procedure to program additional key
fobs if the vehicle is not equipped with Sentry Key:
1. Enter your vehicle and close all doors.
2. Fasten your seat belt (Fastening the seatbelt will cancel
any chiming that may confuse you during this program-
ming procedure).
3. Place the key into the ignition.THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 27
2

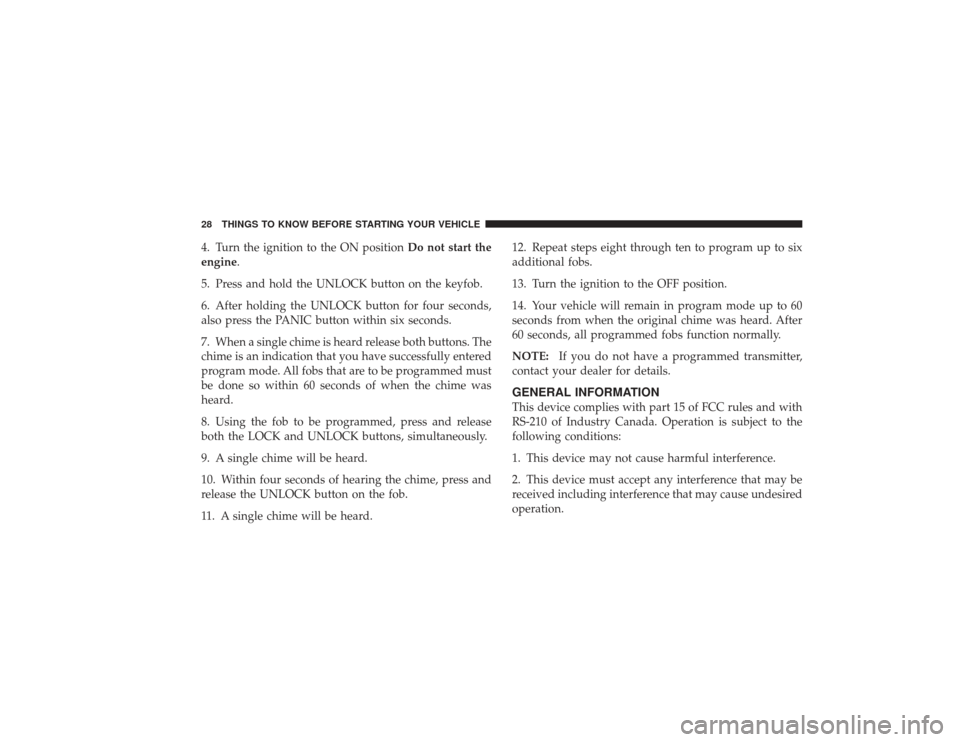

4. Turn the ignition to the ON positionDo not start the
engine.
5. Press and hold the UNLOCK button on the keyfob.
6. After holding the UNLOCK button for four seconds,
also press the PANIC button within six seconds.
7. When a single chime is heard release both buttons. The
chime is an indication that you have successfully entered
program mode. All fobs that are to be programmed must
be done so within 60 seconds of when the chime was
heard.
8. Using the fob to be programmed, press and release
both the LOCK and UNLOCK buttons, simultaneously.
9. A single chime will be heard.
10. Within four seconds of hearing the chime, press and
release the UNLOCK button on the fob.
11. A single chime will be heard. 12. Repeat steps eight through ten to program up to six
additional fobs.
13. Turn the ignition to the OFF position.
14. Your vehicle will remain in program mode up to 60
seconds from when the original chime was heard. After
60 seconds, all programmed fobs function normally.
NOTE:
If you do not have a programmed transmitter,
contact your dealer for details.
GENERAL INFORMATIONThis device complies with part 15 of FCC rules and with
RS-210 of Industry Canada. Operation is subject to the
following conditions:
1. This device may not cause harmful interference.
2. This device must accept any interference that may be
received including interference that may cause undesired
operation.
28 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE
