Gas props support the liftgate in the open position.
However, because the gas pressure drops with tempera-
ture, it may be necessary to assist the props when
opening the liftgate in cold weather.DECK LID (CONVERTIBLE)Gas props support the deck lid in the open position.
However, because the gas pressure drops with tempera-
ture, it may be necessary to assist the props when
opening the deck lid in cold weather.POWER DECK LID RELEASE (Convertible)You can open the deck lid by pressing the Remote
Keyless Entry Button or from inside the vehicle, using the
switch located inside the glove box. On vehicles
equipped with a manual transmission, the power deck
lid release switch is disabled if the doors are locked, or if
vehicle speed exceeds 0 mph (0 km/h), or when the
clutch pedal is depressed. On vehicles equipped with anautomatic transmission, the power deck lid release
switch is disabled if the doors are locked, or the trans-
mission is out of PARK.
WARNING!
•
Driving with the deck lid open can allow poison-
ous exhaust gases into your vehicle. You and your
passengers could be injured by these fumes. Keep
the deck lid closed when you are operating the
vehicle.
•
If you are required to drive with the deck lid open,
make sure that all windows are closed, and the
climate control blower switch is set at high speed.
DO NOT use the recirculation mode.THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 39
2

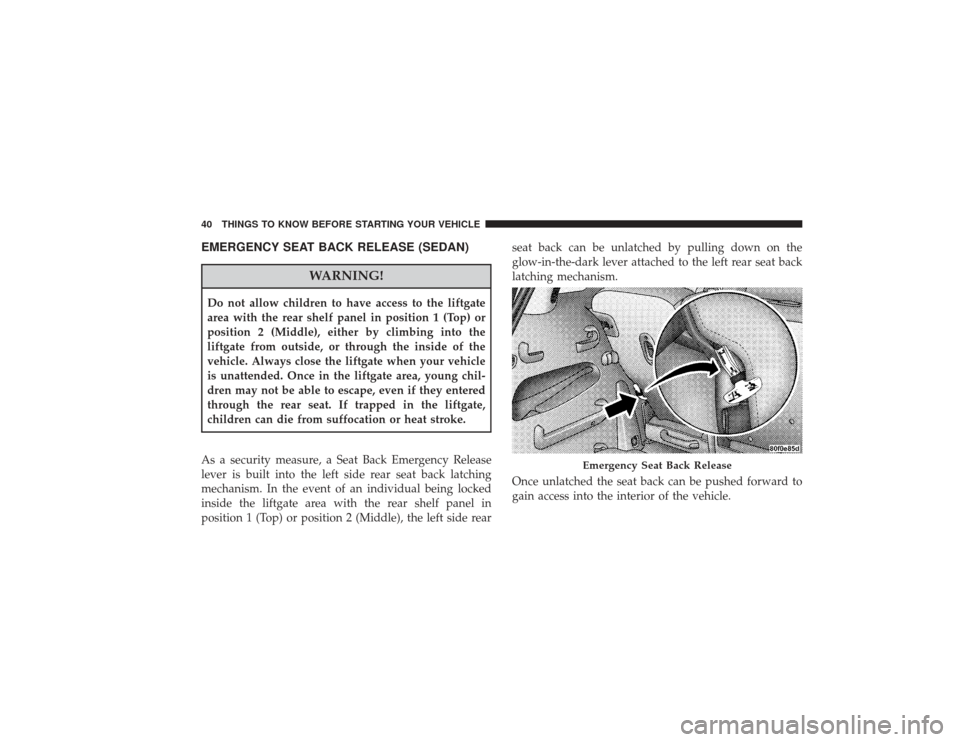

EMERGENCY SEAT BACK RELEASE (SEDAN)
WARNING!
Do not allow children to have access to the liftgate
area with the rear shelf panel in position 1 (Top) or
position 2 (Middle), either by climbing into the
liftgate from outside, or through the inside of the
vehicle. Always close the liftgate when your vehicle
is unattended. Once in the liftgate area, young chil-
dren may not be able to escape, even if they entered
through the rear seat. If trapped in the liftgate,
children can die from suffocation or heat stroke.
As a security measure, a Seat Back Emergency Release
lever is built into the left side rear seat back latching
mechanism. In the event of an individual being locked
inside the liftgate area with the rear shelf panel in
position 1 (Top) or position 2 (Middle), the left side rear seat back can be unlatched by pulling down on the
glow-in-the-dark lever attached to the left rear seat back
latching mechanism.
Once unlatched the seat back can be pushed forward to
gain access into the interior of the vehicle.
Emergency Seat Back Release
40 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE

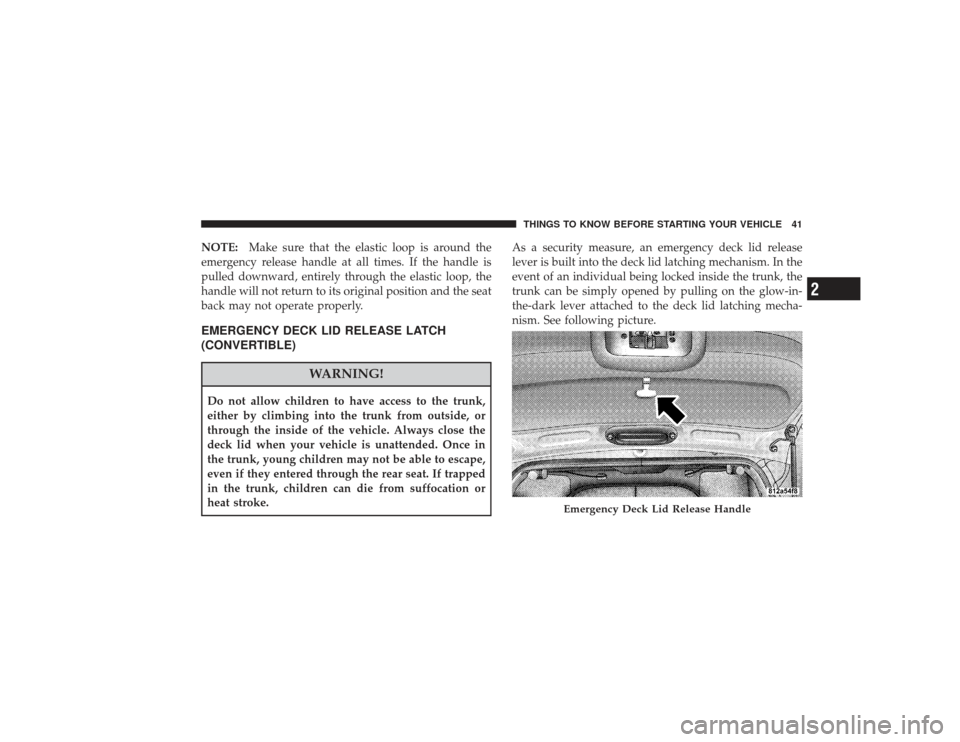

NOTE:Make sure that the elastic loop is around the
emergency release handle at all times. If the handle is
pulled downward, entirely through the elastic loop, the
handle will not return to its original position and the seat
back may not operate properly.EMERGENCY DECK LID RELEASE LATCH
(CONVERTIBLE)
WARNING!
Do not allow children to have access to the trunk,
either by climbing into the trunk from outside, or
through the inside of the vehicle. Always close the
deck lid when your vehicle is unattended. Once in
the trunk, young children may not be able to escape,
even if they entered through the rear seat. If trapped
in the trunk, children can die from suffocation or
heat stroke. As a security measure, an emergency deck lid release
lever is built into the deck lid latching mechanism. In the
event of an individual being locked inside the trunk, the
trunk can be simply opened by pulling on the glow-in-
the-dark lever attached to the deck lid latching mecha-
nism. See following picture.
Emergency Deck Lid Release Handle
THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 41
2

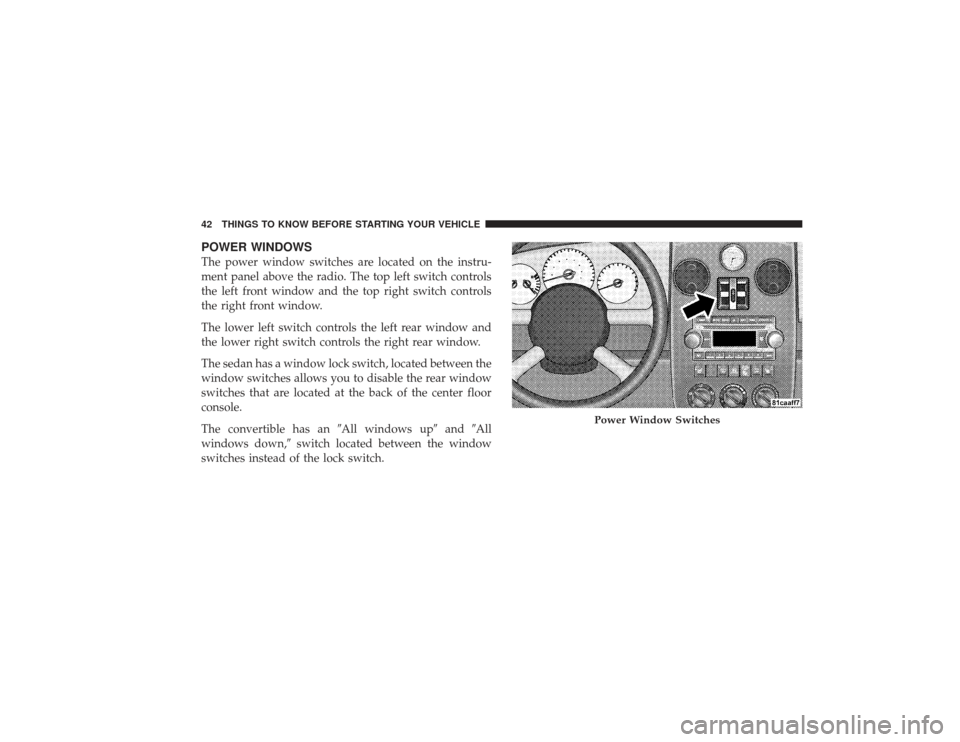

POWER WINDOWSThe power window switches are located on the instru-
ment panel above the radio. The top left switch controls
the left front window and the top right switch controls
the right front window.
The lower left switch controls the left rear window and
the lower right switch controls the right rear window.
The sedan has a window lock switch, located between the
window switches allows you to disable the rear window
switches that are located at the back of the center floor
console.
The convertible has anAll windows upandAll
windows down, switch located between the window
switches instead of the lock switch.
Power Window Switches
42 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE

WARNING!
Never leave children in a vehicle, with the keys in
the ignition switch. Occupants, particularly unat-
tended children, can become entrapped by the win-
dows while operating the power window switches.
Such entrapment may result in serious injury or
death.AUTO DOWN FEATUREThe driver’s and passenger’s front window switches
have an auto down feature. Press the window switch past
the detent, release, and the window will go down auto-
matically. Press the switch a second time in either direc-
tion to stop the window.
To open the window part way, press the window switch
part way and release it when you want the window to
stop.
REAR WINDOW SWITCHESThere are also rear passenger window switches (sedan
only) located at the rear of the center console.
Power Rear Window Switches Sedans
THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 43
2

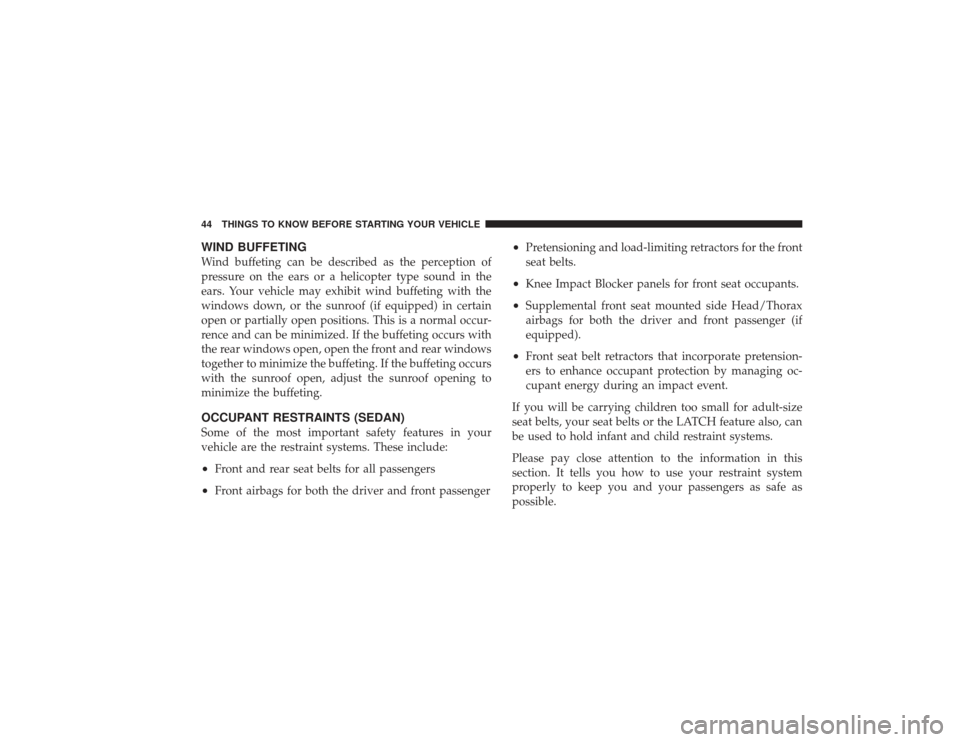

WIND BUFFETINGWind buffeting can be described as the perception of
pressure on the ears or a helicopter type sound in the
ears. Your vehicle may exhibit wind buffeting with the
windows down, or the sunroof (if equipped) in certain
open or partially open positions. This is a normal occur-
rence and can be minimized. If the buffeting occurs with
the rear windows open, open the front and rear windows
together to minimize the buffeting. If the buffeting occurs
with the sunroof open, adjust the sunroof opening to
minimize the buffeting.OCCUPANT RESTRAINTS (SEDAN)Some of the most important safety features in your
vehicle are the restraint systems. These include:•
Front and rear seat belts for all passengers
•
Front airbags for both the driver and front passenger
•
Pretensioning and load-limiting retractors for the front
seat belts.
•
Knee Impact Blocker panels for front seat occupants.
•
Supplemental front seat mounted side Head/Thorax
airbags for both the driver and front passenger (if
equipped).
•
Front seat belt retractors that incorporate pretension-
ers to enhance occupant protection by managing oc-
cupant energy during an impact event.
If you will be carrying children too small for adult-size
seat belts, your seat belts or the LATCH feature also, can
be used to hold infant and child restraint systems.
Please pay close attention to the information in this
section. It tells you how to use your restraint system
properly to keep you and your passengers as safe as
possible.
44 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE

WARNING!
In a collision, you and your passengers can suffer
much greater injuries if you are not properly buckled
up. You can strike the interior of your vehicle or other
passengers, or you can be thrown out of the vehicle.
Always be sure you and others in your vehicle are
buckled up properly.
Buckle up even though you are an excellent driver, even
on short trips. Someone on the road may be a poor driver
and cause a collision that includes you. This can happen
far away from home or on your own street. Research has shown that seat belts save lives, and they
can reduce the seriousness of injuries in a collision. Some
of the worst injuries happen when people are thrown
from the vehicle. Seat belts reduce the possibility of
ejection and the risk of injury caused by striking the
inside of the vehicle.
Everyone in a motor vehicle should
be belted at all times.
LAP/SHOULDER BELTSAll the seats in your vehicle are equipped with Lap/
Shoulder Belts.
The belt webbing retractor is designed to lock during
very sudden stops or collisions. This feature allows the
shoulder part of the belt to move freely with you under
normal conditions. But in a collision, the belt will lock
and reduce the risk of your striking the inside of the
vehicle or being thrown out.THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 45
2

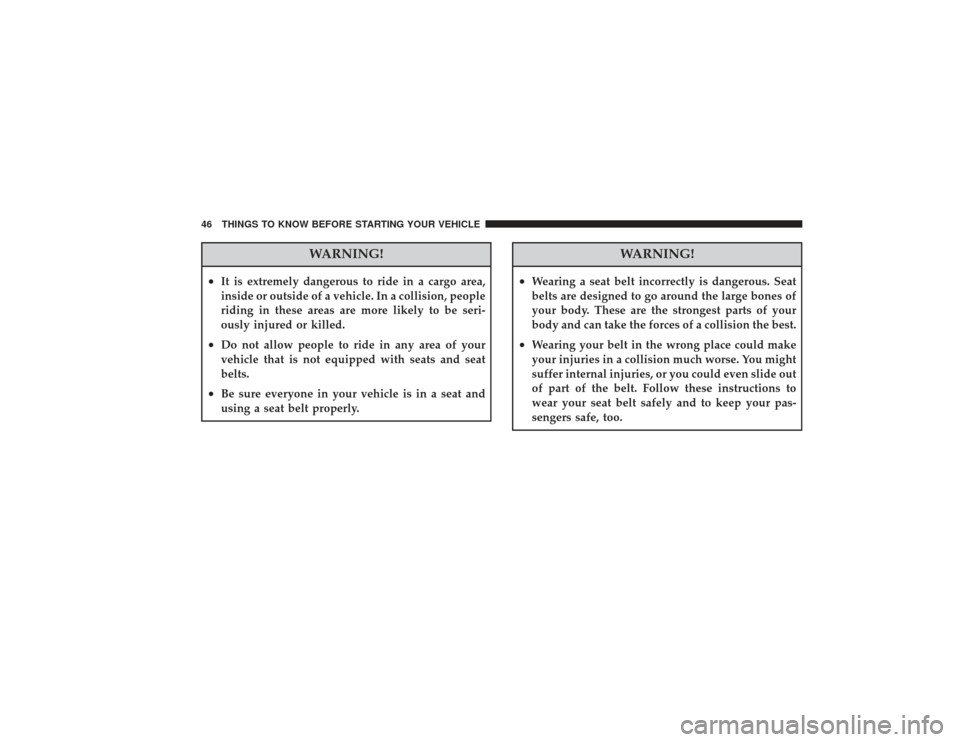

WARNING!
•
It is extremely dangerous to ride in a cargo area,
inside or outside of a vehicle. In a collision, people
riding in these areas are more likely to be seri-
ously injured or killed.
•
Do not allow people to ride in any area of your
vehicle that is not equipped with seats and seat
belts.
•
Be sure everyone in your vehicle is in a seat and
using a seat belt properly.
WARNING!
•
Wearing a seat belt incorrectly is dangerous. Seat
belts are designed to go around the large bones of
your body. These are the strongest parts of your
body and can take the forces of a collision the best.
•
Wearing your belt in the wrong place could make
your injuries in a collision much worse. You might
suffer internal injuries, or you could even slide out
of part of the belt. Follow these instructions to
wear your seat belt safely and to keep your pas-
sengers safe, too.
46 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE

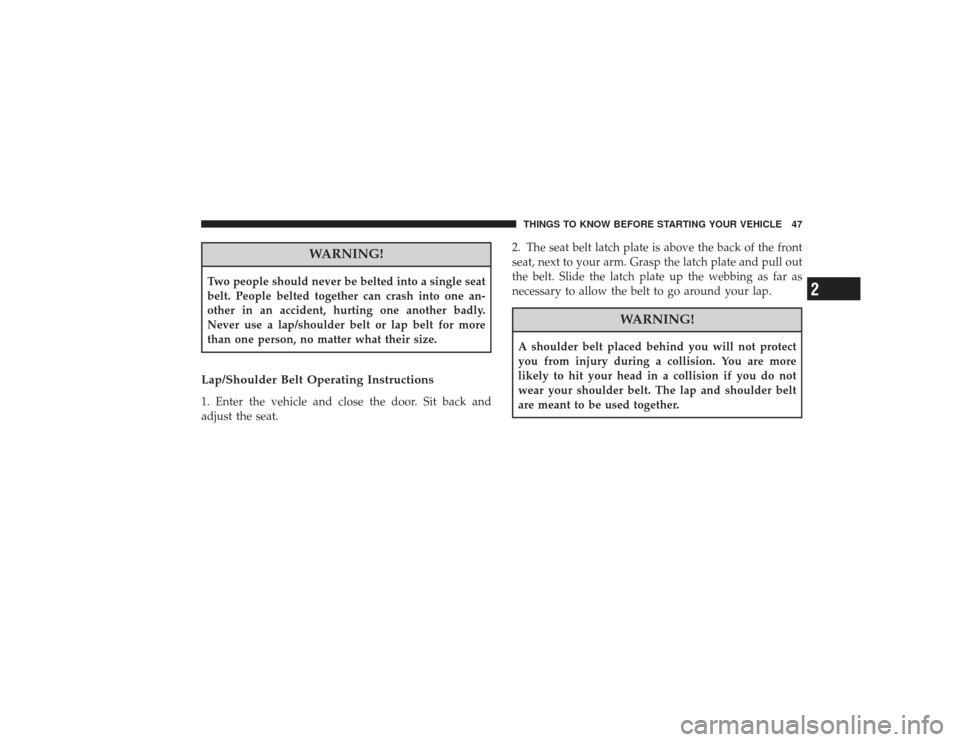

WARNING!
Two people should never be belted into a single seat
belt. People belted together can crash into one an-
other in an accident, hurting one another badly.
Never use a lap/shoulder belt or lap belt for more
than one person, no matter what their size.Lap/Shoulder Belt Operating Instructions1. Enter the vehicle and close the door. Sit back and
adjust the seat.2. The seat belt latch plate is above the back of the front
seat, next to your arm. Grasp the latch plate and pull out
the belt. Slide the latch plate up the webbing as far as
necessary to allow the belt to go around your lap.
WARNING!
A shoulder belt placed behind you will not protect
you from injury during a collision. You are more
likely to hit your head in a collision if you do not
wear your shoulder belt. The lap and shoulder belt
are meant to be used together.THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 47
2

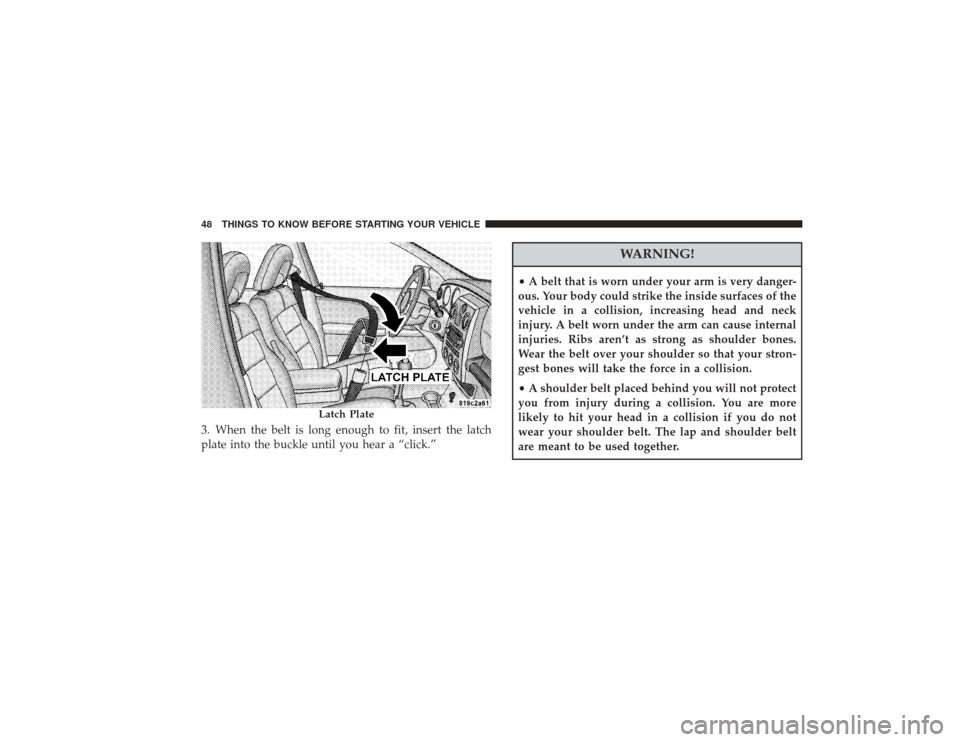

3. When the belt is long enough to fit, insert the latch
plate into the buckle until you hear a “click.”
WARNING!
•A belt that is worn under your arm is very danger-
ous. Your body could strike the inside surfaces of the
vehicle in a collision, increasing head and neck
injury. A belt worn under the arm can cause internal
injuries. Ribs aren’t as strong as shoulder bones.
Wear the belt over your shoulder so that your stron-
gest bones will take the force in a collision.
• A shoulder belt placed behind you will not protect
you from injury during a collision. You are more
likely to hit your head in a collision if you do not
wear your shoulder belt. The lap and shoulder belt
are meant to be used together.
Latch Plate
