CHRYSLER PT CRUISER 2008 1.G Owner's Guide

NOTE:Changes or modifications not expressly ap-
proved by the party responsible for compliance could
void the user’s authority to operate the equipment.
If your Remote Lock Control fails to operate from a
normal distance, check for these two conditions.
1. Weak batteries in transmitter. The expected life of
batteries is five years.
2. Closeness to a radio transmitter such as a radio station
tower, airport transmitter, military base, and some mobile
or CB radios.TRANSMITTER BATTERY SERVICENOTE:
Perchlorate Material – special handling may ap-
ply, See www.dtsc.ca.gov/hazardouswaste/perchlorate.
The recommended replacement battery is CR2032. 1. If the keyfob is equipped with a screw, remove the
screw. With the transmitter buttons facing down, use a
flat blade to pry the two halves of the transmitter apart.
Make sure not to damage the elastomer seal during
removal.
Separating RKE Transmitter Halves
THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 29
2

2. Remove and replace the batteries. Avoid touching the
new batteries with your fingers. Skin oils may cause
battery deterioration. If you touch a battery, clean it with
rubbing alcohol.
3. To assemble the transmitter case, snap the two halves
together.
NOTE:If the keyfob is equipped with a screw, reinstall
and tighten the screw until snug.
REMOTE KEYLESS ENTRY (CONVERTIBLE)This system allows you to lock or unlock the doors or
open the deck lid from distances of 23–50 feet (7–15
meters) using a transmitter. You don’t have to point the
transmitter at the vehicle to activate the system. Each
vehicle comes with two transmitters.
Four-Button Transmitter
30 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE

TO UNLOCK THE DOORS:Press and release the UNLOCK button on the keyfob
once to unlock only the driver’s door or twice to unlock
all the doors and liftgate. When the UNLOCK button is
pressed, the illuminated entry will initiate, and the
parking lights will flash on twice. The time for this
feature is programmable on vehicles equipped with the
Electronic Vehicle Information Center (EVIC). Refer to
“Turn Headlamps on with Remote Key Unlock” under
“Personal Settings” in the Electronic Vehicle Information
Center (EVIC) section of this manual for details.
NOTE:The system can also be programmed to unlock
all doors on the first press of the UNLOCK button. On
electronic vehicle information center (EVIC) equipped
vehicles refer to “Remote Unlock Driver’s Door 1st”
under “Personal Settings” in the EVIC section of this
manual. On non EVIC – equipped vehicles perform the
following steps: The system can be programmed to unlock all the doors
upon the first UNLOCK button press by using the
following procedure:
1. Press and hold the LOCK button on a programmed
keyfob.
2. Continue to hold the LOCK button at least four
seconds, but not longer than ten seconds, then press and
hold the UNLOCK button. A single chime will sound to
indicate that this feature has changed.
3. Release both buttons at the same time.
4. Test the feature while outside of the vehicle, by
pressing the LOCK/UNLOCK button on the keyfob.
NOTE:
Pressing the LOCK button on the keyfob while
you are inside the vehicle will activate the Security
Alarm. Opening a door with the Security Alarm activated
will cause the alarm to sound. Press the UNLOCK button
to deactivate the Security Alarm.
THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 31
2

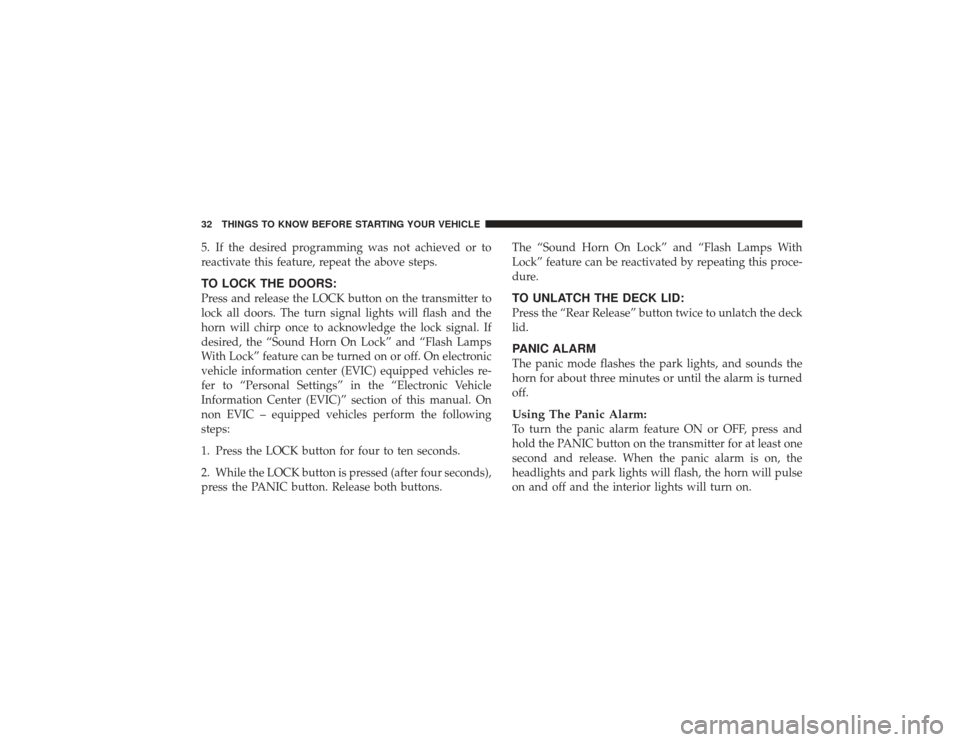

5. If the desired programming was not achieved or to
reactivate this feature, repeat the above steps.TO LOCK THE DOORS:Press and release the LOCK button on the transmitter to
lock all doors. The turn signal lights will flash and the
horn will chirp once to acknowledge the lock signal. If
desired, the “Sound Horn On Lock” and “Flash Lamps
With Lock” feature can be turned on or off. On electronic
vehicle information center (EVIC) equipped vehicles re-
fer to “Personal Settings” in the “Electronic Vehicle
Information Center (EVIC)” section of this manual. On
non EVIC – equipped vehicles perform the following
steps:
1. Press the LOCK button for four to ten seconds.
2. While the LOCK button is pressed (after four seconds),
press the PANIC button. Release both buttons.The “Sound Horn On Lock” and “Flash Lamps With
Lock” feature can be reactivated by repeating this proce-
dure.
TO UNLATCH THE DECK LID:Press the “Rear Release” button twice to unlatch the deck
lid.PANIC ALARMThe panic mode flashes the park lights, and sounds the
horn for about three minutes or until the alarm is turned
off.Using The Panic Alarm:To turn the panic alarm feature ON or OFF, press and
hold the PANIC button on the transmitter for at least one
second and release. When the panic alarm is on, the
headlights and park lights will flash, the horn will pulse
on and off and the interior lights will turn on.
32 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE

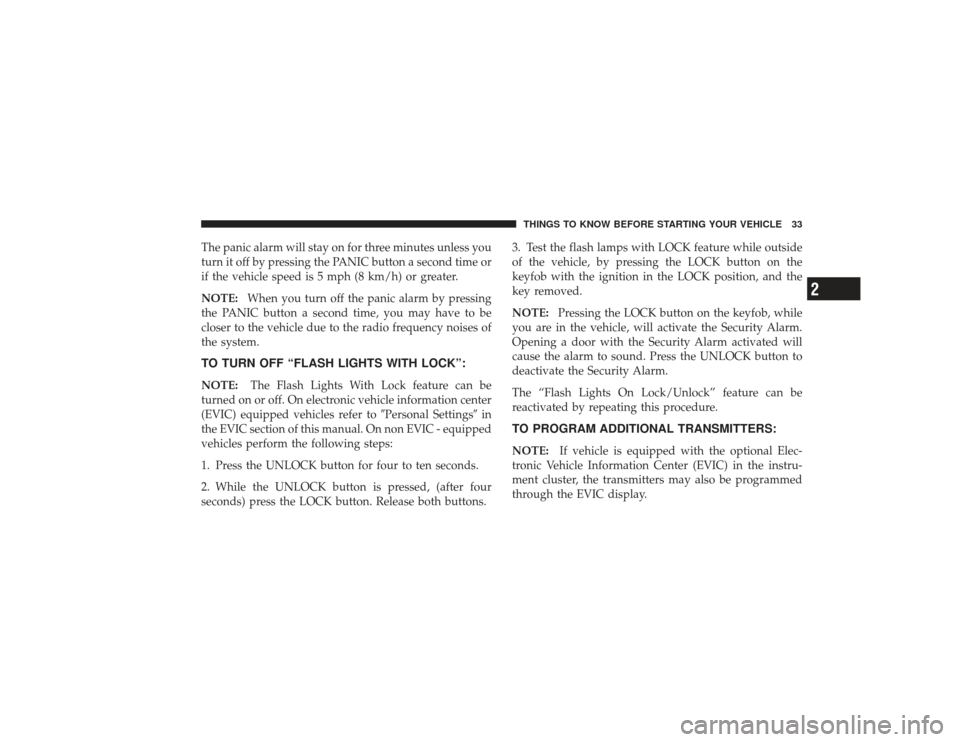

The panic alarm will stay on for three minutes unless you
turn it off by pressing the PANIC button a second time or
if the vehicle speed is 5 mph (8 km/h) or greater.
NOTE:When you turn off the panic alarm by pressing
the PANIC button a second time, you may have to be
closer to the vehicle due to the radio frequency noises of
the system.TO TURN OFF “FLASH LIGHTS WITH LOCK”:NOTE: The Flash Lights With Lock feature can be
turned on or off. On electronic vehicle information center
(EVIC) equipped vehicles refer to Personal Settingsin
the EVIC section of this manual. On non EVIC - equipped
vehicles perform the following steps:
1. Press the UNLOCK button for four to ten seconds.
2. While the UNLOCK button is pressed, (after four
seconds) press the LOCK button. Release both buttons. 3. Test the flash lamps with LOCK feature while outside
of the vehicle, by pressing the LOCK button on the
keyfob with the ignition in the LOCK position, and the
key removed.
NOTE:
Pressing the LOCK button on the keyfob, while
you are in the vehicle, will activate the Security Alarm.
Opening a door with the Security Alarm activated will
cause the alarm to sound. Press the UNLOCK button to
deactivate the Security Alarm.
The “Flash Lights On Lock/Unlock” feature can be
reactivated by repeating this procedure.
TO PROGRAM ADDITIONAL TRANSMITTERS:NOTE: If vehicle is equipped with the optional Elec-
tronic Vehicle Information Center (EVIC) in the instru-
ment cluster, the transmitters may also be programmed
through the EVIC display.THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 33
2

Up to eight transmitters can be programmed to your vehicle.
To obtain additional transmitters, contact your authorized
dealer. To program a transmitter (within 23–50 ft/7–15 m of
the vehicle), perform the following procedure:1. Gather every transmitter that is to be used with the
vehicle including any transmitters that are currently
programmed.
2.Enter Program Mode: Turn the ignition to the ON
position, and using a currently programmed transmitter;
press and hold the Unlockbutton on the transmitter.
Continue to hold the “Unlock” button, wait at least four
but no longer than 10 seconds, then press and hold the
PANIC button for at least one second. Release both
buttons simultaneously.
3. Program Each Transmitter: All transmitters to be used
with your vehicle must be programmed as follows:Press and release the LockandUnlock buttons simulta-
neously, followed by a press and release of ANY button on each transmitter to be programmed. You will hear a chime
when a transmitter has been successfully programmed.
GENERAL INFORMATIONThis transmitter complies with FCC rules part 15 and
with RSS-210 of Industry Canada. Operation is subject to
the following two conditions:
1. This device may not cause harmful interference.
2. This device must accept any interference that may be
received, including interference that may cause undes-
ired operation.
If your Remote Keyless Entry
fails to operate from a
normal distance, check for these two conditions:
1. Weak batteries in transmitter. The expected life of
batteries is from one to two years
2. Closeness to a radio transmitter such as a radio station
tower, airport transmitter, and some mobile or CB radios.
34 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE

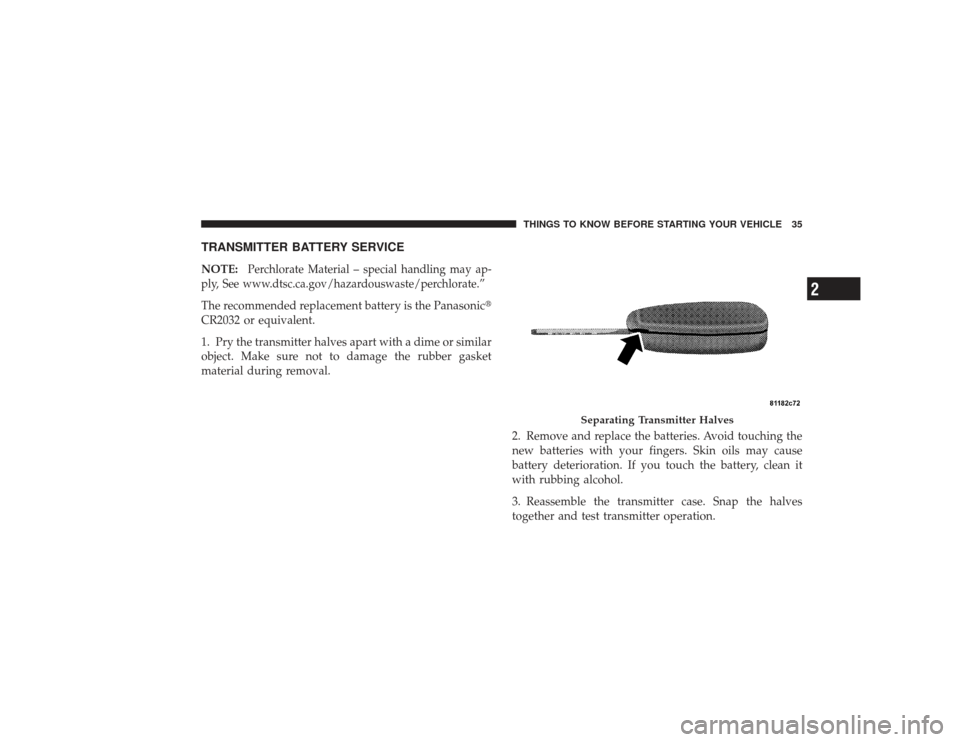

TRANSMITTER BATTERY SERVICENOTE:
Perchlorate Material – special handling may ap-
ply, See www.dtsc.ca.gov/hazardouswaste/perchlorate.”
The recommended replacement battery is the Panasonic
CR2032 or equivalent.
1. Pry the transmitter halves apart with a dime or similar
object. Make sure not to damage the rubber gasket
material during removal.
2. Remove and replace the batteries. Avoid touching the
new batteries with your fingers. Skin oils may cause
battery deterioration. If you touch the battery, clean it
with rubbing alcohol.
3. Reassemble the transmitter case. Snap the halves
together and test transmitter operation.
Separating Transmitter Halves
THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 35
2

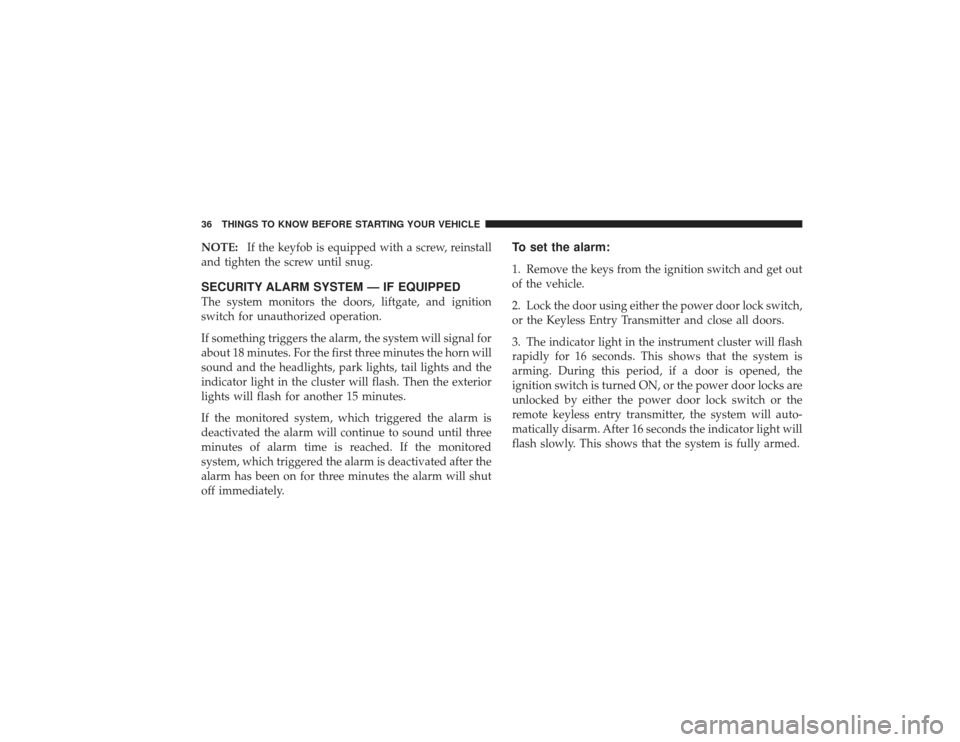

NOTE:If the keyfob is equipped with a screw, reinstall
and tighten the screw until snug.SECURITY ALARM SYSTEM — IF EQUIPPEDThe system monitors the doors, liftgate, and ignition
switch for unauthorized operation.
If something triggers the alarm, the system will signal for
about 18 minutes. For the first three minutes the horn will
sound and the headlights, park lights, tail lights and the
indicator light in the cluster will flash. Then the exterior
lights will flash for another 15 minutes.
If the monitored system, which triggered the alarm is
deactivated the alarm will continue to sound until three
minutes of alarm time is reached. If the monitored
system, which triggered the alarm is deactivated after the
alarm has been on for three minutes the alarm will shut
off immediately.
To set the alarm:1. Remove the keys from the ignition switch and get out
of the vehicle.
2. Lock the door using either the power door lock switch,
or the Keyless Entry Transmitter and close all doors.
3. The indicator light in the instrument cluster will flash
rapidly for 16 seconds. This shows that the system is
arming. During this period, if a door is opened, the
ignition switch is turned ON, or the power door locks are
unlocked by either the power door lock switch or the
remote keyless entry transmitter, the system will auto-
matically disarm. After 16 seconds the indicator light will
flash slowly. This shows that the system is fully armed.
36 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE

To disarm the system:Unlock a front door using the Keyless Entry Transmitter.
Starting the vehicle with a valid Sentry key will disarm
the system. A valid key is one that is programmed to that
particular vehicle. A valid key will disarm the system, an
invalid key will trigger the alarm.Tamper AlertIf the horn sounds three times when you unlock a front
door using the Keyless Entry Transmitter, the alarm has
been activated. Check the vehicle for tampering.Security System Manual OverrideThe system will not arm if you lock the doors using the
manual door lock plunger.
LIFTGATE (SEDAN)The liftgate can be unlocked by pressing twice on the
remote keyless entry button or by activating the power
door lock switches located on the front doors.
Door Lock Plunger
THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 37
2

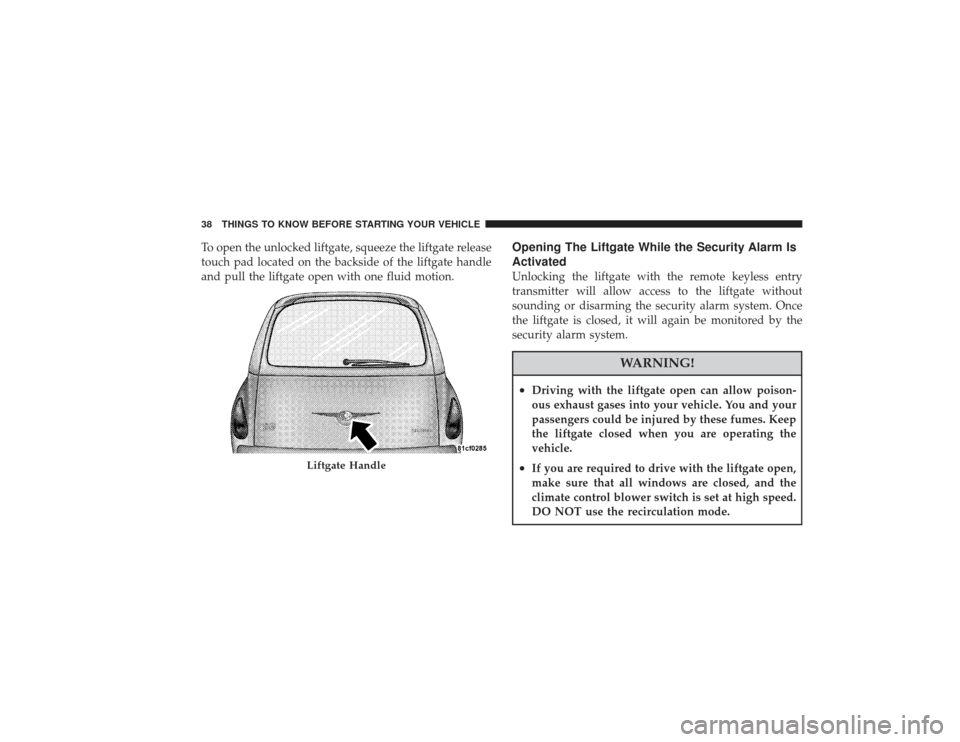

To open the unlocked liftgate, squeeze the liftgate release
touch pad located on the backside of the liftgate handle
and pull the liftgate open with one fluid motion.
Opening The Liftgate While the Security Alarm Is
ActivatedUnlocking the liftgate with the remote keyless entry
transmitter will allow access to the liftgate without
sounding or disarming the security alarm system. Once
the liftgate is closed, it will again be monitored by the
security alarm system.
WARNING!
•
Driving with the liftgate open can allow poison-
ous exhaust gases into your vehicle. You and your
passengers could be injured by these fumes. Keep
the liftgate closed when you are operating the
vehicle.
•
If you are required to drive with the liftgate open,
make sure that all windows are closed, and the
climate control blower switch is set at high speed.
DO NOT use the recirculation mode.
Liftgate Handle
38 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE
