TEST ACTION APPLICABILITY
8 Ignition Off
Using the schematic as a guide, inspect the Wiring and Connectors.
Were any problems found?All
Ye s®Repair as necessary.
Perform Powertrain Verification Test VER-2A.
No®Test Complete.
216
DRIVEABILITY
P-1598 A/C PRESSURE SENSOR VOLTS TOO HIGH ÐContinued
ProCarManuals.com

Symptom:
P-1599 A/C PRESSURE SENSOR VOLTS TOO LOW
When Monitored and Set Condition:
P-1599 A/C PRESSURE SENSOR VOLTS TOO LOW
When Monitored: With the ignition switch on, the engine running , and the A/C relay
energized.
Set Condition: The A/C pressure sensor signal voltage at PCM cavity 42 goes below 0.5
volt, or the voltage is below .059 volt.
POSSIBLE CAUSES
A/C PRESSURE SENSOR 5-VOLT SUPPLY CKT OPEN
A/C PRESS SEN CONN AND WIRING HARN OBSERVABLE DEF
A/C PRESSURE SEN SIG CKT SHORTED TO SEN GND CKT
A/C PRESSURE SENSOR CONN AND WIRING HARN INTER DEF
A/C PRESSURE SENSOR SIGNAL CKT SHORTED TO GND
A/C PRESSURE SENSOR DEFECTIVE
PCM DEF (A/C PRESSURE SEN)
TEST ACTION APPLICABILITY
1 Ignition On, Engine Not Running
With the DRB, read the A/C Pressure Sensor voltage.
Is the A/C Pressure Sensor voltage below 0.2 volt?All
Ye s®Go To 2
No®Go To 7
2 Ignition Off
Disconnect the A/C Pressure Sensor Connector.
Note: Check connectors - Clean/repair as necessary.
Ignition on with engine not running.
Using a Voltmeter, measure the 5-Volt Supply Circuit.
Is the A/C Pressure Sensor 5-volt Supply Circuit above 4.9 volts?All
Ye s®Go To 3
No®Repair the open 5-Volt Supply Circuit.
Perform Powertrain Verification Test VER-2A.
217
DRIVEABILITY
ProCarManuals.com

TEST ACTION APPLICABILITY
3 Ignition Off
Disconnect the A/C Pressure Sensor Connector.
Note: Check connectors - Clean/repair as necessary.
Ignition on with engine not running.
With the DRB , read the A/C Pressure Sensor voltage.
Is the A/C Pressure Sensor voltage above 4.5 volts?All
Ye s®Replace the A/C Pressure Sensor.
Perform Powertrain Verification Test VER-2A.
No®Go To 4
4 Ignition Off
Disconnect the Powertrain Control Module.
Disconnect the A/C Pressure Sensor Connector.
Note: Check connectors - Clean/repair as necessary.
Using an Ohmmeter ,test the resistance between the A/C Pressure Sensor Signal
Circuit and Sensor Ground Circuit.
Is the resistance below 5.0 ohms?All
Ye s®Repair the Sensor Signal Circuit shorted to the Sensor Ground
Circuit.
Perform Powertrain Verification Test VER-2A.
No®Go To 5
5 Ignition Off
Disconnect the Powertrain Control Module.
Disconnect the A/C Pressure Sensor Connector.
Note: Check connectors - Clean/repair as necessary.
Using an Ohmmeter, measure the A/C Pressure Sensor Signal Circuit to ground.
Is the resistance below 5.0 ohms?All
Ye s®Repair the Sensor Signal Circuit for a short to ground.
Perform Powertrain Verification Test VER-2A.
No®Go To 6
6 Ignition off.
If there are no potential causes remaining, the PCM is assumed to be defective.
View repair options.All
Repair
Replace the Powertrain Control Module.
Perform Powertrain Verification Test VER-2A.
7 Ignition Off
Using the schematic as a guide, inspect the wiring and connectors.
Were any problems found?All
Ye s®Repair as necessary.
Perform Powertrain Verification Test VER-2A.
No®Go To 8
218
DRIVEABILITY
P-1599 A/C PRESSURE SENSOR VOLTS TOO LOW ÐContinued
ProCarManuals.com

TEST ACTION APPLICABILITY
8 Ignition On, Engine Not Running
Use the Schematic as a guide, wiggle A/C Pressure Sensor Connector and Harness.
Monitor the DRB display.
Was there an A/C Pressure Sensor voltage change?All
Ye s®Repair the Harness or Connector that caused the voltage to
change.
Perform Powertrain Verification Test VER-2A.
No®Test Complete.
219
DRIVEABILITY
P-1599 A/C PRESSURE SENSOR VOLTS TOO LOW ÐContinued
ProCarManuals.com

Symptom:
CHECKING 5 VOLT SUPPLY CIRCUIT
POSSIBLE CAUSES
5-VOLT SUPPLY CIRCUIT SHORTED TO GROUND
5-VOLT SUPPLY WIRING HARNESS INTER DEF
A/C PRESSURE SENSOR DEFECTIVE
MAP SENSOR DEFECTIVE
THROTTLE POSITION SENSOR DEFECTIVE
PCM DEF (5 VOLT SUPPLY CIRCUIT)
TEST ACTION APPLICABILITY
1 Ignition On, Engine Not Running
Disconnect the Throttle Position Sensor Connector.
Note: Check connectors - Clean/repair as necessary
With a voltmeter, probe the 5-Volt Supply Ckt at the TP Sensor harness connector.
Is the voltage reading below 4.5 volts?All
Ye s®Go To 2
No®Go To 6
2 Ignition On, Engine Not Running.
Disconnect the Throttle Position Sensor Connector.
Disconnect the A/C Pressure Sensor.
Note: Check connectors - Clean/repair as necessary.
With a voltmeter, probe the TP Sensor 5-Volt Supply Circuit to the TP Sensor.
Is the 5-Volt Supply Circuit voltage above 4.0 volts?All
Ye s®Replace the A/C Pressure Sensor.
Perform Powertrain Verificaton Test VER-2A.
No®Go To 3
3 Ignition On, Engine Not Running
Disconnect the Throttle Position Sensor Connector.
Disconnect the MAP Sensor Electrical Connector.
Note: Check connectors - Clean/repair as necessary.
With the voltmeter, probe the TP Sensor 5-Volt Supply Circuit to the TP Sensor.
Is the 5-Volt Supply Circuit voltage above 4.0 volts?All
Ye s®Replace the Map Sensor.
Perform Powertrain Verification Test VER-2A.
No®Go To 4
226
DRIVEABILITY
ProCarManuals.com

TEST ACTION APPLICABILITY
4 Ignition Off
Disconnect the Throttle Position Sensor Connector.
Disconnect the MAP Sensor Electrical Connector.
Disconnect the A/C Sensor Connector.
Disconnect the Powertrain Control Module Connector.
Note: Check connectors - Clean/repair as necessary.
With the ohmmeter, probe the 5-volt supply circuit at the TPS Connector.
Is the resistance below 5.0 ohms?All
Ye s®Repair the 5-volt Supply Circuit for a short to ground.
Perform Powertrain Verification Test VER-2A.
No®Go To 5
5 If there are no potential causes remaining, the Powertrain Control Module is
assumed to be defective.
View repair options.All
Repair
Replace the PCM.
Perform Powertrain Verification Test VER-2A.
6 Ignition On, Engine Not Running
Disconnect the MAP Sensor Connector.
Note: Check connectors - Clean/repair as necessary.
With the voltmeter, probe the 5-Volt Supply Ckt at the MAP Sensor Connector.
Is the voltage reading below 4.5 volts?All
Ye s®Replace the TPS.
Perform Powertrain Verification Test VER-2A.
No®Test Complete.
227
DRIVEABILITY
CHECKING 5 VOLT SUPPLY CIRCUIT ÐContinued
ProCarManuals.com

Symptom:

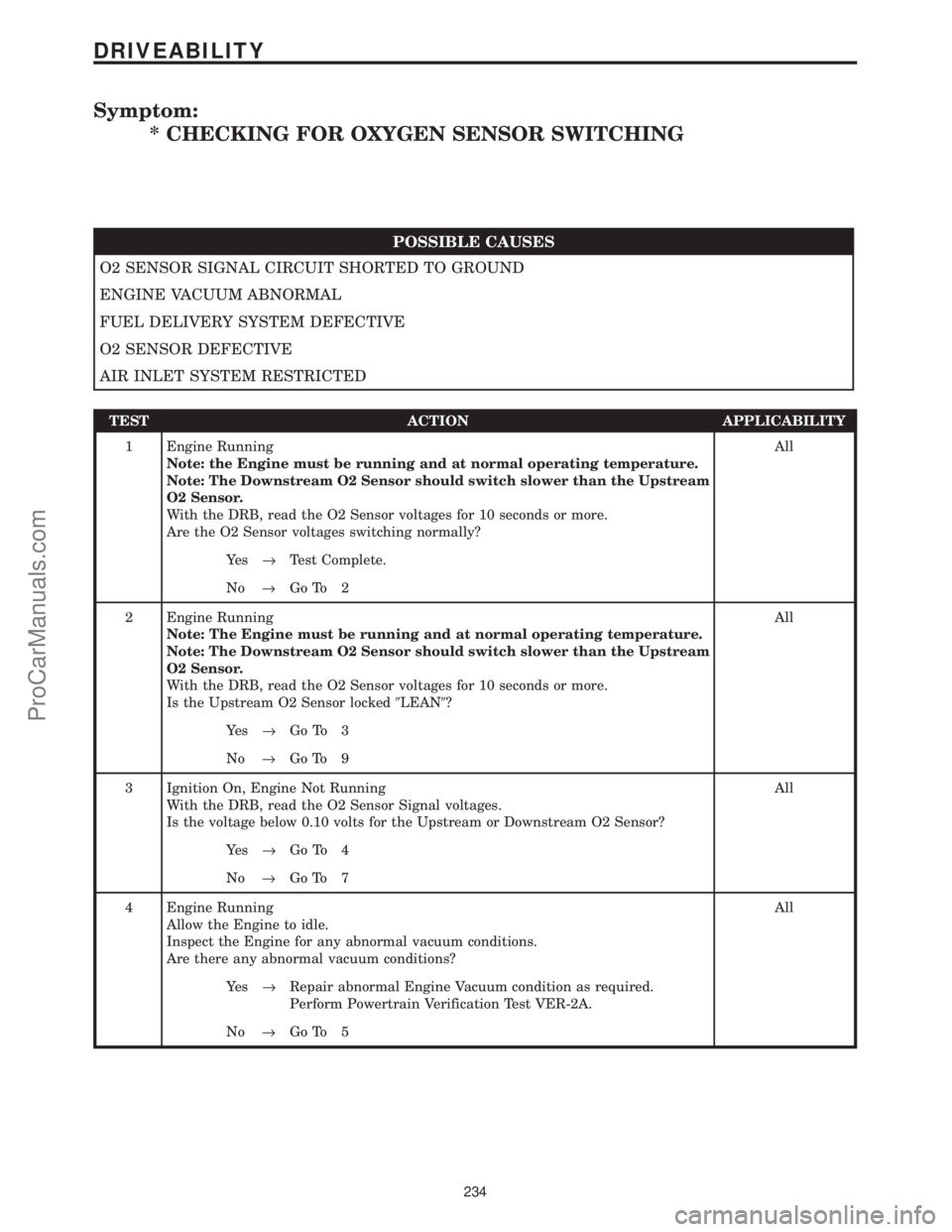

* CHECKING FOR OXYGEN SENSOR SWITCHING
POSSIBLE CAUSES
O2 SENSOR SIGNAL CIRCUIT SHORTED TO GROUND
ENGINE VACUUM ABNORMAL
FUEL DELIVERY SYSTEM DEFECTIVE
O2 SENSOR DEFECTIVE
AIR INLET SYSTEM RESTRICTED
TEST ACTION APPLICABILITY
1 Engine Running
Note: the Engine must be running and at normal operating temperature.
Note: The Downstream O2 Sensor should switch slower than the Upstream
O2 Sensor.
With the DRB, read the O2 Sensor voltages for 10 seconds or more.
Are the O2 Sensor voltages switching normally?All
Ye s®Test Complete.
No®Go To 2
2 Engine Running
Note: The Engine must be running and at normal operating temperature.
Note: The Downstream O2 Sensor should switch slower than the Upstream
O2 Sensor.
With the DRB, read the O2 Sensor voltages for 10 seconds or more.
Is the Upstream O2 Sensor locked9LEAN9?All
Ye s®Go To 3
No®Go To 9
3 Ignition On, Engine Not Running
With the DRB, read the O2 Sensor Signal voltages.
Is the voltage below 0.10 volts for the Upstream or Downstream O2 Sensor?All
Ye s®Go To 4
No®Go To 7
4 Engine Running
Allow the Engine to idle.
Inspect the Engine for any abnormal vacuum conditions.
Are there any abnormal vacuum conditions?All
Ye s®Repair abnormal Engine Vacuum condition as required.
Perform Powertrain Verification Test VER-2A.
No®Go To 5
234
DRIVEABILITY
ProCarManuals.com

TEST ACTION APPLICABILITY
5 Ignition Off
Disconnect the Upstream or Downstream O2 Sensor Connector that the voltage is
below 0.10 volts.
Note: Check connectors - Clean/repair as necessary.
Disconnect the Powertrain Control Module.
Note: Check connectors - Clean/repair as necessary.
Using an Ohmmeter, measure the resistance between the O2 Sensor Signal Circuit
and a good ground.
Is the resistance below 5.0 ohms?All
Ye s®Repair the O2 Sensor Signal Circuit for a short to ground.
Perform Powertrain Verification Test VER-2A.
No®Go To 6
6 If there are no potential causes remaining, the Upstream or Downstream O2 Sensor
is assumed to be defective.
View repair options.All
Repair
Replace the Upstream or Downstream O2 Sensor that was below
0.10 volts.
Perform Powertrain Verification Test VER-2A.
7 Engine Running
Allow the Engine to idle.
Inspect the Engine for any abnormal vacuum conditions.
Are there any abnormal vacuum conditions?All
Ye s®Repair abnormal Engine Vacuum condition as required.
Perform Powertrain Verification Test VER-2A.
No®Go To 8
8 Engine Running
With the DRB, reset the Adaptive Fuel Memory.
Note: The engine must be running and at normal operating temperature.
Note: The Downstream O2 Sensor should switch slower than the Upstream
O2 Sensor.
With the DRB, read the O2 Sensor voltages for 10 seconds or more.
Are the O2 Sensor voltages switching normally?All
Ye s®Test Complete.
No®Refer to symptom * CHECKING THE ENGINE MECHANICAL
SYSTEMS in the DRIVEABILITY category.
9 Ignition Off
Install a Fuel Pressure Gauge to the Fuel Line. Use special tools if necessary.
Turn ignition on.
With the DRB, actuate the ASD Fuel System Test.
Allow Fuel Pressure to stabilize.
With the DRB, stop Fuel System Test. Monitor the Pressure Gauge for 1 minute.
Is the Fuel Pressure below 10 psi?All
Ye s®If Fuel Pump and Lines are OK, replace leaking Injector(s) as
necessary.
Perform Powertrain Verification Test VER-2A.
No®Go To 10
235
DRIVEABILITY
* CHECKING FOR OXYGEN SENSOR SWITCHING ÐContinued
ProCarManuals.com

TEST ACTION APPLICABILITY
10 Ignition Off
Inspect the Air Filter and Inlet Ducts for restriction(s).
Were there any restrictions?All
Ye s®Repair or replace the Air Inlet System as necessary.
Perform Powertrain Verification Test VER-2A.
No®Refer to symptom * CHECKING THE ENGINE MECHANICAL
SYSTEMS in the DRIVEABILITY category.
236
DRIVEABILITY
* CHECKING FOR OXYGEN SENSOR SWITCHING ÐContinued
ProCarManuals.com

Symptom:
* CHECKING INTAKE AIR TEMPERATURE SENSOR
POSSIBLE CAUSES
INTAKE AIR TEMPERATURE SENSOR DEFECTIVE
TEST ACTION APPLICABILITY
1 Ignition On, Engine Not Running
Do not allow more than 5 minutes delay between next 2 steps.
With the DRB, read the Intake Air Temperature Sensor and record the reading.
Turn Ignition off.
Remove the IAT Sensor, then proceed to next step.
Using a Temperature Probe, quickly measure intake temperature inside IAT Sensor
opening.
Is the IAT Sensor within ±12 degrees C (10 degrees F) of the probe reading?ENGINE - 2.0L
and 2.4L I-4 DOHC
Ye s®Test Complete.
No®Replace the Intake Air Temperature Sensor.
Perform Verification Test VER-2A.
