Symptom:
P-0460 FUEL LEVEL UNIT NO CHANGE OVER MILES
POSSIBLE CAUSES
FUEL LEVEL SENSOR WIRING/HARNESS OBSERVABLE DEFECT
FUEL TANK OBSTRUCTED
TEST COMPLETE
TEST ACTION APPLICABILITY
1 Ignition On
With the DRB, read the Fuel Level Sensor voltage and make a note of the voltage.
Add two gallons of fuel to the Fuel Tank.
With the DRB, read the Fuel Level Sensor voltage.
Did the Fuel Level Sensor voltage decrease by at least 0.2 volts?All
Ye s®Go To 2
No®Check for an obstruction in the Fuel Tank. If ok replace Fuel
Level Sensor.
Perform Powertrain Verification Test VER-2A.
2 Ignition Off
Using the schematic as a guide, inspect the wiring and connectors.
Were any problems found?All
Ye s®Repair as necessary.
Perform Powertrain Verification Test VER-2A.
No®Test Complete
Perform Powertrain Verification Test VER-2A.
148
DRIVEABILITY
ProCarManuals.com
Page 155 of 364

Symptom:
P-0462 FUEL LEVEL SENDING UNIT VOLTS TOO LOW
POSSIBLE CAUSES
FUEL LEVEL SENSOR DEFECTIVE
FUEL LEVEL SENSOR SIGNAL CIRCUIT SHORTED TO GROUND
FUEL LEVEL SENSOR WIRING/HARNESS INTERMITENT DEFECT
BODY CONTROL MODULE DEFECTIVE
FUEL LEVEL SENSOR WIRING/HARNESS OBSERVABLE DEFECT
TEST COMPLETE
TEST ACTION APPLICABILITY
1 Ignition On
With the DRB, read the DTC's.
is the Global Good Trip counter displayed and equal to zero?All
Ye s®Go To 2
No®Go To 5
2 Ignition Off
Disconnect the Fuel Pump Module Harness Connector.
Note: Check connectors - Clean/repair as necessary.
With the DRB, read the Fuel Level Sensor voltage.
Is the Fuel Level Sensor voltage above 4.5 volts?All
Ye s®Replace the Fuel Level Sensor.
Perform Powertrain Verification Test VER-2A.
No®Go To 3
3 Key Off
Disconnect the Body Control Module9B9(GREY) Connector.
Check connectors - Clean/repair as necessary.
Using an Ohmmeter, measure the Fuel Level Sensor Signal Circuit for resistance to
ground.
Is the resistance below 5.0 ohms?All
Ye s®Repair the Fuel Level Sensor Signal Circuit shorted to ground.
Perform Powertrain Verification Test VER-2A.
No®Go To 4
4 If there are no potential causes remaining, the BCM is assumed to be defective.
View repair options.All
Repair
Replace the Body Control Module.
Perform Powertrain Verification Test VER-2A.
149
DRIVEABILITY
ProCarManuals.com
Page 156 of 364

TEST ACTION APPLICABILITY
5 Ignition On
Use the schematic as a guide and wiggle the Connector & Harness.
Using the DRB, monitor the Fuel Level Sensor voltage.
Was there any Fuel Level Sensor Voltage change?All
Ye s®Repair the Harness or Connector that caused the voltage change.
Perform Powertrain Verification Test VER-2A.
No®Go To 6
6 Ignition Off
Using the schematic as a guide, inspect the Wiring and Connectors.
Were any problems found?All
Ye s®Repair as necessary.
Perform Powertrain Verification Test VER-2A.
No®Test Complete
Perform Powertrain Verification Test VER-2A.
150
DRIVEABILITY
P-0462 FUEL LEVEL SENDING UNIT VOLTS TOO LOW ÐContinued
ProCarManuals.com
Page 157 of 364

Symptom:
P-0463 FUEL LEVEL SENDING UNIT VOLTS TOO HIGH
POSSIBLE CAUSES
FUEL LEVEL SENSOR DEFECTIVE
FUEL LEVEL SENSOR SIGNAL CIRCUIT OPEN
FUEL PUMP MODULE WIRING/HARNESS INTERMITENT DEFECT
BODY CONTROL MODULE DEFECTIVE
FUEL PUMP MODULE OBSERVABLE DEFECT
FUEL PUMP MODULE GROUND CIRCUIT DEFECTIVE
TEST COMPLETE
TEST ACTION APPLICABILITY
1 Ignition On
With the DRB, read the DTC's.
Is the Global Good Trip counter dispalyed and equal to zero?All
Ye s®Go To 2
No®Go To 6
2 Key Off
Disconnect the Fuel Pump Module Connector.
Note: Check connectors - Clean/repair as necessary.
Connect a jumper between the Fuel Level Sensor Signal Circuit and the Ground
Circuit at the Fuel Pump Module Connector.
With the DRB, read the Fuel Level Sensor voltage.
Is the voltage below 1.0 volt?All
Ye s®Replace the Fuel Level Sensor.
Perform Powertrain Verification Test VER-2A.
No®Go To 3
3 Key Off
Disconnect the Fuel Pump Module Connector.
Note: Check connectors - Clean/repair as necessary.
Measure resistance of the Ground Circuit at the Fuel Pump Module Connector.
Is the resistance below 5.0 ohms?All
Ye s®Go To 4
No®Repair the Ground Circuit as necessary.
Perform Powertrain Verification Test VER-2A.
151
DRIVEABILITY
ProCarManuals.com
Page 158 of 364

TEST ACTION APPLICABILITY
4 Key Off
Disconnect the Fuel Pump Module Connector.
Note: Check connectors - Clean/repair as necessary.
Disconnect the Body Control Module9B9(GREY) Connector.
Note: Check connectors - Clean/repair as necessary.
Using an Ohmmeter, measure the Fuel Level Sensor Signal Circuit from the BCM to
the Fuel Pump Module Connector.
Is the resistance below 5.0 ohms?All
Ye s®Go To 5
No®Repair the open Fuel Level Sensor Signal Circuit.
Perform Powertrain Verification Test VER-2A.
5 If there are no potential causes remaining, the BCM is assumed to be defective.
View repair options.All
Repair
Replace the Body Control Module.
Perform Powertrain Verification Test VER-2A.
6 Ignition On
Using the schematic as a guide, wiggle the Fuel Pump Module Connector and
Harness.
Using the DRB, monitor the Fuel Level Sensor voltage.
Was there any Fuel Level Sensor voltage change?All
Ye s®Repair the Harness or Connector that caused the voltage change.
Perform Powertrain Verification Test VER-2A.
No®Go To 7
7 Ignition Off
Using the schematic as a guide, inspect the Wiring and Connectors.
Were any problems found?All
Ye s®Repair as necessary.
Perform Powertrain Verification Test VER-2A.
No®Test Complete.
Perform Powertrain Verification Test VER-2A.
152
DRIVEABILITY
P-0463 FUEL LEVEL SENDING UNIT VOLTS TOO HIGH ÐContinued
ProCarManuals.com
Page 159 of 364

Symptom:
P-0500 NO VEHICLE SPEED SENSOR SIGNAL
When Monitored and Set Condition:
P-0500 NO VEHICLE SPEED SENSOR SIGNAL
When Monitored: For 3 Speed: With engine running, transmission not in park or neutral,
brakes not applied, engine rpm greater than 1500. For 4 Speed: With the engine running,
transmission not in park or neutral, brakes not applied, engine rpm greater than 1500.
Set Condition: For 3 Speed: No signal from the vehicle speed sensor for more than 11
seconds for 2 consecutive trips. For 4 Speed: No signal from the vehicle speed sensor (TCM)
is present for more than 11 seconds for 2 consecutive trips.
POSSIBLE CAUSES
ELECTRONIC AUTO TRANSAXLE TROUBLE CODES PRESENT
8-VOLT SUPPLY CIRCUIT OPEN
PCM DEF (NO VSS SIGNAL CKT)
PCM TERMINAL DEFECTIVE
VEHICLE SPEED SENSOR GROUND CIRCUIT OPEN
VEHICLE SPEED SENSOR SIGNAL CIRCUIT WIRING HARNESS OBSERVABLE DEFECT
PINION GEAR DEFECTIVE
OUTPUT SPEED SENSOR CIRCUIT OPEN
OUTPUT SPEED SENSOR CIRCUIT SHORTED TO GROUND
VEHICLE SPEED SENSOR SIGNAL CIRCUIT OPEN
VSS SIGNAL CIRCUIT SHORTED TO GROUND
OUTPUT SPEED SENSOR DEFECTIVE
OUTPUT SPEED SENSOR DEFECTIVE (RES > 5.0)
PCM DEFECTIVE (NO VSS SIGNAL CKT)
PCM DEFECTIVE (NO VSS SIGNAL CKT)
TCM DEFECTIVE (VSS SIG CKT)
VSS DEFECTIVE
153
DRIVEABILITY
ProCarManuals.com
Page 160 of 364

TEST ACTION APPLICABILITY
1 Ignition Off
Raise the Drive Wheels off the ground.
Warning: Be sure to keep hands and feet clear of rotating wheels.
Start Engine.
With DRB, read the Vehicle Speed Sensor.
Put Transmission on any forward gear.
Does the DRB show above zero MPH?ENGINE - 2.0L,
2.4L I-4 DOHC
and/or ENGINE -
3.0L V6 w/o EATX
Ye s®Go To 2
No®Go To 3
2 Ignition off.
Using the Schematic as a guide, inspect the Wiring and Connectors.
Were any problems found?ENGINE -2.0L,
2.4L I-4 DOHC
and/or ENGINE -
3.0L V6 w/o EATX
Ye s®Repair as necessary.
Perform Powertrain Verification Test VER-5A.
No®Test Complete.
3 Ignition Off
Disconnect the VSS Connector.
Note: Check connectors - Clean/repair as necessary.
Key On
Using a Voltmeter, probe the 8-Volt Power Supply Circuit.
Is the voltage above 7.0 volts?ENGINE - 2.0L,
2.4L I-4 DOHC
and/or ENGINE -
3.0L V6 w/o EATX
Ye s®Go To 4
No®Repair the open 8-volt Supply Circuit.
Perform Powertrain Verification Test VER-5A.
4 Ignition Off
Disconnect the VSS Connector.
Note: Check connectors - Clean/repair as necessary.
Key On.
Using a Voltmeter, Probe the Vehicle Speed Sensor Signal.
Is the voltage above 4.0 volts?ENGINE - 2.0L,
2.4L I-4 DOHC
and/or ENGINE -
3.0L V6 w/o EATX
Ye s®Go To 5
No®Go To 11
5 Ignition Off
Disconnect the VSS Connector.
Note: Check connectors - Clean/repair as necessary.
Connect a jumper wire from the Sensor Signal to the Sensor Ground Circuit.
Key On
With the DRB, read the VSS Signal.
While observing display, tap other end of jumper to VSS Signal Circuit.
Does the display show more than 0 MPH?ENGINE - 2.0L,
2.4L I-4 DOHC
and/or ENGINE -
3.0L V6 w/o EATX
Ye s®Go To 6
No®Go To 8
154
DRIVEABILITY
P-0500 NO VEHICLE SPEED SENSOR SIGNAL ÐContinued
ProCarManuals.com
Page 161 of 364

TEST ACTION APPLICABILITY
6 Ignition Off
Remove the Vehicle Speed Sensor. Inspect the Speedometer Pinion Gear.
Is the Pinion Gear okay?ENGINE - 2.0L,
2.4L I-4 DOHC
and/or ENGINE -
3.0L V6 w/o EATX
Ye s®Go To 7
No®Repair as necessary.
Perform Powertrain Verification Test VER-5A.
7 If there are no potential causes remaining, the Vehicle Speed Sensor is assumed to be
defective.
View repair options.ENGINE - 2.0L,
2.4L I-4 DOHC
and/or ENGINE -
3.0L V6 w/o EATX
Repair
Replace the VSS.
Perform Powertrain Verification Test VER-5A.
8 Ignition Off
Disconnect the VSS Connector.
Note: Check connectors - Clean/repair as necessary.
Using an Ohmmeter, measure between the Sensor Ground Circuit and Engine
Ground.
Is the resistance below 5.0 ohms?ENGINE - 2.0L,
2.4L I-4 DOHC
and/or ENGINE -
3.0L V6 w/o EATX
Ye s®Go To 9
No®Repair the open Sensor Ground Circuit.
Perform Powertrain Verification Test VER-5A.
9 Ignition Off
Disconnect the Powertrain Control Module.
Note: Check connectors - Clean/repair as necessary.
Is any Terminal damaged, pushed out or miswired?ENGINE - 2.0L,
2.4L I-4 DOHC
and/or ENGINE -
3.0L V6 w/o EATX
Ye s®Repair as necessary.
Perform Powertrain Verification Test VER-5A.
No®Go To 10
10 If there are no potential causes remaining, the Powertrain Control Module is
assumed to be defective.
View repair options.ENGINE - 2.0L,
2.4L I-4 DOHC
and/or ENGINE -
3.0L V6 w/o EATX
Repair
Replace the PCM.
Perform Powertrain Verification Test VER-5A.
11 Ignition Off
Disconnect the VSS Connector.
Disconnect the Powertrain Control Module.
Note: Check connectors - Clean/repair as necessary.
Using an Ohmmeter, measure the VSS Signal Circuit from the PCM to the VSS
Connector.
Is the resistance below 5.0 ohms?ENGINE - 2.0L,
2.4L I-4 DOHC
and/or ENGINE -
3.0L V6 w/o EATX
Ye s®Go To 12
No®Repair the open Speed Sensor Signal Circuit.
Perform Powertrain Verification Test VER-5A.
155
DRIVEABILITY
P-0500 NO VEHICLE SPEED SENSOR SIGNAL ÐContinued
ProCarManuals.com

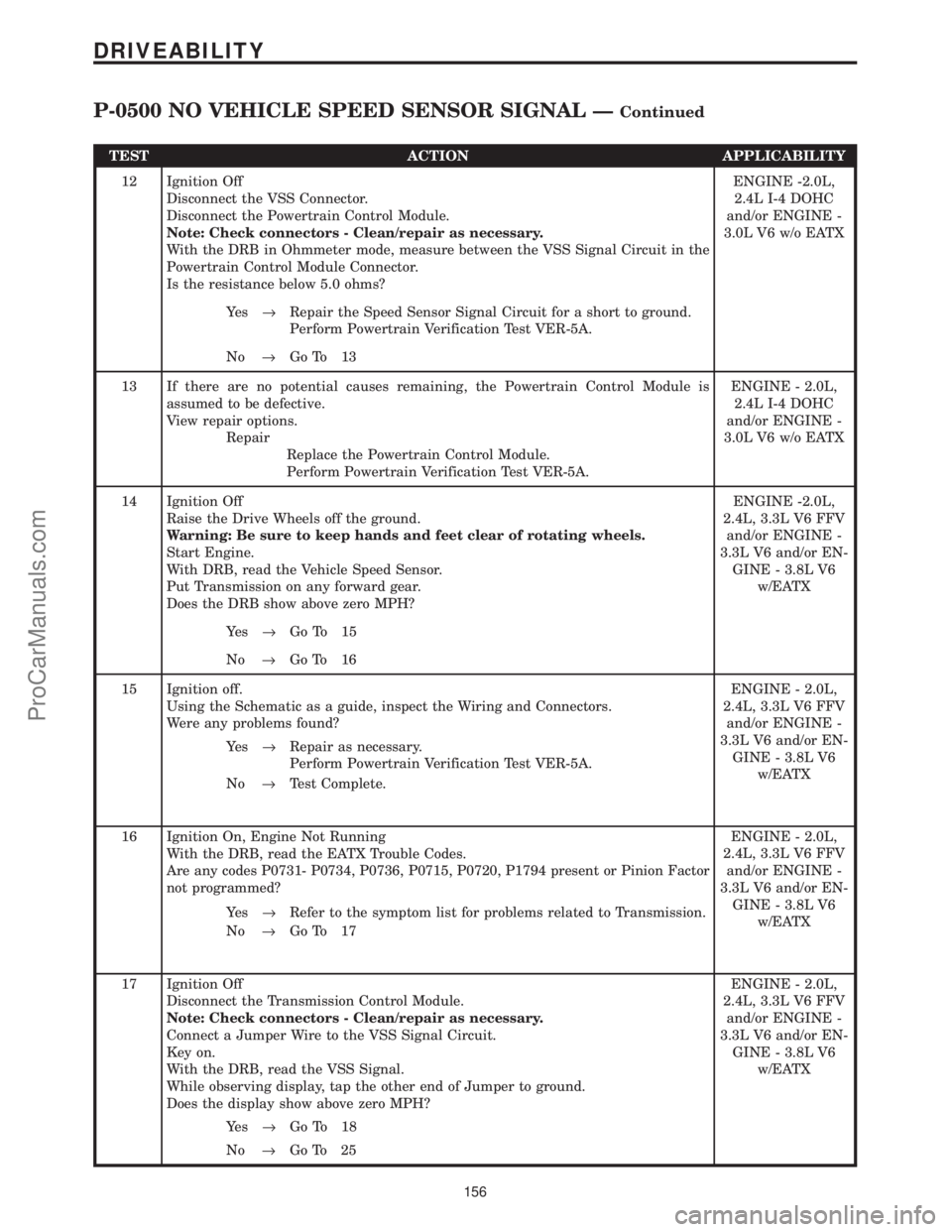

Page 162 of 364

TEST ACTION APPLICABILITY
12 Ignition Off
Disconnect the VSS Connector.
Disconnect the Powertrain Control Module.
Note: Check connectors - Clean/repair as necessary.
With the DRB in Ohmmeter mode, measure between the VSS Signal Circuit in the
Powertrain Control Module Connector.
Is the resistance below 5.0 ohms?ENGINE -2.0L,
2.4L I-4 DOHC
and/or ENGINE -
3.0L V6 w/o EATX
Ye s®Repair the Speed Sensor Signal Circuit for a short to ground.
Perform Powertrain Verification Test VER-5A.
No®Go To 13
13 If there are no potential causes remaining, the Powertrain Control Module is
assumed to be defective.
View repair options.ENGINE - 2.0L,
2.4L I-4 DOHC
and/or ENGINE -
3.0L V6 w/o EATX Repair
Replace the Powertrain Control Module.
Perform Powertrain Verification Test VER-5A.
14 Ignition Off
Raise the Drive Wheels off the ground.
Warning: Be sure to keep hands and feet clear of rotating wheels.
Start Engine.
With DRB, read the Vehicle Speed Sensor.
Put Transmission on any forward gear.
Does the DRB show above zero MPH?ENGINE -2.0L,
2.4L, 3.3L V6 FFV
and/or ENGINE -
3.3L V6 and/or EN-
GINE - 3.8L V6
w/EATX
Ye s®Go To 15
No®Go To 16
15 Ignition off.
Using the Schematic as a guide, inspect the Wiring and Connectors.
Were any problems found?ENGINE - 2.0L,
2.4L, 3.3L V6 FFV
and/or ENGINE -
3.3L V6 and/or EN-
GINE - 3.8L V6
w/EATX Ye s®Repair as necessary.
Perform Powertrain Verification Test VER-5A.
No®Test Complete.
16 Ignition On, Engine Not Running
With the DRB, read the EATX Trouble Codes.
Are any codes P0731- P0734, P0736, P0715, P0720, P1794 present or Pinion Factor
not programmed?ENGINE - 2.0L,
2.4L, 3.3L V6 FFV
and/or ENGINE -
3.3L V6 and/or EN-
GINE - 3.8L V6
w/EATX Ye s®Refer to the symptom list for problems related to Transmission.
No®Go To 17
17 Ignition Off
Disconnect the Transmission Control Module.
Note: Check connectors - Clean/repair as necessary.
Connect a Jumper Wire to the VSS Signal Circuit.
Key on.
With the DRB, read the VSS Signal.
While observing display, tap the other end of Jumper to ground.
Does the display show above zero MPH?ENGINE - 2.0L,
2.4L, 3.3L V6 FFV
and/or ENGINE -
3.3L V6 and/or EN-
GINE - 3.8L V6
w/EATX
Ye s®Go To 18
No®Go To 25
156
DRIVEABILITY
P-0500 NO VEHICLE SPEED SENSOR SIGNAL ÐContinued
ProCarManuals.com
Page 163 of 364

TEST ACTION APPLICABILITY
18 Ignition Off
Disconnect the Transmission Control Module.
Note: Check connectors - Clean/repair as necessary.
Using an Ohmmeter, measure the resistance between the Output Speed Sensor
Circuit at the TCM Connector and Ground.
Is the resistance below 5.0 ohms?ENGINE - 2.0L,
2.4L, 3.3L V6 FFV
and/or ENGINE -
3.3L V6 and/or EN-
GINE - 3.8L V6
w/EATX
Ye s®Go To 19
No®Go To 21
19 Ignition off.
Disconnect the Transmission Control Module.
Disconnect the Output Speed Sensor.
Note: Check connectors - Clean/repair as necessary.
Using an Ohmmeter, measure the resistance between the Output Speed Sensor
Circuit at the TCM Connector and Ground.
Is the resistance below 5.0 ohms?ENGINE - 2.0L,
2.4L, 3.3L V6 FFV
and/or ENGINE -
3.3L V6 and/or EN-
GINE - 3.8L V6
w/EATX
Ye s®Repair the Output Speed Sensor Circuit for a short to ground.
Perform Powertrain Verification Test VER-5A.
No®Go To 20
20 If there are no potential causes remaining, the Output Speed Sensor is assumed to be
defective.
View repair options.ENGINE - 2.0L,
2.4L, 3.3L V6 FFV
and/or ENGINE -
3.3L V6 and/or EN-
GINE - 3.8L V6
w/EATX
Repair
Replace the Output Speed Sensor.
Perform Powertrain Verification Test VER-5A.
21 Ignition Off
Disconnect theTransmission Control Module.
Note: Check connectors - Clean/repair as necessary.
Using an Ohmmeter, measure between the Speed Sensor Ground Circuit and the
Output Speed Sensor Circuit at the TCM Connector..
Is the resistance between 300.0 and 1200.0 ohms?ENGINE -2.0L,
2.4L, 3.3L V6 FFV
and/or ENGINE -
3.3L V6 and/or EN-
GINE - 3.8L V6
w/EATX
Ye s®Replace the Transmission Control Module, reprogram Pinion
Factor, and perform quick learn procedure.
Perform Powertrain Verification Test VER-5A.
No®Go To 22
22 Ignition Off
Disconnect the Transmission Control Circuit.
Disconnect the Output Speed Sensor.
Note: Check connectors - Clean/repair as necessary.
Using an Ohmmeter, measure the Speed Sensor Ground Circuit from the TCM to the
Output Speed Sensor.
Is the resistance under 5.0 ohms?ENGINE - 2.0L,
2.4L, 3.3L V6 FFV
and/or ENGINE -
3.3L V6 and/or EN-
GINE - 3.8L V6
w/EATX
Ye s®Go To 23
No®Repair the open Speed Sensor Ground Circuit.
Perform Powertrain Verification Test VER-5A.
157
DRIVEABILITY
P-0500 NO VEHICLE SPEED SENSOR SIGNAL ÐContinued
ProCarManuals.com
