Symptom:
* CHECKING THE A/C PRESSURE SENSOR SIGNAL
POSSIBLE CAUSES
A/C PRESSURE SENSOR 5-VOLT SUPPLY CIRCUIT OPEN
HIGH RESISTANCE IN THE A/C PRESSURE SENSOR SIGNAL CKT
TEST ACTION APPLICABILITY
1 Turn the ignition on.
Using the DRB, read the trouble codes.
Are any A/C Pressure sensor trouble codes set?All
Ye s®Go to the A/C Pressure sensor trouble code.
No®Go To 2
2 Turn the ignition off.
Disconnect the A/C Pressure Sensor harness connector.
Turn the ignition on.
Using a voltmeter, measure the A/C Pressure Sensor 5±volt supply circuit.
Is the voltage above 4.8 volts?All
Ye s®Go To 3
No®Repair the open in the A/C Pressure Sensor 5±volt supply circuit.
Perform Powertrain Verification Test VER-2A.
3 Turn the ignition on.
Using the DRB, monitor the A/C Pressure voltage.
Disconnect the A/C Pressure Sensor harness connector.
Is the voltage above 4.8 volts?All
Ye s®Test Complete.
No®Repair the high resistance in the A/C Pressure Sensor Signal
circuit.
Perform Powertrain Verification Test VER-2A.
255
DRIVEABILITY
ProCarManuals.com

Symptom List:
P-1595 SPEED CONTROL SOLENOID CIRCUITS
P-1683 SPEED CONTROL POWER RELAY OR S/C 12V DRIVER
Test Note: All symptoms listed above are diagnosed using the same tests.
The title for the tests will be P-1595 SPEED CONTROL SOLE-
NOID CIRCUITS.
When Monitored and Set Condition:
P-1595 SPEED CONTROL SOLENOID CIRCUITS
When Monitored: Speed control on, vehicle speed > 25 mph, RPM < 5440, brake not
applied. For an automatic transmission, in drive mode. For a manual transmission, the
clutch not depressed.
Set Condition: The powertrain control module (PCM) actuates the vacuum and vent
solenoid but they do not respond.
P-1683 SPEED CONTROL POWER RELAY OR S/C 12V DRIVER
When Monitored: Speed control on, vehicle speed > 25 mph, RPM < 5440, brake not
applied. For an automatic transmission, in drive mode. For a manual transmission, the
clutch not depressed.
Set Condition: The powertrain control module (PCM) actuates the vacuum and vent
solenoids but they do not respond.
POSSIBLE CAUSES
S/C BRAKE SWITCH OUTPUT CIRCUIT OPEN
S/C BRAKE SWITCH OUTPUT CIRCUIT SHORTED TO GROUND
S/C VACUUM SOLENOID CONTROL CIRCUIT OPEN
S/C VENT SOLENOID CONTROL CIRCUIT OPEN
SPEED CONTROL POWER SUPPLY CIRCUIT OPEN
SPEED CONTROL SERVO GROUND CIRCUIT OPEN
BRAKE SWITCH DEFECTIVE
SPEED CONTROL SERVO DEFECTIVE
PCM DEFECTIVE (SC SOLENOID CIRCUIT)
PCM DEFECTIVE (SPEED CONTROL P/S CIRCUIT)
BRAKE SWITCH NEEDS TO BE ADJUSTED
256
SPEED CONTROL
ProCarManuals.com

TEST ACTION APPLICABILITY
1 Ignition Off
Note: A misadjusted Brake Switch can cause this code to set.
Does the Brake Switch need to be adjusted?All
Ye s®Adjust Brake Switch as necessary.
No®Go To 2
2 Ignition Off
Disconnect the Speed Control Servo 4-Way Connector.
Note: Check connectors - Clean/repair as necessary.
Note: Ensure the Brake pedal is not depressed during the following steps.
Engine off. Ignition key on and S/C On/Off Switch ON.
Using a Voltmeter, measure the voltage of the S/C Brake Switch Output Circuit at
Speed Control Servo Connector.
Is the voltage above 10.0 volts?All
Ye s®Go To 3
No®Go To 10
3 Ignition off.
Disconnect the Speed Control Servo Connector.
Note: Check connectors - Clean/repair as necessary.
Using an Ohmmeter, measure resistance of the Gnd Circuit at Servo Connector.
Is the resistance below 5.0 ohms?All
Ye s®Go To 4
No®Repair the open Ground Circuit.
Perform Powertrain Verification Test VER-4A.
4 Ignition off
Disconnect the Powertrain Control Module.
Note: Check connectors - Clean/repair as necessary.
Note: Ensure the Brake pedal is not depressed during the following steps.
With an ohmmeter, test the resistance from the S/C Power Supply Circuit to the S/C
Vent Solenoid at PCM.
Is the resistance between 35 ohms and 55 ohms?All
Ye s®Go To 5
No®Go To 7
5 Ignition off
Disconnect Powertrain Control Module.
Note: Check connectors - Clean/repair as necessary.
Note: Ensure the Brake Pedal is not depressed during the following steps.
With an ohmmeter, test the resistance from the S/C Power Supply Circuit to the S/C
Vacuum Solenoid Control at PCM.
Is the resistance between 35 ohms and 55 ohms?All
Ye s®Go To 6
No®Go To 7
257
SPEED CONTROL
P-1595 SPEED CONTROL SOLENOID CIRCUITS ÐContinued
ProCarManuals.com

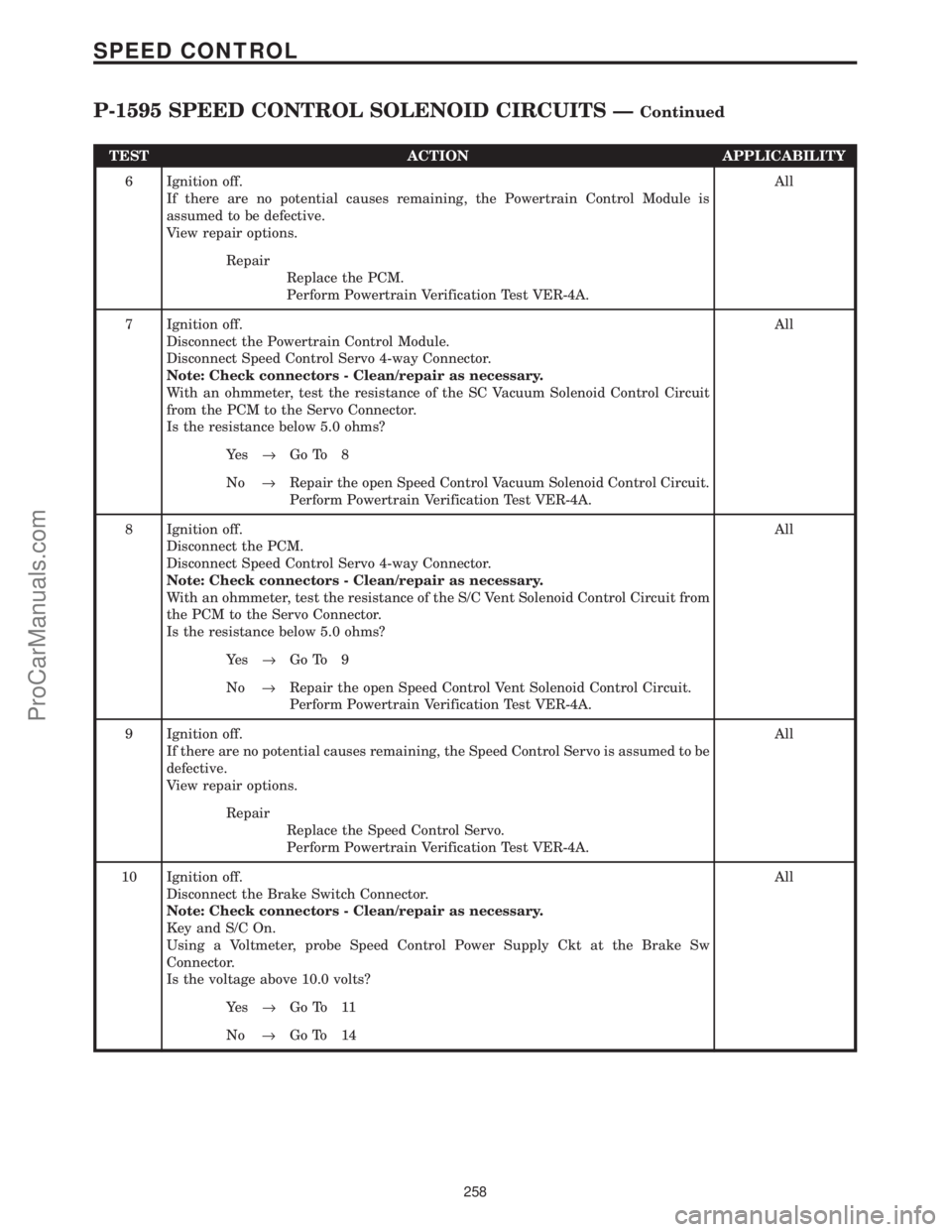

TEST ACTION APPLICABILITY
6 Ignition off.
If there are no potential causes remaining, the Powertrain Control Module is
assumed to be defective.
View repair options.All
Repair
Replace the PCM.
Perform Powertrain Verification Test VER-4A.
7 Ignition off.
Disconnect the Powertrain Control Module.
Disconnect Speed Control Servo 4-way Connector.
Note: Check connectors - Clean/repair as necessary.
With an ohmmeter, test the resistance of the SC Vacuum Solenoid Control Circuit
from the PCM to the Servo Connector.
Is the resistance below 5.0 ohms?All
Ye s®Go To 8
No®Repair the open Speed Control Vacuum Solenoid Control Circuit.
Perform Powertrain Verification Test VER-4A.
8 Ignition off.
Disconnect the PCM.
Disconnect Speed Control Servo 4-way Connector.
Note: Check connectors - Clean/repair as necessary.
With an ohmmeter, test the resistance of the S/C Vent Solenoid Control Circuit from
the PCM to the Servo Connector.
Is the resistance below 5.0 ohms?All
Ye s®Go To 9
No®Repair the open Speed Control Vent Solenoid Control Circuit.
Perform Powertrain Verification Test VER-4A.
9 Ignition off.
If there are no potential causes remaining, the Speed Control Servo is assumed to be
defective.
View repair options.All
Repair
Replace the Speed Control Servo.
Perform Powertrain Verification Test VER-4A.
10 Ignition off.
Disconnect the Brake Switch Connector.
Note: Check connectors - Clean/repair as necessary.
Key and S/C On.
Using a Voltmeter, probe Speed Control Power Supply Ckt at the Brake Sw
Connector.
Is the voltage above 10.0 volts?All
Ye s®Go To 11
No®Go To 14
258
SPEED CONTROL
P-1595 SPEED CONTROL SOLENOID CIRCUITS ÐContinued

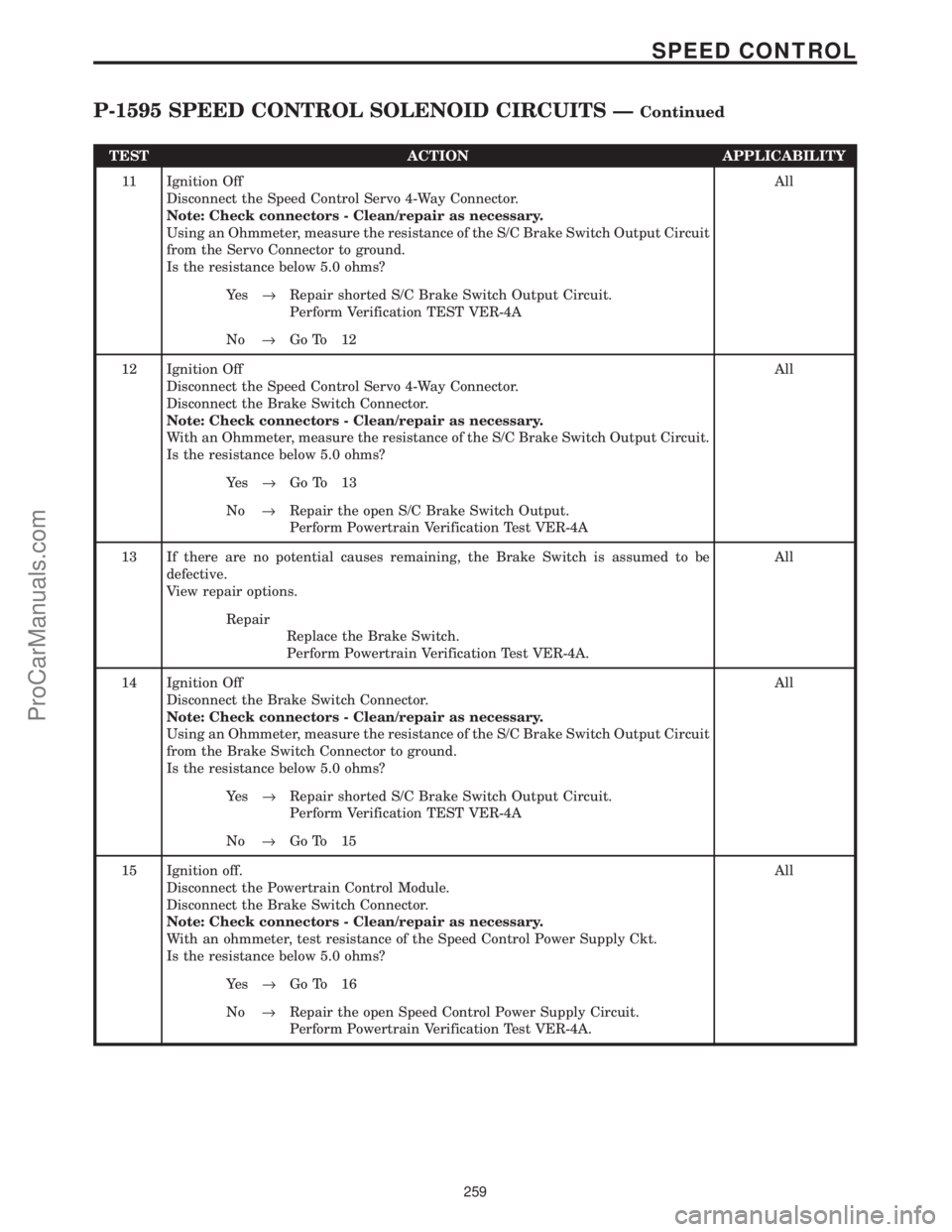

ProCarManuals.com

TEST ACTION APPLICABILITY
11 Ignition Off
Disconnect the Speed Control Servo 4-Way Connector.
Note: Check connectors - Clean/repair as necessary.
Using an Ohmmeter, measure the resistance of the S/C Brake Switch Output Circuit
from the Servo Connector to ground.
Is the resistance below 5.0 ohms?All
Ye s®Repair shorted S/C Brake Switch Output Circuit.
Perform Verification TEST VER-4A
No®Go To 12
12 Ignition Off
Disconnect the Speed Control Servo 4-Way Connector.
Disconnect the Brake Switch Connector.
Note: Check connectors - Clean/repair as necessary.
With an Ohmmeter, measure the resistance of the S/C Brake Switch Output Circuit.
Is the resistance below 5.0 ohms?All
Ye s®Go To 13
No®Repair the open S/C Brake Switch Output.
Perform Powertrain Verification Test VER-4A
13 If there are no potential causes remaining, the Brake Switch is assumed to be
defective.
View repair options.All
Repair
Replace the Brake Switch.
Perform Powertrain Verification Test VER-4A.
14 Ignition Off
Disconnect the Brake Switch Connector.
Note: Check connectors - Clean/repair as necessary.
Using an Ohmmeter, measure the resistance of the S/C Brake Switch Output Circuit
from the Brake Switch Connector to ground.
Is the resistance below 5.0 ohms?All
Ye s®Repair shorted S/C Brake Switch Output Circuit.
Perform Verification TEST VER-4A
No®Go To 15
15 Ignition off.
Disconnect the Powertrain Control Module.
Disconnect the Brake Switch Connector.
Note: Check connectors - Clean/repair as necessary.
With an ohmmeter, test resistance of the Speed Control Power Supply Ckt.
Is the resistance below 5.0 ohms?All
Ye s®Go To 16
No®Repair the open Speed Control Power Supply Circuit.
Perform Powertrain Verification Test VER-4A.
259
SPEED CONTROL
P-1595 SPEED CONTROL SOLENOID CIRCUITS ÐContinued
ProCarManuals.com

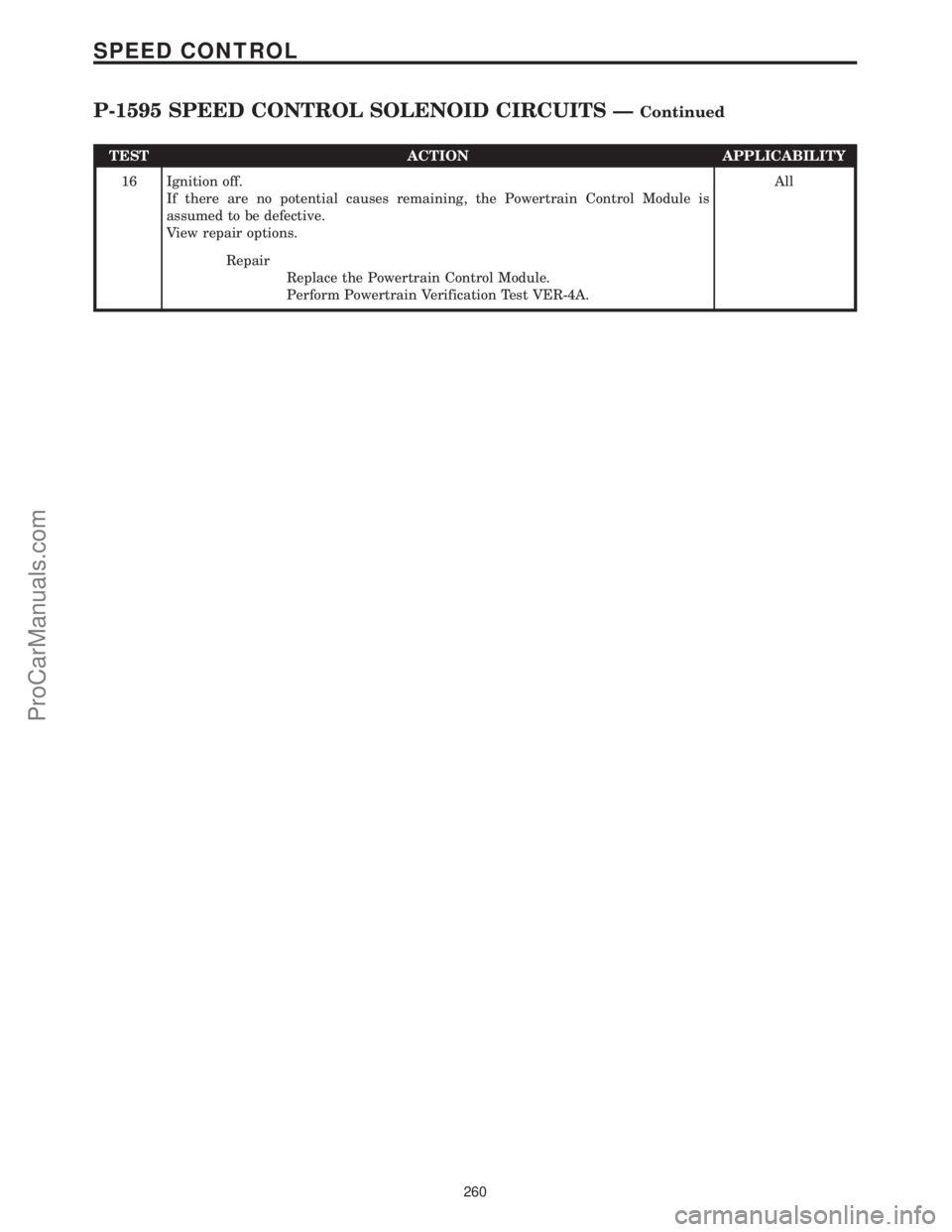

TEST ACTION APPLICABILITY
16 Ignition off.
If there are no potential causes remaining, the Powertrain Control Module is
assumed to be defective.
View repair options.All
Repair
Replace the Powertrain Control Module.
Perform Powertrain Verification Test VER-4A.
260
SPEED CONTROL
P-1595 SPEED CONTROL SOLENOID CIRCUITS ÐContinued
ProCarManuals.com

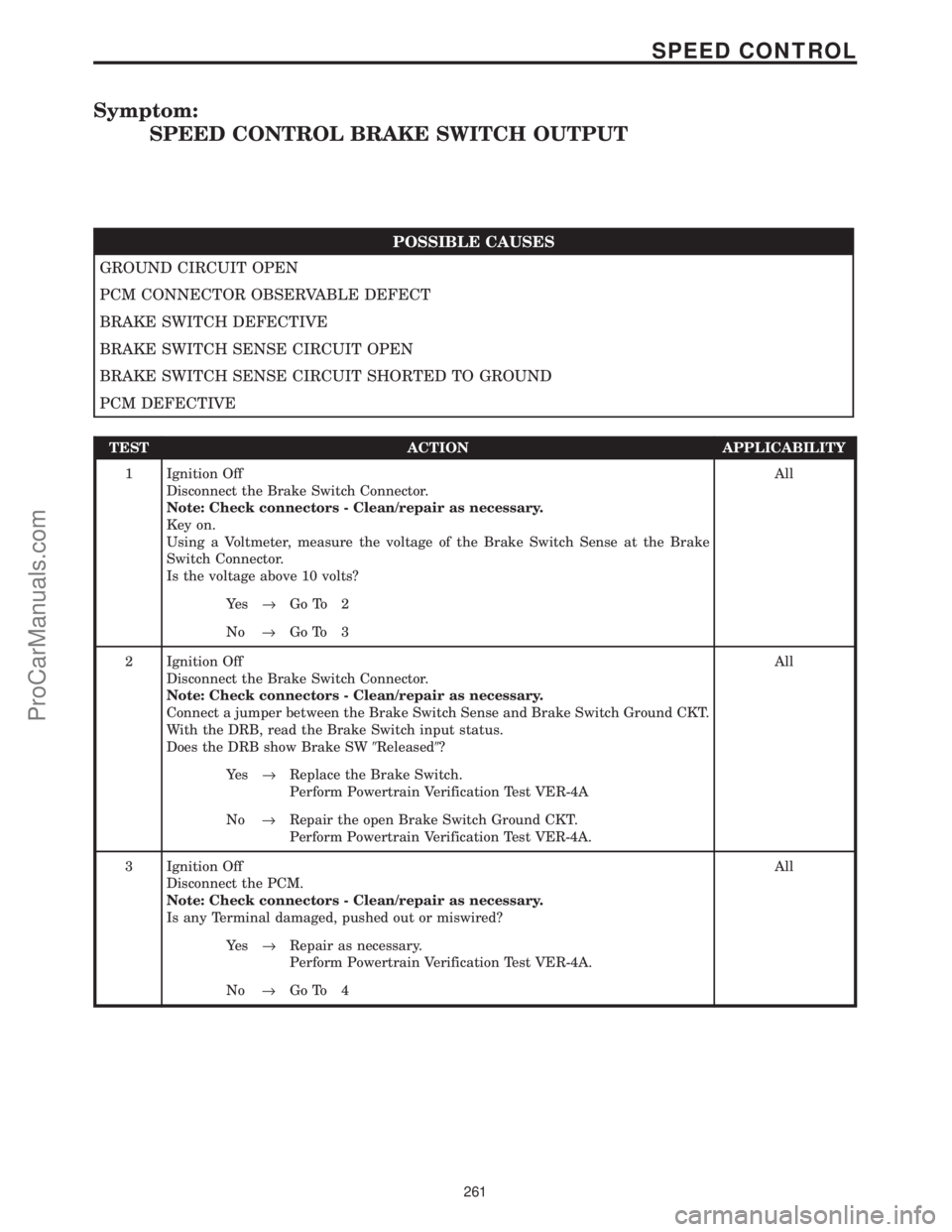

Symptom:
SPEED CONTROL BRAKE SWITCH OUTPUT
POSSIBLE CAUSES
GROUND CIRCUIT OPEN
PCM CONNECTOR OBSERVABLE DEFECT
BRAKE SWITCH DEFECTIVE
BRAKE SWITCH SENSE CIRCUIT OPEN
BRAKE SWITCH SENSE CIRCUIT SHORTED TO GROUND
PCM DEFECTIVE
TEST ACTION APPLICABILITY
1 Ignition Off
Disconnect the Brake Switch Connector.
Note: Check connectors - Clean/repair as necessary.
Key on.
Using a Voltmeter, measure the voltage of the Brake Switch Sense at the Brake
Switch Connector.
Is the voltage above 10 volts?All
Ye s®Go To 2
No®Go To 3
2 Ignition Off
Disconnect the Brake Switch Connector.
Note: Check connectors - Clean/repair as necessary.
Connect a jumper between the Brake Switch Sense and Brake Switch Ground CKT.
With the DRB, read the Brake Switch input status.
Does the DRB show Brake SW9Released9?All
Ye s®Replace the Brake Switch.
Perform Powertrain Verification Test VER-4A
No®Repair the open Brake Switch Ground CKT.
Perform Powertrain Verification Test VER-4A.
3 Ignition Off
Disconnect the PCM.
Note: Check connectors - Clean/repair as necessary.
Is any Terminal damaged, pushed out or miswired?All
Ye s®Repair as necessary.
Perform Powertrain Verification Test VER-4A.
No®Go To 4
261
SPEED CONTROL
ProCarManuals.com

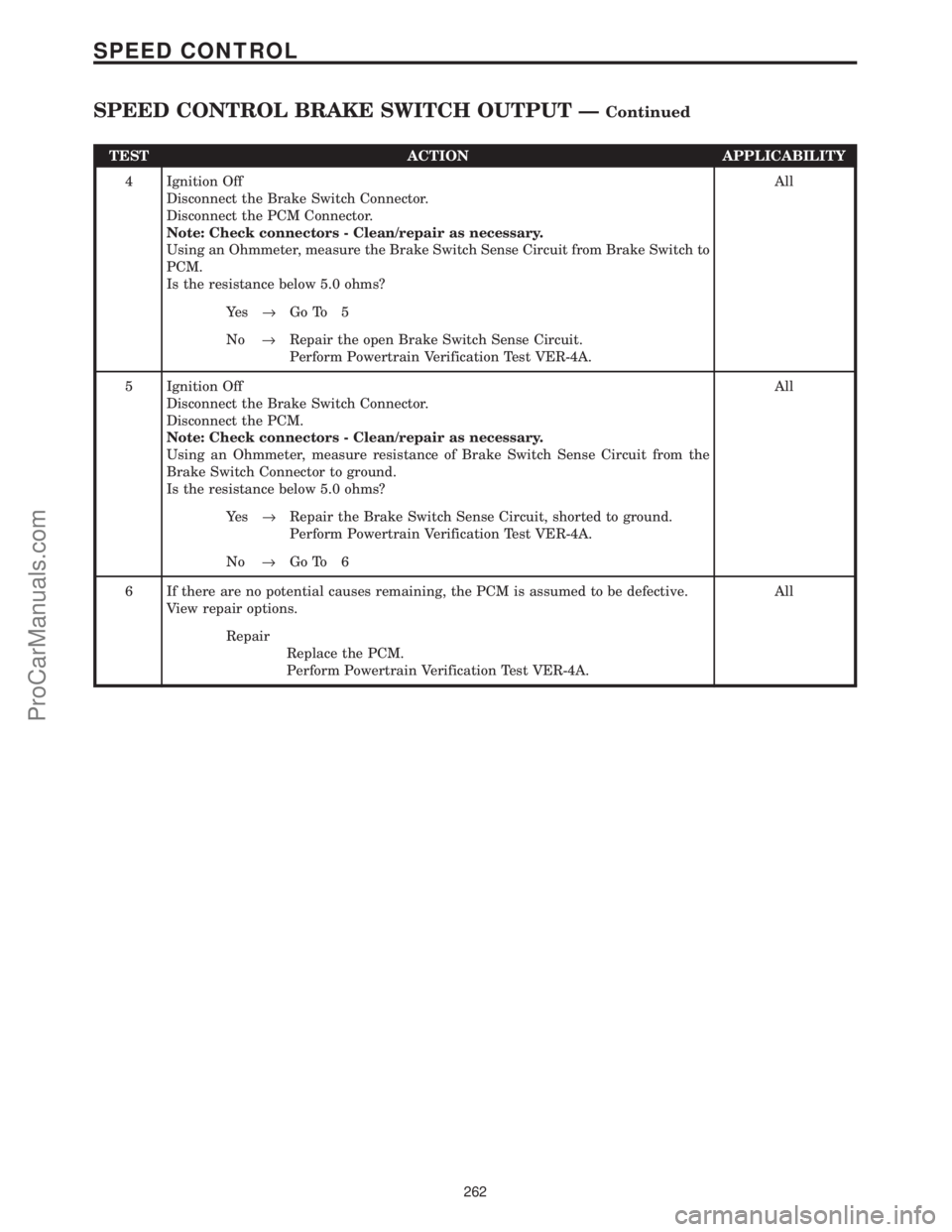

TEST ACTION APPLICABILITY
4 Ignition Off
Disconnect the Brake Switch Connector.
Disconnect the PCM Connector.
Note: Check connectors - Clean/repair as necessary.
Using an Ohmmeter, measure the Brake Switch Sense Circuit from Brake Switch to
PCM.
Is the resistance below 5.0 ohms?All
Ye s®Go To 5
No®Repair the open Brake Switch Sense Circuit.
Perform Powertrain Verification Test VER-4A.
5 Ignition Off
Disconnect the Brake Switch Connector.
Disconnect the PCM.
Note: Check connectors - Clean/repair as necessary.
Using an Ohmmeter, measure resistance of Brake Switch Sense Circuit from the
Brake Switch Connector to ground.
Is the resistance below 5.0 ohms?All
Ye s®Repair the Brake Switch Sense Circuit, shorted to ground.
Perform Powertrain Verification Test VER-4A.
No®Go To 6
6 If there are no potential causes remaining, the PCM is assumed to be defective.
View repair options.All
Repair
Replace the PCM.
Perform Powertrain Verification Test VER-4A.
262
SPEED CONTROL
SPEED CONTROL BRAKE SWITCH OUTPUT ÐContinued
ProCarManuals.com

Symptom:
SPEED CONTROL DENIED MESSAGE
TEST ACTION APPLICABILITY
1 At this time the S/C switch and servo functions appear to operate properly.
Using the DRB, monitor the speed control9cutout9status.
Road test the vehicle at speeds over 30mph and attempt to set the speed control.
The following items will not allow the speed control to set. The last or most recent
cause for speed control not to set is indicated by the9Denied9status.
If ON/OFF Denied message is indicated, the Powertrain Control Module does not see
an9ON9signal from the switch at cavity 41.
If SPEED Denied message is indicated, the vehicle speed as seen by the Powertrain
Control Module at cavity 66 is not greater than 36 mph.
If RPM Denied message is indicated, the engine rpm is excessively high.
If BRAKE Denied message is indicated, the Brake Switch Sense Circuit is open
indicating to the PCM that the Brakes are applied. The Sense Circuit, cavity 62 of the
PCM, is grounded through the Brake Pedal Switch when the Brakes are released.
If P/N Denied message is indicated, Park/Neutral Switch Sense Circuit is grounded
indicating to PCM that transmission is not in gear. The Sense Circuit, cavity 76 of
PCM, is grounded through the Park/Neutral Switch when transmission is in park or
neutral.
If RPM/SPD Denied message is indicated, the PCM senses excessive engine rpm for
a given vehicle speed.
If SOL FLT Denied message is indicated, the Powertrain Control Module senses a
Servo Solenoid Circuit trouble code that is maturing or set in memory.All
Test Complete.
263
SPEED CONTROL
ProCarManuals.com

Symptom:
SPEED CONTROL ON/OFF SWITCH
POSSIBLE CAUSES
CLOCKSPRING DEFECTIVE
PCM DEFECTIVE (SPEED CONTROL ON/OFF/SET SWITCH)
SPEED CONTROL GROUND CIRCUIT TO SWITCH OPEN
SPEED CONTROL ON/OFF SWITCH DEFECTIVE
SPEED CONTROL ON/OFF SWITCH SIGNAL CIRCUIT OPEN
SPEED CONTROL ON/OFF SWITCH SIGNAL CIRCUIT SHORT TO GROUND
SPEED CONTROL ON/OFF SWITCH TERMINAL DAMAGED
TEST ACTION APPLICABILITY
1 Ignition on, engine not running.
With the DRBIII, monitor the Speed Control Switch inputs.
While observing the display, press the Speed Control ªONº switch.
Does the DRBIII show S/C on/off ªONº?All
Ye s®Test Complete.
Perform Powertrain Verification Test VER-4A.
No®Go To 2
2 Ignition Off
Disconnect the Speed Control On/Off and Set Switch.
Note: Check connectors - Clean/repair as necessary.
Is any terminal damaged, pushed out or miswired?All
Ye s®Repair as necessary.
Perform Powertrain Verification Test VER-4A.
No®Go To 3
3 Ignition Off
Disconnect the Speed Control On/Off and Set Switch.
Note: Check connectors - Clean/repair as necessary.
Using an Ohmmeter, measure the resistance of the S/C Ground Circuit at the S/C
ON/OFF, SET Switch Connector.
Is the resistance below 5.0 ohms?All
Ye s®Go To 4
No®Repair the open Speed Control Ground Circuit to Switch.
Perform Powertrain Verification Test VER-4A.
264
SPEED CONTROL
ProCarManuals.com
