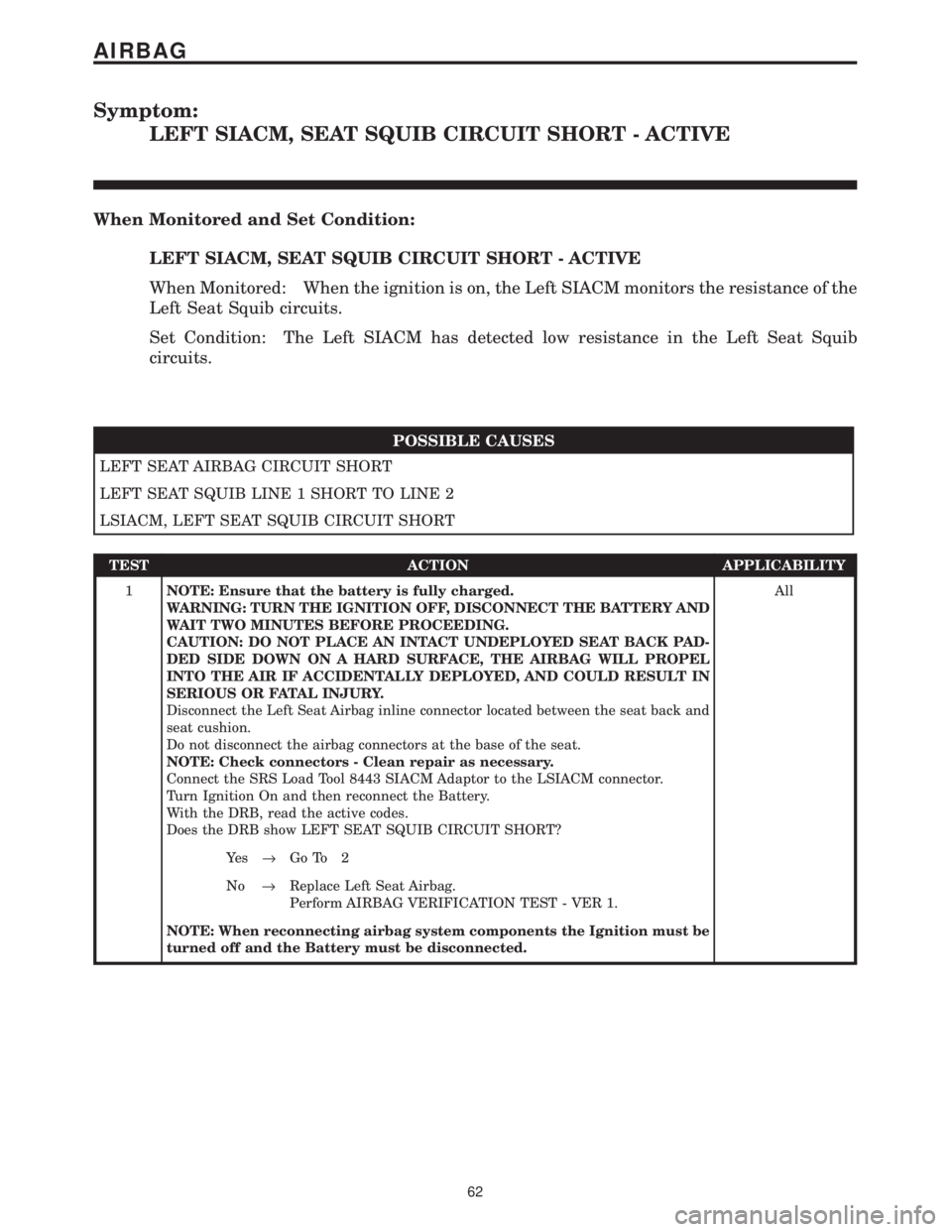

Symptom:
LEFT SIACM, SEAT SQUIB CIRCUIT SHORT - ACTIVE
When Monitored and Set Condition:
LEFT SIACM, SEAT SQUIB CIRCUIT SHORT - ACTIVE
When Monitored: When the ignition is on, the Left SIACM monitors the resistance of the
Left Seat Squib circuits.
Set Condition: The Left SIACM has detected low resistance in the Left Seat Squib
circuits.
POSSIBLE CAUSES
LEFT SEAT AIRBAG CIRCUIT SHORT
LEFT SEAT SQUIB LINE 1 SHORT TO LINE 2
LSIACM, LEFT SEAT SQUIB CIRCUIT SHORT
TEST ACTION APPLICABILITY
1NOTE: Ensure that the battery is fully charged.
WARNING: TURN THE IGNITION OFF, DISCONNECT THE BATTERY AND
WAIT TWO MINUTES BEFORE PROCEEDING.
CAUTION: DO NOT PLACE AN INTACT UNDEPLOYED SEAT BACK PAD-
DED SIDE DOWN ON A HARD SURFACE, THE AIRBAG WILL PROPEL
INTO THE AIR IF ACCIDENTALLY DEPLOYED, AND COULD RESULT IN
SERIOUS OR FATAL INJURY.
Disconnect the Left Seat Airbag inline connector located between the seat back and
seat cushion.
Do not disconnect the airbag connectors at the base of the seat.
NOTE: Check connectors - Clean repair as necessary.
Connect the SRS Load Tool 8443 SIACM Adaptor to the LSIACM connector.
Turn Ignition On and then reconnect the Battery.
With the DRB, read the active codes.
Does the DRB show LEFT SEAT SQUIB CIRCUIT SHORT?All
Ye s®Go To 2
No®Replace Left Seat Airbag.
Perform AIRBAG VERIFICATION TEST - VER 1.
NOTE: When reconnecting airbag system components the Ignition must be
turned off and the Battery must be disconnected.
62

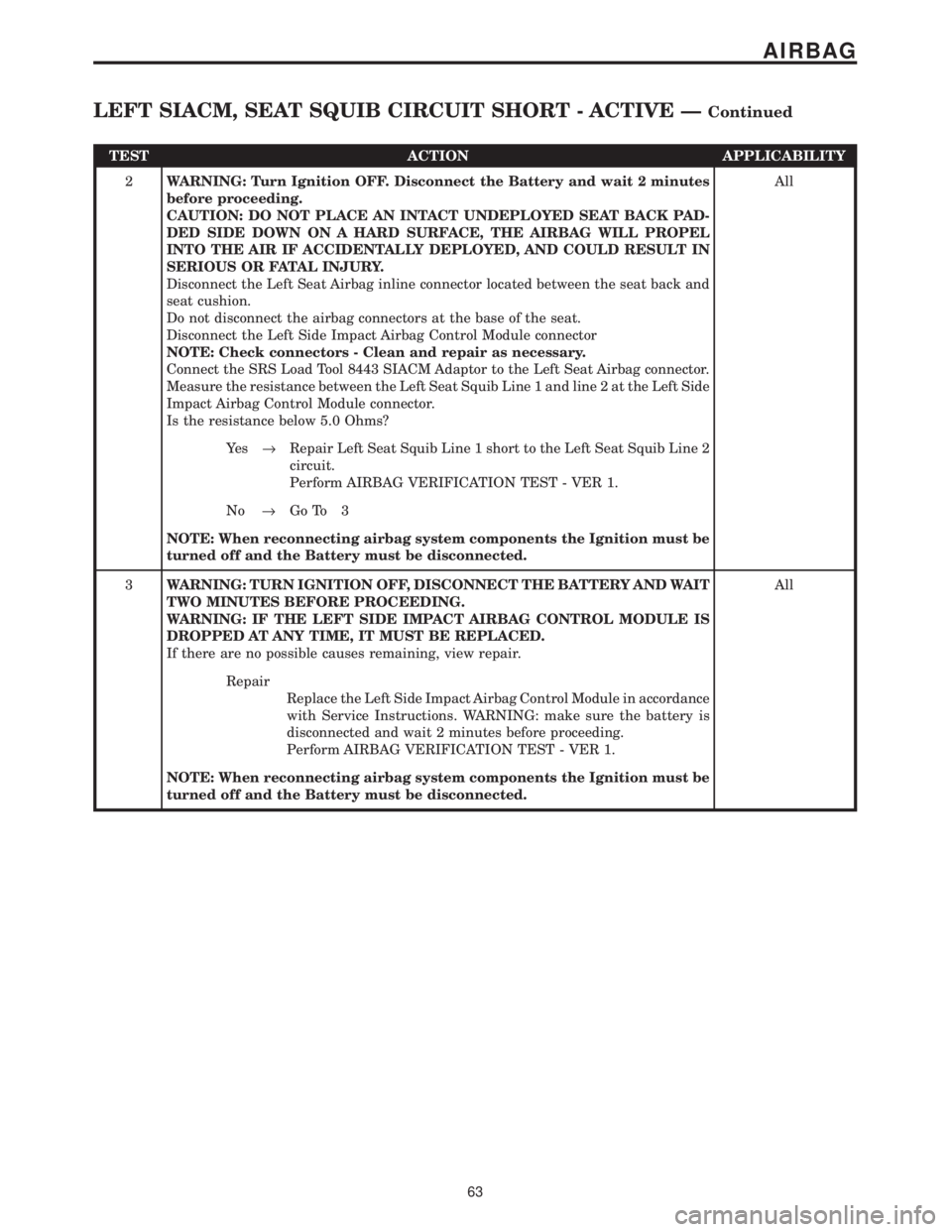

AIRBAG

TEST ACTION APPLICABILITY
2WARNING: Turn Ignition OFF. Disconnect the Battery and wait 2 minutes
before proceeding.
CAUTION: DO NOT PLACE AN INTACT UNDEPLOYED SEAT BACK PAD-
DED SIDE DOWN ON A HARD SURFACE, THE AIRBAG WILL PROPEL
INTO THE AIR IF ACCIDENTALLY DEPLOYED, AND COULD RESULT IN
SERIOUS OR FATAL INJURY.
Disconnect the Left Seat Airbag inline connector located between the seat back and
seat cushion.
Do not disconnect the airbag connectors at the base of the seat.
Disconnect the Left Side Impact Airbag Control Module connector
NOTE: Check connectors - Clean and repair as necessary.
Connect the SRS Load Tool 8443 SIACM Adaptor to the Left Seat Airbag connector.
Measure the resistance between the Left Seat Squib Line 1 and line 2 at the Left Side
Impact Airbag Control Module connector.
Is the resistance below 5.0 Ohms?All
Ye s®Repair Left Seat Squib Line 1 short to the Left Seat Squib Line 2
circuit.
Perform AIRBAG VERIFICATION TEST - VER 1.
No®Go To 3
NOTE: When reconnecting airbag system components the Ignition must be
turned off and the Battery must be disconnected.
3WARNING: TURN IGNITION OFF, DISCONNECT THE BATTERY AND WAIT
TWO MINUTES BEFORE PROCEEDING.
WARNING: IF THE LEFT SIDE IMPACT AIRBAG CONTROL MODULE IS
DROPPED AT ANY TIME, IT MUST BE REPLACED.
If there are no possible causes remaining, view repair.All
Repair
Replace the Left Side Impact Airbag Control Module in accordance
with Service Instructions. WARNING: make sure the battery is
disconnected and wait 2 minutes before proceeding.
Perform AIRBAG VERIFICATION TEST - VER 1.
NOTE: When reconnecting airbag system components the Ignition must be
turned off and the Battery must be disconnected.
63
AIRBAG
LEFT SIACM, SEAT SQUIB CIRCUIT SHORT - ACTIVE ÐContinued

Symptom:
LEFT SIACM, SEAT SQUIB SHORT TO BATTERY - ACTIVE
When Monitored and Set Condition:
LEFT SIACM, SEAT SQUIB SHORT TO BATTERY - ACTIVE
When Monitored: When the ignition is on, the Left SIACM monitors the voltage of the left
Seat Squib circuits.
Set Condition: The Left SIACM has detected high voltage on the Left Seat Squib circuits.
POSSIBLE CAUSES
LEFT SEAT AIRBAG CIRCUIT SHORT TO BATTERY
LEFT SEAT SQUIB LINE 1 SHORT TO BATTERY
LEFT SEAT SQUIB LINE 2 SHORT TO BATTERY
LSIACM, LEFT SEAT SQUIB CIRCUIT SHORT TO BATTERY
TEST ACTION APPLICABILITY
1WARNING: TURN IGNITION OFF, DISCONNECT THE BATTERY AND WAIT
TWO MINUTES BEFORE PROCEEDING.
WARNING: DO NOT PLACE AN INTACT UNDEPLOYED SEAT BACK PAD-
DED SIDE DOWN ON A HARD SURFACE, THE AIRBAG WILL PROPEL
INTO THE AIR IF ACCIDENTALLY DEPLOYED, AND COULD RESULT IN
SERIOUS OR FATAL INJURY.
Disconnect the Left Seat Airbag inline connector located between the seat back and
seat cushion.
Do not disconnect the airbag connectors at the base of the seat.
NOTE: Check connectors - Clean and repair as necessary.
Connect the SRS Load Tool 8443 Passenger cable to he Left Seat Airbag inline
connector.
Turn Ignition On, then reconnect the Battery.
With the DRBIIIt, read active Side Airbag DTC's.
Does the DRBIIItdisplay LEFT SEAT SQUIB SHORT TO BATTERY?All
Ye s®Go To 2
No®Replace Left Seat Airbag.
Perform AIRBAG VERIFICATION TEST - VER 1.
NOTE: When reconnecting Airbag system components, the ignition must be
turned off and the battery must be disconnected.
64
AIRBAG

TEST ACTION APPLICABILITY
2WARNING: TURN IGNITION OFF, DISCONNECT THE BATTERY AND WAIT
TWO MINUTES BEFORE PROCEEDING.
WARNING: DO NOT PLACE AN INTACT UNDEPLOYED SIDE AIRBAG
FACE DOWN ON A HARD SURFACE, THE AIRBAG WILL PROPEL INTO
THE AIR IF ACCIDENTALLY DEPLOYED, AND COULD RESULT IN SERI-
OUS OR FATAL INJURY.
Disconnect the Left Seat Airbag inline connector located between the seat back and
seat cushion.
Do not disconnect the airbag connectors at the base of the seat.
Disconnect the Left Side Impact Airbag Control Module connector.
NOTE: Check connectors - Clean and repair as necessary.
Connect the SRS Load Tool 8443 SIACM adaptor to the Left Side Impact Airbag
Control Module connector.
Turn Ignition On, then reconnect the Battery.
Measure the voltage of the Left Seat Squib Line 2 circuit in the Left Side Impact
Control Module connector.
Is there any voltage present?All
Ye s®Repair Left Seat Squib Line 2 short to battery.
Perform AIRBAG VERIFICATION TEST - VER 1.
No®Go To 3
NOTE: When reconnecting Airbag system components, the ignition must be
turned off and the battery must be disconnected.
3WARNING: TURN IGNITION OFF, DISCONNECT THE BATTERY AND WAIT
TWO MINUTES BEFORE PROCEEDING.
WARNING: DO NOT PLACE AN INTACT UNDEPLOYED SEAT BACK PAD-
DED SIDE DOWN ON A HARD SURFACE, THE AIRBAG WILL PROPEL
INTO THE AIR IF ACCIDENTALLY DEPLOYED, AND COULD RESULT IN
SERIOUS OR FATAL INJURY.
Disconnect the Left Seat Airbag inline connector located between the seat back and
seat cushion.
Do not disconnect the airbag connectors at the base of the seat.
Disconnect the Left Side Impact Airbag Control Module connector.
NOTE: Check connectors - Clean and repair as necessary.
Connect the SRS Load Tool 8443 SIACM adaptor to the Left Side Impact Airbag
Control Module connector.
Turn Ignition On, then reconnect the Battery.
Measure the voltage of the Left Seat Squib Line 1 circuit in the Left Side Impact
Airbag Control Module connector.
Is there any voltage present?All
Ye s®Repair Left Seat Squib Line 1 short to battery.
Perform AIRBAG VERIFICATION TEST - VER 1.
No®Go To 4
NOTE: When reconnecting Airbag system components, the ignition must be
turned off and the battery must be disconnected.
65

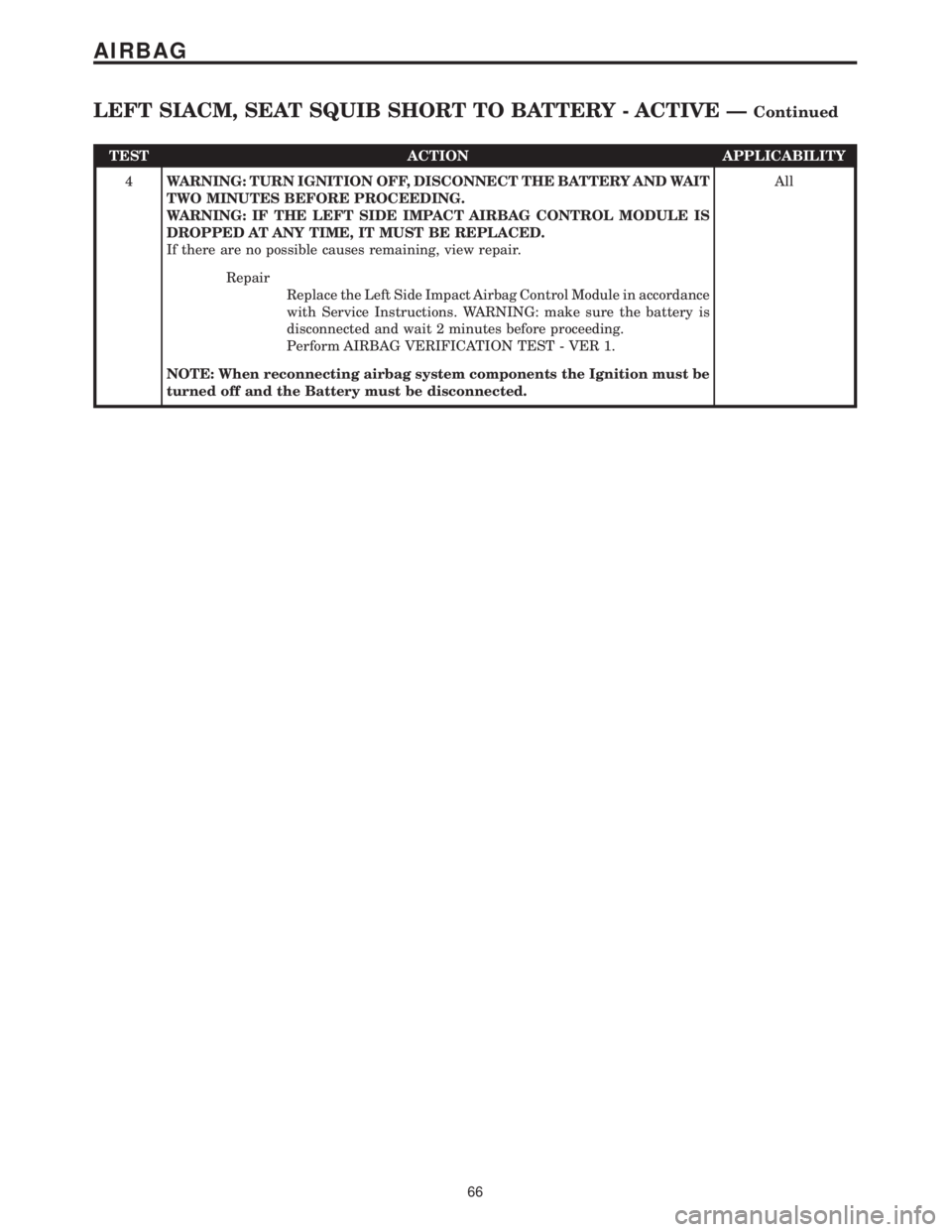

AIRBAG
LEFT SIACM, SEAT SQUIB SHORT TO BATTERY - ACTIVE ÐContinued

TEST ACTION APPLICABILITY
4WARNING: TURN IGNITION OFF, DISCONNECT THE BATTERY AND WAIT
TWO MINUTES BEFORE PROCEEDING.
WARNING: IF THE LEFT SIDE IMPACT AIRBAG CONTROL MODULE IS
DROPPED AT ANY TIME, IT MUST BE REPLACED.
If there are no possible causes remaining, view repair.All
Repair
Replace the Left Side Impact Airbag Control Module in accordance
with Service Instructions. WARNING: make sure the battery is
disconnected and wait 2 minutes before proceeding.
Perform AIRBAG VERIFICATION TEST - VER 1.
NOTE: When reconnecting airbag system components the Ignition must be
turned off and the Battery must be disconnected.
66
AIRBAG
LEFT SIACM, SEAT SQUIB SHORT TO BATTERY - ACTIVE ÐContinued

Symptom:
LEFT SIACM, SEAT SQUIB SHORT TO GROUND - ACTIVE
When Monitored and Set Condition:
LEFT SIACM, SEAT SQUIB SHORT TO GROUND - ACTIVE
When Monitored: When the ignition is on, the Left SIACM monitors the resistance of the
left Seat Squib circuits for low resistance.
Set Condition: The Left SIACM has detected a short to ground in the left Seat Squib
circuits.
POSSIBLE CAUSES
LEFT SEAT AIRBAG CIRCUIT SHORT TO GROUND
LEFT SEAT SQUIB LINE 1 SHORT TO GROUND
LEFT SEAT SQUIB LINE 2 SHORT TO GROUND
LSIACM, LEFT SEAT SQUIB CIRCUIT SHORT TO GROUND
TEST ACTION APPLICABILITY
1WARNING: TURN IGNITION OFF, DISCONNECT THE BATTERY AND WAIT
TWO MINUTES BEFORE PROCEEDING.
WARNING: DO NOT PLACE AN INTACT UNDEPLOYED SEAT BACK PAD-
DED SIDE DOWN ON A HARD SURFACE, THE AIRBAG WILL PROPEL
INTO THE AIR IF ACCIDENTALLY DEPLOYED, AND COULD RESULT IN
SERIOUS OR FATAL INJURY.
Disconnect the Left Seat Airbag inline connector located between the seat back and
seat cushion.
Do not disconnect the airbag connectors at the base of the seat.
NOTE: Check connectors - Clean and repair as necessary.
Connect the Airbag System Load Tool 8443 Passenger cable and jumper harness to
the Left Seat Airbag inline connector.
Turn ignition on, then reconnect the battery.
With the DRBIIIt, read active Side Airbag DTC's.
Does the DRBIIItdisplay9LEFT SEAT SQUIB SHORTED TO GROUND9?All
Ye s®Go To 2
No®Replace the Left Seat Airbag.
Perform AIRBAG VERIFICATION TEST - VER 1.
NOTE: When reconnecting airbag system components the Ignition must be
turned off and the Battery must be disconnected.
67

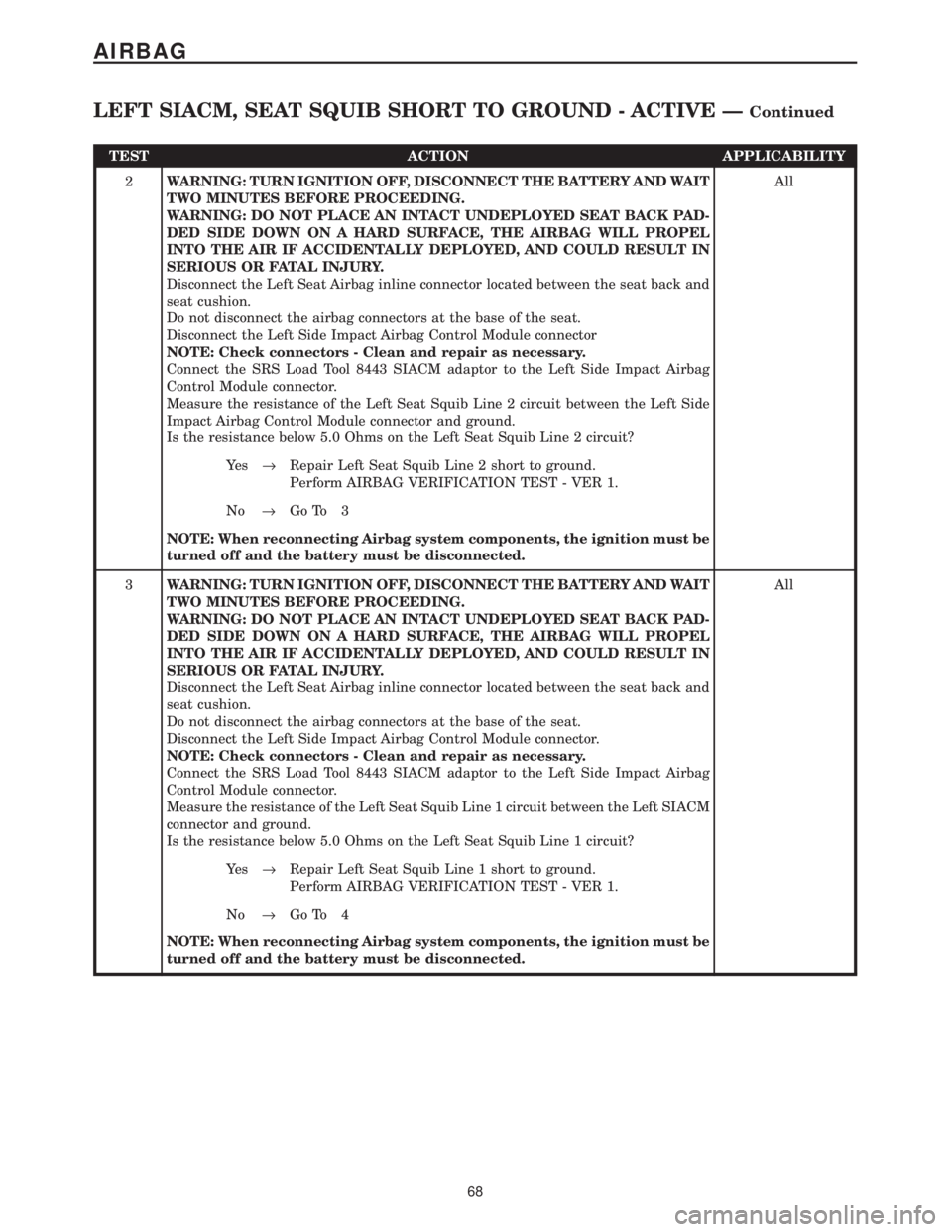

AIRBAG

TEST ACTION APPLICABILITY
2WARNING: TURN IGNITION OFF, DISCONNECT THE BATTERY AND WAIT
TWO MINUTES BEFORE PROCEEDING.
WARNING: DO NOT PLACE AN INTACT UNDEPLOYED SEAT BACK PAD-
DED SIDE DOWN ON A HARD SURFACE, THE AIRBAG WILL PROPEL
INTO THE AIR IF ACCIDENTALLY DEPLOYED, AND COULD RESULT IN
SERIOUS OR FATAL INJURY.
Disconnect the Left Seat Airbag inline connector located between the seat back and
seat cushion.
Do not disconnect the airbag connectors at the base of the seat.
Disconnect the Left Side Impact Airbag Control Module connector
NOTE: Check connectors - Clean and repair as necessary.
Connect the SRS Load Tool 8443 SIACM adaptor to the Left Side Impact Airbag
Control Module connector.
Measure the resistance of the Left Seat Squib Line 2 circuit between the Left Side
Impact Airbag Control Module connector and ground.
Is the resistance below 5.0 Ohms on the Left Seat Squib Line 2 circuit?All
Ye s®Repair Left Seat Squib Line 2 short to ground.
Perform AIRBAG VERIFICATION TEST - VER 1.
No®Go To 3
NOTE: When reconnecting Airbag system components, the ignition must be
turned off and the battery must be disconnected.
3WARNING: TURN IGNITION OFF, DISCONNECT THE BATTERY AND WAIT
TWO MINUTES BEFORE PROCEEDING.
WARNING: DO NOT PLACE AN INTACT UNDEPLOYED SEAT BACK PAD-
DED SIDE DOWN ON A HARD SURFACE, THE AIRBAG WILL PROPEL
INTO THE AIR IF ACCIDENTALLY DEPLOYED, AND COULD RESULT IN
SERIOUS OR FATAL INJURY.
Disconnect the Left Seat Airbag inline connector located between the seat back and
seat cushion.
Do not disconnect the airbag connectors at the base of the seat.
Disconnect the Left Side Impact Airbag Control Module connector.
NOTE: Check connectors - Clean and repair as necessary.
Connect the SRS Load Tool 8443 SIACM adaptor to the Left Side Impact Airbag
Control Module connector.
Measure the resistance of the Left Seat Squib Line 1 circuit between the Left SIACM
connector and ground.
Is the resistance below 5.0 Ohms on the Left Seat Squib Line 1 circuit?All
Ye s®Repair Left Seat Squib Line 1 short to ground.
Perform AIRBAG VERIFICATION TEST - VER 1.
No®Go To 4
NOTE: When reconnecting Airbag system components, the ignition must be
turned off and the battery must be disconnected.
68

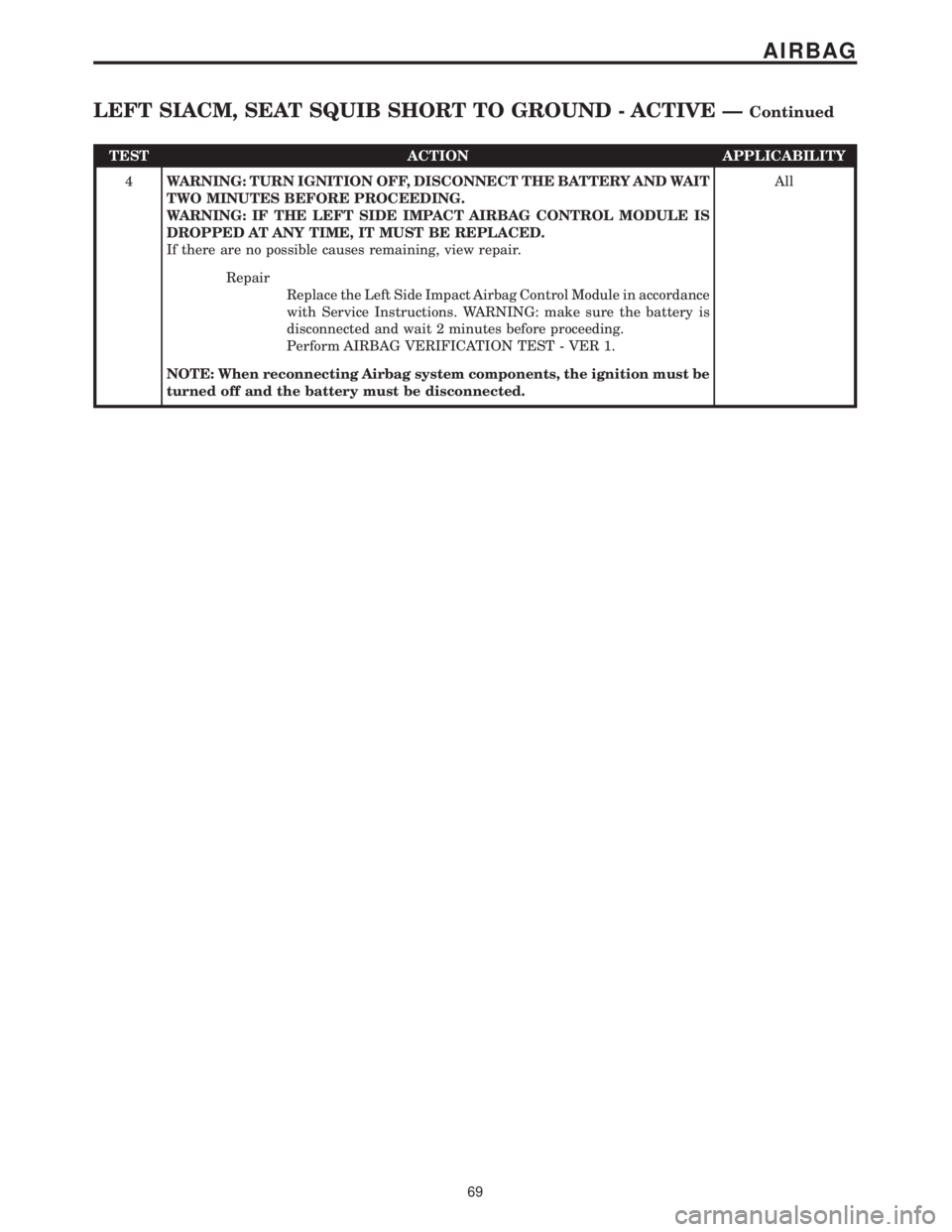

AIRBAG
LEFT SIACM, SEAT SQUIB SHORT TO GROUND - ACTIVE ÐContinued

TEST ACTION APPLICABILITY
4WARNING: TURN IGNITION OFF, DISCONNECT THE BATTERY AND WAIT
TWO MINUTES BEFORE PROCEEDING.
WARNING: IF THE LEFT SIDE IMPACT AIRBAG CONTROL MODULE IS
DROPPED AT ANY TIME, IT MUST BE REPLACED.
If there are no possible causes remaining, view repair.All
Repair
Replace the Left Side Impact Airbag Control Module in accordance
with Service Instructions. WARNING: make sure the battery is
disconnected and wait 2 minutes before proceeding.
Perform AIRBAG VERIFICATION TEST - VER 1.
NOTE: When reconnecting Airbag system components, the ignition must be
turned off and the battery must be disconnected.
69
AIRBAG
LEFT SIACM, SEAT SQUIB SHORT TO GROUND - ACTIVE ÐContinued

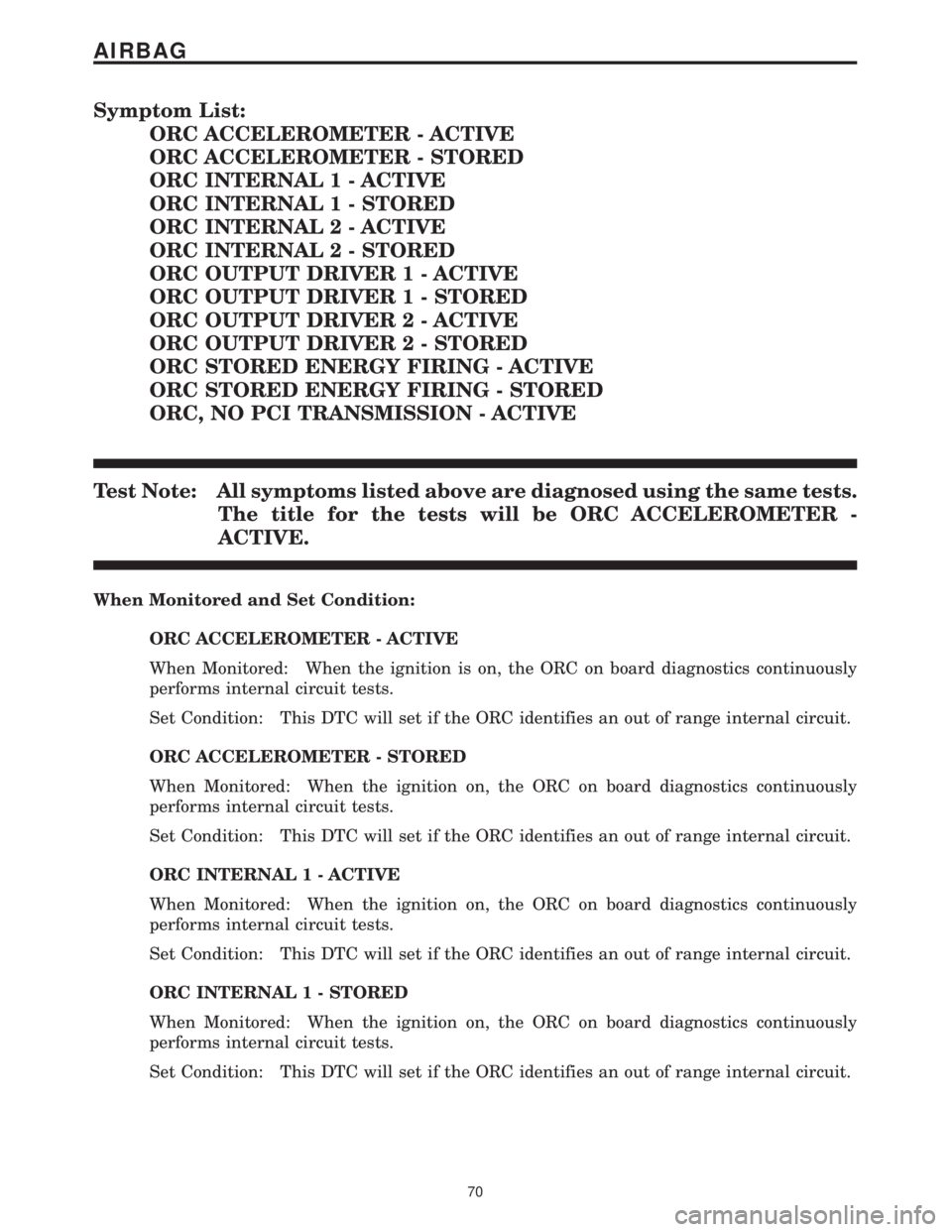

Symptom List:
ORC ACCELEROMETER - ACTIVE
ORC ACCELEROMETER - STORED
ORC INTERNAL 1 - ACTIVE
ORC INTERNAL 1 - STORED
ORC INTERNAL 2 - ACTIVE
ORC INTERNAL 2 - STORED
ORC OUTPUT DRIVER 1 - ACTIVE
ORC OUTPUT DRIVER 1 - STORED
ORC OUTPUT DRIVER 2 - ACTIVE
ORC OUTPUT DRIVER 2 - STORED
ORC STORED ENERGY FIRING - ACTIVE
ORC STORED ENERGY FIRING - STORED
ORC, NO PCI TRANSMISSION - ACTIVE
Test Note: All symptoms listed above are diagnosed using the same tests.
The title for the tests will be ORC ACCELEROMETER -
ACTIVE.
When Monitored and Set Condition:
ORC ACCELEROMETER - ACTIVE
When Monitored: When the ignition is on, the ORC on board diagnostics continuously
performs internal circuit tests.
Set Condition: This DTC will set if the ORC identifies an out of range internal circuit.
ORC ACCELEROMETER - STORED
When Monitored: When the ignition on, the ORC on board diagnostics continuously
performs internal circuit tests.
Set Condition: This DTC will set if the ORC identifies an out of range internal circuit.
ORC INTERNAL 1 - ACTIVE
When Monitored: When the ignition on, the ORC on board diagnostics continuously
performs internal circuit tests.
Set Condition: This DTC will set if the ORC identifies an out of range internal circuit.
ORC INTERNAL 1 - STORED
When Monitored: When the ignition on, the ORC on board diagnostics continuously
performs internal circuit tests.
Set Condition: This DTC will set if the ORC identifies an out of range internal circuit.
70
AIRBAG

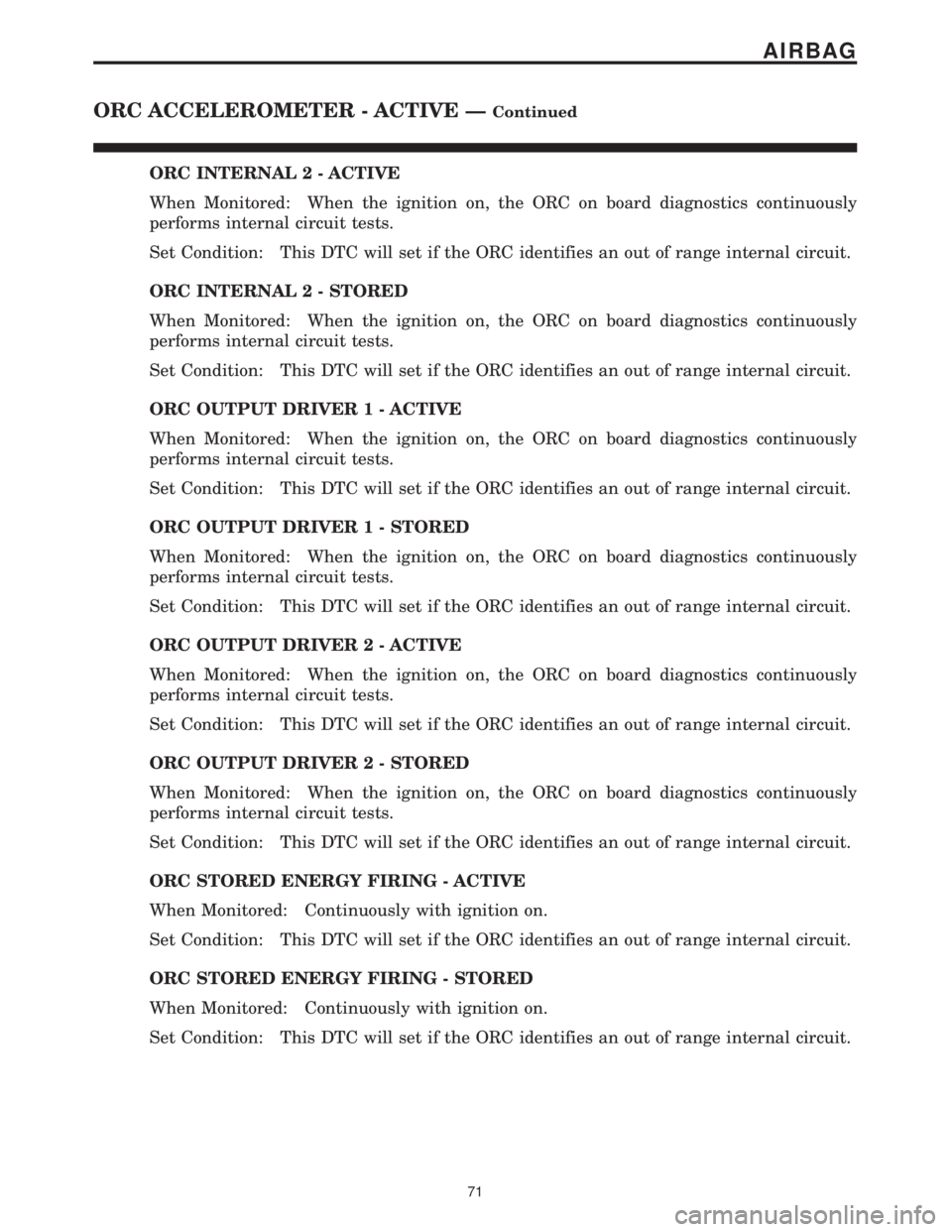

ORC INTERNAL 2 - ACTIVE
When Monitored: When the ignition on, the ORC on board diagnostics continuously
performs internal circuit tests.
Set Condition: This DTC will set if the ORC identifies an out of range internal circuit.
ORC INTERNAL 2 - STORED
When Monitored: When the ignition on, the ORC on board diagnostics continuously
performs internal circuit tests.
Set Condition: This DTC will set if the ORC identifies an out of range internal circuit.
ORC OUTPUT DRIVER 1 - ACTIVE
When Monitored: When the ignition on, the ORC on board diagnostics continuously
performs internal circuit tests.
Set Condition: This DTC will set if the ORC identifies an out of range internal circuit.
ORC OUTPUT DRIVER 1 - STORED
When Monitored: When the ignition on, the ORC on board diagnostics continuously
performs internal circuit tests.
Set Condition: This DTC will set if the ORC identifies an out of range internal circuit.
ORC OUTPUT DRIVER 2 - ACTIVE
When Monitored: When the ignition on, the ORC on board diagnostics continuously
performs internal circuit tests.
Set Condition: This DTC will set if the ORC identifies an out of range internal circuit.
ORC OUTPUT DRIVER 2 - STORED
When Monitored: When the ignition on, the ORC on board diagnostics continuously
performs internal circuit tests.
Set Condition: This DTC will set if the ORC identifies an out of range internal circuit.
ORC STORED ENERGY FIRING - ACTIVE
When Monitored: Continuously with ignition on.
Set Condition: This DTC will set if the ORC identifies an out of range internal circuit.
ORC STORED ENERGY FIRING - STORED
When Monitored: Continuously with ignition on.
Set Condition: This DTC will set if the ORC identifies an out of range internal circuit.
71
AIRBAG
ORC ACCELEROMETER - ACTIVE ÐContinued
