CHRYSLER VOYAGER 2001 Service Manual

Symptom:
ORC, CLUSTER MESSAGE MISMATCH - ACTIVE
When Monitored and Set Condition:
ORC, CLUSTER MESSAGE MISMATCH - ACTIVE
When Monitored: After the MIC bulb test is completed, the ORC compares the Lamp
Request by ORC, On or Off, and the Lamp on by MIC, On or Off, PCI Bus messages. Each
message is transmitted one time per second or when a change in the lamp state occur.
Set Condition: If the Lamp Request by ORC, On or Off, and the Lamp on by MIC, On or
Off, messages do not match, the code will set.
POSSIBLE CAUSES
MIC, COMMUNICATION FAILURE
MIC, CLUSTER MESSAGE MISMATCH
ORC, CLUSTER MESSAGE MISMATCH
TEST ACTION APPLICABILITY
1 Turn the ignition on.
With the DRBIIIt, ensure PCI Bus communications with the Instrument Cluster.
Is the Instrument Cluster communicating on the PCI Bus?All
Ye s®Go To 2
No®Refer to category COMMUNICATION CATEGORY and select the
related symptom INSTRUMENT CLUSTER BUS +/- SIGNAL
OPEN.
Perform AIRBAG VERIFICATION TEST - VER 1.
2 With the DRB select PASSIVE RESTRAINTS, AIRBAG, MONITOR DISPLAY and
WARNING LAMP STATUS.
Cycle the ignition key and observe the LAMP ON BY MIC and LAMP REQ BY ORC
monitors after the 6 to 8 second indicator test.
Does the LAMP ON BY MIC and LAMP REQ BY ORC monitors match?All
YES
Go To 3
NO
Replace Mechanical Instrument Cluster.
Perform BODY VERIFICATION TEST - VER 1.
82
AIRBAG

TEST ACTION APPLICABILITY
3WARNING: TURN THE IGNITION OFF, DISCONNECT THE BATTERY AND
WAIT TWO MINUTES BEFORE PROCEEDING.
WARNING: IF THE OCCUPANT RESTRAINT CONTROLLER IS DROPPED
AT ANY TIME, IT MUST BE REPLACED.
If there are no possible causes remaining, view repair.All
Repair
Replace the Occupant Restraint Controller in accordance with
Service Instructions. WARNING: make sure the battery is discon-
nected and wait 2 minutes before proceeding.
Perform AIRBAG VERIFICATION TEST - VER 1.
NOTE: When reconnecting airbag system components the Ignition must be
turned off and the Battery must be disconnected.
83
AIRBAG

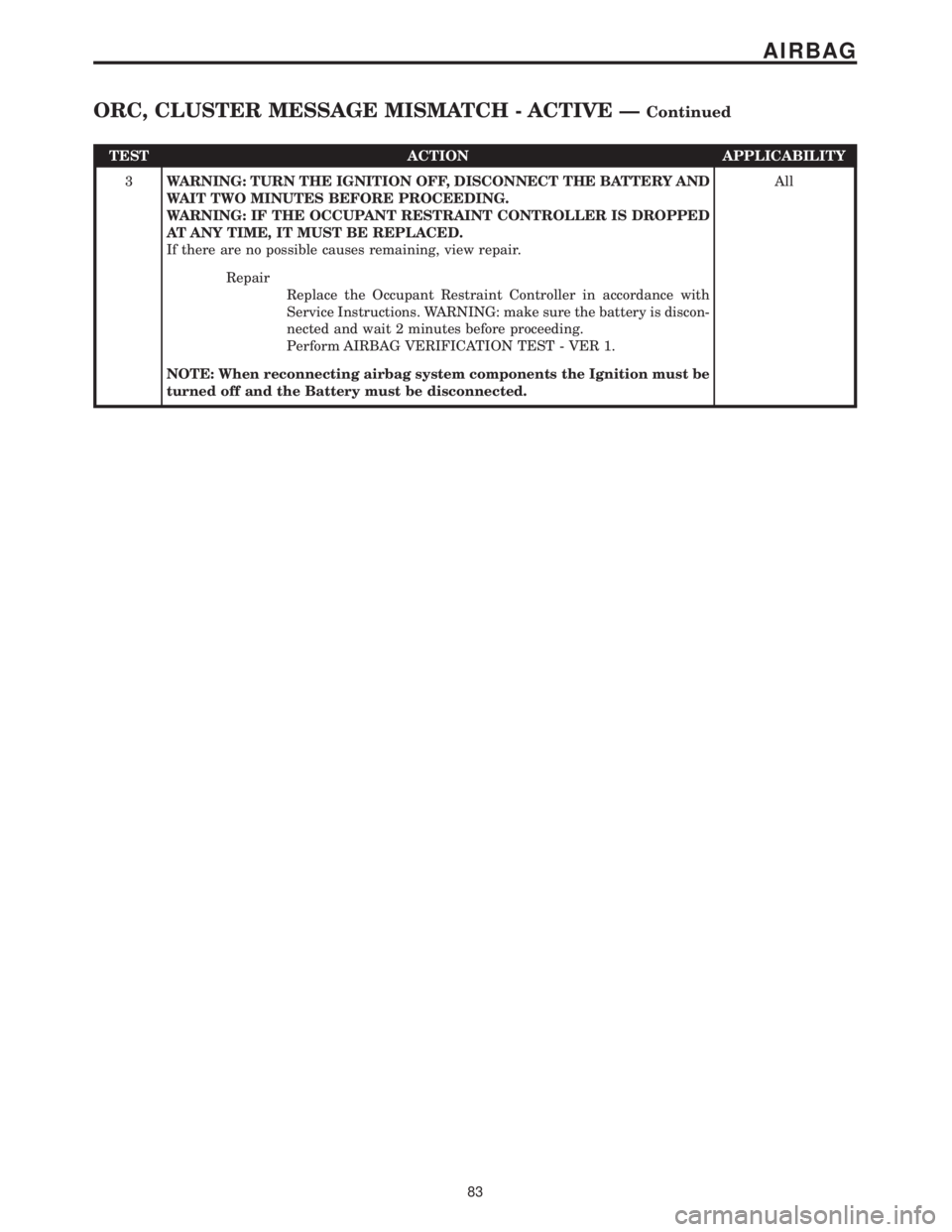

ORC, CLUSTER MESSAGE MISMATCH - ACTIVE ÐContinued

Symptom:

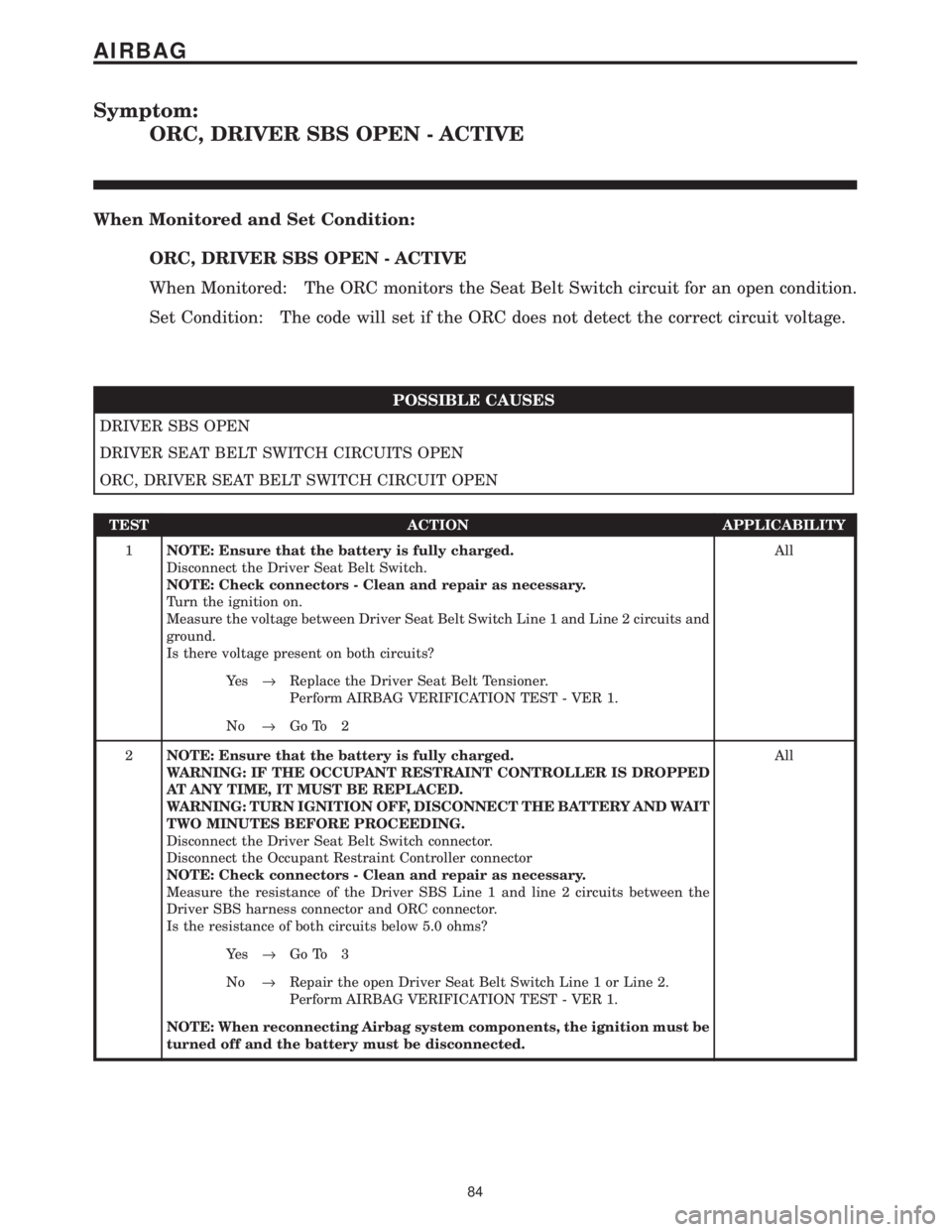

ORC, DRIVER SBS OPEN - ACTIVE
When Monitored and Set Condition:
ORC, DRIVER SBS OPEN - ACTIVE
When Monitored: The ORC monitors the Seat Belt Switch circuit for an open condition.
Set Condition: The code will set if the ORC does not detect the correct circuit voltage.
POSSIBLE CAUSES
DRIVER SBS OPEN
DRIVER SEAT BELT SWITCH CIRCUITS OPEN
ORC, DRIVER SEAT BELT SWITCH CIRCUIT OPEN
TEST ACTION APPLICABILITY
1NOTE: Ensure that the battery is fully charged.
Disconnect the Driver Seat Belt Switch.
NOTE: Check connectors - Clean and repair as necessary.
Turn the ignition on.
Measure the voltage between Driver Seat Belt Switch Line 1 and Line 2 circuits and
ground.
Is there voltage present on both circuits?All
Ye s®Replace the Driver Seat Belt Tensioner.
Perform AIRBAG VERIFICATION TEST - VER 1.
No®Go To 2
2NOTE: Ensure that the battery is fully charged.
WARNING: IF THE OCCUPANT RESTRAINT CONTROLLER IS DROPPED
AT ANY TIME, IT MUST BE REPLACED.
WARNING: TURN IGNITION OFF, DISCONNECT THE BATTERY AND WAIT
TWO MINUTES BEFORE PROCEEDING.
Disconnect the Driver Seat Belt Switch connector.
Disconnect the Occupant Restraint Controller connector
NOTE: Check connectors - Clean and repair as necessary.
Measure the resistance of the Driver SBS Line 1 and line 2 circuits between the
Driver SBS harness connector and ORC connector.
Is the resistance of both circuits below 5.0 ohms?All
Ye s®Go To 3
No®Repair the open Driver Seat Belt Switch Line 1 or Line 2.
Perform AIRBAG VERIFICATION TEST - VER 1.
NOTE: When reconnecting Airbag system components, the ignition must be
turned off and the battery must be disconnected.
84
AIRBAG

TEST ACTION APPLICABILITY
3WARNING: IF THE OCCUPANT RESTRAINT CONTROLLER IS DROPPED
AT ANY TIME, IT MUST BE REPLACED.
WARNING: TURN IGNITION OFF, DISCONNECT THE BATTERY AND WAIT
TWO MINUTES BEFORE PROCEEDING.
If there are no possible causes remaining, view repair.All
Repair
Replace the Occupant Restraint Controller (ORC) in accordance
with the Service information. WARNING: Make sure the battery
is disconnected and wait 2 minutes before proceeding.
Perform AIRBAG VERIFICATION TEST - VER 1.
NOTE: When reconnecting airbag system components the Ignition must be
turned off and the Battery must be disconnected.
85
AIRBAG
ORC, DRIVER SBS OPEN - ACTIVE ÐContinued

Symptom:

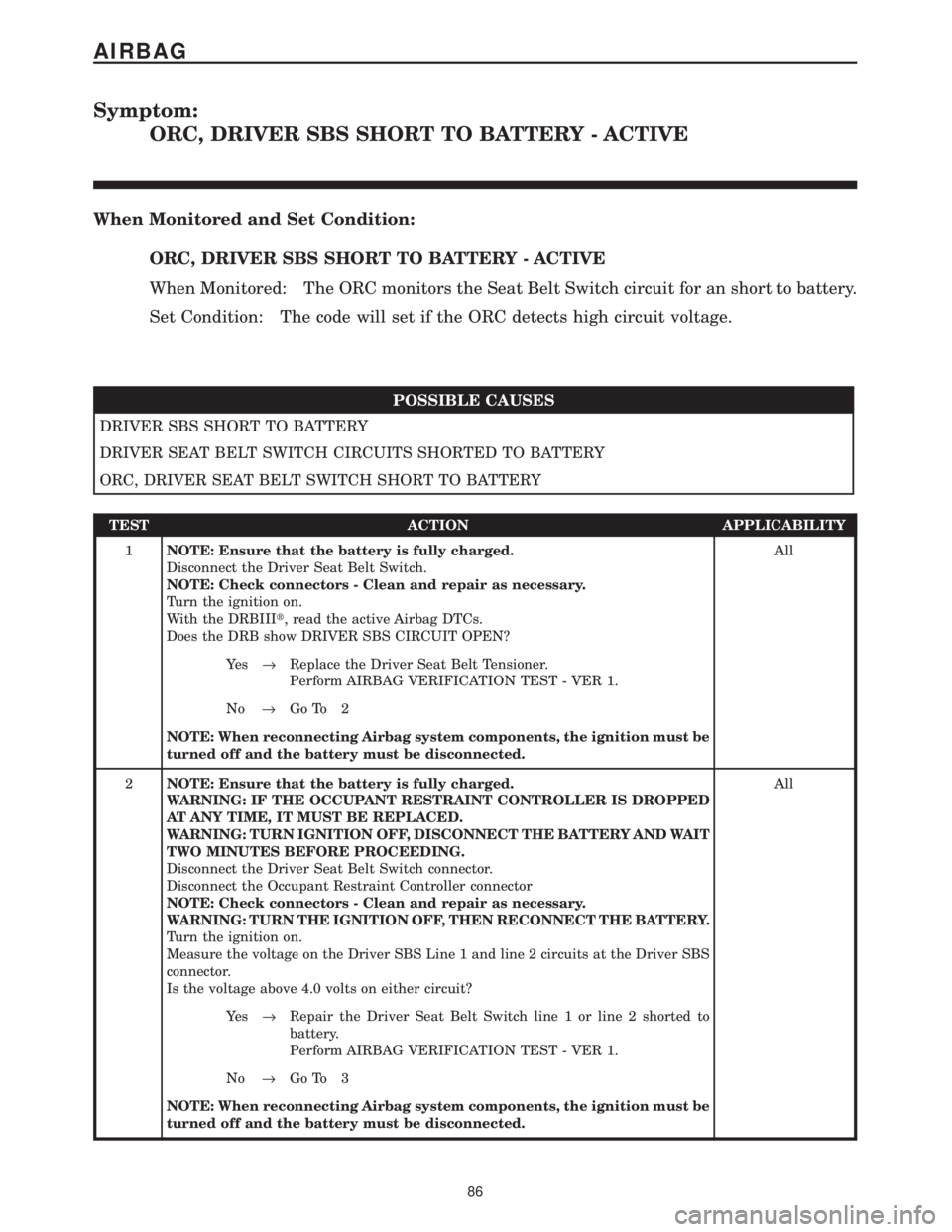

ORC, DRIVER SBS SHORT TO BATTERY - ACTIVE
When Monitored and Set Condition:
ORC, DRIVER SBS SHORT TO BATTERY - ACTIVE
When Monitored: The ORC monitors the Seat Belt Switch circuit for an short to battery.
Set Condition: The code will set if the ORC detects high circuit voltage.
POSSIBLE CAUSES
DRIVER SBS SHORT TO BATTERY
DRIVER SEAT BELT SWITCH CIRCUITS SHORTED TO BATTERY
ORC, DRIVER SEAT BELT SWITCH SHORT TO BATTERY
TEST ACTION APPLICABILITY
1NOTE: Ensure that the battery is fully charged.
Disconnect the Driver Seat Belt Switch.
NOTE: Check connectors - Clean and repair as necessary.
Turn the ignition on.
With the DRBIIIt, read the active Airbag DTCs.
Does the DRB show DRIVER SBS CIRCUIT OPEN?All
Ye s®Replace the Driver Seat Belt Tensioner.
Perform AIRBAG VERIFICATION TEST - VER 1.
No®Go To 2
NOTE: When reconnecting Airbag system components, the ignition must be
turned off and the battery must be disconnected.
2NOTE: Ensure that the battery is fully charged.
WARNING: IF THE OCCUPANT RESTRAINT CONTROLLER IS DROPPED
AT ANY TIME, IT MUST BE REPLACED.
WARNING: TURN IGNITION OFF, DISCONNECT THE BATTERY AND WAIT
TWO MINUTES BEFORE PROCEEDING.
Disconnect the Driver Seat Belt Switch connector.
Disconnect the Occupant Restraint Controller connector
NOTE: Check connectors - Clean and repair as necessary.
WARNING: TURN THE IGNITION OFF, THEN RECONNECT THE BATTERY.
Turn the ignition on.
Measure the voltage on the Driver SBS Line 1 and line 2 circuits at the Driver SBS
connector.
Is the voltage above 4.0 volts on either circuit?All
Ye s®Repair the Driver Seat Belt Switch line 1 or line 2 shorted to
battery.
Perform AIRBAG VERIFICATION TEST - VER 1.
No®Go To 3
NOTE: When reconnecting Airbag system components, the ignition must be
turned off and the battery must be disconnected.
86
AIRBAG

TEST ACTION APPLICABILITY
3WARNING: IF THE OCCUPANT RESTRAINT CONTROLLER IS DROPPED
AT ANY TIME, IT MUST BE REPLACED.
WARNING: TURN IGNITION OFF, DISCONNECT THE BATTERY AND WAIT
TWO MINUTES BEFORE PROCEEDING.
If there are no possible causes remaining, view repair.All
Repair
Replace the Occupant Restraint Controller (ORC) in accordance
with the Service information. WARNING: Make sure the battery
is disconnected and wait 2 minutes before proceeding.
Perform AIRBAG VERIFICATION TEST - VER 1.
NOTE: When reconnecting airbag system components the Ignition must be
turned off and the Battery must be disconnected.
87
AIRBAG
ORC, DRIVER SBS SHORT TO BATTERY - ACTIVE ÐContinued

Symptom:

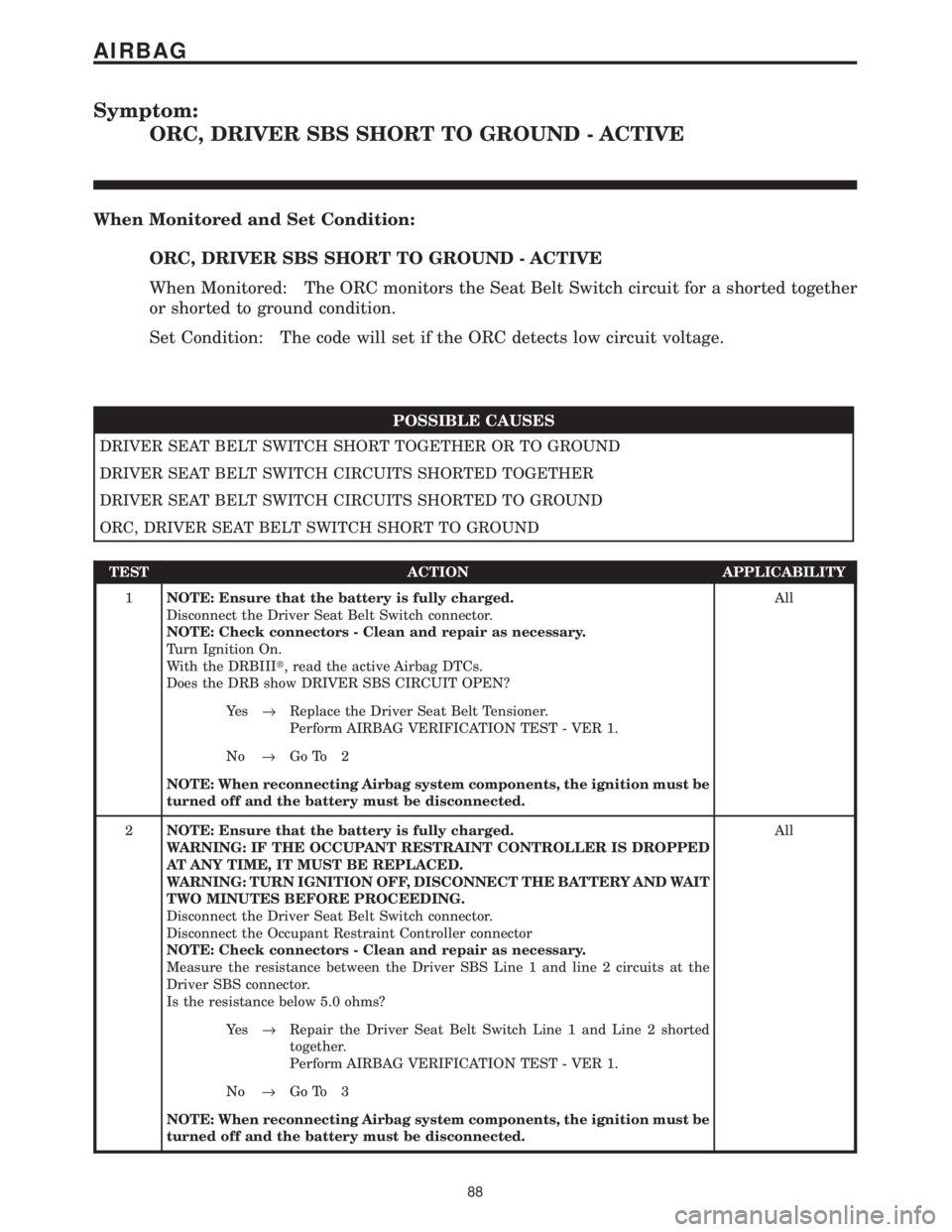

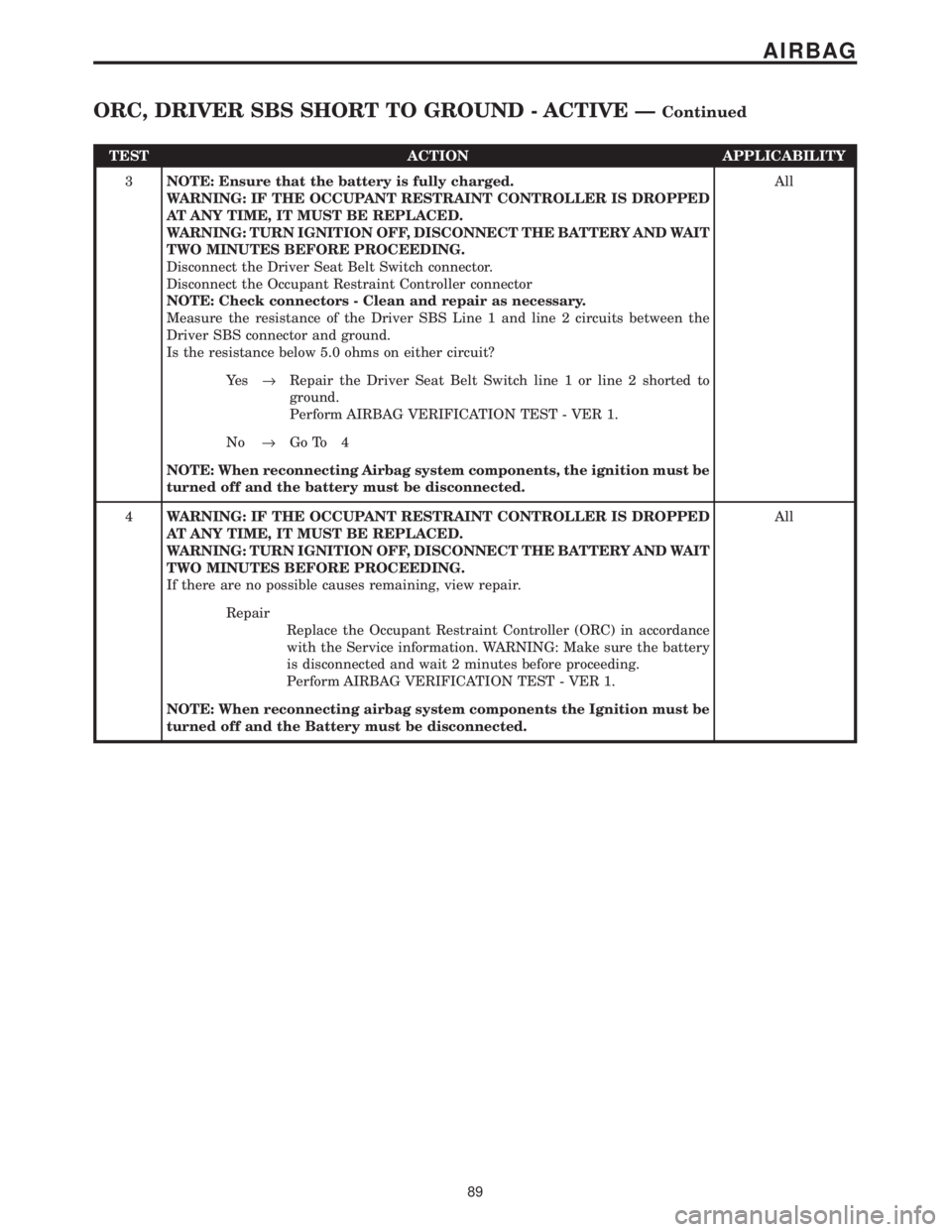

ORC, DRIVER SBS SHORT TO GROUND - ACTIVE
When Monitored and Set Condition:
ORC, DRIVER SBS SHORT TO GROUND - ACTIVE
When Monitored: The ORC monitors the Seat Belt Switch circuit for a shorted together
or shorted to ground condition.
Set Condition: The code will set if the ORC detects low circuit voltage.
POSSIBLE CAUSES
DRIVER SEAT BELT SWITCH SHORT TOGETHER OR TO GROUND
DRIVER SEAT BELT SWITCH CIRCUITS SHORTED TOGETHER
DRIVER SEAT BELT SWITCH CIRCUITS SHORTED TO GROUND
ORC, DRIVER SEAT BELT SWITCH SHORT TO GROUND
TEST ACTION APPLICABILITY
1NOTE: Ensure that the battery is fully charged.
Disconnect the Driver Seat Belt Switch connector.
NOTE: Check connectors - Clean and repair as necessary.
Turn Ignition On.
With the DRBIIIt, read the active Airbag DTCs.
Does the DRB show DRIVER SBS CIRCUIT OPEN?All
Ye s®Replace the Driver Seat Belt Tensioner.
Perform AIRBAG VERIFICATION TEST - VER 1.
No®Go To 2
NOTE: When reconnecting Airbag system components, the ignition must be
turned off and the battery must be disconnected.
2NOTE: Ensure that the battery is fully charged.
WARNING: IF THE OCCUPANT RESTRAINT CONTROLLER IS DROPPED
AT ANY TIME, IT MUST BE REPLACED.
WARNING: TURN IGNITION OFF, DISCONNECT THE BATTERY AND WAIT
TWO MINUTES BEFORE PROCEEDING.
Disconnect the Driver Seat Belt Switch connector.
Disconnect the Occupant Restraint Controller connector
NOTE: Check connectors - Clean and repair as necessary.
Measure the resistance between the Driver SBS Line 1 and line 2 circuits at the
Driver SBS connector.
Is the resistance below 5.0 ohms?All
Ye s®Repair the Driver Seat Belt Switch Line 1 and Line 2 shorted
together.
Perform AIRBAG VERIFICATION TEST - VER 1.
No®Go To 3
NOTE: When reconnecting Airbag system components, the ignition must be
turned off and the battery must be disconnected.
88
AIRBAG

TEST ACTION APPLICABILITY
3NOTE: Ensure that the battery is fully charged.
WARNING: IF THE OCCUPANT RESTRAINT CONTROLLER IS DROPPED
AT ANY TIME, IT MUST BE REPLACED.
WARNING: TURN IGNITION OFF, DISCONNECT THE BATTERY AND WAIT
TWO MINUTES BEFORE PROCEEDING.
Disconnect the Driver Seat Belt Switch connector.
Disconnect the Occupant Restraint Controller connector
NOTE: Check connectors - Clean and repair as necessary.
Measure the resistance of the Driver SBS Line 1 and line 2 circuits between the
Driver SBS connector and ground.
Is the resistance below 5.0 ohms on either circuit?All
Ye s®Repair the Driver Seat Belt Switch line 1 or line 2 shorted to
ground.
Perform AIRBAG VERIFICATION TEST - VER 1.
No®Go To 4
NOTE: When reconnecting Airbag system components, the ignition must be
turned off and the battery must be disconnected.
4WARNING: IF THE OCCUPANT RESTRAINT CONTROLLER IS DROPPED
AT ANY TIME, IT MUST BE REPLACED.
WARNING: TURN IGNITION OFF, DISCONNECT THE BATTERY AND WAIT
TWO MINUTES BEFORE PROCEEDING.
If there are no possible causes remaining, view repair.All
Repair
Replace the Occupant Restraint Controller (ORC) in accordance
with the Service information. WARNING: Make sure the battery
is disconnected and wait 2 minutes before proceeding.
Perform AIRBAG VERIFICATION TEST - VER 1.
NOTE: When reconnecting airbag system components the Ignition must be
turned off and the Battery must be disconnected.
89
AIRBAG
ORC, DRIVER SBS SHORT TO GROUND - ACTIVE ÐContinued

Symptom:

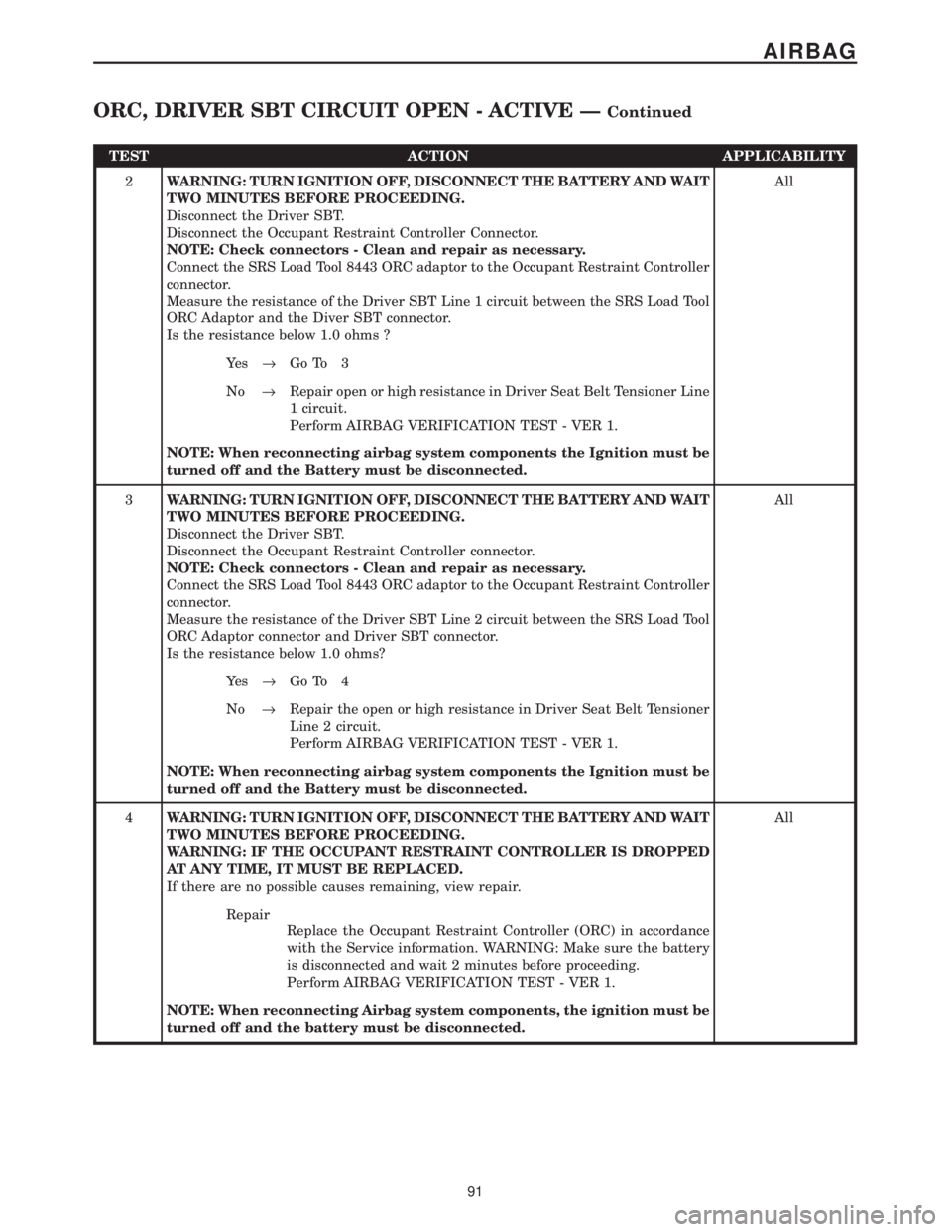

ORC, DRIVER SBT CIRCUIT OPEN - ACTIVE
When Monitored and Set Condition:
ORC, DRIVER SBT CIRCUIT OPEN - ACTIVE
When Monitored: When the ignition is On, the ORC monitors the resistance of the Driver
Seat Belt Tensioner circuits.
Set Condition: The ORC has detected an open circuit or high resistance on the Driver
Seat Belt Tensioner circuits.
POSSIBLE CAUSES
DRIVER SBT CIRCUITS OPEN
DRIVER SBT LINE 1 CIRCUIT OPEN
DRIVER SBT LINE 2 CIRCUIT OPEN
ORC, DRIVER SBT CIRCUITS OPEN
TEST ACTION APPLICABILITY
1NOTE: Ensure the battery is fully charged.
WARNING: TURN IGNITION OFF, DISCONNECT THE BATTERY AND WAIT
TWO MINUTES BEFORE PROCEEDING.
Disconnect the Driver SBT.
NOTE: Check connectors - Clean and repair as necessary.
Connect the SRS Load Tool 8443 Passenger cable and jumper to the Driver SBT
connector.
WARNING: TURN IGNITION ON, THEN RECONNECT THE BATTERY.
With the DRBIIIt, read the active DTC's.
Does the DRBIIItdisplay DRIVER SBT CIRCUIT OPEN?All
Ye s®Go To 2
No®Replace Driver Seat Belt Tensioner.
Perform AIRBAG VERIFICATION TEST - VER 1.
NOTE: When reconnecting Airbag system components, the ignition must be
turned off and the battery must be disconnected.
90
AIRBAG

TEST ACTION APPLICABILITY
2WARNING: TURN IGNITION OFF, DISCONNECT THE BATTERY AND WAIT
TWO MINUTES BEFORE PROCEEDING.
Disconnect the Driver SBT.
Disconnect the Occupant Restraint Controller Connector.
NOTE: Check connectors - Clean and repair as necessary.
Connect the SRS Load Tool 8443 ORC adaptor to the Occupant Restraint Controller
connector.
Measure the resistance of the Driver SBT Line 1 circuit between the SRS Load Tool
ORC Adaptor and the Diver SBT connector.
Is the resistance below 1.0 ohms ?All
Ye s®Go To 3
No®Repair open or high resistance in Driver Seat Belt Tensioner Line
1 circuit.
Perform AIRBAG VERIFICATION TEST - VER 1.
NOTE: When reconnecting airbag system components the Ignition must be
turned off and the Battery must be disconnected.
3WARNING: TURN IGNITION OFF, DISCONNECT THE BATTERY AND WAIT
TWO MINUTES BEFORE PROCEEDING.
Disconnect the Driver SBT.
Disconnect the Occupant Restraint Controller connector.
NOTE: Check connectors - Clean and repair as necessary.
Connect the SRS Load Tool 8443 ORC adaptor to the Occupant Restraint Controller
connector.
Measure the resistance of the Driver SBT Line 2 circuit between the SRS Load Tool
ORC Adaptor connector and Driver SBT connector.
Is the resistance below 1.0 ohms?All
Ye s®Go To 4
No®Repair the open or high resistance in Driver Seat Belt Tensioner
Line 2 circuit.
Perform AIRBAG VERIFICATION TEST - VER 1.
NOTE: When reconnecting airbag system components the Ignition must be
turned off and the Battery must be disconnected.
4WARNING: TURN IGNITION OFF, DISCONNECT THE BATTERY AND WAIT
TWO MINUTES BEFORE PROCEEDING.
WARNING: IF THE OCCUPANT RESTRAINT CONTROLLER IS DROPPED
AT ANY TIME, IT MUST BE REPLACED.
If there are no possible causes remaining, view repair.All
Repair
Replace the Occupant Restraint Controller (ORC) in accordance
with the Service information. WARNING: Make sure the battery
is disconnected and wait 2 minutes before proceeding.
Perform AIRBAG VERIFICATION TEST - VER 1.
NOTE: When reconnecting Airbag system components, the ignition must be
turned off and the battery must be disconnected.
91
AIRBAG
ORC, DRIVER SBT CIRCUIT OPEN - ACTIVE ÐContinued
