CHRYSLER VOYAGER 2001 Service Manual

OCCUPANT RESTRAINT CONTROLLER - YELLOW/RED 23 WAYCAV CIRCUIT FUNCTION
1 R54 18LB/YL PASSENGER SEAT BELT TENSIONER LINE 2
2 R56 18LB/DG PASSENGER SEAT BELT TENSIONER LINE 1
3 R62 18LB/VT PASSENGER SQUIB 2 LINE 2
4 R64 18LB/WT PASSENGER SQUIB 2 LINE 1
5 R42 18LB/BR PASSENGER SQUIB 1 LINE 2
6 R44 18LB/OR PASSENGER SQUIB 1 LINE 1
7 R53 18LG/YL DRIVER SEAT BELT TENSIONER LINE 2
8 R55 18LG/DG DRIVER SEAT BELT TENSIONER LINE 1
9 R61 18LG/VT DRIVER SQUIB 2 LINE 1
10 R63 18LG/WT DRIVER SQUIB 2 LINE 2
11 R43 18LG/BR DRIVER SQUIB 1 LINE 1
12 R45 18LG/OR DRIVER SQUIB 1 LINE 2
13 - -
14 F201 18PK/OR FCM OUTPUT (RUN-START)
15 F100 18PK/VT FCM OUTPUT (RUN)
16 Z12 18BK/OR GROUND
17 R59 18LG/TN DRIVER SEAT BELT SWITCH LINE 1
18 R57 18LG/GY DRIVER SEAT BELT SWITCH LINE 2
19 R60 18LB/TN PASSENGER SEAT BELT SWITCH LINE 1
20 R58 18LB/GY PASSENGER SEAT BELT SWITCH LINE 2
21 D25 18WT/VT PCI BUS
22 - -
23 - -
OVERHEAD CONSOLE (EXCEPT BASE) - BLACK 12 WAYCAV CIRCUIT FUNCTION
1 G23 20VT/DB SLIDING DOORS OVERHEAD SWITCH MUX
2 G25 20VT/TN LIFTGATE SWITCH MUX
3 D25 20WT/VT PCI BUS
4 Z113 20BK/DB GROUND
5 A114 20GY/RD FUSED B(+) (I.O.D.)
6 F503 20WT/PK IGNITION SWITCH OUTPUT (RUN)
7 Z13 20BK/WT GROUND
8 E15 20OR/DB ASH/RECEIVER LAMP FEED
9- -
10 - -
11 L24 20BK/GY (EXCEPT
BUILT-UP-EXPORT)
(PREMIUM/LUXURY)AUTOMATIC HEADLAMP SWITCH SENSOR
12 L1 20BK/WT (PREMIUM/
LUXURY)BACK-UP LAMP FEED
C
O
N
N
E
C
T
O
R
P
I
N
O
U
T
S
1062
CONNECTOR PINOUTS

PASSENGER AIRBAG - YELLOW 4 WAYCAV CIRCUIT FUNCTION
1 R42 18LB/BR PASSENGER SQUIB 1 LINE 2
2 R44 18LB/OR PASSENGER SQUIB 1 LINE 1
3 R62 18LB/VT PASSENGER SQUIB 2 LINE 2
4 R64 18LB/WT PASSENGER SQUIB 2 LINE 1
PASSENGER BLEND DOOR ACTUATOR (ATC) - GRAY 2 WAYCAV CIRCUIT FUNCTION
1 C133 20DB/WT PASSENGER BLEND DOOR DRIVER (B)
2 C33 20LB/BR PASSENGER BLEND DOOR DRIVER (A)
PASSENGER BLEND DOOR ACTUATOR (MTC) - GRAY 2 WAYCAV CIRCUIT FUNCTION
1 C34 20DB/LB (LHD) COMMON DOOR DRIVER (B)
1 C33 20LB/BR (RHD) PASSENGER BLEND DOOR DRIVER (A)
2 C33 20LB/BR (LHD) PASSENGER BLEND DOOR DRIVER (A)
2 C34 20DB/LB (RHD) COMMON DOOR DRIVER (B)
PASSENGER DOOR LOCK SWITCH - BLACK 3 WAYCAV CIRCUIT FUNCTION
1 F304 16WT/PK (EXCEPT
POWER WINDOWS)FUSED ACCESSORY RELAY OUTPUT
1 F304 16WT/PK (POWER
WINDOWS)FUSED WINDOW CIRCUIT BREAKER OUTPUT
2 G160 20VT/LG (LHD) RIGHT DOOR LOCK SWITCH MUX
2 G161 20VT/DG (RHD) LEFT DOOR LOCK SWITCH MUX
3 Z460 20BK/LG (LHD) GROUND
3 Z461 20BK/DG (RHD) GROUND
C
O
N
N
E
C
T
O
R
P
I
N
O
U
T
S
1063
CONNECTOR PINOUTS

PASSENGER FOLDING MIRROR RELAY (BUILT-UP-EXPORT) - BLUE 9 WAYCAV CIRCUIT FUNCTION
1- -
2- -
3- -
4 A108 18LG/RD FUSED B(+)
5 P164 18LG/DB PASSENGER FOLDING MIRROR RELAY INPUT
6 P162 18LG/DG PASSENGER FOLDING MIRROR RELAY CONTROL
7- -
8 P160 18TN/LG PASSENGER FOLDING MIRROR RELAY OUTPUT
9- -
PASSENGER SEAT BELT SWITCH-2WAYCAV CIRCUIT FUNCTION
1 R60 18LB/TN PASSENGER SEAT BELT SWITCH LINE 1
2 R58 18LB/GY PASSENGER SEAT BELT SWITCH LINE 2
PASSENGER SEAT BELT TENSIONER-2WAYCAV CIRCUIT FUNCTION
1 R54 18LB/YL PASSENGER SEAT BELT TENSIONER LINE 2
2 R56 18LB/DG PASSENGER SEAT BELT TENSIONER LINE 1
C
O
N
N
E
C
T
O
R
P
I
N
O
U
T
S
1064
CONNECTOR PINOUTS

C
O
N
N
E
C
T
O
R
P
I
N
O
U
T
S
1065
CONNECTOR PINOUTS

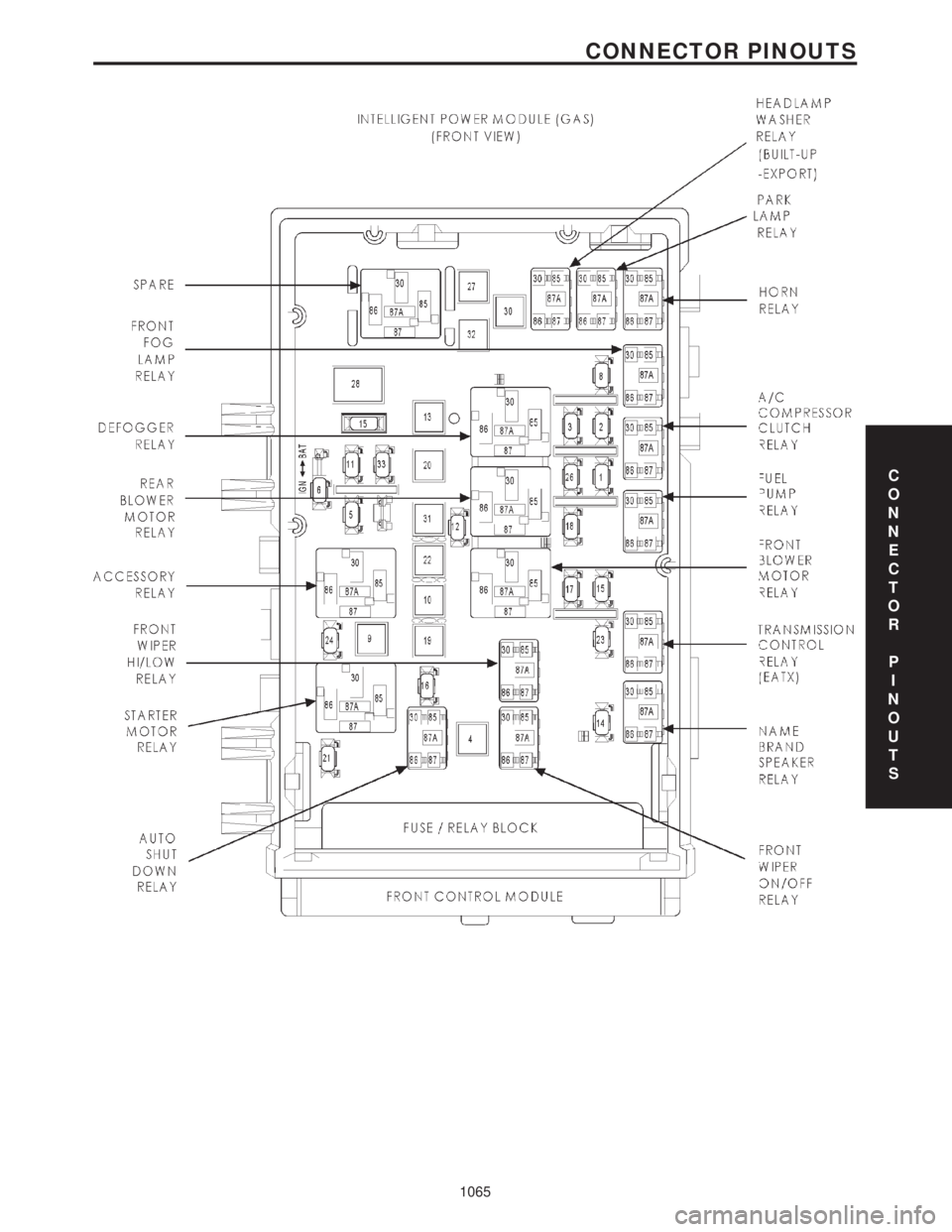

FUSES (IPM)FUSE
NO.AMPS FUSED CIRCUIT FUNCTION
1 20A INTERNAL FUSED B(+)
2 15A INTERNAL FUSED PARK LAMP RELAY OUTPUT
3 15A INTERNAL FUSED PARK LAMP RELAY OUTPUT
4 30A INTERNAL FUSED B(+)
5 20A F306 16DB/PK FUSED ACCESSORY RELAY OUTPUT
6 20A F307 16LB/PK (BATTERY POSITION) FUSED B(+)
6 20A F307 16LB/PK (ACCESSORY RELAY POSITION) FUSED ACCESSORY RELAY OUTPUT
8 20A INTERNAL FUSED B(+)
9 30A INTERNAL FUSED B(+)
10 40A C7 12DB FUSED FRONT BLOWER MOTOR RELAY OUTPUT
11 20A F302 18GY/PK FUSED ACCESSORY RELAY OUTPUT
12 25A C51 12LB/BR FUSED REAR BLOWER MOTOR RELAY OUTPUT
13 40A C15 12DB/WT FUSED REAR WINDOW DEFOGGER RELAY OUTPUT
14 15A INTERNAL FUSED B(+) (I.O.D.)
15 20A INTERNAL (EATX) FUSED B(+)
16 25A INTERNAL FUSED B(+)
17 20A INTERNAL FUSED B(+)
18 20A INTERNAL FUSED B(+)
19 40A A101 12VT/RD FUSED B(+)
20 40A A102 12WT/RD FUSED B(+)
21 25A A111 12DG/RD FUSED B(+)
22 40A A110 12OR/RD FUSED B(+)
23 10A A106 20LB/RD FUSED B(+)
24 20A A701 16BR/RD FUSED B(+) (HAZARD)
26 20A A103 18GY/RD FUSED B(+)
27 40A A112 12OR/RD FUSED B(+)
28 40A F30 12PK/YL FUSED ACCESSORY RELAY OUTPUT
30 40A INTERNAL (RG) FUSED B(+)
31 40A A113 12WT/RD FUSED B(+)
32 40A A115 12YL/RD FUSED B(+)
33 15A INTERNAL FUSED ACCESSORY RELAY OUTPUT
ACCESSORY RELAYCAV CIRCUIT FUNCTION
30 INTERNAL B(+)
85 FCM 35 ACCESSORY RELAY CONTROL (RUN-ACC)
86 INTERNAL B(+)
87 INTERNAL FUSED ACCESSORY RELAY OUTPUT
87A --
DEFOGGER RELAYCAV CIRCUIT FUNCTION
30 INTERNAL B(+)
85 FCM 31 REAR WINDOW DEFOGGER RELAY CONTROL
86 INTERNAL B(+)
87 INTERNAL FUSED REAR WINDOW DEFOGGER RELAY OUTPUT
87A --
FRONT BLOWER MOTOR RELAYCAV CIRCUIT FUNCTION
30 INTERNAL B(+)
85 FCM 30 FRONT BLOWER MOTOR RELAY CONTROL
86 INTERNAL B(+)
87 C7 12DB FUSED FRONT BLOWER MOTOR RELAY OUTPUT
87A --
C
O
N
N
E
C
T
O
R
P
I
N
O
U
T
S
1066
CONNECTOR PINOUTS

FRONT CONTROL MODULE - BLACK 49 WAYCAV CIRCUIT FUNCTION
1 A1 B(+)
2 A1 B(+)
3 L43 LEFT LOW BEAM DRIVER
4 L34 RIGHT HIGH BEAM DRIVER
5 L33 LEFT HIGH BEAM DRIVER
6 L44 RIGHT LOW BEAM DRIVER
7 - NOT USED
8 Z117, Z118, Z343, Z344 GROUND
9 A1 B(+)
10 FCM 10 HORN RELAY CONTROL
11 FCM 11 NAME BRAND SPEAKER RELAY CONTROL
12 - SPARE
13 FCM 13 PARK LAMP RELAY CONTROL
14 FCM 14 FRONT WIPER ON/OFF RELAY CONTROL
15 C41 (DIESEL) CABIN HEATER ASSIST CONTROL
16 W7 FRONT WIPER PARK SWITCH SENSE
17 X3 HORN SWITCH SENSE
18 W1 WASHER FLUID LEVEL SWITCH SENSE
19 FCM 19 (GAS) IGNITION SWITCH OUTPUT (START)
20 A114 FUSED B(+) (I.O.D.)
21 L78 FUSED PARK LAMP RELAY OUTPUT (RIGHT)
22 D25 PCI BUS
23 G931 AMBIENT TEMPERATURE SENSOR RETURN
24 - SPARE
25 G31 AMBIENT TEMPERATURE SENSOR SIGNAL
26 L13 (RG) HEADLAMP ADJUST SIGNAL
27 F1, F2 FCM OUTPUT (UNLOCK-RUN-START)
28 F214 FCM OUTPUT (RUN-START) (SIACM)
29 F100 FCM OUTPUT (RUN) (ORC)
30 FCM 30 FRONT/REAR BLOWER MOTOR RELAY CONTROL
31 FCM 31 REAR WINDOW DEFOGGER RELAY CONTROL
32 FCM 32 (BUILT-UP-
EXPORT))HEADLAMP WASHER RELAY CONTROL
33 FCM 33 FRONT FOG LAMP RELAY CONTROL
34 FCM 34 FRONT WIPER HIGH/LOW RELAY CONTROL
35 FCM 35 ACCESSORY RELAY CONTROL (RUN-ACC)
36 B20 BRAKE FLUID LEVEL SWITCH SENSE
37 F20 IGNITION SWITCH OUTPUT (RUN-START)
38 A1 B(+)
39 T2 TRS REVERSE SENSE
40 T753 (DIESEL) IGNITION SWITCH OUTPUT (START)
41 L77 FUSED PARK LAMP RELAY OUTPUT (LEFT)
42 D23 FLASH PROGRAM ENABLE
43 Z116 GROUND
44 L50 PRIMARY BRAKE SWITCH SIGNAL
45 W10 FRONT WASHER PUMP MOTOR CONTROL
46 W20 REAR WASHER PUMP MOTOR CONTROL
47 K32 BRAKE TRANSMISSION SHIFT INTERLOCK SOLENOID CONTROL
48 F201 FCM OUTPUT (RUN-START) (ORC)
49 - NOT USED
C
O
N
N
E
C
T
O
R
P
I
N
O
U
T
S
1067
CONNECTOR PINOUTS

FRONT FOG LAMP RELAYCAV CIRCUIT FUNCTION
30 INTERNAL FUSED B(+)
85 FCM 33 FRONT FOG LAMP RELAY CONTROL
86 INTERNAL FUSED B(+)
87 INTERNAL FRONT FOG LAMP RELAY OUTPUT
87A --
HEADLAMP WASHER RELAY (BUILT-UP-EXPORT)CAV CIRCUIT FUNCTION
30 INTERNAL FUSED B(+)
57 T55 20YL/VT (AUTOSTICK)
85 FCM 32 HEADLAMP WASHER RELAY CONTROL
86 INTERNAL FUSED B(+)
87 V53 12BR/OR HEADLAMP WASHER RELAY OUTPUT
87A - No Function Defined
NAME BRAND SPEAKER RELAYCAV CIRCUIT FUNCTION
30 INTERNAL FUSED B(+) (I.O.D.)
85 FCM 11 NAME BRAND SPEAKER (NBS) RELAY CONTROL
86 INTERNAL FUSED B(+) (I.O.D.)
87 X1 16DG/BR NAME BRAND SPEAKER (NBS) RELAY OUTPUT
87A --
PARK LAMP RELAYCAV CIRCUIT FUNCTION
30 INTERNAL B(+)
85 FCM 13 PARK LAMP RELAY CONTROL
86 INTERNAL B(+)
87 INTERNAL PARK LAMP RELAY OUTPUT
87A --
POSITIVE TEMPERATURE COEFFICIENTSFUSE
NO.AMPS FUSED CIRCUIT FUNCTION
4 8A C16 18DB/GY FUSED REAR WINDOW DEFOGGER RELAY OUTPUT
7 13A A105 18DB/RD FUSED B(+)
REAR BLOWER MOTOR RELAYCAV CIRCUIT FUNCTION
30 INTERNAL B(+)
85 FCM 30 REAR BLOWER MOTOR RELAY CONTROL
86 INTERNAL B(+)
87 C51 12LB/BR FUSED REAR BLOWER MOTOR RELAY OUTPUT
87A --
C
O
N
N
E
C
T
O
R
P
I
N
O
U
T
S
1068
CONNECTOR PINOUTS

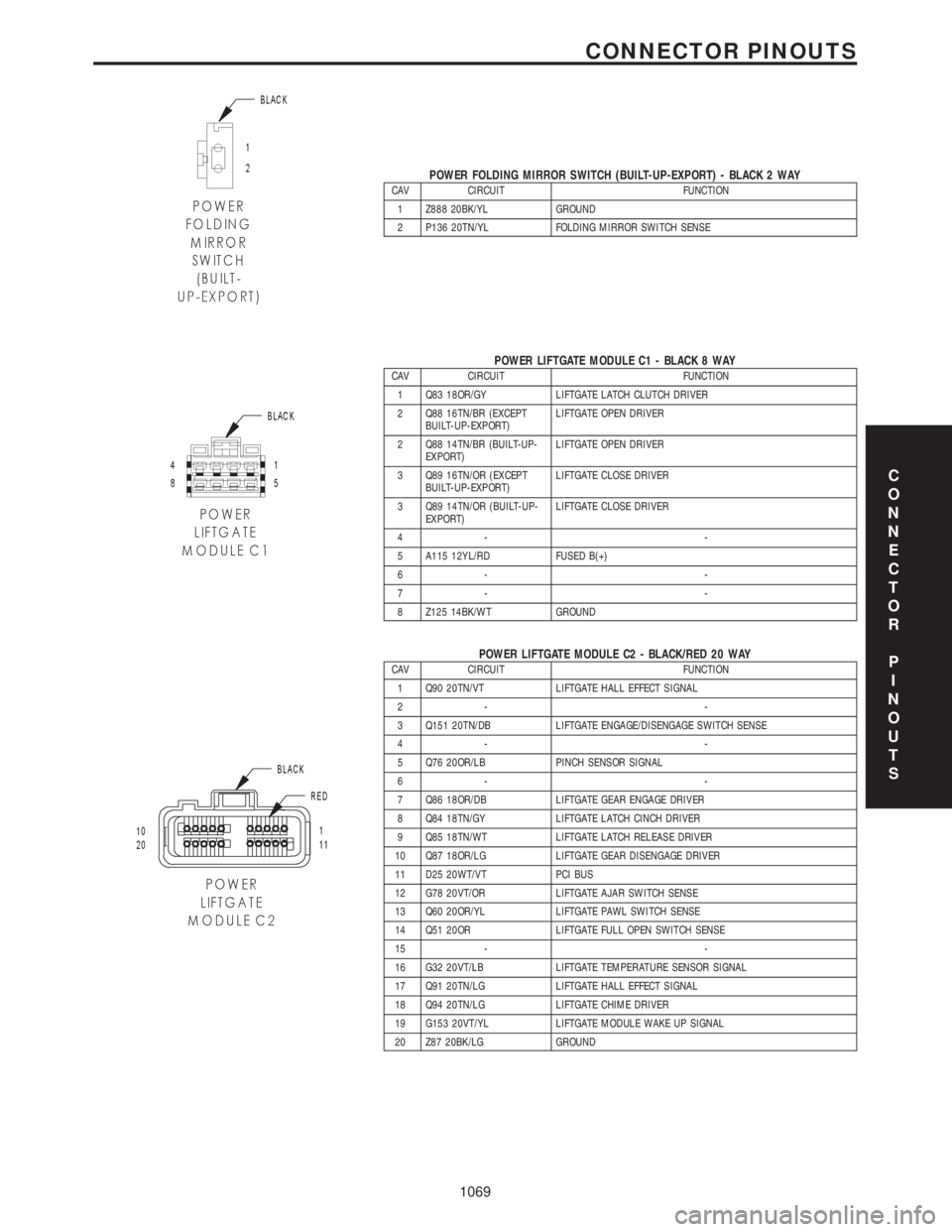

POWER FOLDING MIRROR SWITCH (BUILT-UP-EXPORT) - BLACK 2 WAYCAV CIRCUIT FUNCTION
1 Z888 20BK/YL GROUND
2 P136 20TN/YL FOLDING MIRROR SWITCH SENSE
POWER LIFTGATE MODULE C1 - BLACK 8 WAYCAV CIRCUIT FUNCTION
1 Q83 18OR/GY LIFTGATE LATCH CLUTCH DRIVER
2 Q88 16TN/BR (EXCEPT
BUILT-UP-EXPORT)LIFTGATE OPEN DRIVER
2 Q88 14TN/BR (BUILT-UP-
EXPORT)LIFTGATE OPEN DRIVER
3 Q89 16TN/OR (EXCEPT
BUILT-UP-EXPORT)LIFTGATE CLOSE DRIVER
3 Q89 14TN/OR (BUILT-UP-
EXPORT)LIFTGATE CLOSE DRIVER
4- -
5 A115 12YL/RD FUSED B(+)
6- -
7- -
8 Z125 14BK/WT GROUND
POWER LIFTGATE MODULE C2 - BLACK/RED 20 WAYCAV CIRCUIT FUNCTION
1 Q90 20TN/VT LIFTGATE HALL EFFECT SIGNAL
2- -
3 Q151 20TN/DB LIFTGATE ENGAGE/DISENGAGE SWITCH SENSE
4- -
5 Q76 20OR/LB PINCH SENSOR SIGNAL
6- -
7 Q86 18OR/DB LIFTGATE GEAR ENGAGE DRIVER
8 Q84 18TN/GY LIFTGATE LATCH CINCH DRIVER
9 Q85 18TN/WT LIFTGATE LATCH RELEASE DRIVER
10 Q87 18OR/LG LIFTGATE GEAR DISENGAGE DRIVER
11 D25 20WT/VT PCI BUS
12 G78 20VT/OR LIFTGATE AJAR SWITCH SENSE
13 Q60 20OR/YL LIFTGATE PAWL SWITCH SENSE
14 Q51 20OR LIFTGATE FULL OPEN SWITCH SENSE
15 - -
16 G32 20VT/LB LIFTGATE TEMPERATURE SENSOR SIGNAL
17 Q91 20TN/LG LIFTGATE HALL EFFECT SIGNAL
18 Q94 20TN/LG LIFTGATE CHIME DRIVER
19 G153 20VT/YL LIFTGATE MODULE WAKE UP SIGNAL
20 Z87 20BK/LG GROUND
C
O
N
N
E
C
T
O
R
P
I
N
O
U
T
S
1069
CONNECTOR PINOUTS

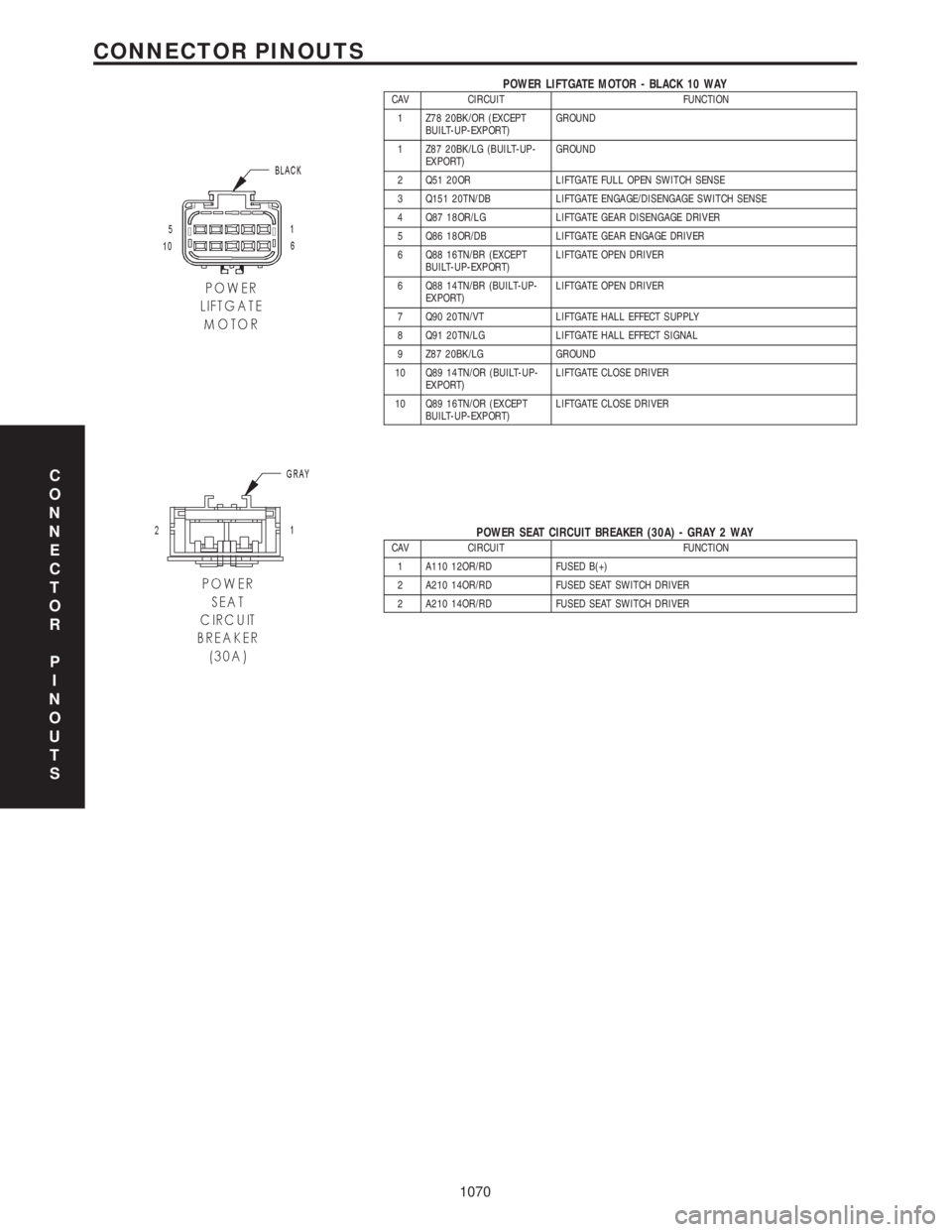

POWER LIFTGATE MOTOR - BLACK 10 WAYCAV CIRCUIT FUNCTION
1 Z78 20BK/OR (EXCEPT
BUILT-UP-EXPORT)GROUND
1 Z87 20BK/LG (BUILT-UP-
EXPORT)GROUND
2 Q51 20OR LIFTGATE FULL OPEN SWITCH SENSE
3 Q151 20TN/DB LIFTGATE ENGAGE/DISENGAGE SWITCH SENSE
4 Q87 18OR/LG LIFTGATE GEAR DISENGAGE DRIVER
5 Q86 18OR/DB LIFTGATE GEAR ENGAGE DRIVER
6 Q88 16TN/BR (EXCEPT
BUILT-UP-EXPORT)LIFTGATE OPEN DRIVER
6 Q88 14TN/BR (BUILT-UP-
EXPORT)LIFTGATE OPEN DRIVER
7 Q90 20TN/VT LIFTGATE HALL EFFECT SUPPLY
8 Q91 20TN/LG LIFTGATE HALL EFFECT SIGNAL
9 Z87 20BK/LG GROUND
10 Q89 14TN/OR (BUILT-UP-
EXPORT)LIFTGATE CLOSE DRIVER
10 Q89 16TN/OR (EXCEPT
BUILT-UP-EXPORT)LIFTGATE CLOSE DRIVER
POWER SEAT CIRCUIT BREAKER (30A) - GRAY 2 WAYCAV CIRCUIT FUNCTION
1 A110 12OR/RD FUSED B(+)
2 A210 14OR/RD FUSED SEAT SWITCH DRIVER
2 A210 14OR/RD FUSED SEAT SWITCH DRIVER
C
O
N
N
E
C
T
O
R
P
I
N
O
U
T
S
1070
CONNECTOR PINOUTS

POWERTRAIN CONTROL MODULE C1 (2.4L/3.3L/3.8L) - GRAY/BLACK 40-WAYCAV CIRCUIT FUNCTION
1- -
2 K18 16DB/OR (3.3L/3.8L) IGNITION COIL NO. 3 DRIVER
3 K17 16DB/TN IGNITION COIL NO. 2 DRIVER
4- -
5 V32 18VT/YL SPEED CONTROL ON/OFF SWITCH SENSE
6 K342 16BR/WT AUTOMATIC SHUTDOWN RELAY OUTPUT
7 K13 16BR/LB FUEL INJECTOR NO. 3 DRIVER
8 K20 18BR/GY GENERATOR FIELD CONTROL
9- -
10 Z130 18BK/BR GROUND
11 K19 16DB/DG IGNITION COIL NO. 1 DRIVER
12 G6 16VT/GY ENGINE OIL PRESSURE SWITCH SENSE
13 K11 16BR/YL FUEL INJECTOR NO. 1 DRIVER
14 K58 16BR/VT (3.3L/3.8L) FUEL INJECTOR NO. 6 DRIVER
15 K38 16BR/OR (3.3L/3.8L) FUEL INJECTOR NO. 5 DRIVER
16 K14 16BR/TN FUEL INJECTOR NO. 4 DRIVER
17 K12 16BR/DB FUEL INJECTOR NO. 2 DRIVER
18 K99 18BR/LG OXYGEN SENSOR 1/1 HEATER CONTROL
19 - -
20 F202 18PK/GY IGNITION SWITCH OUTPUT (RUN-START)
21 - -
22 - -
23 - -
24 - -
25 K42 18DB/YL KNOCK SENSOR SIGNAL
26 K2 18VT/OR ENGINE COOLANT TEMPERATURE SENSOR SIGNAL
27 K902 18BR/DG OXYGEN SENSOR GROUND
28 - -
29 - -
30 K41 18DB/LB OXYGEN SENSOR 1/1 SIGNAL
31 T752 18DG/OR ENGINE STARTER MOTOR RELAY CONTROL
32 K24 18BR/LB CRANKSHAFT POSITION SENSOR SIGNAL
33 K44 18DB/GY CAMSHAFT POSITION SENSOR SIGNAL
34 - -
35 K22 18BR/OR THROTTLE POSITION SENSOR SIGNAL
36 K1 18VT/BR MANIFOLD ABOLUTE PRESSURE SENSOR SIGNAL
37 K21 18DB/LG INTAKE AIR TEMPERATURE SENSOR SIGNAL
38 - -
39 - -
40 K35 18DB/VT EGR SOLENOID CONTROL
C
O
N
N
E
C
T
O
R
P
I
N
O
U
T
S
1071
CONNECTOR PINOUTS
