CHRYSLER VOYAGER 2001 Service Manual

LEFT POWER MIRROR - BLACK 12 WAYCAV CIRCUIT FUNCTION
1 P171 20TN/YL (BUILT-UP-
EXPORT)LEFT FOLDING MIRROR UNFOLD DRIVER
2 P112 20TN/OR (EXCEPT
BUILT-UP-EXPORT/
MEMORY)MIRROR B(+)
3 P114 20TN/WT (EXCEPT
BUILT-UP-EXPORT/
MEMORY)MIRROR B(-)
4 P65 20TN/VT (MEMORY) LEFT MIRROR HORIZONTAL POSITION SIGNAL
5 P69 20TN/WT (MEMORY) LEFT MIRROR SENSOR GROUND
6 P64 20TN (MEMORY) LEFT MIRROR VERTICAL POSITION SIGNAL
7 P160 20TN/LG (BUILT-UP-
EXPORT/RHD)PASSENGER FOLDING MIRROR RELAY OUTPUT
7 P159 20TN/DG (BUILT-UP-
EXPORT/LHD)DRIVER FOLDING MIRROR FOLD DRIVER
8 Z215 20BK/LG GROUND
9 C16 20DB/GY FUSED REAR WINDOW DEFOGGER RELAY OUTPUT
10 P73 20TN/VT LEFT MIRROR COMMON DRIVER (RIGHT/DOWN)
11 P71 20TN/DG LEFT MIRROR HORIZONTAL DRIVER
12 P75 20TN/LG LEFT MIRROR VERTICAL DRIVER
LEFT REAR PILLAR SPEAKER - BLACK 2 WAYCAV CIRCUIT FUNCTION
1 X157 20DG LEFT REAR PILLAR SPEAKER (+)
2 X151 20DG/WT LEFT REAR PILLAR SPEAKER (-)
LEFT REAR READING LAMP (LUXURY) - GRAY 3 WAYCAV CIRCUIT FUNCTION
1 M22 20YL/OR COURTESY LAMPS DRIVER
2 Z327 20BK/OR GROUND
3 M27 20YL/LB READING LAMPS DRIVER
LEFT REAR SPEAKER - BLACK/RED 6 WAYCAV CIRCUIT FUNCTION
1 X151 20DG/WT LEFT REAR PILLAR SPEAKER (-)
2 X15 16GY/DG AMPLIFIED SPEAKER GROUND
3 X157 20DG LEFT REAR PILLAR SPEAKER (+)
4 X51 20DG/DB LEFT REAR SPEAKER (+)
5 X13 16DG/GY RADIO CHOKE OUTPUT
6 X57 20DG/OR LEFT REAR SPEAKER (-)
C
O
N
N
E
C
T
O
R
P
I
N
O
U
T
S
1052
CONNECTOR PINOUTS

LEFT REMOTE RADIO SWITCH - BLACK 2 WAYCAV CIRCUIT FUNCTION
1 X20 20RD/BK RADIO CONTROL MUX
2 X920 20RD/DB RADIO CONTROL MUX RETURN
LEFT SEAT AIRBAG - YELLOW 2 WAYCAV CIRCUIT FUNCTION
1 R31 18LG/OR (EXCEPT
BUILT-UP-EXPORT)LEFT SEAT SQUIB LINE 1
1 R33 18WT/BK (BUILT-UP-
EXPORT)LEFT SEAT SQUIB LINE 2
2 R31 18DG/WT (BUILT-UP-
EXPORT)LEFT SEAT SQUIB LINE 1
2 R33 18LG/WT (EXCEPT
BUILT-UP-EXPORT)LEFT SEAT SQUIB LINE 2
LEFT SIDE IMPACT AIRBAG CONTROL MODULE - YELLOW/RED 7 WAYCAV CIRCUIT FUNCTION
1 R31 18LG/OR LEFT SEAT SQUIB LINE 1
2 R33 18LG/WT LEFT SEAT SQUIB LINE 2
3- -
4 D25 20WT/VT PCI BUS
5 F214 18PK/LG FCM OUTPUT (RUN-START)
6 Z104 18BK/LG GROUND
7 Z104 18BK/LG GROUND
LEFT SLIDING DOOR CONTROL MODULE C1 (POWER SLIDING DOOR) - BLACK 8 WAYCAV CIRCUIT FUNCTION
1 Q45 18OR/GY LEFT CINCH/RELEASE MOTOR CLUTCH DRIVER
2 Q67 16TN/BR LEFT SLIDING DOOR OPEN DRIVER
3 Q69 16TN/OR LEFT SLIDING DOOR CLOSE DRIVER
4- -
5 A113 14WT/RD FUSED B(+)
6- -
7- -
8 Z123 14BK/WT GROUND
C
O
N
N
E
C
T
O
R
P
I
N
O
U
T
S
1053
CONNECTOR PINOUTS

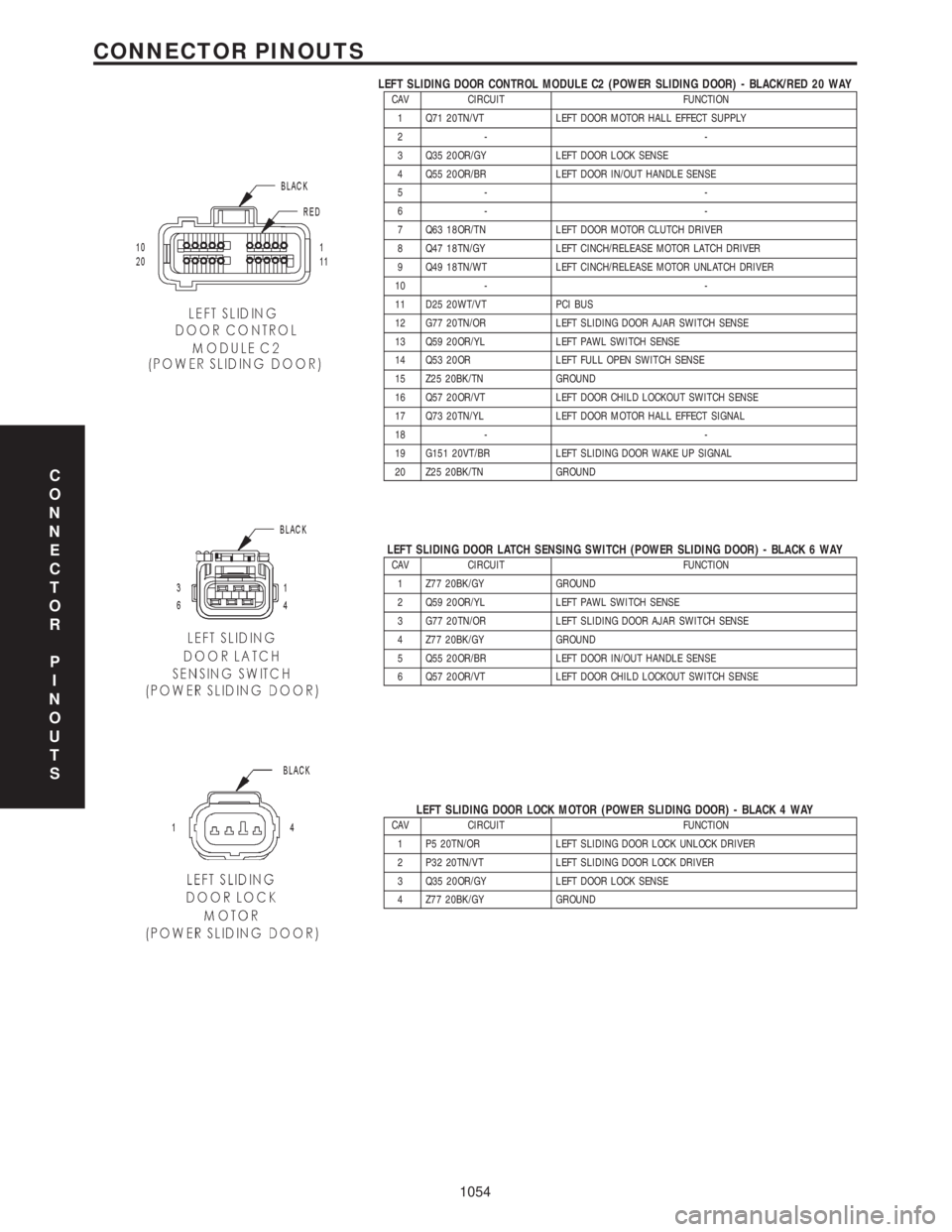

LEFT SLIDING DOOR CONTROL MODULE C2 (POWER SLIDING DOOR) - BLACK/RED 20 WAYCAV CIRCUIT FUNCTION
1 Q71 20TN/VT LEFT DOOR MOTOR HALL EFFECT SUPPLY
2- -
3 Q35 20OR/GY LEFT DOOR LOCK SENSE
4 Q55 20OR/BR LEFT DOOR IN/OUT HANDLE SENSE
5- -
6- -
7 Q63 18OR/TN LEFT DOOR MOTOR CLUTCH DRIVER
8 Q47 18TN/GY LEFT CINCH/RELEASE MOTOR LATCH DRIVER
9 Q49 18TN/WT LEFT CINCH/RELEASE MOTOR UNLATCH DRIVER
10 - -
11 D25 20WT/VT PCI BUS
12 G77 20TN/OR LEFT SLIDING DOOR AJAR SWITCH SENSE
13 Q59 20OR/YL LEFT PAWL SWITCH SENSE
14 Q53 20OR LEFT FULL OPEN SWITCH SENSE
15 Z25 20BK/TN GROUND
16 Q57 20OR/VT LEFT DOOR CHILD LOCKOUT SWITCH SENSE
17 Q73 20TN/YL LEFT DOOR MOTOR HALL EFFECT SIGNAL
18 - -
19 G151 20VT/BR LEFT SLIDING DOOR WAKE UP SIGNAL
20 Z25 20BK/TN GROUND
LEFT SLIDING DOOR LATCH SENSING SWITCH (POWER SLIDING DOOR) - BLACK 6 WAYCAV CIRCUIT FUNCTION
1 Z77 20BK/GY GROUND
2 Q59 20OR/YL LEFT PAWL SWITCH SENSE
3 G77 20TN/OR LEFT SLIDING DOOR AJAR SWITCH SENSE
4 Z77 20BK/GY GROUND
5 Q55 20OR/BR LEFT DOOR IN/OUT HANDLE SENSE
6 Q57 20OR/VT LEFT DOOR CHILD LOCKOUT SWITCH SENSE
LEFT SLIDING DOOR LOCK MOTOR (POWER SLIDING DOOR) - BLACK 4 WAYCAV CIRCUIT FUNCTION
1 P5 20TN/OR LEFT SLIDING DOOR LOCK UNLOCK DRIVER
2 P32 20TN/VT LEFT SLIDING DOOR LOCK DRIVER
3 Q35 20OR/GY LEFT DOOR LOCK SENSE
4 Z77 20BK/GY GROUND
C
O
N
N
E
C
T
O
R
P
I
N
O
U
T
S
1054
CONNECTOR PINOUTS

LEFT SLIDING DOOR LOCK MOTOR/AJAR SWITCH (MANUAL SLIDING DOOR) - BLACK 4 WAYCAV CIRCUIT FUNCTION
1 P5 20BK/DB LEFT SLIDING DOOR UNLOCK DRIVER
2 P32 20BK/TN LEFT SLIDING DOOR LOCK DRIVER
3 G77 20BK/DG LEFT SLIDING DOOR AJAR SWITCH SENSE
4 Z77 20BK GROUND
LEFT SLIDING DOOR MOTOR (POWER SLIDING DOOR) - BLACK 8 WAYCAV CIRCUIT FUNCTION
1- -
2 Q71 20TN/VT LEFT DOOR MOTOR HALL EFFECT SUPPLY
3 Q69 16TN/OR LEFT SLIDING DOOR CLOSE DRIVER
4 Z163 18BK/TN GROUND
5 Q63 18OR/TN LEFT DOOR MOTOR CLUTCH DRIVER
6 Q67 16TN/BR LEFT SLIDING DOOR OPEN DRIVER
7 Z33 20BK/TN GROUND
8 Q73 20TN/YL LEFT DOOR MOTOR HALL EFFECT SIGNAL
LEFT STOP/TURN SIGNAL RELAY (TRAILER TOW) - BLACK 5 WAYCAV CIRCUIT FUNCTION
1 L50 18WT/TN PRIMARY BRAKE SWITCH SIGNAL
1 L50 18WT/TN PRIMARY BRAKE SWITCH SIGNAL
2 Z1 18BK/DG GROUND
2 Z1 18BK/DG GROUND
3 L73 18YL LEFT STOP SIGNAL
4 L63 18WT/DG LEFT REAR TURN SIGNAL DRIVER
4 L63 18WT/DG LEFT REAR TURN SIGNAL DRIVER
5 L615 18OR LEFT COMBINATION SIGNAL
LEFT VISOR/VANITY LAMP (PREMIUM/LUXURY) - BLACK 2 WAYCAV CIRCUIT FUNCTION
A Z327 20BK/OR GROUND
B M27 20YL/LB READING LAMP DRIVER
C
O
N
N
E
C
T
O
R
P
I
N
O
U
T
S
1055
CONNECTOR PINOUTS

LICENSE LAMP (POWER LIFTGATE) - DK. GRAY 8 WAYCAV CIRCUIT FUNCTION
1 L77 18WT/BR FUSED PARK LAMP RELAY OUTPUT (LEFT)
2 Z367 20BK/BR GROUND
3 P30 20TN/DG LIFTGATE HANDLE SWITCH SENSE
4 Z430 20BK/LG GROUND
5 Q94 20TN/LG LIFTGATE CHIME DRIVER
6 Z294 20BK/LG GROUND
7 G32 20VT/LB LIFTGATE TEMPERATURE SENSOR SIGNAL
8 Z78 20BK/OR GROUND
LICENSE LAMP (POWER RELEASE) - DK. GRAY 4 WAYCAV CIRCUIT FUNCTION
1 L77 18WT/BR FUSED PARK LAMP RELAY OUTPUT (LEFT)
2 Z367 20BK/BR GROUND
3 P30 20TN/DG LIFTGATE HANDLE SWITCH SENSE
4 Z430 20BK/LG GROUND
LIFTGATE AJAR SWITCH (MANUAL RELEASE) - BLACK 2 WAYCAV CIRCUIT FUNCTION
1 Z78 20BK/OR GROUND
2 G78 20VT/OR LIFTGATE AJAR SWITCH SENSE
LIFTGATE AJAR SWITCH (POWER RELEASE) - BLACK 4 WAYCAV CIRCUIT FUNCTION
1 Z78 20BK/OR GROUND
2 G78 20VT/OR LIFTGATE AJAR SWITCH SENSE
3 P31 20TN/YL LIFTGATE RELEASE DRIVER
4 Z231 20BK/YL GROUND
C
O
N
N
E
C
T
O
R
P
I
N
O
U
T
S
1056
CONNECTOR PINOUTS

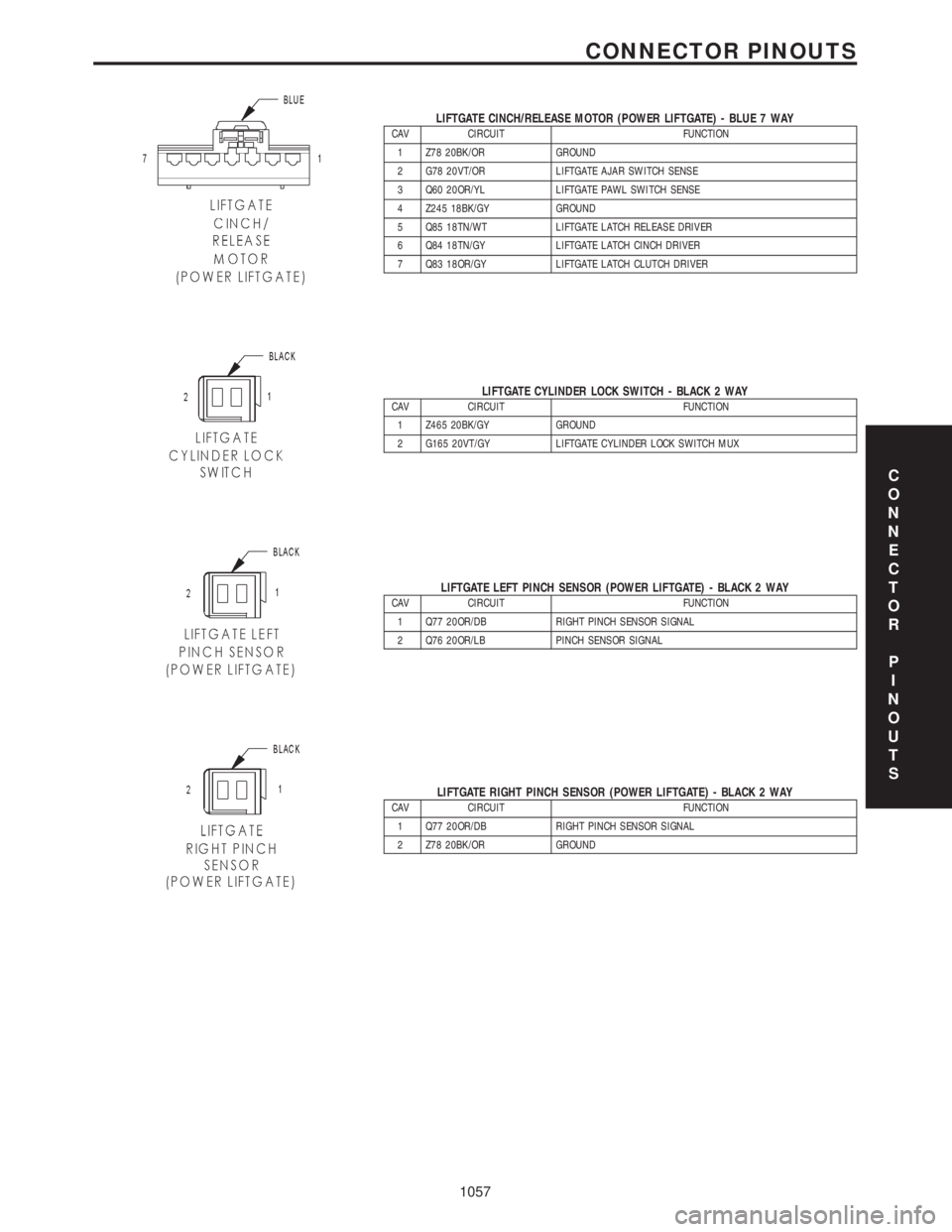

LIFTGATE CINCH/RELEASE MOTOR (POWER LIFTGATE) - BLUE 7 WAYCAV CIRCUIT FUNCTION
1 Z78 20BK/OR GROUND
2 G78 20VT/OR LIFTGATE AJAR SWITCH SENSE
3 Q60 20OR/YL LIFTGATE PAWL SWITCH SENSE
4 Z245 18BK/GY GROUND
5 Q85 18TN/WT LIFTGATE LATCH RELEASE DRIVER
6 Q84 18TN/GY LIFTGATE LATCH CINCH DRIVER
7 Q83 18OR/GY LIFTGATE LATCH CLUTCH DRIVER
LIFTGATE CYLINDER LOCK SWITCH - BLACK 2 WAYCAV CIRCUIT FUNCTION
1 Z465 20BK/GY GROUND
2 G165 20VT/GY LIFTGATE CYLINDER LOCK SWITCH MUX
LIFTGATE LEFT PINCH SENSOR (POWER LIFTGATE) - BLACK 2 WAYCAV CIRCUIT FUNCTION
1 Q77 20OR/DB RIGHT PINCH SENSOR SIGNAL
2 Q76 20OR/LB PINCH SENSOR SIGNAL
LIFTGATE RIGHT PINCH SENSOR (POWER LIFTGATE) - BLACK 2 WAYCAV CIRCUIT FUNCTION
1 Q77 20OR/DB RIGHT PINCH SENSOR SIGNAL
2 Z78 20BK/OR GROUND
C
O
N
N
E
C
T
O
R
P
I
N
O
U
T
S
1057
CONNECTOR PINOUTS

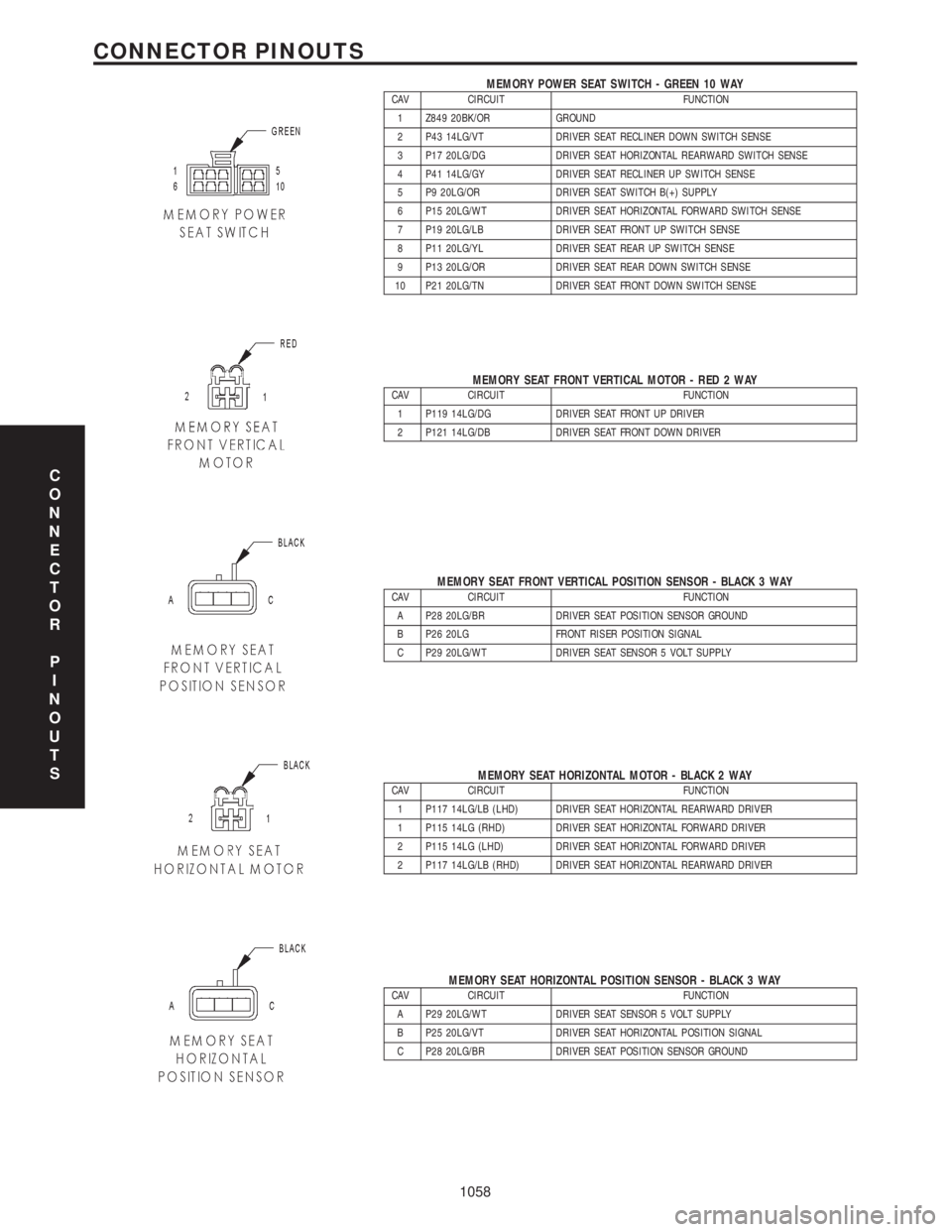

MEMORY POWER SEAT SWITCH - GREEN 10 WAYCAV CIRCUIT FUNCTION
1 Z849 20BK/OR GROUND
2 P43 14LG/VT DRIVER SEAT RECLINER DOWN SWITCH SENSE
3 P17 20LG/DG DRIVER SEAT HORIZONTAL REARWARD SWITCH SENSE
4 P41 14LG/GY DRIVER SEAT RECLINER UP SWITCH SENSE
5 P9 20LG/OR DRIVER SEAT SWITCH B(+) SUPPLY
6 P15 20LG/WT DRIVER SEAT HORIZONTAL FORWARD SWITCH SENSE
7 P19 20LG/LB DRIVER SEAT FRONT UP SWITCH SENSE
8 P11 20LG/YL DRIVER SEAT REAR UP SWITCH SENSE
9 P13 20LG/OR DRIVER SEAT REAR DOWN SWITCH SENSE
10 P21 20LG/TN DRIVER SEAT FRONT DOWN SWITCH SENSE
MEMORY SEAT FRONT VERTICAL MOTOR - RED 2 WAYCAV CIRCUIT FUNCTION
1 P119 14LG/DG DRIVER SEAT FRONT UP DRIVER
2 P121 14LG/DB DRIVER SEAT FRONT DOWN DRIVER
MEMORY SEAT FRONT VERTICAL POSITION SENSOR - BLACK 3 WAYCAV CIRCUIT FUNCTION
A P28 20LG/BR DRIVER SEAT POSITION SENSOR GROUND
B P26 20LG FRONT RISER POSITION SIGNAL
C P29 20LG/WT DRIVER SEAT SENSOR 5 VOLT SUPPLY
MEMORY SEAT HORIZONTAL MOTOR - BLACK 2 WAYCAV CIRCUIT FUNCTION
1 P117 14LG/LB (LHD) DRIVER SEAT HORIZONTAL REARWARD DRIVER
1 P115 14LG (RHD) DRIVER SEAT HORIZONTAL FORWARD DRIVER
2 P115 14LG (LHD) DRIVER SEAT HORIZONTAL FORWARD DRIVER
2 P117 14LG/LB (RHD) DRIVER SEAT HORIZONTAL REARWARD DRIVER
MEMORY SEAT HORIZONTAL POSITION SENSOR - BLACK 3 WAYCAV CIRCUIT FUNCTION
A P29 20LG/WT DRIVER SEAT SENSOR 5 VOLT SUPPLY
B P25 20LG/VT DRIVER SEAT HORIZONTAL POSITION SIGNAL
C P28 20LG/BR DRIVER SEAT POSITION SENSOR GROUND
C
O
N
N
E
C
T
O
R
P
I
N
O
U
T
S
1058
CONNECTOR PINOUTS

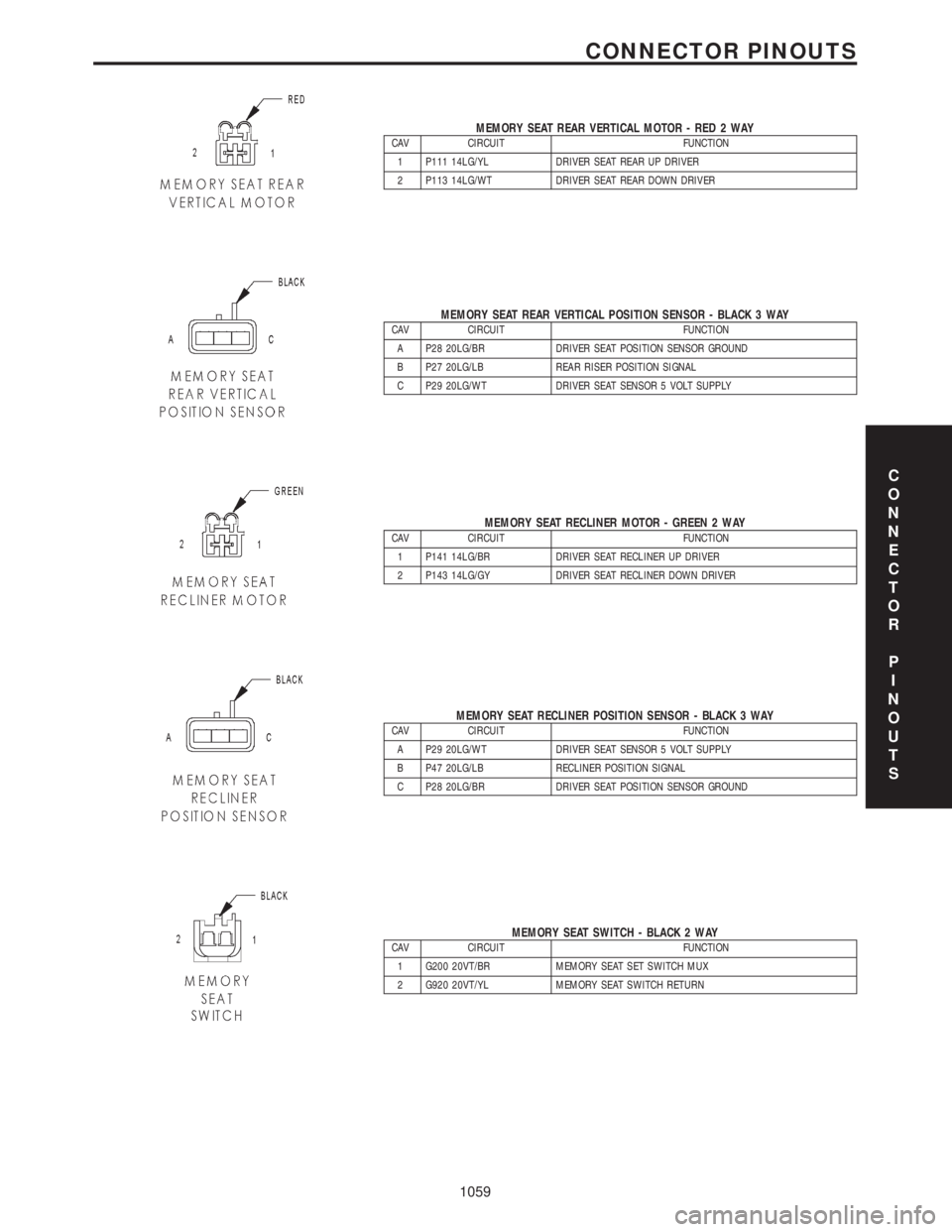

MEMORY SEAT REAR VERTICAL MOTOR - RED 2 WAYCAV CIRCUIT FUNCTION
1 P111 14LG/YL DRIVER SEAT REAR UP DRIVER
2 P113 14LG/WT DRIVER SEAT REAR DOWN DRIVER
MEMORY SEAT REAR VERTICAL POSITION SENSOR - BLACK 3 WAYCAV CIRCUIT FUNCTION
A P28 20LG/BR DRIVER SEAT POSITION SENSOR GROUND
B P27 20LG/LB REAR RISER POSITION SIGNAL
C P29 20LG/WT DRIVER SEAT SENSOR 5 VOLT SUPPLY
MEMORY SEAT RECLINER MOTOR - GREEN 2 WAYCAV CIRCUIT FUNCTION
1 P141 14LG/BR DRIVER SEAT RECLINER UP DRIVER
2 P143 14LG/GY DRIVER SEAT RECLINER DOWN DRIVER
MEMORY SEAT RECLINER POSITION SENSOR - BLACK 3 WAYCAV CIRCUIT FUNCTION
A P29 20LG/WT DRIVER SEAT SENSOR 5 VOLT SUPPLY
B P47 20LG/LB RECLINER POSITION SIGNAL
C P28 20LG/BR DRIVER SEAT POSITION SENSOR GROUND
MEMORY SEAT SWITCH - BLACK 2 WAYCAV CIRCUIT FUNCTION
1 G200 20VT/BR MEMORY SEAT SET SWITCH MUX
2 G920 20VT/YL MEMORY SEAT SWITCH RETURN
C
O
N
N
E
C
T
O
R
P
I
N
O
U
T
S
1059
CONNECTOR PINOUTS

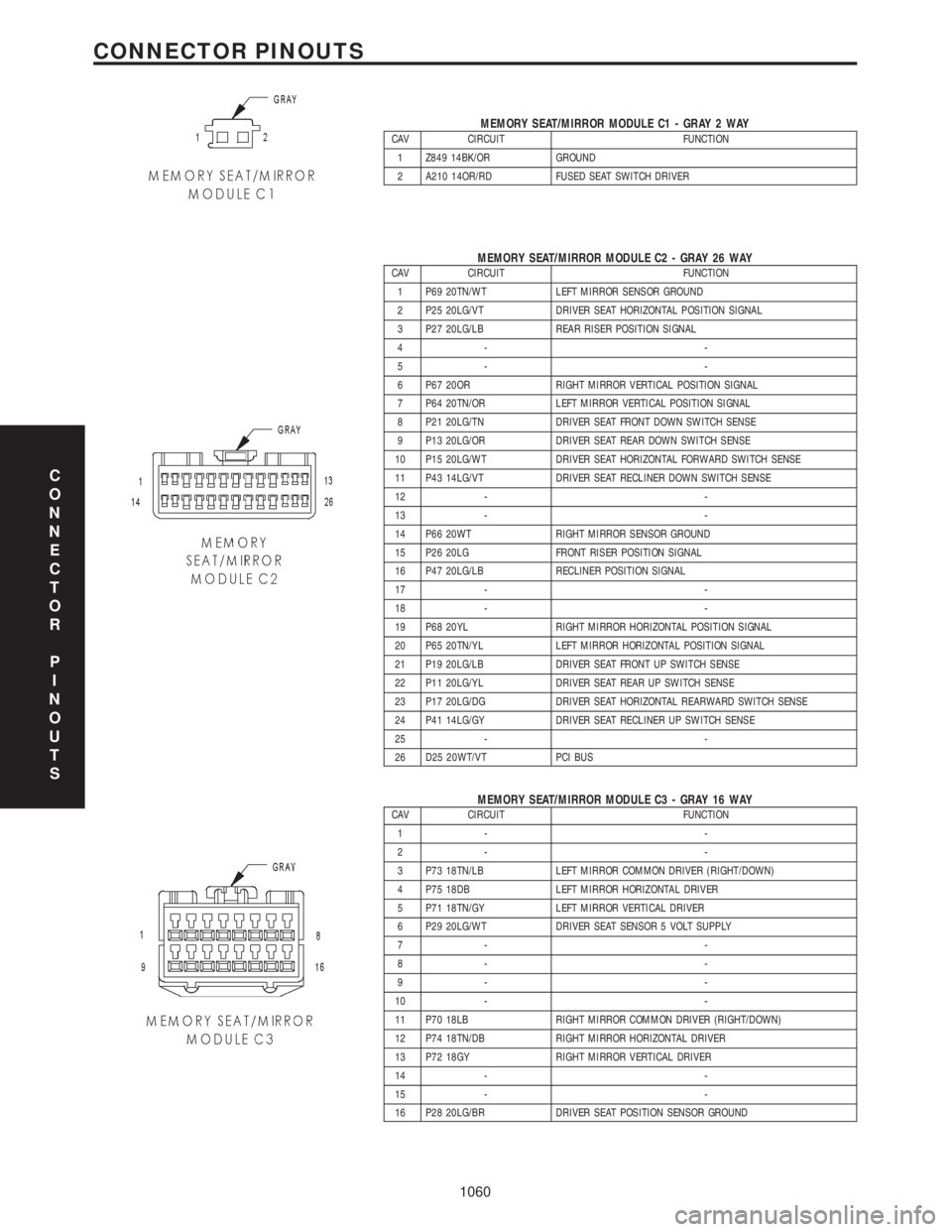

MEMORY SEAT/MIRROR MODULE C1 - GRAY 2 WAYCAV CIRCUIT FUNCTION
1 Z849 14BK/OR GROUND
2 A210 14OR/RD FUSED SEAT SWITCH DRIVER
MEMORY SEAT/MIRROR MODULE C2 - GRAY 26 WAYCAV CIRCUIT FUNCTION
1 P69 20TN/WT LEFT MIRROR SENSOR GROUND
2 P25 20LG/VT DRIVER SEAT HORIZONTAL POSITION SIGNAL
3 P27 20LG/LB REAR RISER POSITION SIGNAL
4- -
5- -
6 P67 20OR RIGHT MIRROR VERTICAL POSITION SIGNAL
7 P64 20TN/OR LEFT MIRROR VERTICAL POSITION SIGNAL
8 P21 20LG/TN DRIVER SEAT FRONT DOWN SWITCH SENSE
9 P13 20LG/OR DRIVER SEAT REAR DOWN SWITCH SENSE
10 P15 20LG/WT DRIVER SEAT HORIZONTAL FORWARD SWITCH SENSE
11 P43 14LG/VT DRIVER SEAT RECLINER DOWN SWITCH SENSE
12 - -
13 - -
14 P66 20WT RIGHT MIRROR SENSOR GROUND
15 P26 20LG FRONT RISER POSITION SIGNAL
16 P47 20LG/LB RECLINER POSITION SIGNAL
17 - -
18 - -
19 P68 20YL RIGHT MIRROR HORIZONTAL POSITION SIGNAL
20 P65 20TN/YL LEFT MIRROR HORIZONTAL POSITION SIGNAL
21 P19 20LG/LB DRIVER SEAT FRONT UP SWITCH SENSE
22 P11 20LG/YL DRIVER SEAT REAR UP SWITCH SENSE
23 P17 20LG/DG DRIVER SEAT HORIZONTAL REARWARD SWITCH SENSE
24 P41 14LG/GY DRIVER SEAT RECLINER UP SWITCH SENSE
25 - -
26 D25 20WT/VT PCI BUS
MEMORY SEAT/MIRROR MODULE C3 - GRAY 16 WAYCAV CIRCUIT FUNCTION
1- -
2- -
3 P73 18TN/LB LEFT MIRROR COMMON DRIVER (RIGHT/DOWN)
4 P75 18DB LEFT MIRROR HORIZONTAL DRIVER
5 P71 18TN/GY LEFT MIRROR VERTICAL DRIVER
6 P29 20LG/WT DRIVER SEAT SENSOR 5 VOLT SUPPLY
7- -
8- -
9- -
10 - -
11 P70 18LB RIGHT MIRROR COMMON DRIVER (RIGHT/DOWN)
12 P74 18TN/DB RIGHT MIRROR HORIZONTAL DRIVER
13 P72 18GY RIGHT MIRROR VERTICAL DRIVER
14 - -
15 - -
16 P28 20LG/BR DRIVER SEAT POSITION SENSOR GROUND
C
O
N
N
E
C
T
O
R
P
I
N
O
U
T
S
1060

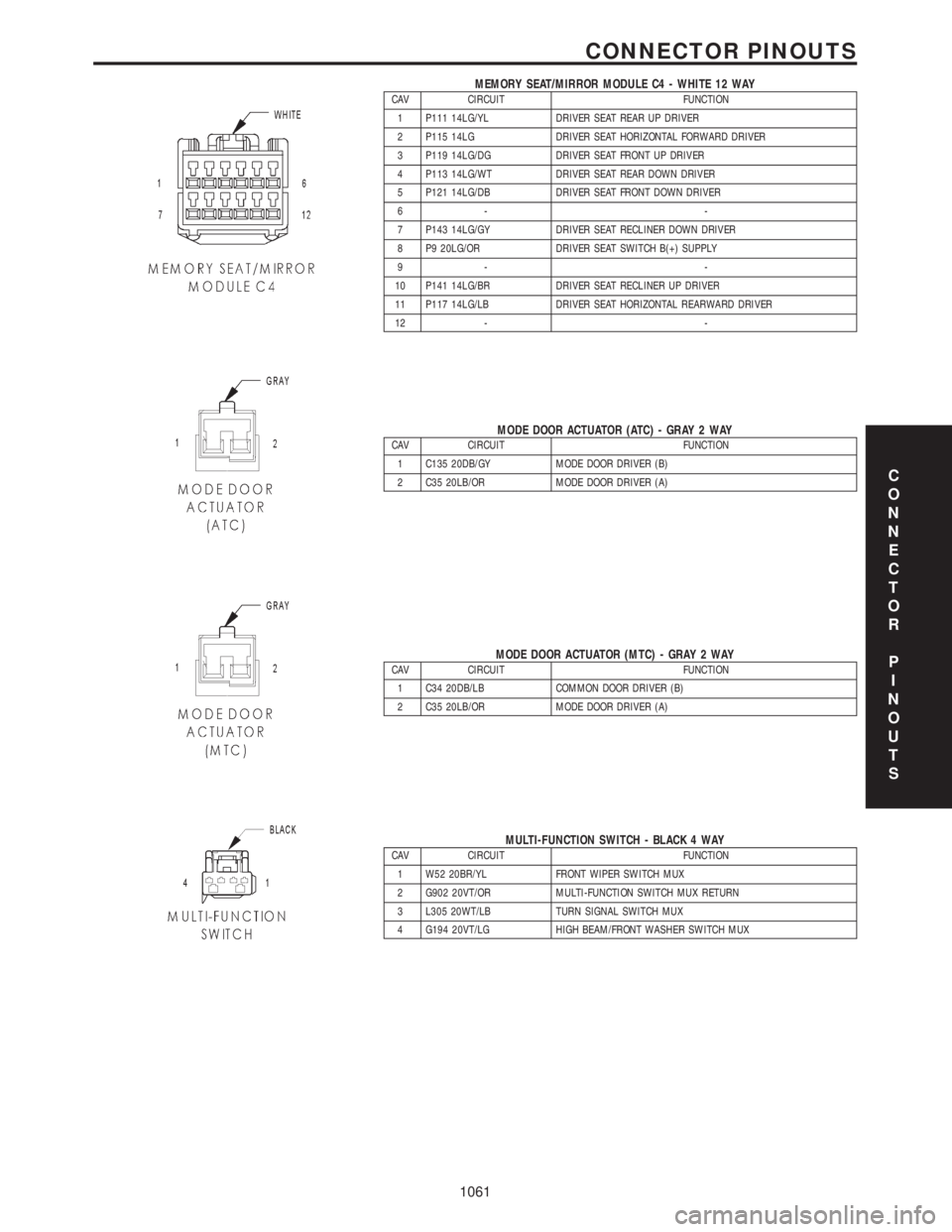

CONNECTOR PINOUTS

MEMORY SEAT/MIRROR MODULE C4 - WHITE 12 WAYCAV CIRCUIT FUNCTION
1 P111 14LG/YL DRIVER SEAT REAR UP DRIVER
2 P115 14LG DRIVER SEAT HORIZONTAL FORWARD DRIVER
3 P119 14LG/DG DRIVER SEAT FRONT UP DRIVER
4 P113 14LG/WT DRIVER SEAT REAR DOWN DRIVER
5 P121 14LG/DB DRIVER SEAT FRONT DOWN DRIVER
6- -
7 P143 14LG/GY DRIVER SEAT RECLINER DOWN DRIVER
8 P9 20LG/OR DRIVER SEAT SWITCH B(+) SUPPLY
9- -
10 P141 14LG/BR DRIVER SEAT RECLINER UP DRIVER
11 P117 14LG/LB DRIVER SEAT HORIZONTAL REARWARD DRIVER
12 - -
MODE DOOR ACTUATOR (ATC) - GRAY 2 WAYCAV CIRCUIT FUNCTION
1 C135 20DB/GY MODE DOOR DRIVER (B)
2 C35 20LB/OR MODE DOOR DRIVER (A)
MODE DOOR ACTUATOR (MTC) - GRAY 2 WAYCAV CIRCUIT FUNCTION
1 C34 20DB/LB COMMON DOOR DRIVER (B)
2 C35 20LB/OR MODE DOOR DRIVER (A)
MULTI-FUNCTION SWITCH - BLACK 4 WAYCAV CIRCUIT FUNCTION
1 W52 20BR/YL FRONT WIPER SWITCH MUX
2 G902 20VT/OR MULTI-FUNCTION SWITCH MUX RETURN
3 L305 20WT/LB TURN SIGNAL SWITCH MUX
4 G194 20VT/LG HIGH BEAM/FRONT WASHER SWITCH MUX
C
O
N
N
E
C
T
O
R
P
I
N
O
U
T
S
1061
CONNECTOR PINOUTS
