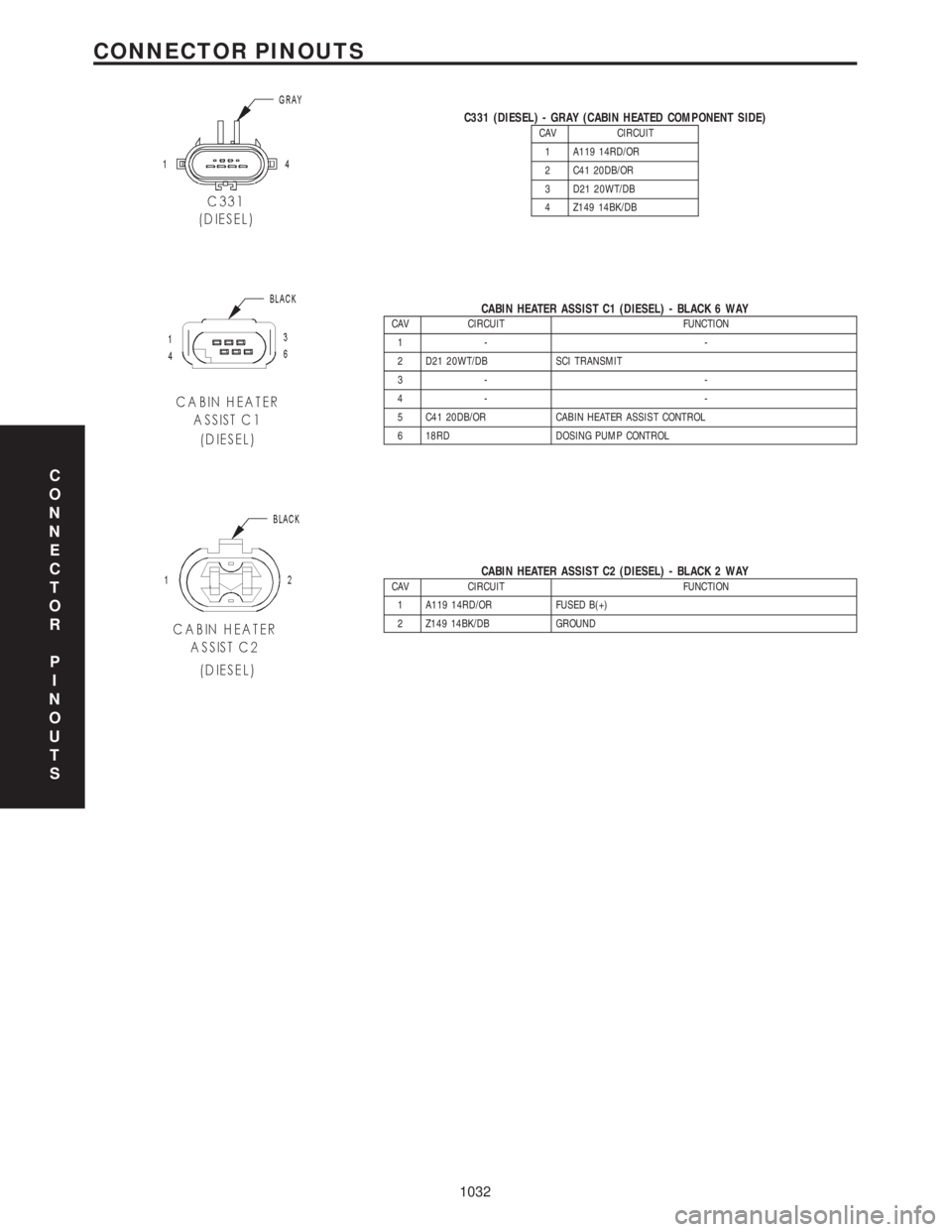

C331 (DIESEL) - GRAY (CABIN HEATED COMPONENT SIDE)CAV CIRCUIT
1 A119 14RD/OR
2 C41 20DB/OR
3 D21 20WT/DB
4 Z149 14BK/DB
CABIN HEATER ASSIST C1 (DIESEL) - BLACK 6 WAYCAV CIRCUIT FUNCTION
1- -
2 D21 20WT/DB SCI TRANSMIT
3- -
4- -
5 C41 20DB/OR CABIN HEATER ASSIST CONTROL
6 18RD DOSING PUMP CONTROL
CABIN HEATER ASSIST C2 (DIESEL) - BLACK 2 WAYCAV CIRCUIT FUNCTION
1 A119 14RD/OR FUSED B(+)
2 Z149 14BK/DB GROUND
C
O
N
N
E
C
T
O
R
P
I
N
O
U
T
S
1032
CONNECTOR PINOUTS

CD CHANGER-8WAYCAV CIRCUIT FUNCTION
1 X40 20GY/WT (EXCEPT
BUILT-UP-EXPORT)AUDIO OUT RIGHT
1 X40 24GY/WT (BUILT-UP-
EXPORT)AUDIO OUT RIGHT
2 E14 18OR/TN (EXCEPT
BUILT-UP-EXPORT)PANEL LAMPS DRIVER
2 E14 24OR/TN (BUILT-UP-
EXPORT)PANEL LAMPS DRIVER
3 D25 20WT/VT (EXCEPT
BUILT-UP-EXPORT)PCI BUS
3 D25 24VT/YL (BUILT-UP-
EXPORT)PCI BUS
4 X112 20RD (EXCEPT
BUILT-UP-EXPORT)IGNITION SWITCH OUTPUT
4 X112 24RD (BUILT-UP-
EXPORT)IGNITION SWITCH OUTPUT
5 X41 20DG/WT (EXCEPT
BUILT-UP-EXPORT)AUDIO OUT LEFT
5 X41 24DG/WT (BUILT-UP-
EXPORT)AUDIO OUT LEFT
6 Z140 24BK/OR (BUILT-UP-
EXPORT)GROUND
6 Z140 18BK/OR (EXCEPT
BUILT-UP-EXPORT)GROUND
7 Z141 18BK/TN (EXCEPT
BUILT-UP-EXPORT)GROUND
7 Z141 22BK/TN (BUILT-UP-
EXPORT)GROUND
8 X160 20GY/YL (EXCEPT
BUILT-UP-EXPORT)B(+)
8 X160 22GY/YL (BUILT-UP-
EXPORT)B(+)
CENTER DOME LAMP (BASE/HIGH LINE) - GRAY 3 WAYCAV CIRCUIT FUNCTION
1 M22 20YL/OR COURTESY LAMPS DRIVER
2 Z327 20BK/OR GROUND
3 M27 20YL/LB READING LAMPS DRIVER
CLOCKSPRING C1 - WHITE 6 WAYCAV CIRCUIT FUNCTION
1 X920 20GY/OR RADIO CONTROL MUX RETURN
2 X20 20GY/WT RADIO CONTROL MUX
3 X3 20DG/VT HORN SWITCH SENSE
4 V37 20VT SPEED CONTROL SWITCH SIGNAL
5 Z23 20BK/LB SPEED CONTROL SWITCH GROUND
6- -
C
O
N
N
E
C
T
O
R
P
I
N
O
U
T
S
1033
CONNECTOR PINOUTS

CLOCKSPRING C2 - YELLOW 4 WAYCAV CIRCUIT FUNCTION
1 R61 18LG/VT DRIVER SQUIB 2 LINE 1
2 R63 18LG/WT DRIVER SQUIB 2 LINE 2
3 R43 18LG/BR DRIVER SQUIB 1 LINE 1
4 R45 18LG/OR DRIVER SQUIB 1 LINE 2
CLOCKSPRING C4 - BLACK 2 WAYCAV CIRCUIT FUNCTION
1 X20 20RD/BK RADIO CONTROL MUX
2 X920 20RD/DB RADIO CONTROL MUX RETURN
CLOCKSPRING C5 - YELLOW 4 WAYCAV CIRCUIT FUNCTION
1 R45 18OR/LB DRIVER SQUIB 1 LINE 2
2 R43 18BK/LB DRIVER SQUIB 1 LINE 1
3 R63 18TN/LB DRIVER SQUIB 2 LINE 2
4 R61 18OR/LB DRIVER SQUIB 2 LINE 1
C
O
N
N
E
C
T
O
R
P
I
N
O
U
T
S
1034
CONNECTOR PINOUTS

CONTROLLER ANTILOCK BRAKE - BLACK 24 WAYCAV CIRCUIT FUNCTION
1 Z107 12BK/TN (EXCEPT
BUILT-UP-EXPORT/ 2.4L)GROUND
1 Z107 12BK/DG (OTHER) GROUND
2 B1 18DG/OR RIGHT REAR WHEEL SPEED SENSOR SIGNAL
3 B2 18DG/LB RIGHT REAR WHEEL SPEED SENSOR 12 VOLT SUPPLY
4- -
5 D25 18WT/VT PCI BUS
6 B6 18DG/WT RIGHT FRONT WHEEL SPEED SENSOR SIGNAL
7 B7 18DG/VT RIGHT FRONT WHEEL SPEED SENSOR 12 VOLT SUPPLY
8- -
9 A111 12DG/RD FUSED B(+)
10 F500 18DG/PK FUSED IGNITION SWITCH OUTPUT (RUN)
11 - -
12 - -
13 - -
14 - -
15 - -
16 Z127 12BK/DG GROUND
17 - -
18 L50 18WT/TN PRIMARY BRAKE SWITCH SIGNAL
19 B3 18DG/YL LEFT REAR WHEEL SPEED SENSOR SIGNAL
20 B4 18DG/GY LEFT REAR WHEEL SPEED SENSOR 12 VOLT SUPPLY
21 - -
22 B8 18DG/TN LEFT FRONT WHEEL SPEED SENSOR SIGNAL
23 B9 18DG/LG LEFT FRONT WHEEL SPEED SENSOR 12 VOLT SUPPLY
24 A107 12TN/RD FUSED B(+)
DATA LINK CONNECTOR - BLACK 16 WAYCAV CIRCUIT FUNCTION
1- -
2 D25 20WT/VT PCI BUS
3- -
4 Z11 18BK/LG GROUND
5 Z111 18BK/WT (EXCEPT
BUILT-UP-EXPORT)GROUND
5 Z111 20BK/WT (BUILT-UP-
EXPORT)GROUND
6 D20 20WT/LG (GAS) SCI RECEIVE
7 D21 20WT/BR SCI TRANSMIT
8- -
9 D23 20WT/BR FLASH PROGRAM ENABLE
10 - -
11 - -
12 - -
13 - -
14 D16 20WT/OR (GAS) SCI RECEIVE
15 - -
16 A105 20DB/RD FUSED B(+)
C
O
N
N
E
C
T
O
R
P
I
N
O
U
T
S
1035
CONNECTOR PINOUTS

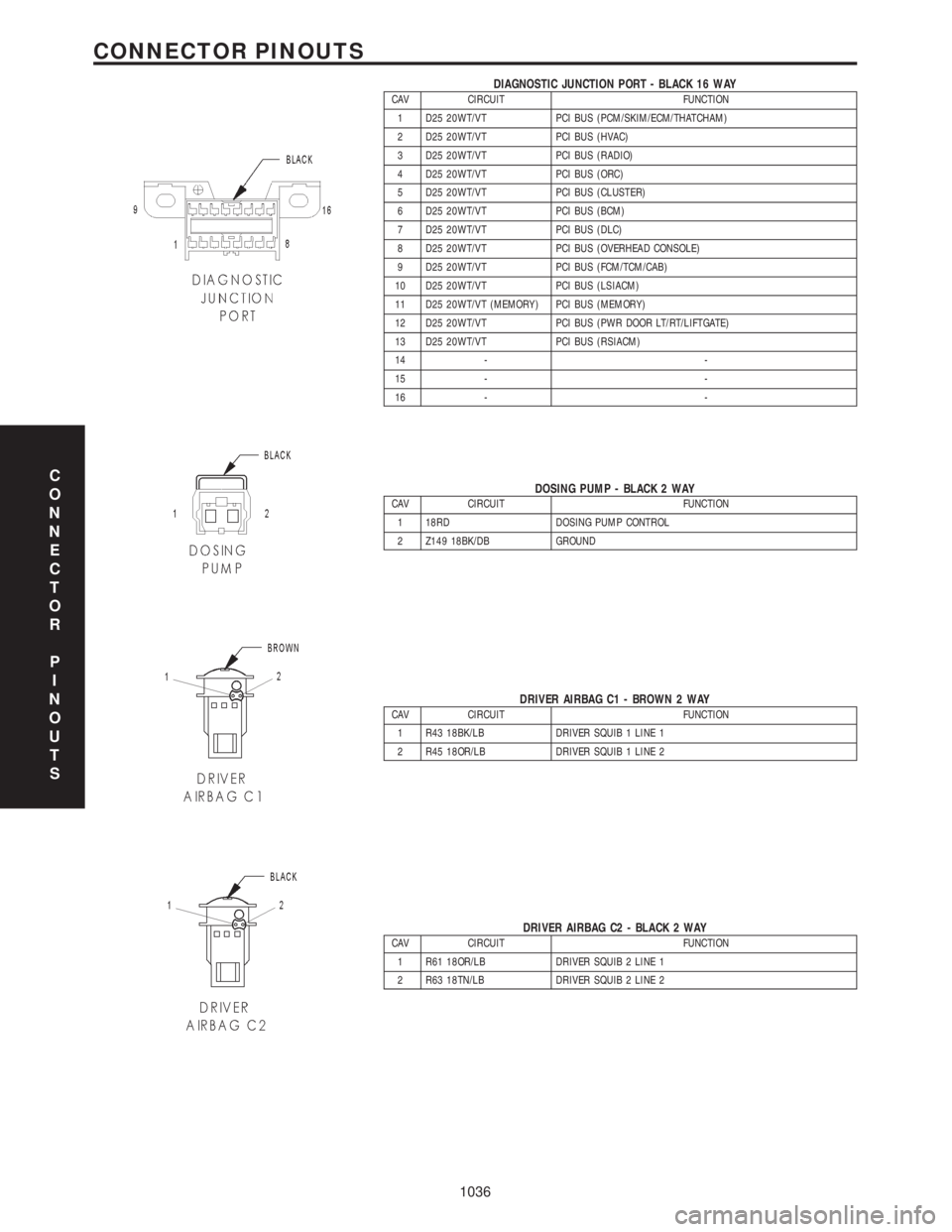

DIAGNOSTIC JUNCTION PORT - BLACK 16 WAYCAV CIRCUIT FUNCTION
1 D25 20WT/VT PCI BUS (PCM/SKIM/ECM/THATCHAM)
2 D25 20WT/VT PCI BUS (HVAC)
3 D25 20WT/VT PCI BUS (RADIO)
4 D25 20WT/VT PCI BUS (ORC)
5 D25 20WT/VT PCI BUS (CLUSTER)
6 D25 20WT/VT PCI BUS (BCM)
7 D25 20WT/VT PCI BUS (DLC)
8 D25 20WT/VT PCI BUS (OVERHEAD CONSOLE)
9 D25 20WT/VT PCI BUS (FCM/TCM/CAB)
10 D25 20WT/VT PCI BUS (LSIACM)
11 D25 20WT/VT (MEMORY) PCI BUS (MEMORY)
12 D25 20WT/VT PCI BUS (PWR DOOR LT/RT/LIFTGATE)
13 D25 20WT/VT PCI BUS (RSIACM)
14 - -
15 - -
16 - -
DOSING PUMP - BLACK 2 WAYCAV CIRCUIT FUNCTION
1 18RD DOSING PUMP CONTROL
2 Z149 18BK/DB GROUND
DRIVER AIRBAG C1 - BROWN 2 WAYCAV CIRCUIT FUNCTION
1 R43 18BK/LB DRIVER SQUIB 1 LINE 1
2 R45 18OR/LB DRIVER SQUIB 1 LINE 2
DRIVER AIRBAG C2 - BLACK 2 WAYCAV CIRCUIT FUNCTION
1 R61 18OR/LB DRIVER SQUIB 2 LINE 1
2 R63 18TN/LB DRIVER SQUIB 2 LINE 2
C
O
N
N
E
C
T
O
R
P
I
N
O
U
T
S
1036
CONNECTOR PINOUTS

DRIVER BLEND DOOR ACTUATOR (ATC) - GRAY 2 WAYCAV CIRCUIT FUNCTION
1 C61 20DB/LG DRIVER BLEND DOOR DRIVER (A)
2 C161 20LB/WT DRIVER BLEND DOOR DRIVER (B)
DRIVER BLEND DOOR ACTUATOR (MTC) - GRAY 2 WAYCAV CIRCUIT FUNCTION
1 C34 20DB/LB (LHD) COMMON DOOR DRIVER (B)
1 C61 20LB/WT(RHD) DRIVER BLEND DOOR DRIVER (A)
2 C34 20DB/LB (RHD) COMMON DOOR DRIVER (B)
2 C61 20LB/WT (LHD) DRIVER BLEND DOOR DRIVER (A)
DRIVER DOOR LOCK SWITCH - BLACK 3 WAYCAV CIRCUIT FUNCTION
1 F304 16WT/PK (EXCEPT
POWER WINDOWS)FUSED ACCESSORY RELAY OUTPUT
1 F304 16WT/PK (POWER
WINDOWS)FUSED WINDOW CIRCUIT BREAKER OUTPUT
2 G160 20VT/LG (RHD) RIGHT DOOR LOCK SWITCH MUX
2 G161 20VT/DG (LHD) LEFT DOOR LOCK SWITCH MUX
3 Z461 20BK/DG (LHD) GROUND
3 Z460 20BK/LG (RHD) GROUND
DRIVER SEAT BELT SWITCH - WHITE 2 WAYCAV CIRCUIT FUNCTION
1 R59 18LG/TN DRIVER SEAT BELT SWITCH LINE 1
2 R57 18LG/GY DRIVER SEAT BELT SWITCH LINE 2
C
O
N
N
E
C
T
O
R
P
I
N
O
U
T
S
1037
CONNECTOR PINOUTS

DRIVER SEAT BELT TENSIONER-2WAYCAV CIRCUIT FUNCTION
1 R53 18LG/YL DRIVER SEAT BELT TENSIONER LINE 2
2 R55 18LG/DG DRIVER SEAT BELT TENSIONER LINE 1
ELECTRIC WIPER DE-ICER C1 - WHITE 2 WAYCAV CIRCUIT FUNCTION
1 F302 18GY/PK FUSED ACCESSORY RELAY OUTPUT
2- -
ELECTRIC WIPER DE-ICER C2 - WHITE 2 WAYCAV CIRCUIT FUNCTION
1 C900 18LB/VT WIPER DE-ICER DRIVER
2- -
C
O
N
N
E
C
T
O
R
P
I
N
O
U
T
S
1038
CONNECTOR PINOUTS

ENGINE CONTROL MODULE C1 (DIESEL) - BLACK 81 WAYCAV CIRCUIT FUNCTION
1 Z130 14BK/BR GROUND
2 Z131 14BK/DG GROUND
3 K20 14BR/GY GENERATOR FIELD CONTROL
4 K342 14BR/WT ECM/PCM RELAY OUTPUT
5 K342 14BR/WT ECM/PCM RELAY OUTPUT
6- -
7 D25 20WT/VT PCI BUS
8 K944 20BK/GY CAMSHAFT POSITION SENSOR SHIELD GROUND
9 K44 20DB/GY CAMSHAFT POSITION SENSOR SIGNAL
10 - -
11 K37 20DB/YL BOOST PRESSURE SENSOR SIGNAL
12 K55 20DB/OR MASS AIR FLOW SENSOR SIGNAL
13 K78 20GY FUEL PRESSURE SENSOR SIGNAL
14 - -
15 K22 20OR/DB ACCELERATOR PEDAL POSITION SENSOR SIGNAL
16 K80 20DB/TN FUEL PRESSURE SENSOR GROUND
17 - -
18 - -
19 N1 20DB/OR FUEL HEATER RELAY OUTPUT
20 Z138 20BK/OR GROUND
21 K900 20DB/DG SENSOR GROUND
22 F202 20PK/GY IGNITION SWITCH OUTPUT (RUN-START)
23 F851 20LB/PK SENSOR REFERENCE VOLTAGE B
24 K3 20BR/OR CRANKSHAFT POSITION SENSOR SIGNAL NO. 1
25 - -
26 - -
27 - -
28 - -
29 - -
30 G6 20VT/GY ENGINE OIL PRESSURE SENSOR SIGNAL
31 F853 20LG/PK WATER IN FUEL SENSOR SIGNAL
32 K25 20BR/TN BATTERY TEMPERATURE SENSOR SIGNAL
33 - -
34 K167 20BR/YL ACCELERATOR PEDAL POSITION SENSOR GROUND
35 K853 20DB/BR ACCELERATOR PEDAL POSITION SENSOR 5 VOLT SUPPLY
36 C18 20LB/BR A/C PRESSURE SENSOR SIGNAL
37 K89 20DB/WT ENGINE OIL TEMPERATURE SENSOR SIGNAL
38 V37 20VT/TN SPEED CONTROL SWITCH SIGNAL
39 - -
40 K2 20TN/BK ENGINE COOLANT TEMPERATURE SENSOR SIGNAL
41 K21 20DB/LG INTAKE AIR TEMPERATURE SENSOR SIGNAL
42 Z122 18WT GROUND (DRAIN)
43 K24 20BR/LB CRANKSHAFT POSITION SENSOR SIGNAL NO. 2
44 - -
45 - -
46 - -
47 L50 20WT/TN PRIMARY BRAKE SWITCH SIGNAL
48 B29 20DG/WT SECONDARY BRAKE SWITCH SIGNAL
49 T751 20YL IGNITION SWITCH OUTPUT (START)
50 F855 20PK/YL SENSOR REFERENCE VOLTAGE A
C
O
N
N
E
C
T
O
R
P
I
N
O
U
T
S
1039
CONNECTOR PINOUTS

ENGINE CONTROL MODULE C1 (DIESEL) - BLACK 81 WAY - CONTINUEDCAV CIRCUIT FUNCTION
51 - -
52 K121 20DB BOOST PRESSURE SENSOR GROUND
53 - -
54 K957 20BK/OR MASS AIR FLOW SENSOR GROUND
55 N7 20DB/OR VEHICLE SPEED SENSOR SIGNAL
56 C918 20BK/LB A/C PRESSURE SENSOR GROUND
57 - -
58 K4 20BK/LB LOW IDLE POSITION SWITCH GROUND
59 - -
60 K9 20LB FUEL PRESSURE SENSOR 5 VOLT SUPPLY
61 K51 20BR/WT ECM/PCM RELAY CONTROL
62 - -
63 D21 20WT/BR SCI TRANSMIT
64 K151 20WT LOW IDLE POSITION SWITCH SENSE
65 - -
66 K936 20BR/YL ENGINE OIL PRESSURE SENSOR GROUND
67 - -
68 - -
69 C13 20LB/OR A/C COMPRESSOR CLUTCH RELAY CONTROL
70 N210 20DB/DG LOW SPEED RADIATOR FAN RELAY CONTROL
71 - -
72 N21 20DB/TN LIFT PUMP RELAY CONTROL
73 - -
74 T752 20DG/OR ENGINE STARTER MOTOR RELAY CONTROL
75 - -
76 - -
77 K152 20DB/WT GLOW PLUG RELAY CONTROL
78 N122 20DB/YL HIGH SPEED RADIATOR FAN DUAL RELAY CONTROL
79 - -
80 K87 20BR FUEL PRESSURE SOLENOID CONTROL
81 K87 20BR FUEL PRESSURE SOLENOID CONTROL
C
O
N
N
E
C
T
O
R
P
I
N
O
U
T
S
1040
CONNECTOR PINOUTS

ENGINE CONTROL MODULE C2 (DIESEL) - BLACK 40 WAYCAV CIRCUIT FUNCTION
82 - -
83 - -
84 - -
85 - -
86 T753 20DG/YL IGNITION SWITCH OUTPUT (START)
87 - -
88 K35 20GY/YL EGR SOLENOID CONTROL
89 K35 20GY/YL EGR SOLENOID CONTROL
90 - -
91 - -
92 - -
93 - -
94 - -
95 - -
96 - -
97 - -
98 - -
99 - -
100 - -
101 - -
102 - -
103 - -
104 - -
105 - -
106 - -
107 - -
108 - -
109 - -
110 - -
111 - -
112 K119 20DB/LG CLUTCH PEDAL UPSTOP SWITCH SENSE
113 - -
114 - -
115 K14 14LB/BR FUEL INJECTOR NO. 4 CONTROL
116 K111 14DB/LB COMMON INJECTOR DRIVER
117 - -
118 K11 14WT/DB FUEL INJECTOR NO. 1 CONTROL
119 K12 14TN FUEL INJECTOR NO. 2 CONTROL
120 K13 14BR/LB FUEL INJECTOR NO. 3 CONTROL
121 - -
EVAPORATOR TEMPERATURE SENSOR - BLACK 2 WAYCAV CIRCUIT FUNCTION
1 C21 20DB/LG EVAPORATOR TEMPERATURE SENSOR SIGNAL
2 C121 20DB/DG SENSOR GROUND
C
O
N
N
E
C
T
O
R
P
I
N
O
U
T
S
1041
CONNECTOR PINOUTS
