CHRYSLER VOYAGER 2001 Service Manual

C201 - YELLOW (INSTRUMENT PANEL SIDE)CAV CIRCUIT
1 R53 18LG/YL
2 R55 18LG/DG
3 R54 18LB/YL
4 R56 18LB/DG
C202 - GRAY (COMPONENT SIDE)CAV CIRCUIT
1 Z134 12BK/OR (AUTOMATIC
TEMPERATURE CONTROL)
2 C34 20DB/LB (MANUAL
TEMPERATURE CONTROL)
2 C56 20DB/LB (AUTOMATIC
TEMPERATURE CONTROL)
3 C32 20DB/TN
4 C33 20LB/BR
5 C61 20LB/WT (MTC)
5 C61 20DB/LG (ATC)
6 C35 20LB/OR
7 C7 12DB (AUTOMATIC
TEMPERATURE CONTROL)
8 C132 20DB/YL (AUTOMATIC
TEMPERATURE CONTROL)
9 C133 20DB/WT (AUTOMAT-
IC TEMPERATURE CON-
TROL)
10 C161 20LB/WT (AUTOMAT-
IC TEMPERATURE CON-
TROL)
11 C135 20DB/GY (AUTOMAT-
IC TEMPERATURE CON-
TROL)
12 C21 20DB/LG
13 C121 20DB/DG
C
O
N
N
E
C
T
O
R
P
I
N
O
U
T
S
1022
CONNECTOR PINOUTS

C202 - GRAY (INSTRUMENT PANEL SIDE)CAV CIRCUIT
1 Z134 12BK/OR (AUTOMATIC
TEMPERATURE CONTROL)
2 C34 20DB/LB (MANUAL
TEMPERATURE CONTROL)
2 C56 20DB/LB (AUTOMATIC
TEMPERATURE CONTROL)
3 C32 20DB/TN
4 C33 20LB/BR
5 C61 20DB/LG
6 C35 20LB/OR
7 C7 12DB (AUTOMATIC
TEMPERATURE CONTROL)
8 C132 20DB/YL (AUTOMATIC
TEMPERATURE CONTROL)
9 C133 20DB/WT (AUTOMAT-
IC TEMPERATURE CON-
TROL)
10 C161 20LB/WT (AUTOMAT-
IC TEMPERATURE CON-
TROL)
11 C135 20DB/GY (AUTOMAT-
IC TEMPERATURE CON-
TROL)
12 C21 20DB/LG
13 C121 20DB/DG
C304 - YELLOW (BODY SIDE)CAV CIRCUIT
1 R54 18LB/YL (RHD)
1 R53 18LG/YL (LHD)
2 R56 18LB/DG (RHD)
2 R55 18LG/DG (LHD)
3 R31 18LG/OR
4 R33 18LG/WT
C304 - YELLOW (SEAT SIDE)CAV CIRCUIT
1 R54 18LB/YL (RHD)
1 R53 18LG/YL (LHD)
2 R56 18LB/DG (RHD)
2 R55 18LG/DG (LHD)
3 R31 18LG/OR
4 R33 18LG/WT
C
O
N
N
E
C
T
O
R
P
I
N
O
U
T
S
1023
CONNECTOR PINOUTS

C305 - GRAY (BODY SIDE)CAV CIRCUIT
1 Z849 12BK/OR
2 R57 18LG/GY
3 R59 18LG/TN
4 P7 20LG/DG
5 A210 14OR/RD
6 F503 20WT/PK
7 A110 12OR/RD
8-
9-
10 -
11 -
12 -
13 -
C306 - YELLOW (BODY SIDE)CAV CIRCUIT
1 R53 18LG/YL (RHD)
1 R54 18LB/YL (LHD)
2 R55 18LG/DG (RHD)
2 R56 18LB/DG (LHD)
3 R32 18LB/OR
4 R34 18LB/WT
C306 - YELLOW (SEAT SIDE)CAV CIRCUIT
1 R53 18LG/YL (RHD)
1 R54 18LB/YL (LHD)
2 R55 18LG/DG (RHD)
2 R56 18LB/DG (LHD)
3 R32 18LB/OR
4 R34 18LB/WT
C307 - GRAY (BODY SIDE)CAV CIRCUIT
1 Z848 12BK/OR
2 R58 18LB/GY
3 R60 18LB/TN
4 P8 20LG/WT
5 A210 14OR/RD
6 F503 20WT/PK
7-
8-
9-
10 -
11 -
12 -
C
O
N
N
E
C
T
O
R
P
I
N
O
U
T
S
1024
CONNECTOR PINOUTS

C307 - GRAY (SEAT SIDE)CAV CIRCUIT
1 Z848 18BK/OR (POWER/
HEATED SEAT)
2 R58 18LB/GY
3 R60 18LB/TN
4 P8 20LG/WT (HEATED
SEAT)
5 A210 14OR/RD (POWER/
HEATED SEAT)
6 F503 20WT/PK (HEATED
SEAT)
7-
8-
9-
10 -
11 -
12 -
C311 - GRAY (BODY SIDE)CAV CIRCUIT
1 C153 12DB/BR (3 ZONE
HVAC)
2 F850 20LB/PK (3 ZONE
HVAC)
2 F504 20GY/PK (AUTOMATIC
TEMPERATURE CONTROL)
3 C121 20DB/DG (3 ZONE
HVAC)
3 D22 20WT/TN (AUTOMATIC
TEMPERATURE CONTROL)
4 C22 20LB/WT (3 ZONE
HVAC)
4 D17 20WT/DG (AUTOMATIC
TEMPERATURE CONTROL)
5 C151 18LB/DG (3 ZONE
HVAC)
6-
7 C152 16LB/LG (3 ZONE
HVAC)
8 E10 20OR/DG
9 Z409 20BK/OR (3 ZONE
HVAC)
9 Z27 18BK/DG (AUTOMATIC
TEMPERATURE CONTROL)
10 C50 12DB/OR (3 ZONE
HVAC)
C
O
N
N
E
C
T
O
R
P
I
N
O
U
T
S
1025
CONNECTOR PINOUTS

C311 - GRAY (REAR A/C JUMPER SIDE)CAV CIRCUIT
1 C153 12 DB/BR (3 ZONE
HVAC)
2 F850 20LB/PK (3 ZONE
HVAC)
2 F504 20GY/PK (AUTOMATIC
TEMPERATURE CONTROL)
3 C121 20DB/DG (3 ZONE
HVAC)
3 D22 20WT/TN (AUTOMATIC
TEMPERATURE CONTROL)
4 C22 20LB/DB (3 ZONE
HVAC)
4 D17 20WT/DG (AUTOMATIC
TEMPERATURE CONTROL)
5 C151 18LB/DG (3 ZONE
HVAC)
6-
7 C152 16LB/LG (3 ZONE
HVAC)
8 E10 20OR/DG
9 Z409 20BK/OR (3 ZONE
HVAC)
9 Z27 18BK/DG (AUTOMATIC
TEMPERATURE CONTROL)
10 C50 12DB/OR (3 ZONE
HVAC)
C314 (HIGH LINE) - BLACK (BODY SIDE)CAV CIRCUIT
1 G32 20VT/LB (POWER LIFT-
GATE)
2 L77 18WT/BR
3 L50 18WT/TN
4 P30 20TN/DG
5 P31 20TN/DG (POWER
RELEASE/BUILT-UP-EXPORT
LHD SWB GAS)
5 P31 20TN/YL (POWER
RELEASE/EXCEPT BUILT-
UP-EXPORT LHD SWB
GAS)
6 Q60 20OR/YL (POWER
LIFTGATE)
7 Q84 18TN/GY (POWER
LIFTGATE)
8 Z87 20BK/LG (POWER LIFT-
GATE)
9 Q83 18OR/GY (POWER
LIFTGATE)
10 Z800 12BK
C
O
N
N
E
C
T
O
R
P
I
N
O
U
T
S
1026
CONNECTOR PINOUTS

C314 (HIGH LINE) - BLACK (LIFTGATE SIDE)CAV CIRCUIT
1 G32 20VT/LB (POWER LIFT-
GATE)
2 L77 18WT/BR
3 L50 18WT/TN
4 P30 20TN/DG
5 P31 20TN/YL (POWER RE-
LEASE)
6 Q60 20OR/YL (POWER
LIFTGATE)
7 Q84 18TN/GY (POWER
LIFTGATE)
8 Z87 20BK/LG (POWER LIFT-
GATE)
9 Q83 18OR/GY (POWER
LIFTGATE)
10 Z800 12BK
C315 (HIGH LINE) - BLACK (BODY SIDE)CAV CIRCUIT
1 C15 12DB/WT
2 Q76 20OR/LB (POWER
LIFTGATE)
3 G78 20VT/OR
4 M11 20YL/VT
5 G165 20VT/GY
6 Q85 18TN/WT (POWER
LIFTGATE)
7 Q94 20TN/LG (POWER
LIFTGATE)
8 W13 18BR/LG
9 F302 18GY/PK
10 Z245 18BK/GY (POWER
LIFTGATE)
C315 (HIGH LINE) - BLACK (LIFTGATE SIDE)CAV CIRCUIT
1 C15 12DB/WT
2 Q76 20OR/LB (POWER
LIFTGATE)
3 G78 20VT/OR
4 M11 20YL/VT
5 G165 20VT/GY
6 Q85 18TN/WT (POWER
LIFTGATE)
7 Q94 20TN/LG (POWER
LIFTGATE)
8 W13 18BR/LG
9 F302 18GY/PK
10 Z245 18BK/GY (POWER
LIFTGATE)
C
O
N
N
E
C
T
O
R
P
I
N
O
U
T
S
1027
CONNECTOR PINOUTS

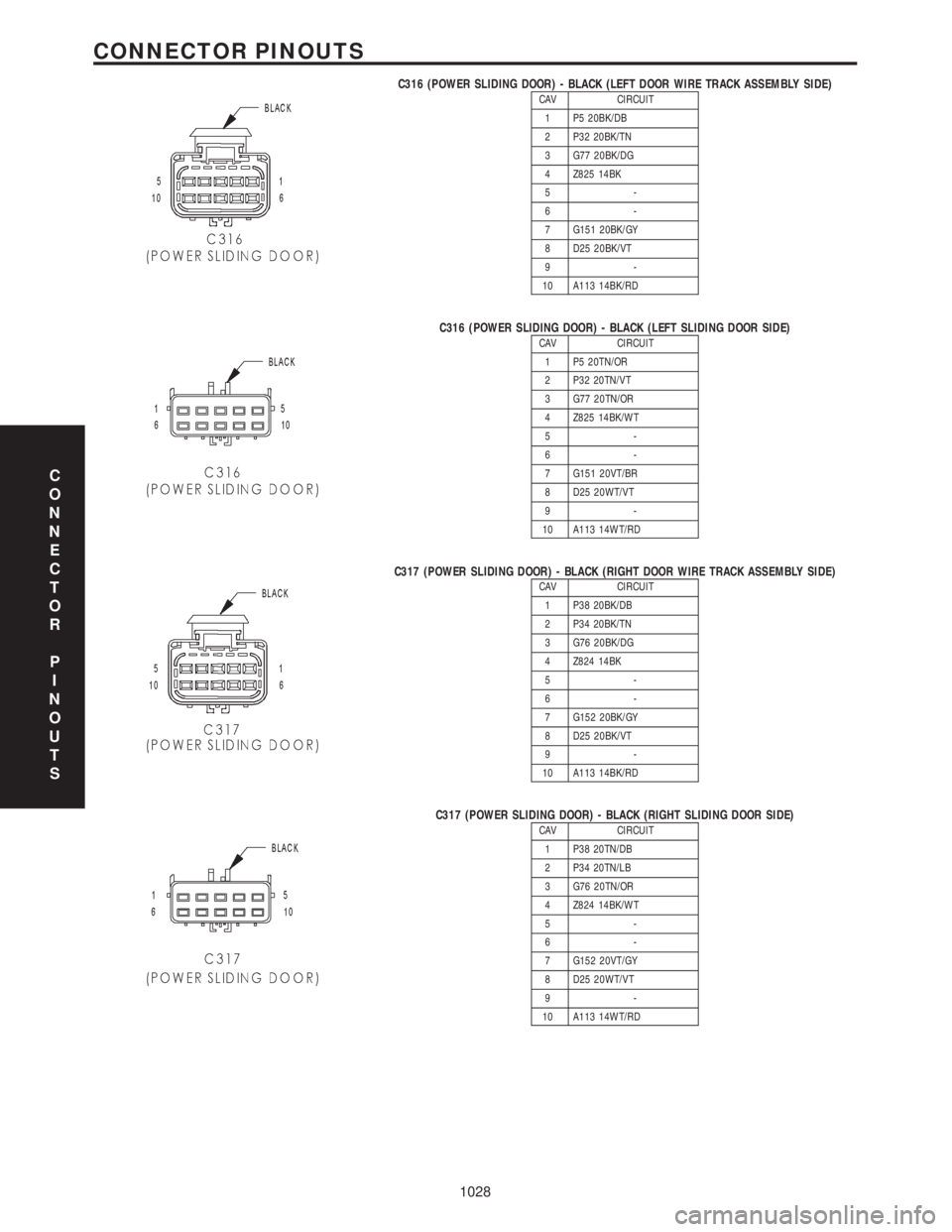

C316 (POWER SLIDING DOOR) - BLACK (LEFT DOOR WIRE TRACK ASSEMBLY SIDE)CAV CIRCUIT
1 P5 20BK/DB
2 P32 20BK/TN
3 G77 20BK/DG
4 Z825 14BK
5-
6-
7 G151 20BK/GY
8 D25 20BK/VT
9-
10 A113 14BK/RD
C316 (POWER SLIDING DOOR) - BLACK (LEFT SLIDING DOOR SIDE)CAV CIRCUIT
1 P5 20TN/OR
2 P32 20TN/VT
3 G77 20TN/OR
4 Z825 14BK/WT
5-
6-
7 G151 20VT/BR
8 D25 20WT/VT
9-
10 A113 14WT/RD
C317 (POWER SLIDING DOOR) - BLACK (RIGHT DOOR WIRE TRACK ASSEMBLY SIDE)CAV CIRCUIT
1 P38 20BK/DB
2 P34 20BK/TN
3 G76 20BK/DG
4 Z824 14BK
5-
6-
7 G152 20BK/GY
8 D25 20BK/VT
9-
10 A113 14BK/RD
C317 (POWER SLIDING DOOR) - BLACK (RIGHT SLIDING DOOR SIDE)CAV CIRCUIT
1 P38 20TN/DB
2 P34 20TN/LB
3 G76 20TN/OR
4 Z824 14BK/WT
5-
6-
7 G152 20VT/GY
8 D25 20WT/VT
9-
10 A113 14WT/RD
C
O
N
N
E
C
T
O
R
P
I
N
O
U
T
S
1028
CONNECTOR PINOUTS

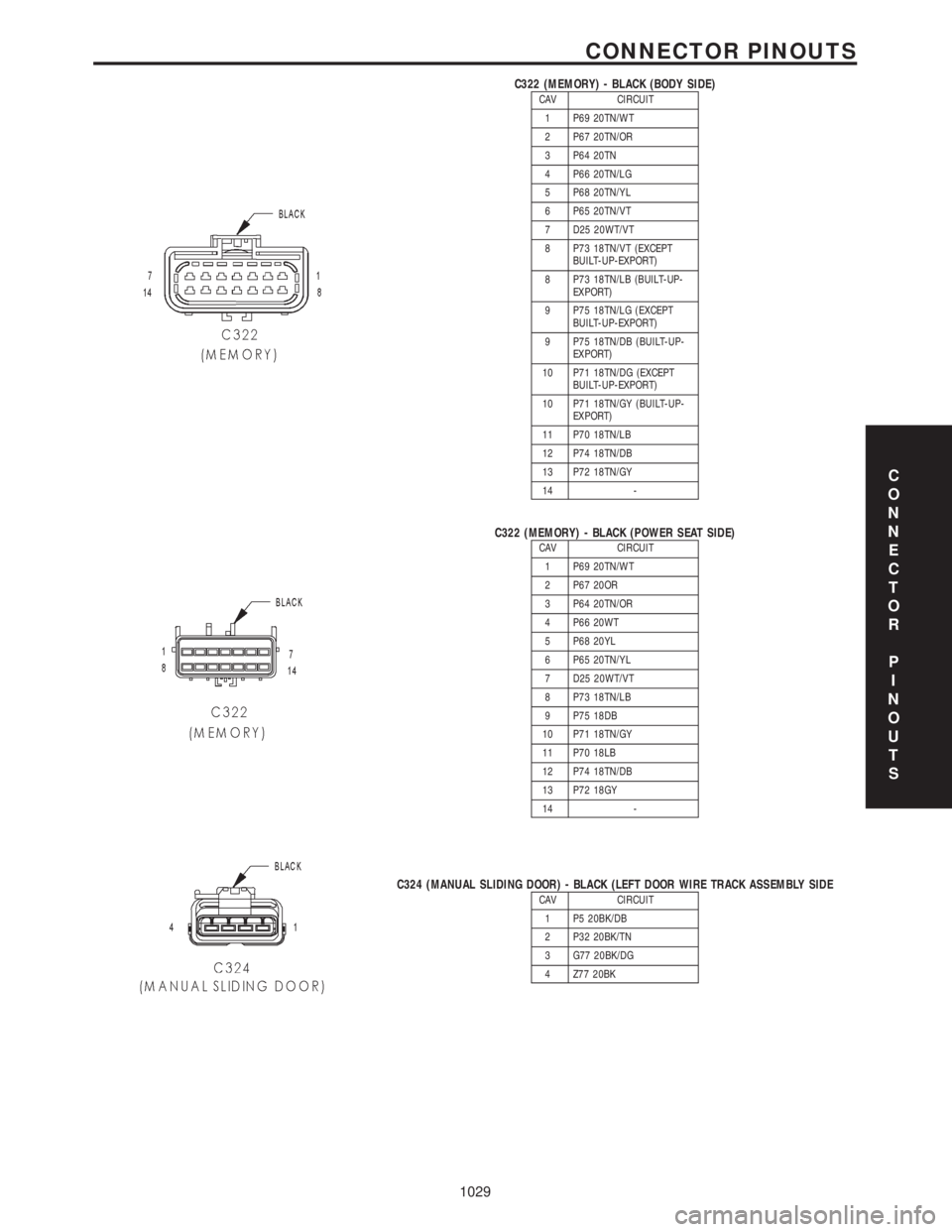

C322 (MEMORY) - BLACK (BODY SIDE)CAV CIRCUIT
1 P69 20TN/WT
2 P67 20TN/OR
3 P64 20TN
4 P66 20TN/LG
5 P68 20TN/YL
6 P65 20TN/VT
7 D25 20WT/VT
8 P73 18TN/VT (EXCEPT
BUILT-UP-EXPORT)
8 P73 18TN/LB (BUILT-UP-
EXPORT)
9 P75 18TN/LG (EXCEPT
BUILT-UP-EXPORT)
9 P75 18TN/DB (BUILT-UP-
EXPORT)
10 P71 18TN/DG (EXCEPT
BUILT-UP-EXPORT)
10 P71 18TN/GY (BUILT-UP-
EXPORT)
11 P70 18TN/LB
12 P74 18TN/DB
13 P72 18TN/GY
14 -
C322 (MEMORY) - BLACK (POWER SEAT SIDE)CAV CIRCUIT
1 P69 20TN/WT
2 P67 20OR
3 P64 20TN/OR
4 P66 20WT
5 P68 20YL
6 P65 20TN/YL
7 D25 20WT/VT
8 P73 18TN/LB
9 P75 18DB
10 P71 18TN/GY
11 P70 18LB
12 P74 18TN/DB
13 P72 18GY
14 -
C324 (MANUAL SLIDING DOOR) - BLACK (LEFT DOOR WIRE TRACK ASSEMBLY SIDECAV CIRCUIT
1 P5 20BK/DB
2 P32 20BK/TN
3 G77 20BK/DG
4 Z77 20BK
C
O
N
N
E
C
T
O
R
P
I
N
O
U
T
S
1029
CONNECTOR PINOUTS

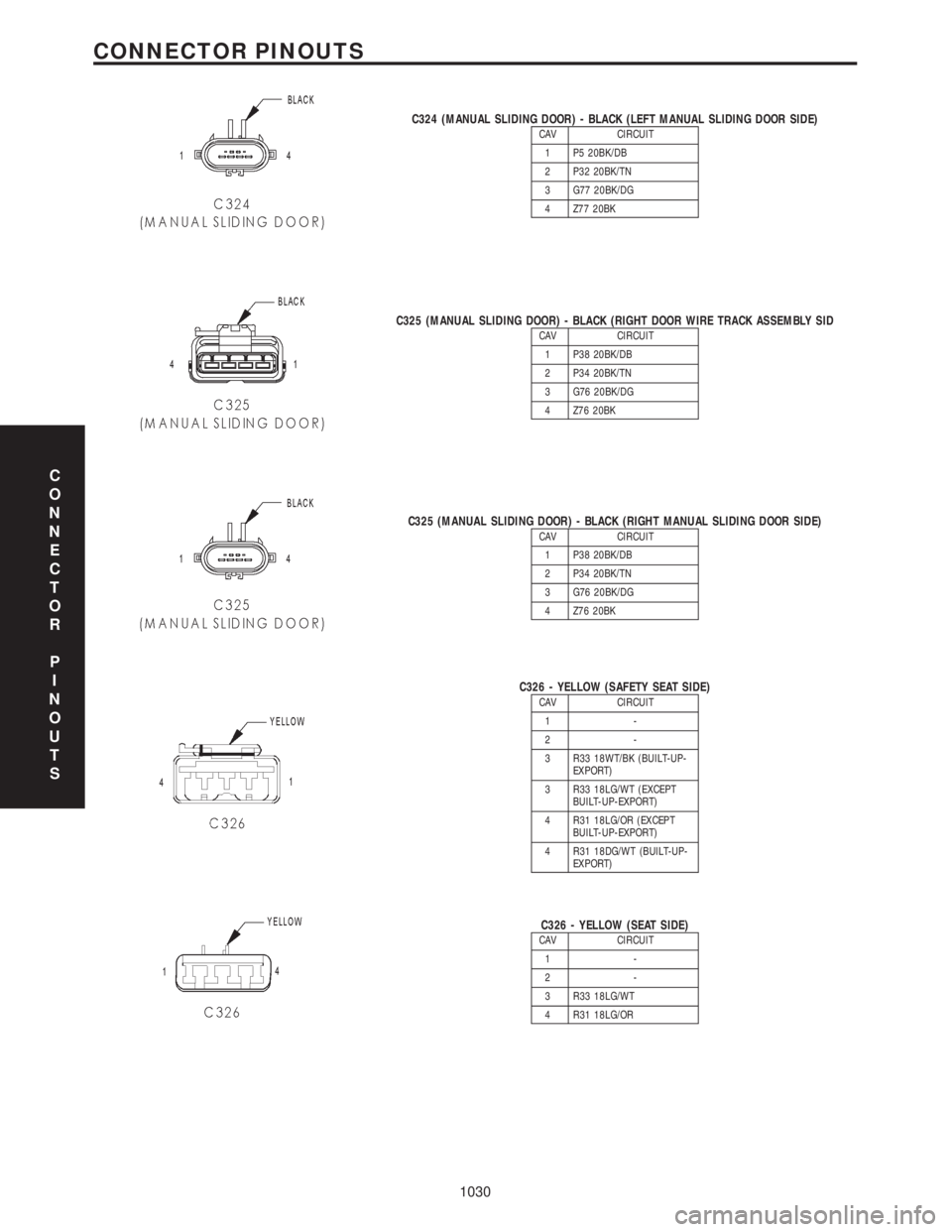

C324 (MANUAL SLIDING DOOR) - BLACK (LEFT MANUAL SLIDING DOOR SIDE)CAV CIRCUIT
1 P5 20BK/DB
2 P32 20BK/TN
3 G77 20BK/DG
4 Z77 20BK
C325 (MANUAL SLIDING DOOR) - BLACK (RIGHT DOOR WIRE TRACK ASSEMBLY SIDCAV CIRCUIT
1 P38 20BK/DB
2 P34 20BK/TN
3 G76 20BK/DG
4 Z76 20BK
C325 (MANUAL SLIDING DOOR) - BLACK (RIGHT MANUAL SLIDING DOOR SIDE)CAV CIRCUIT
1 P38 20BK/DB
2 P34 20BK/TN
3 G76 20BK/DG
4 Z76 20BK
C326 - YELLOW (SAFETY SEAT SIDE)CAV CIRCUIT
1-
2-
3 R33 18WT/BK (BUILT-UP-
EXPORT)
3 R33 18LG/WT (EXCEPT
BUILT-UP-EXPORT)
4 R31 18LG/OR (EXCEPT
BUILT-UP-EXPORT)
4 R31 18DG/WT (BUILT-UP-
EXPORT)
C326 - YELLOW (SEAT SIDE)CAV CIRCUIT
1-
2-
3 R33 18LG/WT
4 R31 18LG/OR
C
O
N
N
E
C
T
O
R
P
I
N
O
U
T
S
1030
CONNECTOR PINOUTS

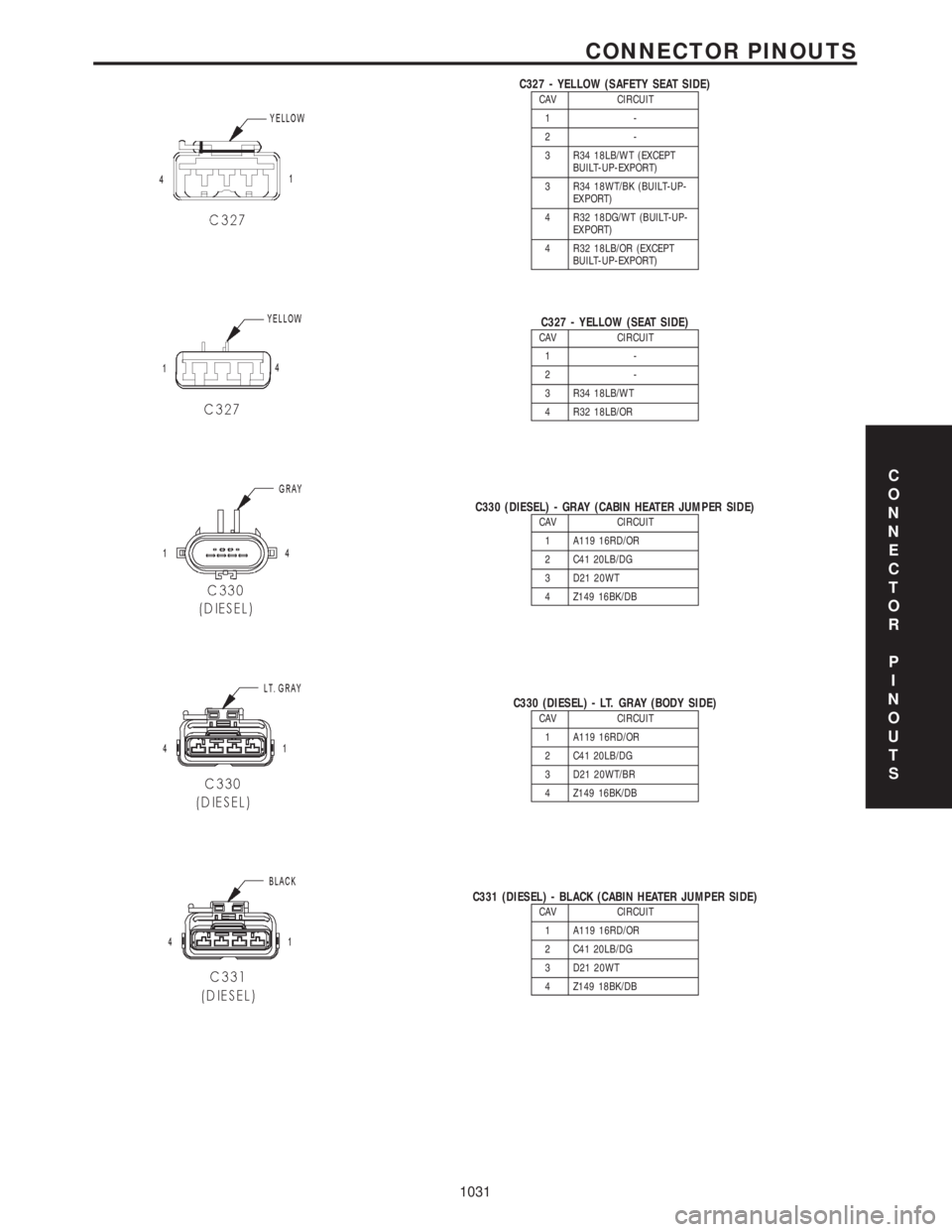

C327 - YELLOW (SAFETY SEAT SIDE)CAV CIRCUIT
1-
2-
3 R34 18LB/WT (EXCEPT
BUILT-UP-EXPORT)
3 R34 18WT/BK (BUILT-UP-
EXPORT)
4 R32 18DG/WT (BUILT-UP-
EXPORT)
4 R32 18LB/OR (EXCEPT
BUILT-UP-EXPORT)
C327 - YELLOW (SEAT SIDE)CAV CIRCUIT
1-
2-
3 R34 18LB/WT
4 R32 18LB/OR
C330 (DIESEL) - GRAY (CABIN HEATER JUMPER SIDE)CAV CIRCUIT
1 A119 16RD/OR
2 C41 20LB/DG
3 D21 20WT
4 Z149 16BK/DB
C330 (DIESEL) - LT. GRAY (BODY SIDE)CAV CIRCUIT
1 A119 16RD/OR
2 C41 20LB/DG
3 D21 20WT/BR
4 Z149 16BK/DB
C331 (DIESEL) - BLACK (CABIN HEATER JUMPER SIDE)CAV CIRCUIT
1 A119 16RD/OR
2 C41 20LB/DG
3 D21 20WT
4 Z149 18BK/DB
C
O
N
N
E
C
T
O
R
P
I
N
O
U
T
S
1031
CONNECTOR PINOUTS
