sensor CHRYSLER VOYAGER 2001 Service Manual

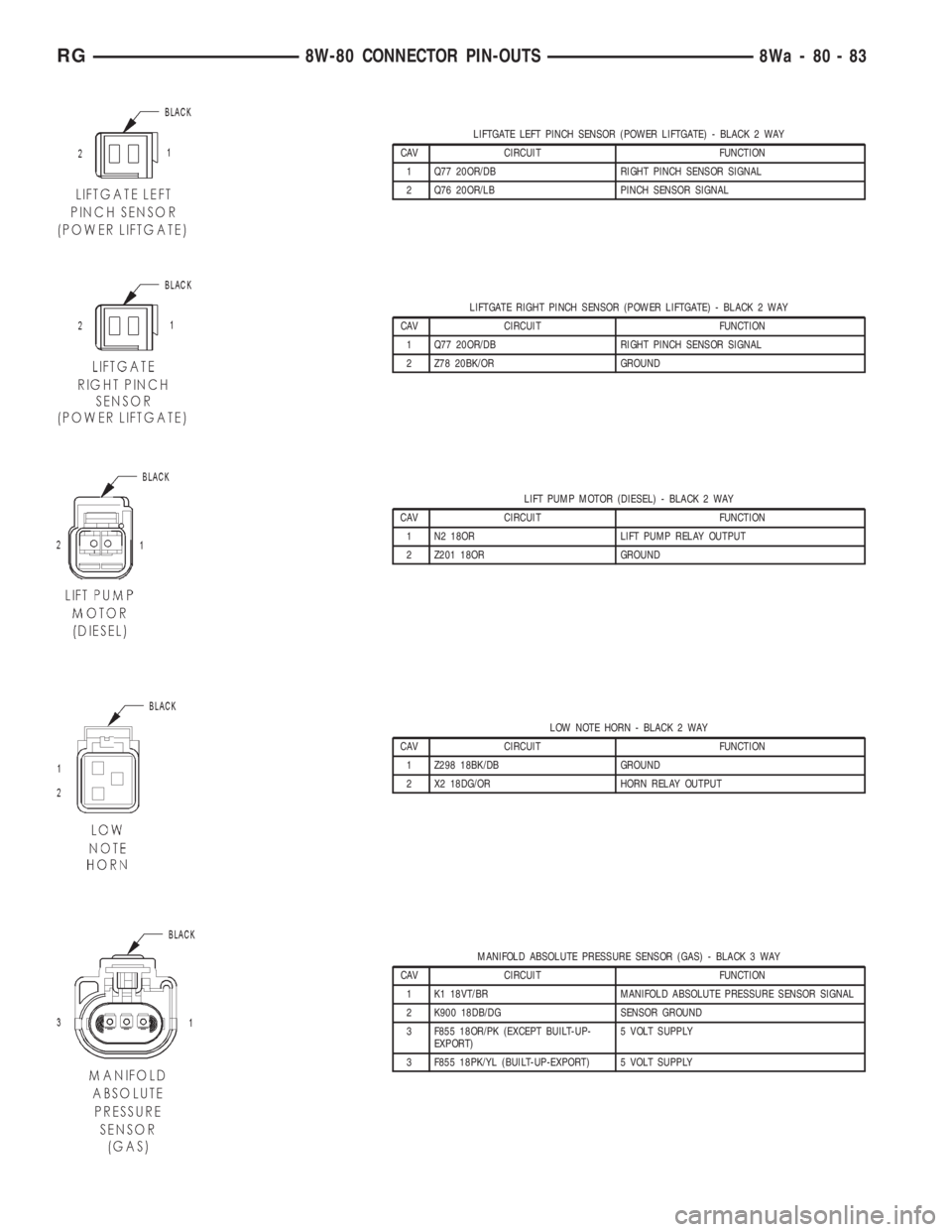

LIFTGATE LEFT PINCH SENSOR (POWER LIFTGATE) - BLACK 2 WAY
CAV CIRCUIT FUNCTION
1 Q77 20OR/DB RIGHT PINCH SENSOR SIGNAL
2 Q76 20OR/LB PINCH SENSOR SIGNAL
LIFTGATE RIGHT PINCH SENSOR (POWER LIFTGATE) - BLACK 2 WAY
CAV CIRCUIT FUNCTION
1 Q77 20OR/DB RIGHT PINCH SENSOR SIGNAL
2 Z78 20BK/OR GROUND
LIFT PUMP MOTOR (DIESEL) - BLACK 2 WAY
CAV CIRCUIT FUNCTION
1 N2 18OR LIFT PUMP RELAY OUTPUT
2 Z201 18OR GROUND
LOW NOTE HORN - BLACK 2 WAY
CAV CIRCUIT FUNCTION
1 Z298 18BK/DB GROUND
2 X2 18DG/OR HORN RELAY OUTPUT
MANIFOLD ABSOLUTE PRESSURE SENSOR (GAS) - BLACK 3 WAY
CAV CIRCUIT FUNCTION
1 K1 18VT/BR MANIFOLD ABSOLUTE PRESSURE SENSOR SIGNAL
2 K900 18DB/DG SENSOR GROUND
3 F855 18OR/PK (EXCEPT BUILT-UP-
EXPORT)5 VOLT SUPPLY
3 F855 18PK/YL (BUILT-UP-EXPORT) 5 VOLT SUPPLY
RG8W-80 CONNECTOR PIN-OUTS8Wa-80-83

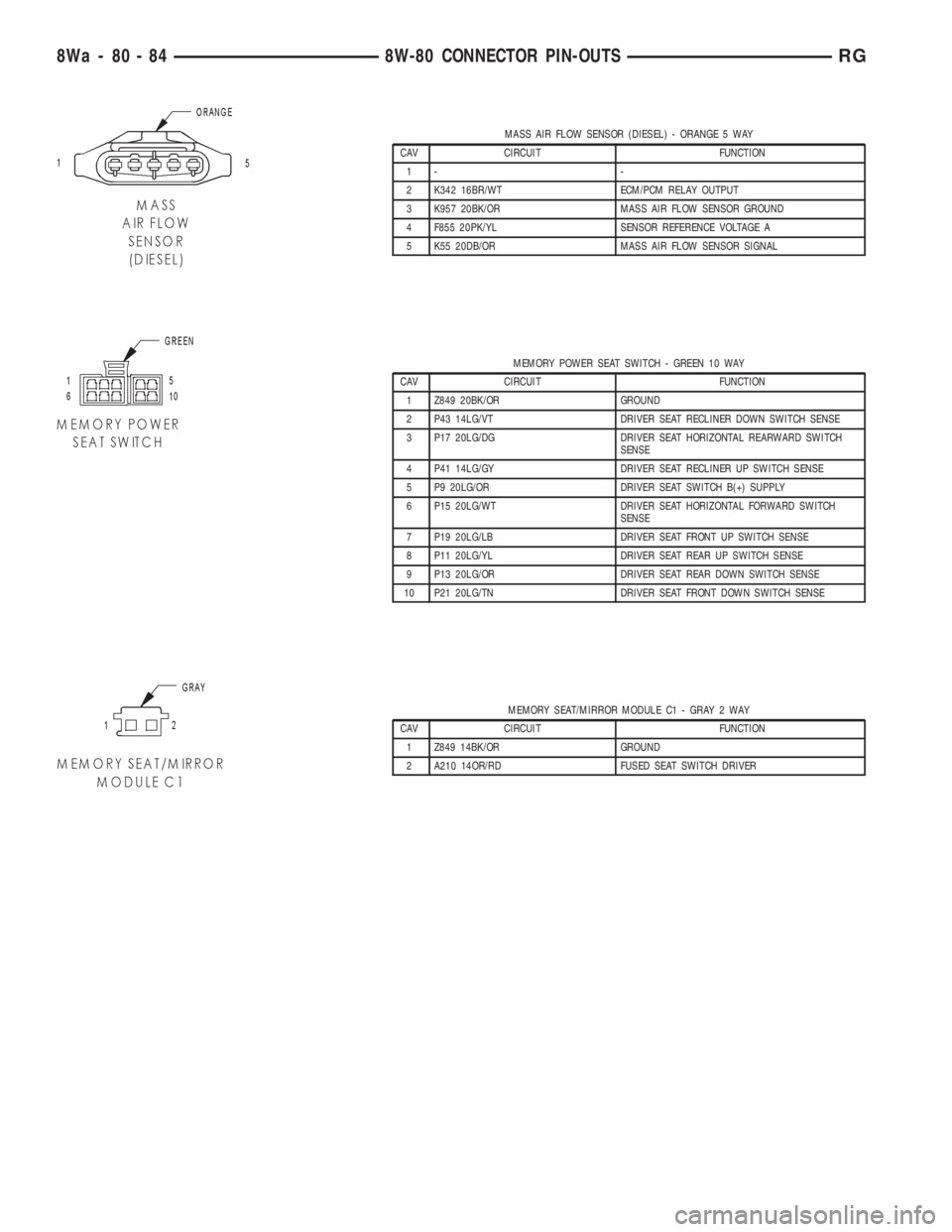

MASS AIR FLOW SENSOR (DIESEL) - ORANGE 5 WAY
CAV CIRCUIT FUNCTION
1- -
2 K342 16BR/WT ECM/PCM RELAY OUTPUT
3 K957 20BK/OR MASS AIR FLOW SENSOR GROUND
4 F855 20PK/YL SENSOR REFERENCE VOLTAGE A
5 K55 20DB/OR MASS AIR FLOW SENSOR SIGNAL
MEMORY POWER SEAT SWITCH - GREEN 10 WAY
CAV CIRCUIT FUNCTION
1 Z849 20BK/OR GROUND
2 P43 14LG/VT DRIVER SEAT RECLINER DOWN SWITCH SENSE
3 P17 20LG/DG DRIVER SEAT HORIZONTAL REARWARD SWITCH
SENSE
4 P41 14LG/GY DRIVER SEAT RECLINER UP SWITCH SENSE
5 P9 20LG/OR DRIVER SEAT SWITCH B(+) SUPPLY
6 P15 20LG/WT DRIVER SEAT HORIZONTAL FORWARD SWITCH
SENSE
7 P19 20LG/LB DRIVER SEAT FRONT UP SWITCH SENSE
8 P11 20LG/YL DRIVER SEAT REAR UP SWITCH SENSE
9 P13 20LG/OR DRIVER SEAT REAR DOWN SWITCH SENSE
10 P21 20LG/TN DRIVER SEAT FRONT DOWN SWITCH SENSE
MEMORY SEAT/MIRROR MODULE C1 - GRAY 2 WAY
CAV CIRCUIT FUNCTION
1 Z849 14BK/OR GROUND
2 A210 14OR/RD FUSED SEAT SWITCH DRIVER
8Wa - 80 - 84 8W-80 CONNECTOR PIN-OUTSRG

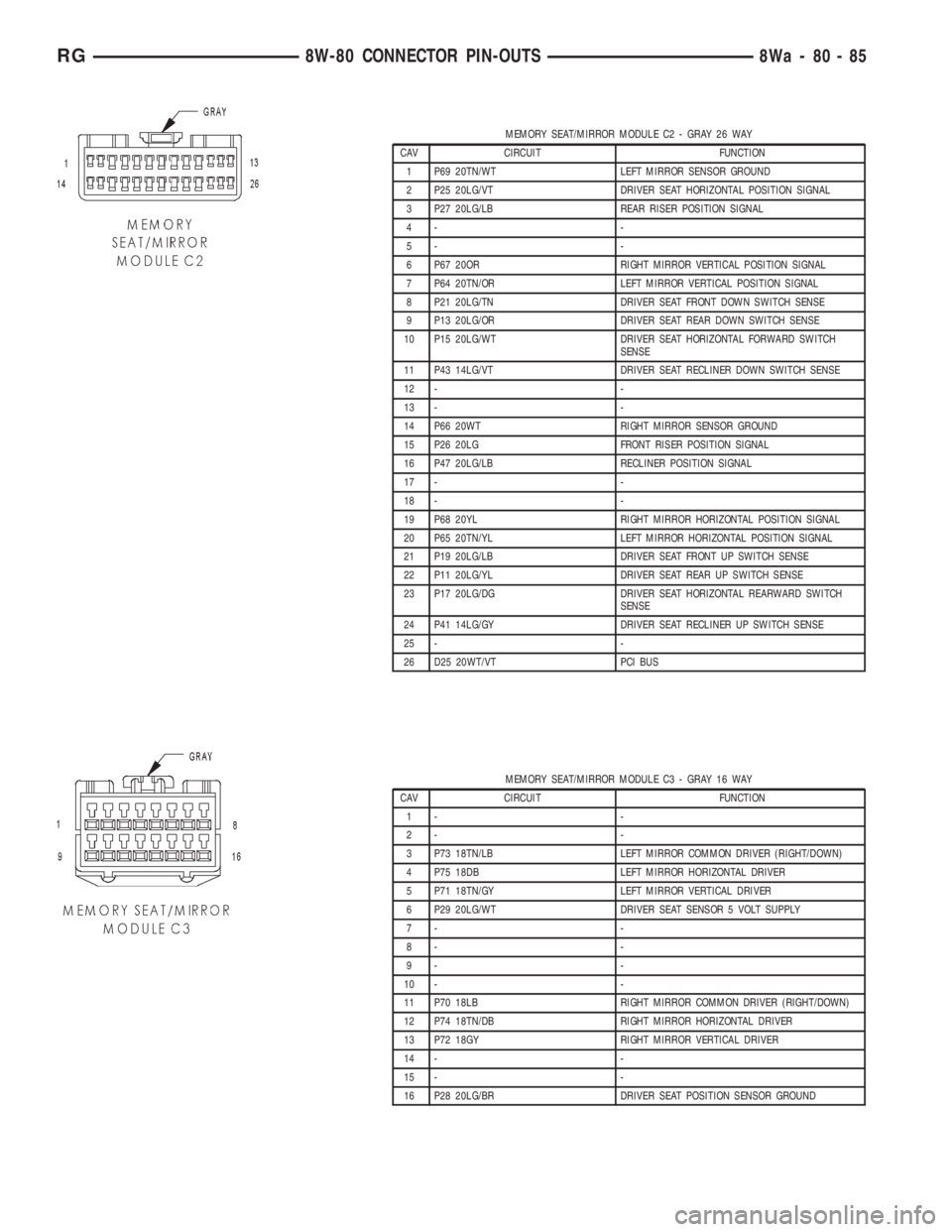

MEMORY SEAT/MIRROR MODULE C2 - GRAY 26 WAY
CAV CIRCUIT FUNCTION
1 P69 20TN/WT LEFT MIRROR SENSOR GROUND
2 P25 20LG/VT DRIVER SEAT HORIZONTAL POSITION SIGNAL
3 P27 20LG/LB REAR RISER POSITION SIGNAL
4- -
5- -
6 P67 20OR RIGHT MIRROR VERTICAL POSITION SIGNAL
7 P64 20TN/OR LEFT MIRROR VERTICAL POSITION SIGNAL
8 P21 20LG/TN DRIVER SEAT FRONT DOWN SWITCH SENSE
9 P13 20LG/OR DRIVER SEAT REAR DOWN SWITCH SENSE
10 P15 20LG/WT DRIVER SEAT HORIZONTAL FORWARD SWITCH
SENSE
11 P43 14LG/VT DRIVER SEAT RECLINER DOWN SWITCH SENSE
12 - -
13 - -
14 P66 20WT RIGHT MIRROR SENSOR GROUND
15 P26 20LG FRONT RISER POSITION SIGNAL
16 P47 20LG/LB RECLINER POSITION SIGNAL
17 - -
18 - -
19 P68 20YL RIGHT MIRROR HORIZONTAL POSITION SIGNAL
20 P65 20TN/YL LEFT MIRROR HORIZONTAL POSITION SIGNAL
21 P19 20LG/LB DRIVER SEAT FRONT UP SWITCH SENSE
22 P11 20LG/YL DRIVER SEAT REAR UP SWITCH SENSE
23 P17 20LG/DG DRIVER SEAT HORIZONTAL REARWARD SWITCH
SENSE
24 P41 14LG/GY DRIVER SEAT RECLINER UP SWITCH SENSE
25 - -
26 D25 20WT/VT PCI BUS
MEMORY SEAT/MIRROR MODULE C3 - GRAY 16 WAY
CAV CIRCUIT FUNCTION
1- -
2- -
3 P73 18TN/LB LEFT MIRROR COMMON DRIVER (RIGHT/DOWN)
4 P75 18DB LEFT MIRROR HORIZONTAL DRIVER
5 P71 18TN/GY LEFT MIRROR VERTICAL DRIVER
6 P29 20LG/WT DRIVER SEAT SENSOR 5 VOLT SUPPLY
7- -
8- -
9- -
10 - -
11 P70 18LB RIGHT MIRROR COMMON DRIVER (RIGHT/DOWN)
12 P74 18TN/DB RIGHT MIRROR HORIZONTAL DRIVER
13 P72 18GY RIGHT MIRROR VERTICAL DRIVER
14 - -
15 - -
16 P28 20LG/BR DRIVER SEAT POSITION SENSOR GROUND
RG8W-80 CONNECTOR PIN-OUTS8Wa-80-85

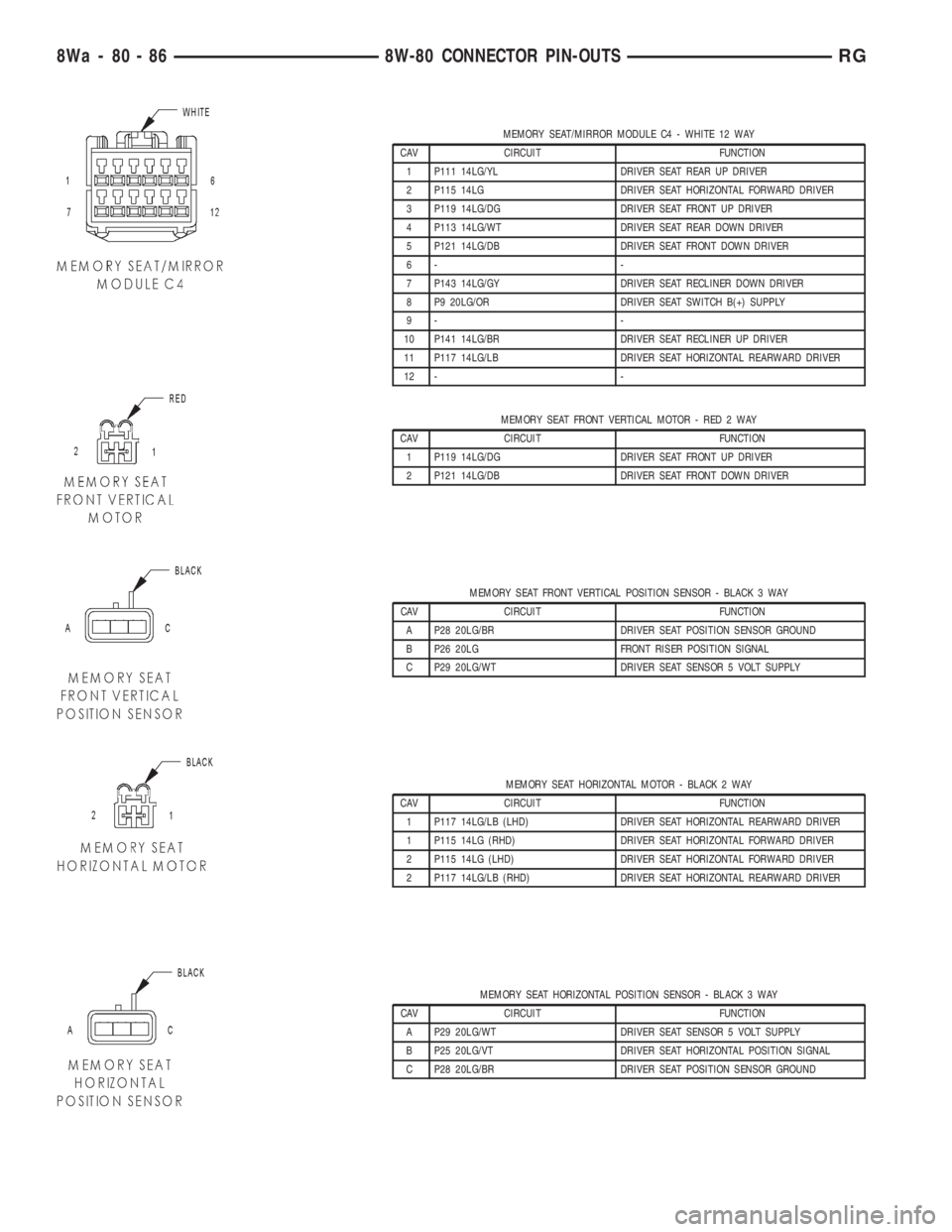

MEMORY SEAT/MIRROR MODULE C4 - WHITE 12 WAY
CAV CIRCUIT FUNCTION
1 P111 14LG/YL DRIVER SEAT REAR UP DRIVER
2 P115 14LG DRIVER SEAT HORIZONTAL FORWARD DRIVER
3 P119 14LG/DG DRIVER SEAT FRONT UP DRIVER
4 P113 14LG/WT DRIVER SEAT REAR DOWN DRIVER
5 P121 14LG/DB DRIVER SEAT FRONT DOWN DRIVER
6- -
7 P143 14LG/GY DRIVER SEAT RECLINER DOWN DRIVER
8 P9 20LG/OR DRIVER SEAT SWITCH B(+) SUPPLY
9- -
10 P141 14LG/BR DRIVER SEAT RECLINER UP DRIVER
11 P117 14LG/LB DRIVER SEAT HORIZONTAL REARWARD DRIVER
12 - -
MEMORY SEAT FRONT VERTICAL MOTOR - RED 2 WAY
CAV CIRCUIT FUNCTION
1 P119 14LG/DG DRIVER SEAT FRONT UP DRIVER
2 P121 14LG/DB DRIVER SEAT FRONT DOWN DRIVER
MEMORY SEAT FRONT VERTICAL POSITION SENSOR - BLACK 3 WAY
CAV CIRCUIT FUNCTION
A P28 20LG/BR DRIVER SEAT POSITION SENSOR GROUND
B P26 20LG FRONT RISER POSITION SIGNAL
C P29 20LG/WT DRIVER SEAT SENSOR 5 VOLT SUPPLY
MEMORY SEAT HORIZONTAL MOTOR - BLACK 2 WAY
CAV CIRCUIT FUNCTION
1 P117 14LG/LB (LHD) DRIVER SEAT HORIZONTAL REARWARD DRIVER
1 P115 14LG (RHD) DRIVER SEAT HORIZONTAL FORWARD DRIVER
2 P115 14LG (LHD) DRIVER SEAT HORIZONTAL FORWARD DRIVER
2 P117 14LG/LB (RHD) DRIVER SEAT HORIZONTAL REARWARD DRIVER
MEMORY SEAT HORIZONTAL POSITION SENSOR - BLACK 3 WAY
CAV CIRCUIT FUNCTION
A P29 20LG/WT DRIVER SEAT SENSOR 5 VOLT SUPPLY
B P25 20LG/VT DRIVER SEAT HORIZONTAL POSITION SIGNAL
C P28 20LG/BR DRIVER SEAT POSITION SENSOR GROUND
8Wa - 80 - 86 8W-80 CONNECTOR PIN-OUTSRG

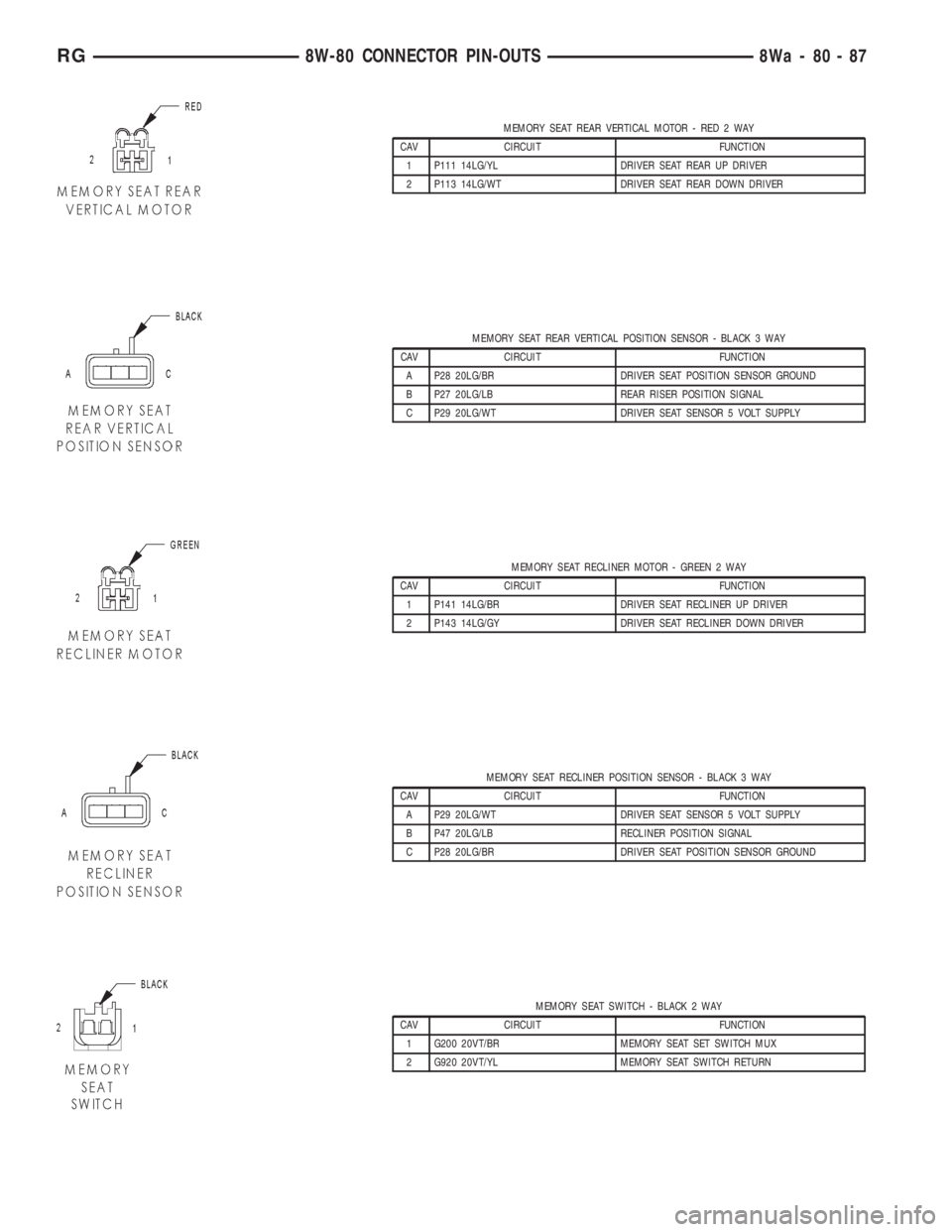

MEMORY SEAT REAR VERTICAL MOTOR - RED 2 WAY
CAV CIRCUIT FUNCTION
1 P111 14LG/YL DRIVER SEAT REAR UP DRIVER
2 P113 14LG/WT DRIVER SEAT REAR DOWN DRIVER
MEMORY SEAT REAR VERTICAL POSITION SENSOR - BLACK 3 WAY
CAV CIRCUIT FUNCTION
A P28 20LG/BR DRIVER SEAT POSITION SENSOR GROUND
B P27 20LG/LB REAR RISER POSITION SIGNAL
C P29 20LG/WT DRIVER SEAT SENSOR 5 VOLT SUPPLY
MEMORY SEAT RECLINER MOTOR - GREEN 2 WAY
CAV CIRCUIT FUNCTION
1 P141 14LG/BR DRIVER SEAT RECLINER UP DRIVER
2 P143 14LG/GY DRIVER SEAT RECLINER DOWN DRIVER
MEMORY SEAT RECLINER POSITION SENSOR - BLACK 3 WAY
CAV CIRCUIT FUNCTION
A P29 20LG/WT DRIVER SEAT SENSOR 5 VOLT SUPPLY
B P47 20LG/LB RECLINER POSITION SIGNAL
C P28 20LG/BR DRIVER SEAT POSITION SENSOR GROUND
MEMORY SEAT SWITCH - BLACK 2 WAY
CAV CIRCUIT FUNCTION
1 G200 20VT/BR MEMORY SEAT SET SWITCH MUX
2 G920 20VT/YL MEMORY SEAT SWITCH RETURN
RG8W-80 CONNECTOR PIN-OUTS8Wa-80-87

OCCUPANT RESTRAINT CONTROLLER - YELLOW/RED 23 WAY
CAV CIRCUIT FUNCTION
1 R54 18LB/YL PASSENGER SEAT BELT TENSIONER LINE 2
2 R56 18LB/DG PASSENGER SEAT BELT TENSIONER LINE 1
3 R62 18LB/VT PASSENGER SQUIB 2 LINE 2
4 R64 18LB/WT PASSENGER SQUIB 2 LINE 1
5 R42 18LB/BR PASSENGER SQUIB 1 LINE 2
6 R44 18LB/OR PASSENGER SQUIB 1 LINE 1
7 R53 18LG/YL DRIVER SEAT BELT TENSIONER LINE 2
8 R55 18LG/DG DRIVER SEAT BELT TENSIONER LINE 1
9 R61 18LG/VT DRIVER SQUIB 2 LINE 1
10 R63 18LG/WT DRIVER SQUIB 2 LINE 2
11 R43 18LG/BR DRIVER SQUIB 1 LINE 1
12 R45 18LG/OR DRIVER SQUIB 1 LINE 2
13 - -
14 F201 18PK/OR FCM OUTPUT (RUN-START)
15 F100 18PK/VT FCM OUTPUT (RUN)
16 Z12 18BK/OR GROUND
17 R59 18LG/TN DRIVER SEAT BELT SWITCH LINE 1
18 R57 18LG/GY DRIVER SEAT BELT SWITCH LINE 2
19 R60 18LB/TN PASSENGER SEAT BELT SWITCH LINE 1
20 R58 18LB/GY PASSENGER SEAT BELT SWITCH LINE 2
21 D25 18WT/VT PCI BUS
22 - -
23 - -
OVERHEAD CONSOLE (EXCEPT BASE) - BLACK 12 WAY
CAV CIRCUIT FUNCTION
1 G23 20VT/DB SLIDING DOORS OVERHEAD SWITCH MUX
2 G25 20VT/TN LIFTGATE SWITCH MUX
3 D25 20WT/VT PCI BUS
4 Z113 20BK/DB GROUND
5 A114 20GY/RD FUSED B(+) (I.O.D.)
6 F503 20WT/PK IGNITION SWITCH OUTPUT (RUN)
7 Z13 20BK/WT GROUND
8 E15 20OR/DB ASH/RECEIVER LAMP FEED
9- -
10 - -
11 L24 20BK/GY (EXCEPT BUILT-UP-EX-
PORT) (PREMIUM/LUXURY)AUTOMATIC HEADLAMP SWITCH SENSOR
12 L1 20BK/WT (PREMIUM/LUXURY) BACK-UP LAMP FEED
RADIATOR FAN RELAY NO. 1 (DIESEL) - BLUE 9 WAY
CAV CIRCUIT FUNCTION
1- -
2 N201 12DB/LG RADIATOR FAN RELAY NO. 1 OUTPUT
3- -
4 K342 16BR/WT ECM/PCM RELAY OUTPUT
5- -
6 N210 18DB/DG LOW SPEED RADIATOR FAN RELAY CONTROL
7- -
8 A201 12RD/LG FUSED B(+)
9- -
RG8W-80 CONNECTOR PIN-OUTS8Wa-80-89

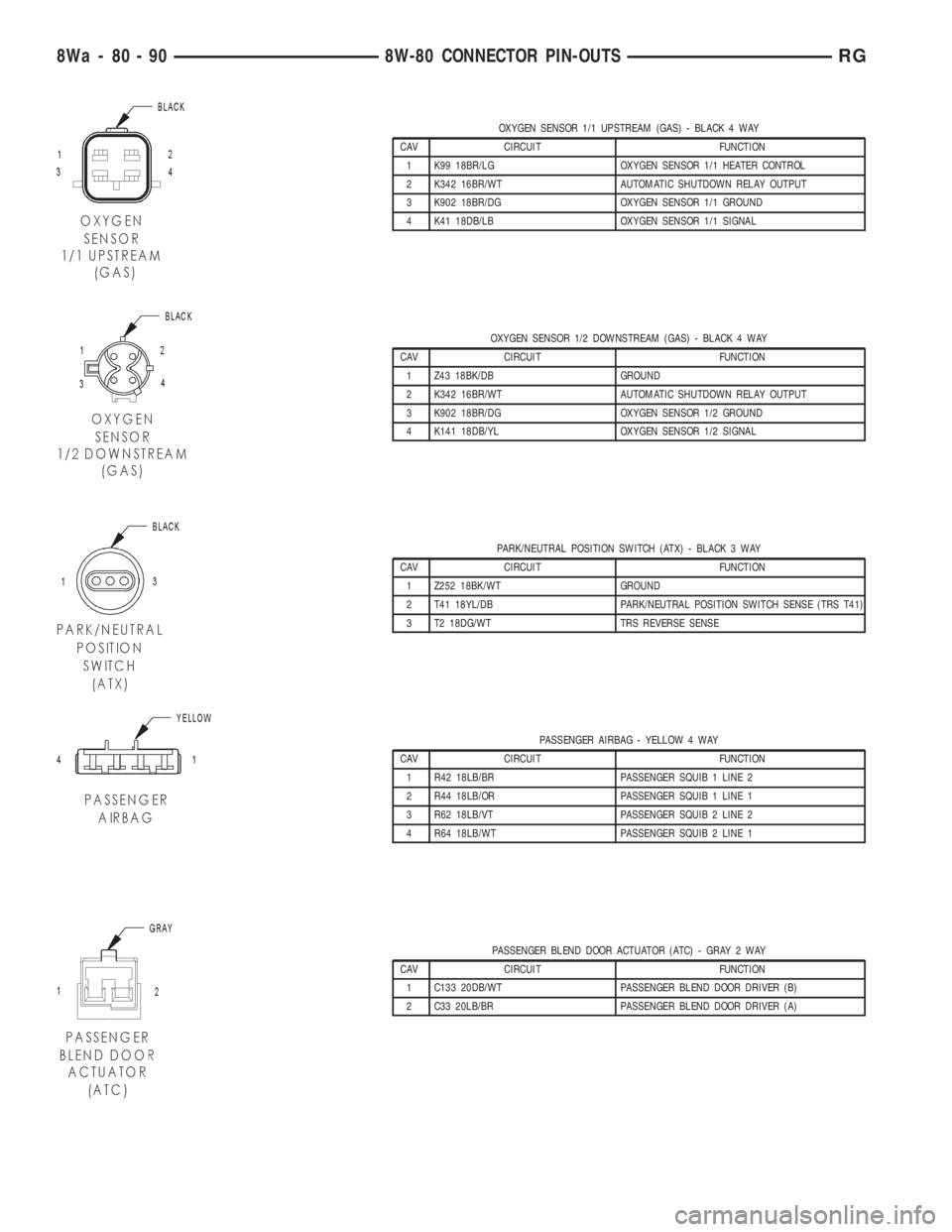

OXYGEN SENSOR 1/1 UPSTREAM (GAS) - BLACK 4 WAY
CAV CIRCUIT FUNCTION
1 K99 18BR/LG OXYGEN SENSOR 1/1 HEATER CONTROL
2 K342 16BR/WT AUTOMATIC SHUTDOWN RELAY OUTPUT
3 K902 18BR/DG OXYGEN SENSOR 1/1 GROUND
4 K41 18DB/LB OXYGEN SENSOR 1/1 SIGNAL
OXYGEN SENSOR 1/2 DOWNSTREAM (GAS) - BLACK 4 WAY
CAV CIRCUIT FUNCTION
1 Z43 18BK/DB GROUND
2 K342 16BR/WT AUTOMATIC SHUTDOWN RELAY OUTPUT
3 K902 18BR/DG OXYGEN SENSOR 1/2 GROUND
4 K141 18DB/YL OXYGEN SENSOR 1/2 SIGNAL
PARK/NEUTRAL POSITION SWITCH (ATX) - BLACK 3 WAY
CAV CIRCUIT FUNCTION
1 Z252 18BK/WT GROUND
2 T41 18YL/DB PARK/NEUTRAL POSITION SWITCH SENSE (TRS T41)
3 T2 18DG/WT TRS REVERSE SENSE
PASSENGER AIRBAG - YELLOW 4 WAY
CAV CIRCUIT FUNCTION
1 R42 18LB/BR PASSENGER SQUIB 1 LINE 2
2 R44 18LB/OR PASSENGER SQUIB 1 LINE 1
3 R62 18LB/VT PASSENGER SQUIB 2 LINE 2
4 R64 18LB/WT PASSENGER SQUIB 2 LINE 1
PASSENGER BLEND DOOR ACTUATOR (ATC) - GRAY 2 WAY
CAV CIRCUIT FUNCTION
1 C133 20DB/WT PASSENGER BLEND DOOR DRIVER (B)
2 C33 20LB/BR PASSENGER BLEND DOOR DRIVER (A)
8Wa - 80 - 90 8W-80 CONNECTOR PIN-OUTSRG

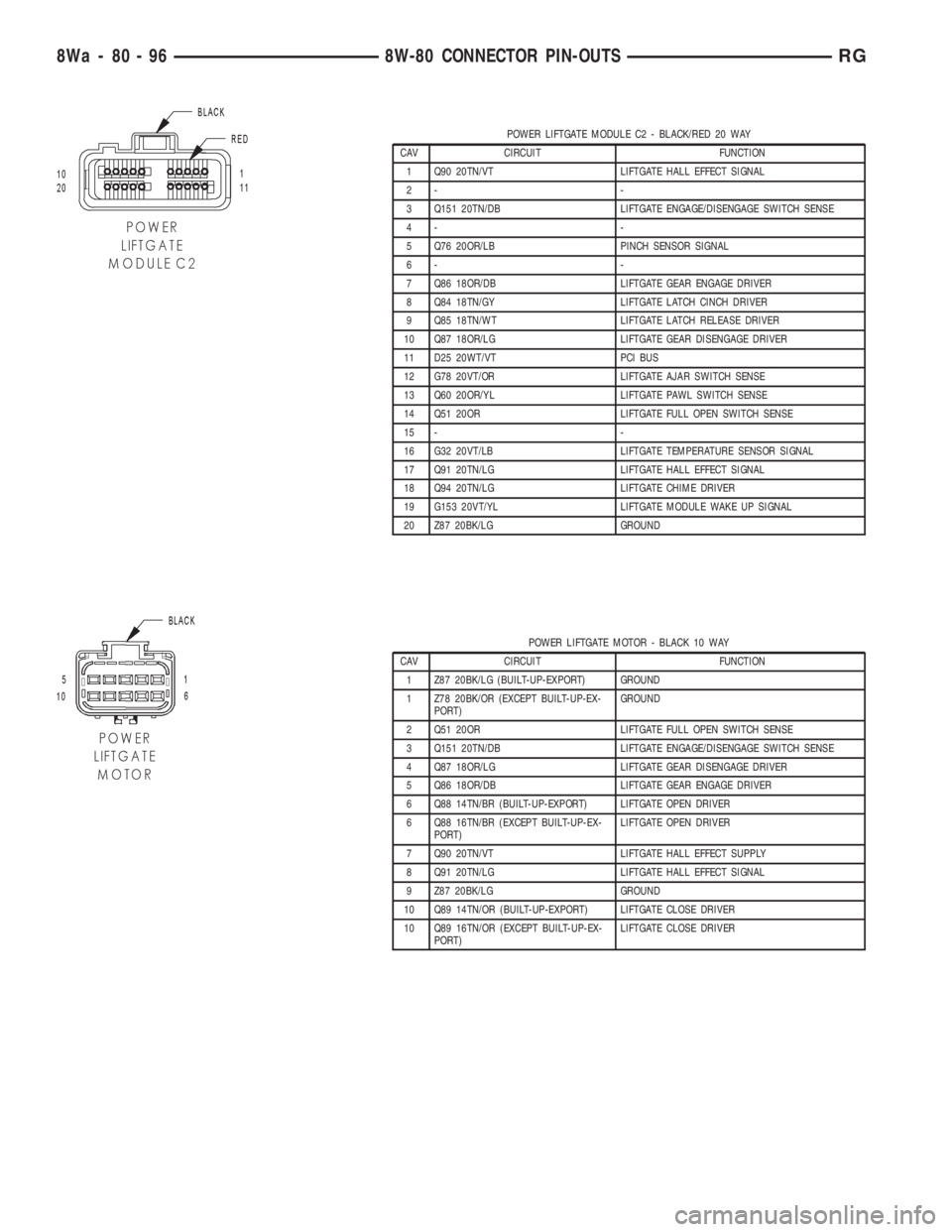

POWER LIFTGATE MODULE C2 - BLACK/RED 20 WAY
CAV CIRCUIT FUNCTION
1 Q90 20TN/VT LIFTGATE HALL EFFECT SIGNAL
2- -
3 Q151 20TN/DB LIFTGATE ENGAGE/DISENGAGE SWITCH SENSE
4- -
5 Q76 20OR/LB PINCH SENSOR SIGNAL
6- -
7 Q86 18OR/DB LIFTGATE GEAR ENGAGE DRIVER
8 Q84 18TN/GY LIFTGATE LATCH CINCH DRIVER
9 Q85 18TN/WT LIFTGATE LATCH RELEASE DRIVER
10 Q87 18OR/LG LIFTGATE GEAR DISENGAGE DRIVER
11 D25 20WT/VT PCI BUS
12 G78 20VT/OR LIFTGATE AJAR SWITCH SENSE
13 Q60 20OR/YL LIFTGATE PAWL SWITCH SENSE
14 Q51 20OR LIFTGATE FULL OPEN SWITCH SENSE
15 - -
16 G32 20VT/LB LIFTGATE TEMPERATURE SENSOR SIGNAL
17 Q91 20TN/LG LIFTGATE HALL EFFECT SIGNAL
18 Q94 20TN/LG LIFTGATE CHIME DRIVER
19 G153 20VT/YL LIFTGATE MODULE WAKE UP SIGNAL
20 Z87 20BK/LG GROUND
POWER LIFTGATE MOTOR - BLACK 10 WAY
CAV CIRCUIT FUNCTION
1 Z87 20BK/LG (BUILT-UP-EXPORT) GROUND
1 Z78 20BK/OR (EXCEPT BUILT-UP-EX-
PORT)GROUND
2 Q51 20OR LIFTGATE FULL OPEN SWITCH SENSE
3 Q151 20TN/DB LIFTGATE ENGAGE/DISENGAGE SWITCH SENSE
4 Q87 18OR/LG LIFTGATE GEAR DISENGAGE DRIVER
5 Q86 18OR/DB LIFTGATE GEAR ENGAGE DRIVER
6 Q88 14TN/BR (BUILT-UP-EXPORT) LIFTGATE OPEN DRIVER
6 Q88 16TN/BR (EXCEPT BUILT-UP-EX-
PORT)LIFTGATE OPEN DRIVER
7 Q90 20TN/VT LIFTGATE HALL EFFECT SUPPLY
8 Q91 20TN/LG LIFTGATE HALL EFFECT SIGNAL
9 Z87 20BK/LG GROUND
10 Q89 14TN/OR (BUILT-UP-EXPORT) LIFTGATE CLOSE DRIVER
10 Q89 16TN/OR (EXCEPT BUILT-UP-EX-
PORT)LIFTGATE CLOSE DRIVER
8Wa - 80 - 96 8W-80 CONNECTOR PIN-OUTSRG

POWERTRAIN CONTROL MODULE C1 (2.4L/3.3L/3.8L) - GRAY/BLACK 40-WAY
CAV CIRCUIT FUNCTION
1- -
2 K18 16DB/OR (3.3L/3.8L) IGNITION COIL NO. 3 DRIVER
3 K17 16DB/TN IGNITION COIL NO. 2 DRIVER
4- -
5 V32 18VT/YL SPEED CONTROL ON/OFF SWITCH SENSE
6 K342 16BR/WT AUTOMATIC SHUTDOWN RELAY OUTPUT
7 K13 16BR/LB FUEL INJECTOR NO. 3 DRIVER
8 K20 18BR/GY GENERATOR FIELD CONTROL
9- -
10 Z130 18BK/BR GROUND
11 K19 16DB/DG IGNITION COIL NO. 1 DRIVER
12 G6 16VT/GY ENGINE OIL PRESSURE SWITCH SENSE
13 K11 16BR/YL FUEL INJECTOR NO. 1 DRIVER
14 K58 16BR/VT (3.3L/3.8L) FUEL INJECTOR NO. 6 DRIVER
15 K38 16BR/OR (3.3L/3.8L) FUEL INJECTOR NO. 5 DRIVER
16 K14 16BR/TN FUEL INJECTOR NO. 4 DRIVER
17 K12 16BR/DB FUEL INJECTOR NO. 2 DRIVER
18 K99 18BR/LG OXYGEN SENSOR 1/1 HEATER CONTROL
19 - -
20 F202 18PK/GY IGNITION SWITCH OUTPUT (RUN-START)
21 - -
22 - -
23 - -
24 - -
25 K42 18DB/YL KNOCK SENSOR SIGNAL
26 K2 18VT/OR ENGINE COOLANT TEMPERATURE SENSOR SIGNAL
27 K902 18BR/DG OXYGEN SENSOR GROUND
28 - -
29 - -
30 K41 18DB/LB OXYGEN SENSOR 1/1 SIGNAL
31 T752 18DG/OR ENGINE STARTER MOTOR RELAY CONTROL
32 K24 18BR/LB CRANKSHAFT POSITION SENSOR SIGNAL
33 K44 18DB/GY CAMSHAFT POSITION SENSOR SIGNAL
34 - -
35 K22 18BR/OR THROTTLE POSITION SENSOR SIGNAL
36 K1 18VT/BR MANIFOLD ABOLUTE PRESSURE SENSOR SIGNAL
37 K21 18DB/LG INTAKE AIR TEMPERATURE SENSOR SIGNAL
38 - -
39 - -
40 K35 18DB/VT EGR SOLENOID CONTROL
8Wa - 80 - 98 8W-80 CONNECTOR PIN-OUTSRG

POWERTRAIN CONTROL MODULE C2 (2.4L/3.3L/3.8L) - GRAY/GRAY 40 WAY
CAV CIRCUIT FUNCTION
41 V37 18VT SPEED CONTROL SWITCH SIGNAL
42 C18 18LB/BR A/C PRESSURE SENSOR SIGNAL
43 K900 18DB/DG SENSOR GROUND
44 F888 18BR/PK 8 VOLT SUPPLY
45 - -
46 A109 18OR/RD FUSED B(+)
47 - -
48 K40 18BR/LG (2.4L) IDLE AIR CONTROL NO. 3 DRIVER
49 K60 18VT/LG (2.4L) IDLE AIR CONTROL NO. 2 DRIVER
49 K39 18VT/DG (3.3L/3.8L) IDLE AIR CONTROL NO. 1 DRIVER
50 Z131 18BK/DG GROUND
51 K141 18DB/YL OXYGEN SENSOR 1/2 SIGNAL
52 - -
53 - -
54 - -
55 - -
56 V36 18VT/YL SPEED CONTROL VACUUM SOLENOID CONTROL
57 K39 18VT/DG (2.4L) IDLE AIR CONTROL NO. 1 DRIVER
57 K60 18VT/LG (3.3L/3.8L) IDLE AIR CONTROL NO. 2 DRIVER
58 K59 18BR/DG (2.4L) IDLE AIR CONTROL NO. 4 DRIVER
59 D25 18WT/VT PCI BUS
60 - -
61 F855 18PK/YL 5 VOLT SUPPLY
62 B29 18DG/WT SECONDARY BRAKE SWITCH SIGNAL
63 T10 18DG/LG (EATX) TORQUE MANAGEMENT REQUEST SENSE
64 C13 18LB/OR A/C COMPRESSOR CLUTCH RELAY CONTROL
65 D21 18WT/BR SCI TRANSMIT
66 N7 18DB/OR VEHICLE SPEED SENSOR SIGNAL
67 K51 18BR/WT AUTOMATIC SHUTDOWN RELAY CONTROL
68 K52 18DB/WT EVAPORATIVE EMISSION SOLENOID CONTROL
69 - -
70 K70 18DB/BR EVAPORATIVE EMISSION SOLENOID SENSE
71 - -
72 K107 18VT/WT (EXCEPT BUILT-UP-
EXPORT)LEAK DETECTION PUMP SWITCH SENSE
73 K173 18BR/VT RADIATOR FAN RELAY CONTROL
74 K31 18BR FUEL PUMP RELAY CONTROL
75 D20 18WT/LG SCI RECEIVE
76 T41 18YL/DB PARK/NEUTRAL POSITION SWITCH SENSE (TRS T41)
77 K106 18VT/LB (EXCEPT BUILT-UP-
EXPORT)LEAK DETECTION PUMP SOLENOID CONTROL
78 K54 18DB/WT (ATX) TORQUE CONVERTER CLUTCH SOLENOID CONTROL
79 - -
80 V35 18VT/OR SPEED CONTROL VENT SOLENOID CONTROL
RG8W-80 CONNECTOR PIN-OUTS8Wa-80-99
