CHRYSLER VOYAGER 2001 Service Manual

Symptom List:
A/C FAULT (ACTIVE) - MANUAL A/C
CHECKSUM FAILURE (ACTIVE) - MANUAL A/C
POWER FAULT (ACTIVE) - MANUAL A/C
REAR DEFOG FAILURE (ACTIVE) - MAN A/C
RECIRCULATION FAULT (ACTIVE) - MANUAL A/C
UNKNOWN FAULT DETECTED (ACTIVE) - MANUAL A/C
Test Note: All symptoms listed above are diagnosed using the same tests.
The title for the tests will be A/C FAULT (ACTIVE) - MANUAL
A/C.
When Monitored and Set Condition:
A/C FAULT (ACTIVE) - MANUAL A/C
When Monitored: With the ignition on.
Set Condition: This DTC will set if the A/C switch stays closed for 10 minutes.
CHECKSUM FAILURE (ACTIVE) - MANUAL A/C
When Monitored: With the ignition on.
Set Condition: This DTC will set if the calibrated check sum does not match the stored
value.
POWER FAULT (ACTIVE) - MANUAL A/C
When Monitored: With the ignition on.
Set Condition: This DTC will set if the Power switch stays closed for 10 minutes.
REAR DEFOG FAILURE (ACTIVE) - MAN A/C
When Monitored: With the ignition on.
Set Condition: This DTC will set if the Rear Window Defogger switch stays closed for 10
minutes.
RECIRCULATION FAULT (ACTIVE) - MANUAL A/C
When Monitored: With the ignition on.
Set Condition: This DTC will set if the Recirc switch stays closed for 10 minutes.
UNKNOWN FAULT DETECTED (ACTIVE) - MANUAL A/C
When Monitored: With the ignition on.
Set Condition: This DTC will set if the A/C - Heater Cotrol Module detects an internal
fault.
512
HEATING & A/C

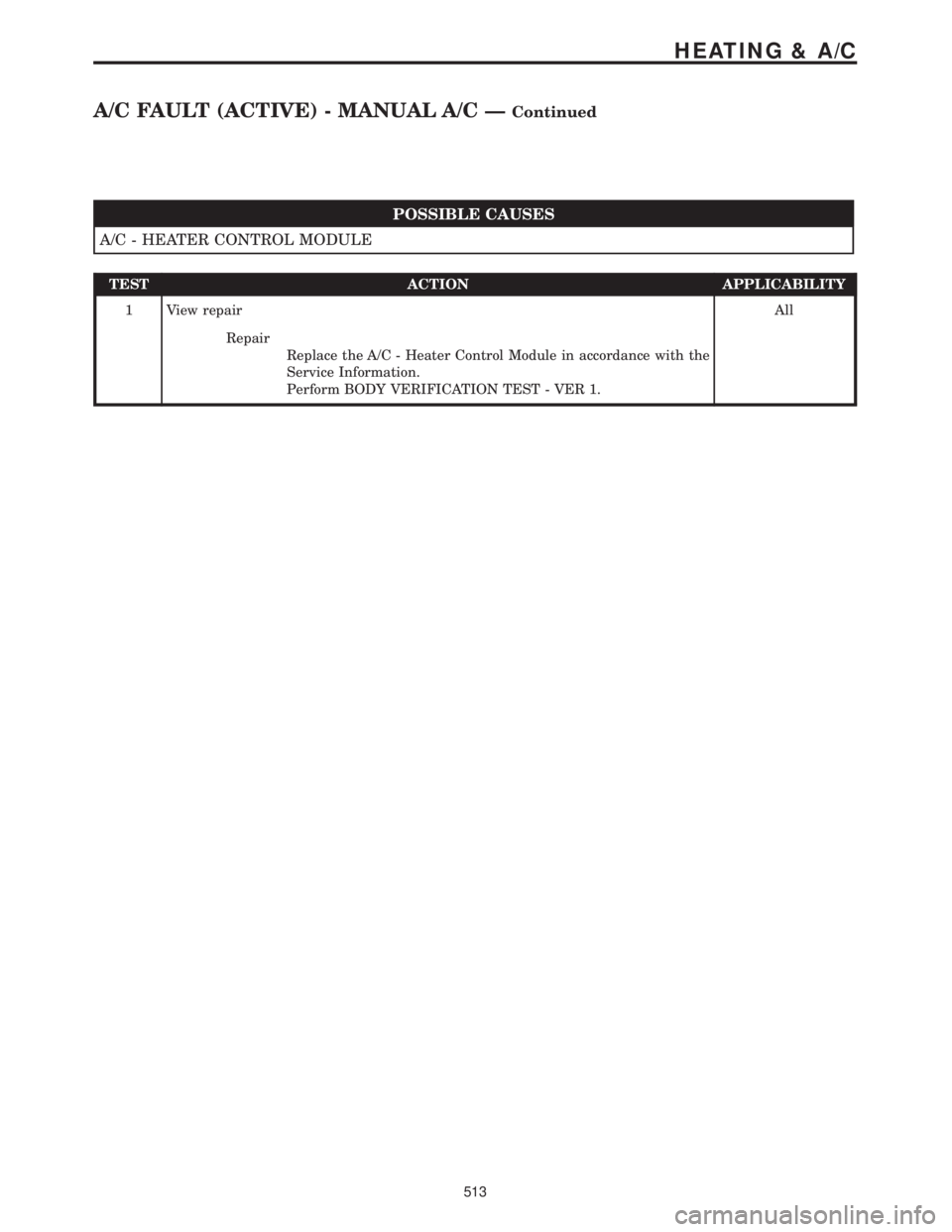

POSSIBLE CAUSES
A/C - HEATER CONTROL MODULE
TEST ACTION APPLICABILITY
1 View repairAll
Repair
Replace the A/C - Heater Control Module in accordance with the
Service Information.
Perform BODY VERIFICATION TEST - VER 1.
513
HEATING & A/C
A/C FAULT (ACTIVE) - MANUAL A/C ÐContinued

Symptom List:
A/C FAULT (STORED) - MANUAL A/C
BACKLIGHT DIMMING RX FAILURE (STORED) - MANUAL A/C
BLEND OVERCURRENT (STORED) - MANUAL A/C
CHECKSUM FAILURE (STORED) - MANUAL A/C
EVAPORATOR TEMPERATURE SENSOR CIRCUIT OPEN
(STORED) - MANUAL A/C
EVAPORATOR TEMPERATURE SENSOR CIRCUIT SHORT
(STORED) - MANUAL A/C
LOOPBACK FAILURE (STORED) - MANUAL A/C
LOOPBACK TEST FAILURE (STORED) - MANUAL A/C
MODE OVERCURRENT (STORED) - MANUAL A/C
NO BCM MESSAGE RECEIVED (STORED) - MANUAL A/C
NO PCM MESSAGE RECEIVED (STORED) - MANUAL A/C
PCM COMMUNICATION FAILURE (STORED) - MANUAL A/C
POWER FAULT (STORED) - MANUAL A/C
REAR BLEND OVERCURRENT (STORED) - MANUAL A/C
REAR BLEND POT CIRCUIT OPEN (STORED) - MANUAL A/C
REAR BLEND POT CIRCUIT SHORT (STORED) - MANUAL A/C
REAR DEFOG FAILURE (STORED) - MANUAL A/C
REAR MODE OVERCURRENT (STORED) - MANUAL A/C
RECIRC OVERCURRENT (STORED) - MANUAL A/C
RECIRCULATION FAULT (STORED) - MANUAL A/C
TX FAILURE (STORED) - MANUAL A/C
UNKNOWN FAULT DETECTED (STORED) - MANUAL A/C
VEHICLE ODOMETER FAILURE (STORED) - MANUAL A/C
ZONE OVERCURRENT (STORED) - MANUAL A/C
Test Note: All symptoms listed above are diagnosed using the same tests.
The title for the tests will be A/C FAULT (STORED) - MANUAL
A/C.
When Monitored and Set Condition:
A/C FAULT (STORED) - MANUAL A/C
When Monitored: With the ignition on.
Set Condition: This DTC will set if the A/C switch stays closed for 10 minutes.
BACKLIGHT DIMMING RX FAILURE (STORED) - MANUAL A/C
When Monitored: With the ignition on.
Set Condition: If the A/C - Heater Control Module does not receive the dimming function
message from the BCM for more than 5 seconds, then the A/C - Heater Control Module
LEDs will default to full brightness and the DTC will set.
514
HEATING & A/C

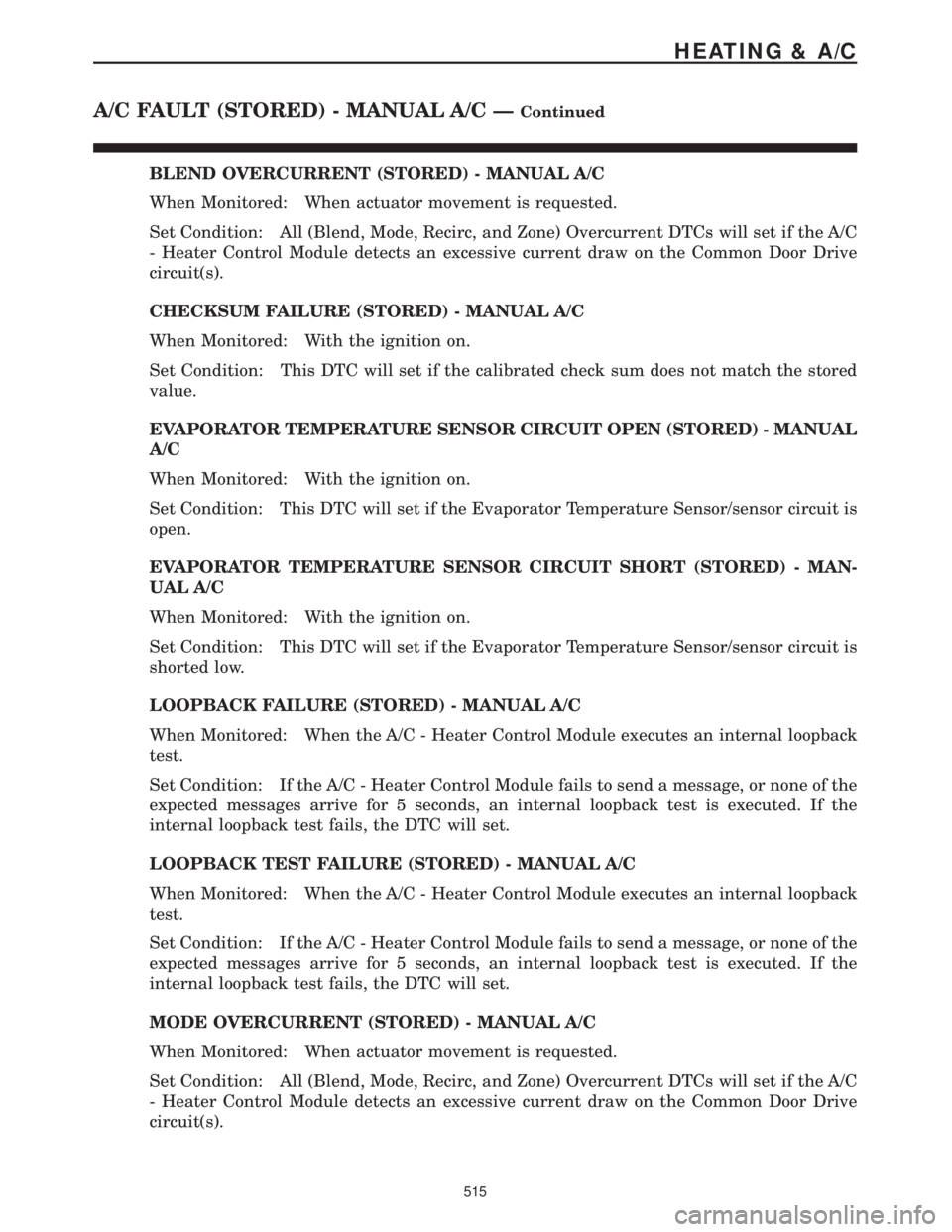

BLEND OVERCURRENT (STORED) - MANUAL A/C
When Monitored: When actuator movement is requested.
Set Condition: All (Blend, Mode, Recirc, and Zone) Overcurrent DTCs will set if the A/C
- Heater Control Module detects an excessive current draw on the Common Door Drive
circuit(s).
CHECKSUM FAILURE (STORED) - MANUAL A/C
When Monitored: With the ignition on.
Set Condition: This DTC will set if the calibrated check sum does not match the stored
value.
EVAPORATOR TEMPERATURE SENSOR CIRCUIT OPEN (STORED) - MANUAL
A/C
When Monitored: With the ignition on.
Set Condition: This DTC will set if the Evaporator Temperature Sensor/sensor circuit is
open.
EVAPORATOR TEMPERATURE SENSOR CIRCUIT SHORT (STORED) - MAN-
UAL A/C
When Monitored: With the ignition on.
Set Condition: This DTC will set if the Evaporator Temperature Sensor/sensor circuit is
shorted low.
LOOPBACK FAILURE (STORED) - MANUAL A/C
When Monitored: When the A/C - Heater Control Module executes an internal loopback
test.
Set Condition: If the A/C - Heater Control Module fails to send a message, or none of the
expected messages arrive for 5 seconds, an internal loopback test is executed. If the
internal loopback test fails, the DTC will set.
LOOPBACK TEST FAILURE (STORED) - MANUAL A/C
When Monitored: When the A/C - Heater Control Module executes an internal loopback
test.
Set Condition: If the A/C - Heater Control Module fails to send a message, or none of the
expected messages arrive for 5 seconds, an internal loopback test is executed. If the
internal loopback test fails, the DTC will set.
MODE OVERCURRENT (STORED) - MANUAL A/C
When Monitored: When actuator movement is requested.
Set Condition: All (Blend, Mode, Recirc, and Zone) Overcurrent DTCs will set if the A/C
- Heater Control Module detects an excessive current draw on the Common Door Drive
circuit(s).
515
HEATING & A/C
A/C FAULT (STORED) - MANUAL A/C ÐContinued

NO BCM MESSAGE RECEIVED (STORED) - MANUAL A/C
When Monitored: With the igntion on.
Set Condition: If the A/C - Heater Control Module does not receive the dimming function
message from the BCM for more than 5 seconds, then the A/C - Heater Control Module
LEDs will default to full brightness and the DTC will set.
NO PCM MESSAGE RECEIVED (STORED) - MANUAL A/C
When Monitored: With the ignition on.
Set Condition: This DTC will set if the A/C - Heater Control Module does not see any
messages from the PCM for more than 5 seconds.
PCM COMMUNICATION FAILURE (STORED) - MANUAL A/C
When Monitored: With the ignition on.
Set Condition: This DTC will set if the A/C - Heater Control Module does not receive the
Fuel message from the PCM for more than 5 seconds.
POWER FAULT (STORED) - MANUAL A/C
When Monitored: With the ignition on.
Set Condition: This DTC will set if the Power switch stays closed for 10 minutes.
REAR BLEND OVERCURRENT (STORED) - MANUAL A/C
When Monitored: When actuator movement is requested.
Set Condition: All (Blend, Mode, Recirc, and Zone) Overcurrent DTCs will set if the A/C
- Heater Control Module detects an excessive current draw on the Common Door Drive
circuit(s).
REAR BLEND POT CIRCUIT OPEN (STORED) - MANUAL A/C
When Monitored: With the ignition on.
Set Condition: This DTC will set if the Rear Blower Rear Control Switch, Rear Blend
Potentiometer/circuit is open.
REAR BLEND POT CIRCUIT SHORT (STORED) - MANUAL A/C
When Monitored: When the ignition is on.
Set Condition: This DTC will set if the Rear Blower Rear Control Switch, Rear Blend
Potentiometer/5 Volt Supply/Rear Temperature Feedback Signal circuit is shorted low or
high.
REAR DEFOG FAILURE (STORED) - MANUAL A/C
When Monitored: With the ignition on.
Set Condition: This DTC will set if the Rear Window Defogger switch stays closed for 10
minutes.
516
HEATING & A/C
A/C FAULT (STORED) - MANUAL A/C ÐContinued

REAR MODE OVERCURRENT (STORED) - MANUAL A/C
When Monitored: When actuator movement is requested.
Set Condition: All (Blend, Mode, Recirc, and Zone) Overcurrent DTCs will set if the A/C
- Heater Control Module detects an excessive current draw on the Common Door Drive
circuit(s).
RECIRC OVERCURRENT (STORED) - MANUAL A/C
When Monitored: When actuator movement is requested.
Set Condition: All (Blend, Mode, Recirc, and Zone) Overcurrent DTCs will set if the A/C
- Heater Control Module detects an excessive current draw on the Common Door Drive
circuit(s).
RECIRCULATION FAULT (STORED) - MANUAL A/C
When Monitored: With the ignition on.
Set Condition: This DTC will set if the Recirc switch stays closed for 10 minutes.
TX FAILURE (STORED) - MANUAL A/C
When Monitored: When the ignition is on.
Set Condition: This DTC will set if the A/C - Heater Control Module is unable to send a
message.
UNKNOWN FAULT DETECTED (STORED) - MANUAL A/C
When Monitored: With the ignition on.
Set Condition: This DTC will set if the A/C - Heater Cotrol Module detects an internal
fault.
VEHICLE ODOMETER FAILURE (STORED) - MANUAL A/C
When Monitored: With the ignition on.
Set Condition: This DTC will set if the A/C - Heater Control Module does not receive the
Vehicle Odometer message from the PCM for more than 5 seconds.
ZONE OVERCURRENT (STORED) - MANUAL A/C
When Monitored: When actuator movement is requested.
Set Condition: All (Blend, Mode, Recirc, and Zone) Overcurrent DTCs will set if the A/C
- Heater Control Module detects an excessive current draw on the Common Door Drive
circuit(s).
517
HEATING & A/C
A/C FAULT (STORED) - MANUAL A/C ÐContinued

POSSIBLE CAUSES
CHECK FOR ACTIVE HVAC DTCS, & COOLDOWN TEST & DOOR RECALIBRATION MESSAGES
STORED CODE(S) TEST COMPLETE
TEST ACTION APPLICABILITY
1NOTE: Active codes must be resolved before diagnosing stored codes.
NOTE: Anytime a code becomes active during this test, proceed to the
conclusion question.
Turn the ignition on.
With the DRBIIIt, record and erase stored HVAC DTC's.
Cycle the ignition switch.
Start the engine.
Monitor the DRBIIItfor active HVAC DTCs while performing the following test
steps.
Manually press the A/C - Heater Control power switch on.
Turn the front blower motor control switch knob to the low position.
If equipped, turn the rear blower motor control switch knob to the low position.
Set the passenger blend control switch to the full cold position.
If equipped, set the zone/driver blend control switch to the full cold position.
Turn the mode select switch knob to the panel position.
Manually press the recirculation mode switch on, wait 30 seconds then press it off.
Manually press the A/C mode switch on, wait 30 seconds then press it off.
Manually press the rear window defogger switch on, wait 30 seconds then press it off.
Manually sweep the passenger blend control switch from full cold to full hot then
back to full cold.
If equipped, manually sweep the zone/driver blend control switch from full cold to full
hot then back to full cold.
Manually sweep the front blower motor control switch knob through all positions.
If equipped, manually sweep the rear blower motor control switch knob through all
positions.
If equipped, turn the rear blower motor control switch knob to the rear position.
If equipped, on the Rear Blower Rear Control, manually sweep the rear blower motor
control switch knob through all positions.
If equipped, on the Rear Blower Rear Control, manually sweep the rear blend/mode
control switch knob from full cold to full hot then back to full cold.
With the DRBIIIt, actuate the AC Cooldown Test.
With the DRBIIIt, actuate the HVAC Door Recalibration Test.
Place the vehicle on a hoist, and raise the wheels off the floor.
WARNING: Be sure to keep hands and feet clear of rotating wheels. Keep
clear of the engine's moving parts
Start the engine. Place the transmission in drive. Brake off.
Does the DRBIIItdisplay any active HVAC DTC(s), Cooldown Test or Door Recali-
bration message(s)?All
Ye s®Return to the symptom list and choose the symptom(s).
Perform BODY VERIFICATION TEST - VER 1.
No®No problem found at this time.
Perform BODY VERIFICATION TEST - VER 1.
518
HEATING & A/C
A/C FAULT (STORED) - MANUAL A/C ÐContinued

Symptom List:
BACKLIGHT DIMMING RX FAILURE (ACTIVE) - MANUAL A/C
NO BCM MESSAGE RECEIVED (ACTIVE) - MANUAL A/C
Test Note: All symptoms listed above are diagnosed using the same tests.
The title for the tests will be BACKLIGHT DIMMING RX
FAILURE (ACTIVE) - MANUAL A/C.
When Monitored and Set Condition:
BACKLIGHT DIMMING RX FAILURE (ACTIVE) - MANUAL A/C
When Monitored: With the ignition on.
Set Condition: If the A/C - Heater Control Module does not receive the dimming function
message from the BCM for more than 5 seconds, then the A/C - Heater Control Module
LEDs will default to full brightness and the DTC will set.
NO BCM MESSAGE RECEIVED (ACTIVE) - MANUAL A/C
When Monitored: With the igntion on.
Set Condition: If the A/C - Heater Control Module does not receive the dimming function
message from the BCM for more than 5 seconds, then the A/C - Heater Control Module
LEDs will default to full brightness and the DTC will set.
POSSIBLE CAUSES
ADDITIONAL CODE(S) PRESENT
A/C - HEATER CONTROL MODULE
BODY CONTROL MODULE - NO DIM MESSAGE TO A/C - HEATER CONTROL MODULE
TEST ACTION APPLICABILITY
1 Turn the ignition on.
With the DRBIIIt, read the BCM codes.
Does DRBIIItdisplay Headlamp Switch: Mismatch; STG; Open; or Panel Dim
Output Short?All
Ye s®Refer to symptoms Headlamp Switch Mismatch, Headlamp
Switch Shorted To Ground, and Headlamp Switch Open in the
Exterior Lighting catagory. Refer to symptom Panel Dimming
Output Short in the Instrument Cluster catagory.
Perform BODY VERIFICATION TEST - VER 1.
No®Go To 2
519
HEATING & A/C

TEST ACTION APPLICABILITY
2 Turn the ignition on.
With the DRBIIItin Monitor Display, PCI Bus Messages, look for the VF DIM Msg
Present.
Does the DRB display: VF DIM Msg present: Yes?All
Ye s®Replace the A/C - Heater Control Module in accordance with the
Service Information.
Perform BODY VERIFICATION TEST - VER 1.
No®Replace the Body Control Module in accordance with the Service
Information.
Perform BODY VERIFICATION TEST - VER 1.
520
HEATING & A/C
BACKLIGHT DIMMING RX FAILURE (ACTIVE) - MANUAL A/C ÐContinued

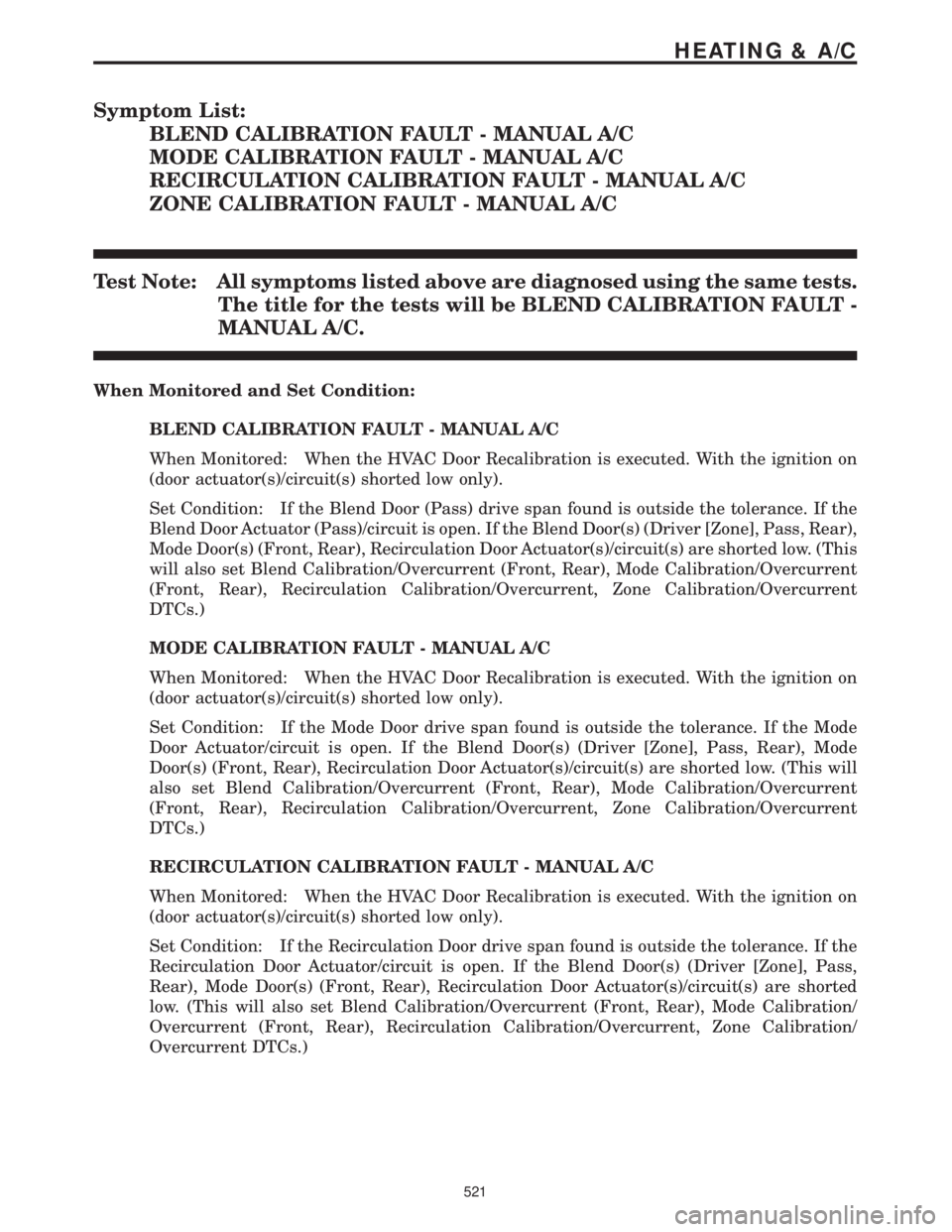

Symptom List:
BLEND CALIBRATION FAULT - MANUAL A/C
MODE CALIBRATION FAULT - MANUAL A/C
RECIRCULATION CALIBRATION FAULT - MANUAL A/C
ZONE CALIBRATION FAULT - MANUAL A/C
Test Note: All symptoms listed above are diagnosed using the same tests.
The title for the tests will be BLEND CALIBRATION FAULT -
MANUAL A/C.
When Monitored and Set Condition:
BLEND CALIBRATION FAULT - MANUAL A/C
When Monitored: When the HVAC Door Recalibration is executed. With the ignition on
(door actuator(s)/circuit(s) shorted low only).
Set Condition: If the Blend Door (Pass) drive span found is outside the tolerance. If the
Blend Door Actuator (Pass)/circuit is open. If the Blend Door(s) (Driver [Zone], Pass, Rear),
Mode Door(s) (Front, Rear), Recirculation Door Actuator(s)/circuit(s) are shorted low. (This
will also set Blend Calibration/Overcurrent (Front, Rear), Mode Calibration/Overcurrent
(Front, Rear), Recirculation Calibration/Overcurrent, Zone Calibration/Overcurrent
DTCs.)
MODE CALIBRATION FAULT - MANUAL A/C
When Monitored: When the HVAC Door Recalibration is executed. With the ignition on
(door actuator(s)/circuit(s) shorted low only).
Set Condition: If the Mode Door drive span found is outside the tolerance. If the Mode
Door Actuator/circuit is open. If the Blend Door(s) (Driver [Zone], Pass, Rear), Mode
Door(s) (Front, Rear), Recirculation Door Actuator(s)/circuit(s) are shorted low. (This will
also set Blend Calibration/Overcurrent (Front, Rear), Mode Calibration/Overcurrent
(Front, Rear), Recirculation Calibration/Overcurrent, Zone Calibration/Overcurrent
DTCs.)
RECIRCULATION CALIBRATION FAULT - MANUAL A/C
When Monitored: When the HVAC Door Recalibration is executed. With the ignition on
(door actuator(s)/circuit(s) shorted low only).
Set Condition: If the Recirculation Door drive span found is outside the tolerance. If the
Recirculation Door Actuator/circuit is open. If the Blend Door(s) (Driver [Zone], Pass,
Rear), Mode Door(s) (Front, Rear), Recirculation Door Actuator(s)/circuit(s) are shorted
low. (This will also set Blend Calibration/Overcurrent (Front, Rear), Mode Calibration/
Overcurrent (Front, Rear), Recirculation Calibration/Overcurrent, Zone Calibration/
Overcurrent DTCs.)
521
HEATING & A/C
