CHRYSLER VOYAGER 2001 Service Manual

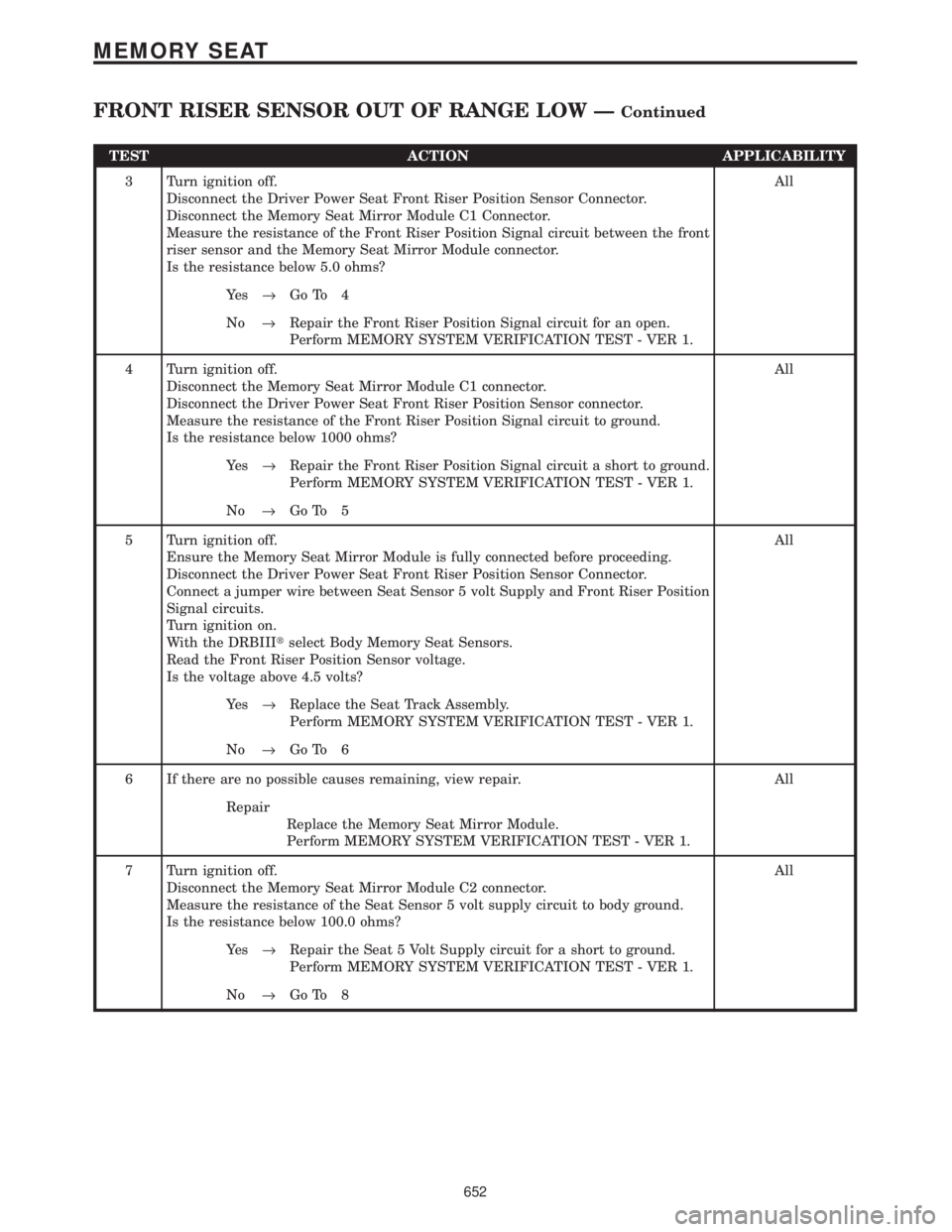

TEST ACTION APPLICABILITY
3 Turn ignition off.
Disconnect the Driver Power Seat Front Riser Position Sensor Connector.
Disconnect the Memory Seat Mirror Module C1 Connector.
Measure the resistance of the Front Riser Position Signal circuit between the front
riser sensor and the Memory Seat Mirror Module connector.
Is the resistance below 5.0 ohms?All
Ye s®Go To 4
No®Repair the Front Riser Position Signal circuit for an open.
Perform MEMORY SYSTEM VERIFICATION TEST - VER 1.
4 Turn ignition off.
Disconnect the Memory Seat Mirror Module C1 connector.
Disconnect the Driver Power Seat Front Riser Position Sensor connector.
Measure the resistance of the Front Riser Position Signal circuit to ground.
Is the resistance below 1000 ohms?All
Ye s®Repair the Front Riser Position Signal circuit a short to ground.
Perform MEMORY SYSTEM VERIFICATION TEST - VER 1.
No®Go To 5
5 Turn ignition off.
Ensure the Memory Seat Mirror Module is fully connected before proceeding.
Disconnect the Driver Power Seat Front Riser Position Sensor Connector.
Connect a jumper wire between Seat Sensor 5 volt Supply and Front Riser Position
Signal circuits.
Turn ignition on.
With the DRBIIItselect Body Memory Seat Sensors.
Read the Front Riser Position Sensor voltage.
Is the voltage above 4.5 volts?All
Ye s®Replace the Seat Track Assembly.
Perform MEMORY SYSTEM VERIFICATION TEST - VER 1.
No®Go To 6
6 If there are no possible causes remaining, view repair. All
Repair
Replace the Memory Seat Mirror Module.
Perform MEMORY SYSTEM VERIFICATION TEST - VER 1.
7 Turn ignition off.
Disconnect the Memory Seat Mirror Module C2 connector.
Measure the resistance of the Seat Sensor 5 volt supply circuit to body ground.
Is the resistance below 100.0 ohms?All
Ye s®Repair the Seat 5 Volt Supply circuit for a short to ground.
Perform MEMORY SYSTEM VERIFICATION TEST - VER 1.
No®Go To 8
652
MEMORY SEAT
FRONT RISER SENSOR OUT OF RANGE LOW ÐContinued

TEST ACTION APPLICABILITY

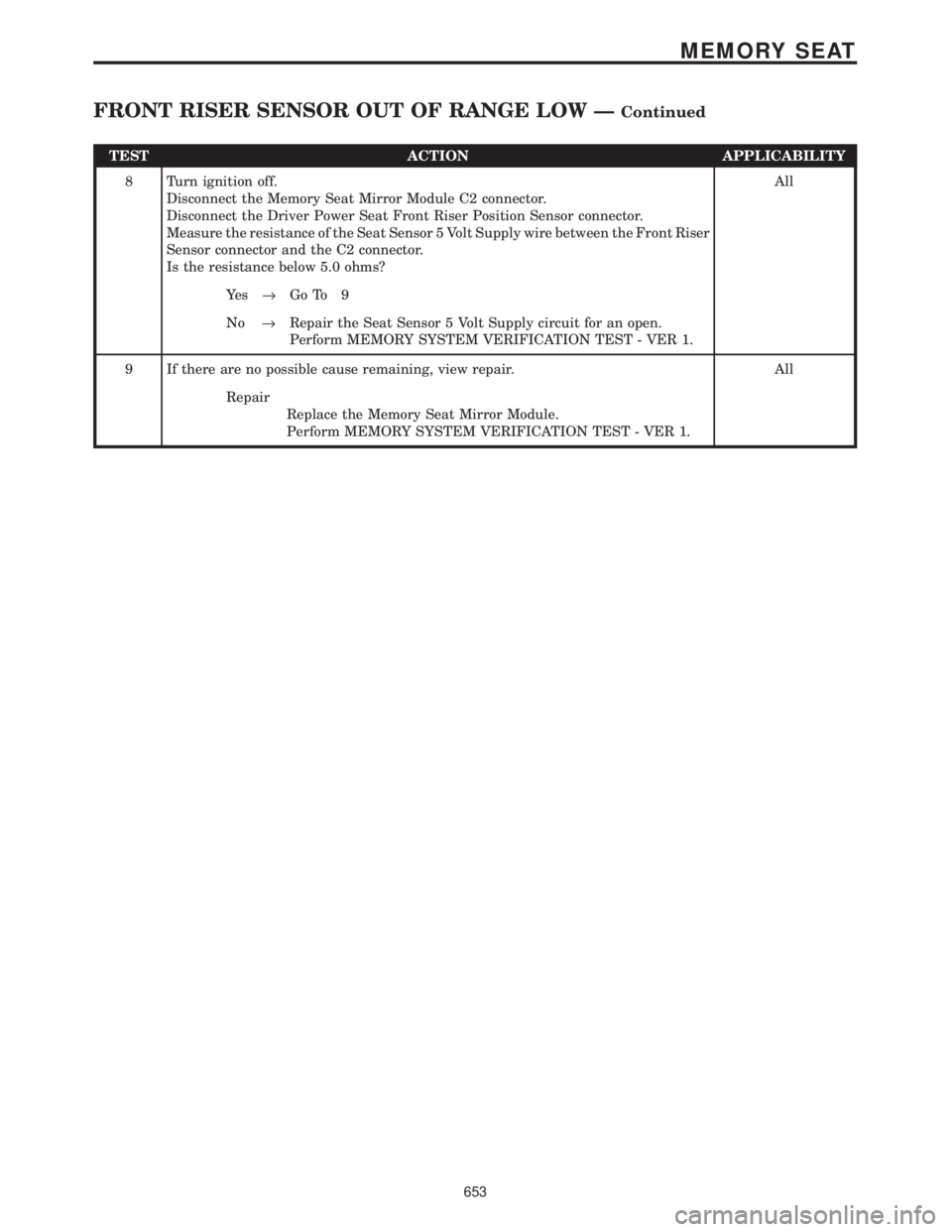

8 Turn ignition off.
Disconnect the Memory Seat Mirror Module C2 connector.
Disconnect the Driver Power Seat Front Riser Position Sensor connector.
Measure the resistance of the Seat Sensor 5 Volt Supply wire between the Front Riser
Sensor connector and the C2 connector.
Is the resistance below 5.0 ohms?All
Ye s®Go To 9
No®Repair the Seat Sensor 5 Volt Supply circuit for an open.
Perform MEMORY SYSTEM VERIFICATION TEST - VER 1.
9 If there are no possible cause remaining, view repair. All
Repair
Replace the Memory Seat Mirror Module.
Perform MEMORY SYSTEM VERIFICATION TEST - VER 1.
653
MEMORY SEAT
FRONT RISER SENSOR OUT OF RANGE LOW ÐContinued

Symptom:
FRONT RISER UP POSITION STUCK
When Monitored and Set Condition:
FRONT RISER UP POSITION STUCK
When Monitored: Continuously when the PCI bus is active.
Set Condition: If the seat switch is active for 30 seconds, this code will set and the MSMM
will ignore the input until the state has changed. Three seconds after the stuck condition
is removed, the seat will resume to normal operation. Code will remain for 50 ignition
cycles.
POSSIBLE CAUSES
STORED DIAGNOSTIC TROUBLE CODE
POWER SEAT SWITCH
SEAT FRONT UP SWITCH SENSE WIRE SHORT TO VOLTAGE
MEMORY SEAT MIRROR MODULE
TEST ACTION APPLICABILITY
1 With the DRBIIIt, erase the DTC from Memory Seat Mirror Module.
Operate the driver's power seat and memory system.
Turn the ignition switch to the Off position then start the engine and let run for one
minute.
With the DRB check for the same DTC to reset in the MSMM.
Did the same DTC reset?All
Ye s®Go To 2
No®Using the wiring diagram/schematic as a guide, inspect the
wiring and connectors for an intermittent condition.
Perform MEMORY SYSTEM VERIFICATION TEST - VER 1.
2 Disconnect the Power Seat Switch connector.
Measure the voltage of the Seat Front Up Switch Sense circuit.
Is there any voltage present?All
Ye s®Go To 3
No®Replace the Power Seat Switch.
Perform MEMORY SYSTEM VERIFICATION TEST - VER 1.
3 Disconnect the Power Seat Switch connector.
Disconnect the Memory Seat Mirror Module C1 connector.
Turn the ignition on.
Measure the voltage of the Seat Front Up Switch Sense circuit to ground..
Is there any voltage present?All
Ye s®Repair the Seat Front Up Switch Sense wire for a short to voltage.
Perform MEMORY SYSTEM VERIFICATION TEST - VER 1.
No®Go To 4
654
MEMORY SEAT

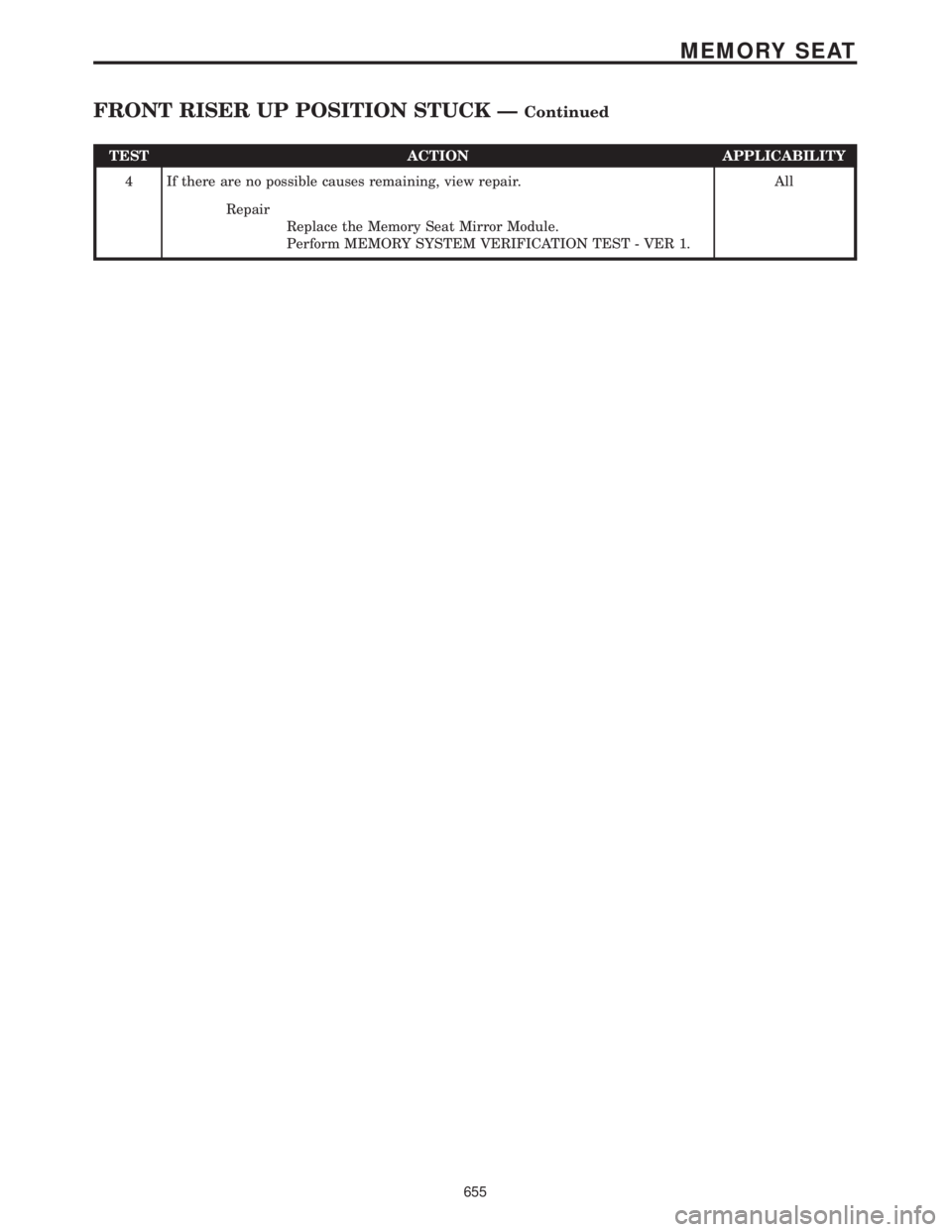

TEST ACTION APPLICABILITY
4 If there are no possible causes remaining, view repair. All
Repair
Replace the Memory Seat Mirror Module.
Perform MEMORY SYSTEM VERIFICATION TEST - VER 1.
655
MEMORY SEAT
FRONT RISER UP POSITION STUCK ÐContinued

Symptom:
HORIZONTAL FORWARD POSITION STUCK
When Monitored and Set Condition:
HORIZONTAL FORWARD POSITION STUCK
When Monitored: Continuously when the PCI bus is active.
Set Condition: If the seat switch is active for 30 seconds, this code will set and the
Memory Seat Mirror Module will ignore the input until the state has changed. Three
seconds after the stuck condition is removed, the seat will resume to normal operation.
Code will remain for 50 ignition cycles.
POSSIBLE CAUSES
STORED DIAGNOSTIC TROUBLE CODE
DRIVER POWER SEAT SWITCH
HORIZONTAL FORWARD SWITCH SENSE WIRE SHORT TO VOLTAGE
MEMORY SEAT MIRROR MODULE
TEST ACTION APPLICABILITY
1 With the DRBIIIt, erase the DTC from Memory Seat Mirror Module.
Operate the driver's power seat and memory system.
Turn the ignition switch to the Off position then start the engine and let run for one
minute.
With the DRB check for the same DTC to reset in the MSMM.
Did the same DTC reset?All
Ye s®Go To 2
No®Using the wiring diagram/schematic as a guide, inspect the
wiring and connectors for an intermittent condition.
Perform MEMORY SYSTEM VERIFICATION TEST - VER 1.
2 Disconnect the Power Seat Switch connector.
Measure the voltage of the Seat Horizontal Forward Switch Sense circuit.
Is there any voltage present?All
Ye s®Go To 3
No®Replace the Power Seat Switch.
Perform MEMORY SYSTEM VERIFICATION TEST - VER 1.
3 Disconnect the Power Seat Switch connector.
Disconnect the Memory Seat Mirror Module C1 connector.
Turn the ignition on.
Measure the voltage of the Horizontal Forward Switch Sense circuit to ground..
Is there any voltage present?All
Ye s®Repair the Horizontal Forward Switch Sense wire for a short to
voltage.
Perform MEMORY SYSTEM VERIFICATION TEST - VER 1.
No®Go To 4
656
MEMORY SEAT

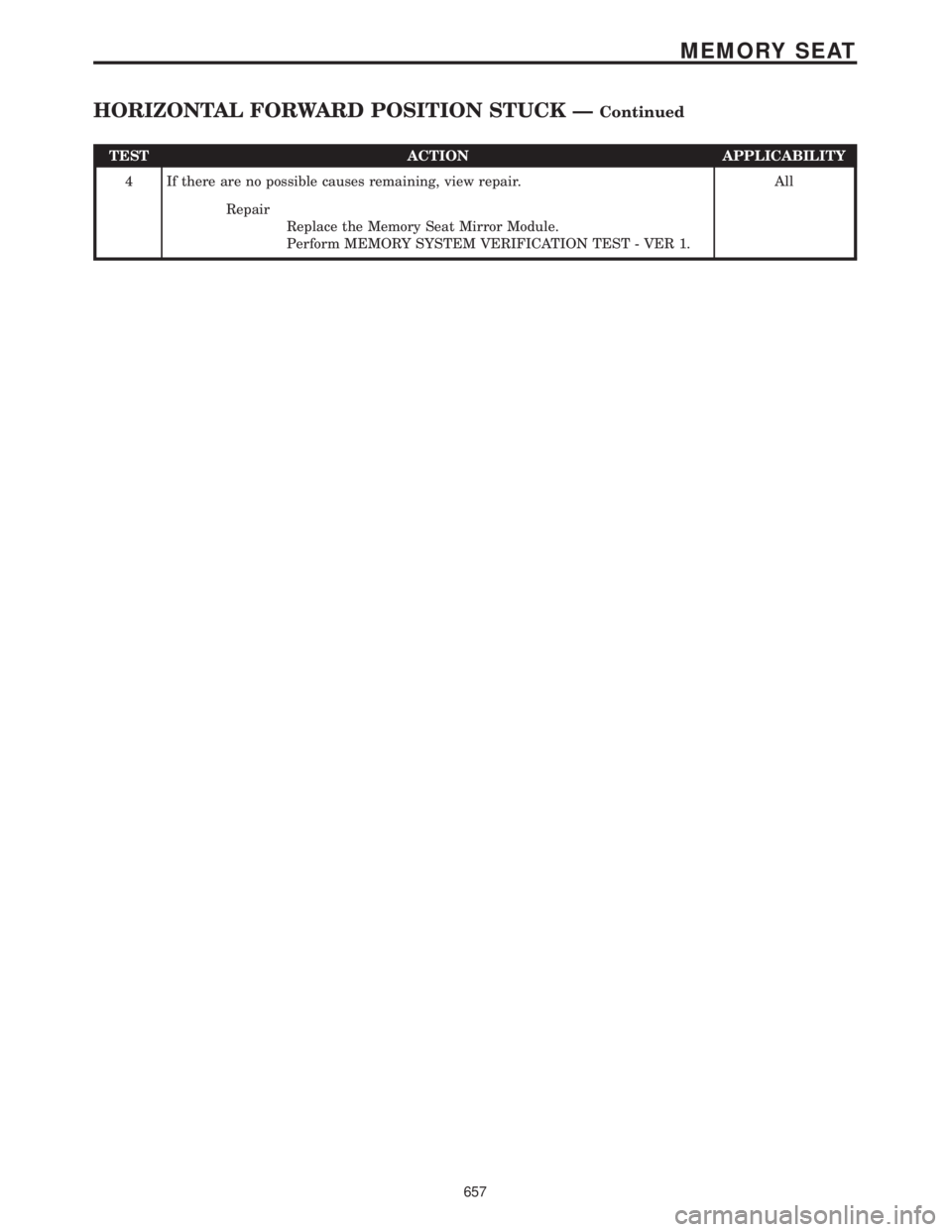

TEST ACTION APPLICABILITY
4 If there are no possible causes remaining, view repair. All
Repair
Replace the Memory Seat Mirror Module.
Perform MEMORY SYSTEM VERIFICATION TEST - VER 1.
657
MEMORY SEAT
HORIZONTAL FORWARD POSITION STUCK ÐContinued

Symptom:
HORIZONTAL REARWARD POSITION STUCK
When Monitored and Set Condition:
HORIZONTAL REARWARD POSITION STUCK
When Monitored: Continuously when the PCI bus is active.
Set Condition: If the seat switch is active for 30 seconds, this code will set and the
Memory Seat Mirror Module will ignore the input until the state has changed. Once the
stuck condition is removed, the seat will resume to normal operation. Code will remain for
50 ignition cycles.
POSSIBLE CAUSES
STORED DIAGNOSTIC TROUBLE CODE
DRIVER POWER SEAT SWITCH
SEAT HORIZONTAL REARWARD SWITCH SENSE WIRE SHORT TO VOLTAGE
MEMORY SEAT MIRROR MODULE
TEST ACTION APPLICABILITY
1 With the DRBIIIt, erase the DTC from Memory Seat Mirror Module.
Operate the driver's power seat and memory system.
Turn the ignition switch to the Off position then start the engine and let run for one
minute.
With the DRB check for the same DTC to reset in the MSMM.
Did the same DTC reset?All
Ye s®Go To 2
No®Using the wiring diagram/schematic as a guide, inspect the
wiring and connectors for an intermittent condition.
Perform MEMORY SYSTEM VERIFICATION TEST - VER 1.
2 Disconnect the Power Seat Switch connector.
Measure the voltage of the Seat Horizontal Rearward Switch Sense circuit.
Is there any voltage present?All
Ye s®Go To 3
No®Replace the Power Seat Switch.
Perform MEMORY SYSTEM VERIFICATION TEST - VER 1.
658
MEMORY SEAT

TEST ACTION APPLICABILITY
3 Disconnect the Power Seat Switch connector.
Disconnect the Memory Seat Mirror Module C1 connector.
Turn the ignition on.
Measure the voltage of the Seat Horizontal Rearward Switch Sense circuit to
ground..
Is there any voltage present?All
Ye s®Repair the Seat Horizontal Rearward Switch Sense wire for a
short to voltage.
Perform MEMORY SYSTEM VERIFICATION TEST - VER 1.
No®Go To 4
4 If there are no possible causes remaining, view repair. All
Repair
Replace the Memory Seat Mirror Module.
Perform MEMORY SYSTEM VERIFICATION TEST - VER 1.
659
MEMORY SEAT
HORIZONTAL REARWARD POSITION STUCK ÐContinued

Symptom:
HORIZONTAL SENSOR OUT OF RANGE HIGH
When Monitored and Set Condition:
HORIZONTAL SENSOR OUT OF RANGE HIGH
When Monitored: Continuously when the PCI bus is active.
Set Condition: This condition is immediately set when the seat motor potentiometer
feeds a value higher than the Memory Seat Mirror Module has stored in EEPROM. Code
will remain for 50 ignition cycles.
POSSIBLE CAUSES
MEMORY SEAT MIRROR MODULE SENSOR GROUND OPEN
SEAT SENSOR GROUND WIRE OPEN
5 VOLT SUPPLY SHORTED HIGH
CHECK VOLTAGE ON HORIZONTAL POSITION SIGNAL CIRCUIT
HORIZONTAL SENSOR HIGH
CHECK HORIZONTAL SENSOR SHORT TO MOTOR
MEMORY SEAT MIRROR MODULE HORIZONTAL SENSOR HIGH
STORED DIAGNOSTIC TROUBLE CODE
TEST ACTION APPLICABILITY
1 With the DRBIIIt, erase the DTC from Memory Seat Mirror Module.
Operate the driver's power seat and memory system.
Turn the ignition switch to the Off position then start the engine and let run for one
minute.
With the DRB check for the same DTC to reset in the MSMM.
Did the same DTC reset?All
Ye s®Go To 2
No®Using the wiring diagram/schematic as a guide, inspect the
wiring and connectors for an intermittent condition.
Perform MEMORY SYSTEM VERIFICATION TEST - VER 1.
2 Turn ignition off.
Disconnect the Driver Power Seat Horizontal Position Sensor connector.
Measure the resistance of the Seat Position Sensor Ground circuit at the driver
power seat Horizontal connector.
Is the resistance below 5.0 ohms?All
Ye s®Go To 3
No®Go To 8
660
MEMORY SEAT

TEST ACTION APPLICABILITY

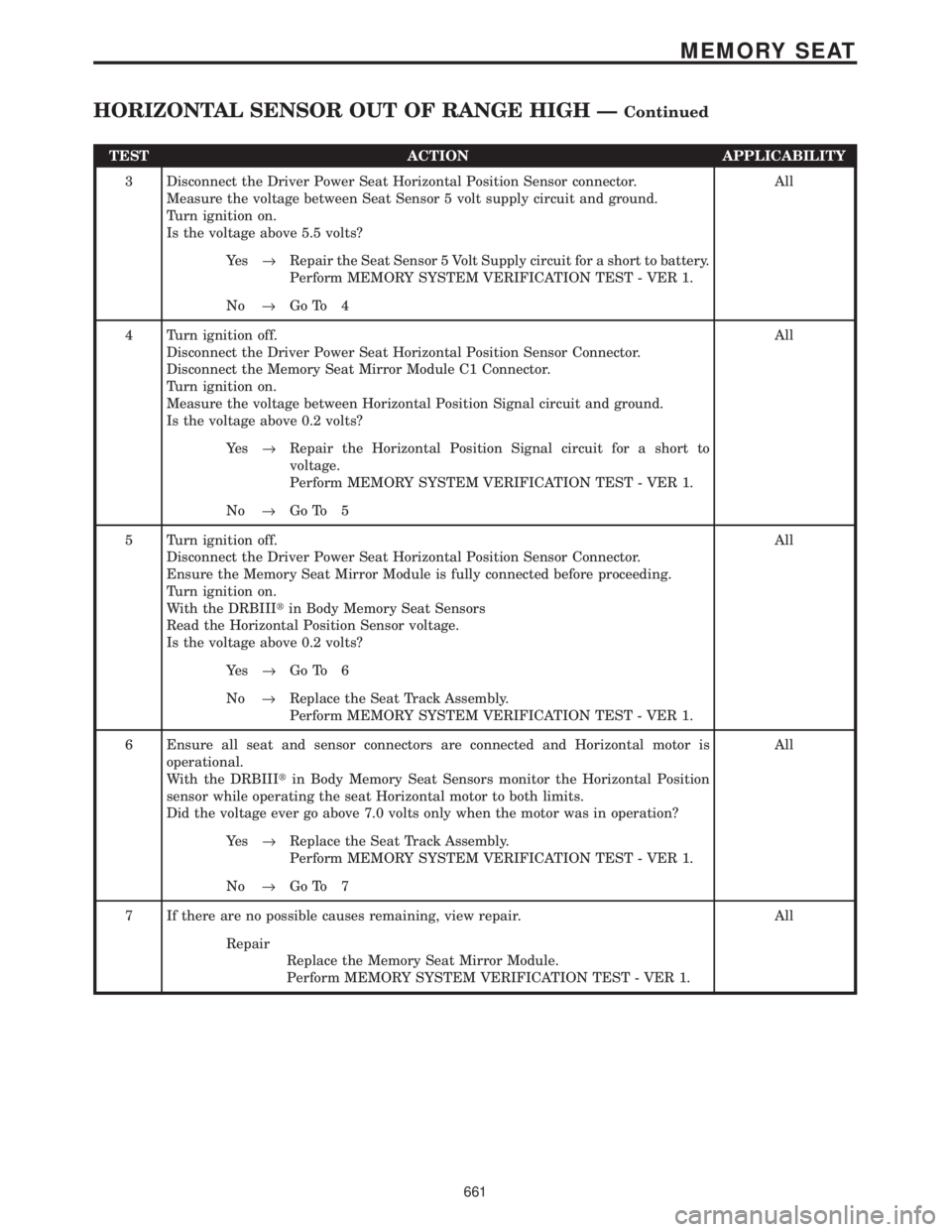

3 Disconnect the Driver Power Seat Horizontal Position Sensor connector.
Measure the voltage between Seat Sensor 5 volt supply circuit and ground.
Turn ignition on.
Is the voltage above 5.5 volts?All
Ye s®Repair the Seat Sensor 5 Volt Supply circuit for a short to battery.
Perform MEMORY SYSTEM VERIFICATION TEST - VER 1.
No®Go To 4
4 Turn ignition off.
Disconnect the Driver Power Seat Horizontal Position Sensor Connector.
Disconnect the Memory Seat Mirror Module C1 Connector.
Turn ignition on.
Measure the voltage between Horizontal Position Signal circuit and ground.
Is the voltage above 0.2 volts?All
Ye s®Repair the Horizontal Position Signal circuit for a short to
voltage.
Perform MEMORY SYSTEM VERIFICATION TEST - VER 1.
No®Go To 5
5 Turn ignition off.
Disconnect the Driver Power Seat Horizontal Position Sensor Connector.
Ensure the Memory Seat Mirror Module is fully connected before proceeding.
Turn ignition on.
With the DRBIIItin Body Memory Seat Sensors
Read the Horizontal Position Sensor voltage.
Is the voltage above 0.2 volts?All
Ye s®Go To 6
No®Replace the Seat Track Assembly.
Perform MEMORY SYSTEM VERIFICATION TEST - VER 1.
6 Ensure all seat and sensor connectors are connected and Horizontal motor is
operational.
With the DRBIIItin Body Memory Seat Sensors monitor the Horizontal Position
sensor while operating the seat Horizontal motor to both limits.
Did the voltage ever go above 7.0 volts only when the motor was in operation?All
Ye s®Replace the Seat Track Assembly.
Perform MEMORY SYSTEM VERIFICATION TEST - VER 1.
No®Go To 7
7 If there are no possible causes remaining, view repair. All
Repair
Replace the Memory Seat Mirror Module.
Perform MEMORY SYSTEM VERIFICATION TEST - VER 1.
661
MEMORY SEAT
HORIZONTAL SENSOR OUT OF RANGE HIGH ÐContinued
