CHRYSLER VOYAGER 2001 Service Manual

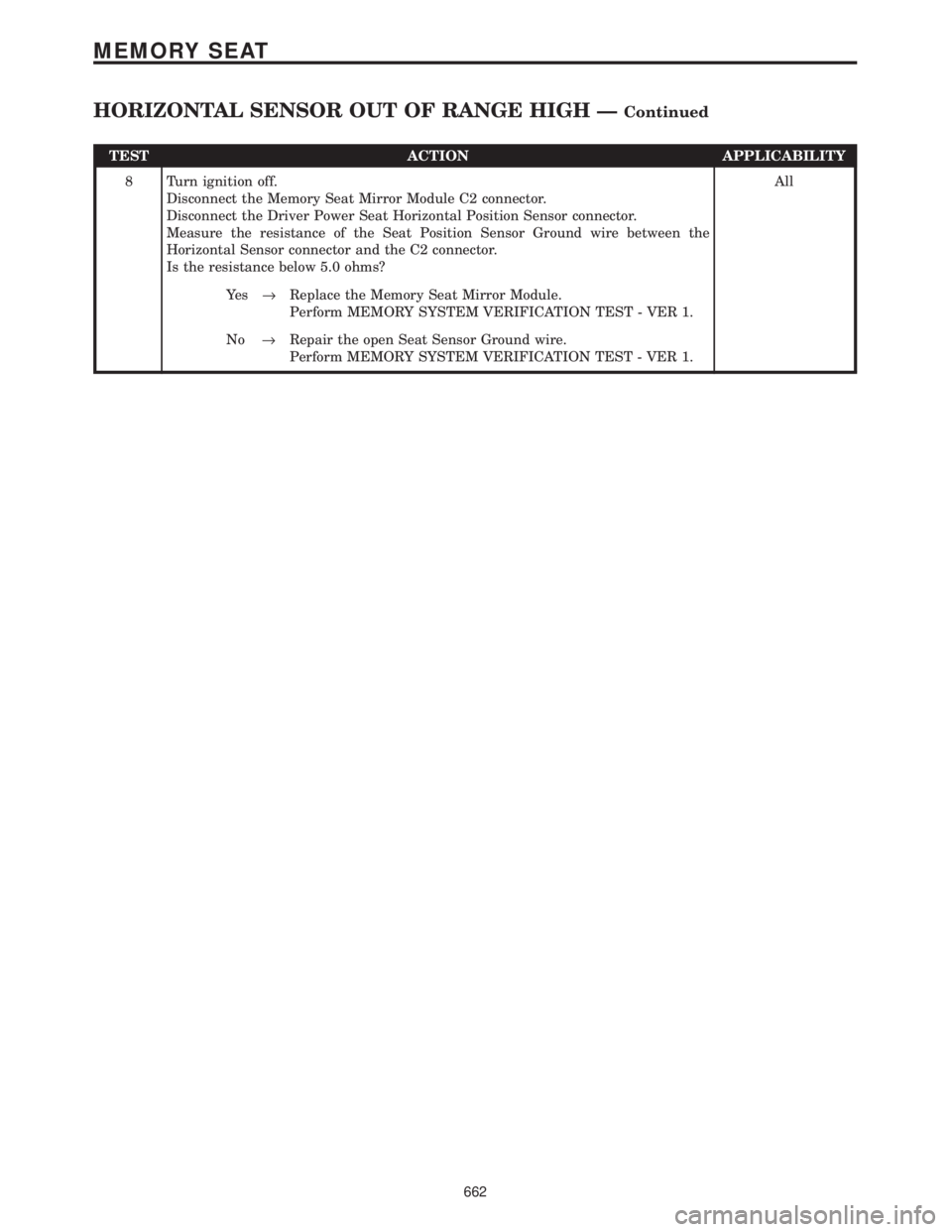

TEST ACTION APPLICABILITY
8 Turn ignition off.
Disconnect the Memory Seat Mirror Module C2 connector.
Disconnect the Driver Power Seat Horizontal Position Sensor connector.
Measure the resistance of the Seat Position Sensor Ground wire between the
Horizontal Sensor connector and the C2 connector.
Is the resistance below 5.0 ohms?All
Ye s®Replace the Memory Seat Mirror Module.
Perform MEMORY SYSTEM VERIFICATION TEST - VER 1.
No®Repair the open Seat Sensor Ground wire.
Perform MEMORY SYSTEM VERIFICATION TEST - VER 1.
662
MEMORY SEAT
HORIZONTAL SENSOR OUT OF RANGE HIGH ÐContinued

Symptom:
HORIZONTAL SENSOR OUT OF RANGE LOW
When Monitored and Set Condition:
HORIZONTAL SENSOR OUT OF RANGE LOW
When Monitored: Continuously when the PCI bus is active.
Set Condition: This condition is immediately set when the seat motor potentiometer
feeds a value lower than the Memory Seat Mirror Module has stored in EEPROM. Code
will remain for 50 ignition cycles.
POSSIBLE CAUSES
SEAT 5 VOLT SUPPLY WIRE SHORT TO GROUND
SEAT SENSOR 5 VOLT SUPPLY WIRE OPEN
HORIZONTAL POSITION SIGNAL CIRCUIT OPEN
HORIZONTAL POSITION SIGNAL CIRCUIT SHORT TO GROUND
MEMORY SEAT MIRROR MODULE 5 VOLT SUPPLY
HORIZONTAL SENSOR LOW
MEMORY SEAT MIRROR MODULE HORIZONTAL LOW
STORED DIAGNOSTIC TROUBLE CODE
TEST ACTION APPLICABILITY
1 With the DRBIIIt, erase the DTC from Memory Seat Mirror Module.
Operate the driver's power seat and memory system.
Turn the ignition switch to the Off position then start the engine and let run for one
minute.
With the DRB check for the same DTC to reset in the MSMM.
Did the same DTC reset?All
Ye s®Go To 2
No®Using the wiring diagram/schematic as a guide, inspect the
wiring and connectors for an intermittent condition.
Perform MEMORY SYSTEM VERIFICATION TEST - VER 1.
2 Ensure the Memory Seat Mirror Module is fully connected before proceeding.
Disconnect the Driver Power Seat Horizontal Position Sensor connector.
Turn ignition on.
Measure the voltage of the Seat Sensor 5 Volt Supply circuit at Horizontal sensor
connector.
Is the voltage above 4.5 volts?All
Ye s®Go To 3
No®Go To 7
663

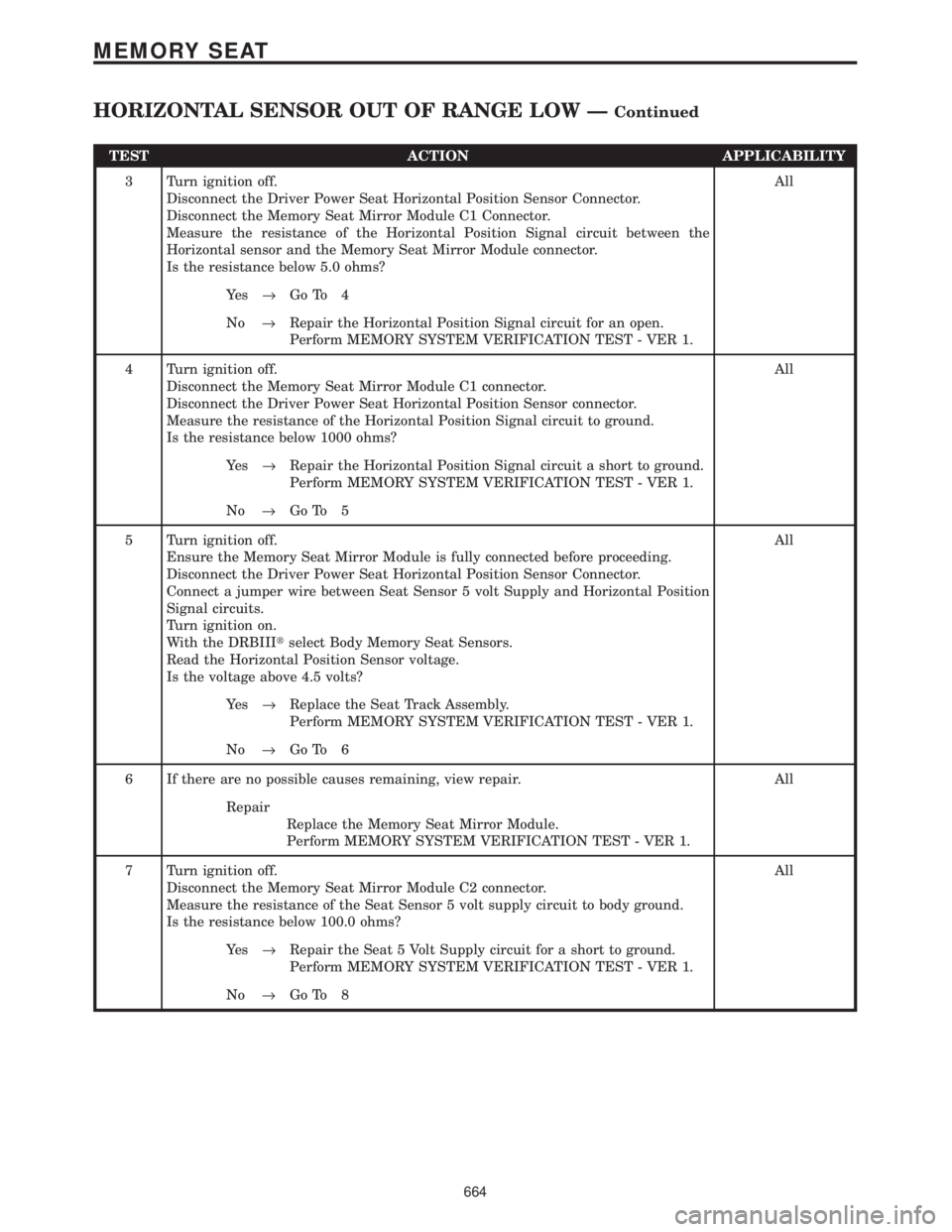

MEMORY SEAT

TEST ACTION APPLICABILITY
3 Turn ignition off.
Disconnect the Driver Power Seat Horizontal Position Sensor Connector.
Disconnect the Memory Seat Mirror Module C1 Connector.
Measure the resistance of the Horizontal Position Signal circuit between the
Horizontal sensor and the Memory Seat Mirror Module connector.
Is the resistance below 5.0 ohms?All
Ye s®Go To 4
No®Repair the Horizontal Position Signal circuit for an open.
Perform MEMORY SYSTEM VERIFICATION TEST - VER 1.
4 Turn ignition off.
Disconnect the Memory Seat Mirror Module C1 connector.
Disconnect the Driver Power Seat Horizontal Position Sensor connector.
Measure the resistance of the Horizontal Position Signal circuit to ground.
Is the resistance below 1000 ohms?All
Ye s®Repair the Horizontal Position Signal circuit a short to ground.
Perform MEMORY SYSTEM VERIFICATION TEST - VER 1.
No®Go To 5
5 Turn ignition off.
Ensure the Memory Seat Mirror Module is fully connected before proceeding.
Disconnect the Driver Power Seat Horizontal Position Sensor Connector.
Connect a jumper wire between Seat Sensor 5 volt Supply and Horizontal Position
Signal circuits.
Turn ignition on.
With the DRBIIItselect Body Memory Seat Sensors.
Read the Horizontal Position Sensor voltage.
Is the voltage above 4.5 volts?All
Ye s®Replace the Seat Track Assembly.
Perform MEMORY SYSTEM VERIFICATION TEST - VER 1.
No®Go To 6
6 If there are no possible causes remaining, view repair. All
Repair
Replace the Memory Seat Mirror Module.
Perform MEMORY SYSTEM VERIFICATION TEST - VER 1.
7 Turn ignition off.
Disconnect the Memory Seat Mirror Module C2 connector.
Measure the resistance of the Seat Sensor 5 volt supply circuit to body ground.
Is the resistance below 100.0 ohms?All
Ye s®Repair the Seat 5 Volt Supply circuit for a short to ground.
Perform MEMORY SYSTEM VERIFICATION TEST - VER 1.
No®Go To 8
664

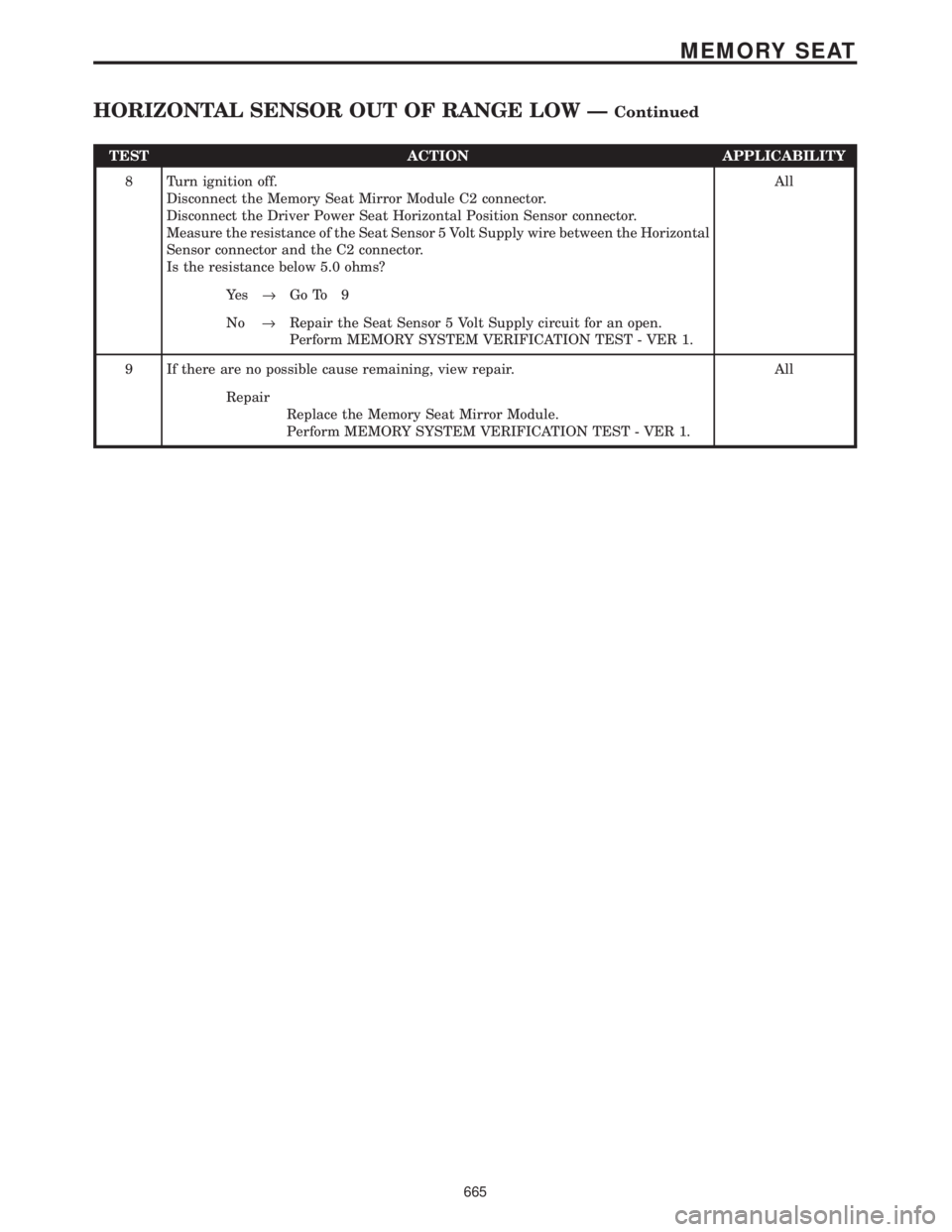

MEMORY SEAT
HORIZONTAL SENSOR OUT OF RANGE LOW ÐContinued

TEST ACTION APPLICABILITY
8 Turn ignition off.
Disconnect the Memory Seat Mirror Module C2 connector.
Disconnect the Driver Power Seat Horizontal Position Sensor connector.
Measure the resistance of the Seat Sensor 5 Volt Supply wire between the Horizontal
Sensor connector and the C2 connector.
Is the resistance below 5.0 ohms?All
Ye s®Go To 9
No®Repair the Seat Sensor 5 Volt Supply circuit for an open.
Perform MEMORY SYSTEM VERIFICATION TEST - VER 1.
9 If there are no possible cause remaining, view repair. All
Repair
Replace the Memory Seat Mirror Module.
Perform MEMORY SYSTEM VERIFICATION TEST - VER 1.
665
MEMORY SEAT
HORIZONTAL SENSOR OUT OF RANGE LOW ÐContinued

Symptom:
LEFT MIRROR HORIZONTAL SENSOR OUT OF RANGE HIGH
When Monitored and Set Condition:
LEFT MIRROR HORIZONTAL SENSOR OUT OF RANGE HIGH
When Monitored: Continuously when the PCI bus is active
Set Condition: This code is set when the mirror sensor feedback to the Memory Seat
Mirror Module is greater than the mirror out of range high value stored in EEPROM. Code
will remain for 50 ignition cycles.
POSSIBLE CAUSES
LEFT MIRROR HORIZONTAL POSITION WIRE SHORTED TO VOLTAGE
LEFT MIRROR SENSOR GROUND WIRE OPEN
STORED DIAGNOSTIC TROUBLE CODE
LEFT MIRROR HORIZONTAL POSITION SIGNAL OPEN
LEFT POWER MIRROR
MEMORY SEAT MIRROR MODULE HORIZONTAL POSITION SIGNAL
MEMORY SEAT MIRROR MODULE SENSOR GROUND
TEST ACTION APPLICABILITY
1 With the DRBIIIt, erase the DTC from Memory Seat Mirror Module.
Operate the driver's power seat and memory system.
Turn the ignition switch to the Off position then start the engine and let run for one
minute.
With the DRB check for the same DTC to reset in the MSMM.
Did the same DTC reset?All
Ye s®Go To 2
No®Using the wiring diagram/schematic as a guide, inspect the
wiring and connectors for an intermittent condition.
Perform MEMORY SYSTEM VERIFICATION TEST - VER 1.
2 Turn the ignition off.
Disconnect the Left Power Mirror connector.
Turn the ignition on.
Measure the voltage of the Left Mirror Horizontal Position Signal circuit in the Left
Power Mirror harness connector.
Is the voltage between 4.5 and 5.5 volts?All
Ye s®Go To 3
No®Go To 6

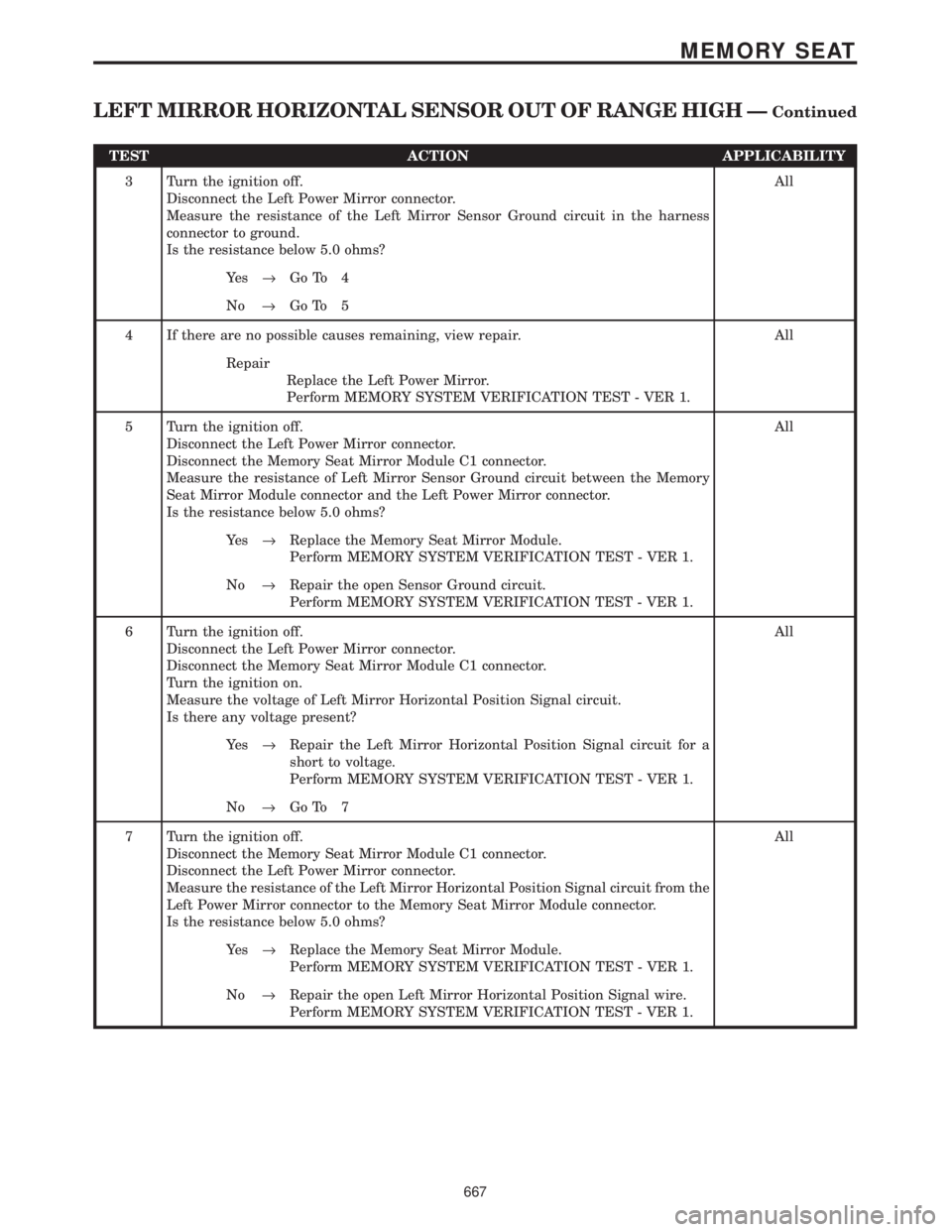

666
MEMORY SEAT

TEST ACTION APPLICABILITY
3 Turn the ignition off.
Disconnect the Left Power Mirror connector.
Measure the resistance of the Left Mirror Sensor Ground circuit in the harness
connector to ground.
Is the resistance below 5.0 ohms?All
Ye s®Go To 4
No®Go To 5
4 If there are no possible causes remaining, view repair. All
Repair
Replace the Left Power Mirror.
Perform MEMORY SYSTEM VERIFICATION TEST - VER 1.
5 Turn the ignition off.
Disconnect the Left Power Mirror connector.
Disconnect the Memory Seat Mirror Module C1 connector.
Measure the resistance of Left Mirror Sensor Ground circuit between the Memory
Seat Mirror Module connector and the Left Power Mirror connector.
Is the resistance below 5.0 ohms?All
Ye s®Replace the Memory Seat Mirror Module.
Perform MEMORY SYSTEM VERIFICATION TEST - VER 1.
No®Repair the open Sensor Ground circuit.
Perform MEMORY SYSTEM VERIFICATION TEST - VER 1.
6 Turn the ignition off.
Disconnect the Left Power Mirror connector.
Disconnect the Memory Seat Mirror Module C1 connector.
Turn the ignition on.
Measure the voltage of Left Mirror Horizontal Position Signal circuit.
Is there any voltage present?All
Ye s®Repair the Left Mirror Horizontal Position Signal circuit for a
short to voltage.
Perform MEMORY SYSTEM VERIFICATION TEST - VER 1.
No®Go To 7
7 Turn the ignition off.
Disconnect the Memory Seat Mirror Module C1 connector.
Disconnect the Left Power Mirror connector.
Measure the resistance of the Left Mirror Horizontal Position Signal circuit from the
Left Power Mirror connector to the Memory Seat Mirror Module connector.
Is the resistance below 5.0 ohms?All
Ye s®Replace the Memory Seat Mirror Module.
Perform MEMORY SYSTEM VERIFICATION TEST - VER 1.
No®Repair the open Left Mirror Horizontal Position Signal wire.
Perform MEMORY SYSTEM VERIFICATION TEST - VER 1.
667
MEMORY SEAT
LEFT MIRROR HORIZONTAL SENSOR OUT OF RANGE HIGH ÐContinued

Symptom:
LEFT MIRROR HORIZONTAL SENSOR OUT OF RANGE LOW
When Monitored and Set Condition:
LEFT MIRROR HORIZONTAL SENSOR OUT OF RANGE LOW
When Monitored: Continuously when the PCI bus is active.
Set Condition: This code is set when the mirror sensor feedback to the MSMM is less than
the mirror out of range low value stored in EEPROM. Code will remain for 50 ignition
cycles.
POSSIBLE CAUSES
MSMM HORIZONTAL POSITION LOW
STORED DIAGNOSTIC TROUBLE CODE
LEFT MIRROR HORIZONTAL POSITION SIGNAL WIRE SHORT TO GROUND
LEFT POWER MIRROR
TEST ACTION APPLICABILITY
1 With the DRBIIIt, erase the DTC from Memory Seat Mirror Module.
Operate the driver's power seat and memory system.
Turn the ignition switch to the Off position then start the engine and let run for one
minute.
With the DRB check for the same DTC to reset in the MSMM.
Did the same DTC reset?All
Ye s®Go To 2
No®Using the wiring diagram/schematic as a guide, inspect the
wiring and connectors for an intermittent condition.
Perform MEMORY SYSTEM VERIFICATION TEST - VER 1.
2 Turn the ignition off.
Disconnect the Left Power Mirror connector.
Turn the ignition on.
Measure the voltage of the Left Mirror Horizontal Position Signal circuit in the Left
Power Mirror harness connector.
Is the voltage between 4.5 and 5.5 volts?All
Ye s®Replace the Left Power Mirror.
Perform MEMORY SYSTEM VERIFICATION TEST - VER 1.
No®Go To 3
668
MEMORY SEAT

TEST ACTION APPLICABILITY
3 Turn the ignition off.
Disconnect the Memory Seat Mirror Module C1 connector.
Disconnect the Left Power Mirror connector.
Measure the resistance of the Left Mirror Horizontal Position Signal circuit to
ground at the Left Power Mirror harness side connector.
Is the resistance below 1000.0 ohms?All
Ye s®Repair the Left Mirror Horizontal Position Signal wire for a short
to ground.
Perform MEMORY SYSTEM VERIFICATION TEST - VER 1.
No®Replace the Memory Seat Mirror Module.
Perform MEMORY SYSTEM VERIFICATION TEST - VER 1.
669
MEMORY SEAT
LEFT MIRROR HORIZONTAL SENSOR OUT OF RANGE LOW ÐContinued

Symptom:
LEFT MIRROR VERTICAL SENSOR OUT OF RANGE HIGH
When Monitored and Set Condition:
LEFT MIRROR VERTICAL SENSOR OUT OF RANGE HIGH
When Monitored: Continuously when the PCI bus is active.
Set Condition: This code is set when the mirror sensor feedback to the Memory Seat
Mirror Module is greater than the mirror out of range high value stored in EEPROM. Code
will remain for 50 ignition cycles.
POSSIBLE CAUSES
LEFT MIRROR SENSOR GROUND WIRE OPEN
LEFT MIRROR VERTICAL POSITION WIRE SHORTED TO VOLTAGE
STORED DIAGNOSTIC TROUBLE CODE
LEFT MIRROR VERTICAL POSITION SIGNAL OPEN
LEFT POWER MIRROR
MEMORY SEAT MIRROR MODULE SENSOR GROUND
MEMORY SEAT MIRROR MODULE VERTICAL POSITION SIGNAL
TEST ACTION APPLICABILITY
1 With the DRBIIIt, erase the DTC from Memory Seat Mirror Module.
Operate the driver's power seat and memory system.
Turn the ignition switch to the Off position then start the engine and let run for one
minute.
With the DRB check for the same DTC to reset in the MSMM.
Did the same DTC reset?All
Ye s®Go To 2
No®Using the wiring diagram/schematic as a guide, inspect the
wiring and connectors for an intermittent condition.
Perform MEMORY SYSTEM VERIFICATION TEST - VER 1.
2 Turn the ignition off.
Disconnect the Left Power Mirror connector.
Turn the ignition on.
Measure the voltage of the Left Mirror Vertical Position Signal circuit in the Left
Power Mirror harness connector.
Is the voltage between 4.5 and 5.5 volts?All
Ye s®Go To 3
No®Go To 6
670
MEMORY SEAT

TEST ACTION APPLICABILITY
3 Turn the ignition off.
Disconnect the Left Power Mirror connector.
Measure the resistance of the Left Mirror Sensor Ground circuit in the harness
connector to ground.
Is the resistance below 5.0 ohms?All
Ye s®Go To 4
No®Go To 5
4 If there are no possible causes remaining, view repair. All
Repair
Replace the Left Power Mirror.
Perform MEMORY SYSTEM VERIFICATION TEST - VER 1.
5 Turn the ignition off.
Disconnect the Left Power Mirror connector.
Disconnect the Memory Seat Mirror Module C1 connector.
Measure the resistance of Left Mirror Sensor Ground circuit between the Memory
Seat Mirror Module connector and the Left Power Mirror connector.
Is the resistance below 5.0 ohms?All
Ye s®Replace the Memory Seat Mirror Module.
Perform MEMORY SYSTEM VERIFICATION TEST - VER 1.
No®Repair the open Sensor Ground circuit.
Perform MEMORY SYSTEM VERIFICATION TEST - VER 1.
6 Turn the ignition off.
Disconnect the Left Power Mirror connector.
Disconnect the Memory Seat Mirror Module C1 connector.
Turn the ignition on.
Measure the voltage of Left Mirror Vertical Position Signal circuit.
Is there any voltage present?All
Ye s®Repair the Left Mirror Vertical Position Signal circuit for a short
to voltage.
Perform MEMORY SYSTEM VERIFICATION TEST - VER 1.
No®Go To 7
7 Turn the ignition off.
Disconnect the Memory Seat Mirror Module C1 connector.
Disconnect the Left Power Mirror connector.
Measure the resistance of the Left Mirror Vertical Position Signal circuit from the left
power mirror connector to the Memory Seat Mirror Module connector.
Is the resistance below 5.0 ohms?All
Ye s®Replace the Memory Seat Mirror Module.
Perform MEMORY SYSTEM VERIFICATION TEST - VER 1.
No®Repair the open Left Mirror Vertical Position Signal wire.
Perform MEMORY SYSTEM VERIFICATION TEST - VER 1.
671
MEMORY SEAT
LEFT MIRROR VERTICAL SENSOR OUT OF RANGE HIGH ÐContinued
