Fig. 93 INNER SIDE SILLS - LONG WHEEL BASE ONLY
Fig. 94 WHEELHOUSES, SIDE SILLS, SUSPENSION BRACKETS - LONG WHEEL BASE ONLY
23 - 188 BODY STRUCTURERS
WELD LOCATIONS (Continued)
ProCarManuals.com

Fig. 95 REAR SEAT REINFORCEMENTS - SHORT WHEEL BASE ONLY
RSBODY STRUCTURE23 - 189
WELD LOCATIONS (Continued)
ProCarManuals.com

Fig. 96 FUEL TANK SUPPORT AND TIRE STOWAGE - SHORT WHEEL BASE ONLY
23 - 190 BODY STRUCTURERS
WELD LOCATIONS (Continued)
ProCarManuals.com

Fig. 97 INNER SIDE SILLS - SHORT WHEEL BASE ONLY
RSBODY STRUCTURE23 - 191
WELD LOCATIONS (Continued)
ProCarManuals.com

Fig. 98 REAR SEAT REINFORCEMENTS - SHORT WHEEL BASE ONLY
23 - 192 BODY STRUCTURERS
WELD LOCATIONS (Continued)
ProCarManuals.com

Fig. 99 CENTER CONSOLE REINFORCEMENT - SHORT WHEEL BASE ONLY
RSBODY STRUCTURE23 - 193
WELD LOCATIONS (Continued)
ProCarManuals.com

Fig. 100 WHEELHOUSES - SHORT WHEEL BASE ONLY
Fig. 101 FRONT SEAT CROSS MEMBER - SHORT WHEELBASE, ALL WHEEL DRIVE ONLY
23 - 194 BODY STRUCTURERS
WELD LOCATIONS (Continued)
ProCarManuals.com

Fig. 102 FLOOR PAN SIDE RAIL - LONG WHEEL BASE ONLY
RSBODY STRUCTURE23 - 195
WELD LOCATIONS (Continued)
ProCarManuals.com

Fig. 103 INNER BODY SIDE SILL REINFORCEMENTS
Fig. 104 TOE BOARD CROSS MEMBER
23 - 196 BODY STRUCTURERS
WELD LOCATIONS (Continued)
ProCarManuals.com

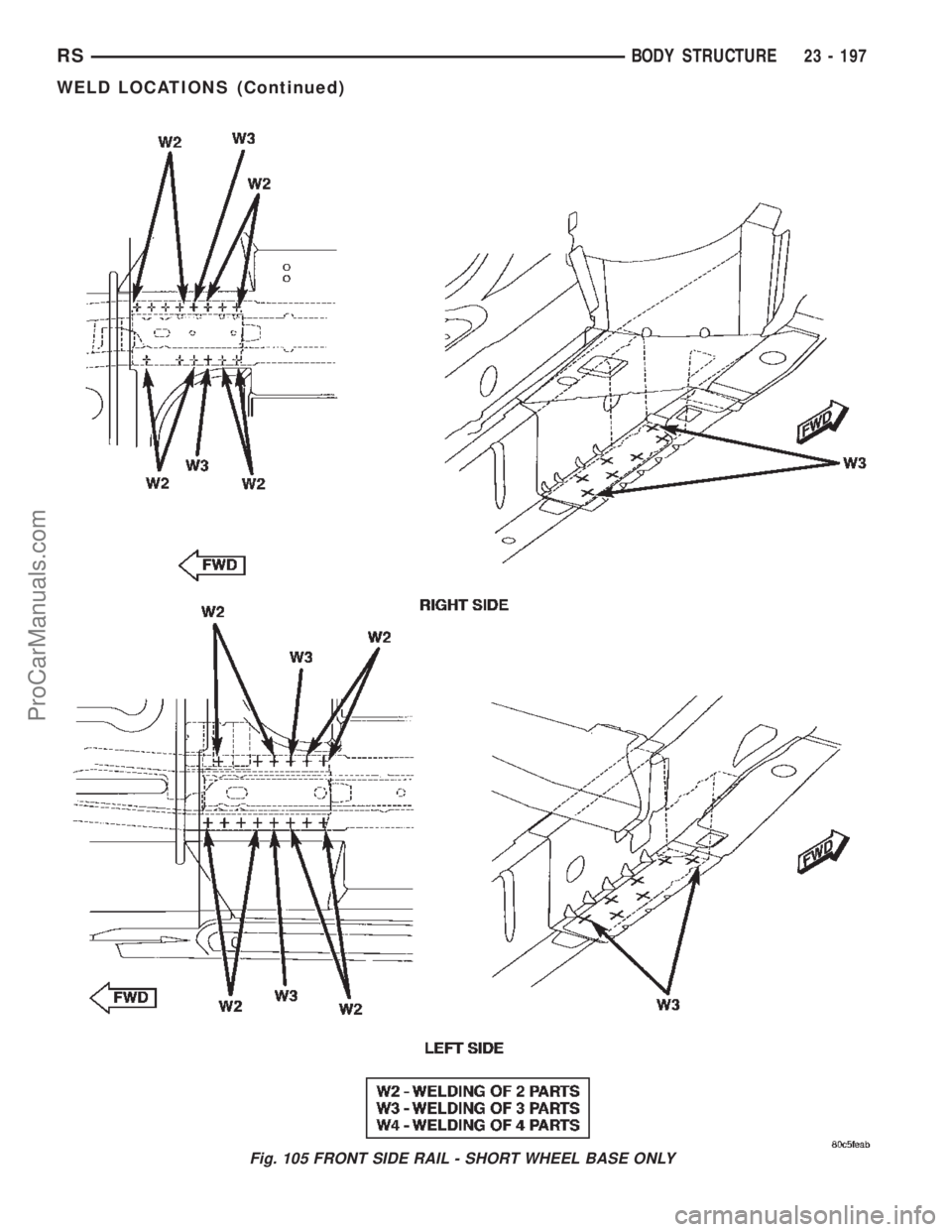

Fig. 105 FRONT SIDE RAIL - SHORT WHEEL BASE ONLY
