Fig. 142 D-PILLAR REINFORCEMENT - SHORT WHEEL BASE ONLY
23 - 228 BODY STRUCTURERS
WELD LOCATIONS (Continued)
ProCarManuals.com

Fig. 143 OUTER WHEELHOUSE - SHORT WHEEL BASE ONLY
RSBODY STRUCTURE23 - 229
WELD LOCATIONS (Continued)
ProCarManuals.com

Fig. 144 BODY SIDE APERTURE RIGHT SIDE- LONG WHEEL BASE ONLY
23 - 230 BODY STRUCTURERS
WELD LOCATIONS (Continued)
ProCarManuals.com

Fig. 145 BODY SIDE APERTURE LEFT SIDE - LONG WHEEL BASE ONLY
RSBODY STRUCTURE23 - 231
WELD LOCATIONS (Continued)
ProCarManuals.com

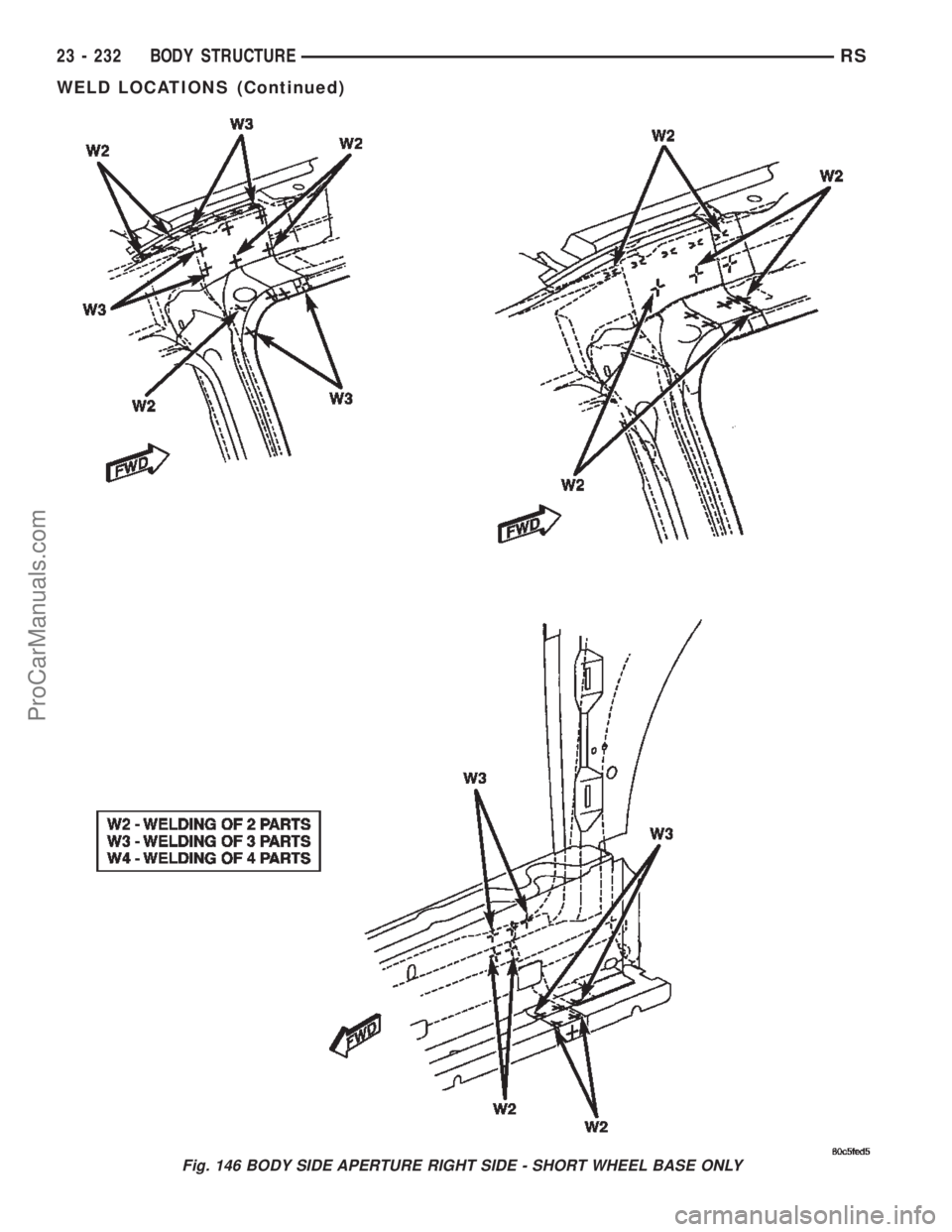

Fig. 146 BODY SIDE APERTURE RIGHT SIDE - SHORT WHEEL BASE ONLY
23 - 232 BODY STRUCTURERS
WELD LOCATIONS (Continued)
ProCarManuals.com

Fig. 147 BODY SIDE APERTURE LEFT SIDE - SHORT WHEEL BASE ONLY
RSBODY STRUCTURE23 - 233
WELD LOCATIONS (Continued)
ProCarManuals.com

Fig. 148 LOWER SLIDING DOOR TRACK
23 - 234 BODY STRUCTURERS
WELD LOCATIONS (Continued)
ProCarManuals.com

Fig. 149 LIFTGATE UPPER FRAME
Fig. 150 UPPER WINDSHIELD FRAME
RSBODY STRUCTURE23 - 235
WELD LOCATIONS (Continued)
ProCarManuals.com

Fig. 151 FRONT FENDER SHIELD BEAM
23 - 236 BODY STRUCTURERS
WELD LOCATIONS (Continued)
ProCarManuals.com

Fig. 152 FRONT FENDER SHIELD BEAM/COWL SIDE PANEL
RSBODY STRUCTURE23 - 237
WELD LOCATIONS (Continued)
