CHRYSLER VOYAGER 2002 Service Manual

Fig. 131 LEFT REAR INNER QUARTER PANEL - LONG WHEEL BASE ONLY
23 - 218 BODY STRUCTURERS
WELD LOCATIONS (Continued)
ProCarManuals.com

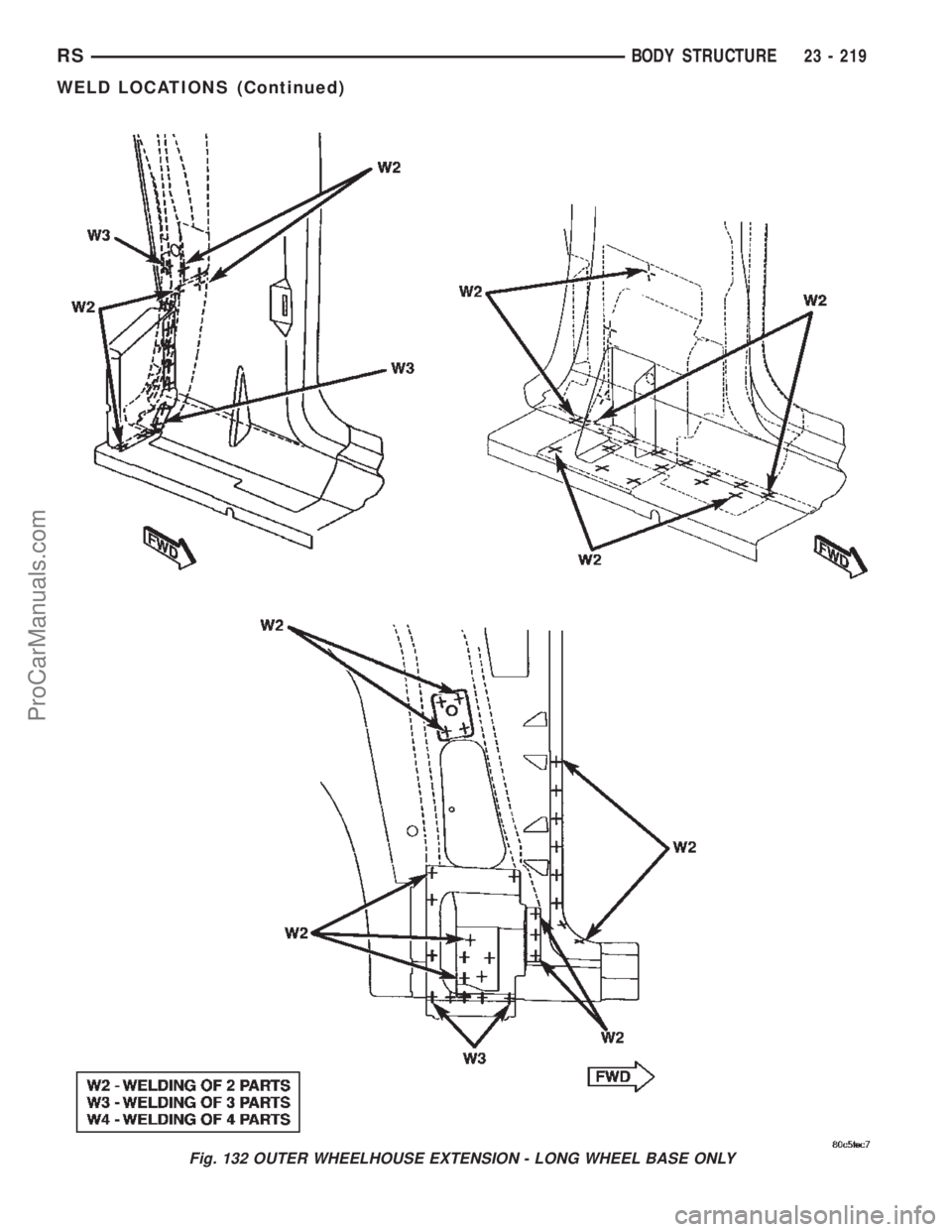

Fig. 132 OUTER WHEELHOUSE EXTENSION - LONG WHEEL BASE ONLY
RSBODY STRUCTURE23 - 219
WELD LOCATIONS (Continued)
ProCarManuals.com

Fig. 133 TAIL LAMP - LONG WHEEL BASE ONLY
Fig. 134 SLIDING DOOR LATCH - LONG WHEEL BASE ONLY
23 - 220 BODY STRUCTURERS
WELD LOCATIONS (Continued)
ProCarManuals.com

Fig. 135 ROOF BOW EXTENSION - LONG WHEEL BASE ONLY
RSBODY STRUCTURE23 - 221
WELD LOCATIONS (Continued)
ProCarManuals.com

Fig. 136 RIGHT REAR INNER QUARTER PANEL - SHORT WHEEL BASE ONLY
23 - 222 BODY STRUCTURERS
WELD LOCATIONS (Continued)
ProCarManuals.com

Fig. 137 LATCH REINFORCEMENT AND OUTER WHEELHOUSE - SHORT WHEEL BASE ONLY
RSBODY STRUCTURE23 - 223
WELD LOCATIONS (Continued)
ProCarManuals.com

Fig. 138 D-PILLAR REINFORCEMENT - SHORT WHEEL BASE ONLY
23 - 224 BODY STRUCTURERS
WELD LOCATIONS (Continued)
ProCarManuals.com

Fig. 139 OUTER WHEELHOUSE - SHORT WHEEL BASE ONLY
RSBODY STRUCTURE23 - 225
WELD LOCATIONS (Continued)
ProCarManuals.com

Fig. 140 LEFT REAR INNER QUARTER PANEL - SHORT WHEEL BASE ONLY
23 - 226 BODY STRUCTURERS
WELD LOCATIONS (Continued)
ProCarManuals.com

Fig. 141 LATCH REINFORCEMENT - SHORT WHEEL BASE ONLY
RSBODY STRUCTURE23 - 227
WELD LOCATIONS (Continued)
ProCarManuals.com
