Fig. 164 REAR SUSPENSION HANGERS - LONG WHEEL BASE SHOWN, SHORT WHEEL BASE TYPICAL
23 - 248 BODY STRUCTURERS
WELD LOCATIONS (Continued)
ProCarManuals.com

Fig. 165 FRONT LOWER LIFTGATE OPENING
Fig. 166 REAR JACKING REINFORCEMENT - LONG WHEEL BASE ONLY
RSBODY STRUCTURE23 - 249
WELD LOCATIONS (Continued)
ProCarManuals.com

Fig. 167 INNER WHEELHOUSE - LONG WHEEL BASE ONLY
23 - 250 BODY STRUCTURERS
WELD LOCATIONS (Continued)
ProCarManuals.com

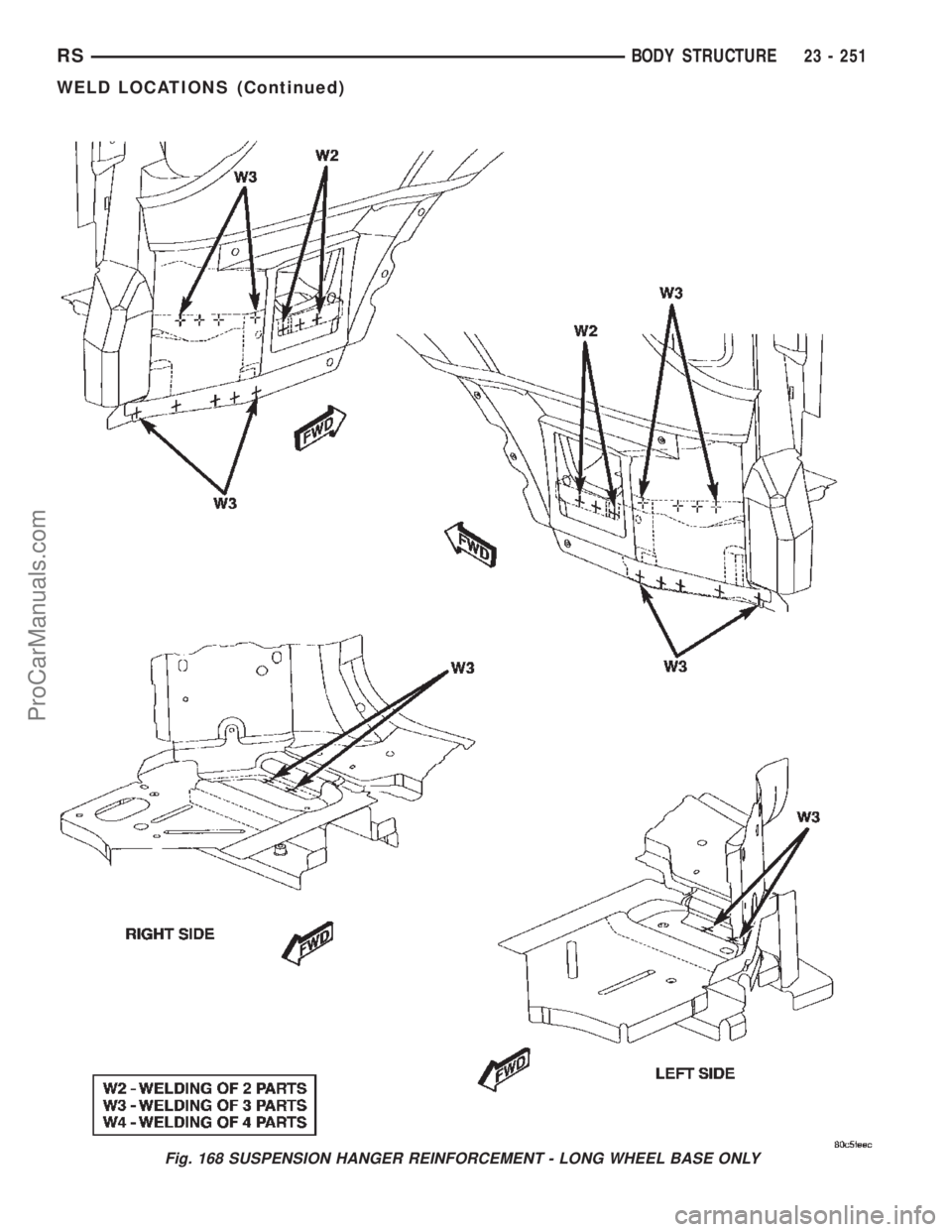

Fig. 168 SUSPENSION HANGER REINFORCEMENT - LONG WHEEL BASE ONLY
RSBODY STRUCTURE23 - 251
WELD LOCATIONS (Continued)
ProCarManuals.com

Fig. 169 LOWER LIFTGATE OPENING PANEL - LONG WHEEL BASE ONLY
23 - 252 BODY STRUCTURERS
WELD LOCATIONS (Continued)
ProCarManuals.com

Fig. 170 ROOF BOWS/UPPER LIFTGATE FRAME - LONG WHEEL BASE ONLY
RSBODY STRUCTURE23 - 253
WELD LOCATIONS (Continued)
ProCarManuals.com

Fig. 171 BODY SIDE APERTURE/INNER QUARTER PANEL - LONG WHEEL BASE ONLY
23 - 254 BODY STRUCTURERS
WELD LOCATIONS (Continued)
ProCarManuals.com

Fig. 172 REAR JACKING REINFORCEMENT - SHORT WHEEL BASE ONLY
RSBODY STRUCTURE23 - 255
WELD LOCATIONS (Continued)
ProCarManuals.com

Fig. 173 INNER WHEELHOUSE/INNER QUARTER PANEL - SHORT WHEEL BASE ONLY
23 - 256 BODY STRUCTURERS
WELD LOCATIONS (Continued)
ProCarManuals.com

Fig. 174 SUSPENSION HANGER REINFORCEMENT - SHORT WHEEL BASE ONLY
RSBODY STRUCTURE23 - 257
WELD LOCATIONS (Continued)
