CHRYSLER VOYAGER 2004 Service Manual

8W-63 POWER SEATS
Component Page

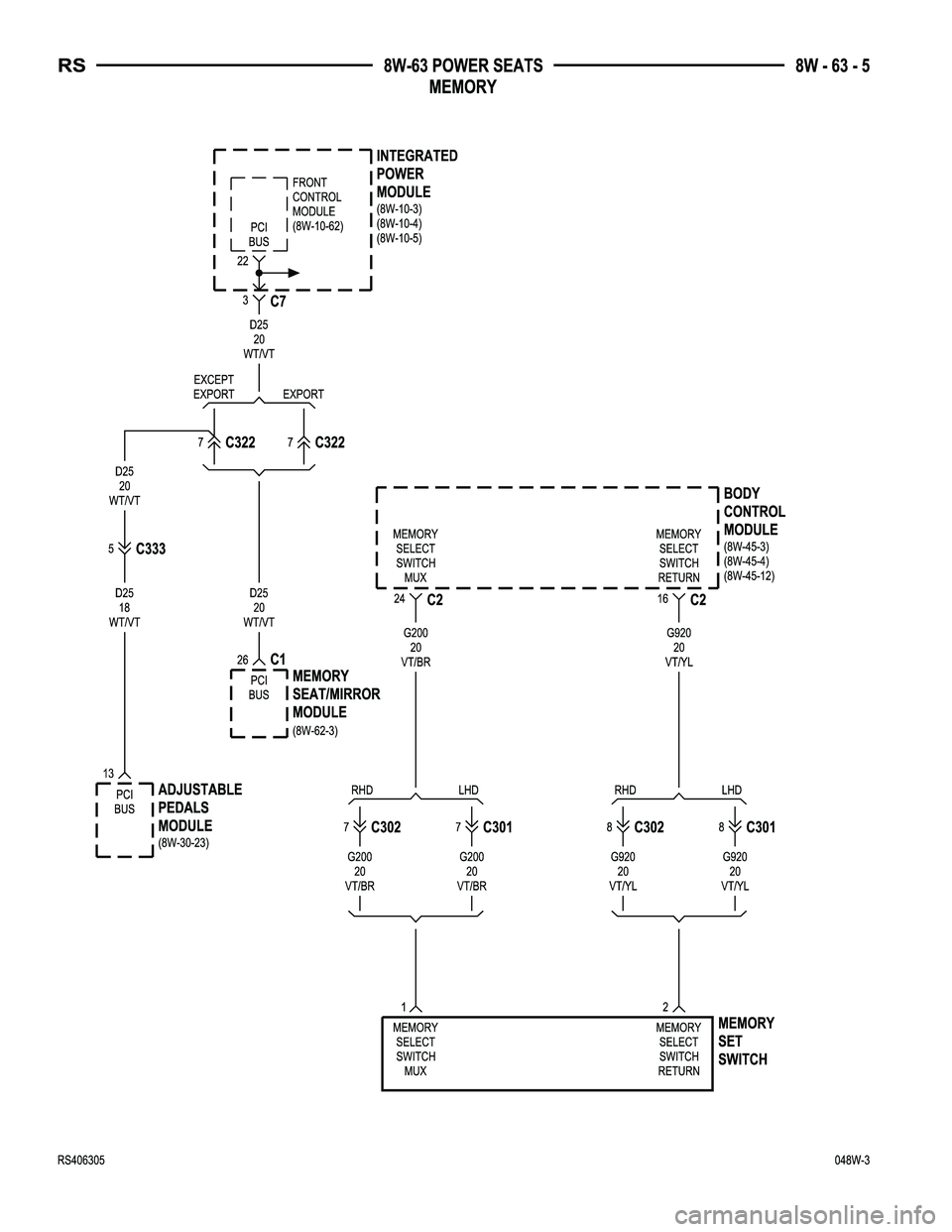

Adjustable Pedals Module............. 8W-63-5
Body Control Module............... 8W-63-5, 9
Driver Heated Seat Back.............. 8W-63-9
Driver Heated Seat Cushion............ 8W-63-9
Driver Heated Seat Module........ 8W-63-3, 4, 9
Driver Power Seat Front Riser Motor . . . 8W-63-2, 7
Driver Power Seat Front Riser Position
Sensor.......................... 8W-63-8
Driver Power Seat Horizontal Motor . . . 8W-63-2, 7
Driver Power Seat Horizontal Position
Sensor.......................... 8W-63-8
Driver Power Seat Rear Riser Motor . . . 8W-63-2, 7
Driver Power Seat Rear Riser Position
Sensor.......................... 8W-63-8
Driver Power Seat Recliner Motor..... 8W-63-2, 7
Driver Power Seat Recliner Position
Sensor.......................... 8W-63-8
Driver Power Seat Switch........... 8W-63-2, 6Component Page
Front Control Module................. 8W-63-5
Fuse 22.......................... 8W-63-2, 4
G300........................ 8W-63-2, 4, 6, 9
G301........................... 8W-63-3, 10
Instrument Panel Switch Bank......... 8W-63-9
Integrated Power Module.......... 8W-63-2, 4, 5
Memory Seat/Mirror Module.... 8W-63-4, 5, 6, 7, 8
Memory Set Switch.................. 8W-63-5
Passenger Heated Seat Back.......... 8W-63-10
Passenger Heated Seat Cushion........ 8W-63-10
Passenger Heated Seat Module........ 8W-63-10

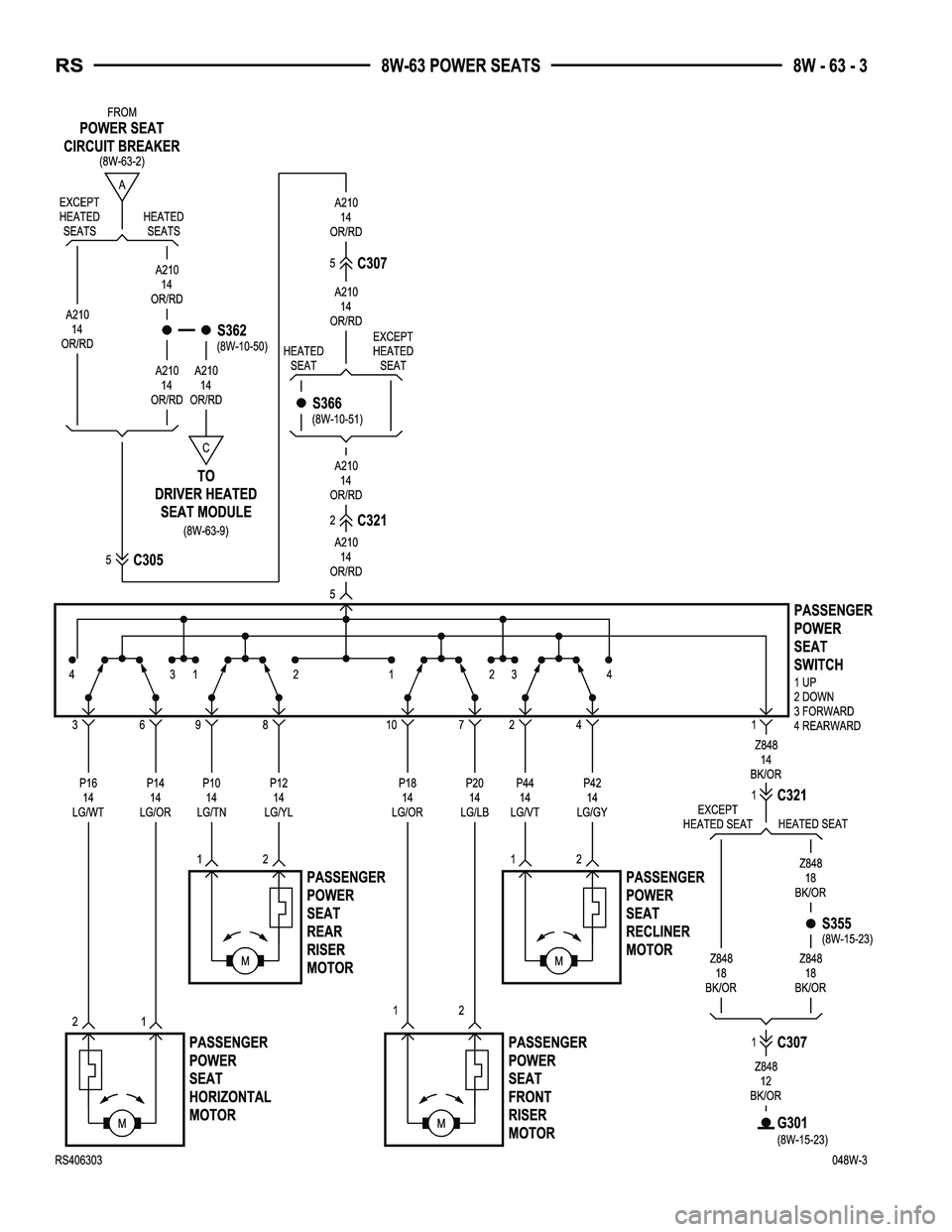

Passenger Power Seat Front Riser Motor . . 8W-63-3
Passenger Power Seat Horizontal Motor . . 8W-63-3
Passenger Power Seat Rear Riser Motor . . 8W-63-3
Passenger Power Seat Recliner Motor.... 8W-63-3
Passenger Power Seat Switch........... 8W-63-3

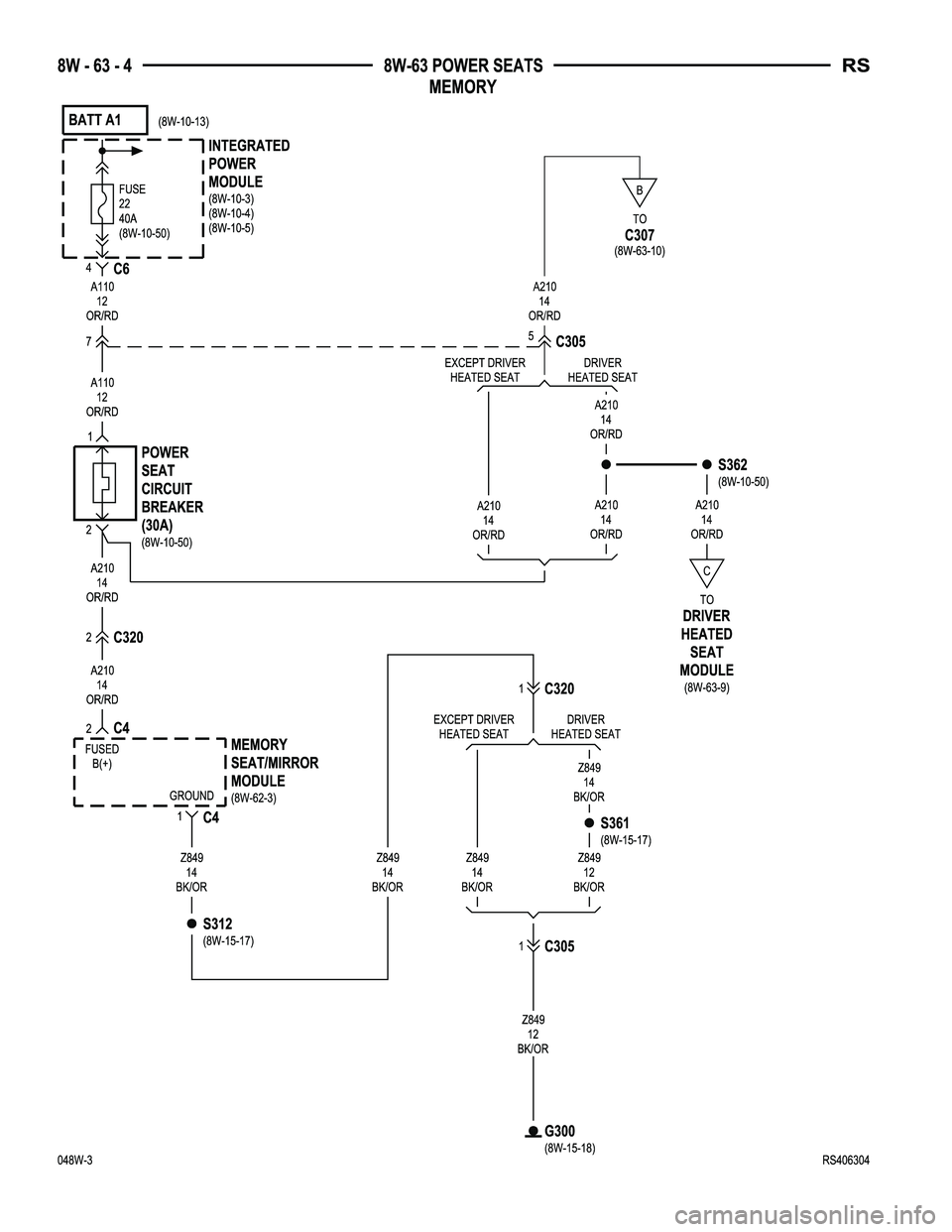

Power Seat Circuit Breaker........ 8W-63-2, 3, 4
RS8W-63 POWER SEATS8W-63-1
