CHRYSLER VOYAGER 2004 Service Manual

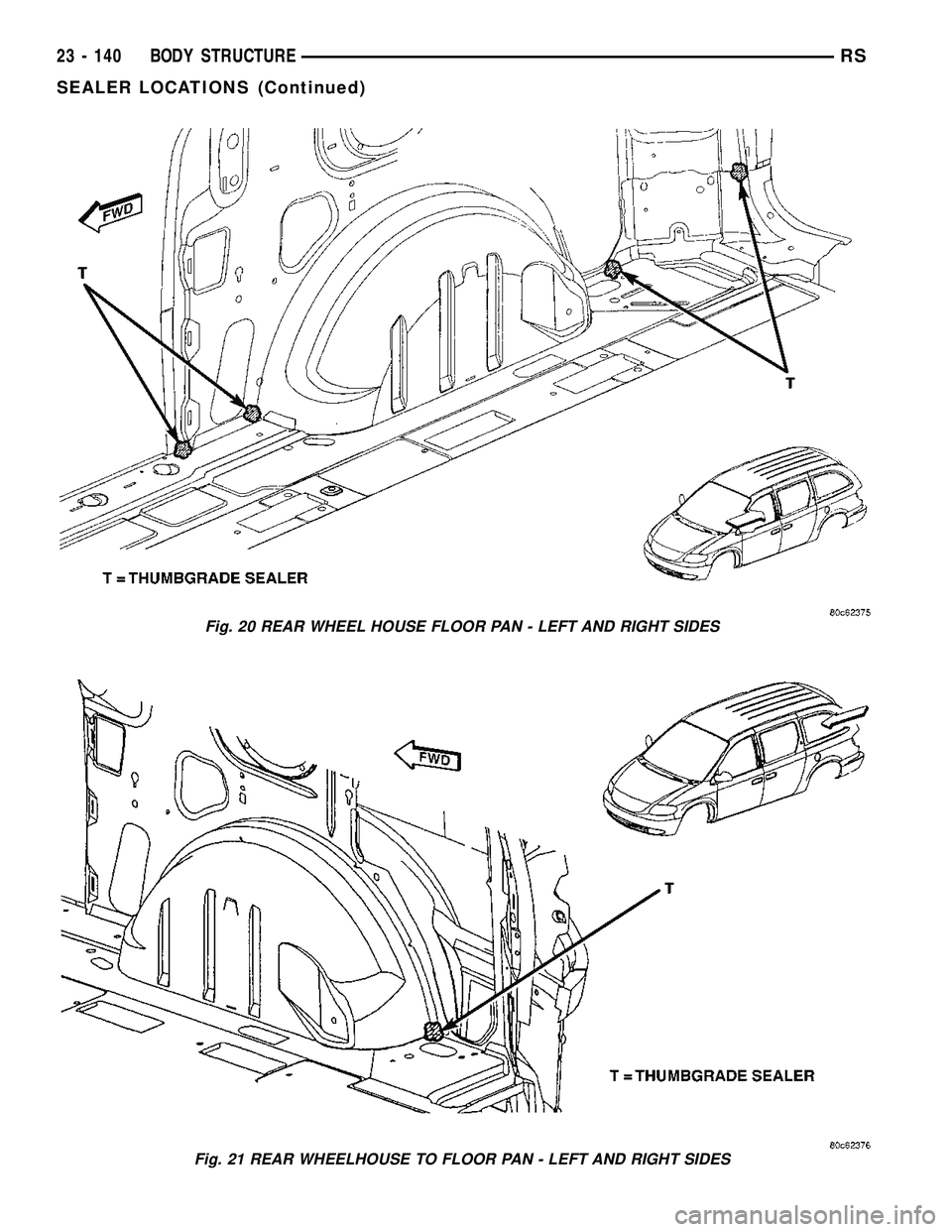

Fig. 20 REAR WHEEL HOUSE FLOOR PAN - LEFT AND RIGHT SIDES
Fig. 21 REAR WHEELHOUSE TO FLOOR PAN - LEFT AND RIGHT SIDES
23 - 140 BODY STRUCTURERS
SEALER LOCATIONS (Continued)

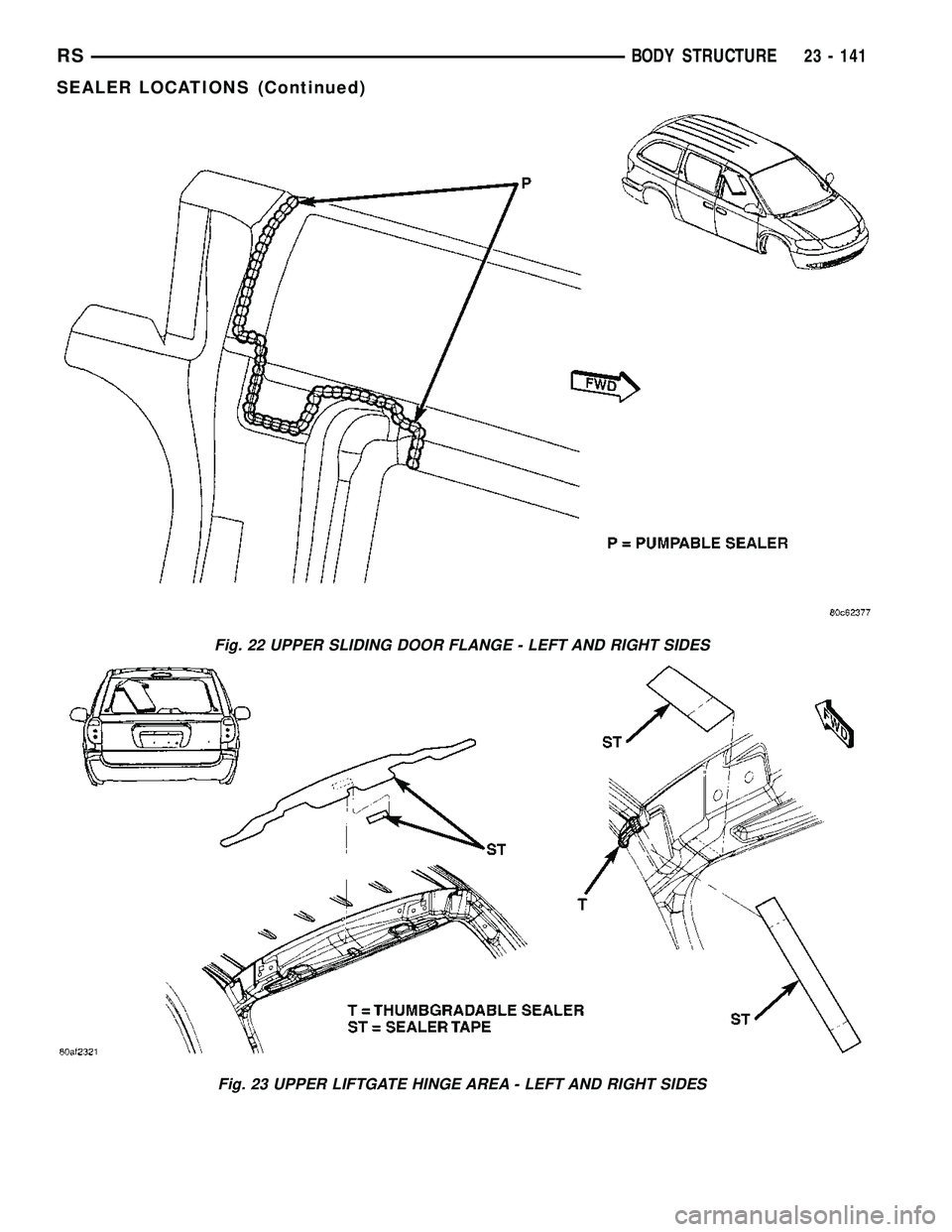

Fig. 22 UPPER SLIDING DOOR FLANGE - LEFT AND RIGHT SIDES
Fig. 23 UPPER LIFTGATE HINGE AREA - LEFT AND RIGHT SIDES
RSBODY STRUCTURE23 - 141
SEALER LOCATIONS (Continued)

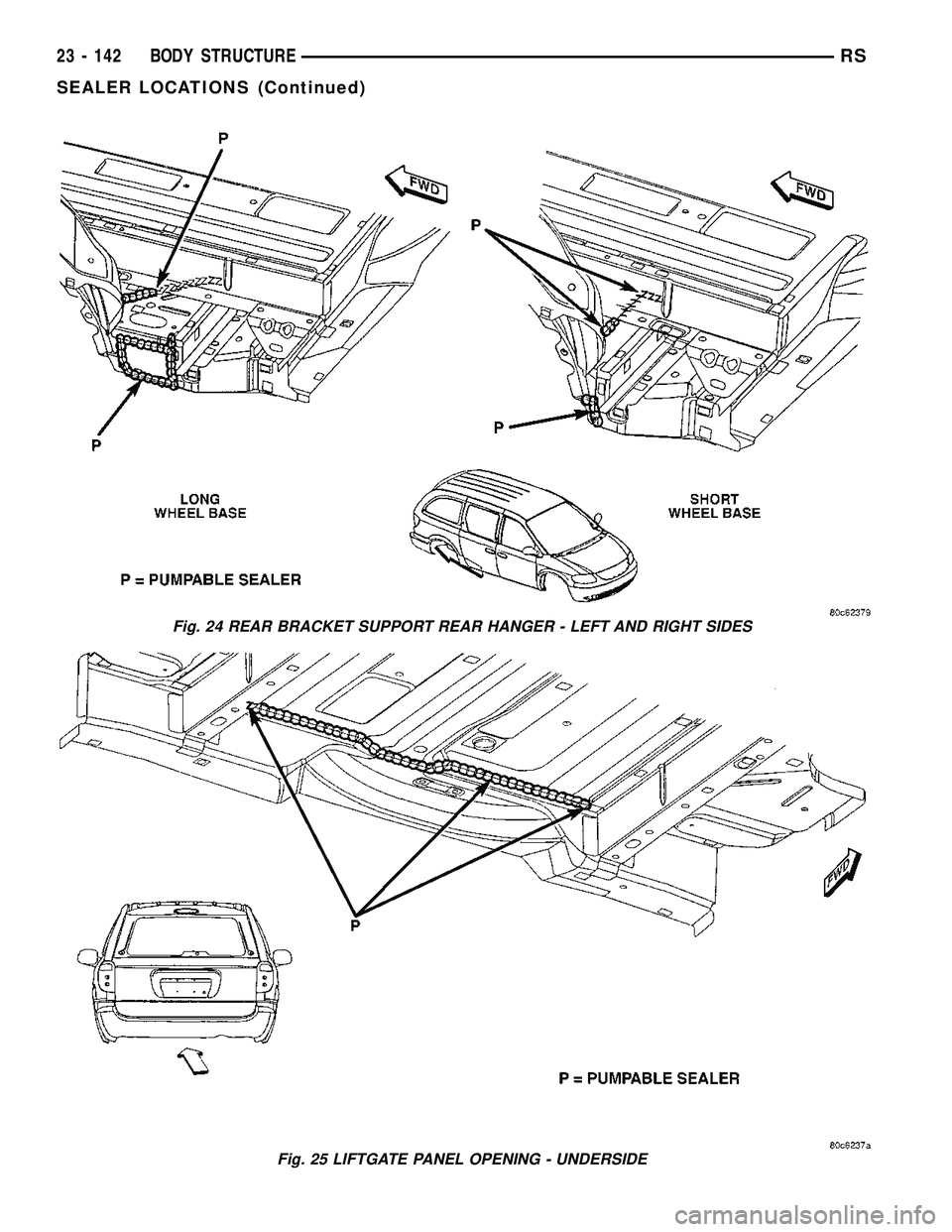

Fig. 24 REAR BRACKET SUPPORT REAR HANGER - LEFT AND RIGHT SIDES
Fig. 25 LIFTGATE PANEL OPENING - UNDERSIDE
23 - 142 BODY STRUCTURERS
SEALER LOCATIONS (Continued)

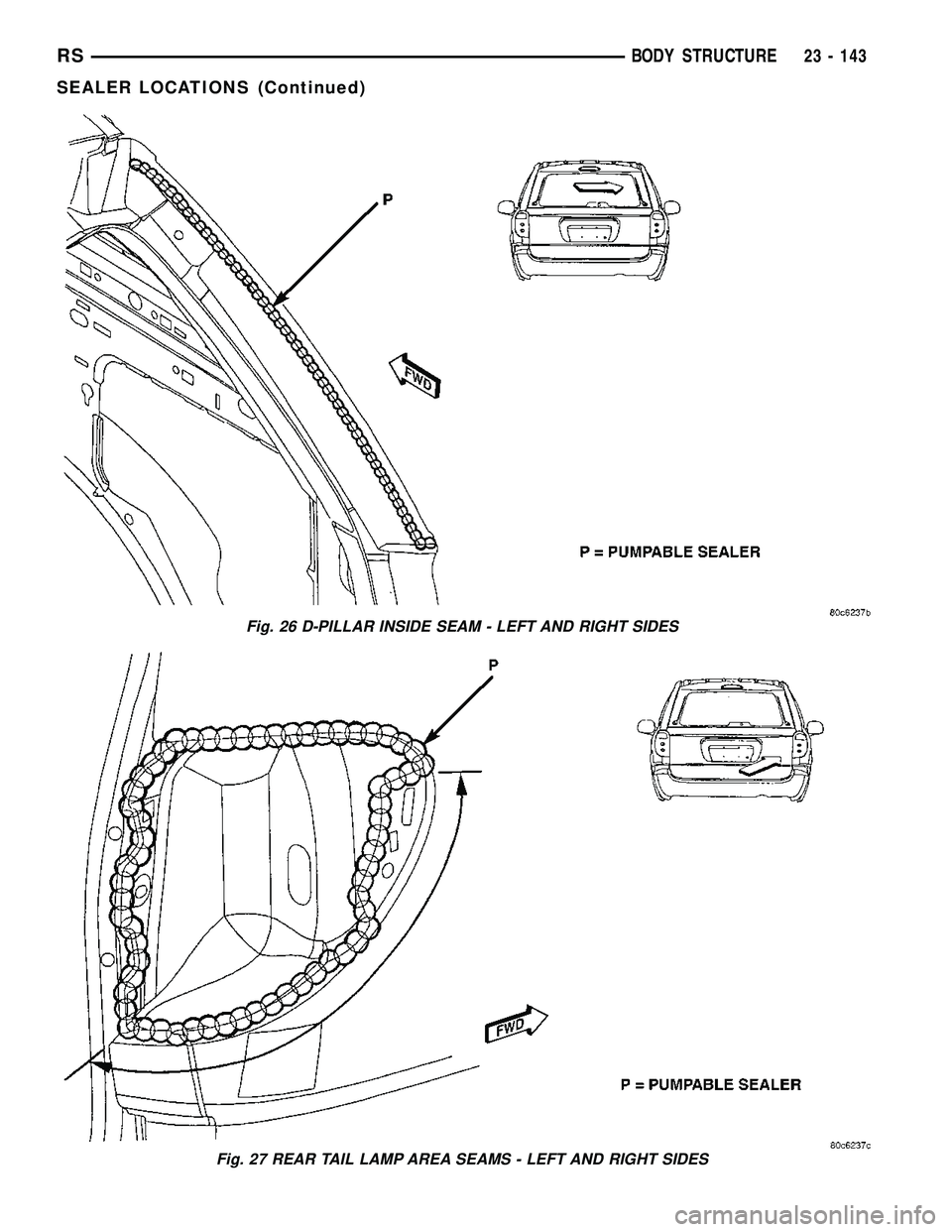

Fig. 26 D-PILLAR INSIDE SEAM - LEFT AND RIGHT SIDES
Fig. 27 REAR TAIL LAMP AREA SEAMS - LEFT AND RIGHT SIDES
RSBODY STRUCTURE23 - 143
SEALER LOCATIONS (Continued)

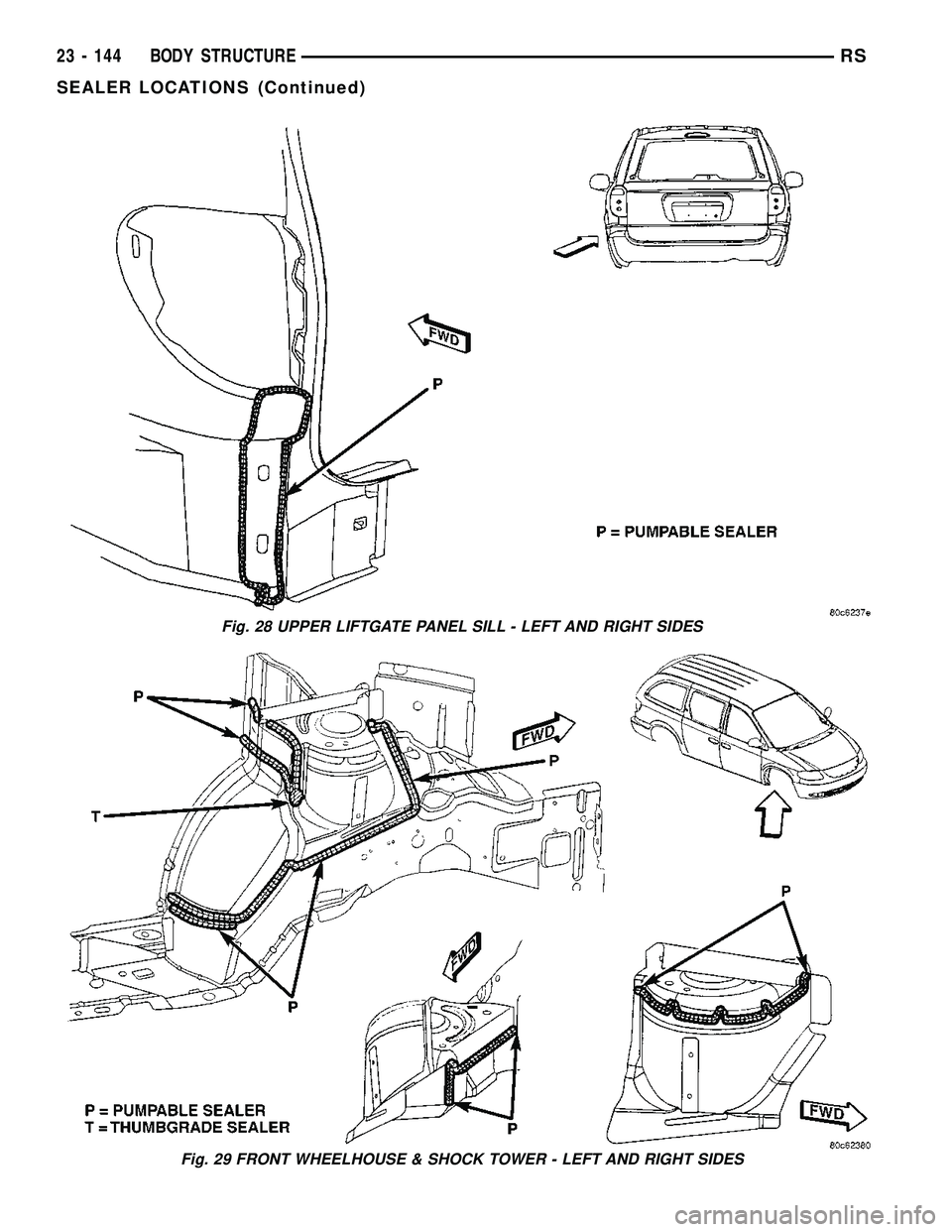

Fig. 28 UPPER LIFTGATE PANEL SILL - LEFT AND RIGHT SIDES
Fig. 29 FRONT WHEELHOUSE & SHOCK TOWER - LEFT AND RIGHT SIDES
23 - 144 BODY STRUCTURERS
SEALER LOCATIONS (Continued)

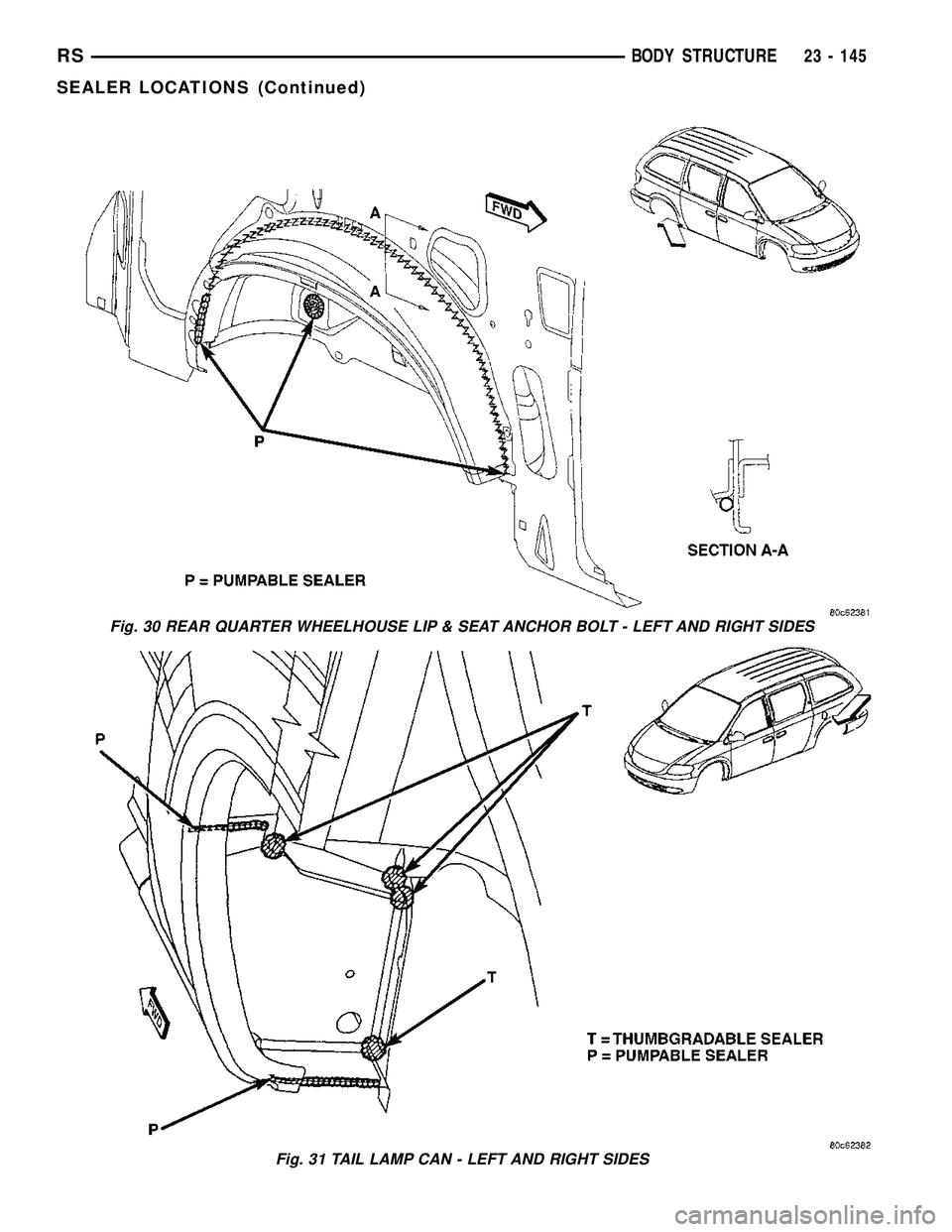

Fig. 30 REAR QUARTER WHEELHOUSE LIP & SEAT ANCHOR BOLT - LEFT AND RIGHT SIDES
Fig. 31 TAIL LAMP CAN - LEFT AND RIGHT SIDES
RSBODY STRUCTURE23 - 145
SEALER LOCATIONS (Continued)

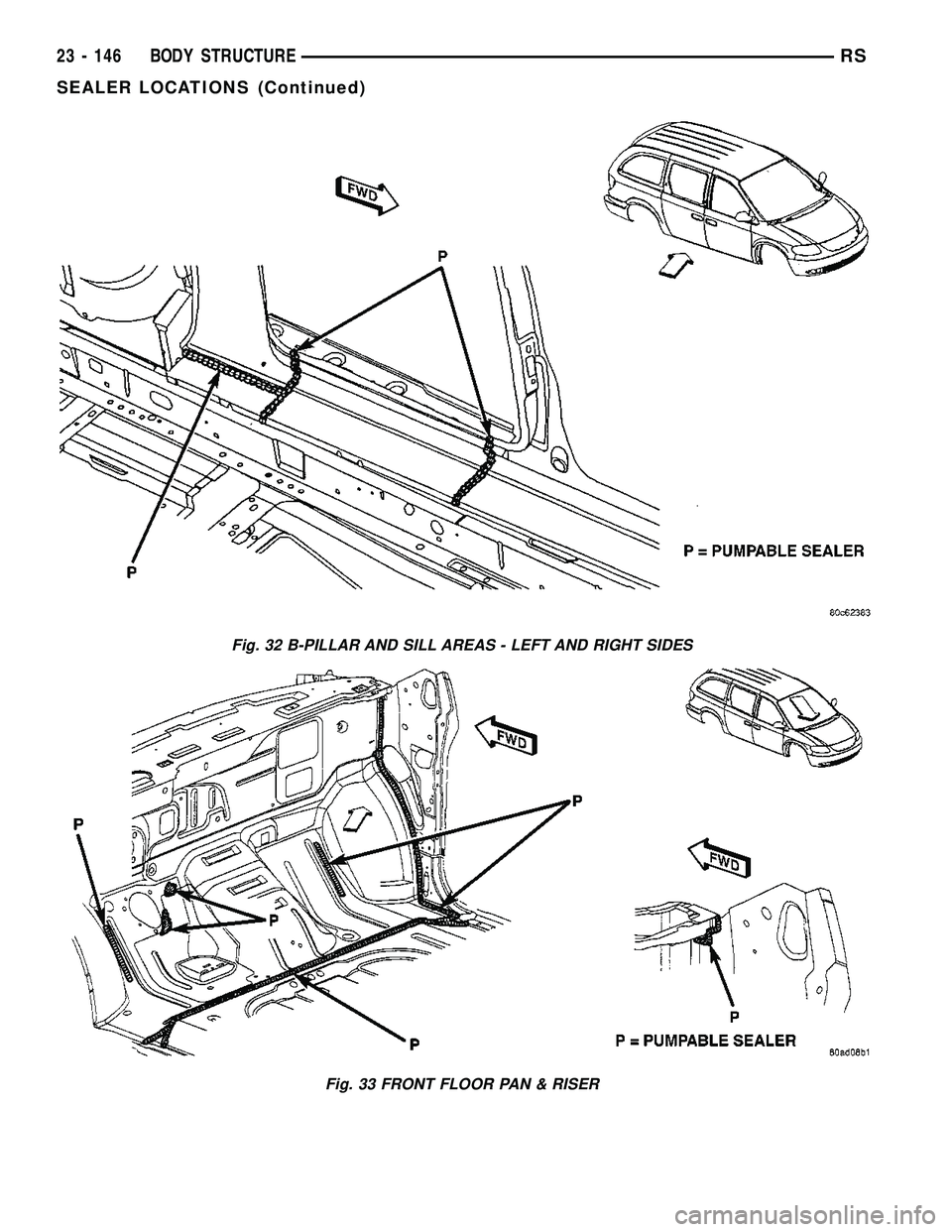

Fig. 32 B-PILLAR AND SILL AREAS - LEFT AND RIGHT SIDES
Fig. 33 FRONT FLOOR PAN & RISER
23 - 146 BODY STRUCTURERS
SEALER LOCATIONS (Continued)

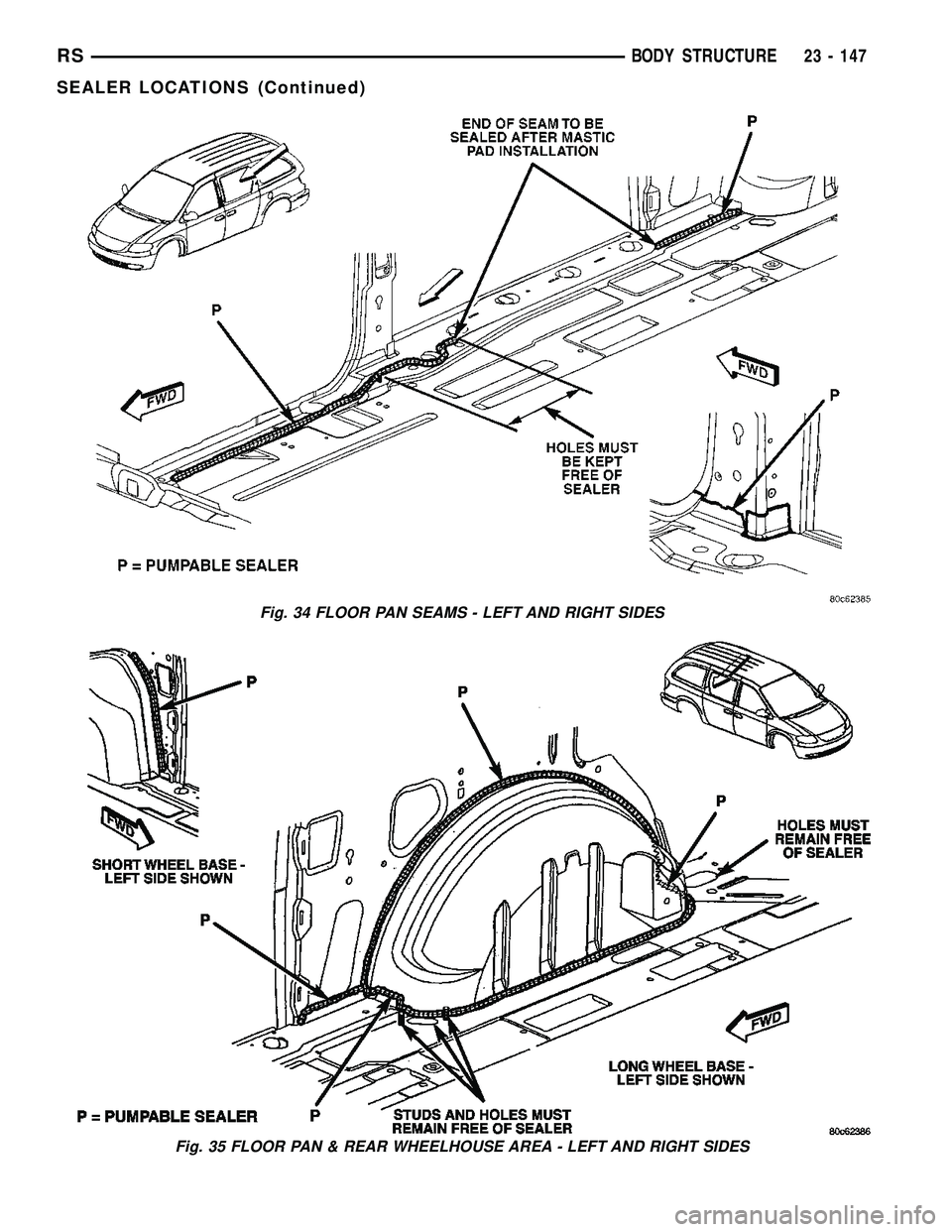

Fig. 34 FLOOR PAN SEAMS - LEFT AND RIGHT SIDES
Fig. 35 FLOOR PAN & REAR WHEELHOUSE AREA - LEFT AND RIGHT SIDES
RSBODY STRUCTURE23 - 147
SEALER LOCATIONS (Continued)

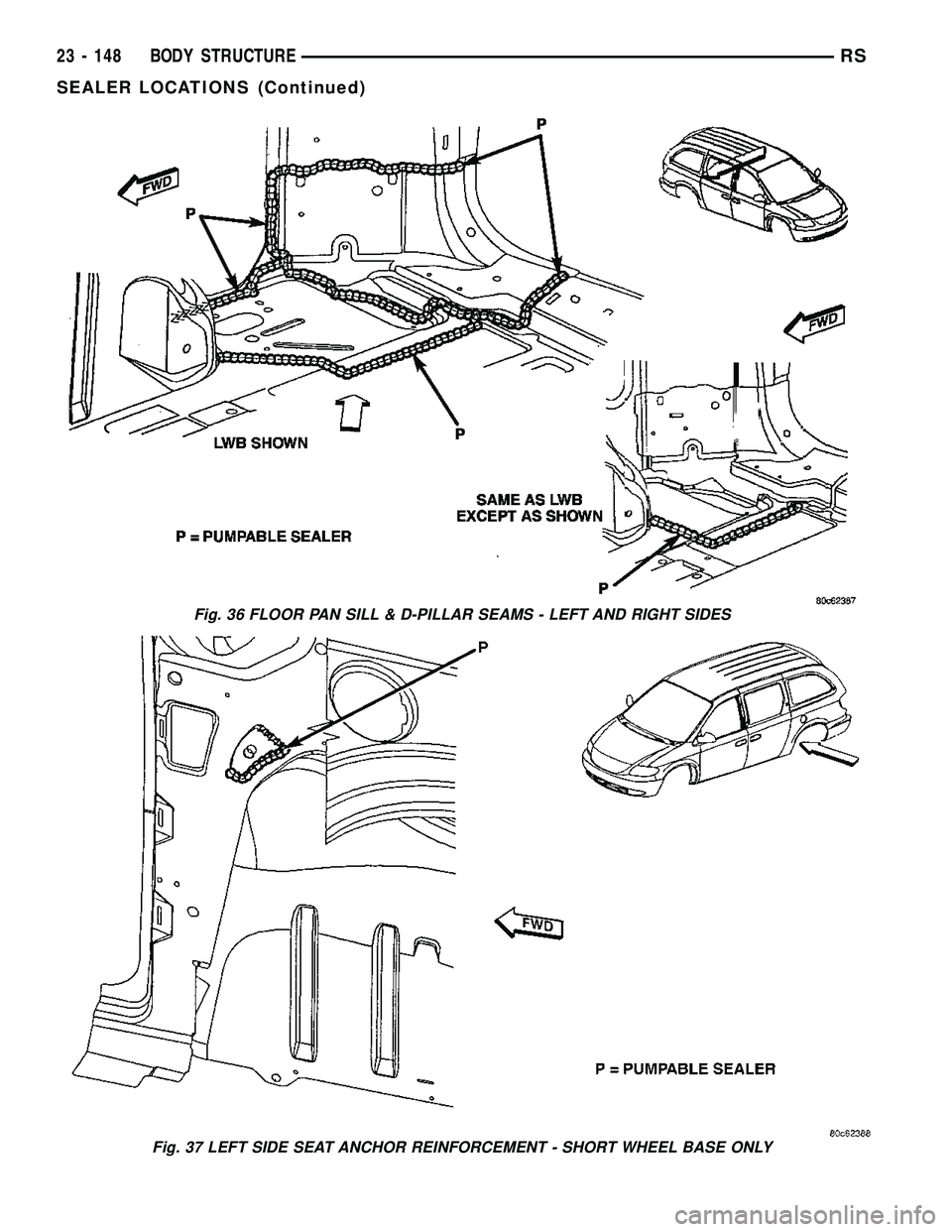

Fig. 36 FLOOR PAN SILL & D-PILLAR SEAMS - LEFT AND RIGHT SIDES
Fig. 37 LEFT SIDE SEAT ANCHOR REINFORCEMENT - SHORT WHEEL BASE ONLY
23 - 148 BODY STRUCTURERS
SEALER LOCATIONS (Continued)

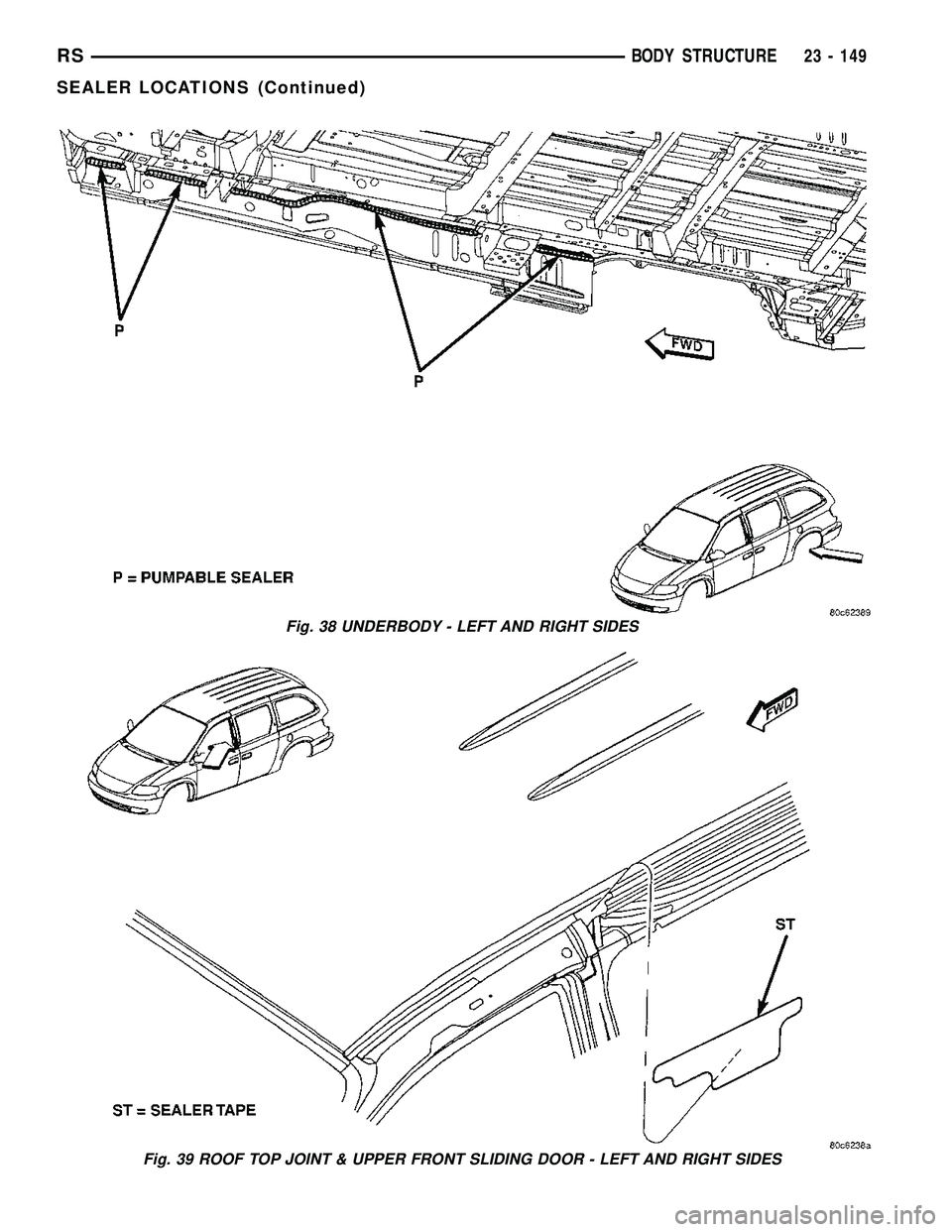

Fig. 38 UNDERBODY - LEFT AND RIGHT SIDES
Fig. 39 ROOF TOP JOINT & UPPER FRONT SLIDING DOOR - LEFT AND RIGHT SIDES
RSBODY STRUCTURE23 - 149
SEALER LOCATIONS (Continued)
