CHRYSLER VOYAGER 2004 Service Manual

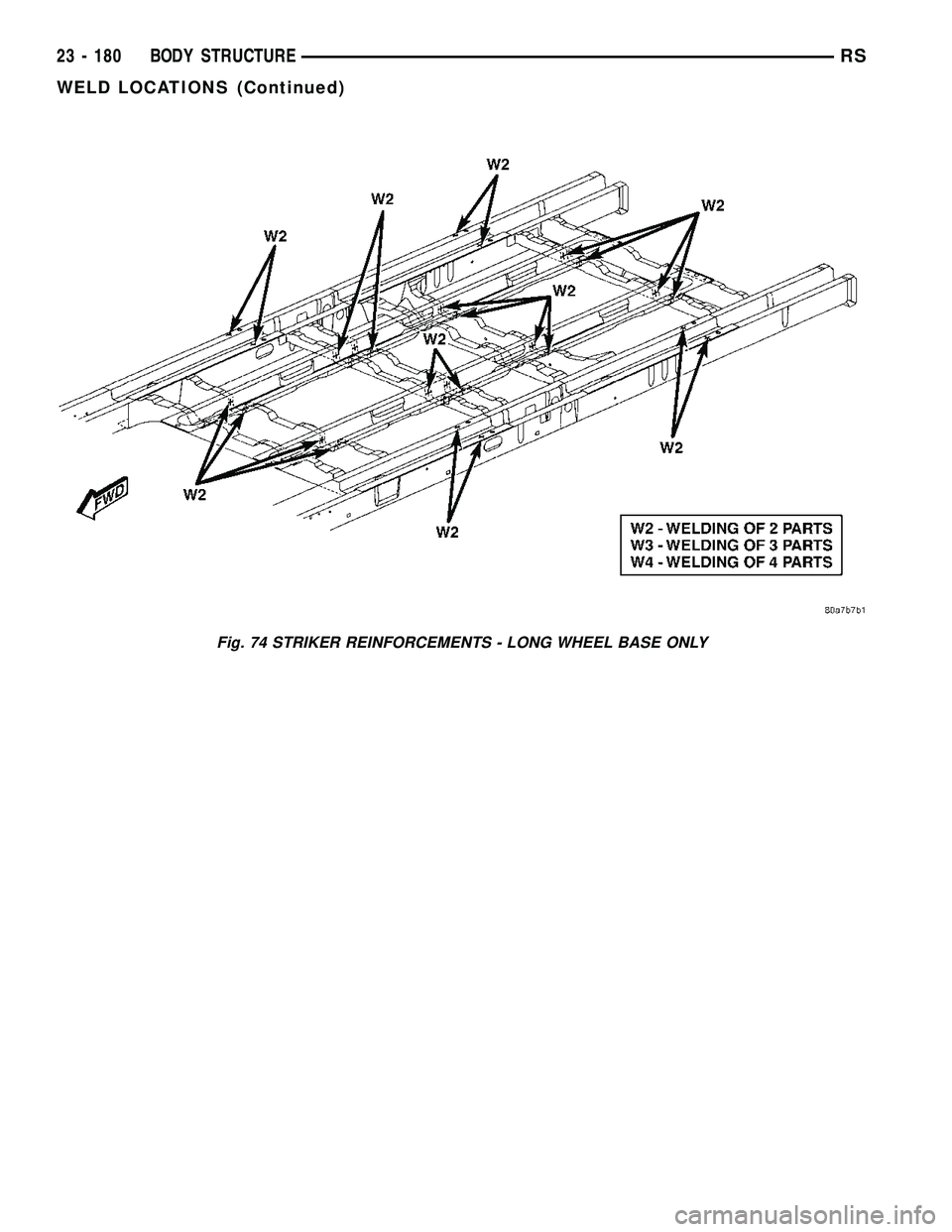

Fig. 74 STRIKER REINFORCEMENTS - LONG WHEEL BASE ONLY
23 - 180 BODY STRUCTURERS
WELD LOCATIONS (Continued)

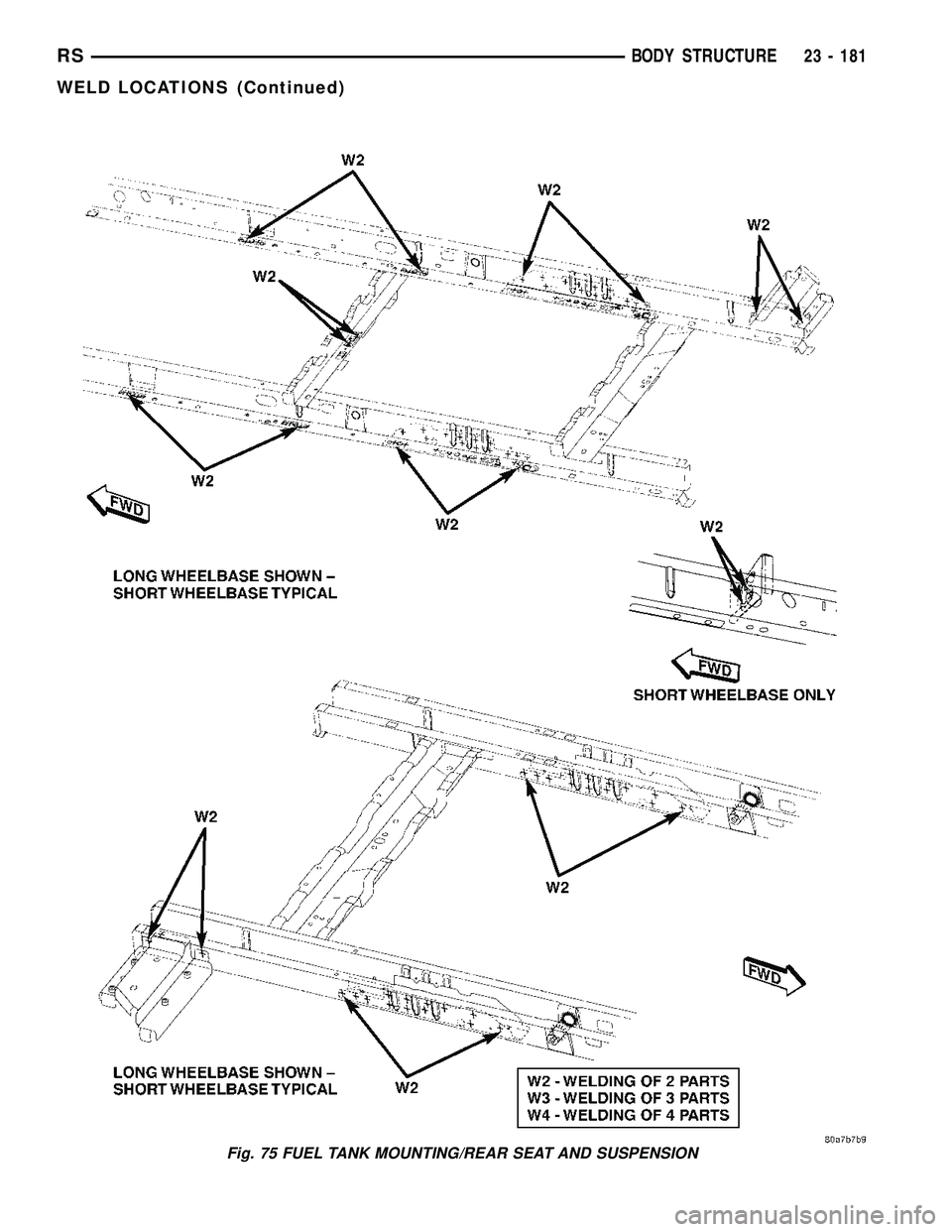

Fig. 75 FUEL TANK MOUNTING/REAR SEAT AND SUSPENSION
RSBODY STRUCTURE23 - 181
WELD LOCATIONS (Continued)

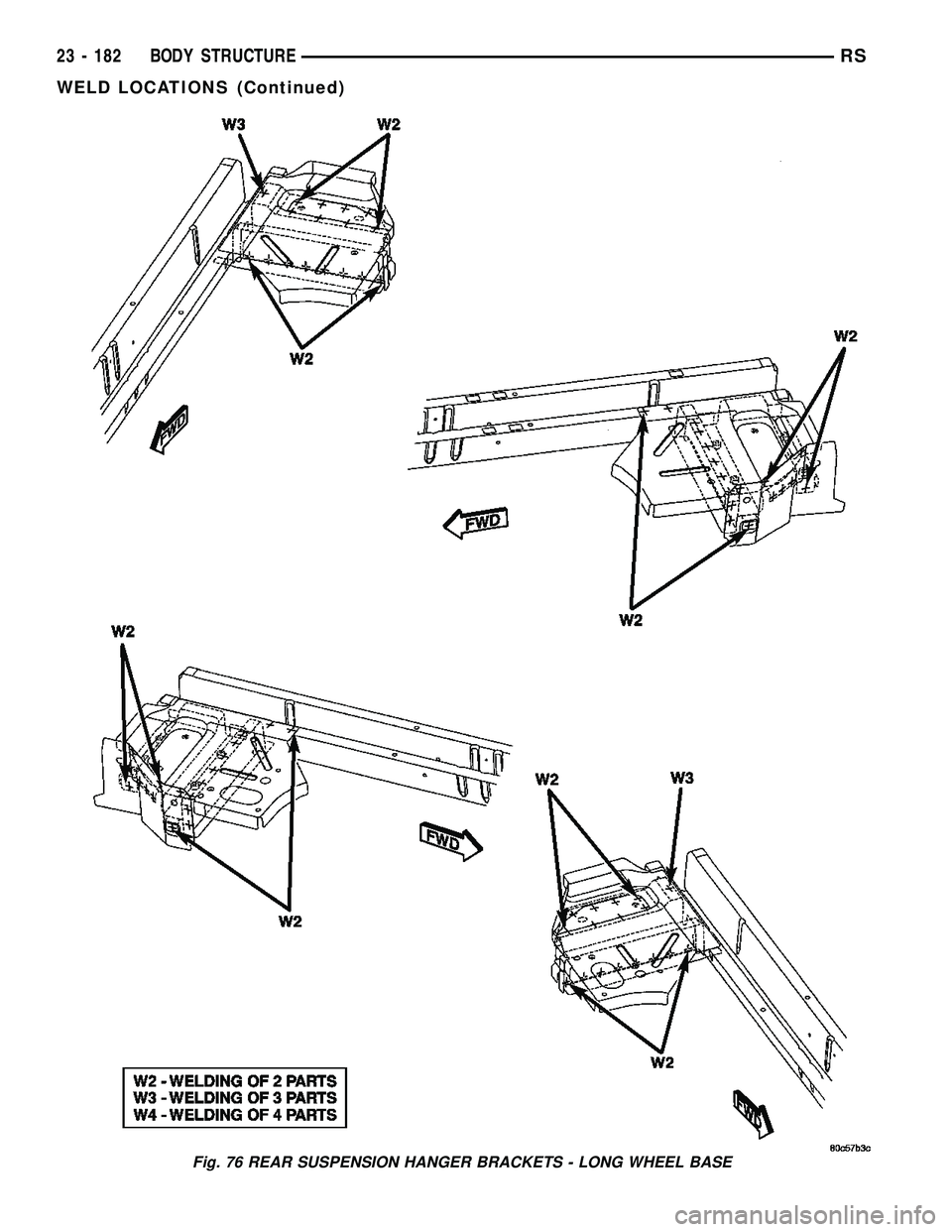

Fig. 76 REAR SUSPENSION HANGER BRACKETS - LONG WHEEL BASE
23 - 182 BODY STRUCTURERS
WELD LOCATIONS (Continued)

Fig. 77 FRONT SEAT CROSS MEMBER
RSBODY STRUCTURE23 - 183
WELD LOCATIONS (Continued)

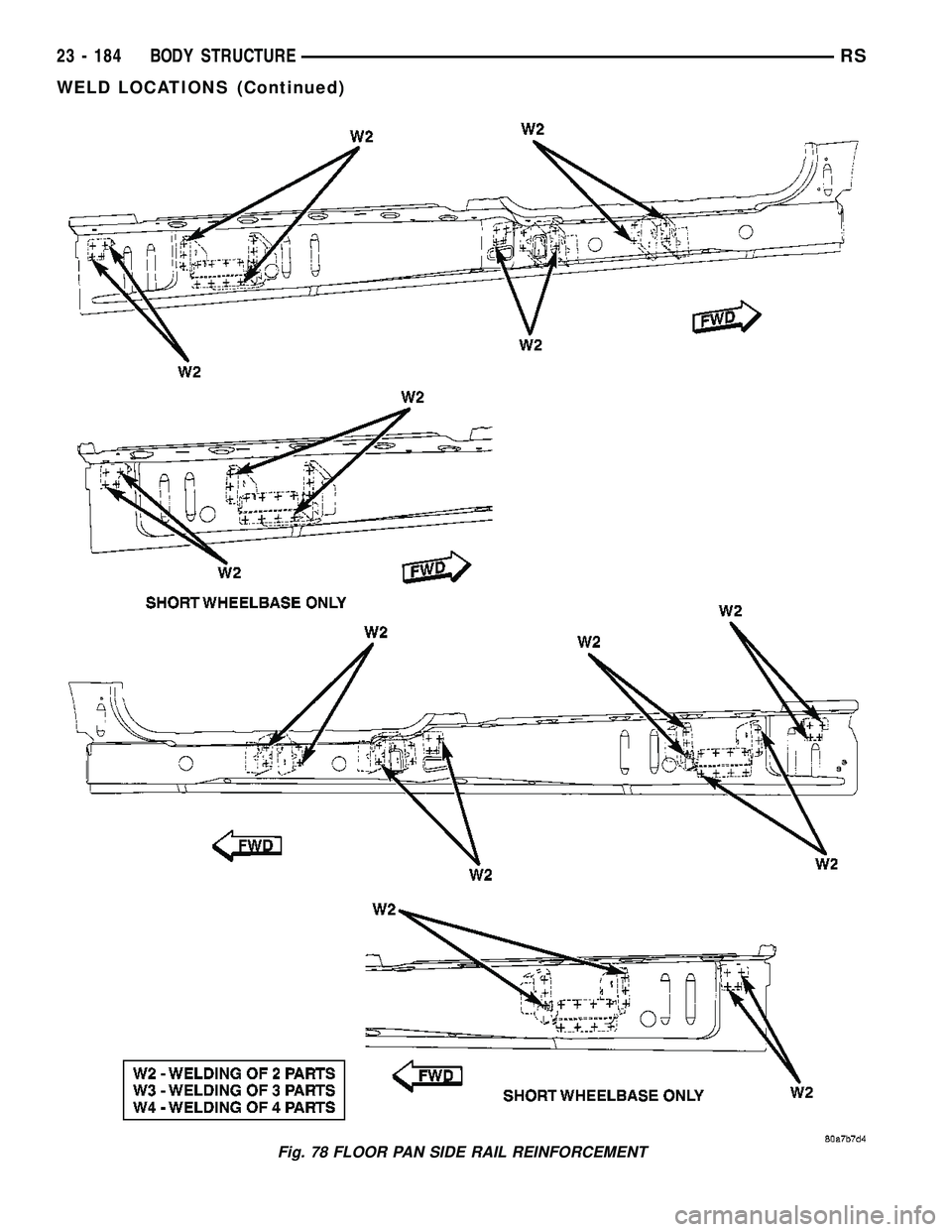

Fig. 78 FLOOR PAN SIDE RAIL REINFORCEMENT
23 - 184 BODY STRUCTURERS
WELD LOCATIONS (Continued)

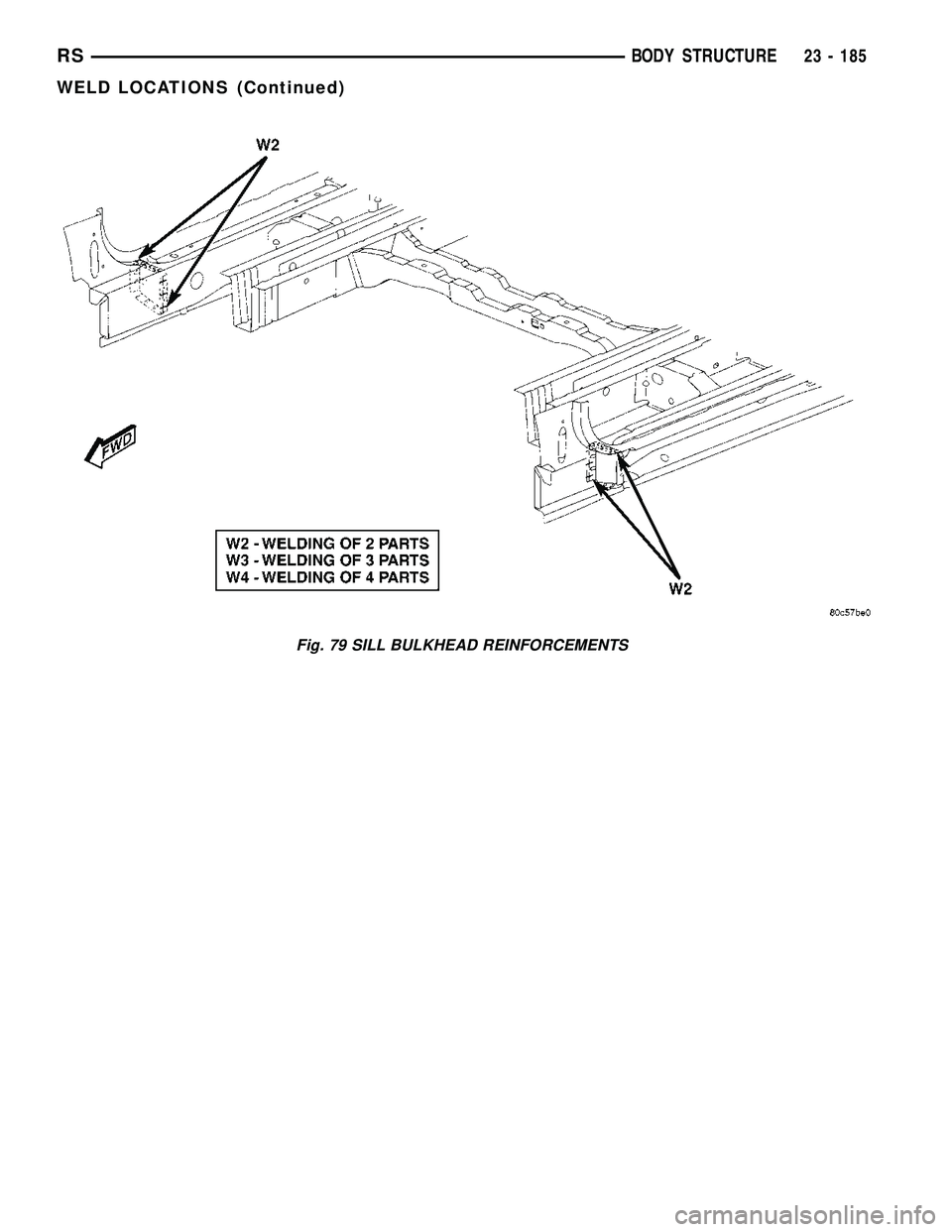

Fig. 79 SILL BULKHEAD REINFORCEMENTS
RSBODY STRUCTURE23 - 185
WELD LOCATIONS (Continued)

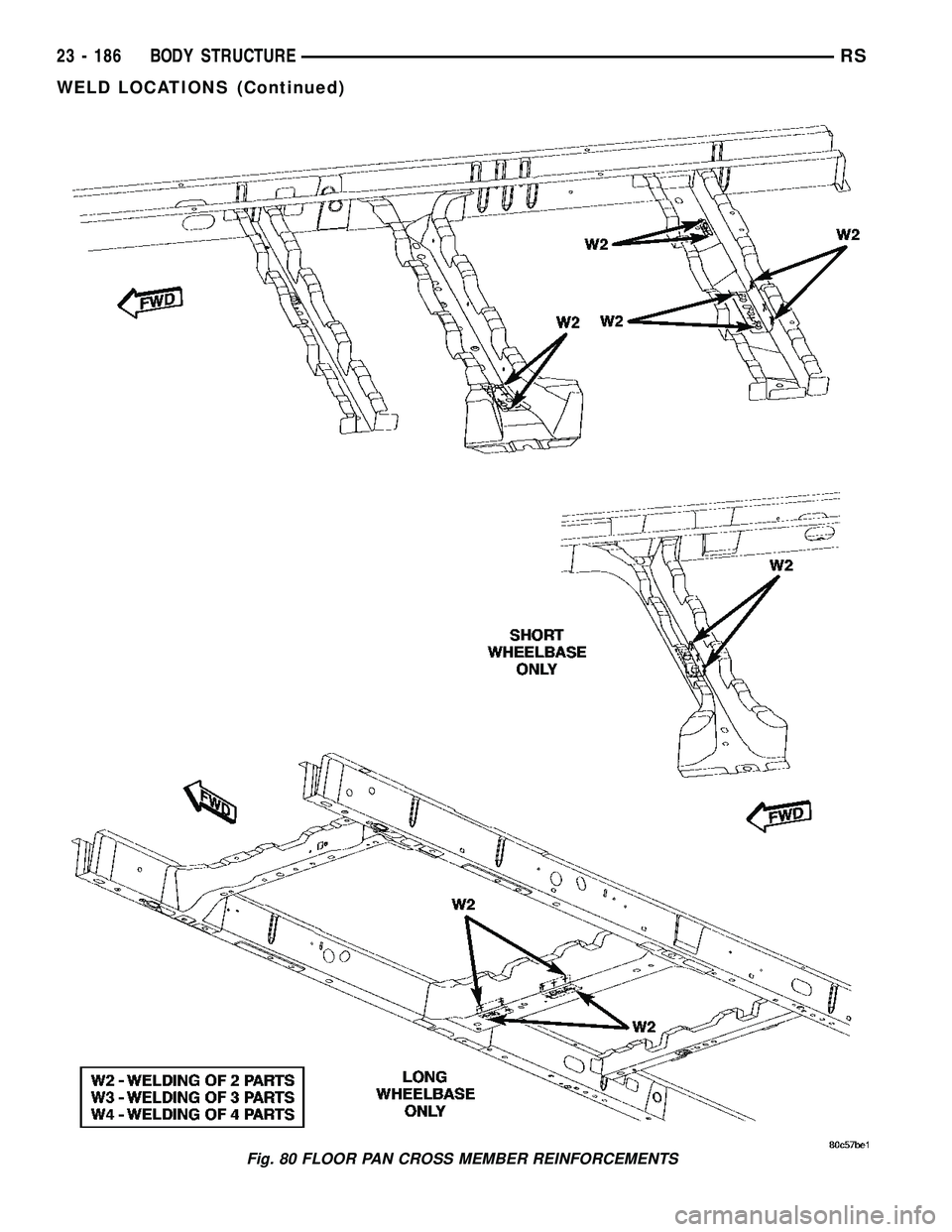

Fig. 80 FLOOR PAN CROSS MEMBER REINFORCEMENTS
23 - 186 BODY STRUCTURERS
WELD LOCATIONS (Continued)

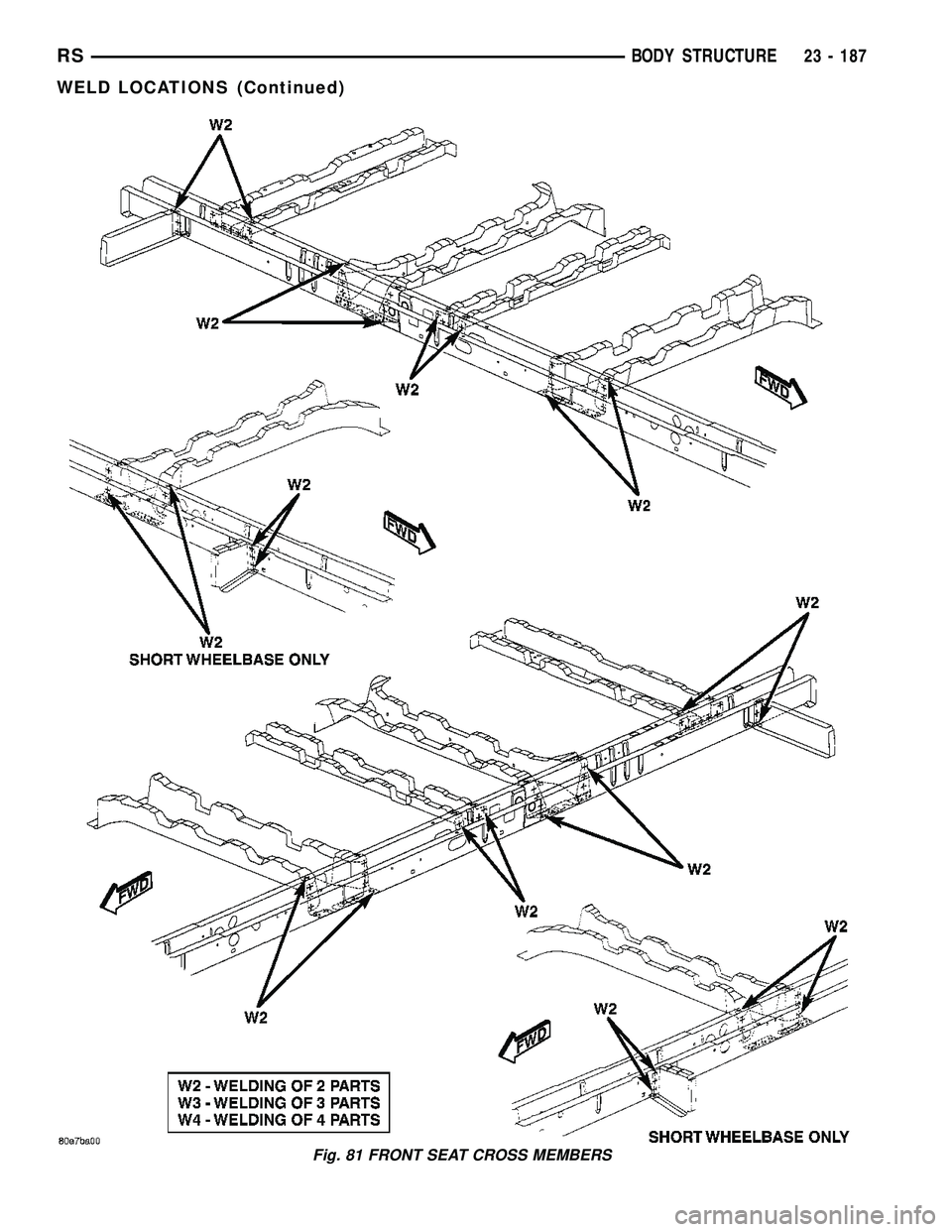

Fig. 81 FRONT SEAT CROSS MEMBERS
RSBODY STRUCTURE23 - 187
WELD LOCATIONS (Continued)

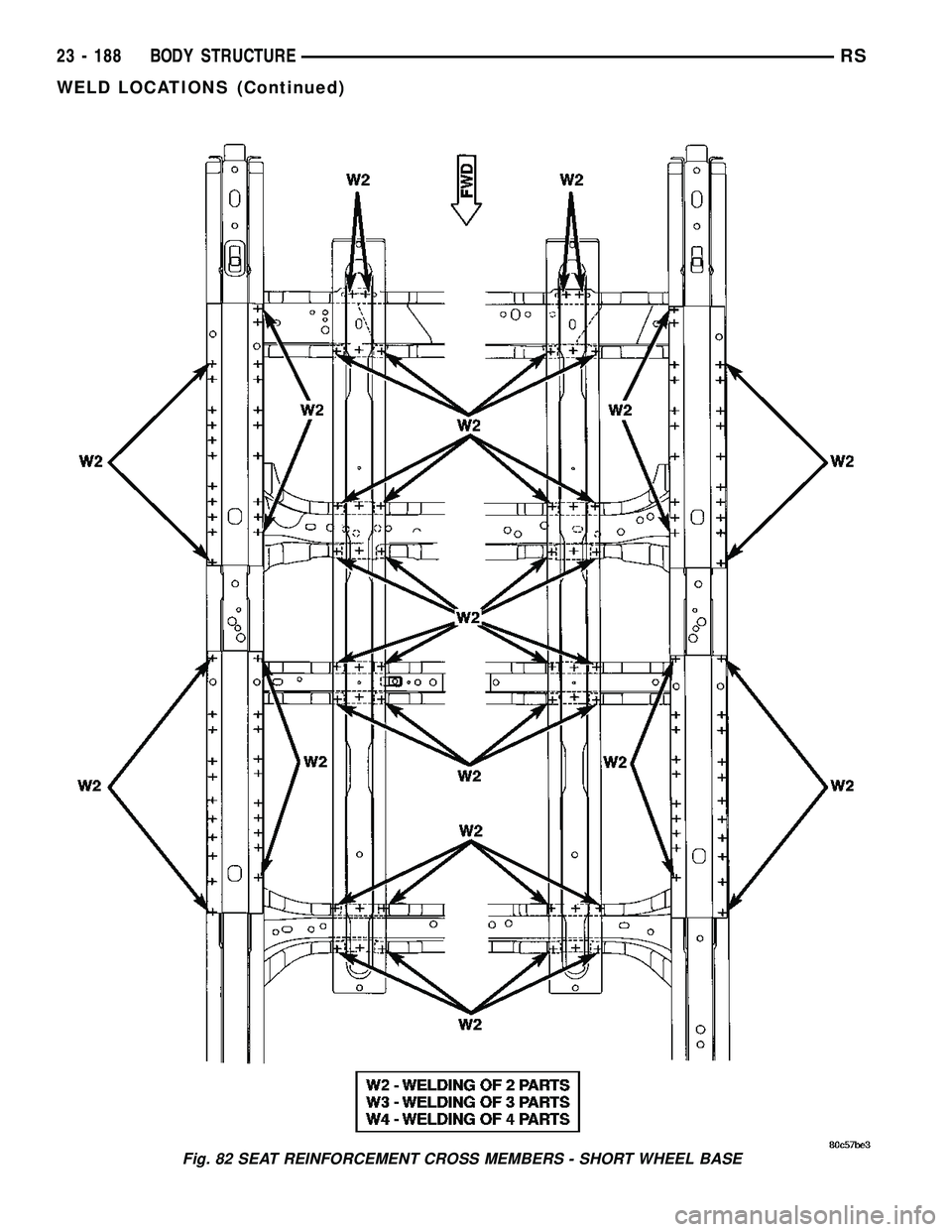

Fig. 82 SEAT REINFORCEMENT CROSS MEMBERS - SHORT WHEEL BASE
23 - 188 BODY STRUCTURERS
WELD LOCATIONS (Continued)

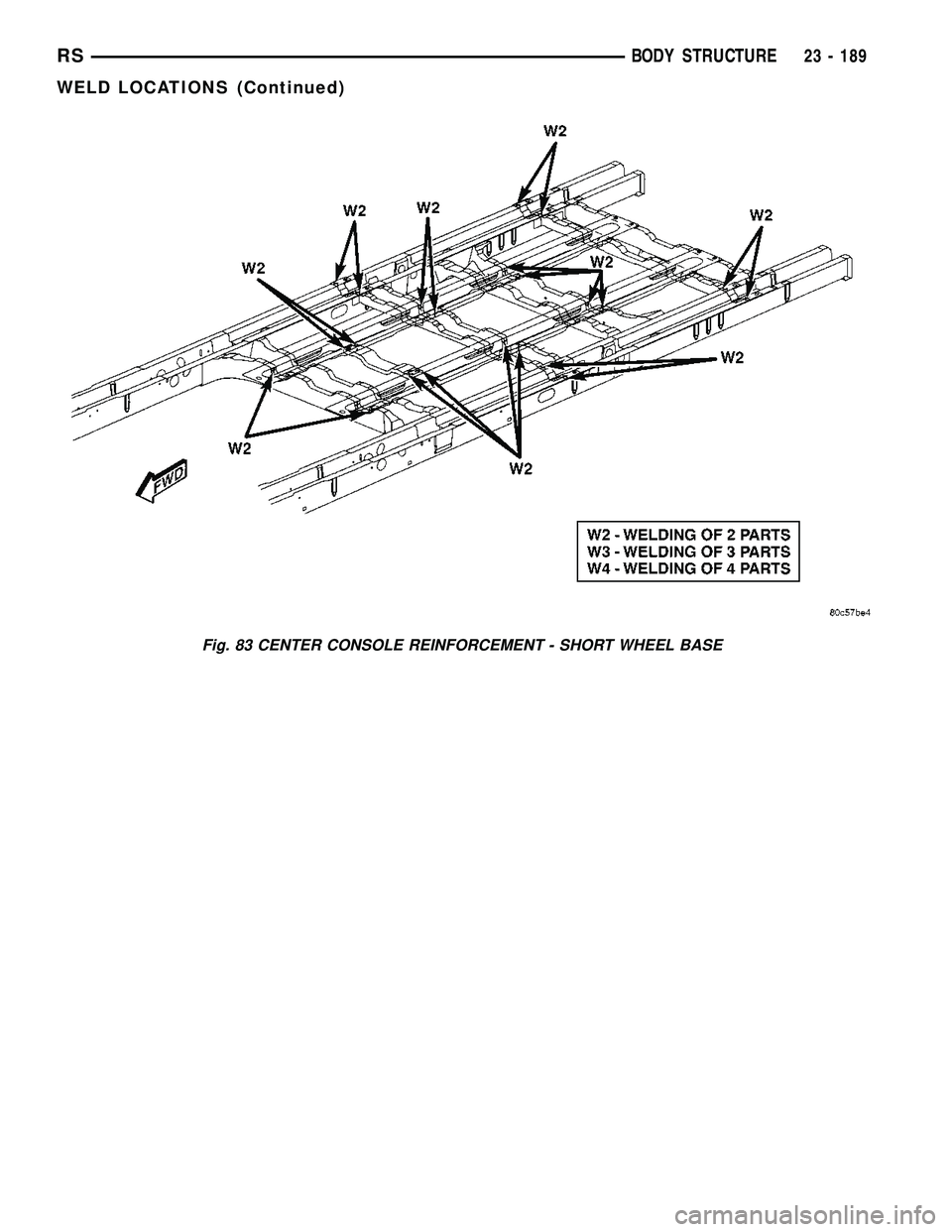

Fig. 83 CENTER CONSOLE REINFORCEMENT - SHORT WHEEL BASE
RSBODY STRUCTURE23 - 189
WELD LOCATIONS (Continued)
