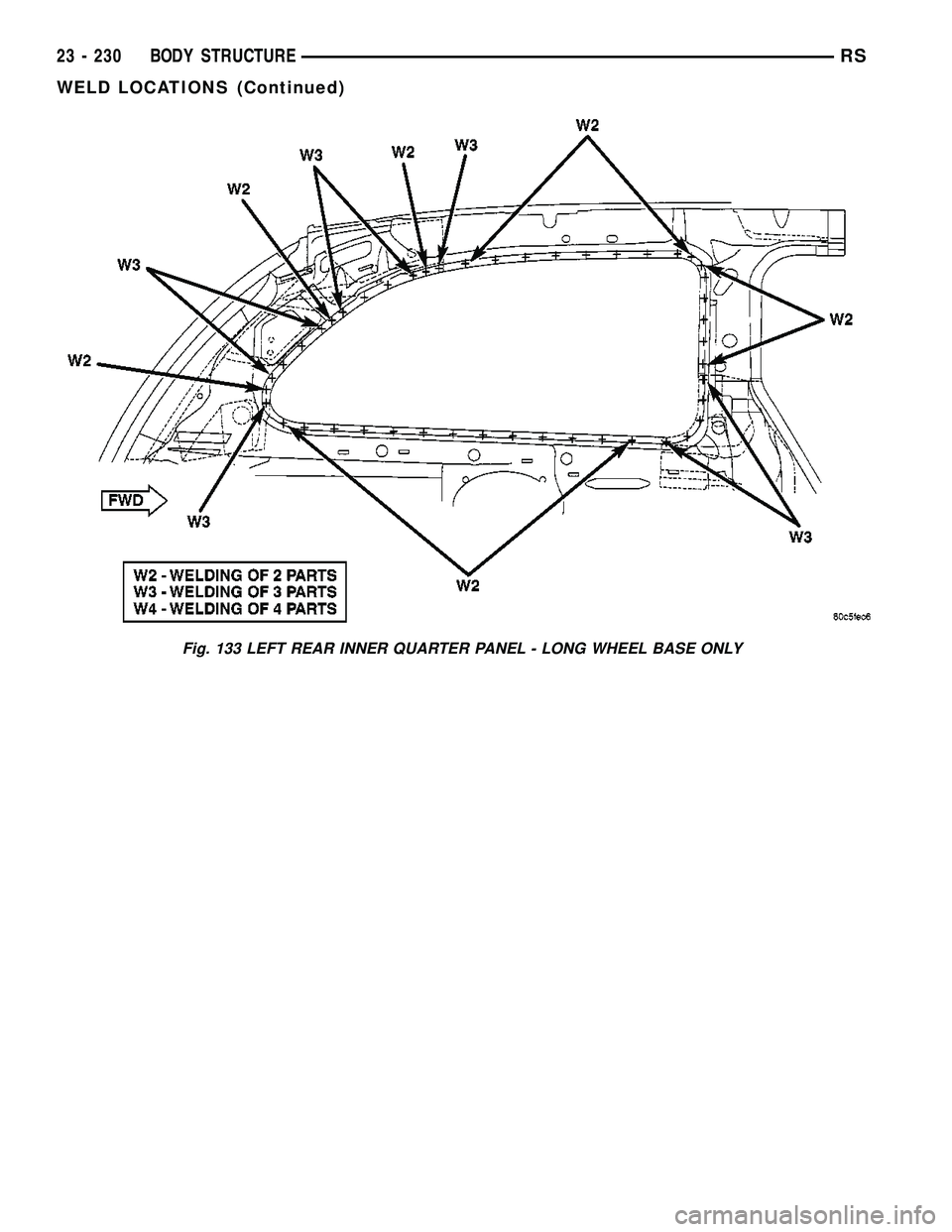

Fig. 133 LEFT REAR INNER QUARTER PANEL - LONG WHEEL BASE ONLY
23 - 230 BODY STRUCTURERS
WELD LOCATIONS (Continued)

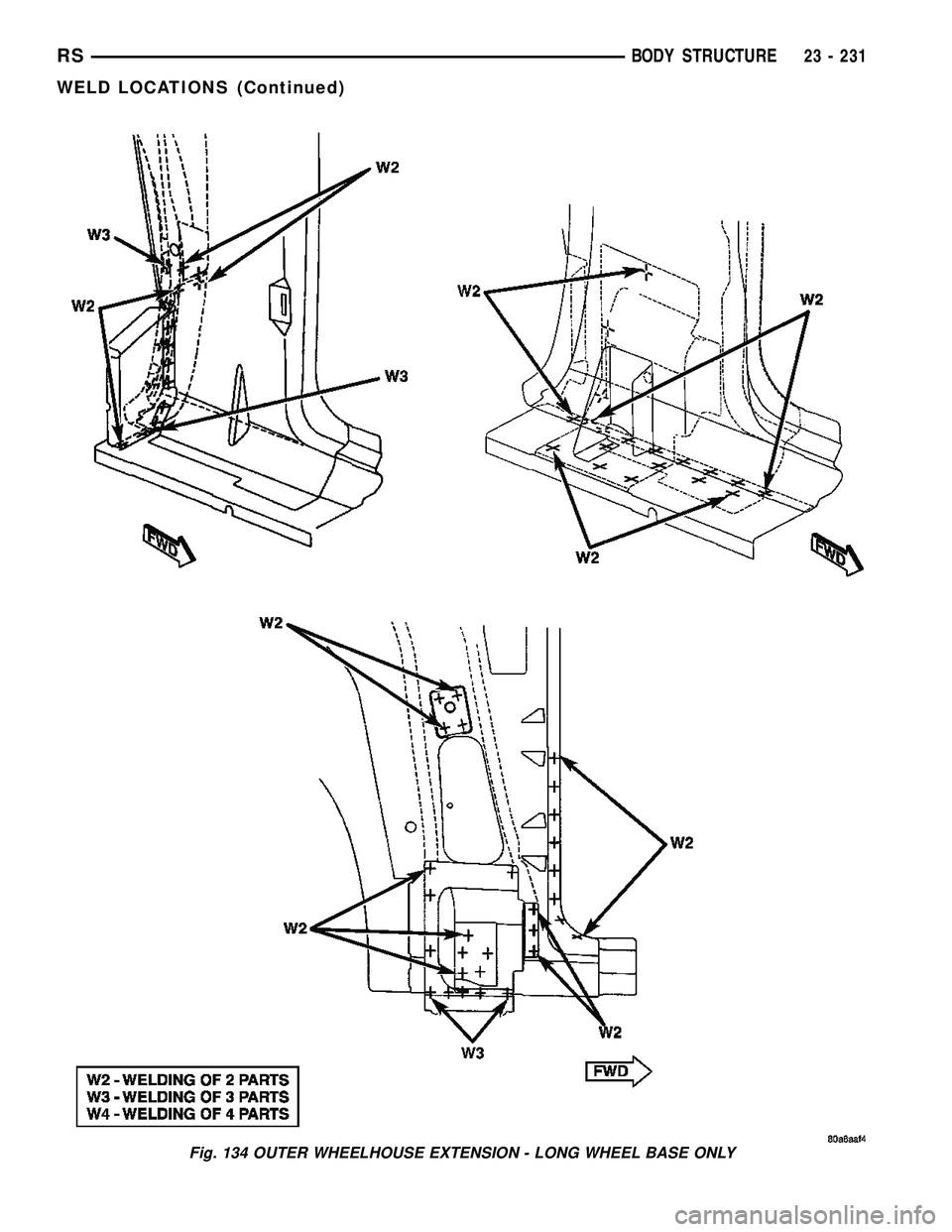

Fig. 134 OUTER WHEELHOUSE EXTENSION - LONG WHEEL BASE ONLY
RSBODY STRUCTURE23 - 231
WELD LOCATIONS (Continued)

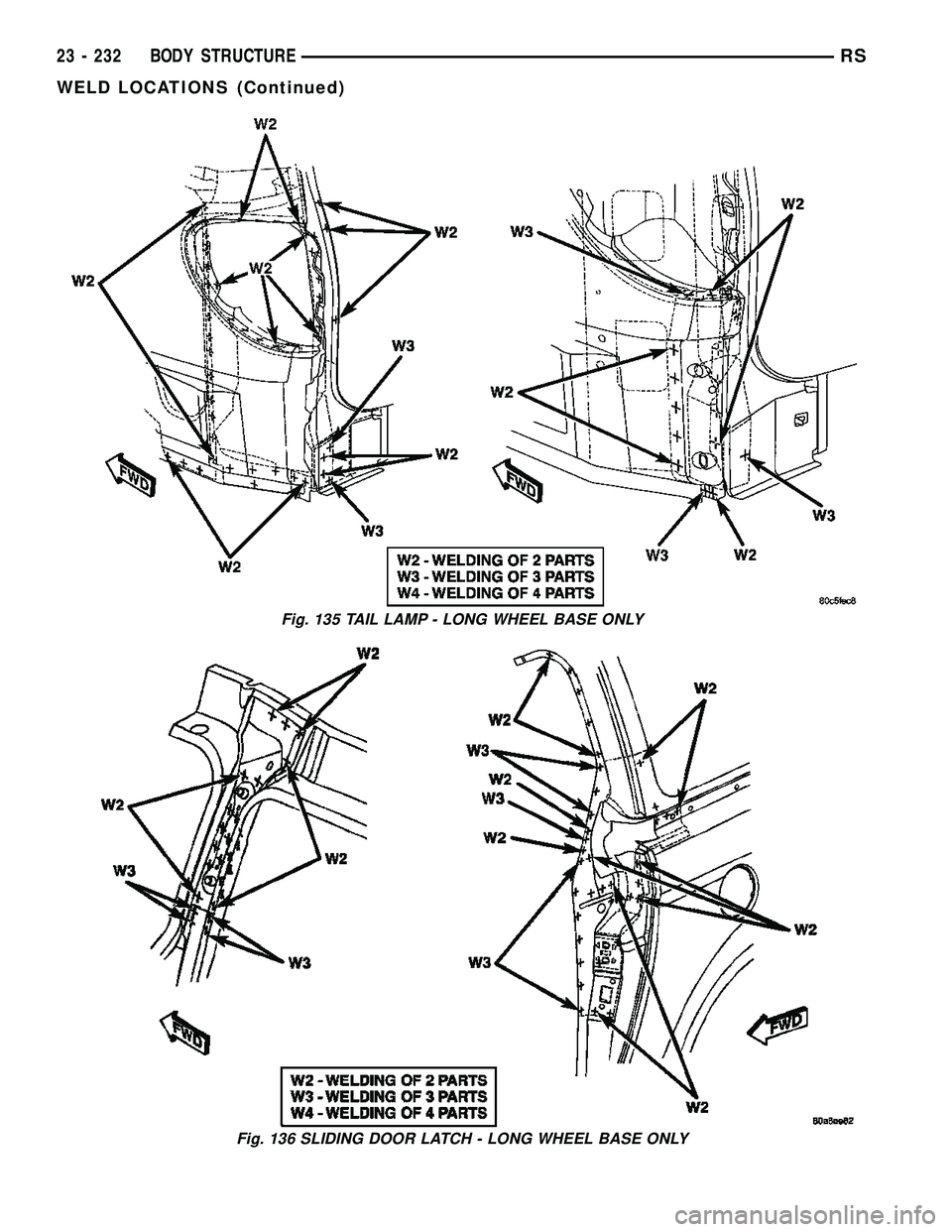

Fig. 135 TAIL LAMP - LONG WHEEL BASE ONLY
Fig. 136 SLIDING DOOR LATCH - LONG WHEEL BASE ONLY
23 - 232 BODY STRUCTURERS
WELD LOCATIONS (Continued)

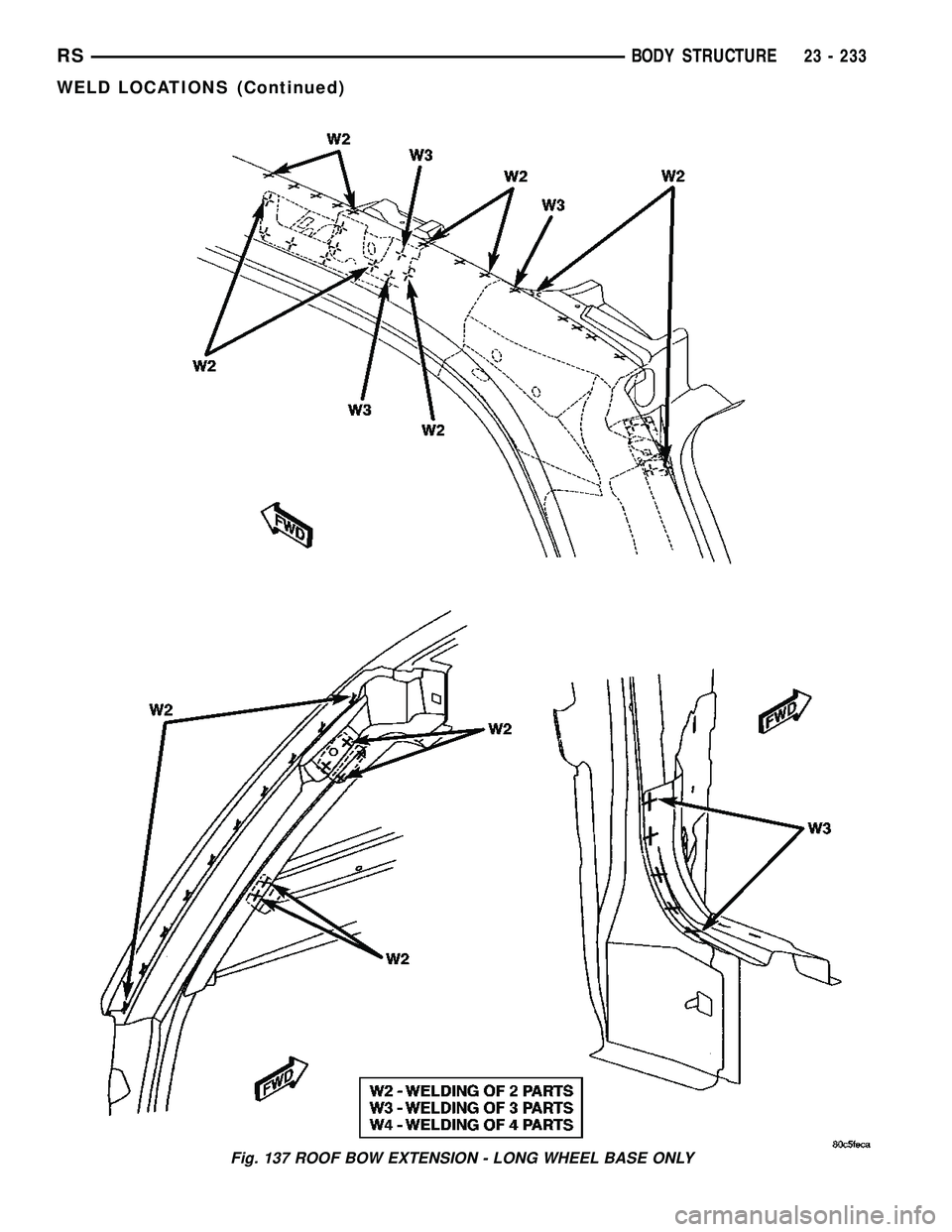

Fig. 137 ROOF BOW EXTENSION - LONG WHEEL BASE ONLY
RSBODY STRUCTURE23 - 233
WELD LOCATIONS (Continued)

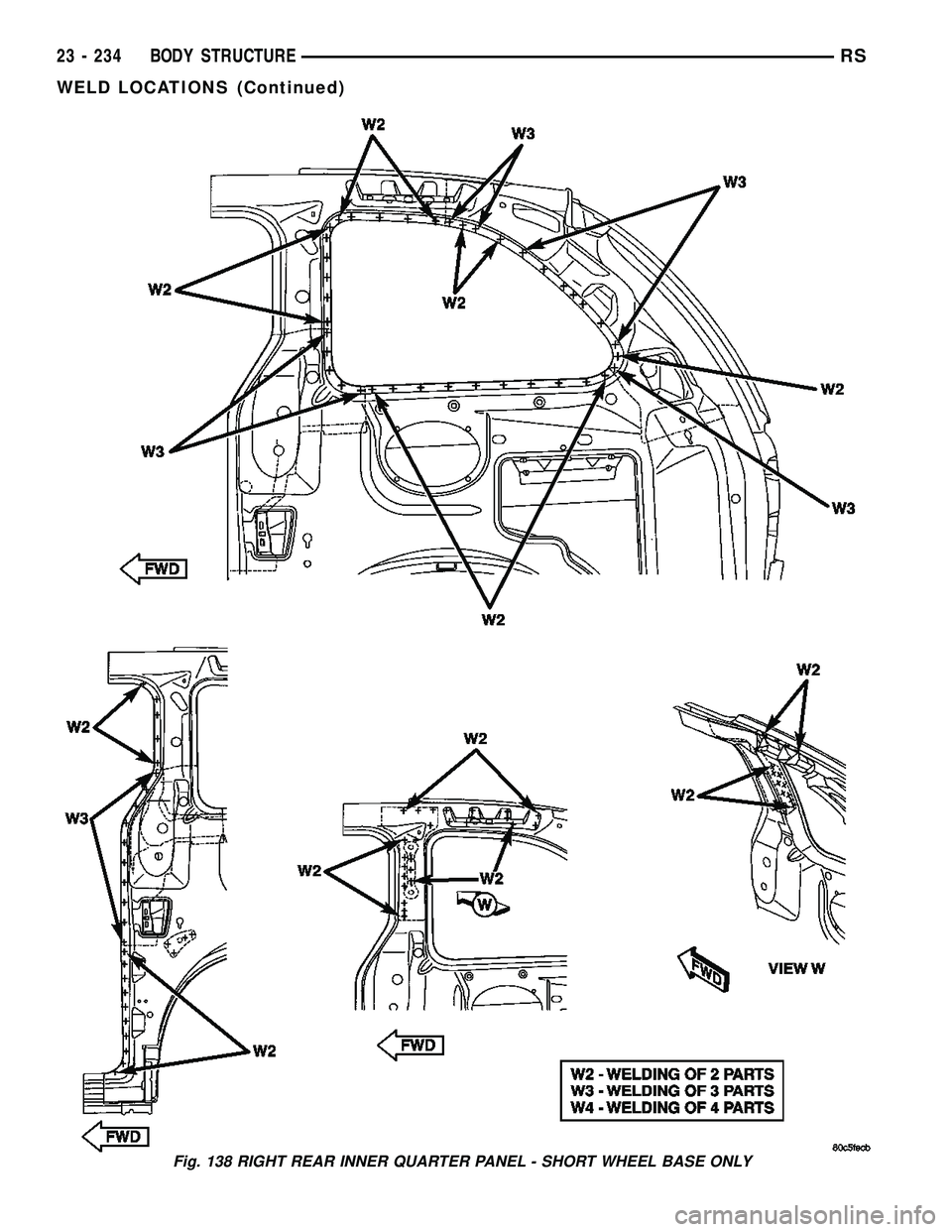

Fig. 138 RIGHT REAR INNER QUARTER PANEL - SHORT WHEEL BASE ONLY
23 - 234 BODY STRUCTURERS
WELD LOCATIONS (Continued)

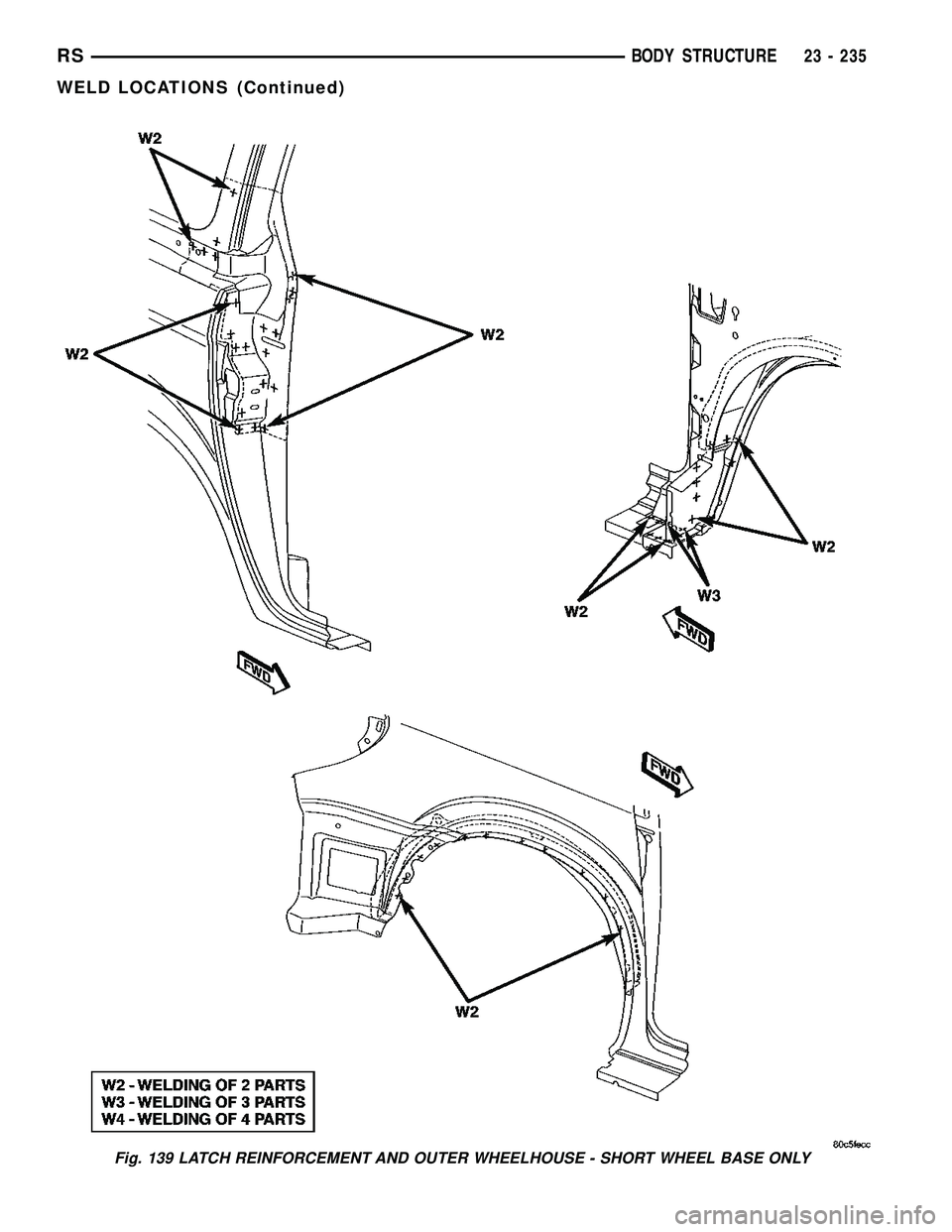

Fig. 139 LATCH REINFORCEMENT AND OUTER WHEELHOUSE - SHORT WHEEL BASE ONLY
RSBODY STRUCTURE23 - 235
WELD LOCATIONS (Continued)

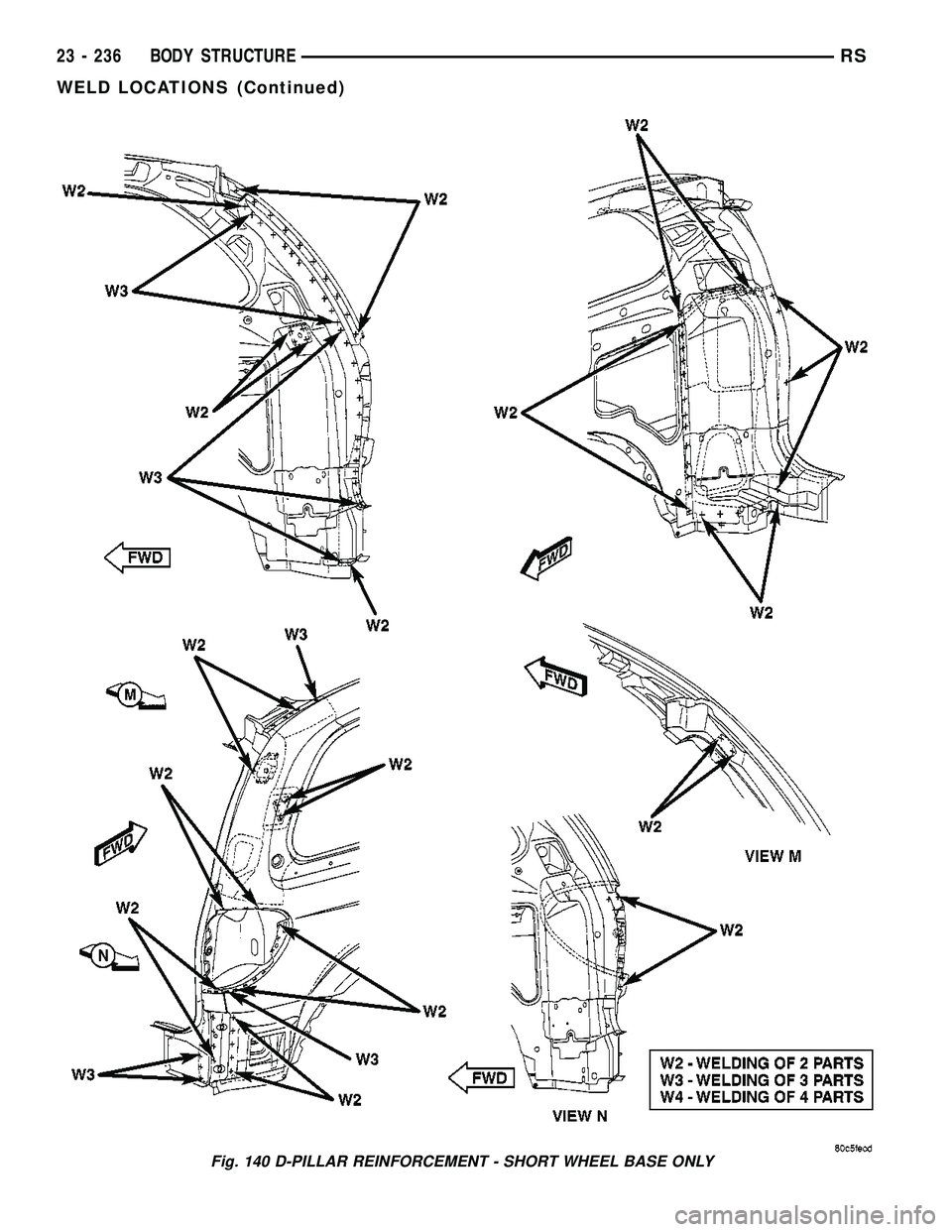

Fig. 140 D-PILLAR REINFORCEMENT - SHORT WHEEL BASE ONLY
23 - 236 BODY STRUCTURERS
WELD LOCATIONS (Continued)

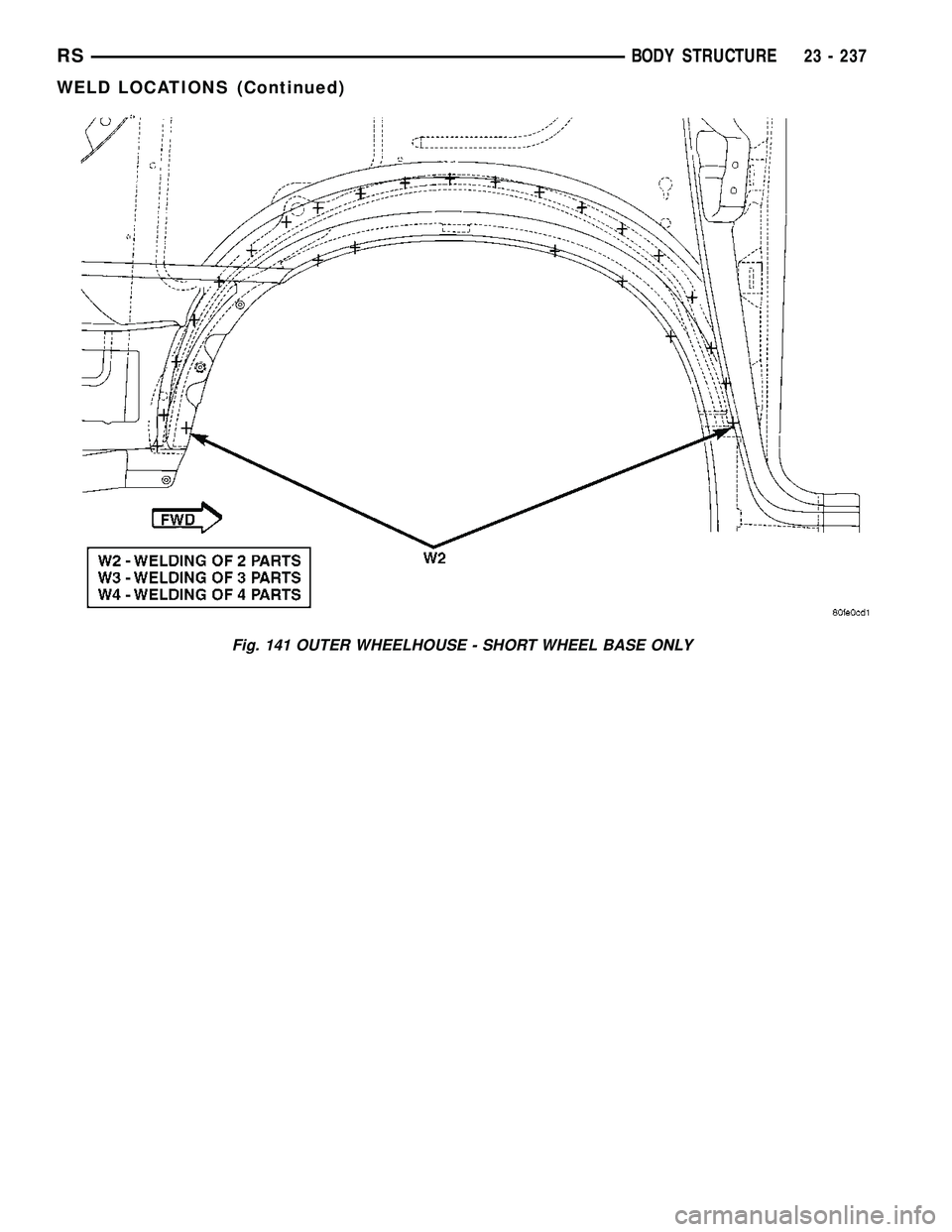

Fig. 141 OUTER WHEELHOUSE - SHORT WHEEL BASE ONLY
RSBODY STRUCTURE23 - 237
WELD LOCATIONS (Continued)

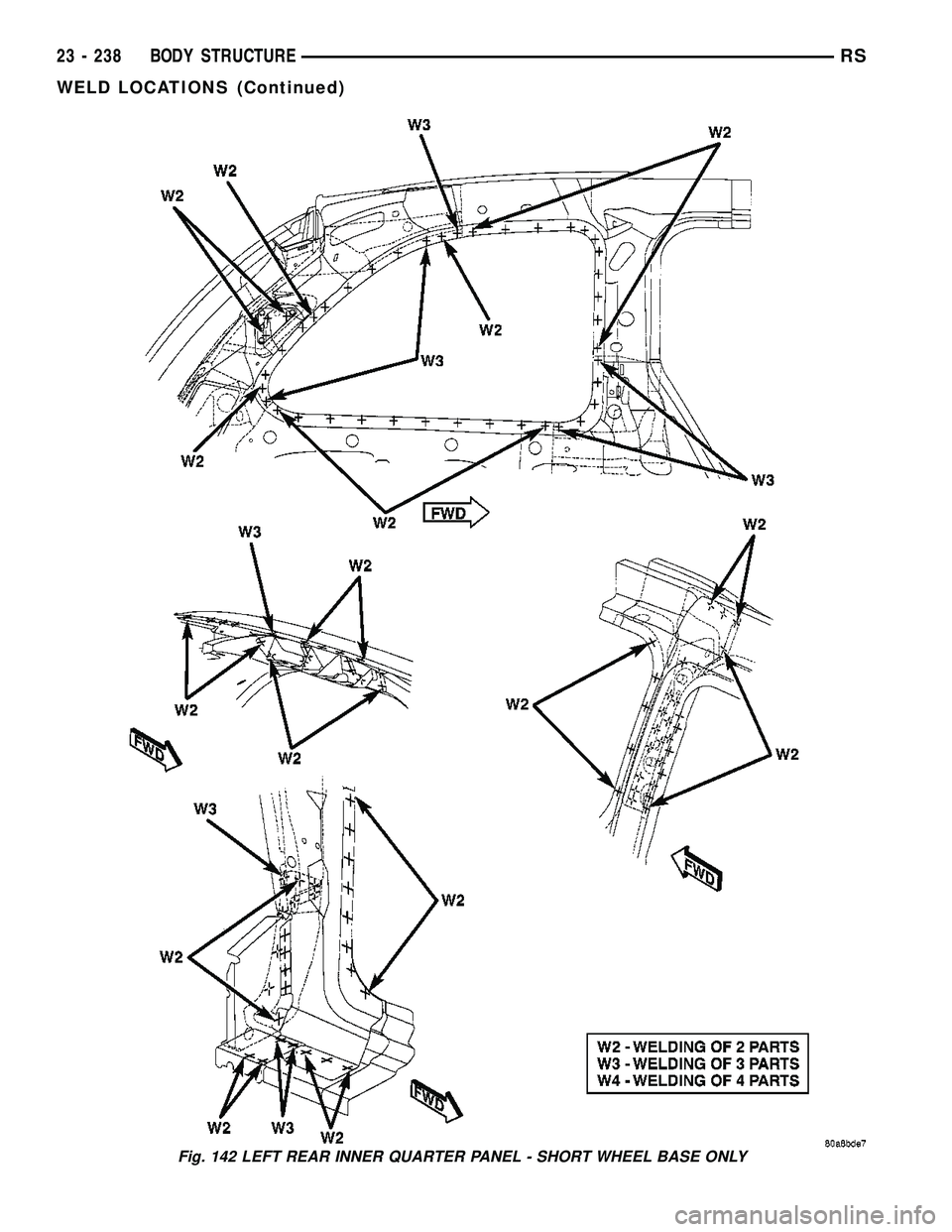

Fig. 142 LEFT REAR INNER QUARTER PANEL - SHORT WHEEL BASE ONLY
23 - 238 BODY STRUCTURERS
WELD LOCATIONS (Continued)

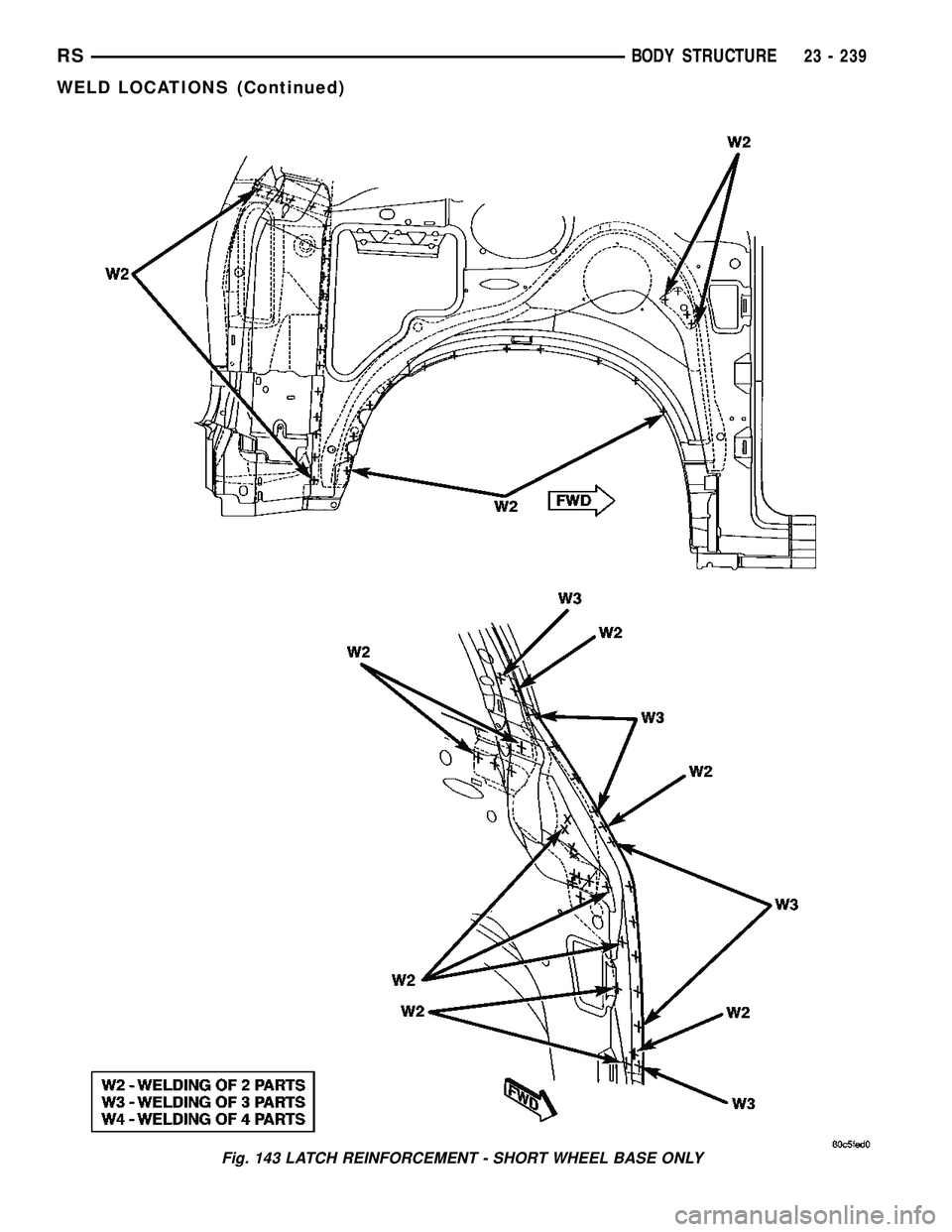

Fig. 143 LATCH REINFORCEMENT - SHORT WHEEL BASE ONLY
RSBODY STRUCTURE23 - 239
WELD LOCATIONS (Continued)
