CHRYSLER VOYAGER 2004 Service Manual

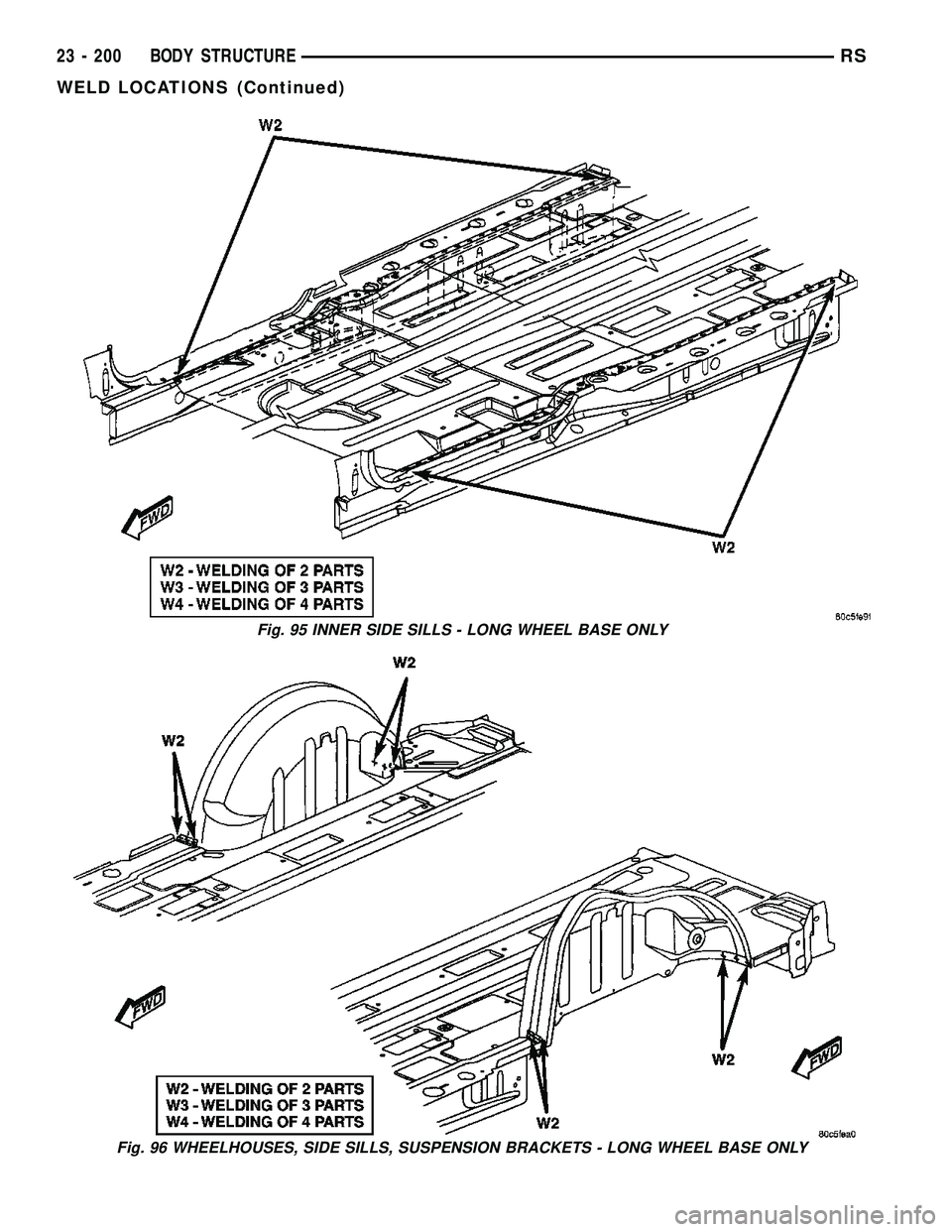

Fig. 95 INNER SIDE SILLS - LONG WHEEL BASE ONLY
Fig. 96 WHEELHOUSES, SIDE SILLS, SUSPENSION BRACKETS - LONG WHEEL BASE ONLY
23 - 200 BODY STRUCTURERS
WELD LOCATIONS (Continued)

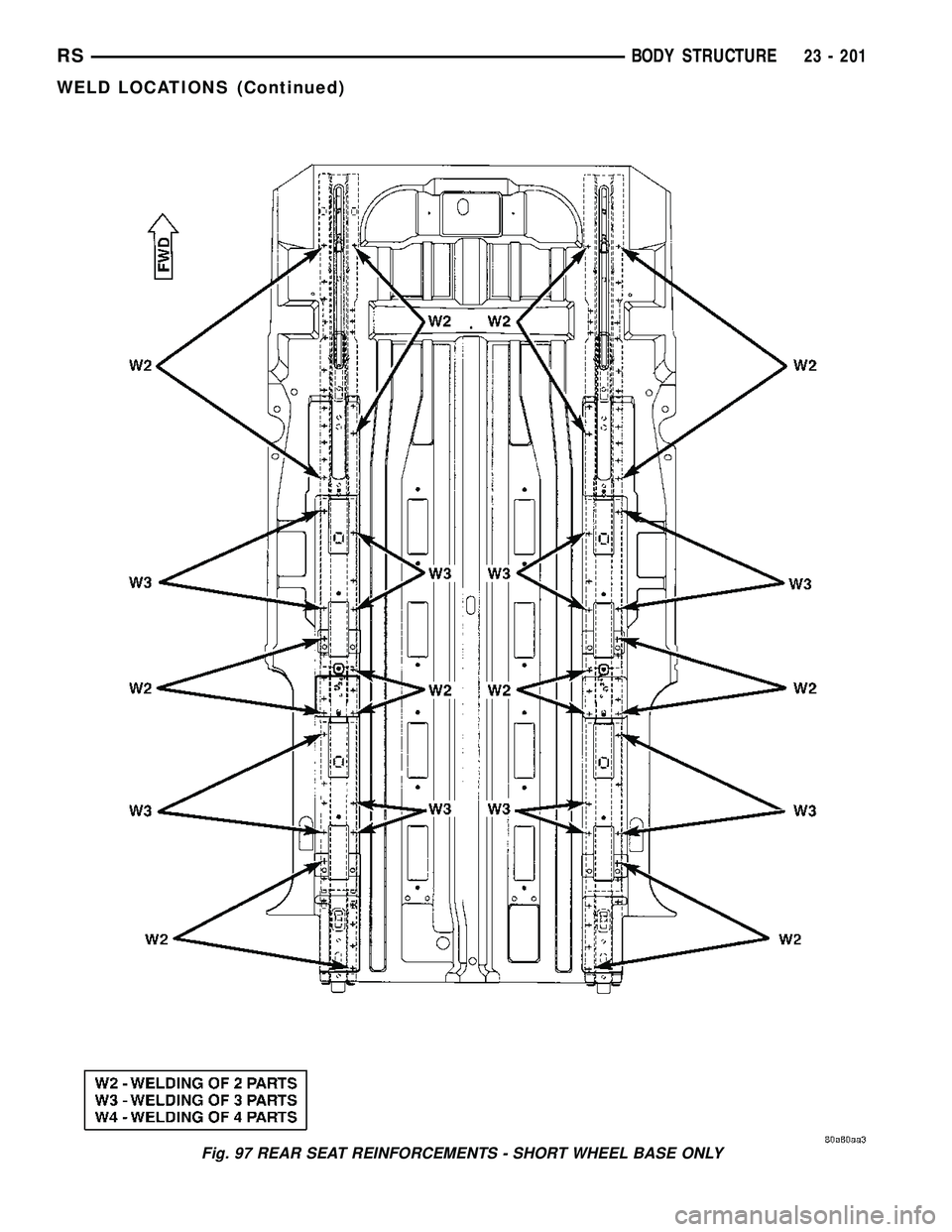

Fig. 97 REAR SEAT REINFORCEMENTS - SHORT WHEEL BASE ONLY
RSBODY STRUCTURE23 - 201
WELD LOCATIONS (Continued)

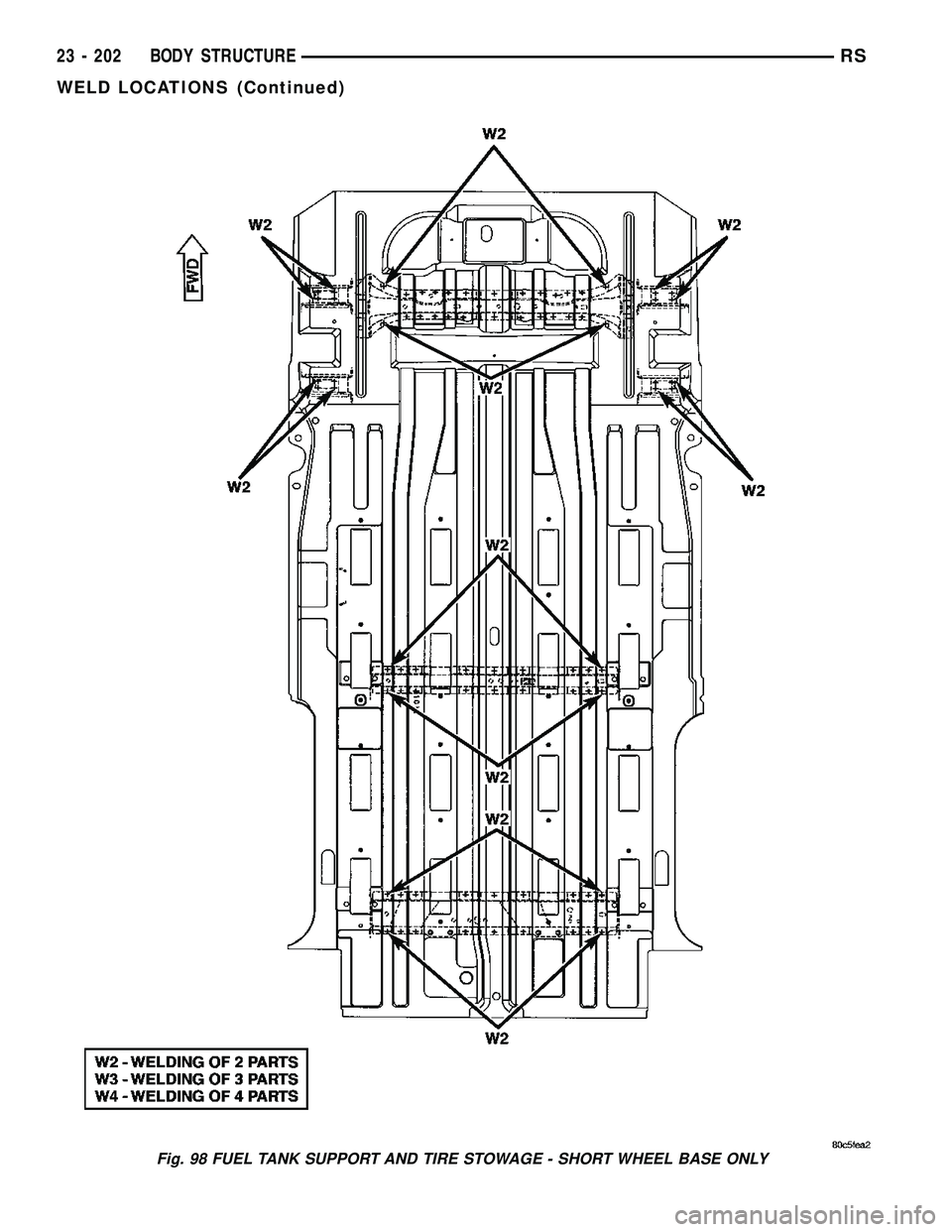

Fig. 98 FUEL TANK SUPPORT AND TIRE STOWAGE - SHORT WHEEL BASE ONLY
23 - 202 BODY STRUCTURERS
WELD LOCATIONS (Continued)

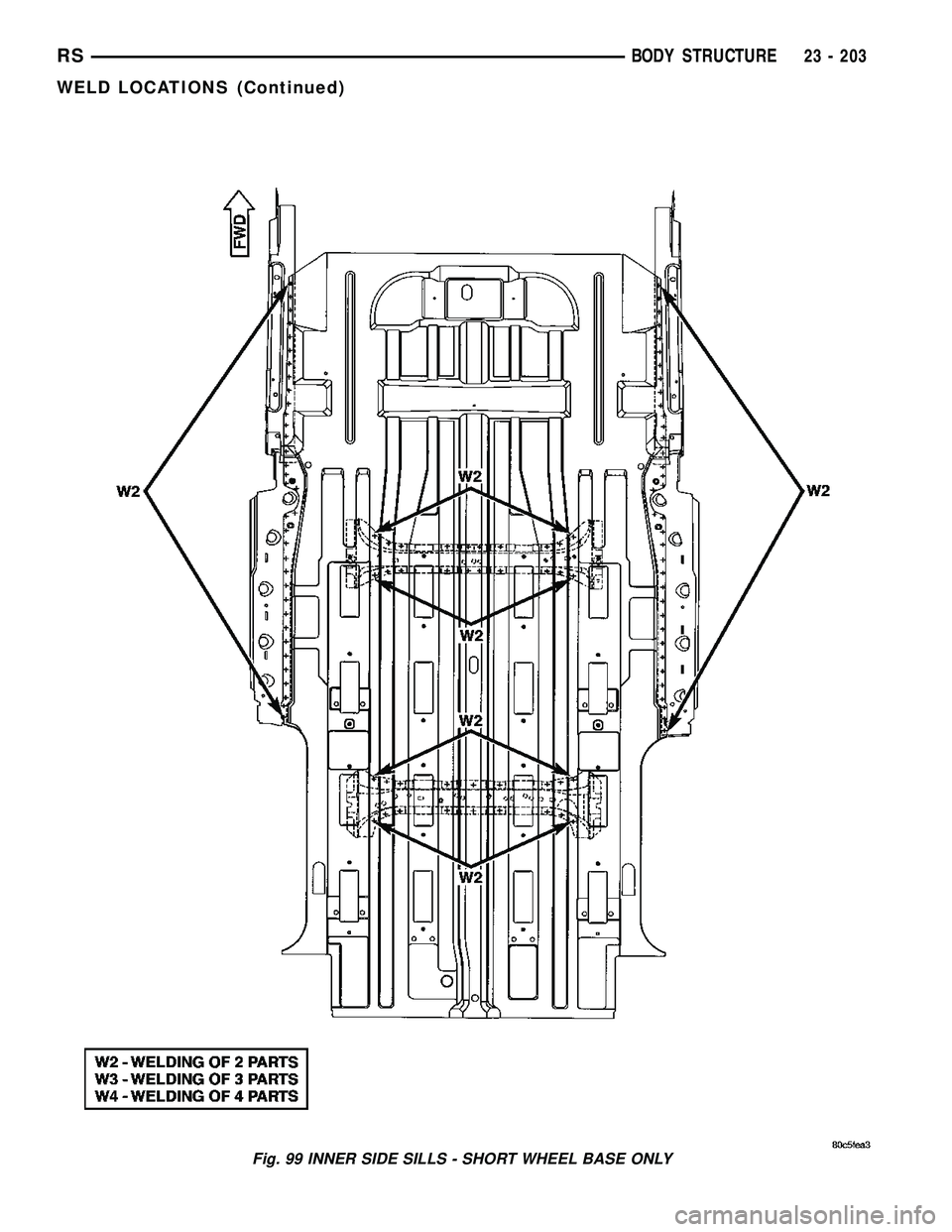

Fig. 99 INNER SIDE SILLS - SHORT WHEEL BASE ONLY
RSBODY STRUCTURE23 - 203
WELD LOCATIONS (Continued)

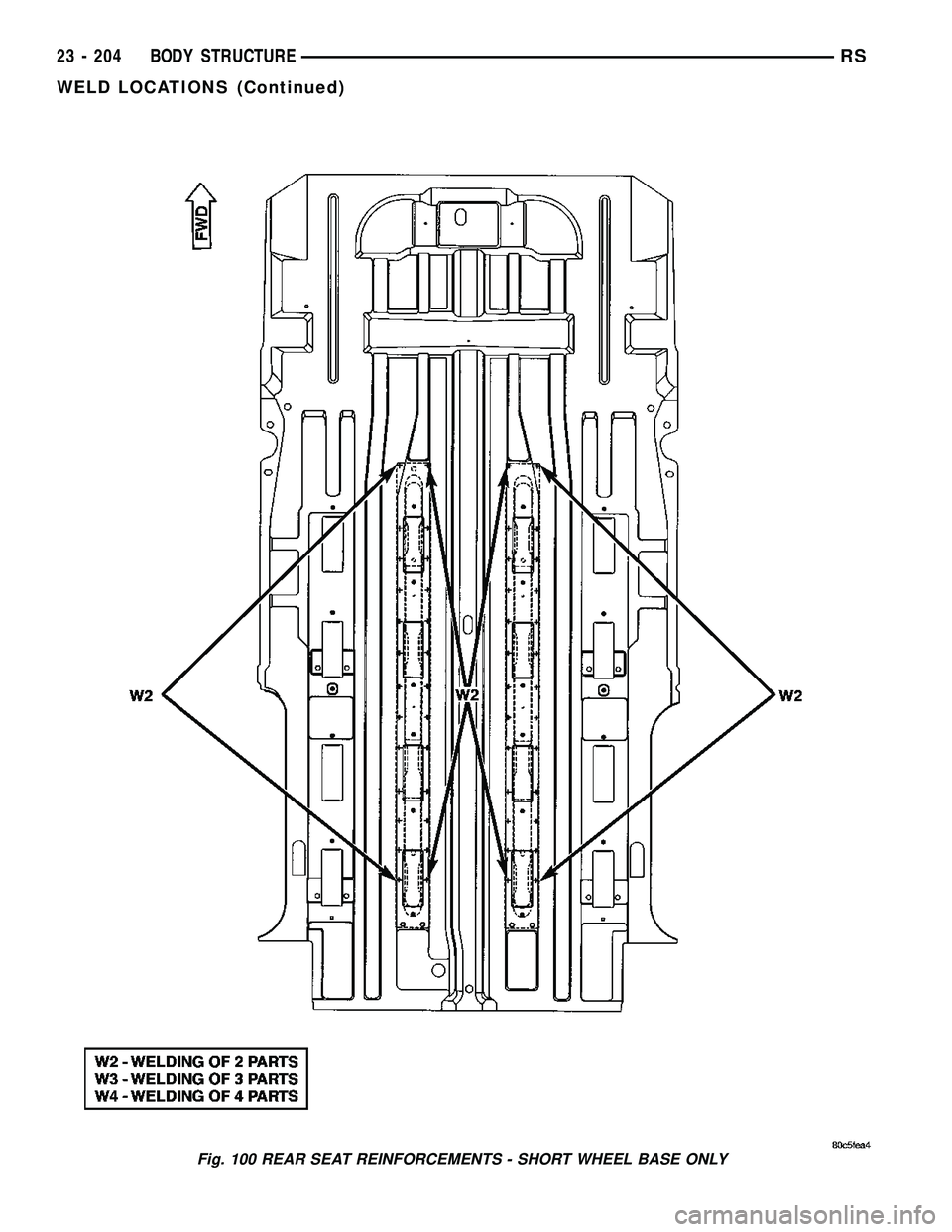

Fig. 100 REAR SEAT REINFORCEMENTS - SHORT WHEEL BASE ONLY
23 - 204 BODY STRUCTURERS
WELD LOCATIONS (Continued)

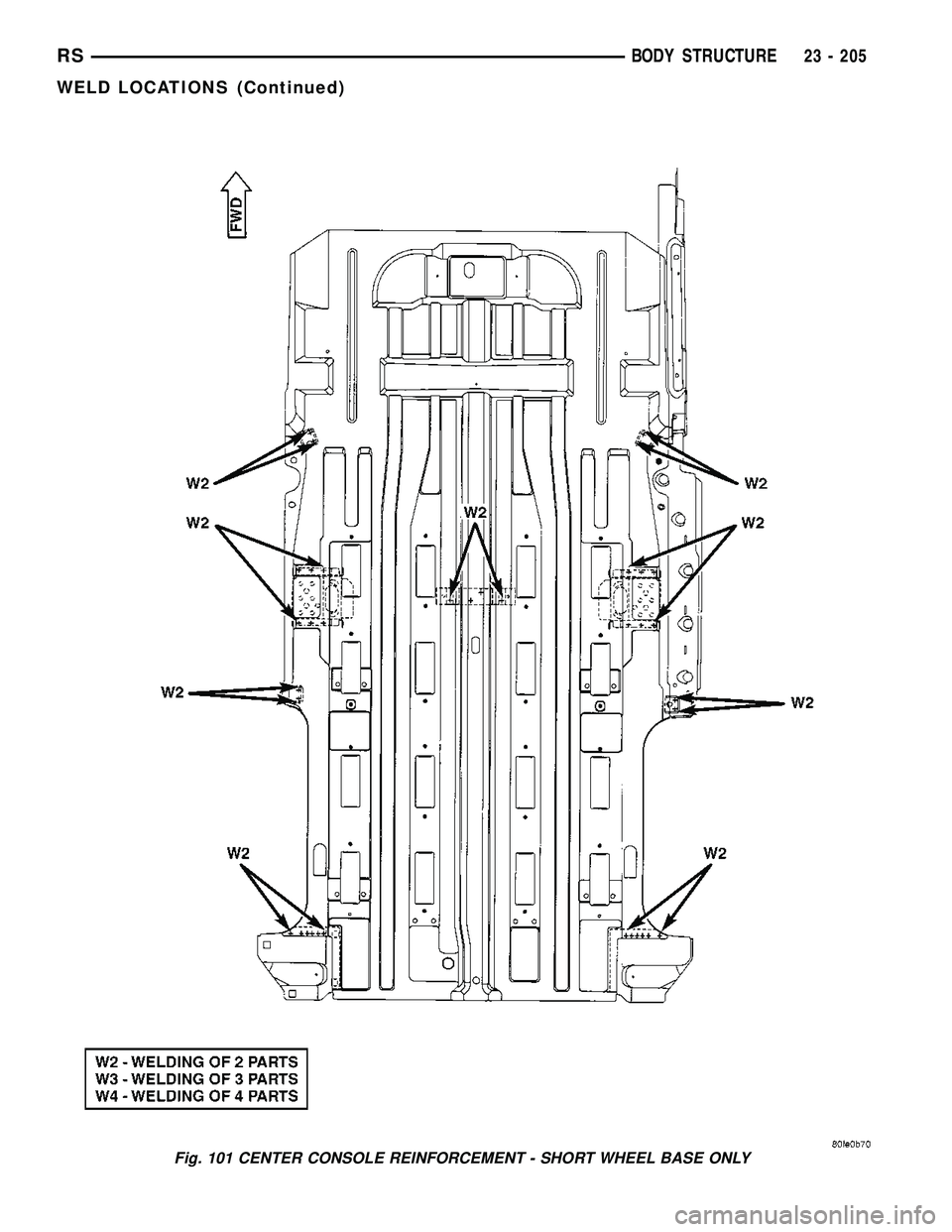

Fig. 101 CENTER CONSOLE REINFORCEMENT - SHORT WHEEL BASE ONLY
RSBODY STRUCTURE23 - 205
WELD LOCATIONS (Continued)

Fig. 102 WHEELHOUSES - SHORT WHEEL BASE ONLY
Fig. 103 FRONT SEAT CROSS MEMBER - SHORT WHEELBASE, ALL WHEEL DRIVE ONLY
23 - 206 BODY STRUCTURERS
WELD LOCATIONS (Continued)

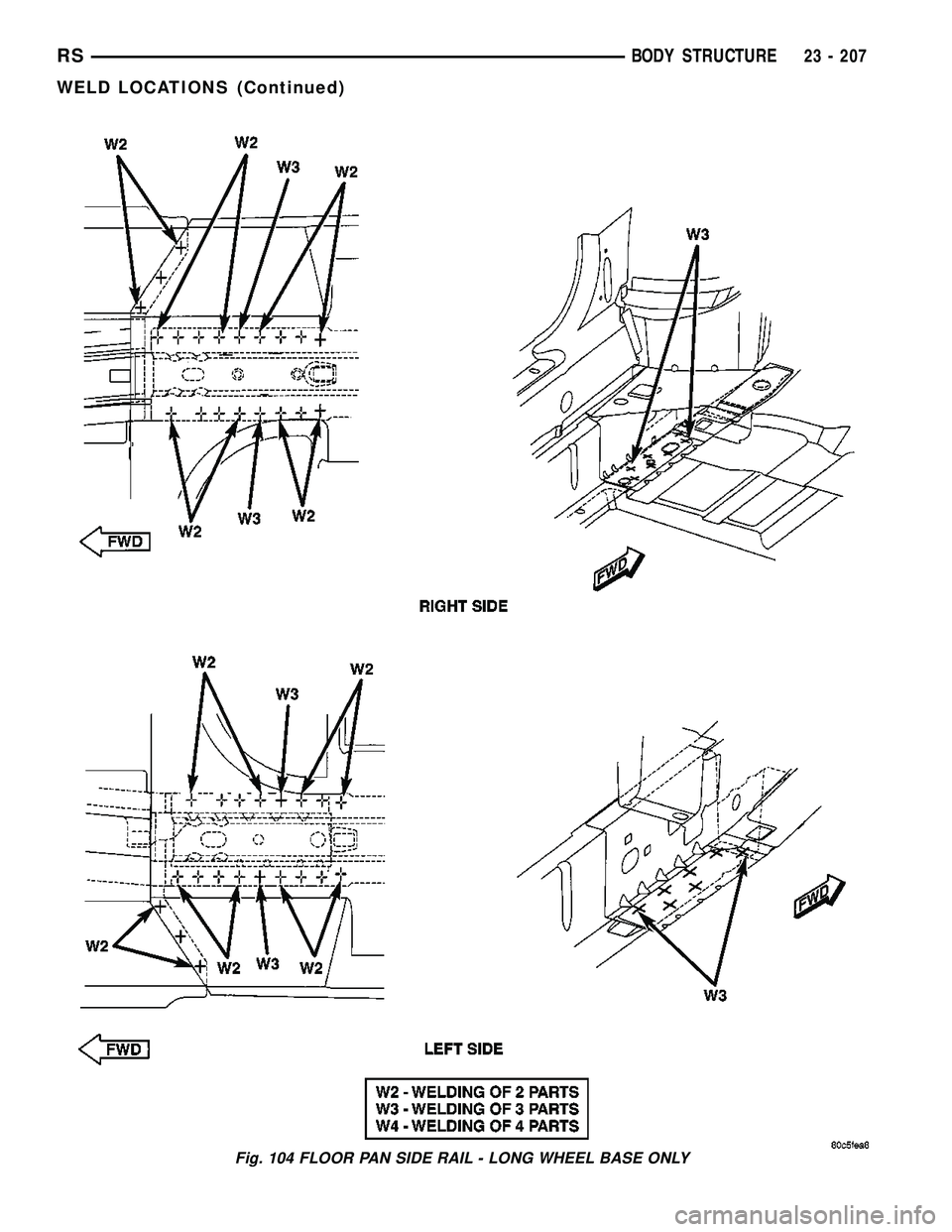

Fig. 104 FLOOR PAN SIDE RAIL - LONG WHEEL BASE ONLY
RSBODY STRUCTURE23 - 207
WELD LOCATIONS (Continued)

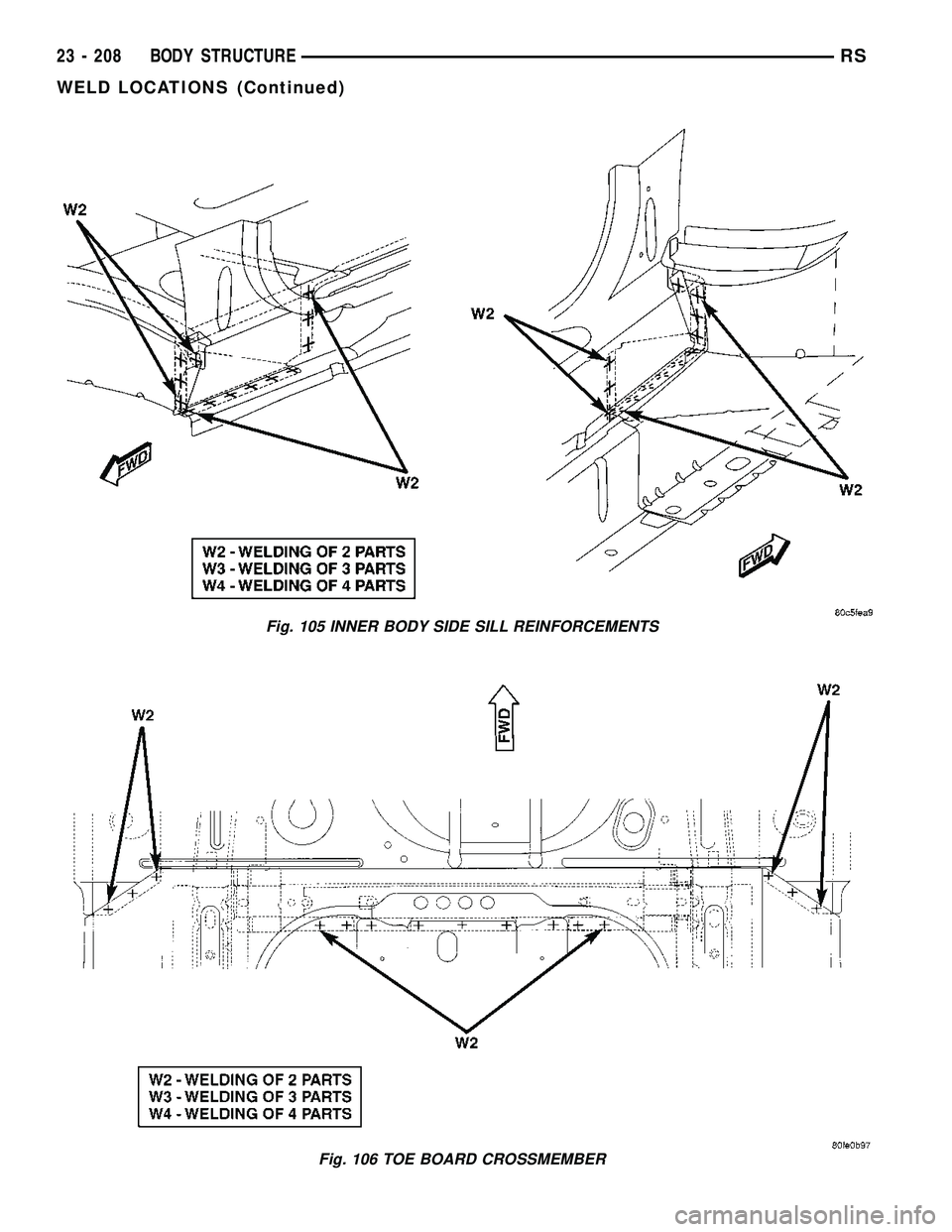

Fig. 105 INNER BODY SIDE SILL REINFORCEMENTS
Fig. 106 TOE BOARD CROSSMEMBER
23 - 208 BODY STRUCTURERS
WELD LOCATIONS (Continued)

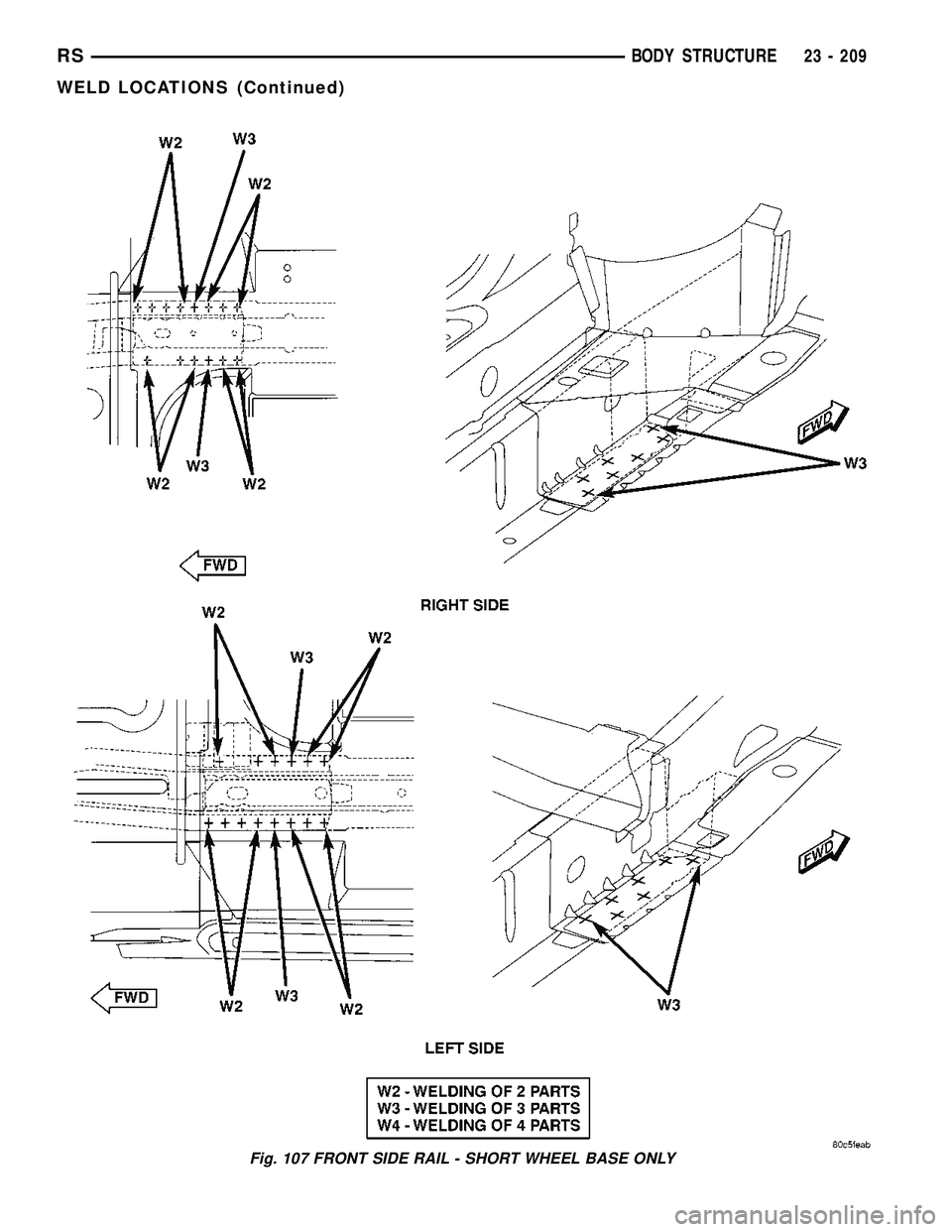

Fig. 107 FRONT SIDE RAIL - SHORT WHEEL BASE ONLY
RSBODY STRUCTURE23 - 209
WELD LOCATIONS (Continued)
