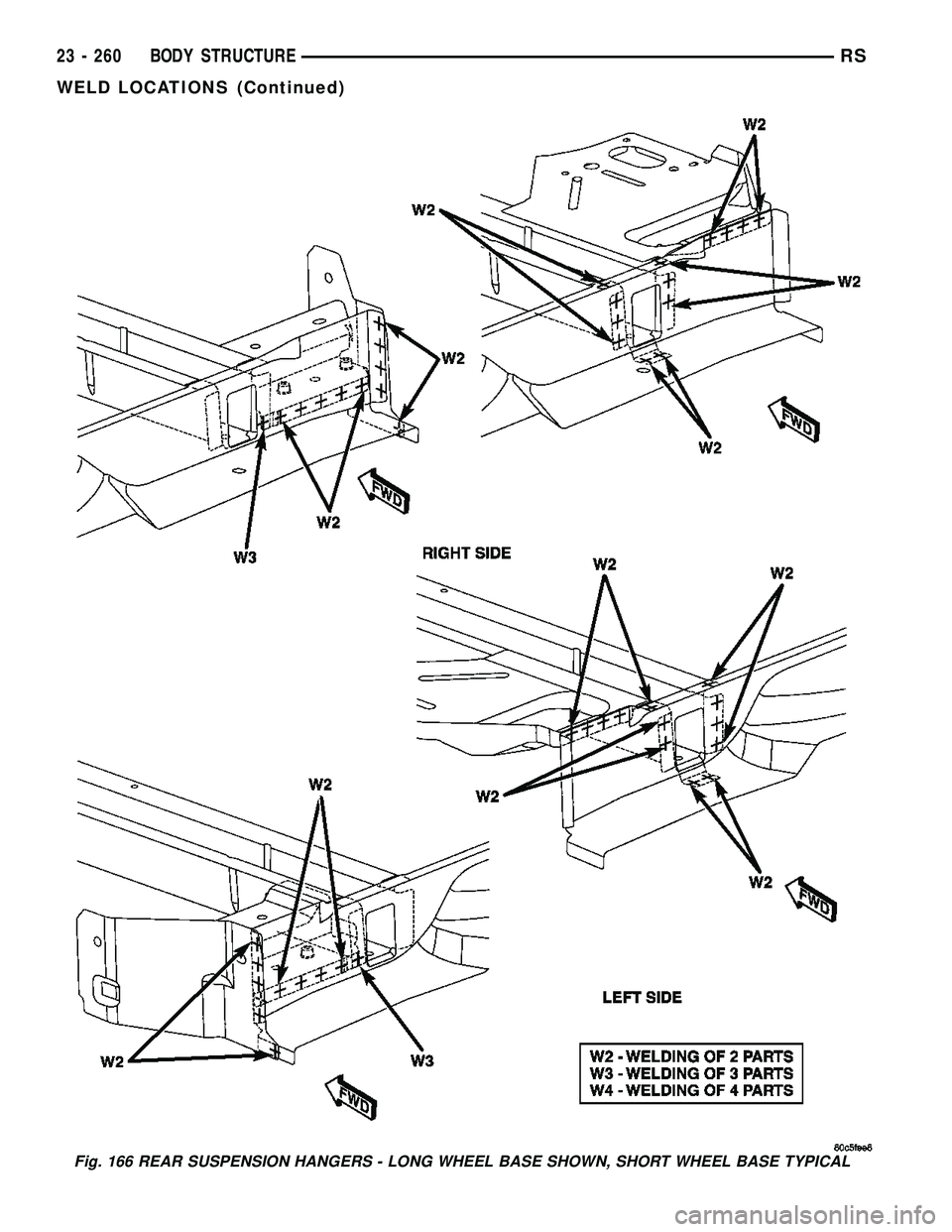

Fig. 166 REAR SUSPENSION HANGERS - LONG WHEEL BASE SHOWN, SHORT WHEEL BASE TYPICAL
23 - 260 BODY STRUCTURERS
WELD LOCATIONS (Continued)

Fig. 167 FRONT LOWER LIFTGATE OPENING
Fig. 168 REAR JACKING REINFORCEMENT - LONG WHEEL BASE ONLY
RSBODY STRUCTURE23 - 261
WELD LOCATIONS (Continued)

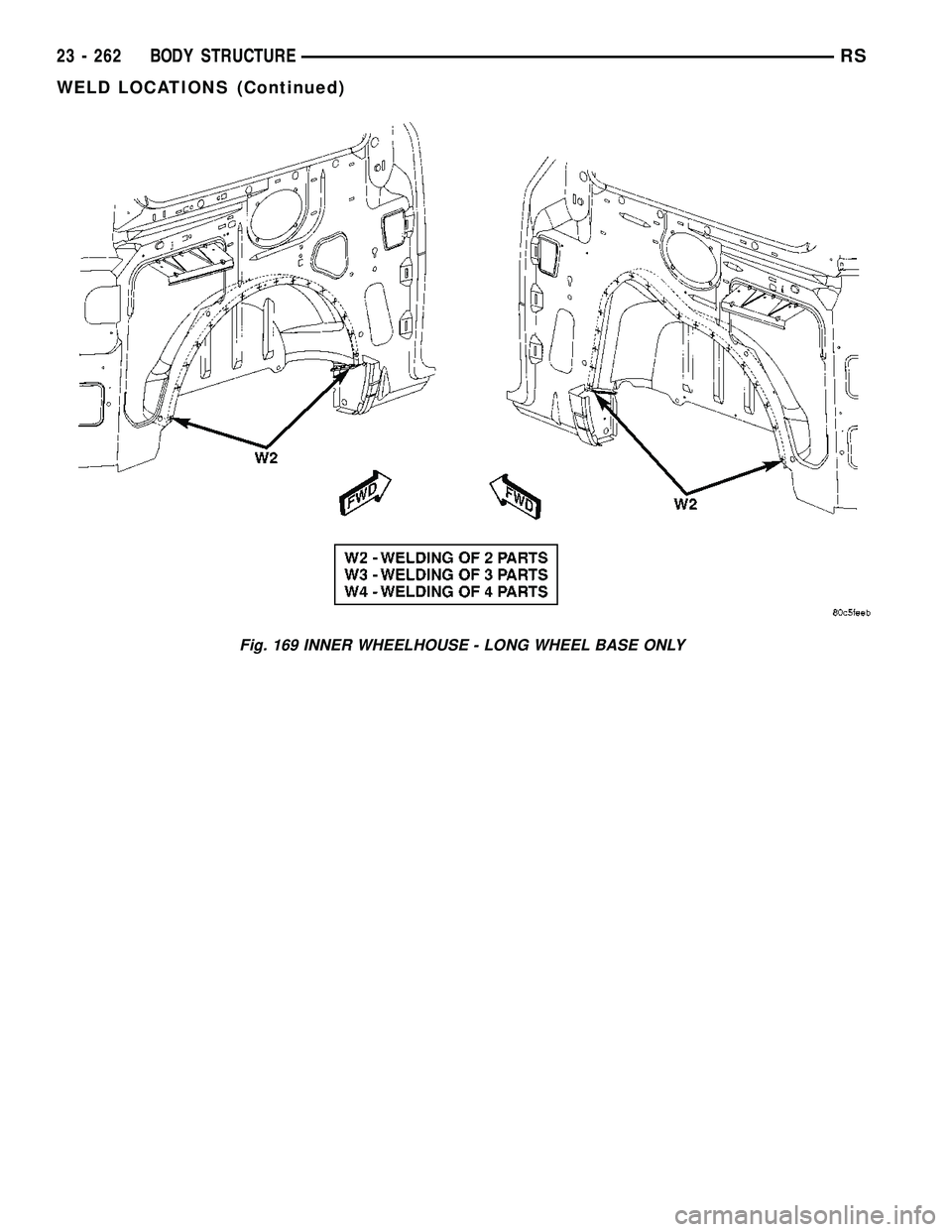

Fig. 169 INNER WHEELHOUSE - LONG WHEEL BASE ONLY
23 - 262 BODY STRUCTURERS
WELD LOCATIONS (Continued)

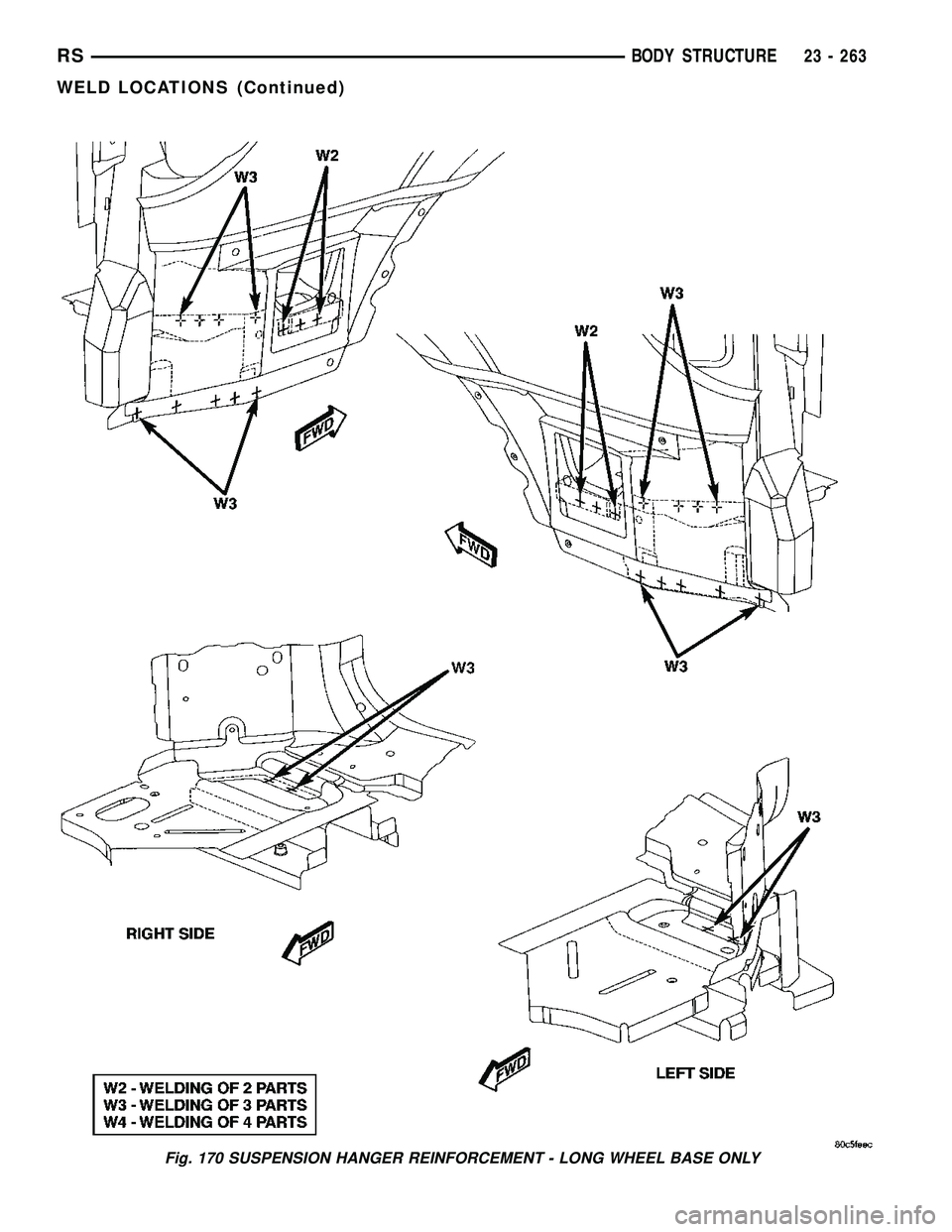

Fig. 170 SUSPENSION HANGER REINFORCEMENT - LONG WHEEL BASE ONLY
RSBODY STRUCTURE23 - 263
WELD LOCATIONS (Continued)

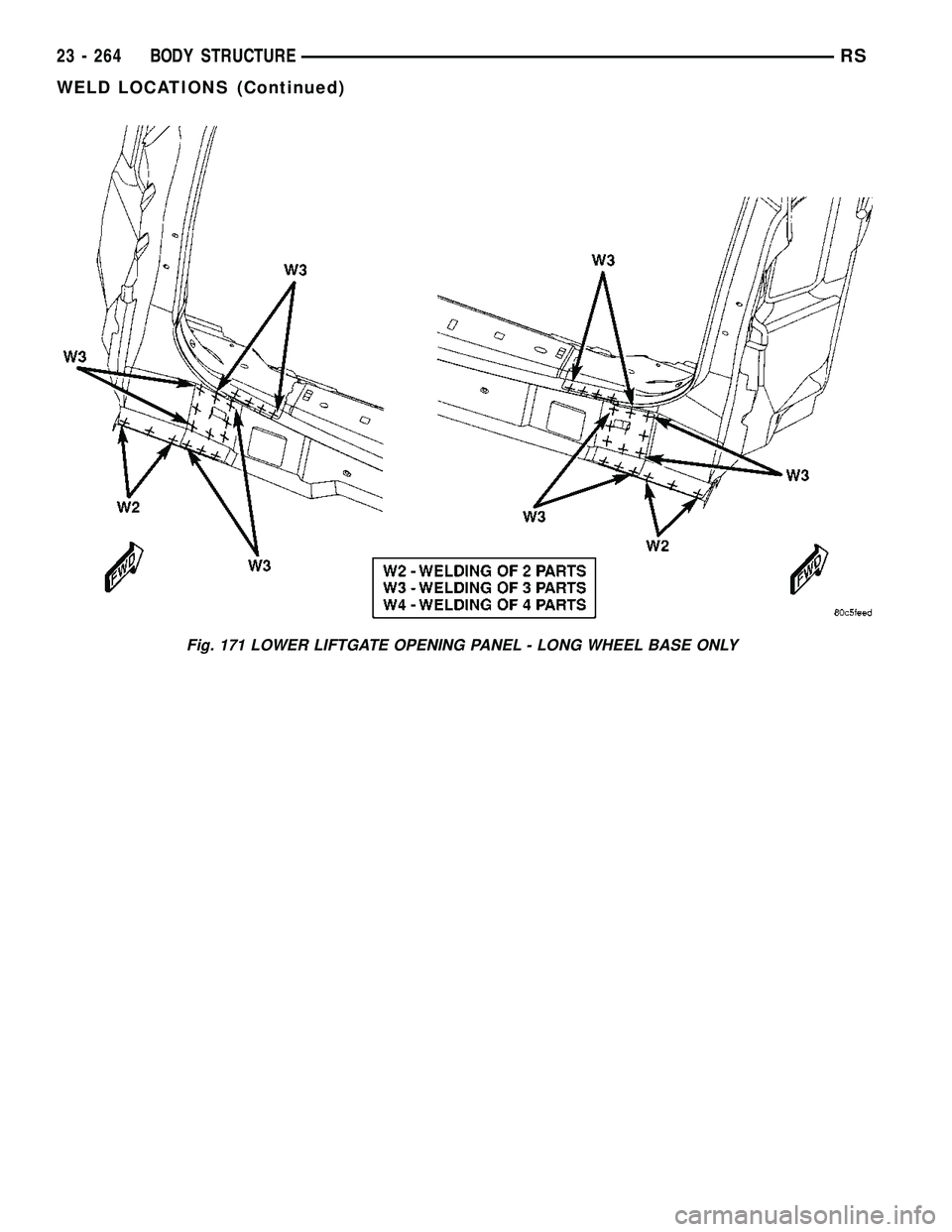

Fig. 171 LOWER LIFTGATE OPENING PANEL - LONG WHEEL BASE ONLY
23 - 264 BODY STRUCTURERS
WELD LOCATIONS (Continued)

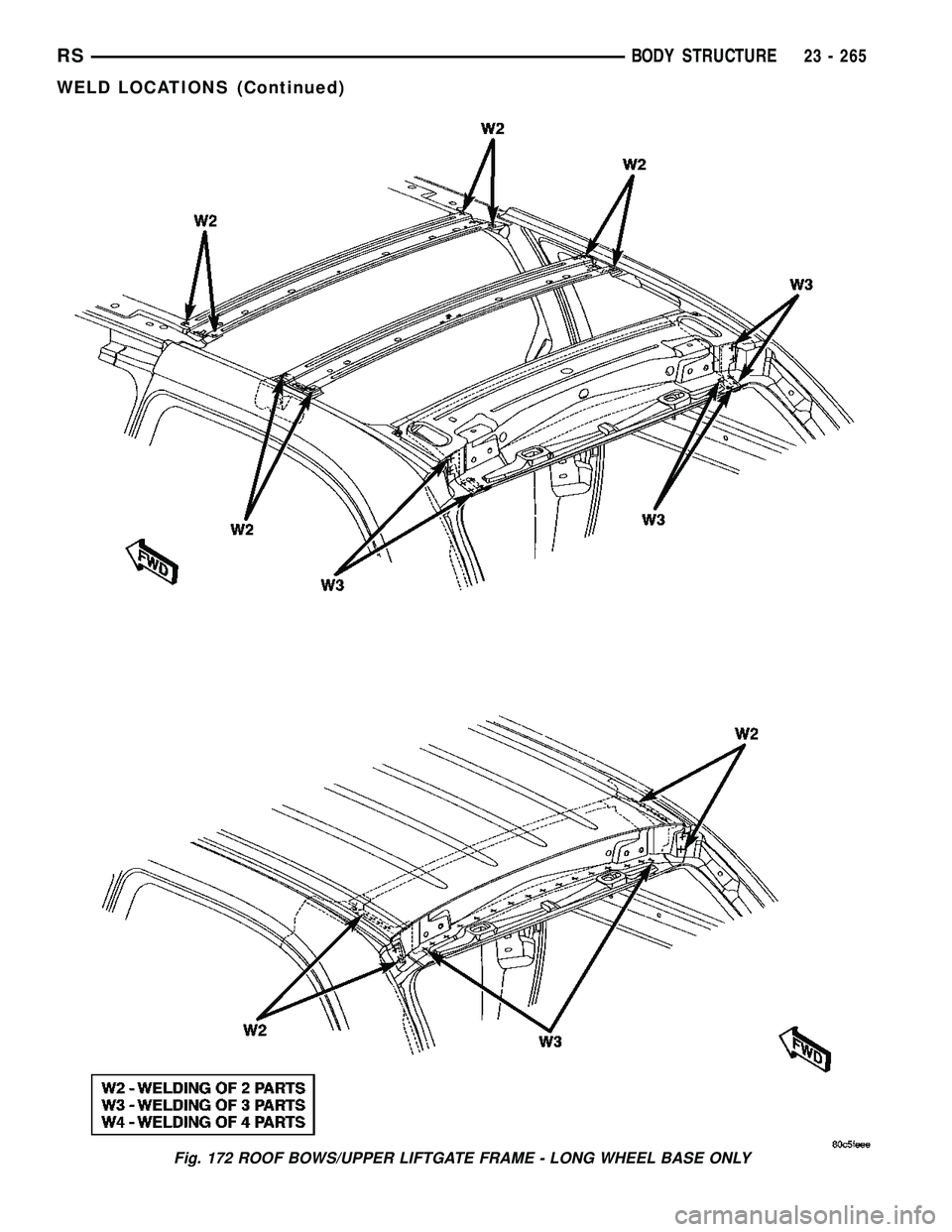

Fig. 172 ROOF BOWS/UPPER LIFTGATE FRAME - LONG WHEEL BASE ONLY
RSBODY STRUCTURE23 - 265
WELD LOCATIONS (Continued)

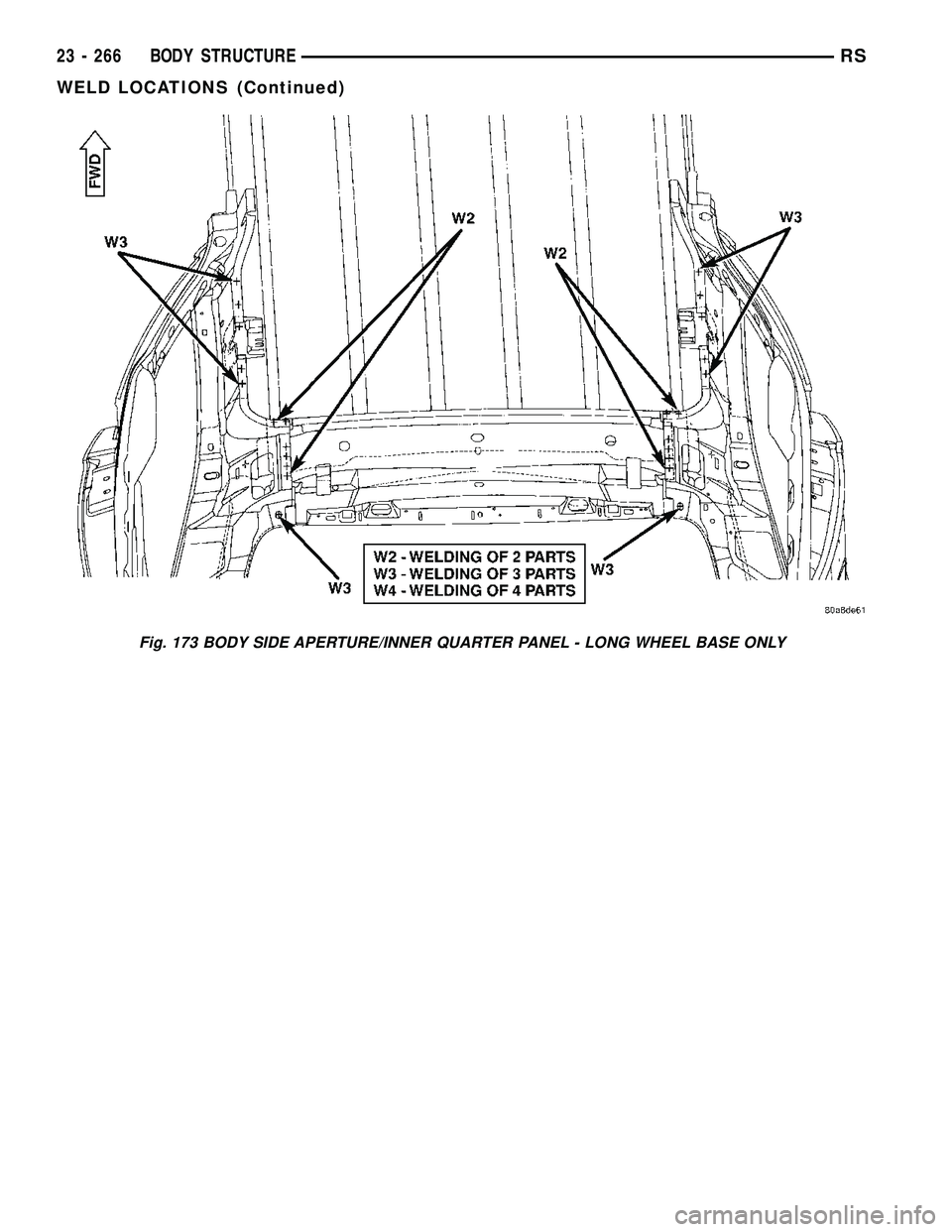

Fig. 173 BODY SIDE APERTURE/INNER QUARTER PANEL - LONG WHEEL BASE ONLY
23 - 266 BODY STRUCTURERS
WELD LOCATIONS (Continued)

Fig. 174 REAR JACKING REINFORCEMENT - SHORT WHEEL BASE ONLY
RSBODY STRUCTURE23 - 267
WELD LOCATIONS (Continued)

Fig. 175 INNER WHEELHOUSE/INNER QUARTER PANEL - SHORT WHEEL BASE ONLY
23 - 268 BODY STRUCTURERS
WELD LOCATIONS (Continued)

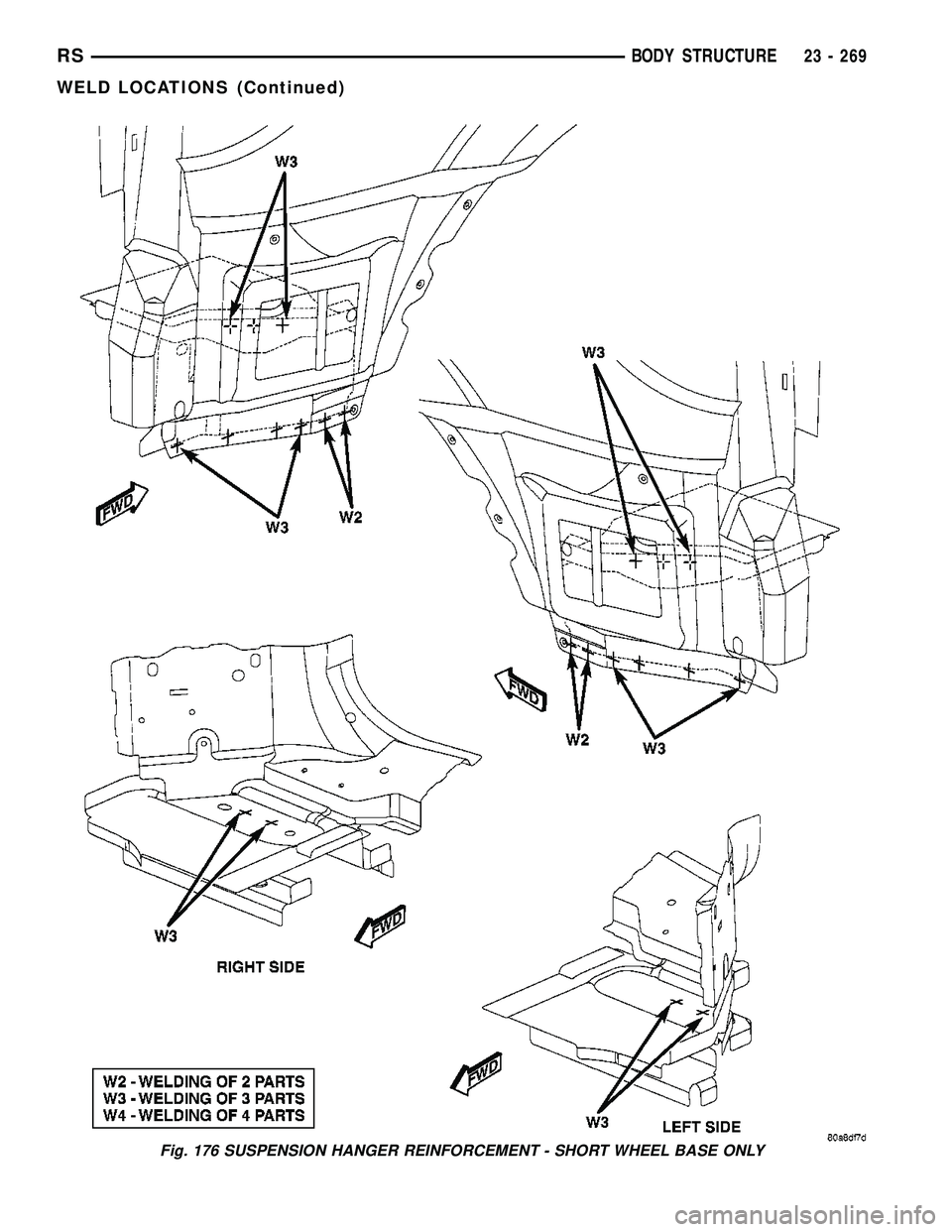

Fig. 176 SUSPENSION HANGER REINFORCEMENT - SHORT WHEEL BASE ONLY
RSBODY STRUCTURE23 - 269
WELD LOCATIONS (Continued)
