CHRYSLER VOYAGER 2004 Service Manual

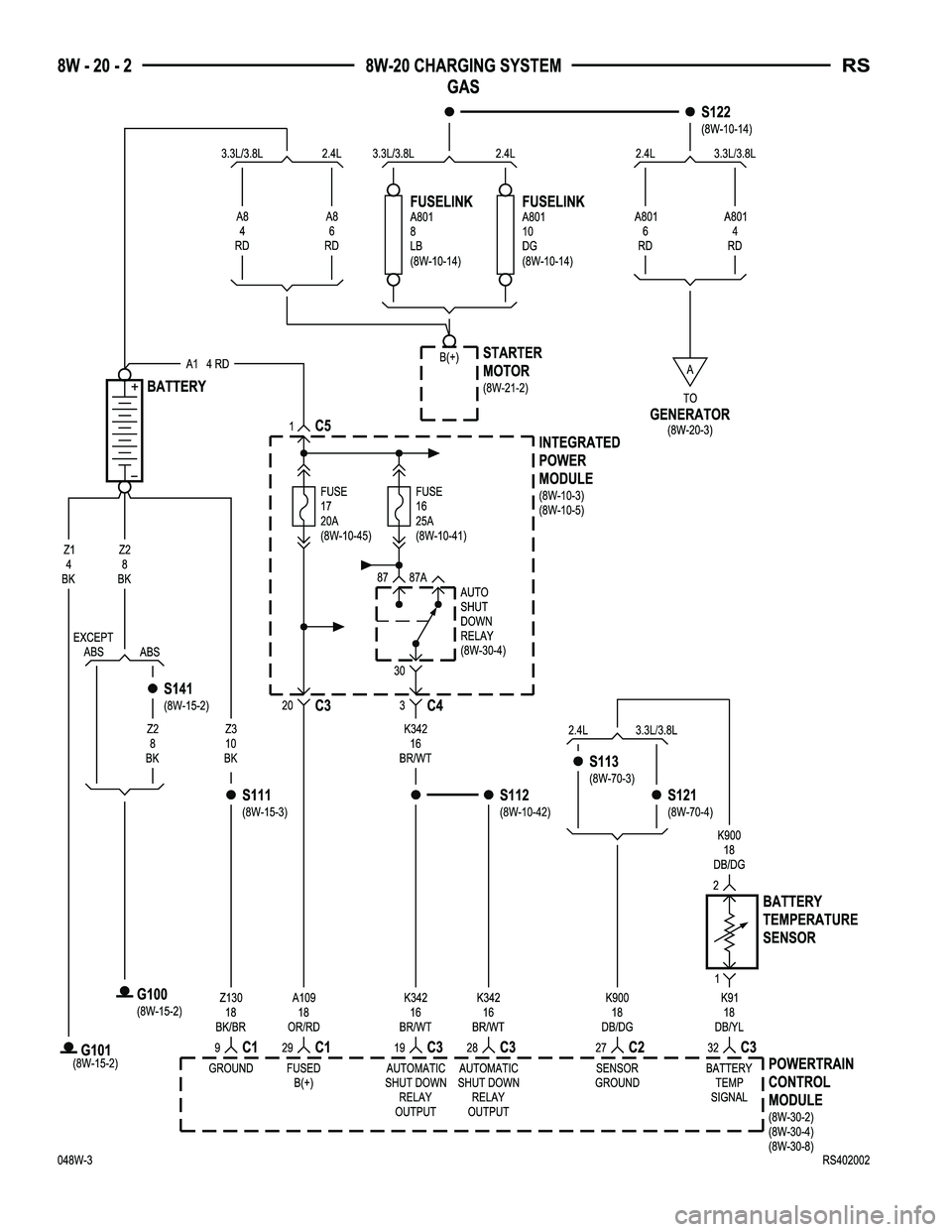

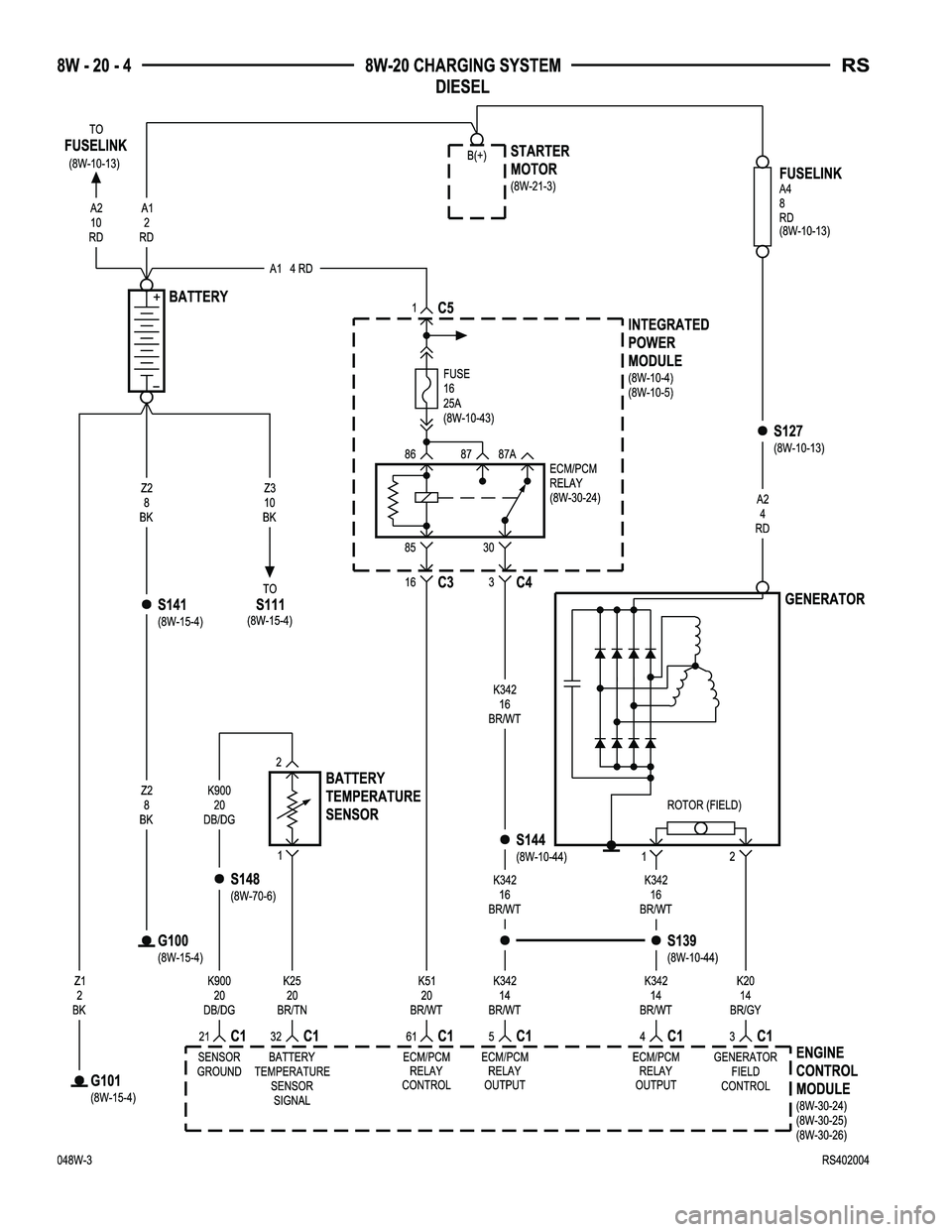

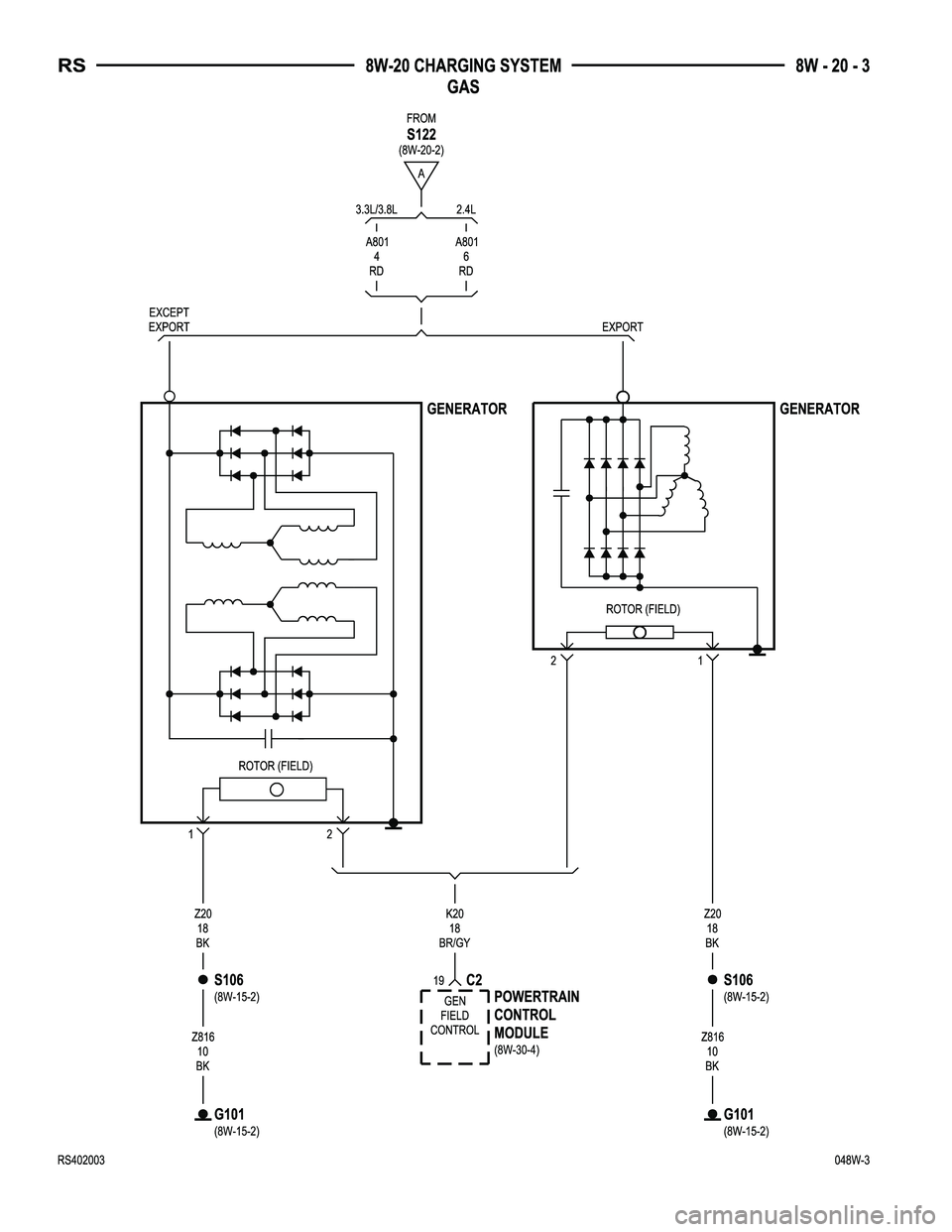

8W-20 CHARGING SYSTEM
Component Page
Auto Shut Down Relay................ 8W-20-2
Battery.......................... 8W-20-2, 4
Battery Temperature Sensor......... 8W-20-2, 4
Ecm/Pcm Relay..................... 8W-20-4
Engine Control Module................ 8W-20-4
Fuse 16.......................... 8W-20-2, 4
Fuse 17............................ 8W-20-2Component Page
Fuselink......................... 8W-20-2, 4
G100............................ 8W-20-2, 4
G101.......................... 8W-20-2, 3, 4
Generator...................... 8W-20-2, 3, 4
Integrated Power Module............ 8W-20-2, 4
Powertrain Control Module.......... 8W-20-2, 3
Starter Motor..................... 8W-20-2, 4
RS8W-20 CHARGING SYSTEM8W-20-1

8W-21 STARTING SYSTEM
Component Page
Battery.......................... 8W-21-2, 3
Clutch Pedal Interlock Switch........ 8W-21-2, 3
Engine Control Module................ 8W-21-3
Front Control Module................. 8W-21-2
Fuse 9.......................... 8W-21-2, 3
Fuselink......................... 8W-21-2, 3
G101............................ 8W-21-2, 3Component Page
G300.............................. 8W-21-2
Generator........................ 8W-21-2, 3
Ignition Switch.................... 8W-21-2, 3
Integrated Power Module............ 8W-21-2, 3
Powertrain Control Module............ 8W-21-2
Starter Motor..................... 8W-21-2, 3
Starter Motor Relay................ 8W-21-2, 3
RS8W-21 STARTING SYSTEM8W-21-1
