CHRYSLER VOYAGER 2004 Service Manual

8W-15 GROUND DISTRIBUTION
Component Page
A/C Compressor Clutch......................8W-15-2, 9
A/C-Heater Control......................8W-15-10, 12
Adjustable Pedals Module.....................8W-15-18
Adjustable Pedals Switch.....................8W-15-11
Airbag Control Module.......................8W-15-13
Auto Temp Control.........................8W-15-10
Automatic Day/Night Mirror...................8W-15-22
Back-Up Lamp Switch......................8W-15-2, 4
Battery.............................8W-15-2, 3, 4
Body Control Module.......................8W-15-23
Brake Fluid Level Switch.....................8W-15-18
Brake Lamp Switch........................8W-15-18
Cabin Heater Assist.........................8W-15-9
Cd Changer.............................8W-15-13
Center High Mounted Stop Lamp.................8W-15-28
Clutch Pedal Interlock Switch...................8W-15-18
Clutch Pedal Upstop Switch....................8W-15-19
Controller Antilock Brake....................8W-15-2, 4
Crank Case Ventilation Heater...................8W-15-9

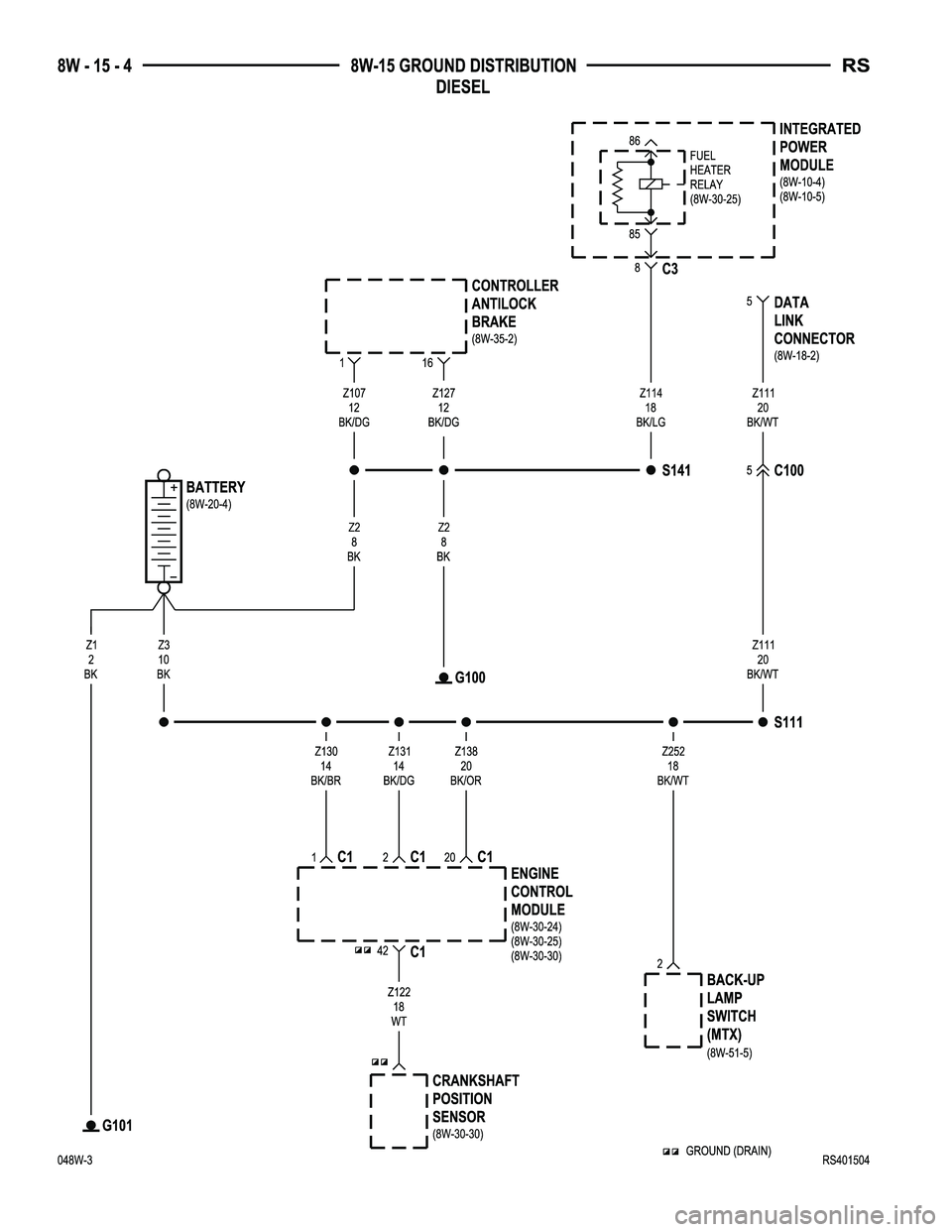

Crankshaft Position Sensor.....................8W-15-4
Data Link Connector.....................8W-15-3, 4, 18
Dosing Pump............................8W-15-9
Driver Door Courtesy Lamp..................8W-15-15, 21
Driver Door Lock Switch....................8W-15-15, 21
Driver Heated Seat Cushion....................8W-15-17
Driver Heated Seat Module....................8W-15-17
Driver Power Seat Switch.....................8W-15-17
Driver Power Window Switch.................8W-15-15, 21
Dvd/Cd Changer..........................8W-15-11

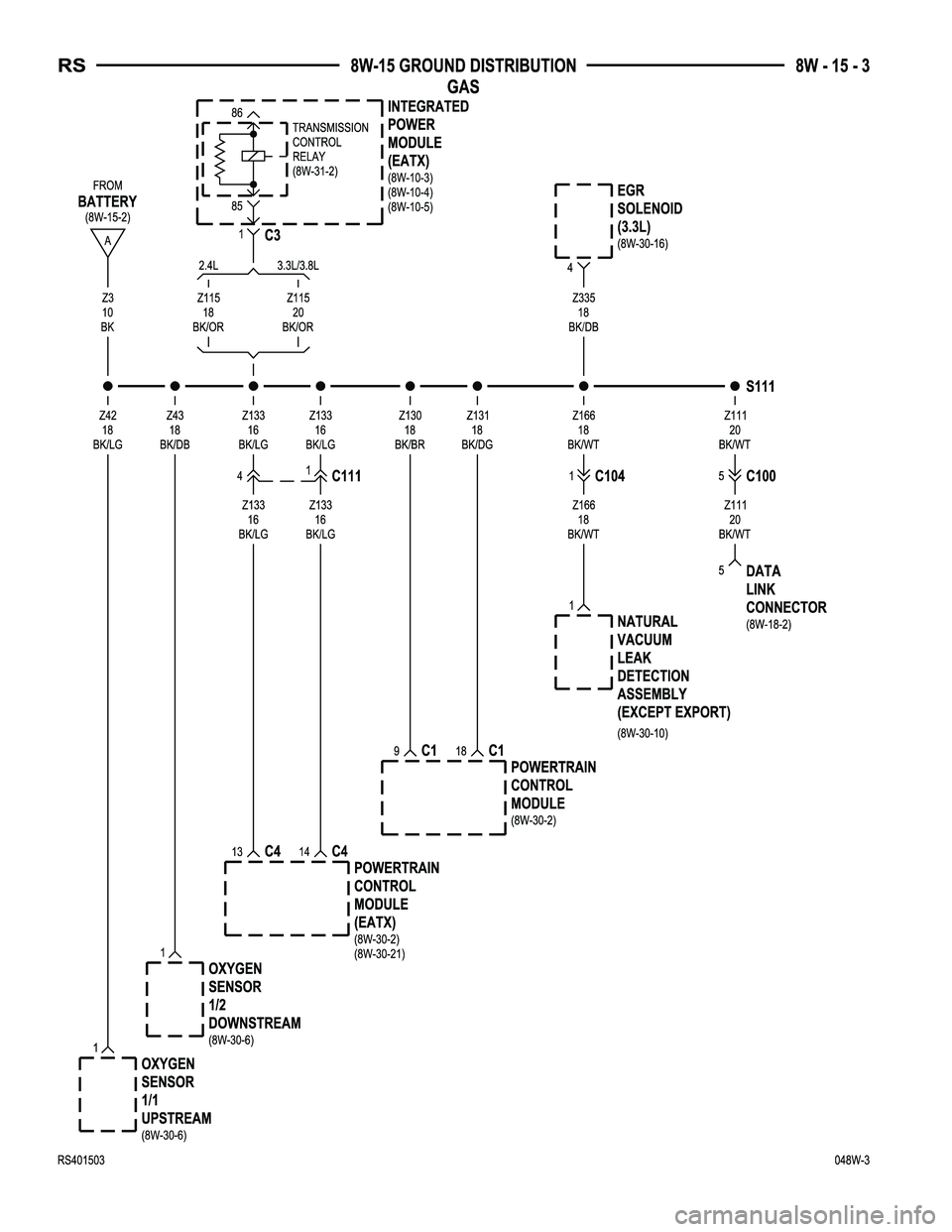

EGR Solenoid............................8W-15-3
Engine Control Module.......................8W-15-4
Floor Console Lamp........................8W-15-26
Floor Console Power Outlet....................8W-15-26
Front Blower Module.......................8W-15-12
Front Cigar Lighter........................8W-15-10
Front Control Module...................8W-15-2, 8, 9, 19
Front Reading Lamps/Switch...................8W-15-22
Fuel Heater............................8W-15-26
Fuel Heater Relay..........................8W-15-4
Fuel Pump Module.........................8W-15-26
G100...............................8W-15-2, 4
G101...............................8W-15-2, 4

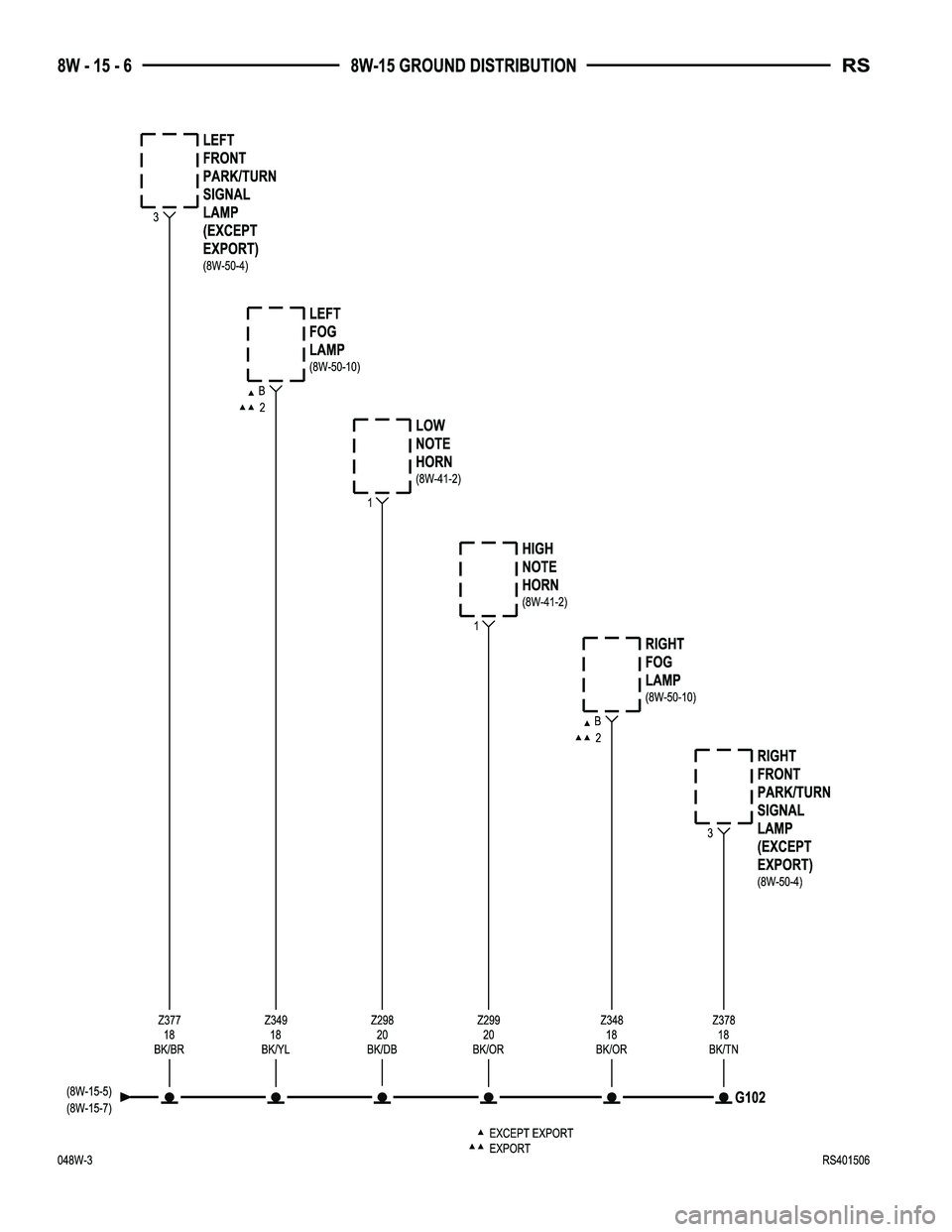

G102..............................8W-15-5, 6, 7

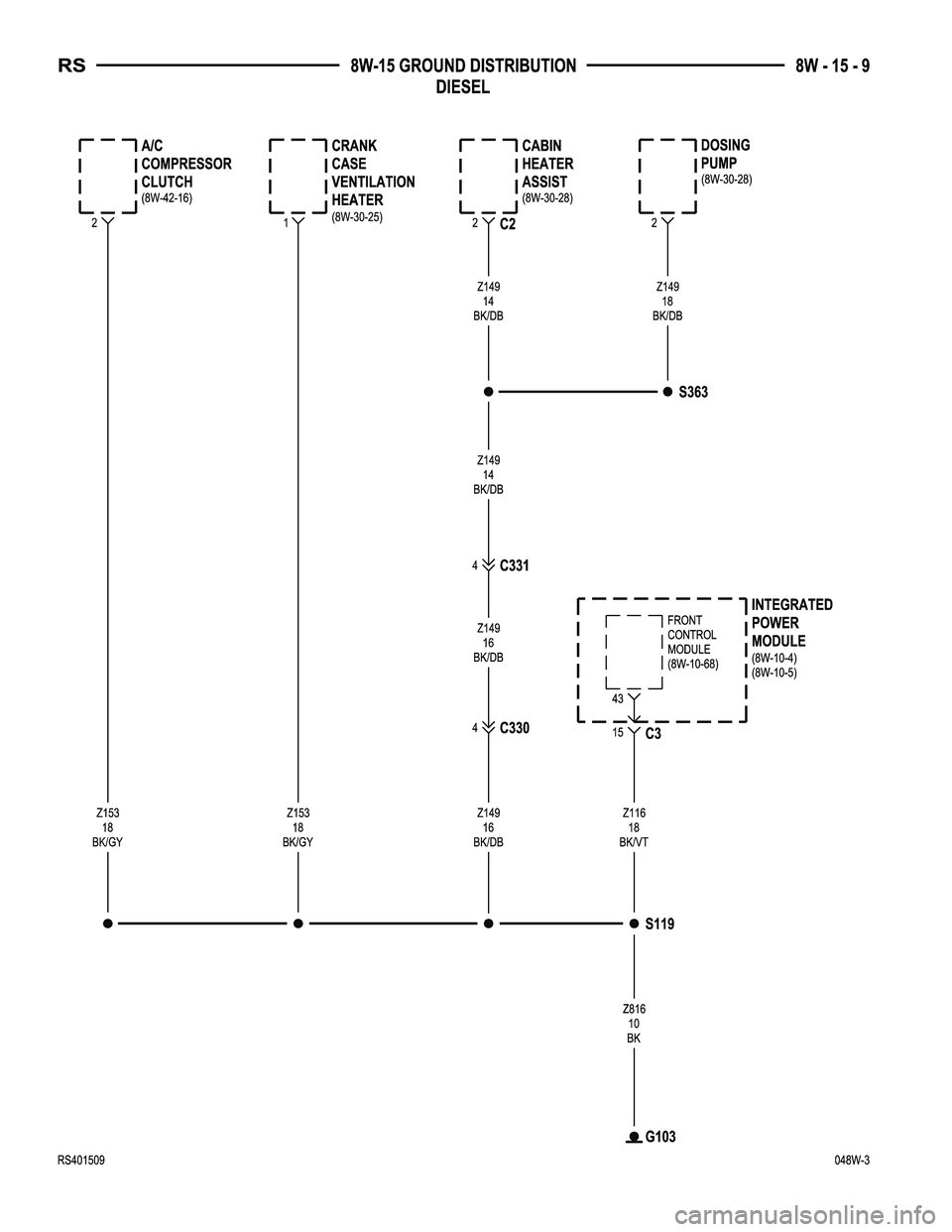

G103.................................8W-15-9
G200............................8W-15-10, 11, 12
G201................................8W-15-13
G202................................8W-15-13
G300......................8W-15-12, 14, 16, 17, 18, 19
G301..........................8W-15-20, 21, 22, 23
G302............................8W-15-24, 25, 26
G303............................8W-15-26, 27, 28

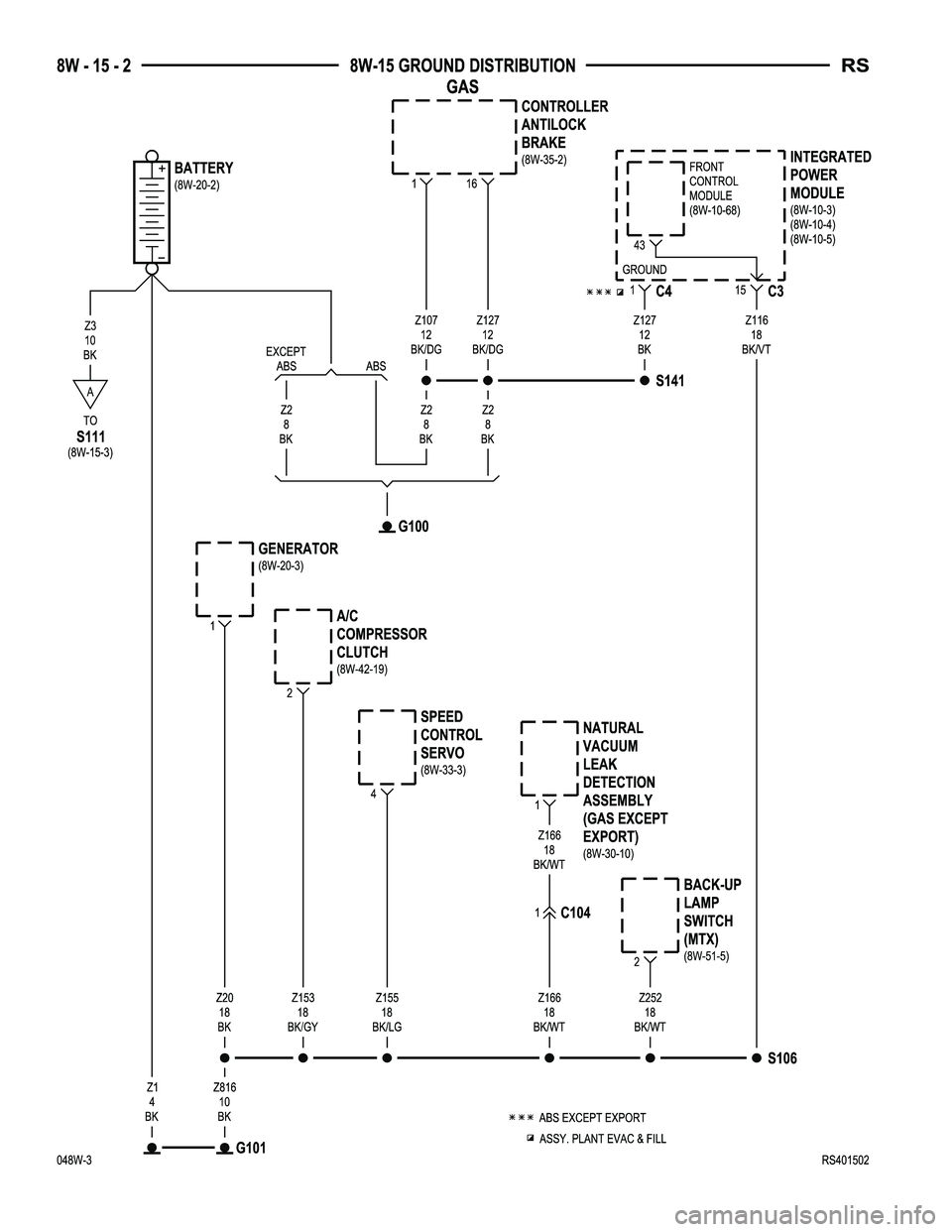

Generator..............................8W-15-2
Headlamp Switch.........................8W-15-10

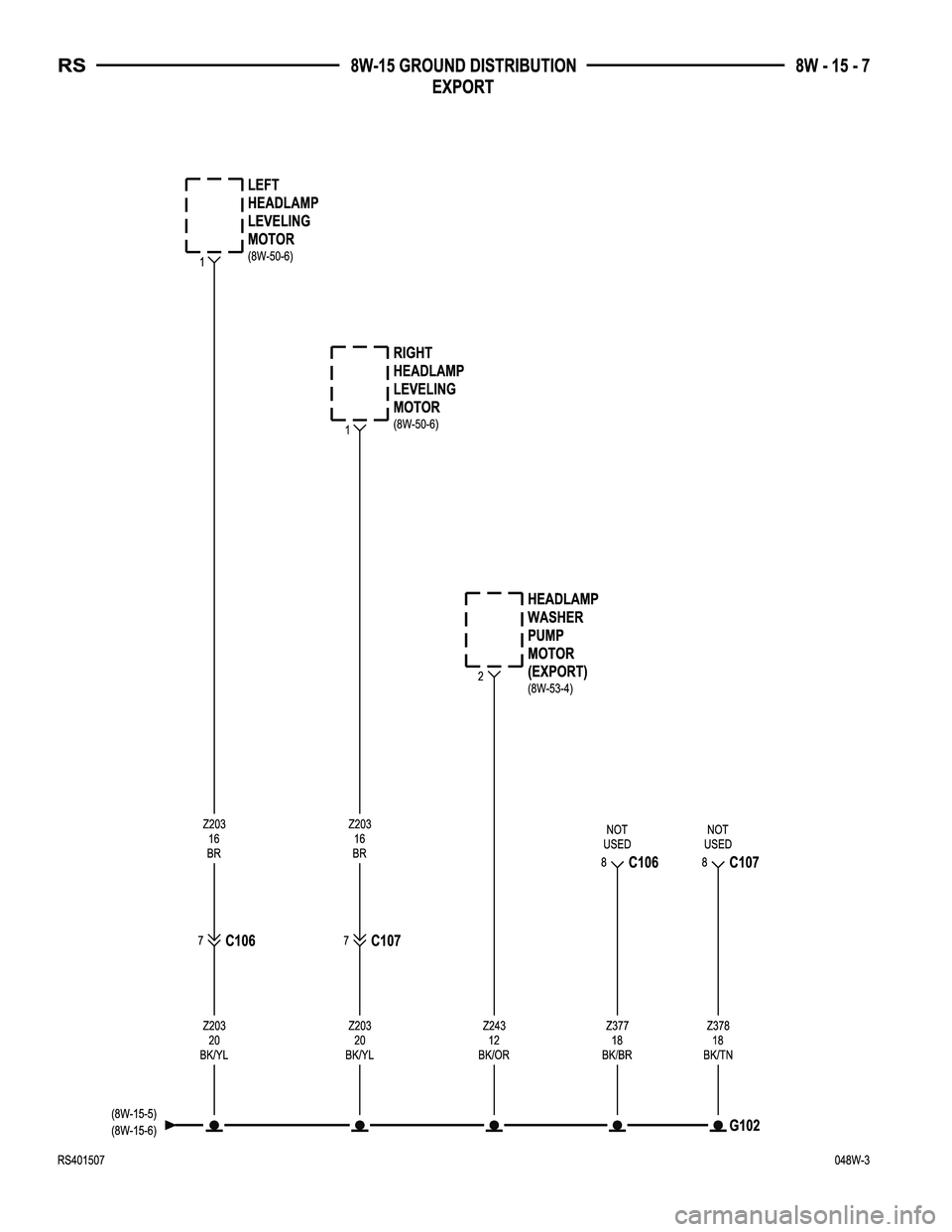

Headlamp Washer Pump Motor..................8W-15-7
High Note Horn...........................8W-15-6
Hood Ajar Switch.........................8W-15-19
Horn Switch............................8W-15-12
Instrument Cluster........................8W-15-10
Instrument Panel Switch Bank..................8W-15-11
Integrated Power Module..............8W-15-2, 3, 4, 8, 9, 19
Left B-Pillar Switch........................8W-15-18
Left Cinch/Release Motor.....................8W-15-14
Left Cylinder Lock Switch...................8W-15-15, 16
Left Door Speaker.........................8W-15-13
Left Fog Lamp............................8W-15-6
Left Front Door Ajar Switch....................8W-15-16
Left Front Door Lock Motor/Ajar Switch...........8W-15-15, 16
Left Front Park/Turn Signal Lamp.................8W-15-6
Left Full Open Switch.......................8W-15-14
Left Headlamp...........................8W-15-19
Left Headlamp Leveling Motor...................8W-15-7

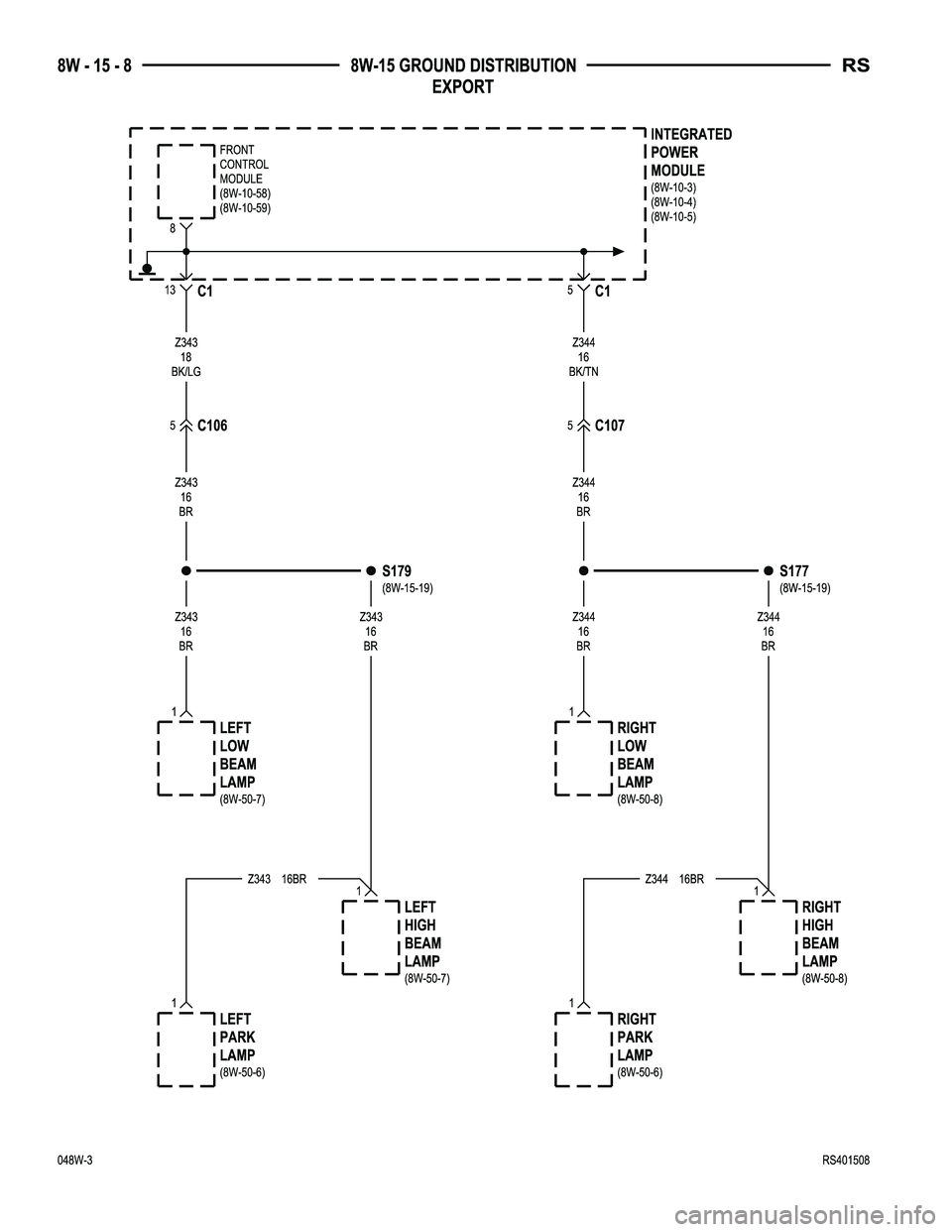

Left High Beam Lamp.....................8W-15-8, 19
Left Liftgate Flood Lamp.....................8W-15-27
Left Low Beam Lamp......................8W-15-8, 19
Left Mid Reading Lamp......................8W-15-22
Left Park Lamp.........................8W-15-8, 19
Left Power Mirror.........................8W-15-11
Left Rear Lamp Assembly.....................8W-15-26
Left Rear Reading Lamp......................8W-15-22
Left Rear Speaker.........................8W-15-13
Left Sliding Door Control Module.................8W-15-14Component Page
Left Sliding Door Latch Sensing Switch.............8W-15-14
Left Sliding Door Lock Motor...................8W-15-14
Left Sliding Door Lock Motor/Ajar Switch............8W-15-14
Left Sliding Door Motor......................8W-15-14
Left Turn Signal Lamp......................8W-15-19
Left Visor/Vanity Lamp......................8W-15-22
License Lamp.........................8W-15-24, 27
Lift Pump Motor..........................8W-15-26
Liftgate Ajar Switch........................8W-15-28
Liftgate Cinch/Release Motor.................8W-15-24, 28
Liftgate Right Pinch Sensor....................8W-15-24
Low Note Horn...........................8W-15-6
Memory Seat/Mirror Module...................8W-15-17
Natural Vacuum Leak Detection Assembly...........8W-15-2, 3
Overhead Console.........................8W-15-22
Oxygen Sensor 1/1 Upstream....................8W-15-3
Oxygen Sensor 1/2 Downstream..................8W-15-3
Passenger Door Courtesy Lamp................8W-15-16, 21
Passenger Door Lock Switch.................8W-15-16, 21
Passenger Heated Seat Cushion..................8W-15-23
Passenger Heated Seat Module..................8W-15-23
Passenger Power Seat Switch...................8W-15-23
Power Folding Mirror Switch...................8W-15-12
Power Liftgate Module.......................8W-15-24
Power Liftgate Motor.......................8W-15-24
Power Mirror Switch........................8W-15-12
Power Outlet............................8W-15-10
Power Window Switch.......................8W-15-15
Powertrain Control Module.....................8W-15-3

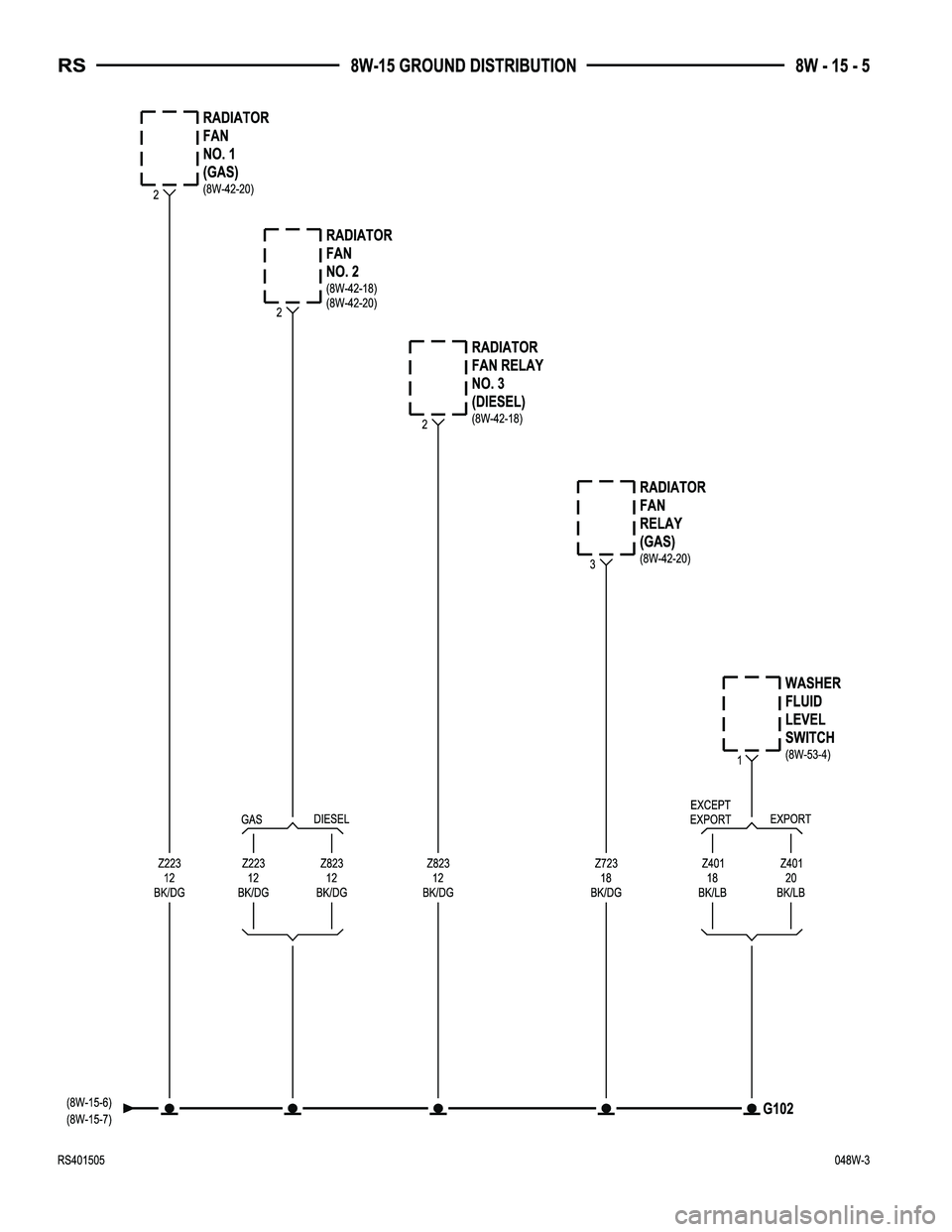

Radiator Fan No. 1.........................8W-15-5
Radiator Fan No. 2.........................8W-15-5
Radiator Fan Relay.........................8W-15-5
Radiator Fan Relay No. 3......................8W-15-5
Radio................................8W-15-13
Rear Auto Temp Control Switch..................8W-15-18
Rear Blower Front Control Switch................8W-15-12
Rear Blower Motor Power Module................8W-15-26
Rear Blower Rear Control Switch.................8W-15-18
Rear Dome Lamp.........................8W-15-22
Rear Power Outlet.........................8W-15-26
Rear Window Defogger Grid....................8W-15-28
Rear Wiper Motor.........................8W-15-27
Right B-Pillar Switch.......................8W-15-23
Right Cinch/Release Motor....................8W-15-20
Right Cylinder Lock Switch....................8W-15-21
Right Door Speaker........................8W-15-13
Right Fog Lamp...........................8W-15-6
Right Front Door Ajar Switch...................8W-15-21
Right Front Door Lock Motor/Ajar Switch............8W-15-21
Right Front Park/Turn Signal Lamp................8W-15-6
Right Full Open Switch......................8W-15-20
Right Headlamp..........................8W-15-19
Right Headlamp Leveling Motor..................8W-15-7
Right High Beam Lamp.....................8W-15-8, 19
Right Liftgate Flood Lamp....................8W-15-27
Right Low Beam Lamp.....................8W-15-8, 19
Right Mid Reading Lamp.....................8W-15-22
Right Park Lamp........................8W-15-8, 19
Right Power Mirror........................8W-15-11
Right Rear Lamp Assembly..................8W-15-25, 26
Right Rear Reading Lamp.....................8W-15-22
Right Rear Speaker........................8W-15-13
Right Sliding Door Control Module................8W-15-20
Right Sliding Door Latch Sensing Switch.............8W-15-20
Right Sliding Door Lock Motor..................8W-15-20
Right Sliding Door Lock Motor/Ajar Switch...........8W-15-20
Right Sliding Door Motor.....................8W-15-20
Right Turn Signal Lamp......................8W-15-19
Right Visor/Vanity Lamp.....................8W-15-22
Sentry Key Remote Entry Module.................8W-15-11
Siren................................8W-15-11
Speed Control Servo.........................8W-15-2
Sunroof Module..........................8W-15-25
Sunroof Switch...........................8W-15-22
Thatcham Alarm Module.....................8W-15-11
Traction Control Switch......................8W-15-11
Trailer Tow Connector.......................8W-15-25
Transmission Control Relay.....................8W-15-3
Washer Fluid Level Switch.....................8W-15-5
Wiper Module...........................8W-15-18
RS8W-15 GROUND DISTRIBUTION8W-15-1
