Fig. 100 SILL BULKHEAD REINFORCEMENTS
23 - 252 BODY STRUCTURERS
WELD LOCATIONS (Continued)

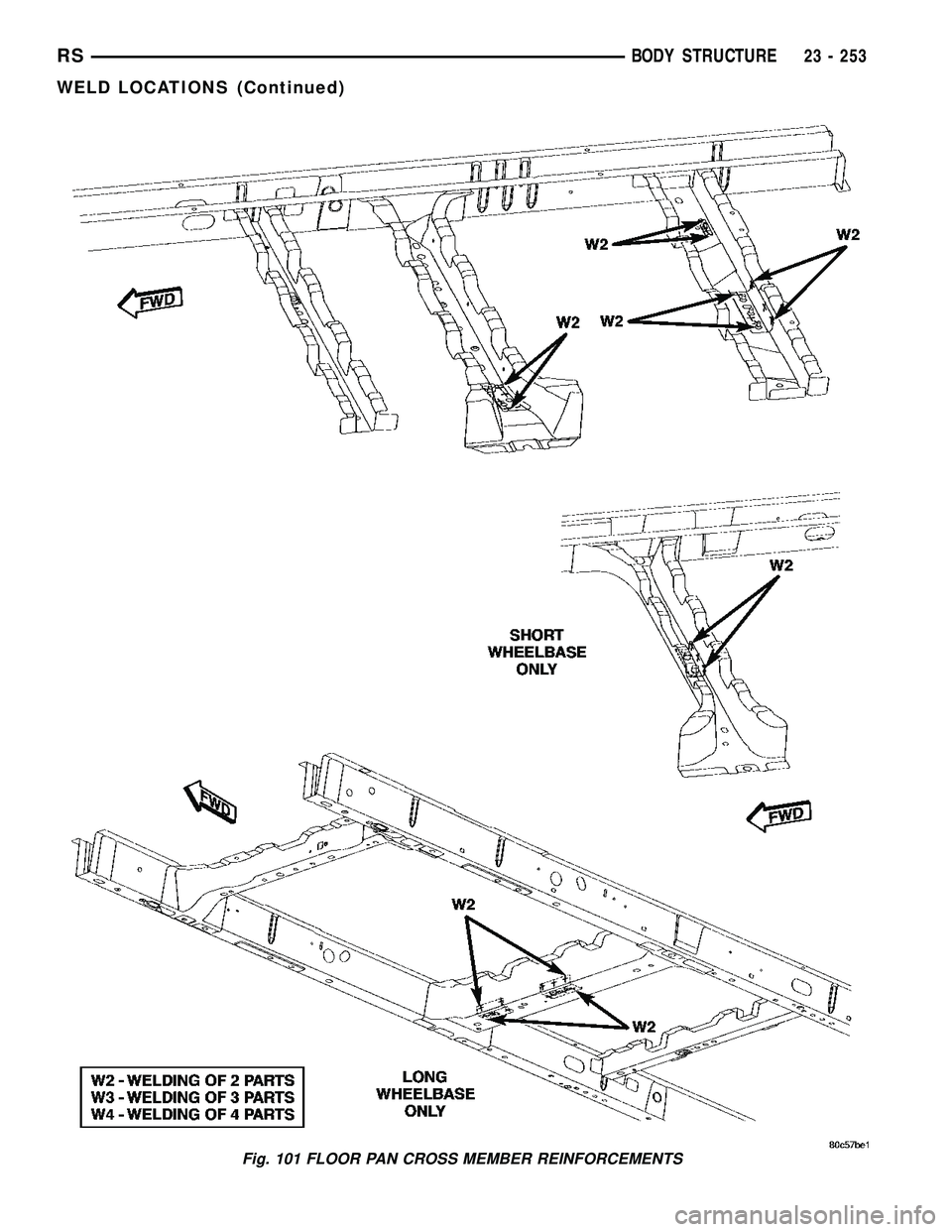

Fig. 101 FLOOR PAN CROSS MEMBER REINFORCEMENTS
RSBODY STRUCTURE23 - 253
WELD LOCATIONS (Continued)

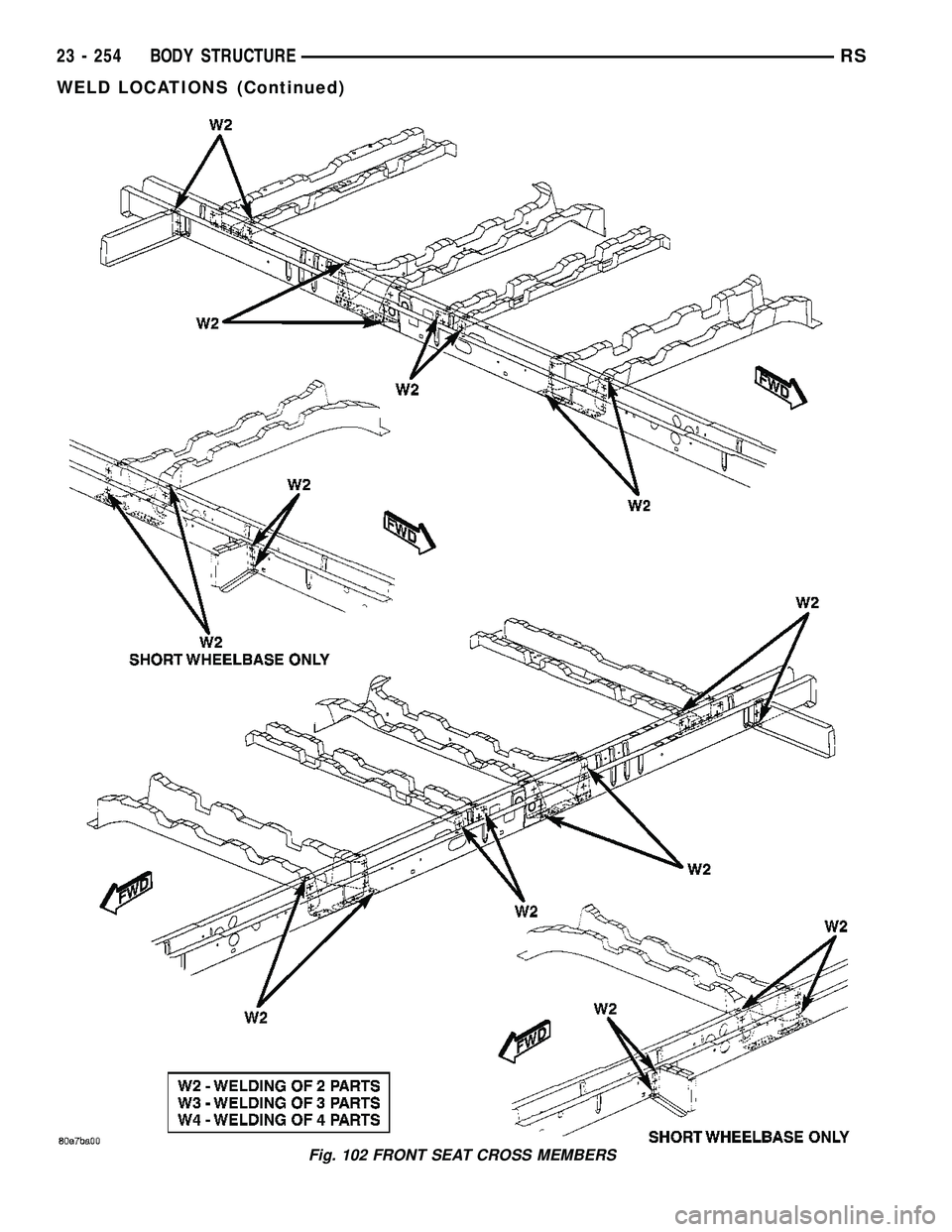

Fig. 102 FRONT SEAT CROSS MEMBERS
23 - 254 BODY STRUCTURERS
WELD LOCATIONS (Continued)

Fig. 103 SEAT REINFORCEMENT CROSS MEMBERS - SHORT WHEEL BASE
RSBODY STRUCTURE23 - 255
WELD LOCATIONS (Continued)

Fig. 104 CENTER CONSOLE REINFORCEMENT - SHORT WHEEL BASE
23 - 256 BODY STRUCTURERS
WELD LOCATIONS (Continued)

Fig. 105 REAR SUSPENSION HANGER BRACKETS - SHORT WHEEL BASE
RSBODY STRUCTURE23 - 257
WELD LOCATIONS (Continued)

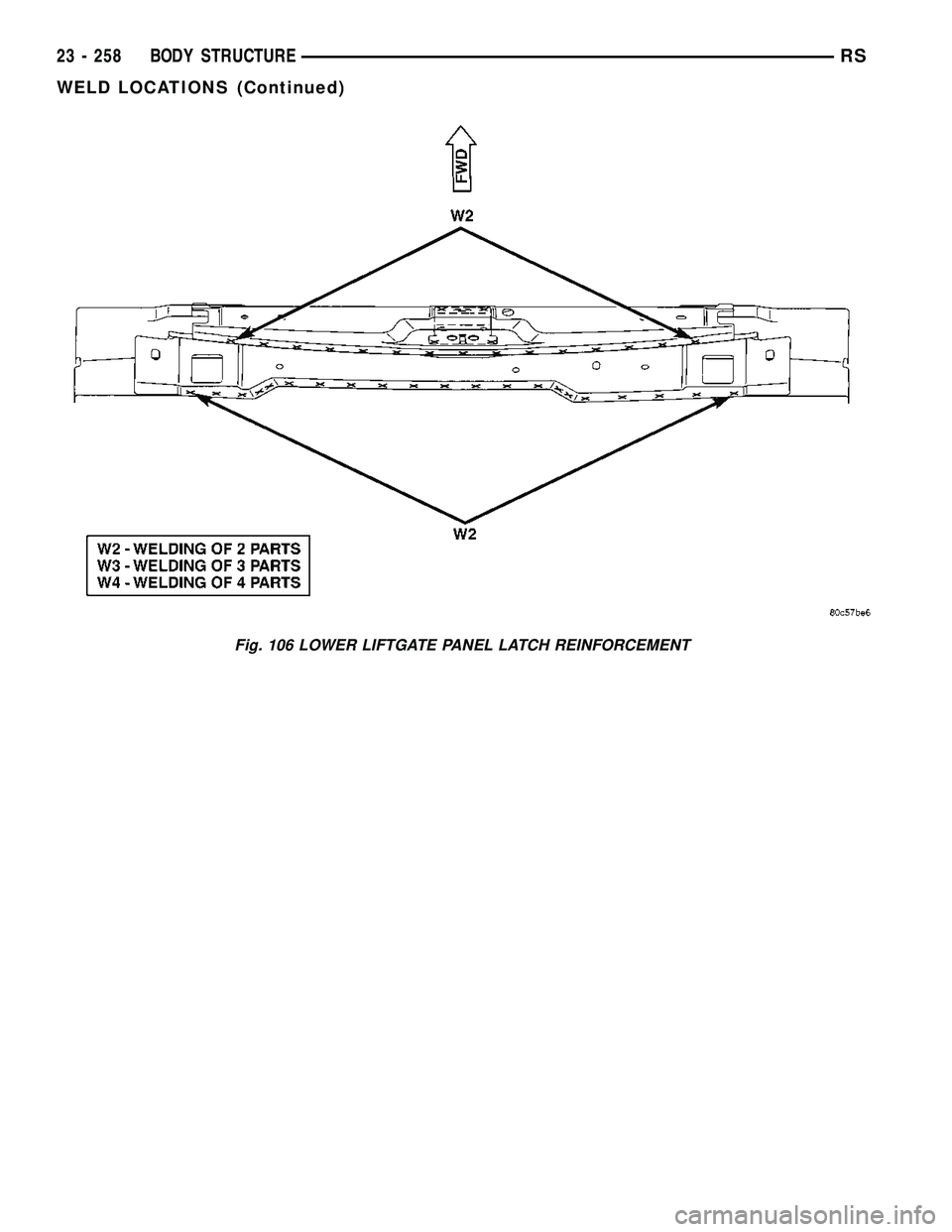

Fig. 106 LOWER LIFTGATE PANEL LATCH REINFORCEMENT
23 - 258 BODY STRUCTURERS
WELD LOCATIONS (Continued)

Fig. 107 ENGINE MOUNTING PLATE & TOW BRACKET
RSBODY STRUCTURE23 - 259
WELD LOCATIONS (Continued)

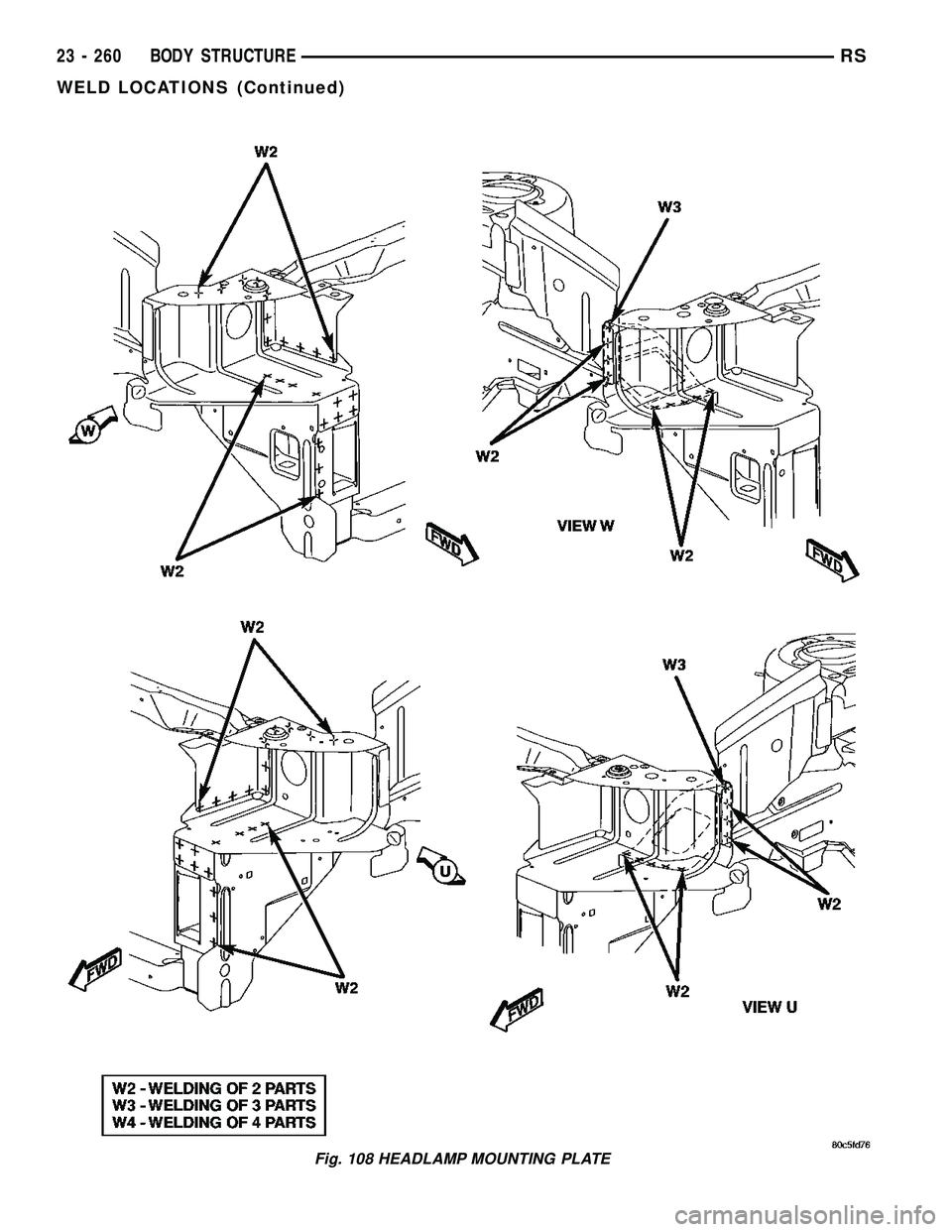

Fig. 108 HEADLAMP MOUNTING PLATE
23 - 260 BODY STRUCTURERS
WELD LOCATIONS (Continued)

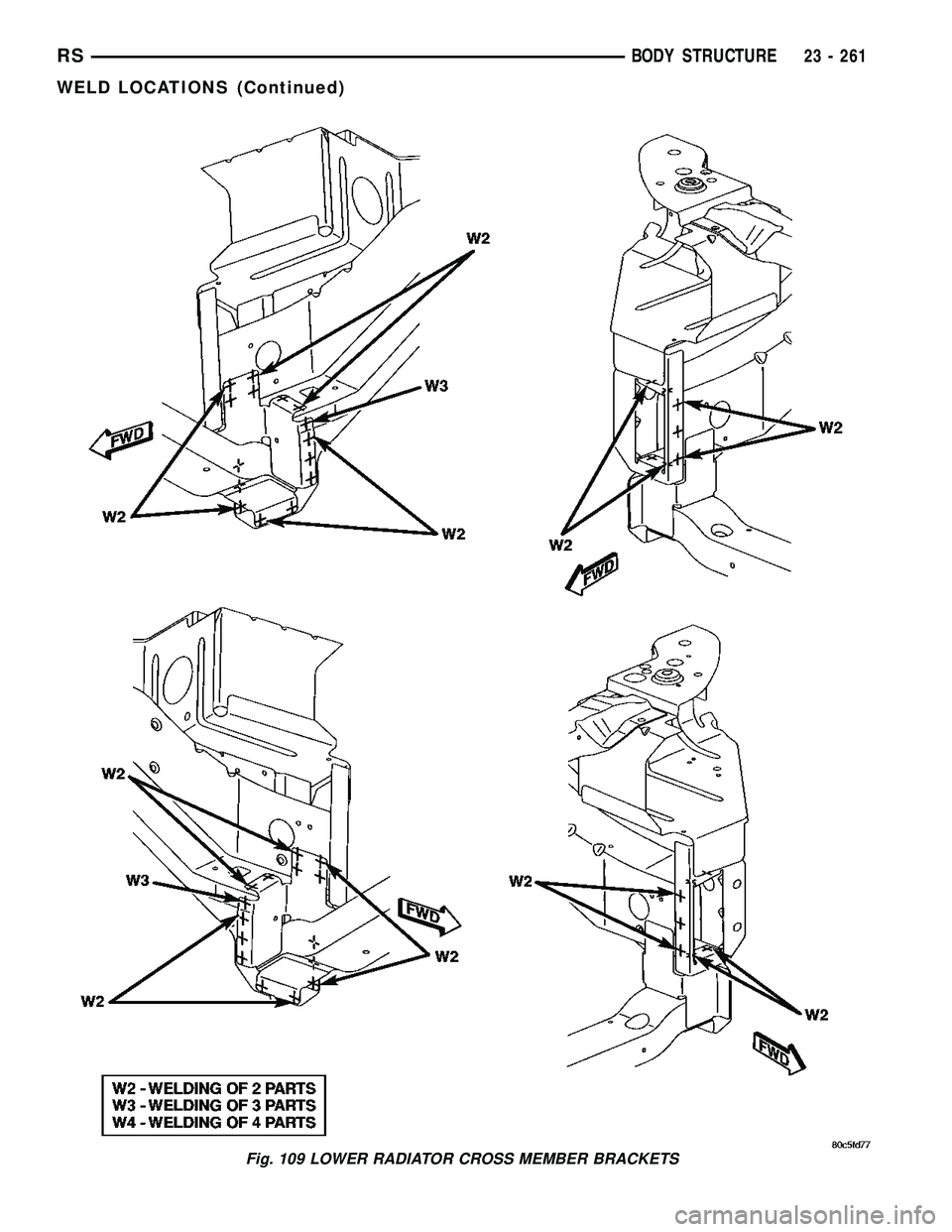

Fig. 109 LOWER RADIATOR CROSS MEMBER BRACKETS
RSBODY STRUCTURE23 - 261
WELD LOCATIONS (Continued)
