CHRYSLER VOYAGER 2005 Service Manual

Fig. 122 CENTER CONSOLE REINFORCEMENT - SHORT WHEEL BASE ONLY
23 - 272 BODY STRUCTURERS
WELD LOCATIONS (Continued)

Fig. 123 WHEELHOUSES - SHORT WHEEL BASE ONLY
Fig. 124 FRONT SEAT CROSS MEMBER - SHORT WHEELBASE, ALL WHEEL DRIVE ONLY
RSBODY STRUCTURE23 - 273
WELD LOCATIONS (Continued)

Fig. 125 FLOOR PAN SIDE RAIL - LONG WHEEL BASE ONLY
23 - 274 BODY STRUCTURERS
WELD LOCATIONS (Continued)

Fig. 126 INNER BODY SIDE SILL REINFORCEMENTS
Fig. 127 TOE BOARD CROSSMEMBER
RSBODY STRUCTURE23 - 275
WELD LOCATIONS (Continued)

Fig. 128 FRONT SIDE RAIL - SHORT WHEEL BASE ONLY
23 - 276 BODY STRUCTURERS
WELD LOCATIONS (Continued)

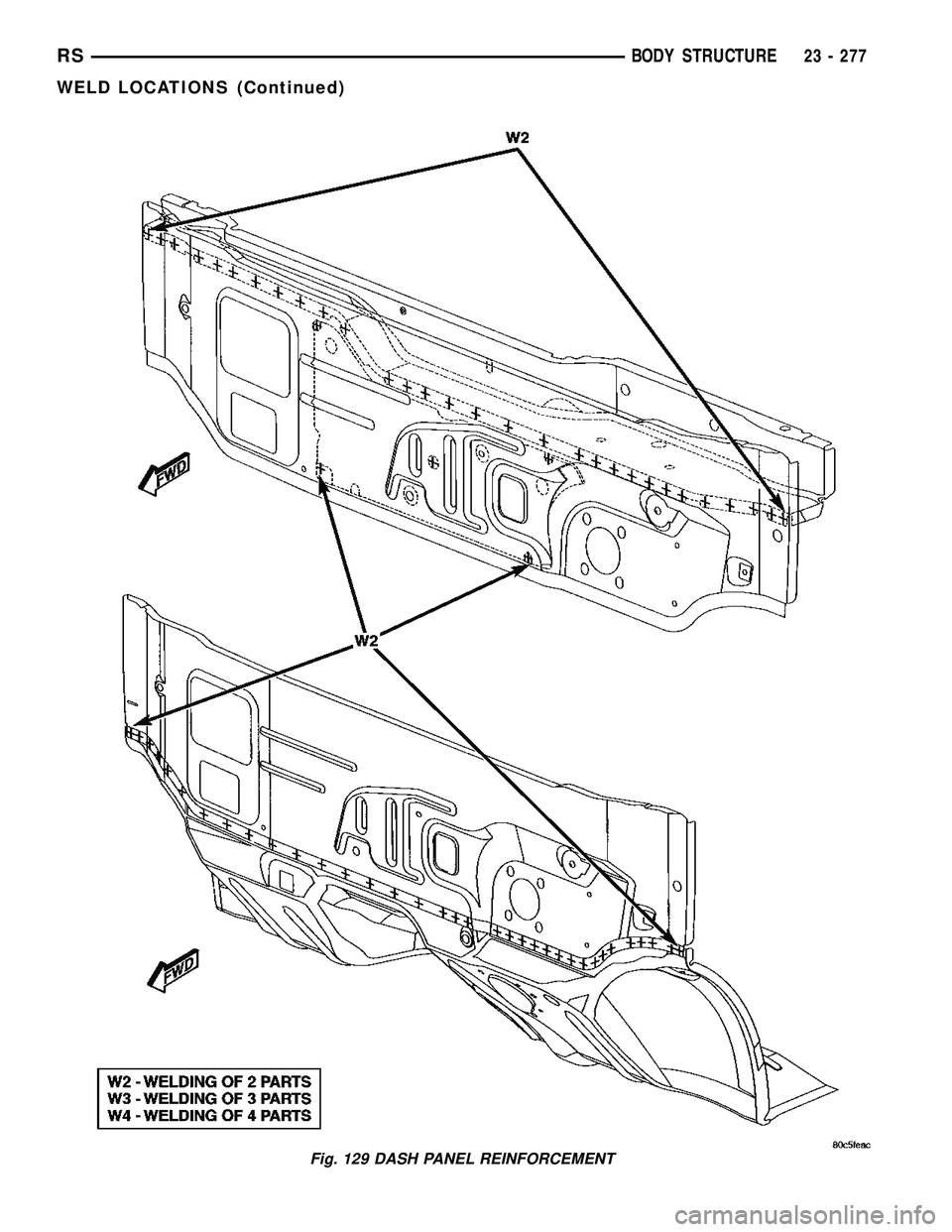

Fig. 129 DASH PANEL REINFORCEMENT
RSBODY STRUCTURE23 - 277
WELD LOCATIONS (Continued)

Fig. 130 LOWER COWL PLENUM
23 - 278 BODY STRUCTURERS
WELD LOCATIONS (Continued)

Fig. 131 UPPER COWL PLENUM SUPPORT
RSBODY STRUCTURE23 - 279
WELD LOCATIONS (Continued)

Fig. 132 UPPER DASH PANEL
23 - 280 BODY STRUCTURERS
WELD LOCATIONS (Continued)

Fig. 133 COWL SIDE PANELS
Fig. 134 INSTRUMENT PANEL ATTACHMENT TAPPING PLATES
RSBODY STRUCTURE23 - 281
WELD LOCATIONS (Continued)
