Fig. 135 INSTRUMENT PANEL, DASH PANEL, ACM MODULE AND ACCELERATOR PEDAL
Fig. 136 STRUT TOWER BRACKET AND COWL PLENUM
23 - 282 BODY STRUCTURERS
WELD LOCATIONS (Continued)

Fig. 137 FRONT SIDE RAILS TO LOWER DASH PANEL
RSBODY STRUCTURE23 - 283
WELD LOCATIONS (Continued)

Fig. 138 INNER BODY SIDE SILL TO LOWER DASH PANEL
23 - 284 BODY STRUCTURERS
WELD LOCATIONS (Continued)

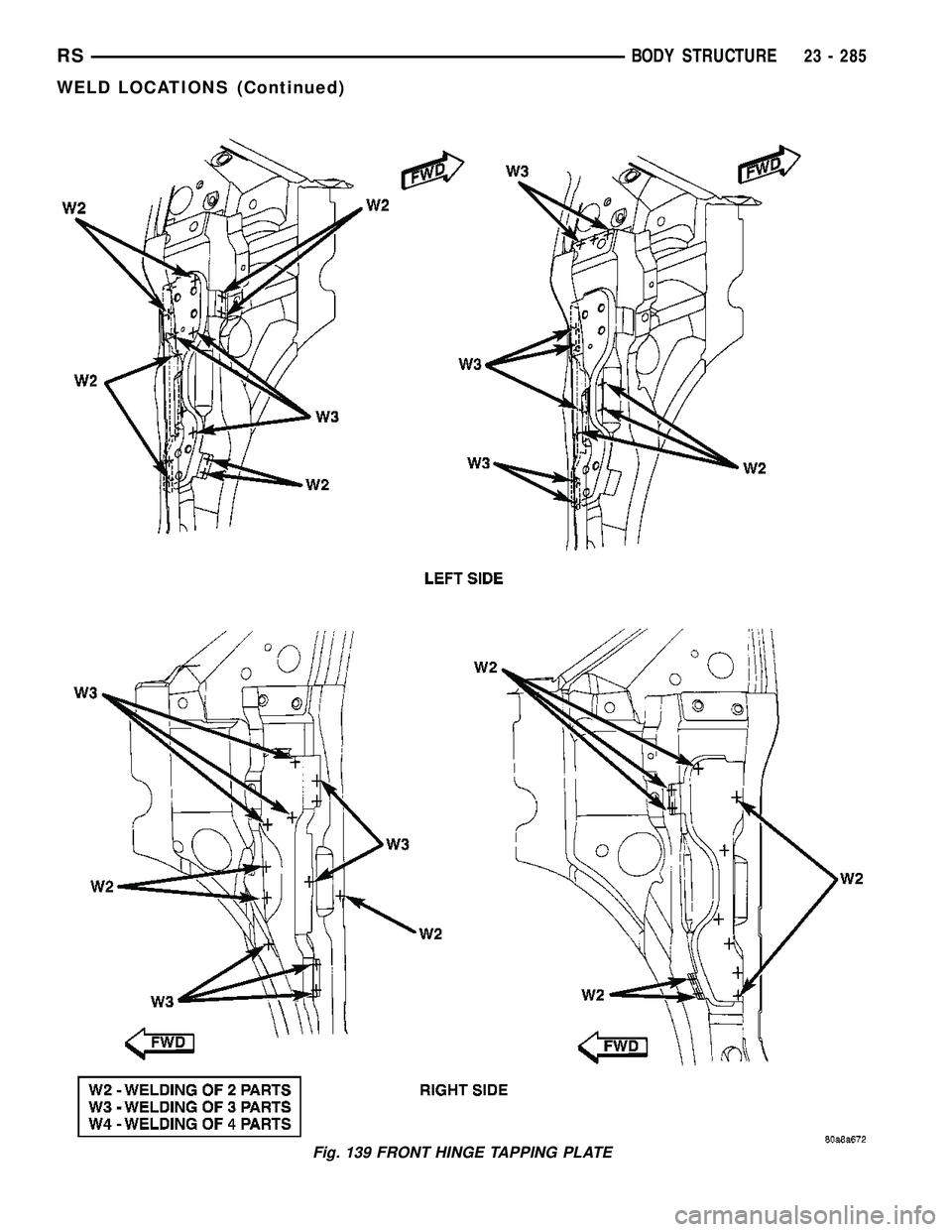

Fig. 139 FRONT HINGE TAPPING PLATE
RSBODY STRUCTURE23 - 285
WELD LOCATIONS (Continued)

Fig. 140 FRONT HINGE PILLAR
23 - 286 BODY STRUCTURERS
WELD LOCATIONS (Continued)

Fig. 141 INNER WINDSHIELD FRAME
RSBODY STRUCTURE23 - 287
WELD LOCATIONS (Continued)

Fig. 142 WINDSHIELD FRAME
23 - 288 BODY STRUCTURERS
WELD LOCATIONS (Continued)

Fig. 143 FENDER BRACKET
RSBODY STRUCTURE23 - 289
WELD LOCATIONS (Continued)

Fig. 144 INNER B-PILLAR
23 - 290 BODY STRUCTURERS
WELD LOCATIONS (Continued)

Fig. 145 STRIKER LATCH AND TAPPING PLATES
Fig. 146 RIGHT REAR INNER QUARTER PANEL - LONG WHEEL BASE ONLY
RSBODY STRUCTURE23 - 291
WELD LOCATIONS (Continued)
