CHRYSLER VOYAGER 2005 Service Manual

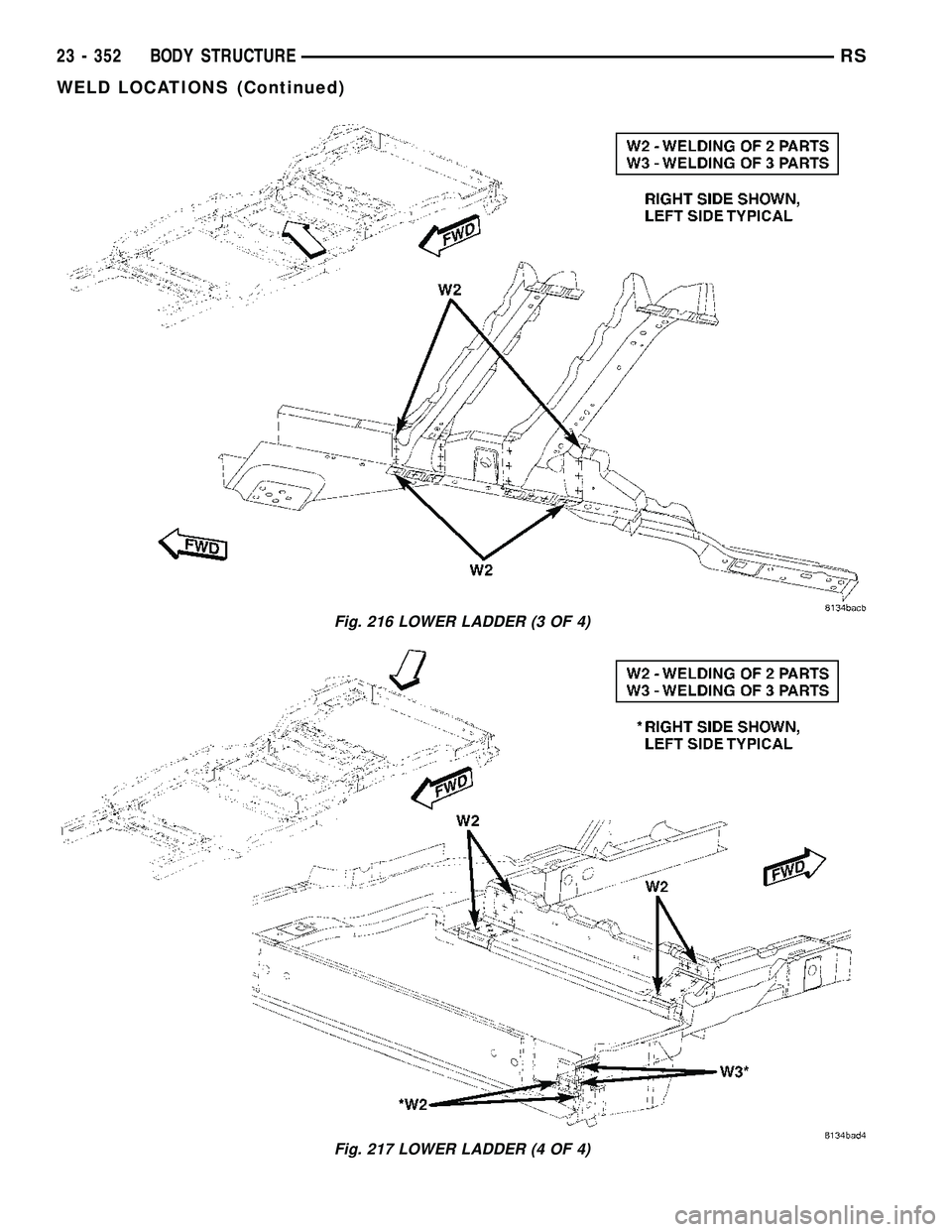

Fig. 216 LOWER LADDER (3 OF 4)
Fig. 217 LOWER LADDER (4 OF 4)
23 - 352 BODY STRUCTURERS
WELD LOCATIONS (Continued)

Fig. 218 MISCELLANEOUS WELDS (1 OF 2)
RSBODY STRUCTURE23 - 353
WELD LOCATIONS (Continued)

Fig. 219 MISCELLANEOUS WELDS (2 OF 2)
Fig. 220 UNDERBODY (1 OF 4)
23 - 354 BODY STRUCTURERS
WELD LOCATIONS (Continued)

Fig. 221 UNDERBODY (2 OF 4)
RSBODY STRUCTURE23 - 355
WELD LOCATIONS (Continued)

Fig. 222 UNDERBODY (3 OF 4)
23 - 356 BODY STRUCTURERS
WELD LOCATIONS (Continued)

Fig. 223 UNDERBODY (4 OF 4)
RSBODY STRUCTURE23 - 357
WELD LOCATIONS (Continued)

Fig. 224 UPPER LADDER (1 OF 2)
23 - 358 BODY STRUCTURERS
WELD LOCATIONS (Continued)

Fig. 225 UPPER LADDER (2 OF 2)
RSBODY STRUCTURE23 - 359
WELD LOCATIONS (Continued)

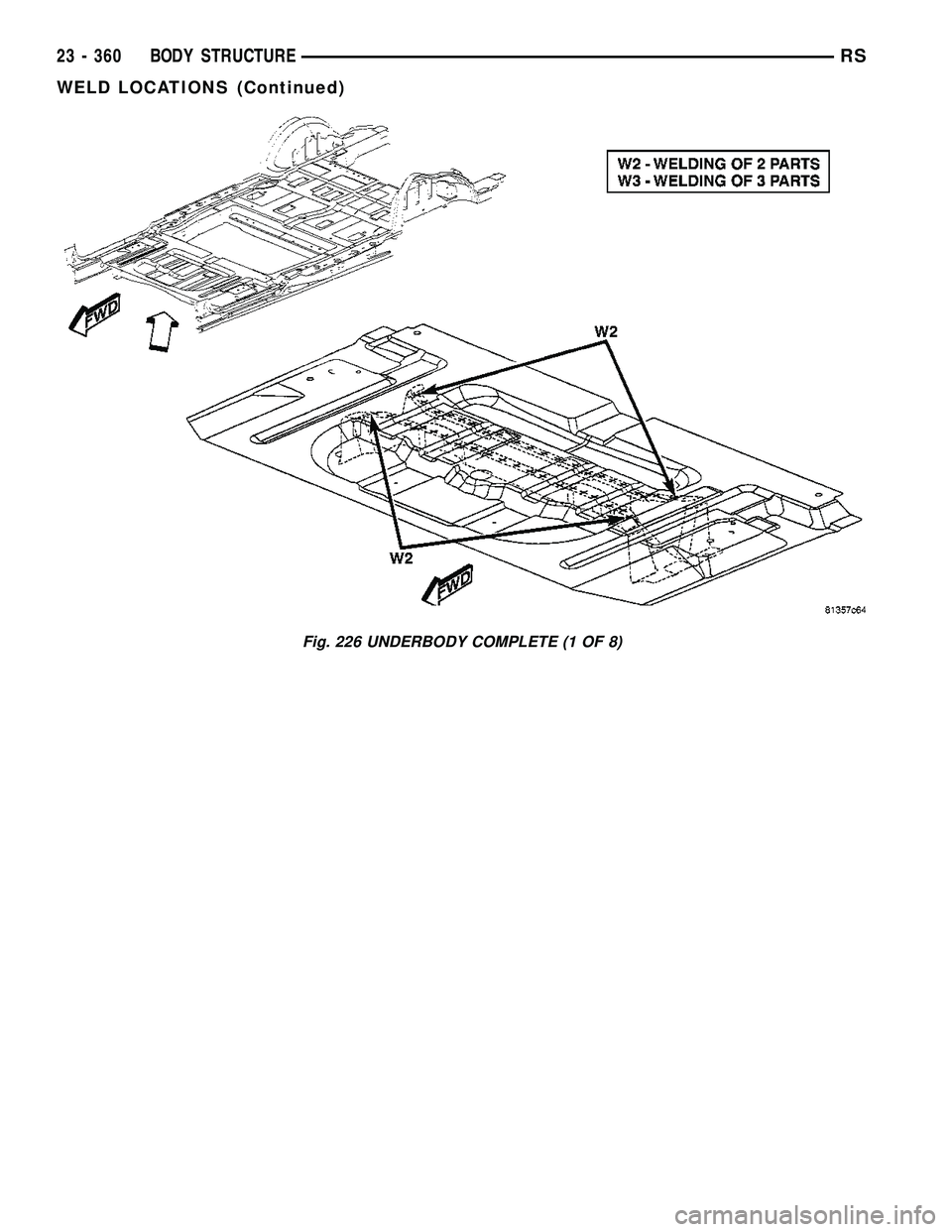

Fig. 226 UNDERBODY COMPLETE (1 OF 8)
23 - 360 BODY STRUCTURERS
WELD LOCATIONS (Continued)

Fig. 227 UNDERBODY COMPLETE (2 OF 8)
RSBODY STRUCTURE23 - 361
WELD LOCATIONS (Continued)
