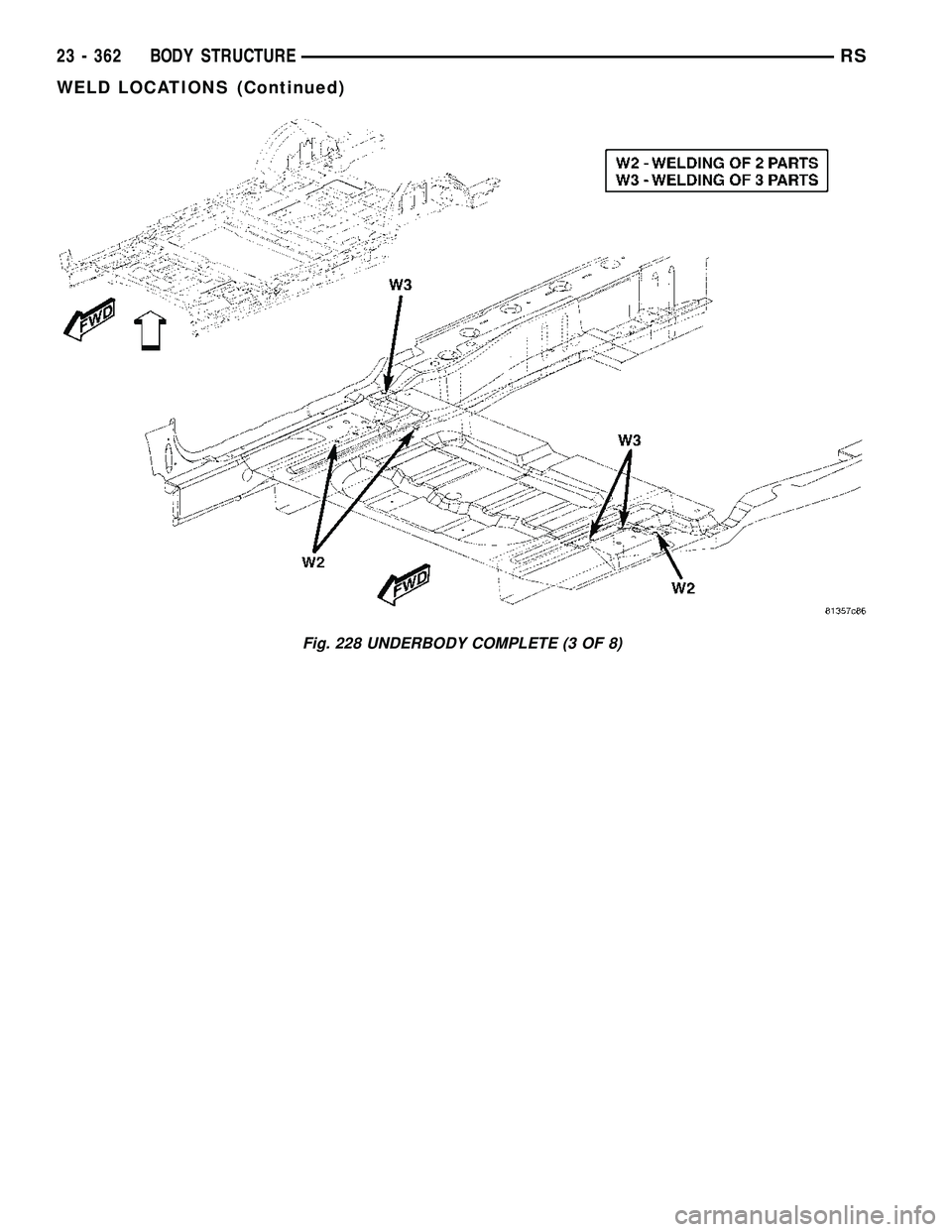

Fig. 228 UNDERBODY COMPLETE (3 OF 8)
23 - 362 BODY STRUCTURERS
WELD LOCATIONS (Continued)

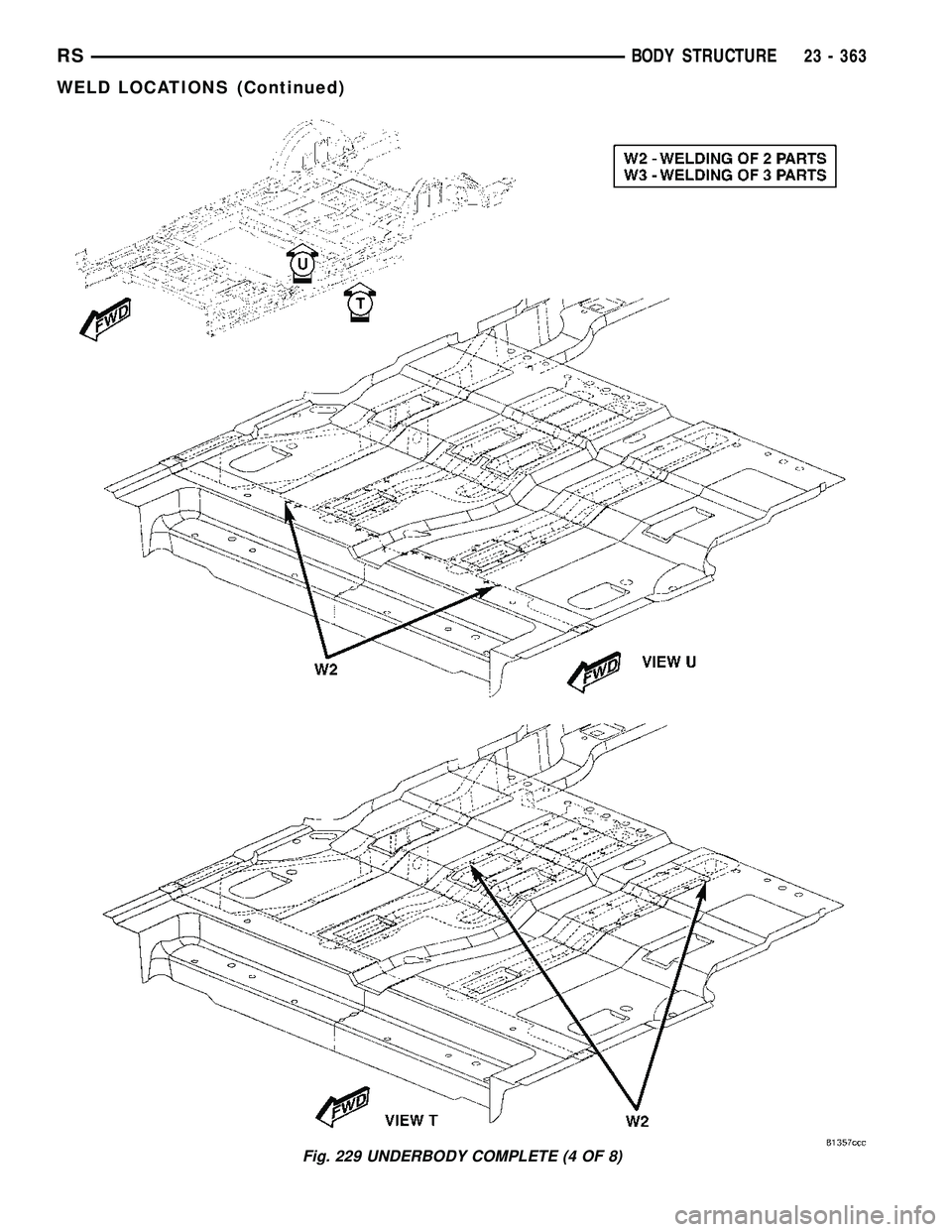

Fig. 229 UNDERBODY COMPLETE (4 OF 8)
RSBODY STRUCTURE23 - 363
WELD LOCATIONS (Continued)

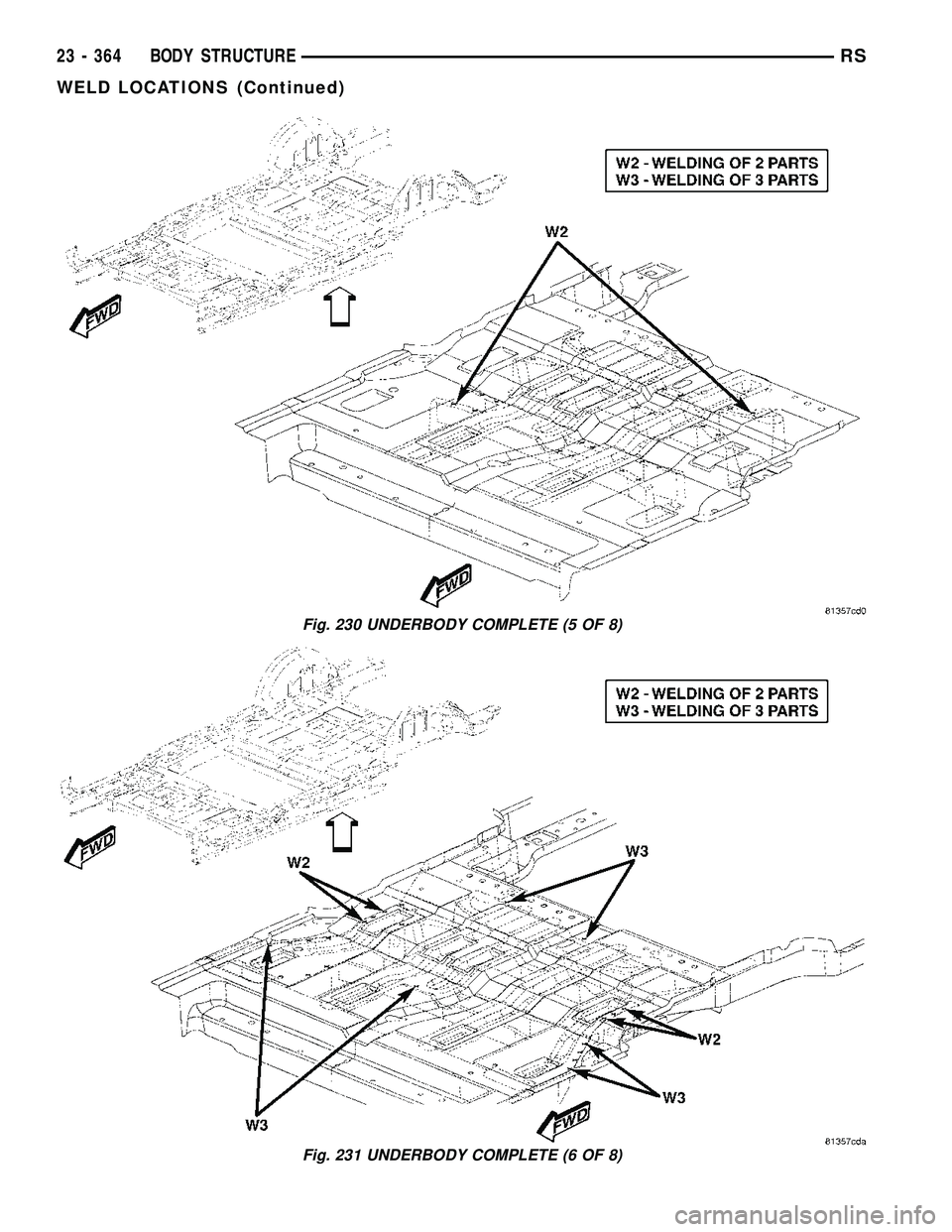

Fig. 230 UNDERBODY COMPLETE (5 OF 8)
Fig. 231 UNDERBODY COMPLETE (6 OF 8)
23 - 364 BODY STRUCTURERS
WELD LOCATIONS (Continued)

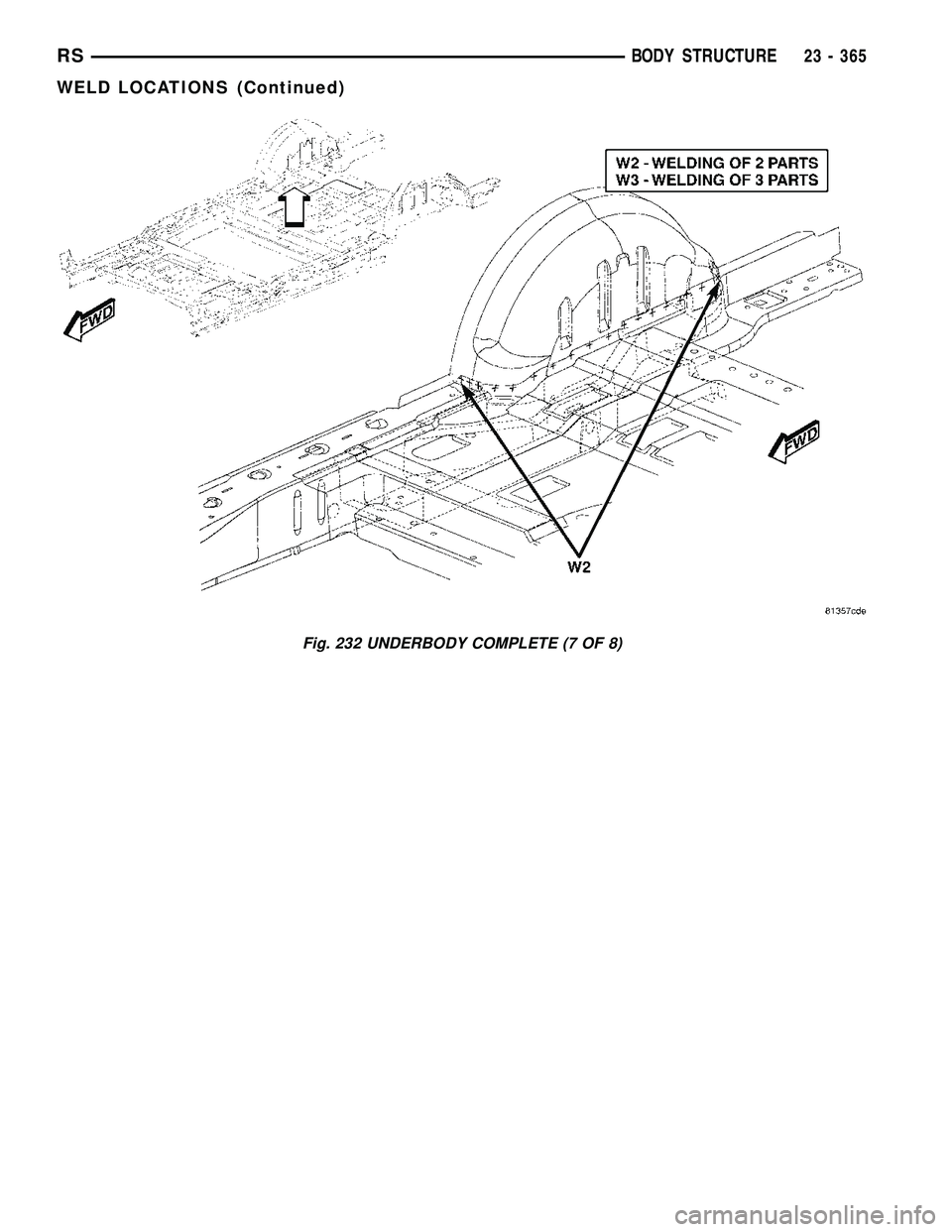

Fig. 232 UNDERBODY COMPLETE (7 OF 8)
RSBODY STRUCTURE23 - 365
WELD LOCATIONS (Continued)

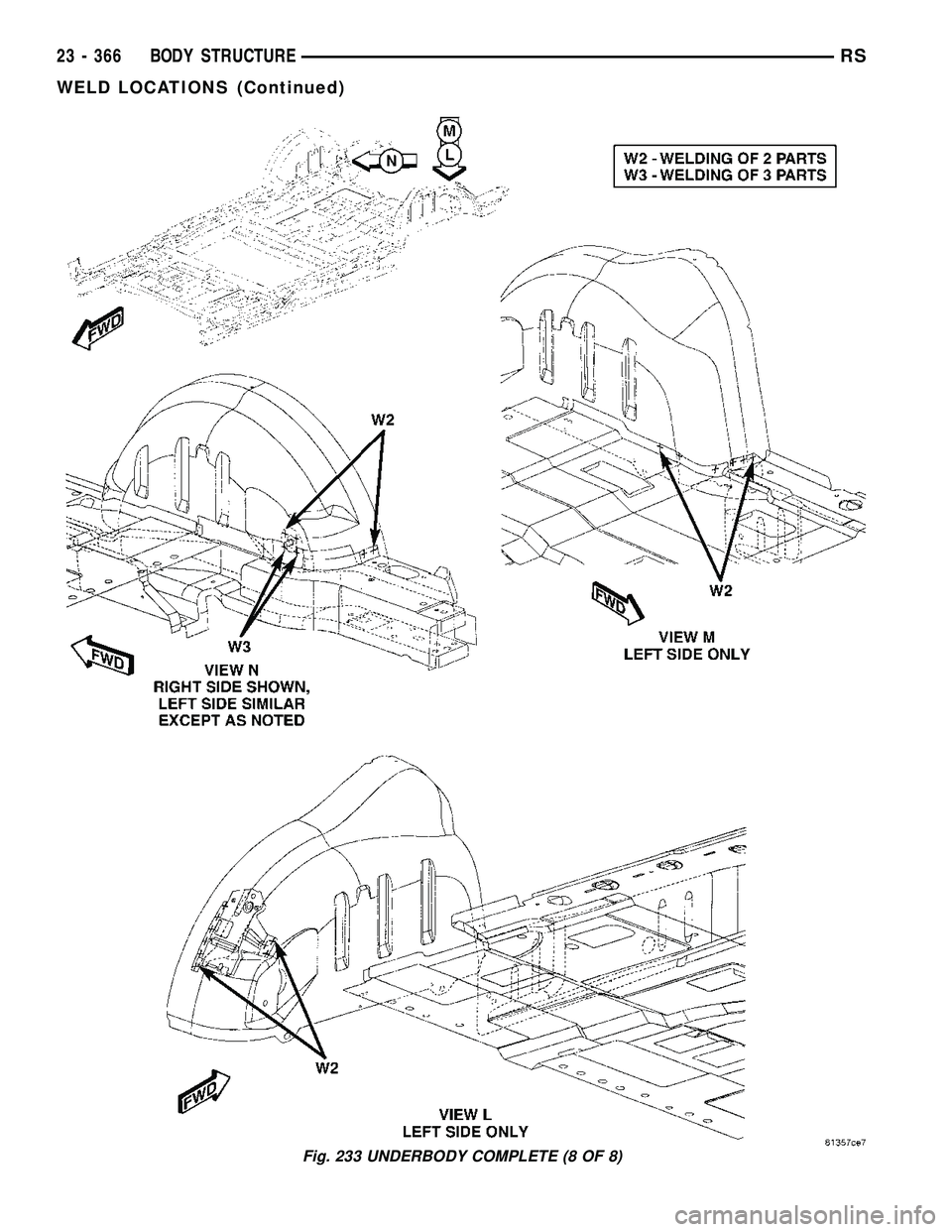

Fig. 233 UNDERBODY COMPLETE (8 OF 8)
23 - 366 BODY STRUCTURERS
WELD LOCATIONS (Continued)

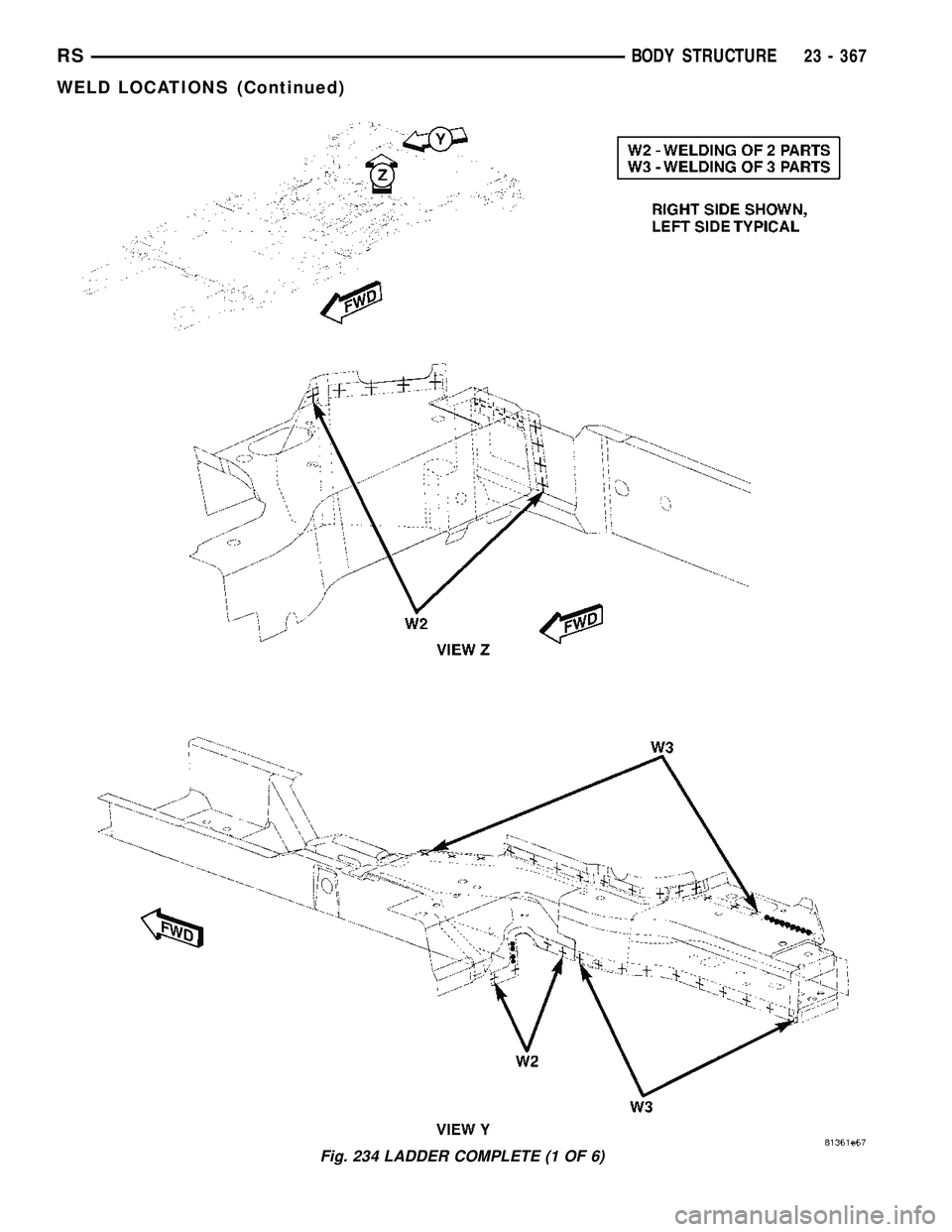

Fig. 234 LADDER COMPLETE (1 OF 6)
RSBODY STRUCTURE23 - 367
WELD LOCATIONS (Continued)

Fig. 235 LADDER COMPLETE (2 OF 6)
23 - 368 BODY STRUCTURERS
WELD LOCATIONS (Continued)

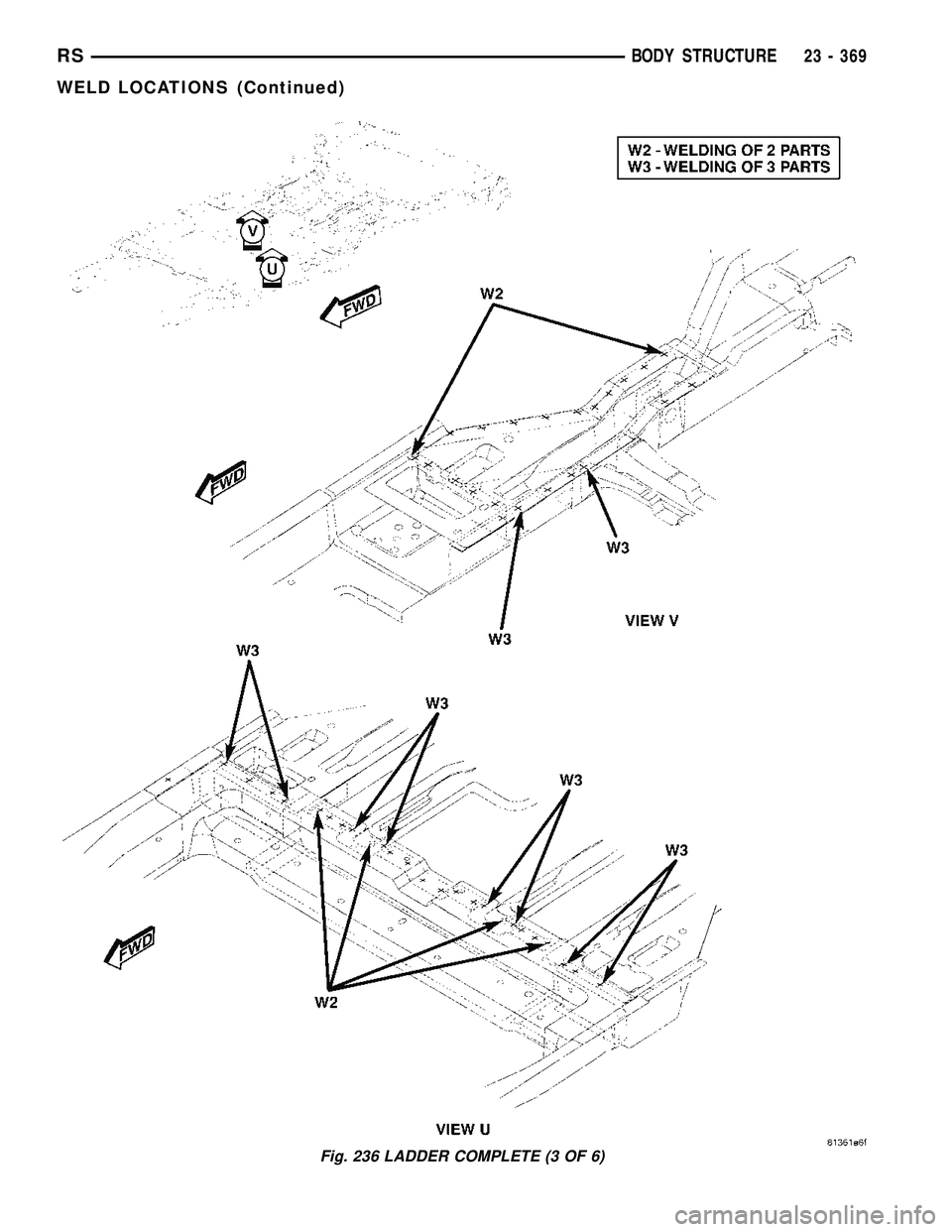

Fig. 236 LADDER COMPLETE (3 OF 6)
RSBODY STRUCTURE23 - 369
WELD LOCATIONS (Continued)

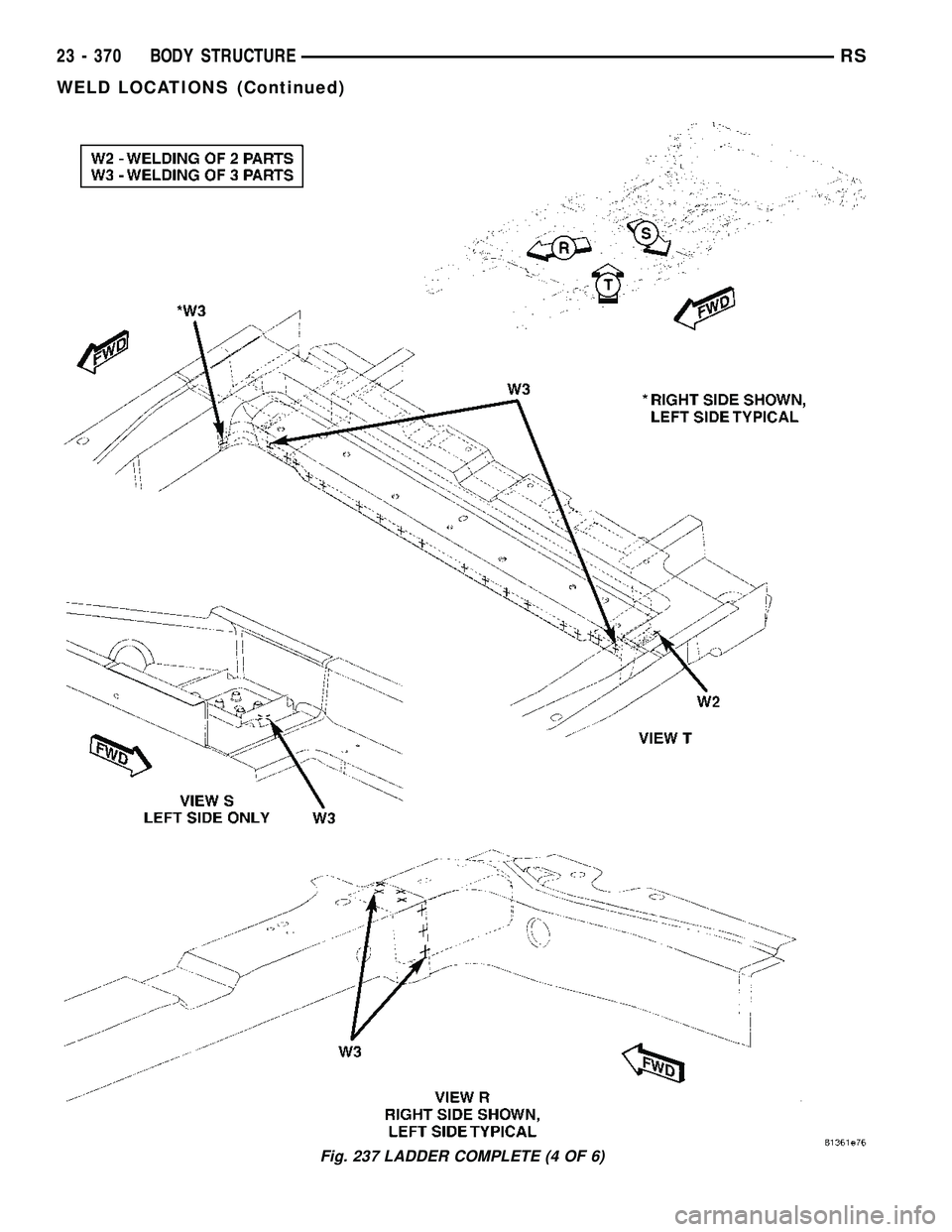

Fig. 237 LADDER COMPLETE (4 OF 6)
23 - 370 BODY STRUCTURERS
WELD LOCATIONS (Continued)

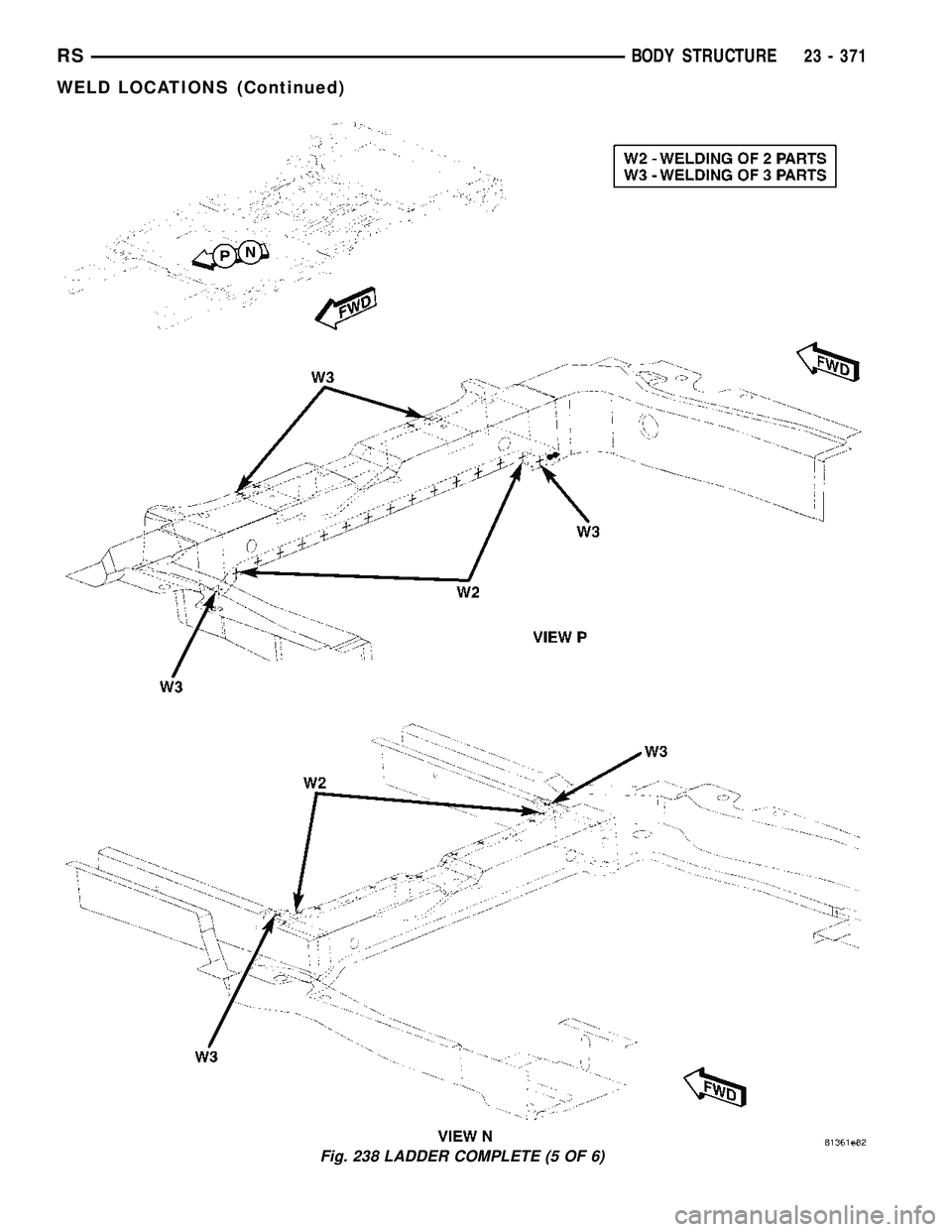

Fig. 238 LADDER COMPLETE (5 OF 6)
RSBODY STRUCTURE23 - 371
WELD LOCATIONS (Continued)
