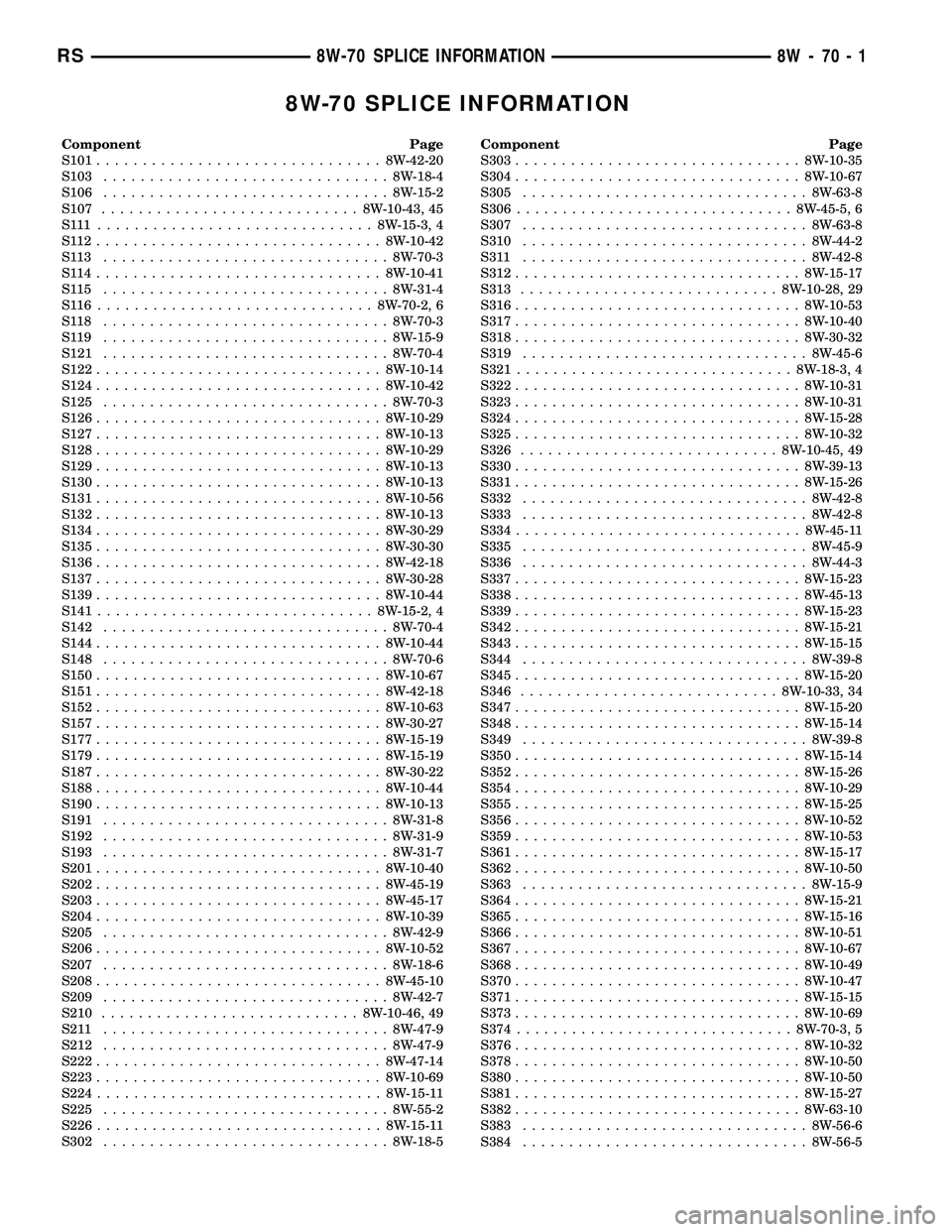

8W-70 SPLICE INFORMATION
Component Page
S101...............................8W-42-20
S103...............................8W-18-4
S106...............................8W-15-2
S107............................8W-10-43, 45
S111 ..............................8W-15-3, 4
S112...............................8W-10-42
S113 ...............................8W-70-3
S114...............................8W-10-41
S115 ...............................8W-31-4

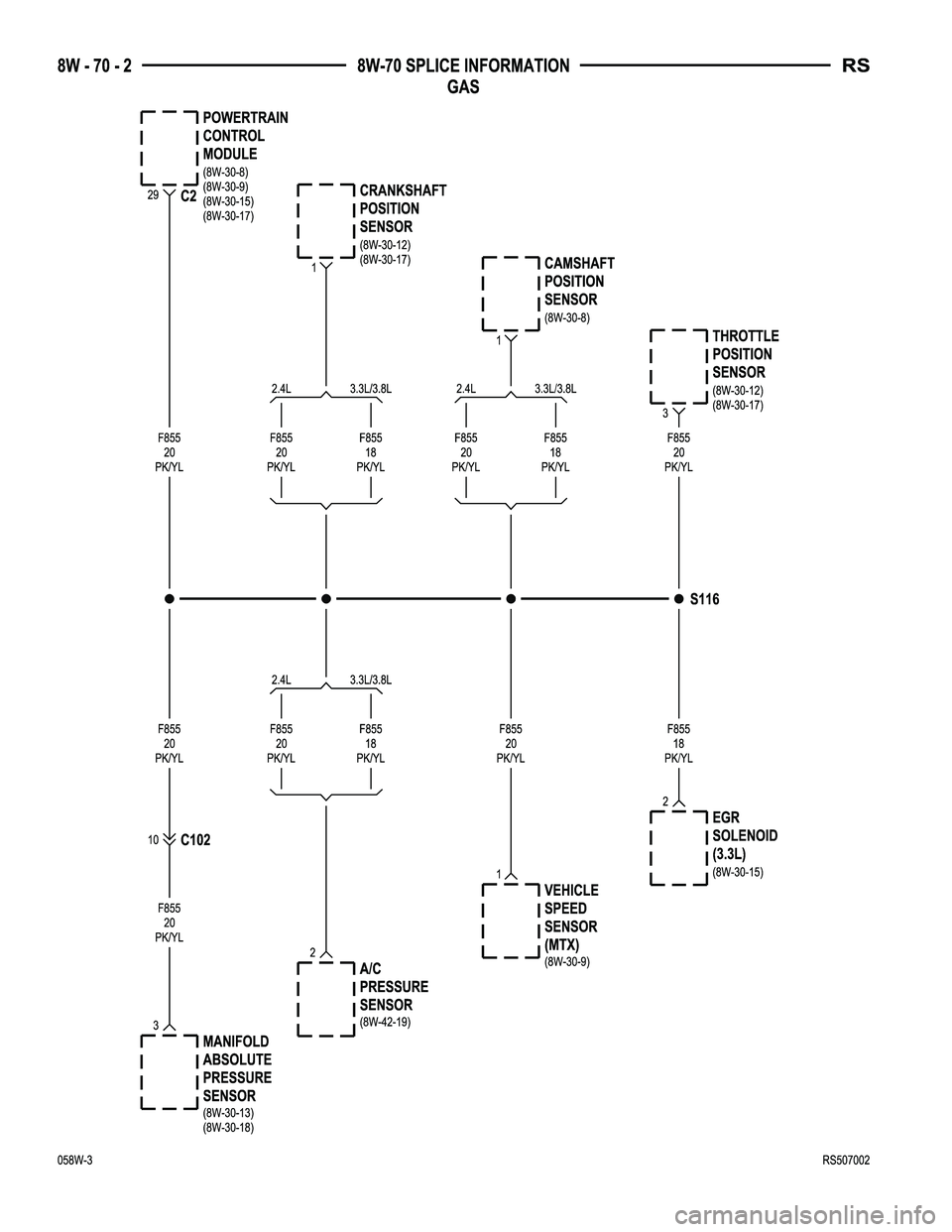

S116 ..............................8W-70-2, 6
S118 ...............................8W-70-3
S119 ...............................8W-15-9

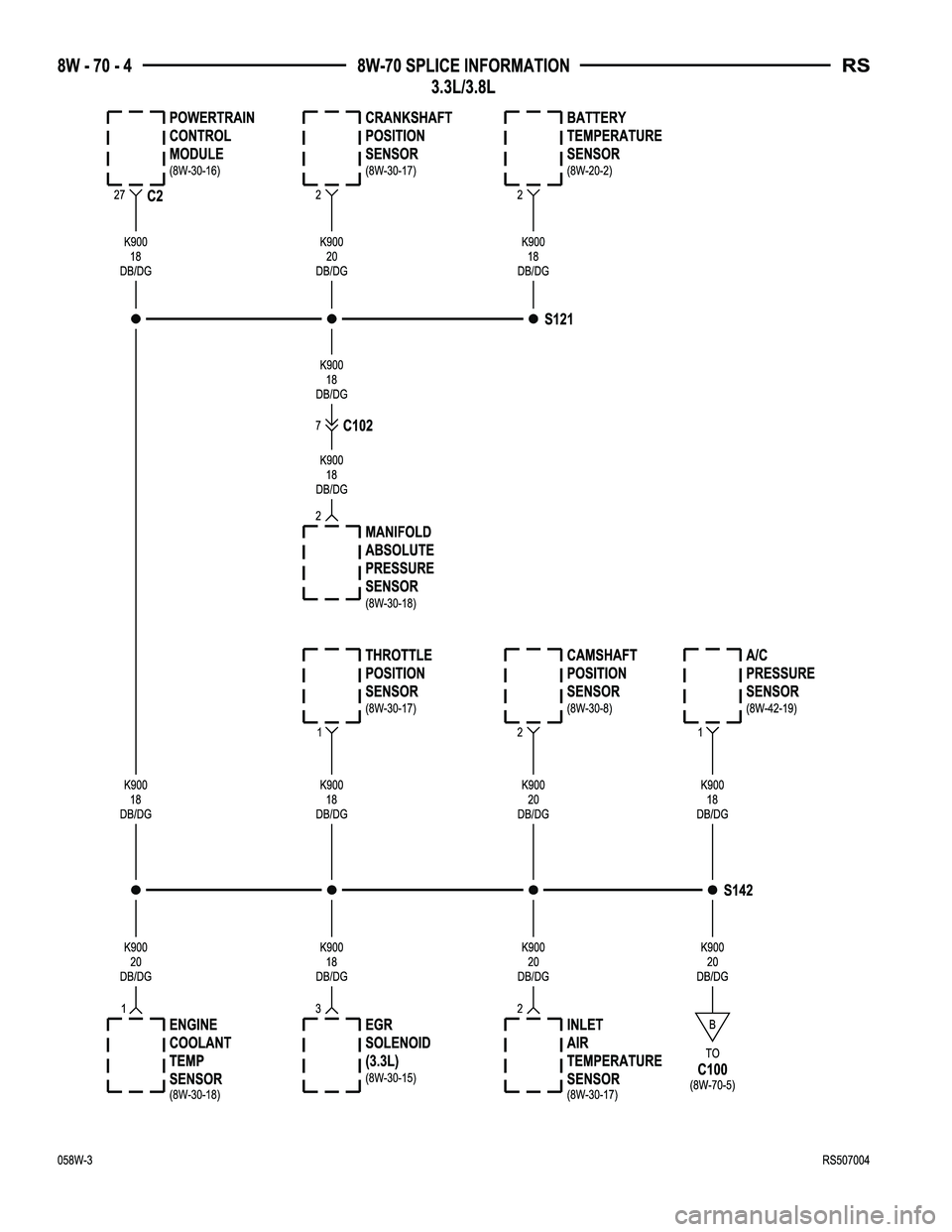

S121...............................8W-70-4
S122...............................8W-10-14
S124...............................8W-10-42
S125...............................8W-70-3
S126...............................8W-10-29
S127...............................8W-10-13
S128...............................8W-10-29
S129...............................8W-10-13
S130...............................8W-10-13
S131...............................8W-10-56
S132...............................8W-10-13
S134...............................8W-30-29
S135...............................8W-30-30
S136...............................8W-42-18
S137...............................8W-30-28
S139...............................8W-10-44
S141..............................8W-15-2, 4
S142...............................8W-70-4
S144...............................8W-10-44

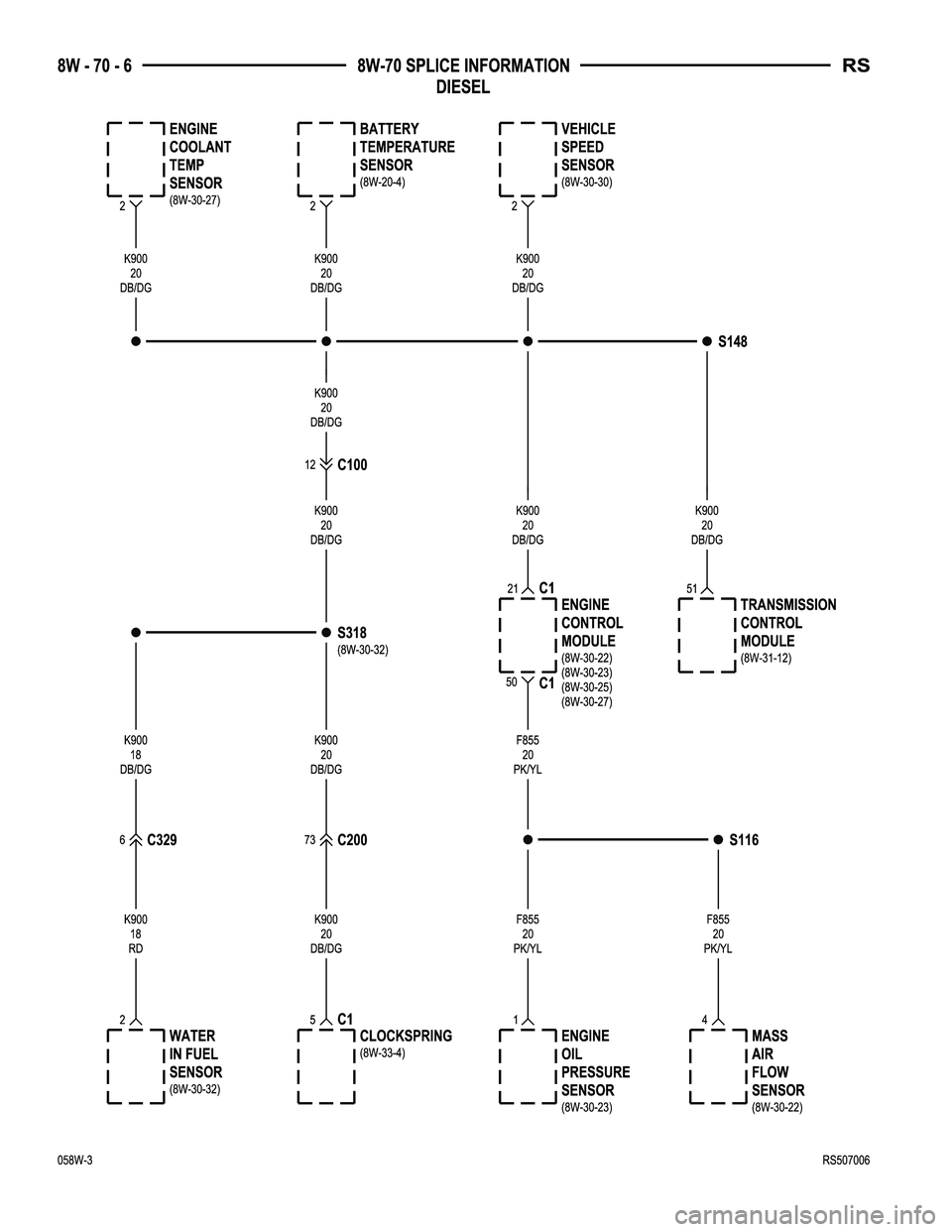

S148...............................8W-70-6
S150...............................8W-10-67
S151...............................8W-42-18
S152...............................8W-10-63
S157...............................8W-30-27
S177...............................8W-15-19
S179...............................8W-15-19
S187...............................8W-30-22
S188...............................8W-10-44
S190...............................8W-10-13
S191...............................8W-31-8
S192...............................8W-31-9
S193...............................8W-31-7
S201...............................8W-10-40
S202...............................8W-45-19
S203...............................8W-45-17
S204...............................8W-10-39
S205...............................8W-42-9
S206...............................8W-10-52
S207...............................8W-18-6
S208...............................8W-45-10
S209...............................8W-42-7
S210............................8W-10-46, 49
S211 ...............................8W-47-9
S212...............................8W-47-9
S222...............................8W-47-14
S223...............................8W-10-69
S224...............................8W-15-11
S225...............................8W-55-2
S226...............................8W-15-11
S302...............................8W-18-5Component Page
S303...............................8W-10-35
S304...............................8W-10-67
S305...............................8W-63-8
S306..............................8W-45-5, 6
S307...............................8W-63-8
S310...............................8W-44-2
S311 ...............................8W-42-8
S312...............................8W-15-17
S313............................8W-10-28, 29
S316...............................8W-10-53
S317...............................8W-10-40
S318...............................8W-30-32
S319...............................8W-45-6
S321..............................8W-18-3, 4
S322...............................8W-10-31
S323...............................8W-10-31
S324...............................8W-15-28
S325...............................8W-10-32
S326............................8W-10-45, 49
S330...............................8W-39-13
S331...............................8W-15-26
S332...............................8W-42-8
S333...............................8W-42-8
S334...............................8W-45-11
S335...............................8W-45-9
S336...............................8W-44-3
S337...............................8W-15-23
S338...............................8W-45-13
S339...............................8W-15-23
S342...............................8W-15-21
S343...............................8W-15-15
S344...............................8W-39-8
S345...............................8W-15-20
S346............................8W-10-33, 34
S347...............................8W-15-20
S348...............................8W-15-14
S349...............................8W-39-8
S350...............................8W-15-14
S352...............................8W-15-26
S354...............................8W-10-29
S355...............................8W-15-25
S356...............................8W-10-52
S359...............................8W-10-53
S361...............................8W-15-17
S362...............................8W-10-50
S363...............................8W-15-9
S364...............................8W-15-21
S365...............................8W-15-16
S366...............................8W-10-51
S367...............................8W-10-67
S368...............................8W-10-49
S370...............................8W-10-47
S371...............................8W-15-15
S373...............................8W-10-69

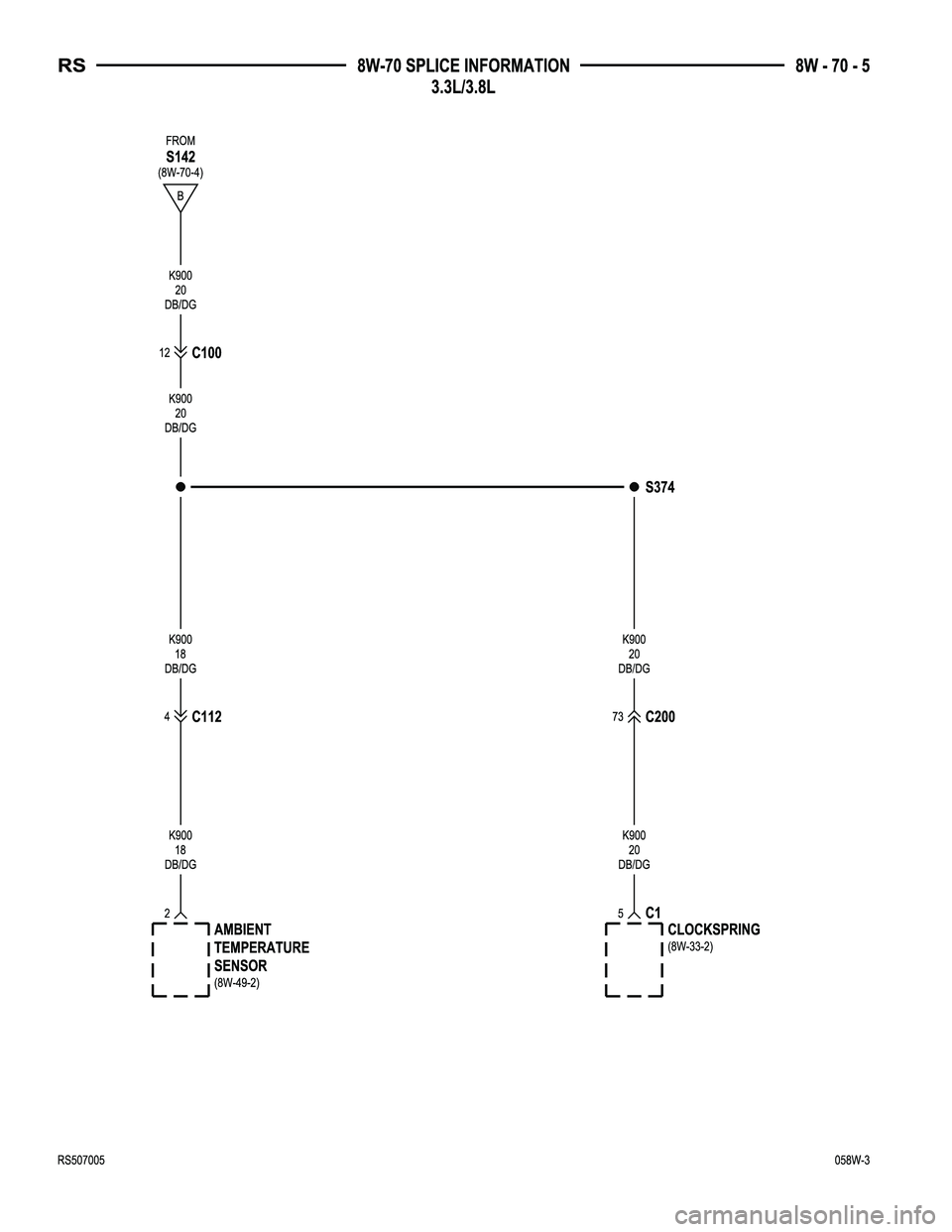

S374..............................8W-70-3, 5
S376...............................8W-10-32
S378...............................8W-10-50
S380...............................8W-10-50
S381...............................8W-15-27
S382...............................8W-63-10
S383...............................8W-56-6
S384...............................8W-56-5
RS8W-70 SPLICE INFORMATION8W-70-1
Page 965 of 2339
Page 966 of 2339
Page 967 of 2339
Page 968 of 2339
Page 969 of 2339
Page 970 of 2339
8W-80 CONNECTOR PIN-OUTS
Component Page
A/C Compressor Clutch............... 8W-80-6
A/C Pressure Sensor.................. 8W-80-6
A/C-Heater Control C1 (MTC).......... 8W-80-6
A/C-Heater Control C2 (MTC).......... 8W-80-7
Accelerator Pedal Position Sensor
(Diesel).......................... 8W-80-7
Adjustable Pedals Motor
(Except Export)................... 8W-80-7
Adjustable Pedals Relay (Except
Export/Except Memory)............. 8W-80-8
Adjustable Pedals Sensor
(Except Export)................... 8W-80-8
Adjustable Pedals Switch
(Except Export)................... 8W-80-8
Ambient Temperature Sensor........... 8W-80-8
Amplifier C1 (Highline Audio).......... 8W-80-9
Amplifier C2 (Highline Audio).......... 8W-80-9
ATC Remote Sensor (ATC)............ 8W-80-10
Auto Temp Control C1............... 8W-80-10
Auto Temp Control C2............... 8W-80-10
Auto Temp Control C3............... 8W-80-11
Back-Up Lamp Switch (MTX).......... 8W-80-11
Battery Temperature Sensor........... 8W-80-11
Belt Tension Sensor
(Occupant Sensing)................ 8W-80-11
Blower Motor Resistor C1 (MTC)....... 8W-80-12
Blower Motor Resistor C2 (MTC)....... 8W-80-12
Body Control Module C1.............. 8W-80-12
Body Control Module C2.............. 8W-80-13
Body Control Module C3.............. 8W-80-14
Body Control Module C4.............. 8W-80-15
Body Control Module C5.............. 8W-80-16
Boost Pressure Sensor (Diesel)......... 8W-80-16
Brake Fluid Level Switch............. 8W-80-17
Brake Lamp Switch................. 8W-80-17
Brake Transmission Shift Interlock
Solenoid........................ 8W-80-17
C100............................. 8W-80-17
C100............................. 8W-80-18
C101 (Diesel)...................... 8W-80-18
C101 (Diesel)...................... 8W-80-19
C101 (Gas)........................ 8W-80-19
C101 (Gas)........................ 8W-80-19
C102 (Gas)........................ 8W-80-19
C102 (Gas)........................ 8W-80-20
C103 (Diesel)...................... 8W-80-20
C103 (Diesel)...................... 8W-80-20
C104 (Except Export)................ 8W-80-20
C104 (Except Export)................ 8W-80-21
C106 (Export)...................... 8W-80-21
C106 (Export)...................... 8W-80-21
C107 (Export)...................... 8W-80-21Component Page
C107 (Export)...................... 8W-80-22
C111(EATX)....................... 8W-80-22
C111(EATX)....................... 8W-80-22
C112 (Gas)........................ 8W-80-22
C112 (Gas)........................ 8W-80-22
C200............................. 8W-80-23
C200............................. 8W-80-25
C202............................. 8W-80-27
C202............................. 8W-80-27
C204 (Premium).................... 8W-80-27
C204 (Premium).................... 8W-80-28
C206 (Except Base).................. 8W-80-28
C206 (Except Base).................. 8W-80-28
C207 (DVD)....................... 8W-80-28
C207 (Hands Free).................. 8W-80-29
C300 (LHD)....................... 8W-80-29
C300 (LHD)....................... 8W-80-29
C300 (RHD)....................... 8W-80-30
C300 (RHD)....................... 8W-80-30
C301 (Luxury/Export)................ 8W-80-30
C301 (Luxury/Export)................ 8W-80-30
C302 (Export)...................... 8W-80-31
C302 (Export)...................... 8W-80-31
C302 (Luxury/Except Export).......... 8W-80-31
C302 (Luxury/Except Export).......... 8W-80-31
C303 (LHD)....................... 8W-80-32
C303 (LHD)....................... 8W-80-32
C303 (RHD)....................... 8W-80-32
C303 (RHD)....................... 8W-80-33
C304 (LHD)....................... 8W-80-33
C304 (LHD)....................... 8W-80-33
C305............................. 8W-80-33
C305............................. 8W-80-34
C306 (RHD)....................... 8W-80-34
C306 (RHD)....................... 8W-80-34
C307............................. 8W-80-34
C307............................. 8W-80-35
C308 (Except Side Airbag)............ 8W-80-35
C308 (Side Airbag).................. 8W-80-35
C308 (Except Side Airbag)............ 8W-80-36
C308 (Side Airbag).................. 8W-80-36
C309 (Side Airbag).................. 8W-80-36
C309 (Side Airbag).................. 8W-80-37
C309 (Except Side Airbag)............ 8W-80-37
C309 (Except Side Airbag)............ 8W-80-37
C310 (Front Console)................ 8W-80-38
C310 (Front Console)................ 8W-80-38
C311 (3 Zone HVAC/Except
Side Airbag)..................... 8W-80-38
C311 (3 Zone HVAC/Except
Side Airbag)..................... 8W-80-38
C311 (3 Zone HVAC/Side Airbag)....... 8W-80-39
RS8W-80 CONNECTOR PIN-OUTS8W-80-1
