CHRYSLER VOYAGER 2022 Owner's Guide

GETTING TO KNOW YOUR VEHICLE29
MANUAL ADJUSTMENT (REAR SEATS)
Manual Forward/Rearward Adjustment —
Quad Seats (If Equipped)
Both second row seats are adjustable forward or
rearward. The manual seat adjustment handle is
located under the seat cushion at the front edge of
each seat.

Manual Rear Seat Adjuster

While sitting in the seat, pull up on the handle and
slide the seat forward or rearward. Release the bar
once you have reached the desired position. Then,
using body pressure, move forward and rearward
on the seat to be sure that the seat adjusters have
latched.
Manual Recline — Quad Seats

Recline Lever

WARNING!
Do not ride with the seatback reclined so that
the shoulder belt is no longer resting against
your chest. In a collision you could slide under
the seat belt, which could result in serious injury
or death.
WARNING!
Adjusting a seat while the vehicle is moving is
dangerous. The sudden movement of the seat
could cause you to lose control. The seat belt
might not be adjusted properly and you could
be injured. Adjust the seat only while the
vehicle is parked.
Do not ride with the seatback reclined so that
the shoulder belt is no longer resting against
your chest. In a collision you could slide under
the seat belt and be seriously or even fatally
injured. Use the recliner only when the vehicle
is parked.
WARNING!
Adjusting a seat while driving may be
dangerous. Moving a seat while driving could
result in loss of control which could cause a
collision and serious injury or death.
Seats should be adjusted before fastening the
seat belts and while the vehicle is parked.
Serious injury or death could result from a
poorly adjusted seat belt.
2

22_RUVG_OM_EN_USC_t.book Page 29

30GETTING TO KNOW YOUR VEHICLE
To recline, lean forward slightly, lift the lever, and
push back to the desired position and release the
lever. Lean forward and lift the lever to return the
seatback to its normal position. Using body
pressure, lean forward and rearward on the seat to
be sure the seatback has latched.
Second Row Bench Seat — If Equipped
The second row bench seat can accommodate two
passengers, while providing easy access to the
third row seats without any folding of the second
row seats.
To recline the seatback, lean forward slightly, lift
the recline lever located on the outboard side of
the seat cushion, and push back to the desired
position and release the lever. Lean forward and
lift the lever to return the seatback to its normal
position. Using body pressure, lean forward and
rearward on the seat to be sure the seatback has
latched.
Recline Lever

The bench seat does not stow in the floor, but is
removable for added cargo space.
Removing The Bench Seat

1. Adjust the driver and passenger seats forward to allow room for the bench seat
removal.

2. Raise the armrest completely, then lift the recline lever located on the outboard side of
the seat to fold the seatback flat against the
seat cushion.
Folded Position

3. Pull the release strap located behind the seat, in the center near the floor to release the
latches.

Release Strap Location

WARNING!
Do not ride with the seatback reclined so that
the shoulder belt is no longer resting against
your chest. In a collision you could slide under
the seat belt, which could result in serious injury
or death.

22_RUVG_OM_EN_USC_t.book Page 30

GETTING TO KNOW YOUR VEHICLE31
4. Once the latches are released, tilt the entire seat toward the front of the vehicle. The seat
can now be removed through either sliding
side door, or through the liftgate.

Tilt Bench Seat Forward

NOTE:
Due to the weight of the bench seat, it is recom -
mended that two people are utilized for its
removal.
When storing the removed bench seat, it is
important to keep the seatback in the folded
position. Reinstalling The Bench Seat

1. To reinstall the bench seat, align the seats
front attachments into the detent positions
on the floor.

2. Tilt seat rearward to lock the seatback into its original position.
NOTE:Push downward to ensure the rear latches are in
the locked position.
3. Lift the recline handle and return the seatback to the seating position.
Second Row Removable 8th Seat —
If Equipped
While the 8th seat does not stow in the floor, it is
foldable and removable for added cargo space.
Second Row 8th Seat Fold Flat Strap

The release strap is located on the front of the
seat, near the floor. To remove the seat, pull the
release strap to release the rear latches. The seat
assembly can now be removed from the vehicle by
moving it in a rearward direction from the detent
positions in the floor.

Release Strap

WARNING!
If not properly latched, the seat could become
loose. Personal injuries could result.
2

22_RUVG_OM_EN_USC_t.book Page 31

32GETTING TO KNOW YOUR VEHICLE
NOTE:Seat can be removed easier with one outboard
seat stowed in the load floor.
To reinstall the seat, align the seat into the detent
positions on the floor. Tilt seat rearward to lock the
seatback into its original position.

In Floor Detent Guides
Fold-Flat — Quad Seats
To fold the seat, lift the recliner lever to the full
upward position and push the seatback forward
until it rests on the seat cushion.
Fold-Flat Seat Recline Lever

NOTE:
The seatback may lock into the fold-flat position.
Use the recline lever to unlock the seatback.
If equipped with Stow ‘n Go seating: when
returning the seat to the original position, the
headrest must be folded back to the original
position.
Stow ‘n Go Seating Head Restraint

Easy Entry
Easy Tilt Seat — With Or Without Child Seat
Installed
The second row seats can be tilted forward for easy
entry into the third row with or without a child seat
installed.

1. Located in the seatback of the second row
seat is a lever (or handle for Stow ‘n Go seats)
that provides easier access to the third row by
tilting the seat forward.

2. Slide the lever upwards, or if equipped, pull the handle forward, to unlock the seatback.
WARNING!
If not properly latched, the seat could become
loose. Personal injuries could result.

22_RUVG_OM_EN_USC_t.book Page 32

GETTING TO KNOW YOUR VEHICLE33

Lift Easy Tilt Seat Lever (If Equipped)
Pull Easy Tilt Seat Handle (If Equipped)

3. Push on seatback to slide seat forward to access the third row.
Easy Tilt Seat
Easy Tilt With Child Seat Installed

4. To put the seat back into original position, just pull back on the seatback and lock the seat
into position. Easy Entry — With The Seat Folded Flat
The seats can be folded and tilted for more
accessibility for passengers to enter and exit the
third row.

1. Without a child seat installed, you can fold the
seat by pulling the recliner handle on the
bottom part of the seat. Before pulling the
recliner lever, make sure the arm rests are
folded up.

Recliner Lever

WARNING!
Do not use this feature with a child in seat.
Serious injury or death may occur.
2

22_RUVG_OM_EN_USC_t.book Page 33

34GETTING TO KNOW YOUR VEHICLE
2. To put it back into position, pull back on the folded seat and make sure that it locks into
position. Then, pull the seatback toward the
back and fold down the arm rests.
Exit For Third Row Passengers — Stow ‘n Go Seats
Only
If the second row is equipped with Stow ‘n Go, third
row passengers can pull the strap and push the
seat forward to fold the seatback down and tilt the
seat to the floor for an easy exit.

Pull Strap For Third Row Passengers

NOTE:This process is for when there is no child seat
installed. Use the easy entry lever if a child seat is
installed.
Second Row Removable Quad Seat
The second row quad seats, not equipped with the
Stow ‘n Go feature, are removable for added cargo
space.
Removing Seat

1. Adjust seat to the full rearward position.

2. Lift the recline lever to fold the seatback flat against the seat cushion.

Fold-Flat Seat Recline Lever

NOTE:Push downward on the seatback to make sure it is
in the locked position.
3. The release strap is located on the front of the seat, near the floor.
Seat Release Strap

4. To remove the seat, pull the release strap to release the rear latches.
5. Tilt the back of the seat to the upward position.

Tilt Seat Forward

22_RUVG_OM_EN_USC_t.book Page 34

GETTING TO KNOW YOUR VEHICLE35
6. The seat assembly can now be removed from the vehicle. Grab the front seatback edge
located near the head restraint and the grab
the bar on the rear side of the seat cushion for
easy removal.

Seat Removal

Reinstalling Seat

1. To reinstall the seat: With the seat tilted forward, align the seat’s front attachments
into the detent positions on the floor.
In Floor Seat Detents
Installing Seat

2. Tilt seat rearward to lock the seat back into its original position.
NOTE:Push downward to ensure the rear latches are in
the locked position. 3. Lift the recline handle and return the seat back
to the seating position.
Manually Folding Third Row Seats —
If Equipped

1. Lower the center head restraint down to the seatback by pushing the button on the guide
and pushing the head restraint down.

2. Pull release strap marked “1” to release the anchors.

Release Strap “1”

WARNING!
If not properly latched, the seat could become
loose. Personal injuries could result.2

22_RUVG_OM_EN_USC_t.book Page 35

36GETTING TO KNOW YOUR VEHICLE
3. Pull release strap marked “2” and tumble the seat rearward into the storage bin.

Release Strap “2”
Stowed Third Row Seat

To Unfold Third Row Seats

1. Pull up on the assist strap to lift the seat out of the storage bin and push the seat forward
until the anchors latch.

Assist Straps

2. Pulling strap “2” releases the seatback to return to its full upright position.

Strap “2”
3. Raise the head restraint to its upright position.

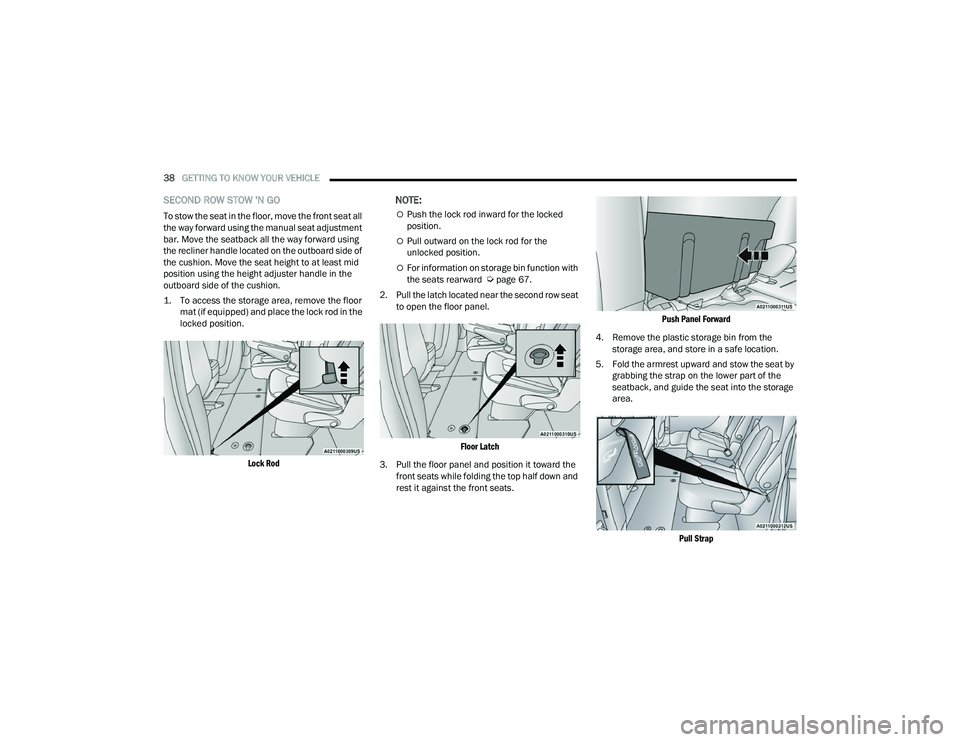

Stow 'n Go Seating
On vehicles equipped with Stow 'n Go seating, the
second and third row seats can be folded into the
floor for convenient storage.
AUTO ADVANCE ‘N RETURN — IF EQUIPPED
On vehicles equipped with the Auto Advance ‘n
Return feature, the front seat will move forward
automatically to a location that will allow the
second row Stow ‘n Go seat movement, without
interference by the front seat. After the second row
seat is stowed, the front seat will move back to the
previous location once the Auto Advance ‘n Return
button is pushed again.
WARNING!
In a collision, you or others in your vehicle
could be injured if seats are not properly
latched to their floor attachments. Always be
sure the seats are fully latched.
Sitting in a seat with the head restraint in its
lowered position could result in serious injury
or death in a collision. Always make sure the
head restraints are in their upright positions
when the seat is to be occupied.

22_RUVG_OM_EN_USC_t.book Page 36

GETTING TO KNOW YOUR VEHICLE37
The Auto Advance ‘n Return feature is available to
the front driver power seats.
A one-touch Auto Advance ‘n Return button is
located on the B-pillar trim panel, just in front of
the power sliding door.

Auto Advance ‘n Return Button
Using the Auto Advance ‘n Return Feature
NOTE:
The button is only functional when the power
sliding door is open and the vehicle is in PARK.
If the door is not open or the vehicle is not in
PARK when the button is pushed, the front seat
will not move and a message will be displayed in
the instrument cluster display.
If the power sliding door is closing when the
button is pushed, the front seat will not move
and a message will be displayed in the instru
-
ment cluster display.
The Auto Advance ‘n Return feature will not
function if the front doors are open.

1. Push and release the Auto Advance ‘n Return button.

2. Perform the second row Stow ‘n Go seat movement. Refer to “Second Row Stow ‘n Go”
in this section for further information.
3. Push and release the Auto Advance ‘n Return button a second time. The front seat cushion
and seatback will return to the original starting
location.
NOTE:
To abort seat operation while seat is in motion,
push the Auto Advance ‘n Return button, or
push the front power seat button to stop the
seat movement. Pushing the Auto Advance ‘n
Return button again will return the front seat to
the original starting location.
The Auto Advance ‘n Return system includes
obstacle detection. When the system detects an
obstacle, the seat will stop, reverse direction,
and return to the previous location. A message
will be displayed in the instrument cluster indi -
cating that an obstacle has been detected.
If the front seat is already in a location that will
allow space for Stow ‘n Go of the second row
seat, the front seat will not move and a message
will be displayed in the instrument cluster.
If calibration of the front seat is lost, the seat will
automatically recalibrate when the Auto
Advance ‘n Return button is pushed. This may
result in the seat cushion moving forward and
downward, before moving to the location that
will allow space for the second row Stow ‘n Go
seat movement.
WARNING!
During power seat operation, personal injury or
cargo damage may occur. Ensure the front seat
is not occupied and the seat travel path is clear
when operating the power seat.2

22_RUVG_OM_EN_USC_t.book Page 37

38GETTING TO KNOW YOUR VEHICLE
SECOND ROW STOW 'N GO
To stow the seat in the floor, move the front seat all
the way forward using the manual seat adjustment
bar. Move the seatback all the way forward using
the recliner handle located on the outboard side of
the cushion. Move the seat height to at least mid
position using the height adjuster handle in the
outboard side of the cushion.

1. To access the storage area, remove the floor
mat (if equipped) and place the lock rod in the
locked position.

Lock Rod

NOTE:
Push the lock rod inward for the locked
position.
Pull outward on the lock rod for the
unlocked position.
For information on storage bin function with
the seats rearward Úpage 67.
2. Pull the latch located near the second row seat to open the floor panel.

Floor Latch

3. Pull the floor panel and position it toward the front seats while folding the top half down and
rest it against the front seats.
Push Panel Forward

4. Remove the plastic storage bin from the storage area, and store in a safe location.
5. Fold the armrest upward and stow the seat by grabbing the strap on the lower part of the
seatback, and guide the seat into the storage
area.

Pull Strap

22_RUVG_OM_EN_USC_t.book Page 38
