CITROEN 2CV 1975 Owners Manual

CONTENTS
Notices
Important Points
Driving
Maintenance
Minor Repairs
Miscellaneous Information
Service-station Reminder
2 CV4 - 2 CV6
ALPHABETICAL INDEX07516
JULY 1975
AZ-KB AZ-KA 2 CV4 2 CV6

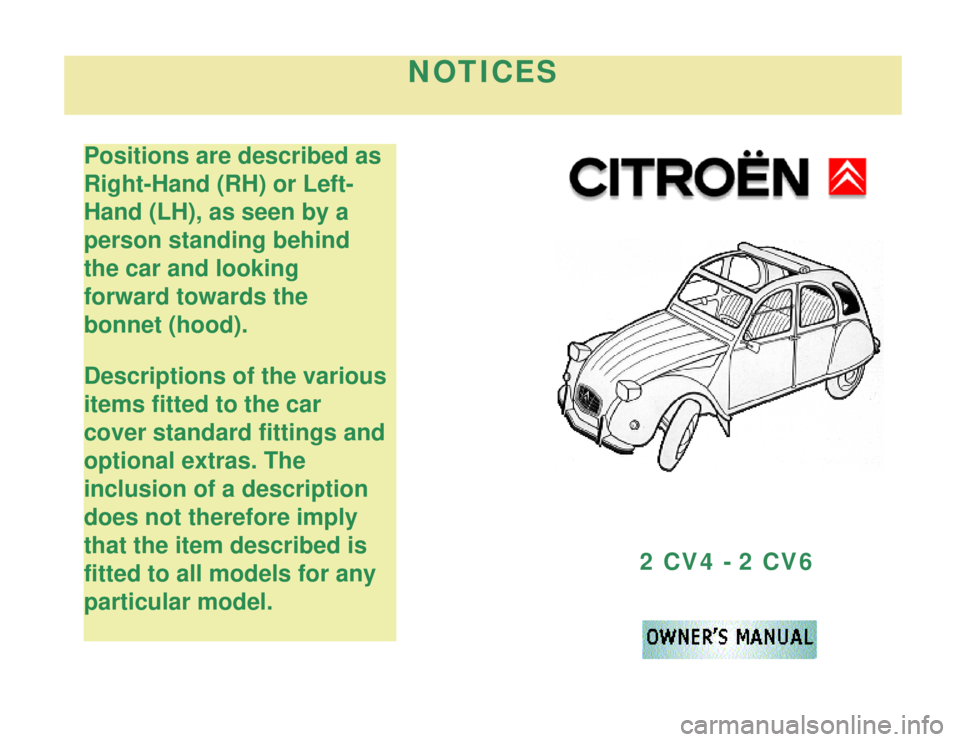

NOTICES
Positions are described as
Right-Hand (RH) or Left-
Hand (LH), as seen by a
person standing behind
the car and looking
forward towards the
bonnet (hood).
Descriptions of the various
items fitted to the car
cover standard fittings and
optional extras. The
inclusion of a description
does not therefore imply
that the item described is
fitted to all models for any
particular model.
2 CV4 - 2 CV6

[Contents] [Notices] [Important Points] [Driving] [Maintenance] [Minor Repairs] [Miscellaneous Information]

CONTENTS
Notices
Important Points
Driving
Maintenance
Minor Repairs
Miscellaneous Information
Service-station Reminder
2 CV4 - 2 CV6
ALPHABETICAL INDEX07516
JULY 1975
AZ-KB AZ-KA 2 CV4 2 CV6

IMPORTANT POINTS
During the first 1,200 mi (2,000 km): Keep a little below the speed li\
mits indicated
by the red marks on the speedometer.
At 600 mi (1,000 km): by any Citroën Dealer.
Before setting out on a long journey, check: The engine oil level; the l\
evel of the
brake fluid and top up if necessary.
Every 3,000 mi (5,000 km): Engine sump - drain and refill
Every 12,000 mi (20,000 km): Gearbox - change the oil
On "2 CV6", pay attention to the red warning lamp, (engine oil pressure\
). If it lights
up while driving, stop immediately.
Always keep in your vehicle: complete set of spare bulbs; set of fuses (\
10 & 15
amps).
Check inflation pressures regularly.
Changing a wheel: Tools and spare
wheel in boot (trunk).
From the very beginning make
yourself acquainted with the
handling operations specified in the
Tyre (tire) changing section.Model
Michelin FrontRearSpare
2 CV4 125-15X 1.4 bar
20 psi 1.8 bar
26 psi 2 bar
29 psi
2 CV6 125-15X 1.4 bar
20 psi 1.8 bar
26 psi 2 bar
29 psi
In order to ensure a longer life for your vehicle, and, for your safety,\
"Citroën" advises you to adhere to these most important points, systematically.

[Contents] [Notices] [Important Points] [Driving] [Maintenance] [Minor Repairs] [Miscellaneous Information]

DRIVING
This first section contains all
you need to know about
driving your car and taking
advantage of the comfort it
offers: the panel instruments
are all described
here, so that
you can find out the meaning
of their signals with a
minimum of effort, should the
need arise.
We also advise you to read
here before taking the car on
the road for the first time.
DRIVING 2 CV4 - 2 CV6
Opening and locking:
Doors, Boot, Bonnet
Driving Position:
Controls and accessories (LH)
Controls and accessories (RH)
Dashboard instruments

Seats, rear-view mirrors, seat beltsStarting:
Anti-theft, ignition, starter
Gears, clutch, brakes
Signals and visibility:
Lights, signals, windscreen wipers/
washer
Air conditioning:
Ventilation, heating, de-misting Comfort:
Folding canvas hood
Accessories
07516
JULY 1975
AZ-KB AZ-KA 2 CV4 2 CV6
[Contents] [Notices] [Important Points] [Driving] [Maintenance] [Minor Repairs] [Miscellaneous Information]

DRIVING
DRIVING POSITION
Dashboard Instruments

With the exception of the warning lamps for engine oil pressure (2) an\
d hazard warning device (6),
the illumination of the following dashboard instruments is controlled by\
the exterior lighting switch.
These instruments do not function when the ignition is off, with the exc\
eption of the hazard warning
device (6).
1 - Speedometer: The red marks indicate maximum speed permitted in each gear.
2 - Engine oil pressure warning lamp (2 CV6 only): This lights up when the ignition is switched on
and goes out as soon as the engine is running. If it lights up when driv\
ing, stop the engine
immediately and top up the level of oil if necessary. If the lamp remain\
s alight despite the oil level
being correct, stop again and contact a Citroën dealer.
3 - Fuel gauge: Tank capacity: 4 1/2 Imp. Gal. (20 litres)
4 - Total mileage indicator
5 - Charge indicator: At normal engine running speed, the needle should remain in the white se\
ctor.
If the needle should remain in either of the red sectors, consult a Citr\
oën dealer. It is possible that,
when driving with the headlamps on, the needle may stay in the white cro\
ss-hatched zone - indication
that the battery is insufficiently charged. In normal circumstances, whe\
n driving, the generator should
charge the battery and within two hours the needle should return to the \
white zone. If this does not
occur, consult a Citroën dealer.
6 - Hazard warning lamp: Flashes throughout the operation. If it does not function, check the
direction indicators.
