CLUTCH
GEARBOX
TRANSMISSION
RECOMMENDATIONS/PRECAUTIONS : AL4 AUTOMATIC GEARBOX
Procedure to be followed prior to carrying out repairs on AL4 autoactive gearbox
If a gearbox malfunction occurs, there are two possible configurations
depending on the seriousness of the fault:
- Gearbox in back-up mode with a replacement programme of
(the fault
values are taken in substitution).
- Gearbox in back-up mode with an emergency programme (3rd hydraulic).
WARNING: In the emergency programme, an impact is felt when
changing P/R, N/R and N/D.
Réception client.
Discuss with the customer, to find out all the malfunction symptoms.
Oil quality - Oil level.
Oil quality.
If the gearbox has suffered a serious fault resulting in a malfunction or
the destruction of a clutch, the oil will overheat and become
contaminated with impurities: the oil is said to be «burnt».
This is characterised by a black colour and the presence of an
unpleasant smell.
ESSENTIAL: The gearbox must be replaced.Oil level
(see corresponding operation).
An excessive oil level can result in the following consequences:
- Excessive heating of the oil.
- Oil leaks.
An insufficent level causes the destruction of the gearbox.
Top up the level of oil in the gearbox
(if necessary).
Check using a diagnostic tool.
Read the fault codes
(engine and gearbox).
Absence of fault codes.
Carry out parameter measures, actuator tests and a road test.
Presence of fault codes.
Carry out the necessary repairs.
Delete the fault codes.
Carry out a road test to check the repair and, if need be, modify the
gearbox ECU parameters
(this is essential after an initialisation of the
ECU).
Angl.-t2-page306-360-2005 9/01/06 10:20 Page 345

Downloaded from www.Manualslib.com manuals search engine 346
CLUTCH
GEARBOX
TRANSMISSION
RECOMMENDATIONS/PRECAUTIONS : AL4 AUTOMATIC GEARBOX
Procedure for initialising the automatic gearbox ECU
Downloading.
Updating the gearbox ECU by downloading:
- Follow the procedure using the diagnostic tool.
The downloading operation enables the automatic gearbox to be
updated, or adapted to an evolution of the engine ECU.
Before commencing the downloading, take the value of the oil usage
counter present in the automatic gearbox ECU.
After the downloading operation, carry out the following:
- A clearing of faults.
- An initialisation of the auto-adaptives.
- A writing of the value of the oil usage counter previously read.
- A road test.
ESSENTIAL: Every update of the automatic gearbox ECU should
be accompanied by an update of the engine ECU.Updating the value of the oil usage counter.
Using PROXIA.
Access to reading and recording of the oil counter is via the menu:
- «Configuration
(integrated circuit button)/Oil counter».
Adjustment of the oil counter value is done in incremental steps of
2750 units.
Using LEXIA.
Access to reading and recording of the oil counter is via the menu:
- «Oil counter».
Adjustment of the oil counter value is done by entering directly
the 5 figuresof the oil counter.
Angl.-t2-page306-360-2005 9/01/06 10:20 Page 346

Downloaded from www.Manualslib.com manuals search engine 347
CLUTCH
GEARBOX
TRANSMISSION
TIGHTENING TORQUES: AL4 AUTOMATIC GEARBOX
Engines: NFU - RFJ
B2CP3EDD
B2CP3X7D
Tightening torques (m.daN).
(1) Fixing of the electrovalve for modulation of the flow
of oil into the exchanger (EPDE): 1 ± 0,2
(2)Heat exchanger fixing: 5 ± 1
(3) Output speed sensor fixing
(4)Output speed sensor fixing: 1 ± 0,2
(5)Oil overflow and drain fixing(X = 48 mm)
: 0,9 ± 0,2
(6)Oil level plug: 3,3 ± 0,5
(7)Oil pressure sensor fixing: 0,8 ± 0,1
C4 - XSARA - XSARA PICASSO
Angl.-t2-page306-360-2005 9/01/06 10:20 Page 347

Downloaded from www.Manualslib.com manuals search engine 348
CLUTCH
GEARBOX
TRANSMISSION

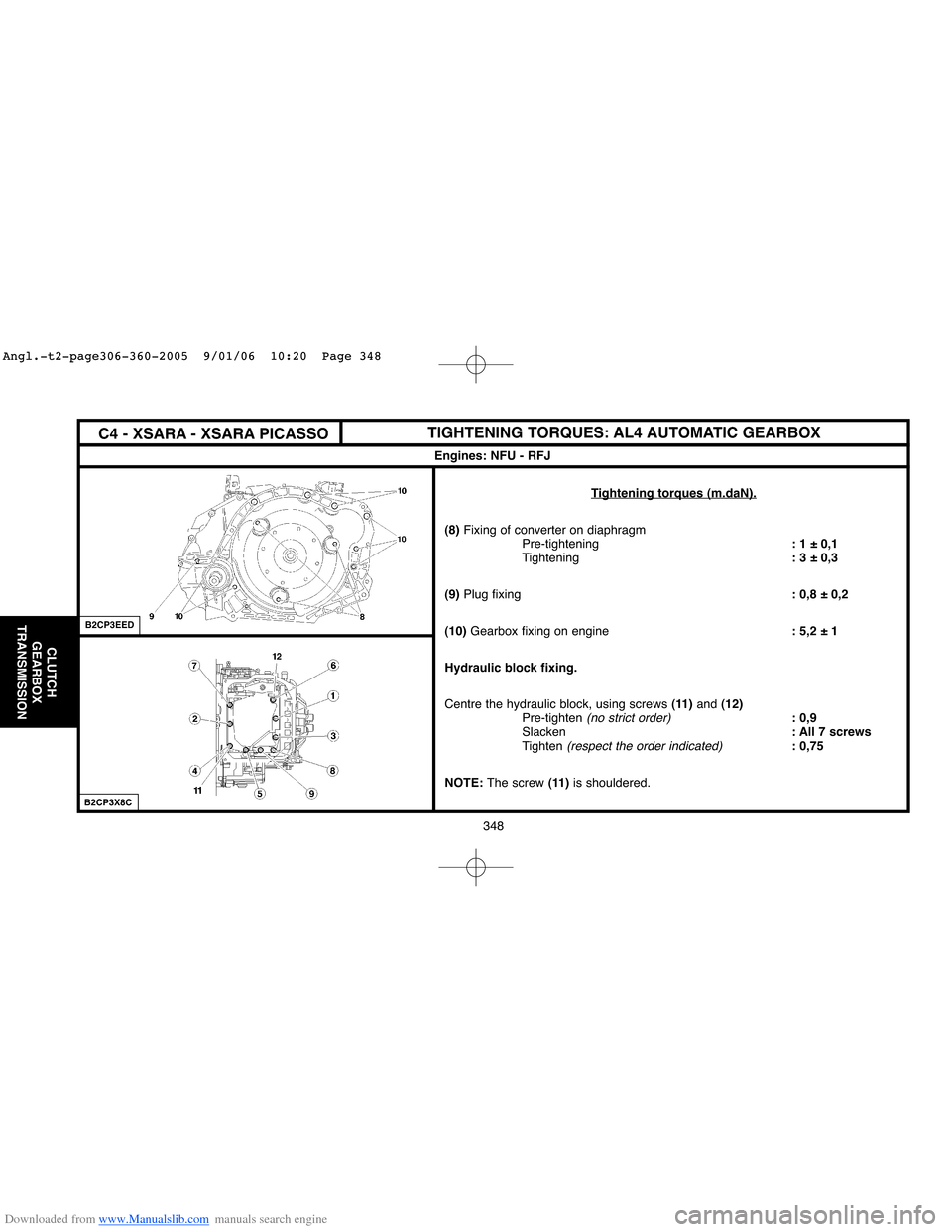

C4 - XSARA - XSARA PICASSOTIGHTENING TORQUES: AL4 AUTOMATIC GEARBOX
Engines: NFU - RFJ
B2CP3EED
B2CP3X8C
Tightening torques (m.daN).
(8) Fixing of converter on diaphragm
Pre-tightening: 1 ± 0,1
Tightening: 3 ± 0,3
(9)Plug fixing: 0,8 ± 0,2
(10)Gearbox fixing on engine: 5,2 ± 1
Hydraulic block fixing.
Centre the hydraulic block, using screws (11) and (12)
Pre-tighten
(no strict order): 0,9
Slacken: All 7 screws
Tighten
(respect the order indicated): 0,75
NOTE: The screw (11)is shouldered.
Angl.-t2-page306-360-2005 9/01/06 10:20 Page 348

Downloaded from www.Manualslib.com manuals search engine 349
CLUTCH
GEARBOX
TRANSMISSION
Engines: NFU - RFJ
B2CP3EGC
(13)Fixing of selector lever position switch: 1,5 ± 0,2
(14)Oil filler plug: 2,4 ± 0,4
TIGHTENING TORQUES: AL4 AUTOMATIC GEARBOXC4 - XSARA - XSARA PICASSO
Angl.-t2-page306-360-2005 9/01/06 10:20 Page 349

Downloaded from www.Manualslib.com manuals search engine 350
CLUTCH
GEARBOX
TRANSMISSION
AL4 GEARBOX CONTROLS
Engines: NFU - RFJ
B2CP3H8C
Gearbox end.
The automatic gearbox is controlled by a cable.
«c»Push-button
(1)Control lever with ball-joint
(2)Automatic adjustment
Pull out the button to adjust the control.
Push it in to lock the adjustment of the control.
(3)Sleeve stop
(4) Selection control locking clip (5)on the sleeve stop (3)
C4
Angl.-t2-page306-360-2005 9/01/06 10:20 Page 350

Downloaded from www.Manualslib.com manuals search engine 351
CLUTCH
GEARBOX
TRANSMISSION
RECOMMENDATIONS/PRECAUTIONS: AL4 AUTOMATIC GEARBOX (SHIFT LOCK)
Engines: NFU - RFJ
C5FP0NZC
C5FP0P0C
SHIFT LOCK.
The «shift lock»is a system that locks the gear selection lever in position «P».
Unlocking the «SHIFT LOCK»
(normal operation).Switch on the ignition.
Press the brake pedal and keep it pressed.
Move the gear selection lever out of position «P».
Unlocking the «SHIFT LOCK»
(with an operating fault).
NOTE:It is impossible to unlock the «shift lock»with the «Normal operation»
method.
The fault may originate from one of the following components:
- «Shift lock».
- Gear lever position switch.
- Automatic gearbox ECU.
- Electrical harnesses.
- Battery voltage.
Remove:
- The gear lever cover (1)
(pull upwards).
- Unlock the «shift lock»by pressing at “a”with the aid of a screwdriver.
- Move the gear selection lever out of position «P».
C4
Angl.-t2-page306-360-2005 9/01/06 10:20 Page 351

Downloaded from www.Manualslib.com manuals search engine 352
CLUTCH
GEARBOX
TRANSMISSION
AL4 GEARBOX CONTROLS
In passenger compartment.
The gear selector is guided by the shape of the stepped gate and by a retaining spring
which pulls it to the left hand side.
The gear selector control has 5 positions.
Position «P»: Park
(locking and immobilisation of the vehicle).
Position «R»: Reverse gear.
Position «N»: Neutral.
Position «D»: Drive
(use of the 4 gearsin their autoadaptive automatic function).
Position «M»: Manual (this position lets the driver select his own gears in sequential mode
by pulling the gear selector to «M-»or pushing it to «M+»).
NOTE:Only the positions «P»or «N»authorise the starting of the engine.
In position «M», selection is by an electronic sensor located close to the gear lever.
The variation of flux necessary to the movement of the sensor cells is obtained by a
magnet located on the lever itself. This enables the change of status.
Engines: KFV - RFN
XSARA PICASSO
B2CP3MUD
Angl.-t2-page306-360-2005 9/01/06 10:20 Page 352

Downloaded from www.Manualslib.com manuals search engine 353
CLUTCH
GEARBOX
TRANSMISSION
AL4 GEARBOX CONTROLS
Gearbox end.
The automatic gearbox is controlled by a cable.
«c»or «d»Push-button.
(1)Control lever with ball-joint
(2)Automatic adjustment
(pull out the button to adjust the control, push it in to lock the
adjustment of the control)
(3)Sleeve stop
(4)Selection control locking clip (5)on the sleeve stop (3)
Engines: KFV - RFN
C4 - XSARA - XSARA PICASSO
B2CP3N7C
Angl.-t2-page306-360-2005 9/01/06 10:20 Page 353

Downloaded from www.Manualslib.com manuals search engine 354
CLUTCH
GEARBOX
TRANSMISSION
AL4 GEARBOX CONTROLS
In passenger compartment.
The selector control has 6 positions.
The gear selector is guided by the shape of the stepped gate and by a retaining spring
which pulls it to the left hand side.
Push the lever to the right to exit from position «P».
NOTE: The vehicle is equipped with the «shift lock»: you have to switch on the ignition
and press the brake pedal to unlock the selector lever from position «P».
P:Park
(system locked).
R:Reverse gear.
N:Neutral.
D:Automatic
(1st to 4th gear).
3:Automatic (1st to 3rd gear).
2:Automatic (1st to 2nd gear).
A switch located to the left of the gear control allows the driver to choose from these
programmes:
- Normal: Conventional use of the automatic gearbox.
- Sport:This programme favours performance.
- Snow:In position «D», starting is in 2ndgear for diesel and in 3rdgear for petrol.
NOTE:Only the positions «P»or «N»authorise the starting of the engine.
Engines: NFU - RFN - RHZ
XSARA
B2CP3ADC
