Citroen BERLINGO 2017 2.G Owners Manual

89
Berlingo2VP_en_Chap04_Ergonomie_ed02-2016Berlingo2VP_en_Chap04_Ergonomie_ed02-2016

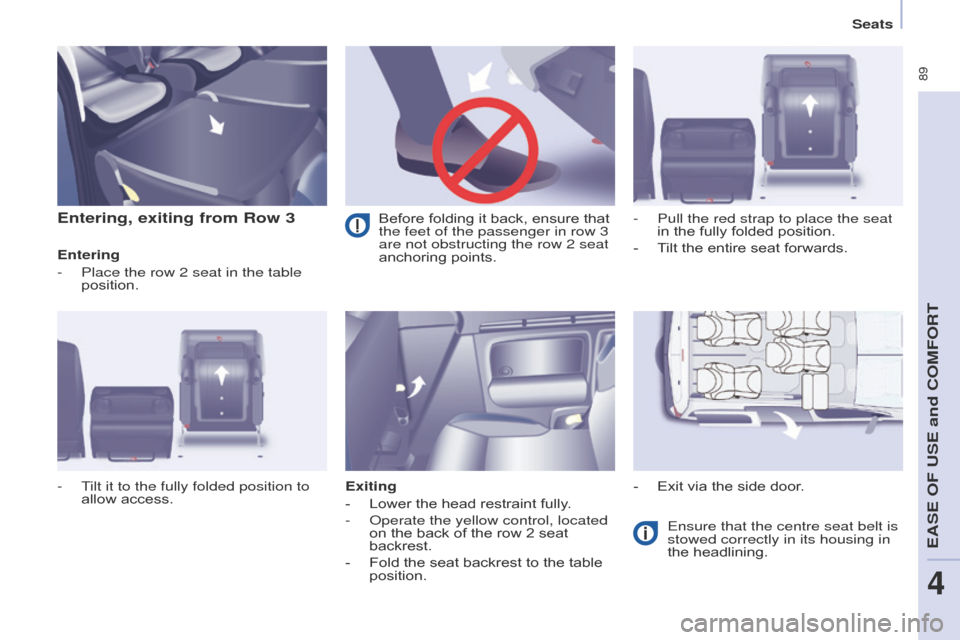

Entering, exiting from Row 3
Entering
-
Place the row 2 seat in the table
position.
Exiting
-


Lower
  the   head   restraint   fully.
-

Operate the yellow control, located
on

  the   back   of   the   row   2   seat
backrest.
-


Fold
  the   seat   backrest   to   the   table
position.Ensure that the centre seat belt is
stowed correctly in its housing in
the

  headlining.
-

T
ilt it to the fully folded position to
allow
  access. -

Pull the red strap to place the seat
in

  the   fully   folded   position.
-  T ilt   the   entire   seat   forwards.
-
Exit
  via   the   side   door.
Before
  folding   it   back,   ensure   that
the feet of the passenger in row 3
are not obstructing the row 2 seat
anchoring

  points.
EASE OF USE and COMFORT
4
Seats

90
Berlingo2VP_en_Chap04_Ergonomie_ed02-2016Berlingo2VP_en_Chap04_Ergonomie_ed02-2016

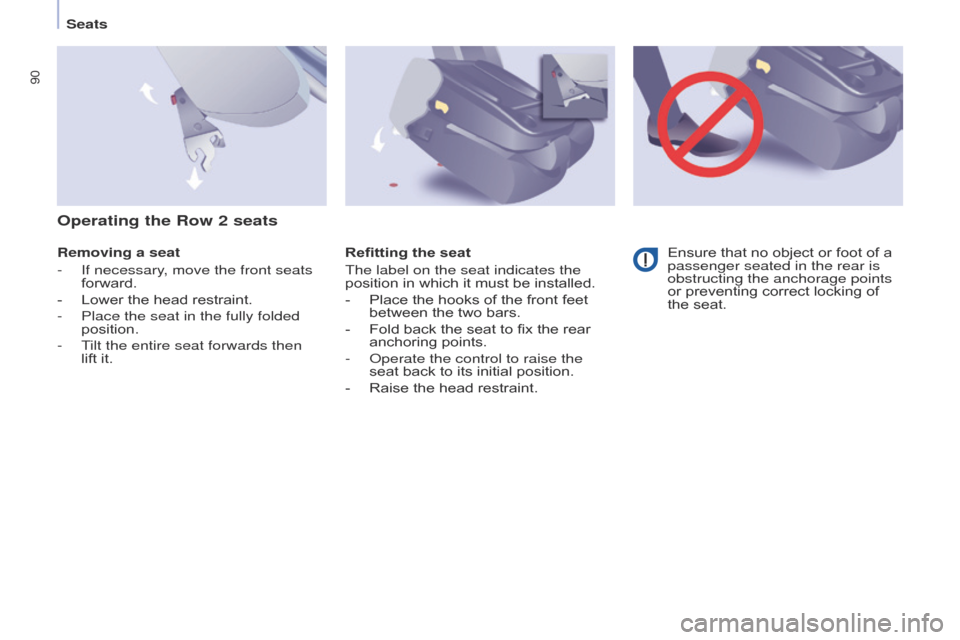

Removing a seat
-
If necessary
, move the front seats
forward.
-

Lower
  the   head   restraint.
-

Place the seat in the fully folded
position.
-


T
ilt the entire seat forwards then
lift it. Refitting the seat
The label on the seat indicates the
position
  in   which   it   must   be   installed.
-

Place
  the   hooks   of   the   front   feet
between

  the   two   bars.
-

Fold
  back   the   seat   to   fix   the   rear
anchoring

  points.
-

Operate the control to raise the
seat

  back   to   its   initial   position.
-

Raise
  the   head   restraint.Ensure
  that   no   object   or   foot   of   a  passenger seated in the rear is
obstructing the anchorage points
or
  preventing   correct   locking   of
the

  seat.
Operating the Row 2 seats
Seats

91
Berlingo2VP_en_Chap04_Ergonomie_ed02-2016Berlingo2VP_en_Chap04_Ergonomie_ed02-2016

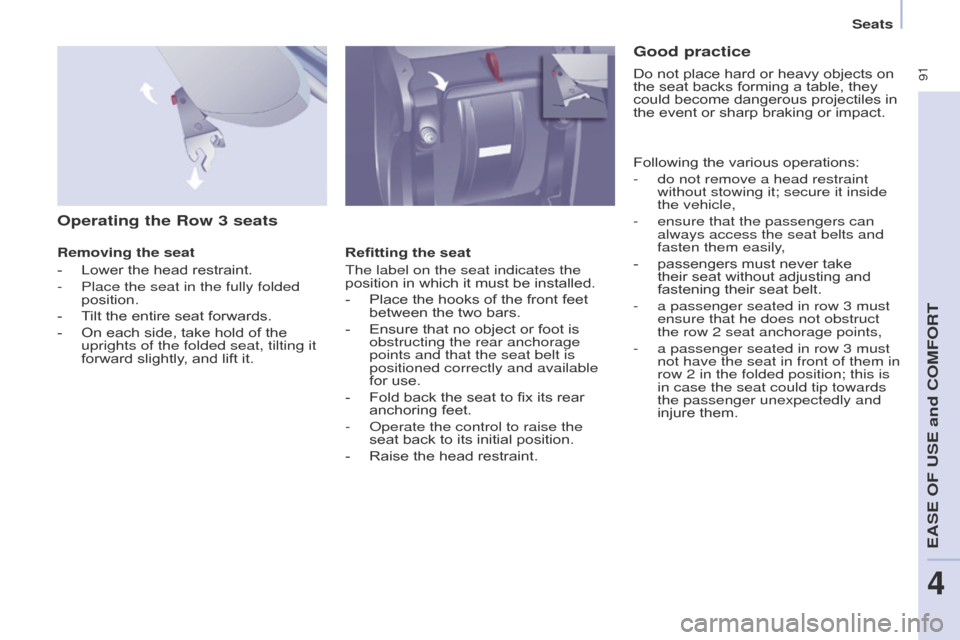

Operating the Row 3 seats
Removing the seat
-
Lower
  the   head   restraint.
-

Place the seat in the fully folded
position.
-


T
ilt   the   entire   seat   forwards.
-

On
  each   side,   take   hold   of   the
uprights of the folded seat, tilting it
forward

  slightly,   and   lift   it.Refitting the seat
The label on the seat indicates the
position
  in   which   it   must   be   installed.
-

Place
  the   hooks   of   the   front   feet
between

  the   two   bars.
-

Ensure
  that   no   object   or   foot   is
obstructing the rear anchorage
points and that the seat belt is
positioned correctly and available
for

  use.
-

Fold
  back   the   seat   to   fix   its   rear
anchoring

  feet.
-

Operate the control to raise the
seat

  back   to   its   initial   position.
-

Raise
  the   head   restraint.
Good practice
Following the various operations:
-
do not remove a head restraint
without stowing it; secure it inside
the vehicle,
-


ensure that the passengers can
always access the seat belts and
fasten them easily

,
-

passengers
  must   never   take
their

  seat   without   adjusting   and
fastening

  their   seat   belt.
-

a passenger seated in row 3 must
ensure that he does not obstruct
the row 2 seat anchorage points,
-


a passenger seated in row 3 must
not have the seat in front of them in
row 2 in the folded position; this is
in case the seat could tip towards
the passenger unexpectedly and
injure

  them.
Do
  not   place   hard   or   heavy   objects   on
the

  seat   backs   forming   a   table,   they
could

  become   dangerous   projectiles   in
the

  event   or   sharp   braking   or   impact.
EASE OF USE and COMFORT
4
Seats

92
Berlingo2VP_en_Chap04_Ergonomie_ed02-2016Berlingo2VP_en_Chap04_Ergonomie_ed02-2016
MODULARITY AND DIFFERENT SEAT CONFIGURATIONS
5 seat layouts
Seats

93
Berlingo2VP_en_Chap04_Ergonomie_ed02-2016Berlingo2VP_en_Chap04_Ergonomie_ed02-2016
7 seat layouts
The various operations
must be carried out while
stationary.
EASE OF USE and COMFORT
4
Seats

94
Berlingo2VP_en_Chap04_Ergonomie_ed02-2016Berlingo2VP_en_Chap04_Ergonomie_ed02-2016
FRONT FITTINGS
1. Lower glove box
This may or may not be fitted with a lid.
Upper storage compartment
This is located on the dashboard,
behind  the   steering   wheel.
A


recess   makes   lifting   of   the   lid   easier
when

  opening.   Guide   it   to   its   rest
position.
T

o close, guide the lid then press the
centre
  gently.
Any
  liquid   which   could   spill   risks
causing an electrical short circuit and
therefore

  a   potential   fire.
3. Side storage compartment
4. Bag hook
Only hang flexible bags which are not too  heavy   on   this   hook.
2. Storage pocket and bottle
holder (1.5 L)
Practical information

95
Berlingo2VP_en_Chap04_Ergonomie_ed02-2016Berlingo2VP_en_Chap04_Ergonomie_ed02-2016

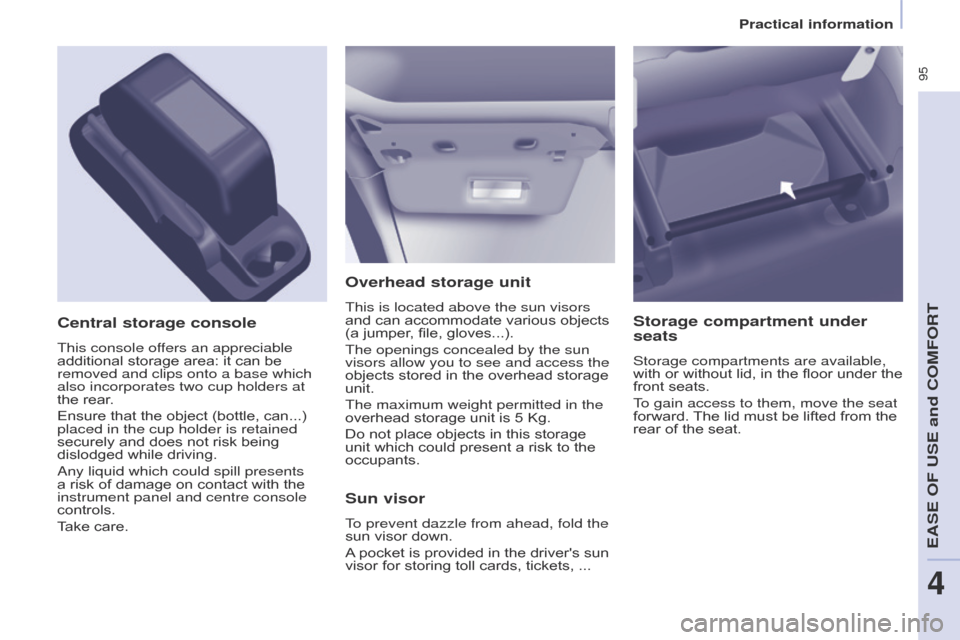

Overhead storage unit
This is located above the sun visors
and  can   accommodate   various   objects
(a

  jumper,   file,   gloves...).
The openings concealed by the sun
visors allow you to see and access the
objects
  stored   in   the   overhead   storage
unit.
The maximum weight permitted in the
overhead

  storage   unit   is   5   Kg.
Do
  not   place   objects   in   this   storage
unit

  which   could   present   a   risk   to   the
occupants.
Central storage console
This console offers an appreciable
additional  storage   area:   it   can   be
removed and clips onto a base which
also incorporates two cup holders at
the

  rear.
Ensure
  that   the   object   (bottle,   can...)
placed in the cup holder is retained
securely

  and   does   not   risk   being
dislodged

  while   driving.
Any liquid which could spill presents
a
  risk   of   damage   on   contact   with   the
instrument panel and centre console
controls.
T

ake   care.
Sun visor
To prevent dazzle from ahead, fold the
sun  visor   down.
A


pocket   is   provided   in   the   driver's   sun
visor

  for   storing   toll   cards,   tickets,   ...
Storage compartment under
seats
Storage compartments are available,
with  or   without   lid,   in   the   floor   under   the
front

  seats.
To gain access to them, move the seat
forward.

The
  lid   must   be   lifted   from   the
rear

  of   the   seat.
EASE OF USE and COMFORT
4
Practical information

96
Berlingo2VP_en_Chap04_Ergonomie_ed02-2016Berlingo2VP_en_Chap04_Ergonomie_ed02-2016

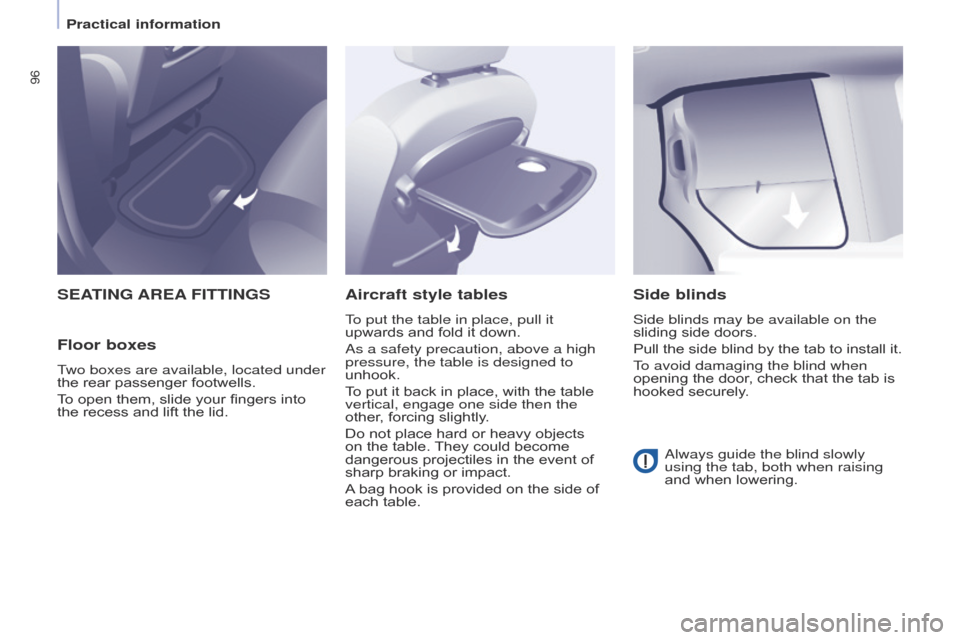

SEATING AREA FITTINGS
Floor boxes
Two boxes are available, located under
the  rear   passenger   footwells.
To
  open   them,   slide   your   fingers   into
the

  recess   and   lift   the   lid.
Aircraft style tables
To put the table in place, pull it
upwards  and   fold   it   down.
As a safety precaution, above a high
pressure, the table is designed to
unhook.
To
  put   it   back   in   place,   with   the   table
vertical, engage one side then the
other

,   forcing   slightly.
Do
  not   place   hard   or   heavy   objects
on

  the   table.
They
  could   become
dangerous

  projectiles   in   the   event   of
sharp

  braking   or   impact.
A


bag   hook   is   provided   on   the   side   of
each

  table.
Side blinds
Side blinds may be available on the
sliding   side   doors.
Pull the side blind by the tab to install it.
To avoid damaging the blind when
opening  the   door,   check   that   the   tab   is
hooked

  securely.
Always guide the blind slowly
using the tab, both when raising
and
  when   lowering.
Practical information

 97
Berlingo2VP_en_Chap04_Ergonomie_ed02-2016Berlingo2VP_en_Chap04_Ergonomie_ed02-2016
MODUTOP ROOF
The multifunction roof extends the
overhead
  storage   unit.   It   consists   of
the

  following   components:
Storage compartments
Storage compartments are provided
on  each   side   of   the   roof.  The   maximum
authorised

  load   is   6   kg.
The translucent base assists with
finding
  objects   stored   inside.
Do
  not   store   objects   which   could
present

  a   risk   to   the   occupants.
Courtesy lamp
The operation of the courtesy lamp is
identical  to   that   of   the   front   courtesy   lamp.
Refer to chapter 4 "Practical
information", "Courtesy lamps"
section.
EASE OF USE and COMFORT
4
Practical information

98
Berlingo2VP_en_Chap04_Ergonomie_ed02-2016Berlingo2VP_en_Chap04_Ergonomie_ed02-2016

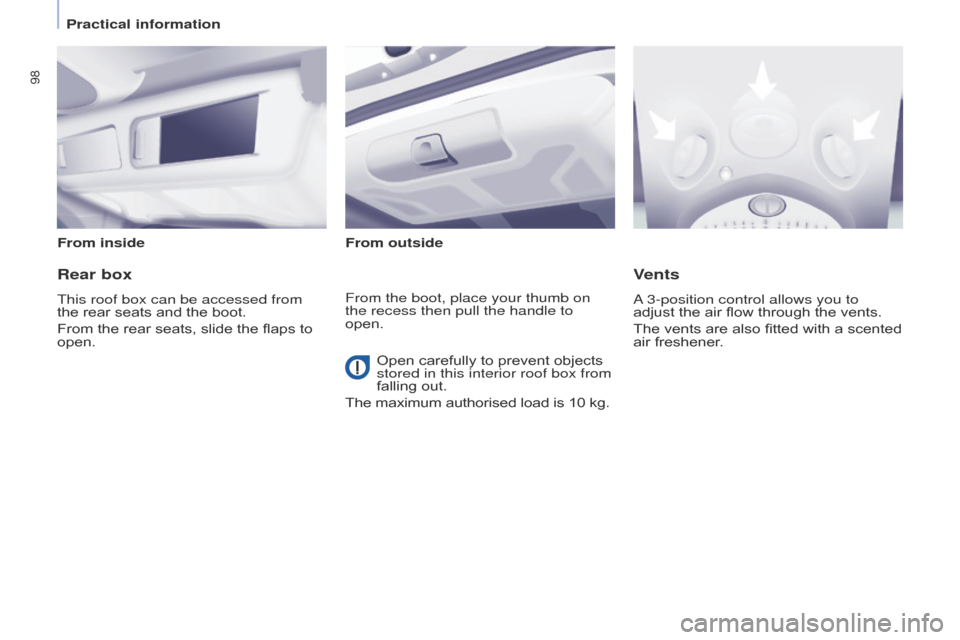

From insideFrom outside
Rear box
This roof box can be accessed from
the
  rear   seats   and   the   boot.
From
  the   rear   seats,   slide   the   flaps   to
open.
Vents
A 3-position control allows you to
adjust  the   air   flow   through   the   vents.
The
  vents   are   also   fitted   with   a   scented
air

  freshener.
From the boot, place your thumb on
the recess then pull the handle to
open.
Open

carefully

to

prevent

objects

stored in this interior roof box from
fallin

g

out.
The

maximum

authorised

load

is

10

kg.
