LED DAYTIME RUNNING LAMPS
Rear foglamps (amber,
2nd rotation of the ring
forwards).
Front foglamps (green,
1st
rotation of the ring
forwards). Rotate this ring forwards
to switch on and
rearwards   to   switch   off.
Their   state   is   confirmed   by
the warning lamps in the
instrument

  panel. Do not forget to switch them off
when   they   are   no   longer   needed.
Operation of the automatic illumination
of headlamps switches off the rear
foglamps, but the front foglamps
remain   on.
To switch off the front and
rear foglamps, turn the
ring rearwards twice in
succession.
Automatic illumination of headlamps
In foggy weather or in snow,
the sunshine sensor may detect
sufficient   light.
As a consequence, the lighting
will
  not   come   on   automatically.   If
necessary

, you must switch on
the dipped
  beam   headlamps   manually.
Do not cover the sunshine sensor
located on the windscreen, behind
the

mirror.   It   is   used   for   the   automatic
illu

mination of headlamps and for the
automatic
  rain   sensitive   wipers.
Activation The sidelamps
and dipped beam
headlamps switch
on automatically if
the light is poor, or
during operation of the windscreen
wipers.
They
  switch   off   as   soon   as   the
light becomes bright enough or the
windscreen

  wipers   stop.
On starting the vehicle, in daylight the
LED daytime running lamps come on
automatically.
If the sidelamps and headlamps are
switched on manually or automatically,
the

daytime

running

lamps

go

off.
Programming
For countries where exterior lighting by
day is not a legal requirement, you can
activate or deactivate the function via
the   configuration   menu.
If the user does not operate any
equipment for 30 minutes, the
Economy mode engages to avoid
discharging

the

battery.

Electrical

functions are put on standby and the
battery


warning

lamp

flashes.
Sidelamp operation is not affected by
Economy

mode.
In clear weather or in rain, both day
and night, rear foglamps dazzle and
their  use   is   prohibited.
Refer to chapter 8, "Battery
section".
Front and rear foglamps
They operate with the sidelamps and
dipped

beam

headlamps.
Turn the ring to the AUTO  position.  The activation of this function is
accompanied by a message in the
screen.
Deactivation
T
urn   the   ring   forwards   or   rearwards.
The deactivation of this function is
accompanied by a message in the
screen. This function is not compatible with
daytime
  running   lamps.
Steering mounted controls
EASE OF USE and COMFORT
4

60
Berlingo2VP_en_Chap04_Ergonomie_ed02-2016
If the sunshine sensor
does not function correctly,
the lighting comes on
accompanied by the service
warning lamp, an audible
signal

and   a   message   in   the   screen.
Contact a CITROËN dealer or a
qualified
  workshop.
Guide-me-home lighting
Keeping the dipped beam headlamps
on temporarily with the ignition off,
makes   the   driver's   exit   easier   when   the
light

  is   poor.
HEADLAMP BEAM
The beam setting must be adjusted to suit
  the   load   in   the   vehicle.
0 -
  No   load.
1 -
  Partial   load.
2 -

A
verage   load.
3 -
  Maximum   authorised   load.
Manual operation
-

With


the

ignition

off,

"flash"

the

headlamps within one minute after
switching


off

the

ignition.
The guide-me-home lighting switches
off

automatically

after

a

set

time.
Automatic operation
Refer to chapter 10, "Screen
menu

map"

section. Initial setting is position 0.
Activate the function via the
vehicle

configuration

menu. Programming
The system is activated or deactivated
in

the

vehicle

configuration

menu.
The

system

is

activated

by

default.
Switching off
The

system

does

not

operate:
-

below a certain angle of rotation of
the steering wheel,
-


above


25

mph

(40

km/h),
-

when


reverse

gear

is

engaged.
Switching on
This

function

starts:
-

when the corresponding direction
indicator is switched on,
or
-


from a certain angle of rotation of
the


steering

wheel.
With dipped or main beam headlamps,
this

function

makes

use

of

the

beam

from a front foglamp to illu

minate the
inside of a bend, when the vehicle
speed is below 25 mph (approximately
40

km/h)

(urban

driving,

winding

road,

intersections,


parking

manoeuvres...).
CORNERING LIGHTING
Travelling abroad
If using your vehicle in a country
that drives on the other side of the
road,
  the   headlamps   must   be   adjusted
to


avoid   dazzling   on-coming   drivers.
Contact a CITROËN dealer or a
qualified
  workshop.
The function is deactivated temporarily
when you use the manual lighting
control

stalk.
Steering mounted controls

61
Berlingo2VP_en_Chap04_Ergonomie_ed02-2016
2 Fast  wipe   (heavy   rain).
1
Normal
  wipe   (moderate   rain).
l

Intermittent
  wipe.
0

Of
f.
â

Single wipe
 (press

  downwards).
In the Intermittent position, the wiping
speed is in proportion to the vehicle
speed.
WIPERS
Manual wipingWhenever the ignition has been
switched off for more than one minute,
with
  the   windscreen   wiper   stalk   in
position

  2,   1   or   I,   the   stalk   must   be
reactivated.
-


Move
  the   stalk   to   any   position.
-

Return
  it   to   the   desired   position.
Do not cover the rain sensor,
located in the centre of the
windscreen,
  behind   the   mirror.Activation
Press
  the   control   downwards.
Activation of the function is
accompanied by a message in the
screen.
Deactivation
Place

  the   windscreen   wipers   stalk   in
position

I, 1 or 2.
Deactivation of the function is
accompanied by a message in the
screen.
In the event of malfunction of the
automatic windscreen wipers, the
windscreen wipers will operate in
intermittent
  mode.
Contact a CITROËN dealer or a
qualified
  workshop   to   have   the   system
checked. In the
AUTO position, the windscreen
wipers operate automatically and
adapt their speed to the intensity of the
rainfall.
When not in AUTO mode, for the
other positions, refer to the manual
windscreen   wipers   section.
The automatic rain sensitive
windscreen wipers function must
be   reactivated   by   pressing   the   stalk
downwards, if the ignition has been
switched

  off   for   more   than   one   minute.
When using an automatic car
wash, switch off the ignition to
avoid triggering the automatic
wiping.
In winter, it is advisable to wait for the
windscreen to completely clear of ice
before
  operating   the   automatic   wipers.
Automatic wipers
Steering mounted controls
EASE OF USE and COMFORT
4

62
Berlingo2VP_en_Chap04_Ergonomie_ed02-2016

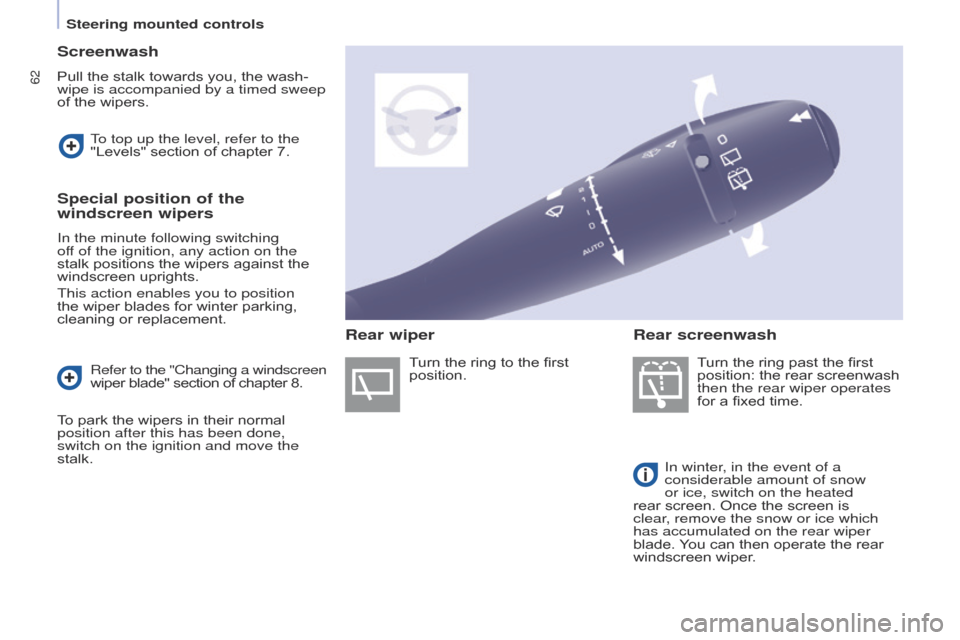

Screenwash
Pull the stalk towards you, the wash-
wipe is accompanied by a timed sweep
of
  the   wipers.
Turn
  the   ring   past   the   first
position:

  the   rear   screenwash
then the rear wiper operates
for

  a   fixed   time.
In winter, in the event of a
considerable amount of snow
or ice, switch on the heated
rear
  screen.   Once   the   screen   is
clear

, remove the snow or ice which
has accumulated on the rear wiper
blade.

Y
ou   can   then   operate   the   rear
windscreen

  wiper.
To top up the level, refer to the
"Levels"
  section   of   chapter   7.
Special position of the
windscreen wipers
In the minute following switching
off of the ignition, any action on the
stalk  positions   the   wipers   against   the
windscreen

  uprights.
This action enables you to position
the
  wiper   blades   for   winter   parking,
cleaning

  or   replacement.
Refer to the "Changing a windscreen
wiper
  blade"   section   of   chapter   8.
To
  park   the   wipers   in   their   normal
position after this has been done,
switch on the ignition and move the
stalk. T

urn   the   ring   to   the   first
position.
Rear wiperRear screenwash
Steering mounted controls

63
Berlingo2VP_en_Chap04_Ergonomie_ed02-2016

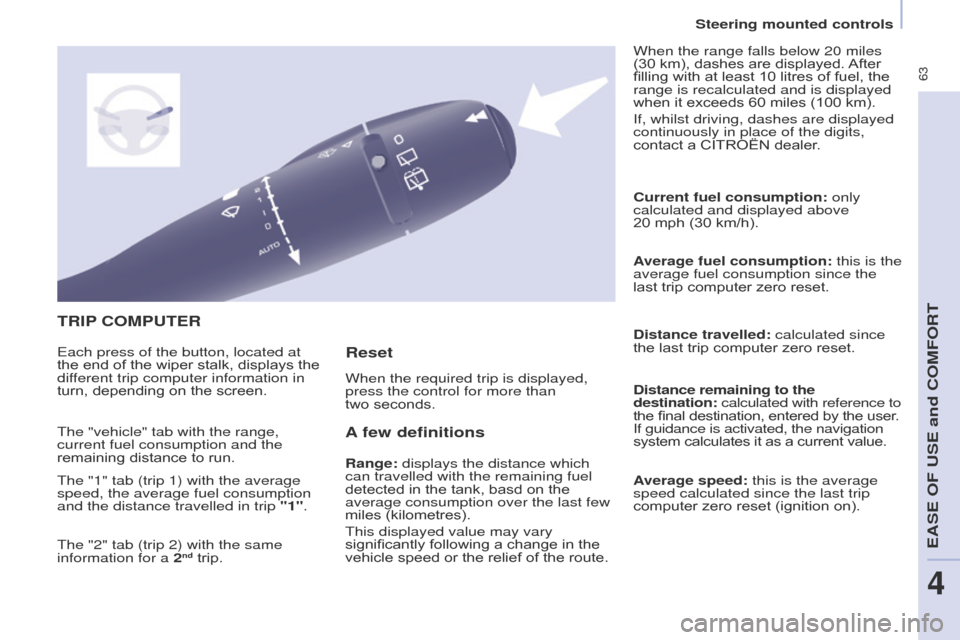

TRIP COMPUTER
A

few definitions
Range: displays the distance which
can travelled with the remaining fuel
detected  in   the   tank,   basd   on   the
average consumption over the last few
miles

  (kilometres).
This displayed value may vary
significantly
  following   a   change   in   the
vehicle

  speed   or   the   relief   of   the   route.Current fuel consumption:
only
calculated and displayed above
20   mph   (30   km/h).
Average fuel consumption: this is the
average fuel consumption since the
last   trip   computer   zero   reset.
Distance travelled: calculated since
the   last   trip   computer   zero   reset.
Distance remaining to the
destination: calculated with reference to
the   final   destination,   entered   by   the   user.
 If guidance is activated, the navigation


system   calculates   it   as   a   current   value.
Average speed: this is the average
speed calculated since the last trip
computer
  zero   reset   (ignition   on).
Each press of the button, located at
the

end

of

the

wiper

stalk,

displays

the

dif

ferent trip computer information in
turn,

depending

on

the

screen.
When the required trip is displayed,
press the control for more than
two seconds. When the range falls below 20 miles
(30   km),   dashes   are   displayed.
After

fillin

g   with   at   least   10   litres   of   fuel,   the
range is recalculated and is displayed
when

  it   exceeds   60   miles   (100   km).
If, whilst driving, dashes are displayed
continuously in place of the digits,
contact   a   CITROËN   dealer.
The "vehicle" tab with the range,
current fuel consumption and the
remaining

distance

to

run.
The "1" tab (trip 1) with the average
speed, the average fuel consumption
and the distance travelled in trip "1".
The "2" tab (trip 2) with the same
information for a 2
nd trip.
Reset
Steering mounted controls
EASE OF USE and COMFORT
4

64
Berlingo2VP_en_Chap04_Ergonomie_ed02-2016

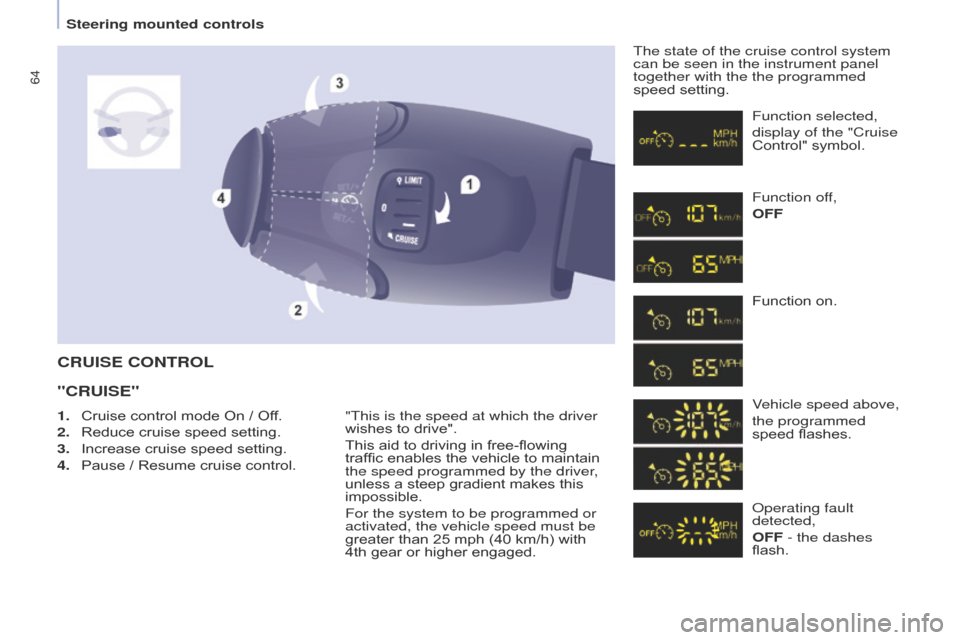

CRUISE CONTROL
"CRUISE"
"This is the speed at which the driver
wishes  to   drive".
This
  aid   to   driving   in   free-flowing
traffic

  enables   the   vehicle   to   maintain
the speed programmed by the driver

,
unless
  a   steep   gradient   makes   this
impossible.
For the system to be programmed or
activated, the vehicle speed must be
greater

  than   25   mph   (40   km/h)   with
4th gear

  or   higher   engaged. The state of the cruise control system
can be seen in the instrument panel
together with the the programmed
speed
  setting.
Function selected,
display of the "Cruise
Control"   symbol.
Function off,
OFF
Function   on.
Vehicle speed above,
the programmed
speed   flashes.
Operating fault
detected,
OFF - the dashes
flash.
1.
 Cruise

control

mode

On

/

Off.
2.

Reduce


cruise

speed

setting.
3.

Increase


cruise

speed

setting.
4.

Pause


/

Resume

cruise

control.
Steering mounted controls

65
Berlingo2VP_en_Chap04_Ergonomie_ed02-2016

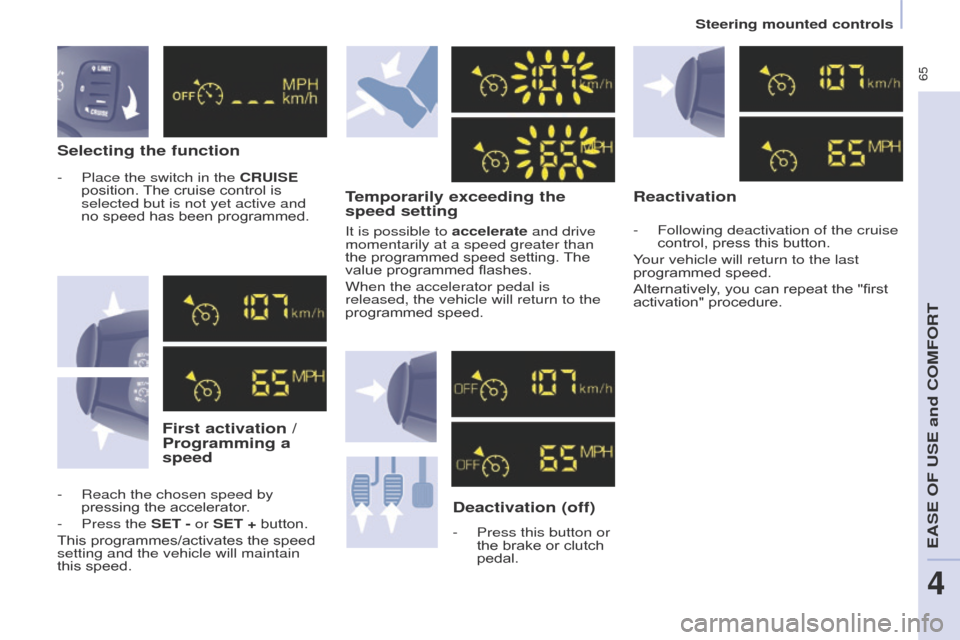

Selecting the functionFirst activation /
Programming a
speed Temporarily exceeding the
speed setting
Deactivation (off)
- Press this button or
the  brake   or   clutch
pedal.
Reactivation
- Following deactivation of the cruise
control,  press   this   button.
Your vehicle will return to the last
programmed
  speed.
Alternatively,
  you   can   repeat   the   "first
activation"

  procedure.
It is possible to accelerate and drive
momentarily at a speed greater than
the

programmed

speed

setting.

The


value


programmed

flashes.
When the accelerator pedal is
released, the vehicle will return to the
programmed

speed.
-

Reach the chosen speed by
pressing


the

accelerator.
-

Press the

SET - or SET +

button.
This

programmes/activates

the

speed

setting and the vehicle will maintain
this


speed.
-

Place the switch in the

CRUISE
position.

The


cruise

control

is

selected but is not yet active and
no


speed

has

been

programmed.
Steering mounted controls
EASE OF USE and COMFORT
4

66
Berlingo2VP_en_Chap04_Ergonomie_ed02-2016
Changing the
programmed speedSwitching the system off
Operating fault Cancelling the programmed
speed setting
When the vehicle becomes stationary,
after switching off the ignition, the
system
  no   longer   memorises   a   speed.
There are two methods of memorising
a speed higher

than

the

previous

one:
-
Place the dial in position
0 or switch
off the ignition to switch everything
off.

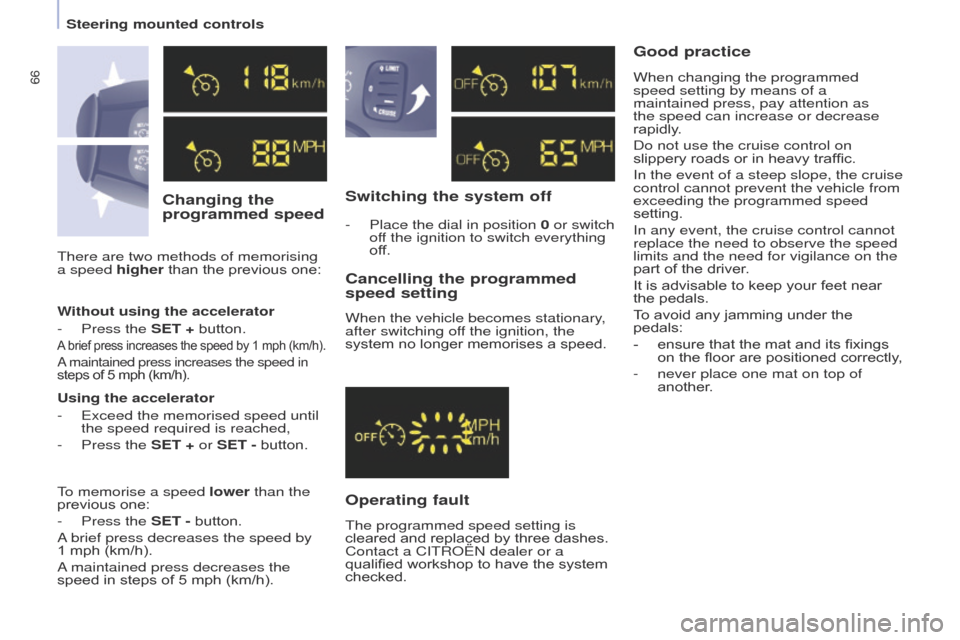

Good practice
Without using the accelerator
-

Press the
SET +   button.
A brief   press   increases   the   speed   by   1   mph   (km/h).
A maintained press increases the speed in
steps
  of   5   mph   (km/h).
Using the accelerator
-

Exceed the memorised speed until
the speed required is reached,
-


Press the
SET + or SET -   button.
To memorise a speed lower than the
previous
  one:
-

Press the
SET -   button.
A brief press decreases the speed by
1
  mph   (km/h).
A maintained press decreases the
speed
  in   steps   of   5   mph   (km/h).The programmed speed setting is
cleared
  and   replaced   by   three   dashes.
Contact a CITROËN dealer or a
qualified

  workshop   to   have   the   system
checked.When changing the programmed
speed setting by means of a
maintained press, pay attention as
the speed can increase or decrease
rapidly

.
Do not use the cruise control on
slippery   roads   or   in   heavy   traffic.
In the event of a steep slope, the cruise
control cannot prevent the vehicle from
exceeding the programmed speed
setting.
In any event, the cruise control cannot
replace the need to observe the speed
limits and the need for vigilance on the
part   of   the   driver.
It   is   advisable   to   keep   your   feet   near
the

  pedals.
To   avoid   any   jamming   under   the
pedals:
-


ensure
  that   the   mat   and   its   fixings
on

  the   floor   are   positioned   correctly,
-
never place one mat on top of
another

.
Steering mounted controls

 67
Berlingo2VP_en_Chap04_Ergonomie_ed02-2016
The speed of the vehicle responds to
the pressure of the driver's foot, up
to the the accelerator pedal's point of
resistance, which indicates that the
programmed  speed   has   been   reached.
However, pressing the pedal beyond
this
  point   of   resistance   to   the   floor
allows the programmed speed to be
exceeded.


T
o   resume   use   of   the   limiter,
simply reduce the pressure on the
accelerator pedal gradually and return
to

  a   speed   below   that   programmed.
Adjustments can be carried out
when stationary, with the engine

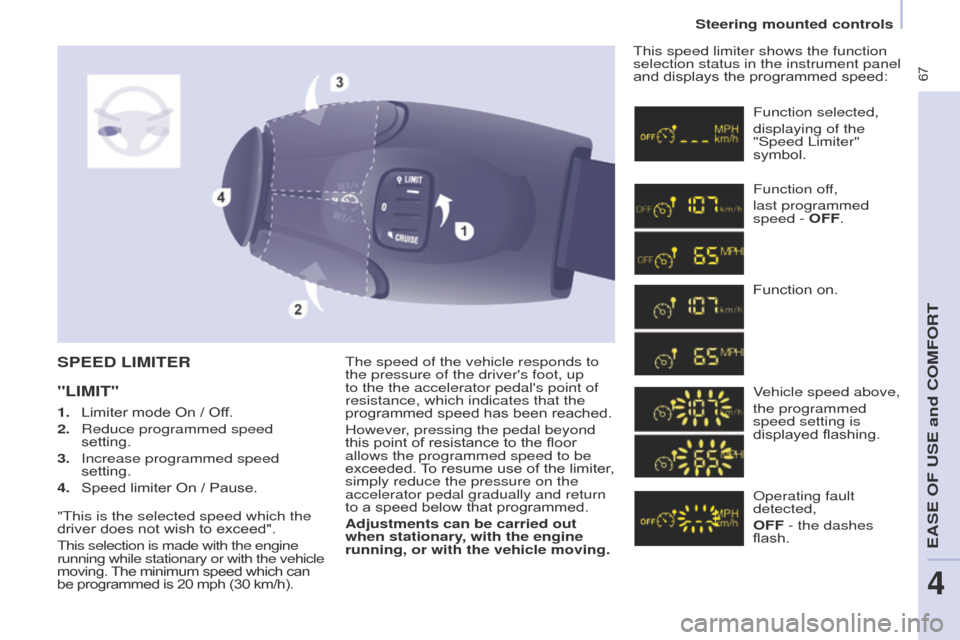

running, or with the vehicle moving. This speed limiter shows the function
selection status in the instrument panel
and
  displays   the   programmed   speed:SPEED LIMITER
"LIMIT"
Function selected,
displaying of the
"Speed Limiter"
symbol.
Function off,
last programmed
speed - OFF.
Function
  on.
Vehicle speed above,
the programmed
speed setting is
displayed
  flashing.
Operating fault
detected,
OFF - the dashes
flash.
1.

Limiter


mode

On

/

Off.
2.

Reduce programmed speed
setting.
3.


Increase programmed speed
setting.
4.


Speed


limiter

On

/

Pause.
"This is the selected speed which the
driver

does

not

wish

to

exceed".
This selection is made with the engine
running while stationary or with the vehicle
moving.

The


minimum

speed

which

can
 be


programmed

is

20

mph

(30

km/h).
Steering mounted controls
EASE OF USE and COMFORT
4

68
Berlingo2VP_en_Chap04_Ergonomie_ed02-2016

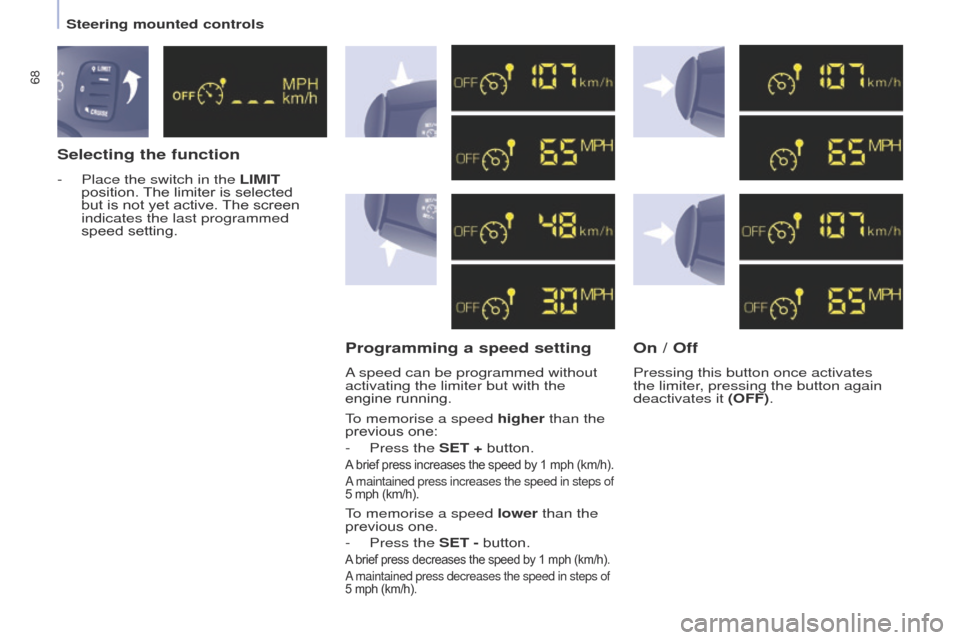

Selecting the functionProgramming a speed setting On / Off
- Place the switch in the LIMIT
position.  The   limiter   is   selected
but

  is   not   yet   active.
The
  screen
indicates the last programmed
speed

  setting.
A speed can be programmed without
activating the limiter but with the
engine
  running.
To memorise a speed higher than the
previous
  one:
-

Press the
SET +   button.
A brief   press   increases   the   speed   by   1 mph   (km/h).
A maintained press increases the speed in steps of
5
  mph   (km/h).
To memorise a speed lower than the
previous   one.
-

Press the
SET -   button.
A brief   press   decreases   the   speed   by   1   mph   (km/h).
A maintained press decreases the speed in steps of
5
  mph   (km/h).
Pressing this button once activates
the limiter, pressing the button again
deactivates it (OFF).
Steering mounted controls
