Citroen BERLINGO 2017 2.G Manual PDF

69
Berlingo2VP_en_Chap04_Ergonomie_ed02-2016

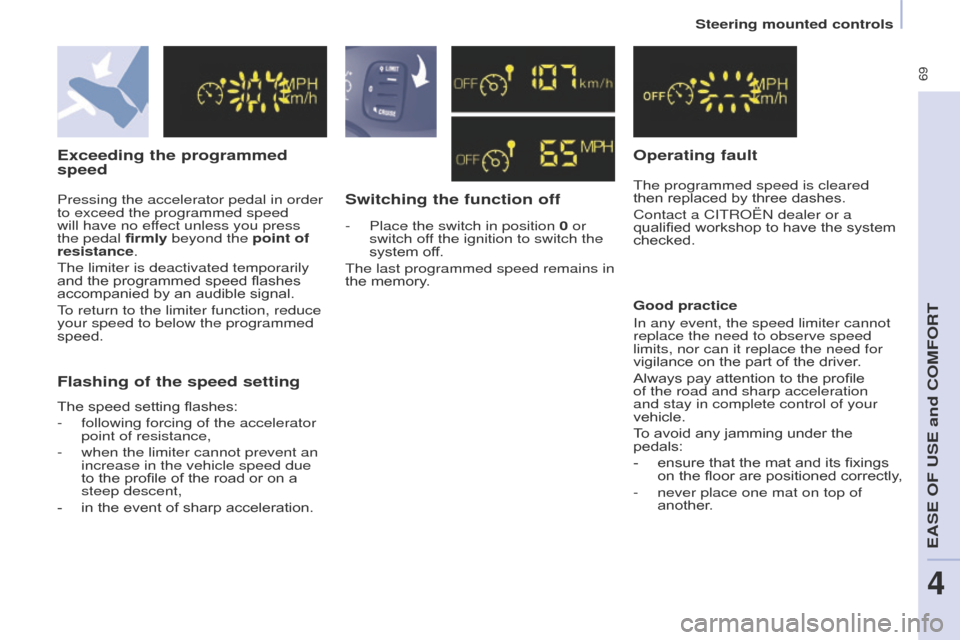

Exceeding the programmed
speedSwitching the function offOperating fault
The programmed speed is cleared
then
  replaced   by   three   dashes.
Contact a CITROËN dealer or a
qualified
  workshop   to   have   the   system
checked.
Flashing of the speed setting
Good practice
In any event, the speed limiter cannot
replace the need to observe speed
limits, nor can it replace the need for
vigilance
  on   the   part   of   the   driver.
Always
  pay   attention   to   the   profile
of the road and sharp acceleration
and stay in complete control of your
vehicle.
T

o   avoid   any   jamming   under   the
pedals:
-


ensure
  that   the   mat   and   its   fixings
on

  the   floor   are   positioned   correctly,
-

never place one mat on top of
another

.
Pressing the accelerator pedal in order
to exceed the programmed speed
will have no effect unless you press
the pedal firmly beyond the point of
resistance.
The limiter is deactivated temporarily
and

the

programmed

speed

flashes
 accompanied

by

an

audible

signal.
To return to the limiter function, reduce
your speed to below the programmed
speed.
The

speed

setting

flashes:
-

following forcing of the accelerator
point of resistance,
-


when the limiter cannot prevent an
increase in the vehicle speed due
to


the

profile

of

the

road

or

on

a

steep descent,
-


in


the

event

of

sharp

acceleration. -

Place the switch in position

0 or
switch off the ignition to switch the
system

off.
The last programmed speed remains in
the

memory.
Steering mounted controls
EASE OF USE and COMFORT
4

70
Berlingo2VP_en_Chap04_Ergonomie_ed02-2016Berlingo2VP_en_Chap04_Ergonomie_ed02-2016

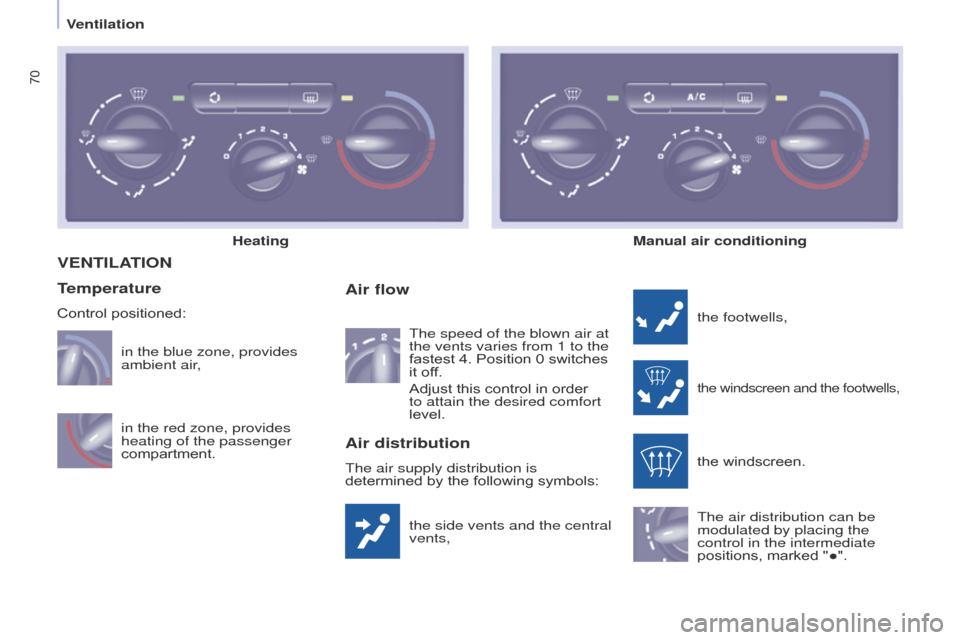

VENTILATION
the side vents and the central
vents,
Air flow
the footwells,
the windscreen and the footwells,
the windscreen.
The air distribution can be
modulated by placing the
control in the intermediate
positions,
  marked   "●".
Air distribution
The air supply distribution is
determined  by   the   following   symbols:
in the red zone, provides
heating of the passenger
compartment. in the blue zone, provides
ambient air,
The speed of the blown air at
the vents varies from 1 to the
fastest  4.   Position   0   switches
it

  off.
Adjust   this   control   in   order
to attain the desired comfort
level.
Heating
Manual air conditioning
Temperature
Control positioned:
Ventilation

 71
Berlingo2VP_en_Chap04_Ergonomie_ed02-2016Berlingo2VP_en_Chap04_Ergonomie_ed02-2016

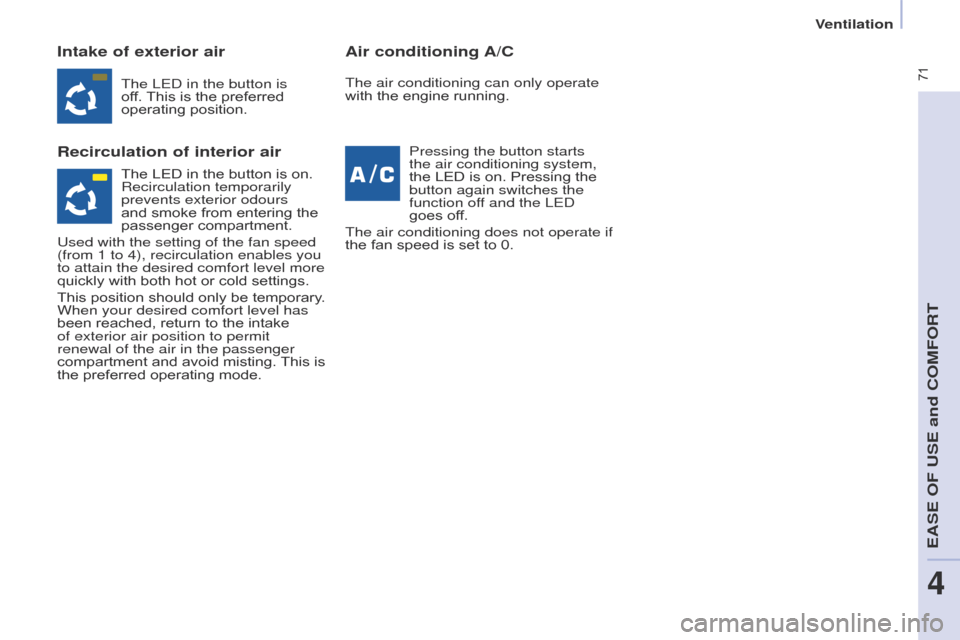

Intake of exterior air
Recirculation of interior airAir conditioning A/C
The LED in the button is
off.
 This   is   the   preferred
operating

  position.
Pressing the button starts
the air conditioning system,
the
  LED   is   on.   Pressing   the
button again switches the
function of

f and the LED
goes off.
The air conditioning does not operate if
the
  fan   speed   is   set   to   0.
The air conditioning can only operate
with
  the   engine   running.
The
  LED   in   the   button   is   on.
Recirculation temporarily
prevents exterior odours
and

  smoke   from   entering   the
passenger

  compartment.
Used with the setting of the fan speed
(from 1 to 4), recirculation enables you
to attain the desired comfort level more
quickly

with   both   hot   or   cold   settings.
This

position   should   only   be   temporary.
When your desired comfort level has
been


reached,   return   to   the   intake
of exterior air position to permit
renewal of the air in the passenger
compartment

  and   avoid   misting.
This
  is
the


preferred   operating   mode.
EASE OF USE and COMFORT
4
Ventilation

72
Berlingo2VP_en_Chap04_Ergonomie_ed02-2016Berlingo2VP_en_Chap04_Ergonomie_ed02-2016
Good practice
For maximum cooling or heating of the
passenger compartment, it is possible
to exceed the value 15 by turning until
LO  is   displayed   or   the   value   27   by
turning

  until   HI   is   displayed.
On entering the vehicle, the inside
temperature may be much colder
(or
  warmer)   than   is   comfortable.
There

is no advantage in changing the value
displayed

  in   order   to   quickly   reach   the
level

  of   comfort   required.
The
  system
will use its maximum performance to
reach

  the   comfort   value   set.
DIGITAL AIR CONDITIONING
Automatic operation
AUTO comfort programme
This is the normal air conditioning
system
  operating   mode. Driver or passenger side comfort
value
The value indicated in the screen
corresponds to a level of comfort and
not a temperature in degrees Celsius
or
  Fahrenheit.
Turn this control to the left
or to the right to decrease or
increase   the   value.
A
setting
around the value 21 provides
optimum

  comfort.   However,
depending on your requirements, a
setting

  between   18   and   24   is   usual.
Do not cover the sunshine sensor
located   on   the   dashboard.
Press this button, the AUTO
symbol
  is   displayed.
The system controls the
distribution,
  the   flow   and   the
intake

  of   air   to   guarantee
comfort

  and   a   sufficient   circulation
of air in the passenger compartment
according

  to   the   comfort   value   set.   No
further

  action   on   your   part   is   required.Air
  flow   will   increase   gradually   when
the

engine is cold, to prevent excessive
distribution   of   cold   air.
For your comfort, the settings are
stored when the ignition is switched off
and are reinstated the next time the
vehicle   is   started.
The automatic function will no longer
be maintained if you change a setting
manually   (AUTO   is   cleared).
SEPARATE SETTINGS FOR DRIVER AND
PASSENGER
Ventilation

 73
Berlingo2VP_en_Chap04_Ergonomie_ed02-2016Berlingo2VP_en_Chap04_Ergonomie_ed02-2016
Manual operation
You can, according to your
requirements,  make   a   different   selection from that of

fered by the system by
changing
  a   setting.
The
  other   functions
 will

  still   be   controlled   automatically.
 Pressing the

AUTO button restores fully
automatic
  operation.
Air distribution
Pressing this button several
times in succession directs
the
  air   flow   towards:
-

the windscreen,
-


the windscreen and footwells,
-


the footwells,
-


the side vents, central vents and
footwells,
-


the
  side   vents   and   central   vents.Air flow
Press the small fan button to
reduce
  the   flow   or   the   large
fan button to increase the
flow.
On
  the   display,   the   blades   of   the   fan   fill
when

  the   flow   is   increased.
Switching the air
conditioning On
/ Off
Press this button, the A/C
symbol is displayed and the
air
  conditioning   is   activated.
Deactivating the system
Press
  the   air   flow   small fan
button until the fan
symbol
disappears from the
display.
This action deactivates all of the
system's functions, with the exception
of the air recirculation and rear screen
demisting
  (if   fitted   on   your   vehicle).
Y

our comfort setting is no longer
maintained
  and   is   switched   off.Intake of exterior air
/
Recirculation of interior air
Press this button to
recirculate
  the   interior   air.
The recirculation symbol is
displayed.
Pressing the

large fan
button or the AUTO button
reactivates the system with
the values set before it was
deactivated. Recirculation prevents exterior odours
and
  smoke   from   entering   the   passenger
 compartment.


A
void   prolonged   operation
 in

  interior   air   recirculation   mode   (risk   of
 condensation,

  odour   and   humidity).
Pressing this button again activates the
intake
  of   exterior   air.
Pressing this button again switches off
the
  air   conditioning.
The ventilation outlet, located
in the glove box, diffuses cool
air (if the air conditioning is
on) regardless of the reference
temperature requested in the
passenger compartment and
regardless
  of   the   exterior   temperature.
For your comfort, do not deactivate the
system
  for   long   periods.
EASE OF USE and COMFORT
4
Ventilation

74
Berlingo2VP_en_Chap04_Ergonomie_ed02-2016Berlingo2VP_en_Chap04_Ergonomie_ed02-2016

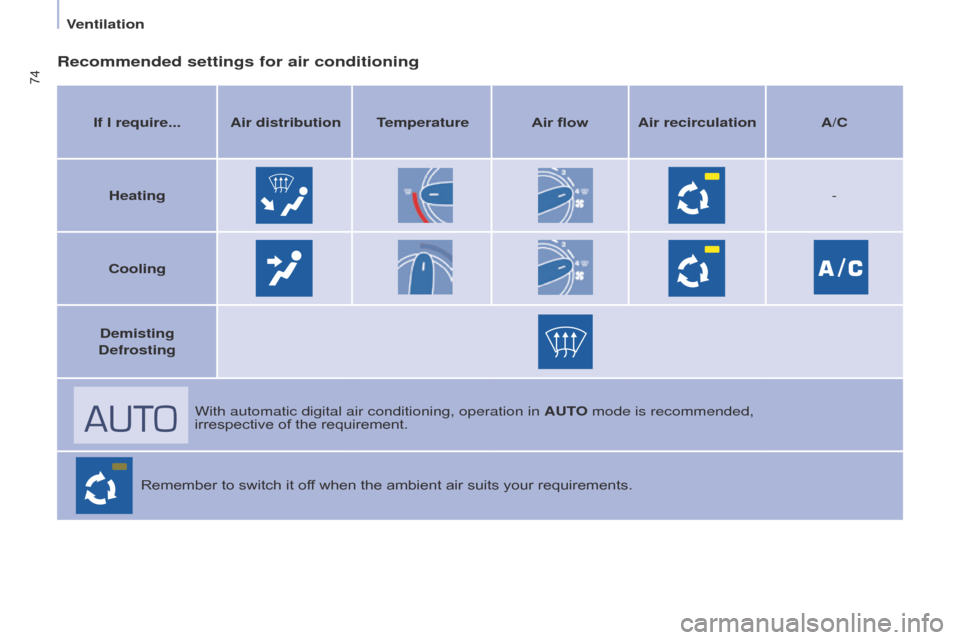

Recommended settings for air conditioning
If I require... Air distribution TemperatureAir flowAir recirculation A/C
Heating -
Cooling
Demisting
Defrosting
With automatic digital air conditioning, operation in AUTO mode is recommended,
irrespective
  of   the   requirement.
Remember
  to   switch   it   off   when   the   ambient   air   suits   your   requirements.
Ventilation

 75
Berlingo2VP_en_Chap04_Ergonomie_ed02-2016Berlingo2VP_en_Chap04_Ergonomie_ed02-2016

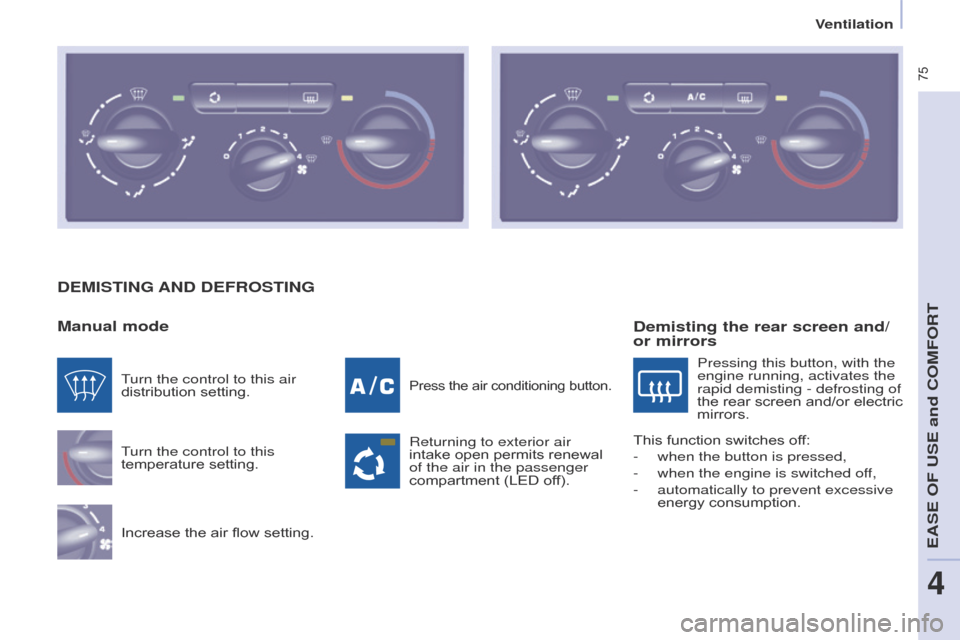

DEMISTING AND DEFROSTING
Manual mode
Turn the control to this
temperature  setting.
Increase
  the   air   flow   setting.
Press the air conditioning button.
Returning to exterior air
intake  open   permits   renewal
of the air in the passenger
compartment

  (LED   off).
Turn the control to this air
distribution

setting.
Demisting the rear screen and/
or mirrors
Pressing this button, with the
engine running, activates the
rapid demisting - defrosting of
the
  rear   screen   and/or   electric
mirrors.
This


function   switches   off:
-

when the button is pressed,
-


when the engine is switched of
f,
-

automatically to prevent excessive
energy

  consumption.
EASE OF USE and COMFORT
4
Ventilation

76
Berlingo2VP_en_Chap04_Ergonomie_ed02-2016Berlingo2VP_en_Chap04_Ergonomie_ed02-2016
DEMISTING AND DEFROSTING
G
OOD PRACTICE
V

ents
"Leave them open"
For optimum distribution and diffusion
of hot or cool air in the passenger
compartment,
  there   are   adjustable
central and side vents which can
be directed sideways (right or left)
or

  vertically   (up   or   down).   For   your
comfort while driving, do not close
them

  and   direct   the   flow   of   air   towards
the

  windows   instead.
Air vents in the footwells and directed
towards the windscreen complete the
equipment.
Do
  not   block   the   vents   located   at   the
windscreen or the air extractor located
in

  the   boot.
Dust filter, odour filter
(activated carbon)
This filter traps certain dust and limits odours.
Ensure   that   this   filter   is   in   good
condition

  and   have   all   of   the   filter
elements

  replaced   regularly.
Refer
  to   the   "Checks"   section   of
chapter

  7.
Air conditioning
In all seasons, the air conditioning
should only be used with the
windows  closed.   However,   if   the
interior temperature remains high
after

  a   prolonged   period   parked   in
the

  sun,   first   ventilate   the   passenger
compartment

  for   a   few   minutes.
Use the AUTO mode as much as
possible as it permits optimised
control
  of   all   of   the   functions:   air   flow,
passenger compartment comfort
temperature, air distribution, air
intake

  mode   or   air   recirculation   in   the
passenger

  compartment.
Operate the air conditioning system for
5 to 10 minutes, once or twice a month,
to
  keep   it   in   good   working   order.
If the system does not produce cold air,
do not use it and contact a CITROËN
dealer
  or   a   qualified   workshop.
Automatic mode: visibility
programme
The comfort programme (AUTO) may
not

be

sufficient

to

quickly

demist

or

defrost the windows (humidity

, several
passengers,

ice).
In this case, select the visibility
programme.

The


visibility

programme

indicator


comes

on.
It activates the air conditioning, the air
flow

and

provides

optimum

distribution

of the ventilation to the windscreen and
side


windows.
It

deactivates

the

air

recirculation. It is normal that the condensation
created by the air conditioning system
results
  in   a   flow   of   water   which   may
form a puddle under the vehicle when
parked.
Ventilation

 77
Berlingo2VP_en_Chap04_Ergonomie_ed02-2016Berlingo2VP_en_Chap04_Ergonomie_ed02-2016
FRONT SEATS
Forwards/backwardsSeat height (driver)
To raise the seat, pull the control
upwards
  then   take   your   weight   off   the
seat

  cushion.
To lower the seat, pull the control
upwards then push on the seat
cushion.
Seat backrest angle
Lift the bar and slide the seat forwards
or   backwards.
The

following

adjustments

are

available: With

  your   back   pressed   against   the
seat

  backrest,   move   the   lever   forwards
and

  set   the   required   angle.
EASE OF USE and COMFORT
4
Seats

78
Berlingo2VP_en_Chap04_Ergonomie_ed02-2016Berlingo2VP_en_Chap04_Ergonomie_ed02-2016

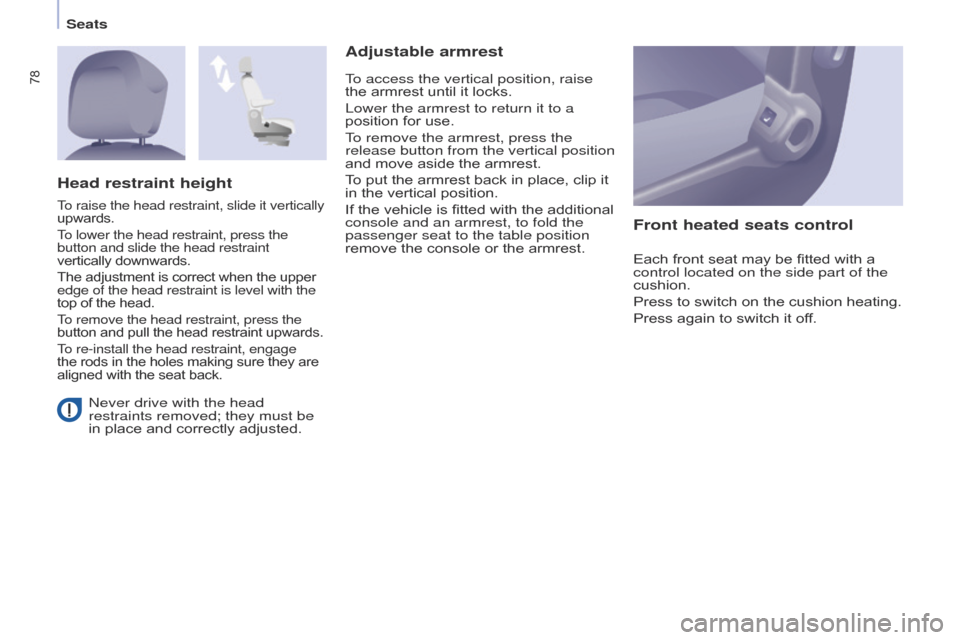

Never drive with the head
restraints removed; they must be
in  place   and   correctly   adjusted.
Adjustable armrest
Front heated seats control
Each front seat may be fitted with a control located on the side part of the
cushion.
Press  to   switch   on   the   cushion   heating.
Press
  again   to   switch   it   off.
Head restraint height
To raise the head restraint, slide it vertically
upwards.
To lower the head restraint, press the
button and slide the head restraint
vertically  downwards.
The
  adjustment   is   correct   when   the   upper
 edge of the head restraint is level with the


top
  of   the   head.
To remove the head restraint, press the
button
  and   pull   the   head   restraint   upwards.
To re-install the head restraint, engage
the
  rods   in   the   holes   making   sure   they   are
 aligned

  with   the   seat   back.
To access the vertical position, raise
the  armrest   until   it   locks.
Lower the armrest to return it to a
position
  for   use.
To remove the armrest, press the
release button from the vertical position
and
  move   aside   the   armrest.
To
  put   the   armrest   back   in   place,   clip   it
in

  the   vertical   position.
If
  the   vehicle   is   fitted   with   the   additional
console and an armrest, to fold the
passenger seat to the table position
remove

  the   console   or   the   armrest.
Seats
