Instruments and controls
Berlingo2VP_en_Chap03_Pret-a-partir_ed02-2016
Centre console with screen
Instrument panel without screen
-

T
urn   to   the   left:   24H   or   12H   is
displayed.
-


T
urn to the right to select 24H
or
  12H.
-

T
urn to the left to complete the time
adjustment.
After approximately 30 seconds
without any action, the screen returns
to

the   normal   display.

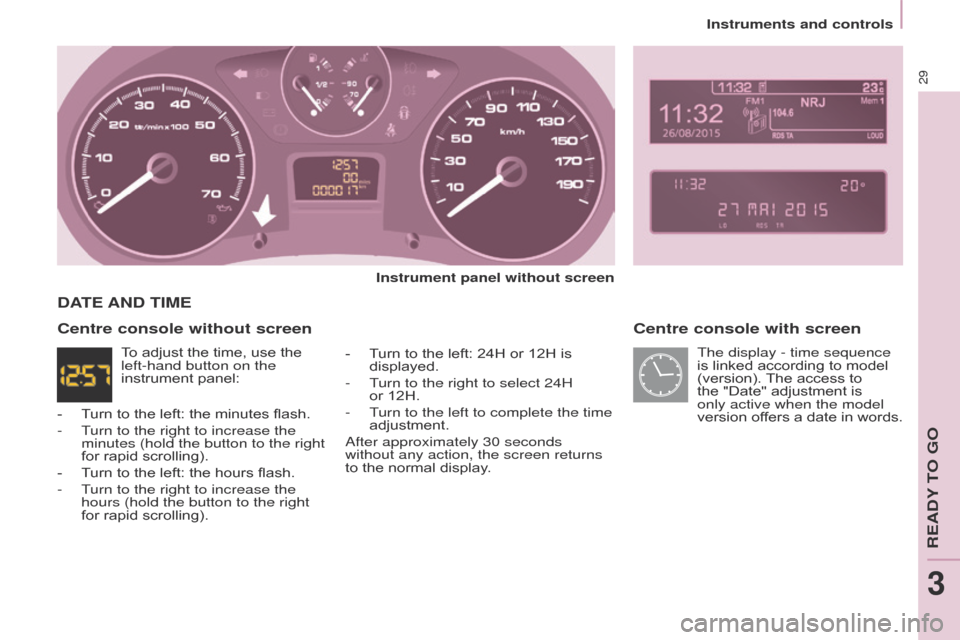

DATE AND TIME
Centre console without screen
The display - time sequence
is  linked   according   to   model
(version).


The
  access   to
the

  "Date"   adjustment   is
only active when the model
version


of
fers
a

date

in

words.
T

o

adjust

the

time,

use

the
 left-hand button on the
instrument

panel:
-

T

urn

to

the

left:

the

minutes

flash.
-

T

urn to the right to increase the
minutes (hold the button to the right
for

rapid

scrolling).
-

T

urn

to

the

left:

the

hours

flash.
-

T

urn to the right to increase the
hours (hold the button to the right
for

rapid

scrolling).
READY TO GO
3

30
Berlingo2VP_en_Chap03_Pret-a-partir_ed02-2016
Instruments and controls
Berlingo2VP_en_Chap03_Pret-a-partir_ed02-2016

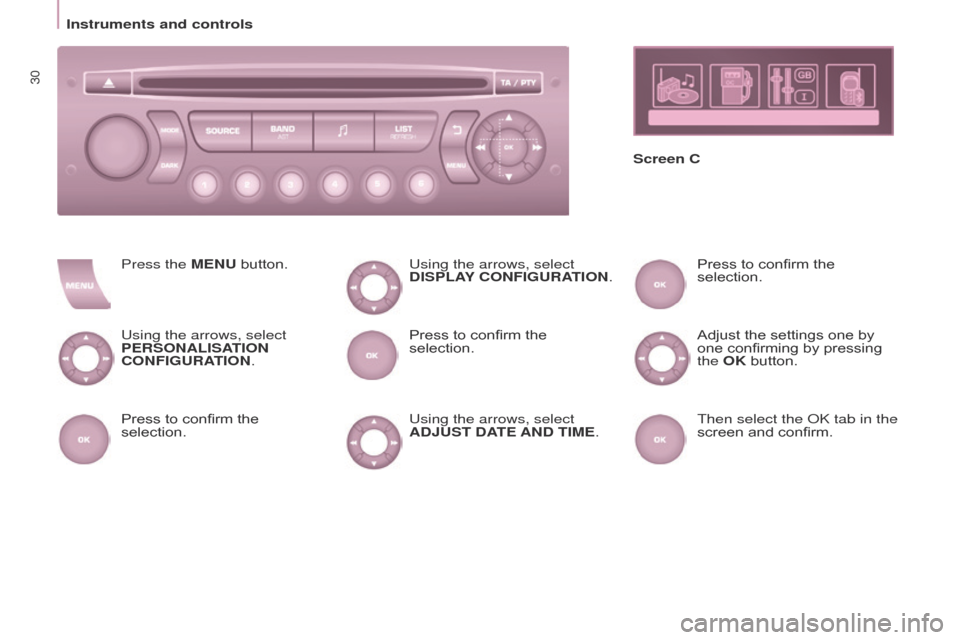

Screen C
Press the MENU

button.
Using the arrows, select
PERSONALISATION
CONFIGURATION.
Press

to

confirm

the

selection. Using the arrows, select
DISPLA

Y CONFIGURATION.
Press

to

confirm

the

selection.
Using the arrows, select
ADJUST DA

TE AND TIME. Press
  to   confirm   the
selection.
Adjust

  the   settings   one   by
one

  confirming   by   pressing
the

OK   button.
Then select the OK tab in the
screen
  and   confirm.

31
Berlingo2VP_en_Chap03_Pret-a-partir_ed02-2016
Instruments and controls
Berlingo2VP_en_Chap03_Pret-a-partir_ed02-2016

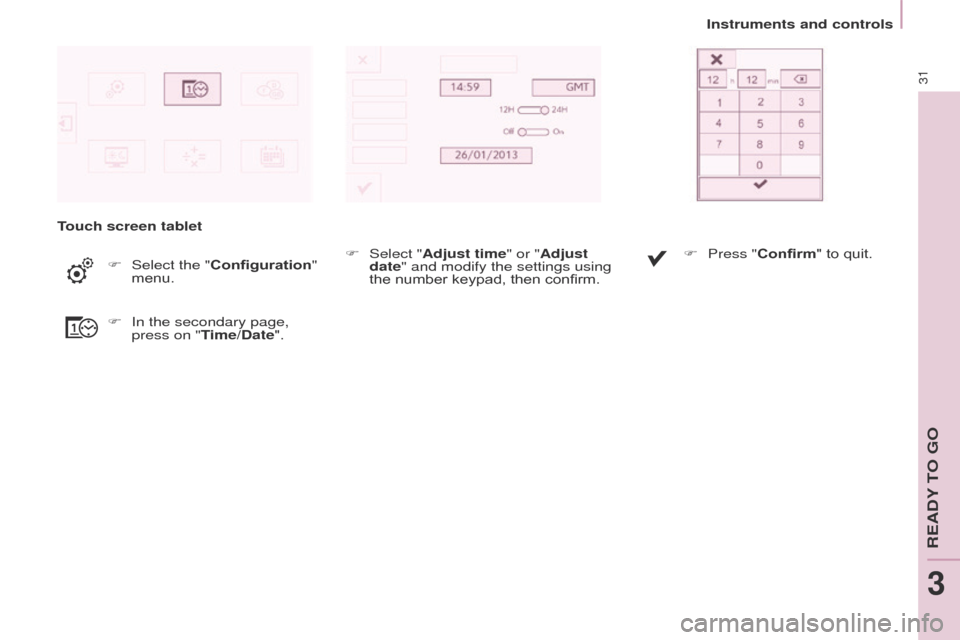

Touch screen tabletF
Select the "
Configuration"
menu.
F

In the secondary page,
press on "

Time/Date". F

Select "
Adjust time" or "Adjust
date" and modify the settings using
the
  number   keypad,   then   confirm.F

Press "
Confirm"   to   quit.
READY TO GO
3

32
Berlingo2VP_en_Chap03_Pret-a-partir_ed02-2016
Instruments and controls
Berlingo2VP_en_Chap03_Pret-a-partir_ed02-2016

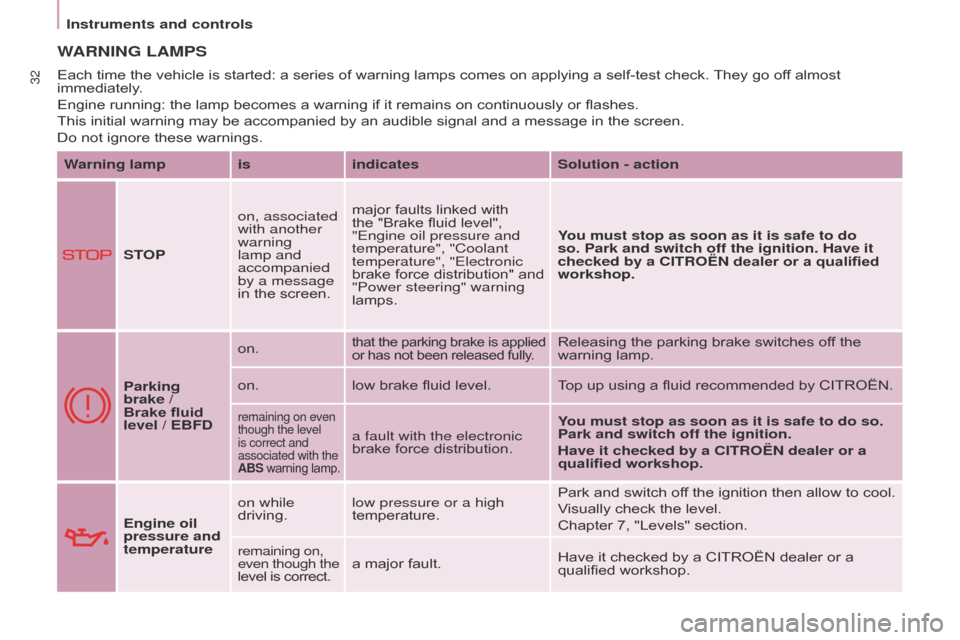

WARNING LAMPS
Warning lamp is indicatesSolution - action
STOP on, associated
with another
warning
lamp and
accompanied
by a message
in
  the   screen.major
  faults   linked   with
the

  "Brake   fluid   level",
"Engine oil pressure and
temperature", "Coolant
temperature", "Electronic
brake

  force   distribution"   and
"Power steering" warning
lamps.Y

ou must stop as soon as it is safe to do
so. Park and switch off the ignition. Have it
checked by a CITROËN dealer or a qualified
workshop.
Parking
brake
/
Brake fluid
level
/ EBFDon.
that the
 parking  brake  is  applied or
  has   not   been   released   fully.Releasing the parking brake switches off the warning  lamp.
on. low

brake

fluid

level. Top   up   using   a   fluid   recommended   by   CITROËN.
remaining on even
though the level
is correct and
associated with the
ABS

warning

lamp.
a fault with the electronic
brake  force   distribution. You must stop as soon as it is safe to do so.
Park and switch off the ignition.
Have it checked by a CITROËN dealer or a
qualified workshop.
Engine oil
pressure and
temperature on while
driving.
low pressure or a high
temperature. Park
  and   switch   off   the   ignition   then   allow   to   cool.
Visually
  check   the   level.
Chapter
  7,   "Levels"   section.
remaining on,
even though the
level  is   correct.a major fault. Have   it   checked   by   a   CITROËN   dealer   or   a  qualified
  workshop.
Each

time

the

vehicle

is

started:

a

series

of
  warning   lamps   comes   on   applying   a   self-test   check.
They
  go   off   almost
immediately

.
Engine

running:

the

lamp

becomes

a

warning   if   it   remains   on   continuously   or   flashes.
This

initial

warning

may

be

accompanied

by   an   audible   signal   and   a   message   in   the   screen.
Do

not

ignore

these

warnings.

33
Berlingo2VP_en_Chap03_Pret-a-partir_ed02-2016
Instruments and controls
Berlingo2VP_en_Chap03_Pret-a-partir_ed02-2016
Warning lamp isindicatesSolution - action
Coolant
temperature
and level on with needle
in the red
zone.
an abnormal increase in
temperature.
Park
  and   switch   off   the   ignition   then   allow   to   cool.
V

isually   check   the   level.
flashing. a
  drop   in   the   coolant   level.Chapter
  7,   "Levels"   section.
Contact
  a   CITROËN dealer   or   a   qualified
workshop.
Service on

  temporarily. minor   faults   or   warnings.Consult
  the   alert   log   in   the   display   or   screen.
If your vehicle is equipped with a trip computer or
a
  screen:   refer   to   the   "Steering   mounted   controls"
section

  in   Chapter   4.
Contact
  a   CITROËN   dealer   or   a   qualified
workshop.
remaining

  on. major   faults.
Seat belt not
fastened on then
flashing.
the
  driver   and/or   front
passenger has not fastened
their

  seat   belt.Pull
  the   strap   then   insert   the   tongue   in   the   buckle.
accompanied
by an audible
signal then
remains
  on.the vehicle is moving with
the
  driver's   and/or   front
passenger's seat belt not
fastened.Check

  that   the   seat   belt   is   fastened   by   pulling   the
strap.
Chapter

  5,   "Seat   belts"   section.
ECO on.
The Stop & Start
system
has put the engine in STOP
mode following a vehicle
stop
  (red   light,   traffic   jam,
etc...).As soon as you want to move of

f, the warning
lamp goes off and the engine restarts
automatically
  in   START

mode.
flashes
  for   a
few seconds,
then

  goes   off.STOP mode is temporarily
unavailable.
or
START mode has been
invoked
  automatically.Chapter
  3,   "Stop   &   Start"   section.
READY TO GO
3

34
Berlingo2VP_en_Chap03_Pret-a-partir_ed02-2016
Instruments and controls
Berlingo2VP_en_Chap03_Pret-a-partir_ed02-2016
Warning lamp isindicatesSolution - action
Front / lateral
airbag flashing
  or
remaining

  on.a
  failure   of   an   airbag.Have
  the   system   checked   by   a   CITROËN   dealer
or

  a   qualified   workshop   without   delay.
Chapter
  5,   "Airbags"   section.
Front
passenger's
airbag
deactivated on. the intentional deactivation
of this airbag in the
presence of a rearward
facing
  child   seat.Chapter
  5,   "Airbags"   or   "child   safety"   section.

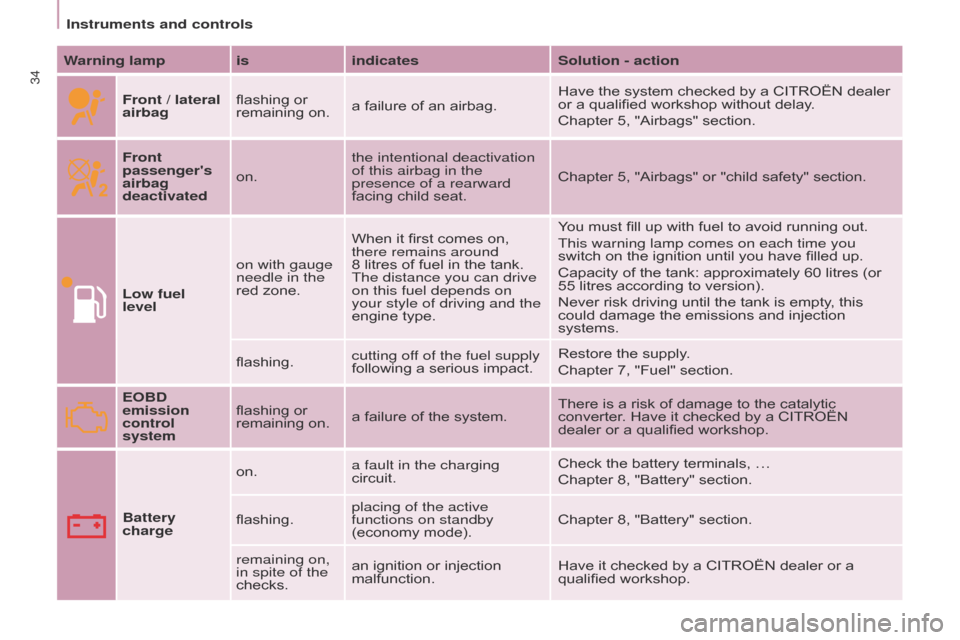

Low fuel
level on with gauge
needle in the
red
  zone.When
  it   first   comes   on,
there remains around
8 litres

  of   fuel   in   the   tank.
The distance you can drive
on this fuel depends on
your style of driving and the
engine

  type.You
  must   fill   up   with   fuel   to   avoid   running   out.
This warning lamp comes on each time you
switch
  on   the   ignition   until   you   have   filled   up.
Capacity
  of   the   tank:   approximately   60   litres   (or
55

  litres   according   to   version).
Never
  risk   driving   until   the   tank   is   empty,   this
could

  damage   the   emissions   and   injection
systems.
flashing. cutting of

f of the fuel supply
following
  a   serious   impact.Restore
  the   supply.
Chapter
  7,   "Fuel"   section.
EOBD
emission
control
system flashing
  or
remaining

  on.a
  failure   of   the   system.There
  is   a   risk   of   damage   to   the   catalytic
converter

.   Have   it   checked   by   a   CITROËN
dealer

  or   a   qualified   workshop.
Battery
charge on.
a fault in the charging
circuit. Check
  the   battery   terminals,   …
Chapter
  8,   "Battery"   section.
flashing. placing of the active
functions on standby
(economy
  mode).Chapter
  8,   "Battery"   section.
remaining on,
in spite of the
checks. an
  ignition   or   injection
malfunction.Have

  it   checked   by   a   CITROËN   dealer   or   a
qualified

  workshop.

+
ABS
35
Berlingo2VP_en_Chap03_Pret-a-partir_ed02-2016
Instruments and controls
Berlingo2VP_en_Chap03_Pret-a-partir_ed02-2016
Warning lamp isindicatesSolution - action
Power
steering on. a fault with the
system.
The vehicle
 retains  conventional  steering  without  assistance. Have
  it   checked   by   a   CITROËN   dealer   or   a   qualified workshop.
Door open
detectionon and accompanied
by a message in the
screen. that a door is not
closed
  correctly.Check
  that   all   of   the   doors   are   closed.
ABS remaining
  on.a fault with the anti-
lock
  braking   system.The
  vehicle   retains   conventional   braking.
Have
  it   checked   by   a   CITROËN   dealer   or   a
qualified

  workshop.
ESC flashing.
triggering of the ASR
or
  DSC   regulation.The system optimises traction and improves the
directional
  stability   of   the   vehicle.
Chapter
  5,   "Driving   safety"   section.
remaining
  on.a fault with the
system.
E.g.:
  under-inflation
of

  the   tyres.E.g.:
  check   the   pressure   of   the   tyres.
Have
  it   checked   by   a   CITROËN   dealer   or   a
qualified

  workshop.   (Wheel   speed   sensor,
hydraulic

  valve   block,   ...).
Under-
inflation on.
the tyre pressure is
too low in or more
wheels.Check
  the   tyre   pressure   as   soon   as   possible.
This
  check   must   be   done   with   the   tyres   cold.
flashing
  then
 remaining on,


accompanied by the
Service warning
lamp, and depending
on equipment, the
display
  of   a   message.the tyre pressure
monitoring system
has a fault or one of
the wheels does not
have
  a   sensor.Detection
  of   under-inflation   is   no   longer   assured.
Have
  it   checked   by   a   CITROËN   dealer   or   a
qualified

  workshop.
Particle filter on. a problem with the
particle
  filter   (fuel
additive

  level,   risk   of
blockage, ...).Have

  the   filter   checked   by   a   CITROËN   dealer   or
a

  qualified   workshop.
Chapter
  7,   "Levels"   section.
READY TO GO
3

36
Berlingo2VP_en_Chap03_Pret-a-partir_ed02-2016
Instruments and controls
Berlingo2VP_en_Chap03_Pret-a-partir_ed02-2016
Warning lamp isindicatesSolution - action
Dipped beam
headlamps
/
Daytime
running
lamps on.a manual selection or
automatic illumination of
headlamps.
Turn
  the   ring   on   the   lighting   control   stalk   to   the
second

  position.
illumination of the dipped beam headlamps
from  the   time   the   ignition   is   switched   on: daytime running lamps (depending on the


country
  in   which   the   vehicle   is   sold).
Chapter 4, "Steering mounted controls" section.
Main beam
headlamps pullin
g

of

the

stalk

towards

you. Pull

  the   stalk   to   return   to   dipped   beam
headlamps.
Direction
indicators flashing


with

audible


signal. a change of direction via
the

lighting

stalk. Flashing
  right:   push   stalk   downwards.
Flashing
  left:   push   stalk   upwards.
Front
foglamps on.
a

manual

selection. The foglamps only operate if the sidelamps or
dipped
  beam   headlamps   are   on.
Rear
foglamps on.
a

manual

selection. The foglamps only operate if the sidelamps or
dipped
  beam   headlamps   are   on.
In conditions of normal visibility, switch them off
to
  avoid   breaking   the   law.
"This
  lamp   is   a   dazzling   red".

37
Berlingo2VP_en_Chap03_Pret-a-partir_ed02-2016
Instruments and controls
Berlingo2VP_en_Chap03_Pret-a-partir_ed02-2016

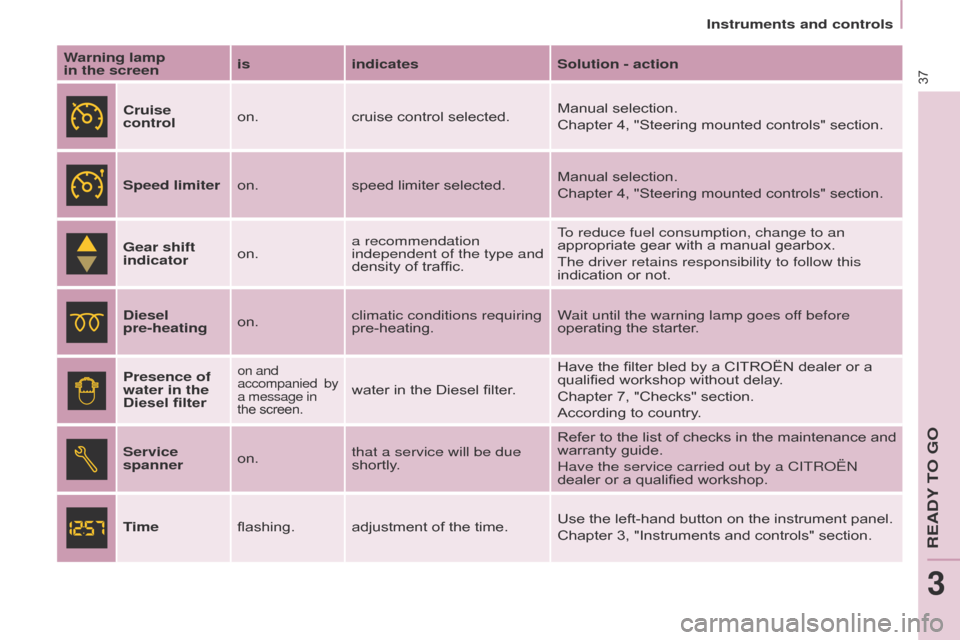

Warning lamp
in the screenis
indicates Solution - action
Cruise
control on.
cruise
  control   selected.Manual
  selection.
Chapter
  4,   "Steering   mounted   controls"   section.
Speed limiter on.speed
  limiter   selected.Manual
  selection.
Chapter
  4,   "Steering   mounted   controls"   section.
Gear shift
indicator on.a recommendation
independent of the type and
density
  of   traffic.To reduce fuel consumption, change to an
appropriate
  gear   with   a   manual   gearbox.
The driver retains responsibility to follow this
indication
  or   not.
Diesel
pre-heating on.climatic conditions requiring
pre-heating. Wait until the warning lamp goes off before
operating
  the   starter.
Presence of
water in the
Diesel filter
on and
accompanied by
a message in
the
  screen.
water in the Diesel filter. Have   the   filter   bled   by   a   CITROËN   dealer   or   a  qualified
  workshop   without   delay.
Chapter   7,   "Checks"   section.
According
  to   country.
Service
spanner on.that a service will be due
shortly. Refer
  to   the   list   of   checks   in   the   maintenance   and
warranty

  guide.
Have the service carried out by a CITROËN
dealer
  or   a   qualified   workshop.
Time flashing. adjustment
  of   the   time.Use
  the   left-hand   button   on   the   instrument   panel.
Chapter
  3,   "Instruments   and   controls"   section.
READY TO GO
3

+
38
Berlingo2VP_en_Chap03_Pret-a-partir_ed02-2016
Instruments and controls
Berlingo2VP_en_Chap03_Pret-a-partir_ed02-2016
AdBlue®
For more information on filling, refer to the chapter 7, AdBlue® section.
Alert
Information Solution - action
1
st level of alert
There is an audible signal when the ignition is switched on.
The warnings are intermittent and then become
permanent   when   switching   on   the   ignition   or   when   driving.
The remaining driving range is counted down from
1  500   miles   (2   400   km)   to   375   miles   (600   km).
The range figure reduces in steps of 200 miles (300 km).
The contents of the AdBlue® tank has dropped to a level

sufficient

for

a

range

of   less   than   1   500   miles
(2


400

km).
Have

the

fluid

topped-up

using   an
AdBlue®
container

or

bottles.
2
nd level of alert
There is an audible signal when the ignition is
switched
  on.
The warnings are intermittent (every 30 seconds)
and then become permanent every time the ignition
is

switched   on   or   when   driving.
The remaining driving range is counted down from 350 miles
(600  km)   to   zero,   reducing   in   steps   of   30   miles   (50   km).
You must have the AdBlue® topped-up and not wait
for

a

breakdown.
In the display
screen. Temporary

display:

"NO START IN".
In the touch
screen

tablet. Select:
-

"Driving


assistance".
-

"Diagnostic". The


driving

range

is

displayed.
3
rd level of alert
The AdBlue® tank is empty. Starting is impossible.
It is essential to add at least 3.8 litres of AdBlue®
additive

to

the

additive

tank.
