Airbags
Good practice
Sit in a normal upright position.
Wear a correctly adjusted seat belt.
Do not leave anything between the
o c c u p a n t s a n d t h e a i r b a g s ( a c h i l d ,
pet, object...). This could hamper the
operation of the airbags or injure the
occupants.
After an accident or if the vehicle has
been stolen or broken into, have the
airbag systems checked.
All work on the airbag system is strictly
forbidden unless it is carried out by
q u a l i fi e d p e r s o n n e l o f t h e C I T R O Ë N
network.
Even if all of the precautions
mentioned are observed, a risk of
injury or of minor burns to the head,
chest or arms when an airbag is
triggered cannot be ruled out. In fact,
t h e b a g i n fl a t e s a l m o s t i n s t a n t l y ( w i t h i n
a f e w m i l l i s e c o n d s ) t h e n d e fl a t e s w i t h i n
the same time discharging the hot gas
via openings provided for this purpose. Side airbags
Only put recommended covers on the
s e a t s . T h e s e w i l l n o t h i n d e r i n fl a t i o n o f
the side airbags. Consult a CITROËN
dealer.
D o n o t fi x o r g l u e a n y t h i n g t o t h e s e a t
backs. This could cause injury to the
chest or arms when the side airbag
i n fl a t e s .
Do not sit with the upper part of the
body any nearer to the door than
necessary.
Front airbags
Do not drive holding the steering wheel
by its spokes or resting your hands on
the centre part of the wheel.
Do not allow passengers to place their
feet on the fascia, they risk serious
injury if the airbag is triggered.
Smoke as little as possible as
deployment of the airbags can cause
burns or the risk of injury from a
cigarette or pipe.
Never remove or pierce the steering
wheel or hit it violently.
Airbags only operate when the
ignition is switched on.
This equipment only operates once.
I f a s e c o n d i m p a c t o c c u r s ( d u r i n g t h e
same or a subsequent accident), the
airbag will not operate.
The triggering of an airbag or airbags
is accompanied by a slight discharge
of harmless smoke and a noise, due
to the activation of the pyrotechnic
cartridge incorporated in the system.
This smoke is not harmful, but
sensitive individuals may experience
some irritation.
The noise of the detonation may result
in a slight loss of hearing for a short
time.
It is imperative that the passenger
airbag is disarmed if a child seat is
installed facing rearwards. Refer
to the "Children on board" section of
chapter 4.
Page 122 of 223
118118
Airbags
Curtain airbags
This is a system which protects the
d r i v e r a n d p a s s e n g e r s ( w i t h t h e
exception of the centre seat of row 2)
in the event of a serious side impact in
order to limit the risk of head injuries.
Each curtain airbag is incorporated in
the pillars and the upper part of the
passenger compartment.
Activation
It is triggered at the same time as the
corresponding side airbag in the event
of a serious side impact applied to
all or part of the side impact zone B ,
perpendicular to the longitudinal
centreline of the vehicle on a horizontal
plane and directed from the outside
towards the inside of the vehicle.
T h e c u r t a i n a i r b a g i n fl a t e s b e t w e e n t h e
front or rear occupant of the vehicle
and the windows.
Side airbags
This is a system which protects the
driver and front passenger in the event
of a serious side impact in order to limit
the risk of injury to the chest.
Each side airbag is incorporated in the
front seat back frame, on the door side.
Activation
It is triggered unilaterally in the event
of a serious side impact applied to
all or part of the side impact zone
B ,
perpendicular to the longitudinal
centreline of the vehicle on a horizontal
plane and directed from the outside
towards the inside of the vehicle.
T h e s i d e a i r b a g i n fl a t e s b e t w e e n t h e
front occupant of the vehicle and the
corresponding door trim pad. Impact detection zones
A. Front impact zone.
B. Side impact zone. Operating fault
If this warning light comes
on on the instrument panel,
accompanied by an audible
signal and a message
on the display, contact a
CITROËN dealer to have the system
checked. The airbags may no longer
be triggered in the event of a serious
impact.
In the event of a minor impact or
bump on the side of the vehicle or
if the vehicle rolls over, the airbag
may not be triggered.
Page 123 of 223
120120
Child safety
GENERAL POINTS RELATING
TO CHILD SEATS
Although one of CITROËN's main
criteria when designing your vehicle,
the safety of your children also
depends on you.
For maximum safety, please follow
t h e s e p r e c a u t i o n s :
- all children under the age of 12 or l e s s t h a n o n e m e t r e fi f t y t a l l m u s t
travel in approved child seats suited
t o t h e i r w e i g h t , o n s e a t s fi t t e d w i t h
a seat belt or ISOFIX mountings.
- statistically, the safest seats in your vehicle for the transportation of
children are the rear seats,
- a child weighing less than 9 kg must travel in the "rearwards-
facing" position both in the front
and in the rear,
- the passenger must not travel with a child on his lap. CHILD SEAT IN THE FRONT
"Rearwards-facing"
Recommended on the rear seats up to
the age of 2.
When a "rearwards-facing" child seat is
installed on the front passenger seat, it
is essential that the passenger airbag
is disarmed. Otherwise, the child would
risk being seriously injured or killed if
t h e a i r b a g w e r e t o i n fl a t e .
"Forwards-facing"
Recommended on the rear seats over
the age of 2.
When a "forwards-facing" child seat is
installed on the front passenger seat,
leave the passenger airbag armed.
The rules for carrying children are
s p e c i fi c t o e a c h c o u n t r y . C o n s u l t
the current legislation in your
country.
Please consult the list of seats
a p p r o v e d i n y o u r c o u n t r y . T h e I s o fi x
mountings, the rear seats, the
passenger airbag and the deactivation
of this airbag depend on the version
sold.
Page 124 of 223
121
SAFETY
4
121
Child safety
Refer to chapter 4, "Airbags"
section.
The child seats function and
the passenger airbag disarming
function are common to the entire
CITROËN range.
If the passenger airbag is not
disarmed, the installation of a
"rearwards-facing" child seat in the

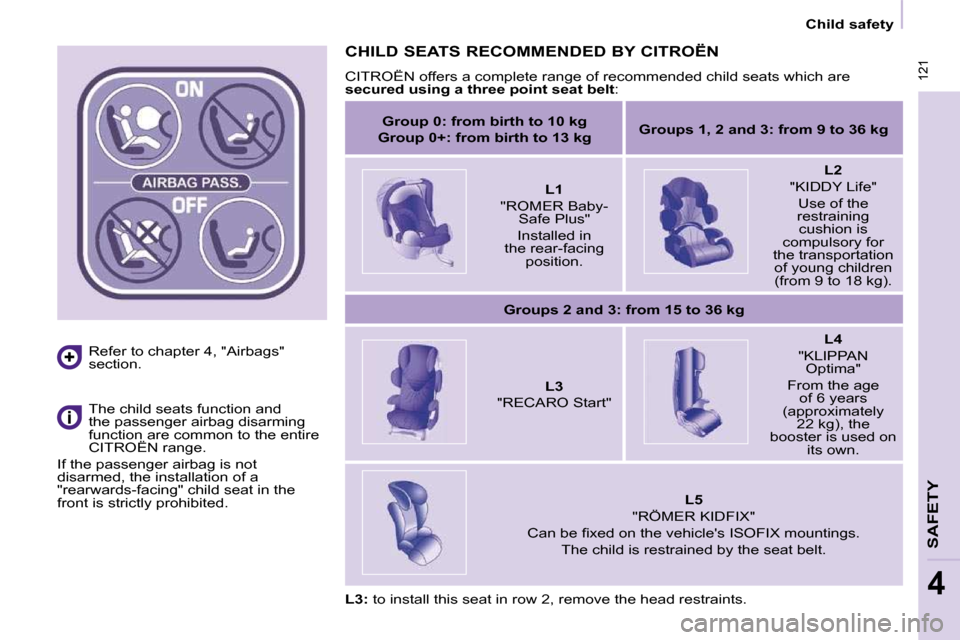

front is strictly prohibited. CHILD SEATS RECOMMENDED BY CITROËN
CITROËN offers a complete range of recommended child seats which
are
secured using a three point seat belt :
Group 0: from birth to 10 kg
Group 0+: from birth to 13 kg
Groups 1, 2 and 3: from 9 to 36 kg
L1
"ROMER Baby- Safe Plus"
Installed in
the rear-facing position .
L2
"KIDDY Life" Use of the
restraining cushion is
compulsory for
the transportation of young children ( f r o m 9 t o 1 8 k g ) .
Groups 2 and 3: from 15 to 36 kg
L3
"RECARO Start''
L4
"KLIPPAN Optima"
From the age of 6 years
( a p p r o x i m a t e l y 22 kg), the
booster is used on its own.
L5
"RÖMER KIDFIX"
C a n b e fi x e d o n t h e v e h i c l e ' s I S O F I X m o u n t i n g s . The child is restrained by the seat belt.
L3: to install this seat in row 2, remove the head restraints.
Page 125 of 223
121
SAFETY
4
121
Child safety
Refer to chapter 4, "Airbags"
section.
The child seats function and
the passenger airbag disarming
function are common to the entire
CITROËN range.
If the passenger airbag is not
disarmed, the installation of a
"rearwards-facing" child seat in the
front is strictly prohibited. CHILD SEATS RECOMMENDED BY CITROËN
CITROËN offers a complete range of recommended child seats which
are
secured using a three point seat belt :
Group 0: from birth to 10 kg
Group 0+: from birth to 13 kg
Groups 1, 2 and 3: from 9 to 36 kg
L1
"ROMER Baby- Safe Plus"
Installed in
the rear-facing position .
L2
"KIDDY Life" Use of the
restraining cushion is
compulsory for
the transportation of young children ( f r o m 9 t o 1 8 k g ) .
Groups 2 and 3: from 15 to 36 kg
L3
"RECARO Start''
L4
"KLIPPAN Optima"
From the age of 6 years
( a p p r o x i m a t e l y 22 kg), the
booster is used on its own.
L5
"RÖMER KIDFIX"
C a n b e fi x e d o n t h e v e h i c l e ' s I S O F I X m o u n t i n g s . The child is restrained by the seat belt.
L3: to install this seat in row 2, remove the head restraints.
Page 126 of 223
122122
Child safety
INSTALLING CHILD SEATS ATTACHED USING THE SEAT BELT
In accordance with European regulations, this table indicates the options for installing child seats secured using a seat belt
and universally approved in accordance with the weight of the child and the seat in the vehicle.
a : G r o u p 0 : f r o m b i r t h t o 1 0 k g .
b : c o n s u l t t h e l e g i s l a t i o n i n f o r c e i n y o u r c o u n t r y b e f o r e i n s t a l l i n g y o u r c h i l d o n t h i s s e a t .
c : i f t h e s e a t s i n r o w 3 a r e o c c u p i e d , d o n o t l e a v e a c h i l d s e a t i n s t a l l e d o n t h e f o l d a b l e r o w 2 s e a t , t o a l l o w e a s y a c c e s s t o
row 3.
d : t h e h e a d r e s t r a i n t s o f t h e s e a t s i n r o w 2 a n d r o w 3 m u s t b e r e m o v e d f o r m o r e s e c u r e fi t t i n g o f t h e c h i l d s e a t .
U : s e a t s u i t a b l e f o r t h e i n s t a l l a t i o n o f a c h i l d s e a t s e c u r e d u s i n g a s e a t b e l t a n d u n i v e r s a l l y a p p r o v e d , " r e a r f a c i n g " a n d / o r
"forward facing".

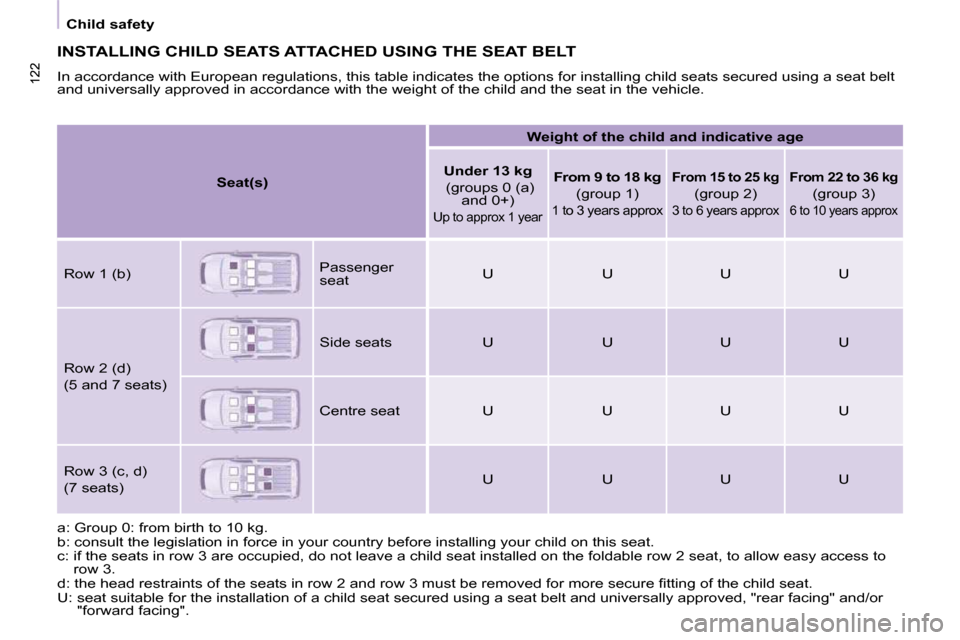

Seat(s)
Weight of the child and indicative age
Under 13 kg
( g r o u p s 0 ( a ) and 0+)
Up to approx 1 year
From 9 to 18 kg
( g r o u p 1 )
1 to 3 years approx
From 15 to 25 kg
( g r o u p 2 )
3 to 6 years approx
From 22 to 36 kg
( g r o u p 3 )
6 to 10 years approx
R o w 1 ( b ) Passenger
seat U U U U
R o w 2 ( d )
( 5 a n d 7 s e a t s )
Side seats U U U U
Centre seat U U U U
R o w 3 ( c , d )
( 7 s e a t s )
U U U U
Page 127 of 223
123
SAFETY
4
123
Child safety
"ISOFIX" MOUNTINGS
Your vehicle has been approved in
accordance with the new ISOFIX
regulation.
The mountings comprise three rings for
e a c h s e a t : - two front rings
A and B , located
between the vehicle seat back and
cushion, - a rear ring
C , located on the back
of the vehicle's seat back, for
securing the upper strap referred to
as the TOP TETHER.
This ISOFIX mounting system
guarantees you fast, reliable and safe
fi t t i n g o f t h e c h i l d s e a t i n y o u r v e h i c l e
on the side seats.
T h e I S O F I X c h i l d s e a t s a r e fi t t e d w i t h
two locks which are secured easily on
the two front rings.
Some also have an upper strap which
is attached to the rear ring C .
To attach this strap, raise the
vehicle seat's head restraint then
pass the hook between its rods.
T h e n fi x t h e h o o k o n t h e r e a r r i n g a n d
tighten the upper strap.
I s o fi x s e a t w i t h s u p p o r t
I S O F I X c h i l d s e a t s fi t t e d w i t h a
s u p p o r t ( w h i c h r e s t s o n t h e fl o o r
of your vehicle) cannot be installed on
r e a r s e a t s e q u i p p e d w i t h fl o o r b o x e s
( u n d e r t h e f o o t w e l l s ) .
Page 128 of 223
124124
Child safety
This child seat can also be used on
s e a t s w h i c h a r e n o t fi t t e d w i t h I S O F I X
mountings.
In this case, it must be attached to the
vehicle seat using the three point seat
belt.
F o l l o w t h e i n s t r u c t i o n s f o r fi t t i n g
the child seat given in the seat
manufacturer's installation guide.
ISOFIX CHILD SEAT RECOMMENDED BY AND APPRO
VED FOR YOUR
VEHICLE
ISOFIX RÖMER Duo Plus ( s i z e c a t e g o r y B1 )
Group 1: from 9 to 18 kg
Installed in the forward facing position.
Fitted with an upper strap to be secured on the ISOFIX upp er ring,
referred to as the TOP TETHER.
T h r e e s e a t b o d y a n g l e s : s i t t i n g , r e c l i n i n g , l y i n g .
Page 129 of 223
125
SAFETY
4
125
Child safety

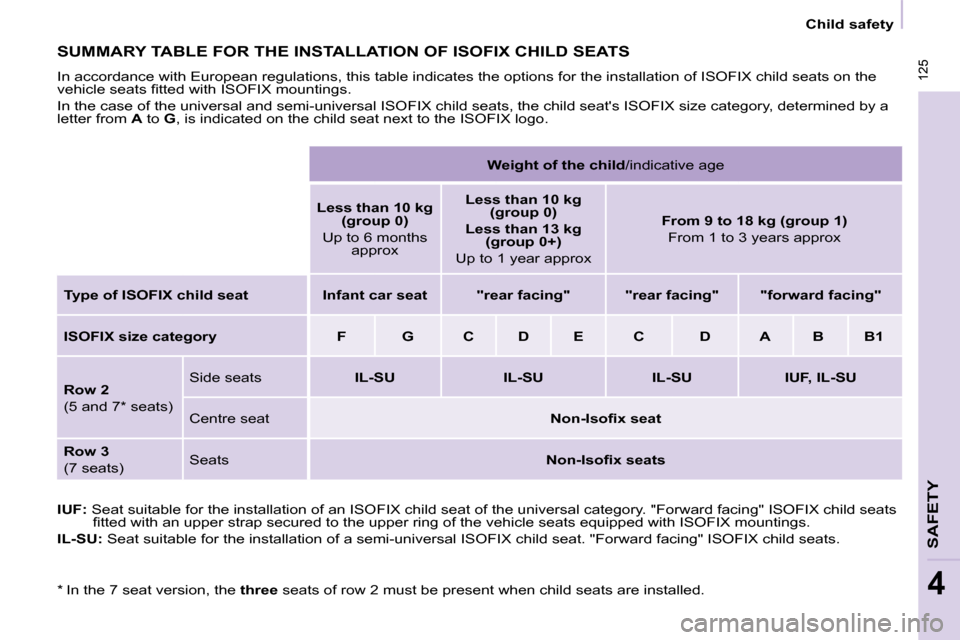

SUMMARY TABLE FOR THE INSTALLATION OF ISOFIX CHILD SEATS
In accordance with European regulations, this table indicates the options for the installation of ISOFIX child seats on the
v e h i c l e s e a t s fi t t e d w i t h I S O F I X m o u n t i n g s .
In the case of the universal and semi-universal ISOFIX child seat s, the child seat's ISOFIX size category, determined by a
letter from A to G , is indicated on the child seat next to the ISOFIX logo.
Weight of the child /indicative age
Less than 10 kg
(group 0)
Up to 6 months approx
Less than 10 kg
(group 0)
Less than 13 kg (group 0+)
Up to 1 year approx
From 9 to 18 kg (group 1)
From 1 to 3 years approx
Type of ISOFIX child seat Infant car seat "rear facing" "rear facing" "forward facing"
ISOFIX size category F G C D E C D A B B1
Row 2
( 5 a n d 7 * s e a t s ) Side seats
IL-SU IL-SU IL-SU IUF, IL-SU
Centre seat
N o n - I s o fi x s e a t
Row 3
( 7 s e a t s ) Seats
N o n - I s o fi x s e a t s
IUF: Seat suitable for the installation of an ISOFIX child sea t of the universal category. "Forward facing" ISOFIX child seats
fi t t e d w i t h a n u p p e r s t r a p s e c u r e d t o t h e u p p e r r i n g o f t h e v e h i c l e s e a t s e q u i p p e d w i t h I S O F I X m o u n t i n g s .
IL-SU: Seat suitable for the installation of a semi-universal ISOFI X child seat. "Forward facing" ISOFIX child seats.
* I n t h e 7 s e a t v e r s i o n , t h e three seats of row 2 must be present when child seats are installed.
Page 130 of 223
126126
Child safety
ADVICE ON CHILD SEATS
The incorrect installation of a child seat
in a vehicle compromises the child's
protection in the event of an accident.
Remember to fasten the seat belts or
the child seat harnesses keeping the
slack in relation to the child's body to a
minimum , even for short journeys.
For optimum installation of the "forward
facing" child seat, ensure that the back
of the child seat is in contact with the
back of the vehicle's seat and that the
head restraint does not cause any
discomfort.
If the head restraint has to be removed,
ensure that it is stored or attached
securely to prevent it from being
thrown around the vehicle in the event
of sharp braking.
Children under the age of 10 must not
travel in the "forward facing" position
on the front passenger seat, unless
the rear seats are already occupied by
other children, cannot be used or are
absent.
Deactivate the passenger airbag when
a "rear facing" child seat is installed on
the front seat.
Otherwise, the child would risk being
seriously injured or killed if the airbag
w e r e t o i n fl a t e .
A s a s a f e t y p r e c a u t i o n , d o n o t l e a v e :
- one or more children alone and unsupervised in a vehicle,
- a child or an animal in a vehicle which is exposed to the sun, with
the windows closed,
- the keys within reach of children inside the vehicle. Installing a booster seat
The chest part of the seat belt must
be positioned on the child's shoulder
without touching the neck.
Ensure that the lap part of the seat belt
passes correctly over the child's thighs.
CITROËN recommends the use of a
b o o s t e r s e a t w h i c h h a s a b a c k , fi t t e d
with a seat belt guide at shoulder level.
CHILD LOCK
This prevents opening of the side
doors from the inside. Manual mode
A label indicates the location of the
child lock.
- Open fully past the point of
resistance.
- Tilt the lever, located on the rear section of the door.
Electric mode With the ignition on, press this
button. The diode comes on.
W a r n i n g : t h i s s y s t e m i s
independent of the central
locking control.
Always remove the ignition key when
leaving the vehicle, even for a short time.
It is advisable to check the activation of
the child lock each time the ignition is
switched on.
In the event of a serious impact the
electric child lock is deactivated
automatically.
To prevent accidental opening of the
doors, use the "Child Lock".
Take care not to open the rear windows
by more than one third.
To protect young children from the rays
o f t h e s u n , fi t s i d e b l i n d s t o t h e r e a r
windows.
