Page 131 of 223
127
Towing a trailer
ACCESSORIES
5
For more information about
weights, refer to the administrative
documents (V5 registration
document, ...) or to the "Weights"
section of chapter 8.
TOWING A TRAILER, CARAVAN, BOAT, ETC...
Distribution of loads
Distribute the load in the trailer so
that the heaviest objects are as
close as possible to the axle and
the nose weight is close to the
maximum authorised without, however,
exceeding it.
Cooling
Towing a trailer on a slope increases
the coolant temperature. As the fan is electrically controlled, its
cooling capacity is not dependent on
the engine speed.
On the contrary, use a high gear to
lower the engine speed and reduce
your speed.
In all cases, pay attention to the
coolant temperature.
Driving advice
A towed vehicle must free wheel:
gearbox in neutral.
Page 132 of 223
128
Towing a trailer
Good Practice
In certain cases of particularly arduous
use (towing the maximum load up a
steep slope in high temperatures), the
engine automatically limits its power. In
this case, the automatic cutting off of
the air conditioning allows the engine
power to be recovered.
Tyres:
Check the tyre pressures of the
t o w i n g v e h i c l e ( s e e t h e " I d e n t i fi c a t i o n
features" section of chapter 8) and of
the trailer, observing the recommended
pressure. See the "Levels" section of
chapter 6.
If the coolant temperature
warning light comes on, stop
the vehicle and switch off the
engine as soon as possible.
Brakes
Towing increases the braking distance.
Drive at a moderate speed, change

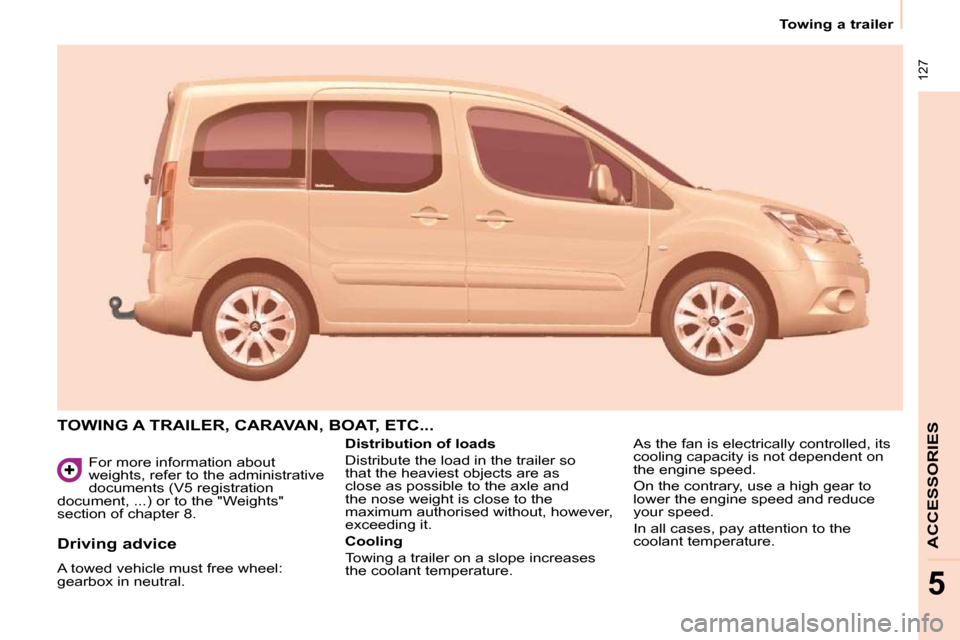

down early and brake gradually. Towbar
We recommend the use of original
CITROËN towbars and their
harnesses, which have been tested
and approved from the design stage of
your vehicle, and that you entrust the
fi t t i n g o f t h i s e q u i p m e n t t o a C I T R O Ë N
dealer.
I f t h i s e q u i p m e n t i s n o t fi t t e d b y a
CITROËN dealer, it is imperative that
i t i s fi t t e d u s i n g t h e e l e c t r i c a l p r e -
e q u i p m e n t i n s t a l l e d a t t h e r e a r o f t h e
vehicle and in accordance with the
manufacturer's instructions.
In accordance with the general
instructions a reminder of which has
been given above, we draw your
a t t e n t i o n t o t h e r i s k l i n k e d w i t h fi t t i n g
a towbar or electrical accessory not
recommended by CITROËN. Fitting
s u c h e q u i p m e n t c o u l d r e s u l t i n t h e
failure of your vehicle's electronic
system. Please contact a CITROËN
d e a l e r f o r i n f o r m a t i o n b e f o r e fi t t i n g t h i s
t y p e o f e q u i p m e n t .
Side wind
Sensitivity to side wind is increased.
Drive smoothly and at a moderate
speed.
ABS/ESP
The ABS or ESP systems only control
the vehicle, not the trailer or caravan.
Rear parking assistance
The assistance does not function while
the vehicle is towing.
Page 133 of 223
129
ACCESSORIES
5
Equipment
OTHER ACCESSORIES
These accessories and parts, having
been tested and approved for reliability
and safety, are all adapted to your
vehicle. A wide range of recommended
accessories and genuine parts is
available.
A further range is also available,
structured around comfort, leisure and
maintenance:
A n t i - t h e f t a l a r m , w i n d o w e t c h i n g , fi r s t
aid kit, high visibility vest, front and
rear parking sensors, warning triangle,
security bolts for alloy wheels, ...
Seat covers compatible with airbags
for the front seats, bench seat, rubber
mats, carpet mats, snow chains, blinds,
tailgate bicycle carrier, ...
To prevent the mat from becoming
caught under the pedals:
- e n s u r e t h a t t h e m a t a n d i t s fi x i n g s are positioned correctly,
- n e v e r fi t o n e m a t o n t o p o f a n o t h e r . A u d i o e q u i p m e n t , h a n d s - f r e e k i t ,
speakers, CD changer, satellite navigation
system, USB box, Video kit, ...
Regardless of the audio and telematic
e q u i p m e n t o f f e r e d o n t h e m a r k e t ,
the technical constraints associated
w i t h t h e fi t t i n g o f e q u i p m e n t o f t h e s e
product groups mean that the special
f e a t u r e s o f t h e e q u i p m e n t a n d i t s
compatibility with the capacities of your
v e h i c l e ' s s t a n d a r d e q u i p m e n t m u s t
be taken into account. Please ask a
CITROËN dealer for more information
b e f o r e fi t t i n g s u c h e q u i p m e n t .
Maximum weights on bars
- T r a n s v e r s e b a r s o n l o n g i t u d i n a l
bars: 75 Kg (these bars are not
compatible with the Modutop roof). Installing radiocommunication
transmitters
You are advised to contact a CITROËN
dealer before installing accessory
radiocommunication transmitters with
external aerial on your vehicle.
The CITROËN dealer network
w i l l i n f o r m y o u o f t h e s p e c i fi c a t i o n
( f r e q u e n c y b a n d , m a x i m u m o u t p u t
p o w e r , a e r i a l p o s i t i o n , s p e c i fi c
conditions of installation) of the
t r a n s m i t t e r s w h i c h c a n b e fi t t e d , i n
accordance with the Motor Vehicle
Electromagnetic Compatibility Directive
(2004/104/EC).
F r o n t m u d fl a p s , r e a r m u d fl a p s ,
15/17 inch alloy wheels, wheelarch
trim, leather steering wheel, ...
Screenwash, interior and exterior
cleaning and maintenance products,
spare bulbs, ...
Page 134 of 223
130
Equipment T h e fi t t i n g o f e l e c t r i c a l e q u i p m e n t
or accessories which are not
recommended by CITROËN may
result in a failure of your vehicle's
electronic system. Please note this
s p e c i fi c w a r n i n g . Y o u a r e a d v i s e d
to contact a dealer to be shown the
r a n g e o f r e c o m m e n d e d e q u i p m e n t o r
accessories.
Depending on the country in which
the vehicle is sold, it is compulsory to
have a high visibility jacket, warning
triangle and spare bulbs available in
the vehicle. "Active Fleet Data" telematic unit
Connected directly to the heart of
the vehicle (multiplexed network:
"Full CAN"), the telematic unit, by
means of a "ready to use" service,
permits the sending in real time of
information such as:
- d i s t a n c e t r a v e l l e d ,
- d i s t a n c e r e m a i n i n g b e f o r e t h e n e x t
service,
- w a r n i n g s a n d f a u l t s ( o i l l e v e l , coolant level, oil temperature,
coolant temperature, etc...).
This enables "Fleet" managers
to optimise the monitoring and
management of their professional
vehicles.
Depending on country, contact a
CITROËN dealer for more information.
Page 135 of 223
132
Opening the bonnet
OPENING THE BONNET
Bonnet strut

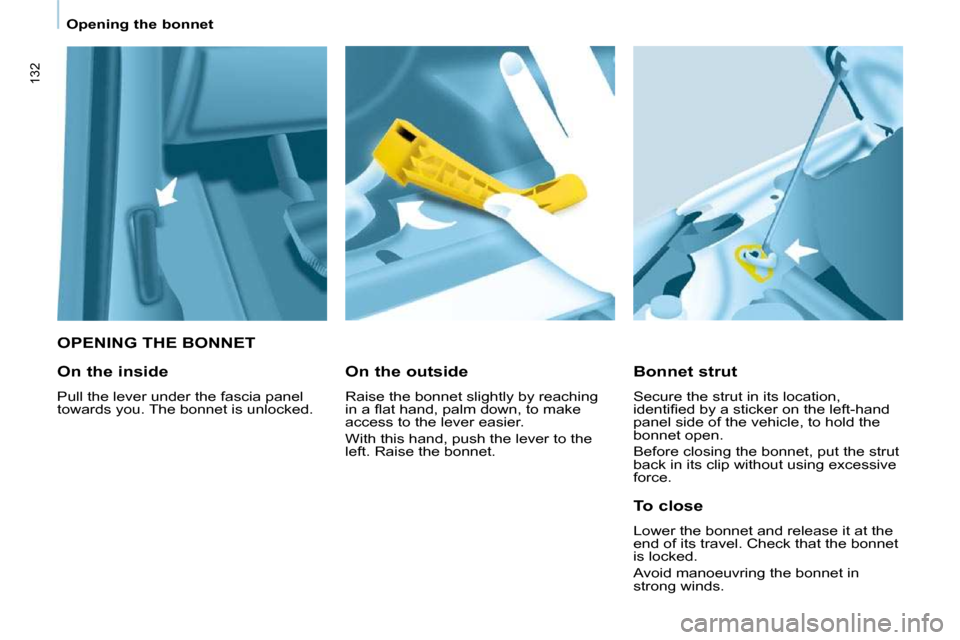

Secure the strut in its location,
i d e n t i fi e d b y a s t i c k e r o n t h e l e f t - h a n d
panel side of the vehicle, to hold the
bonnet open.
Before closing the bonnet, put the strut
b a c k i n i t s c l i p w i t h o u t u s i n g e x c e s s i v e
force.
On the outside
Raise the bonnet slightly by reaching
i n a fl a t h a n d , p a l m d o w n , t o m a k e
access to the lever easier.
With this hand, push the lever to the
left. Raise the bonnet.
On the inside
Pull the lever under the fascia panel
t o w a r d s y o u . T h e b o n n e t i s u n l o c k e d .
To close
Lower the bonnet and release it at the
e n d o f i t s t r a v e l . C h e c k t h a t t h e b o n n e t
i s l o c k e d .
Avoid manoeuvring the bonnet in
strong winds.
Page 136 of 223
133
6

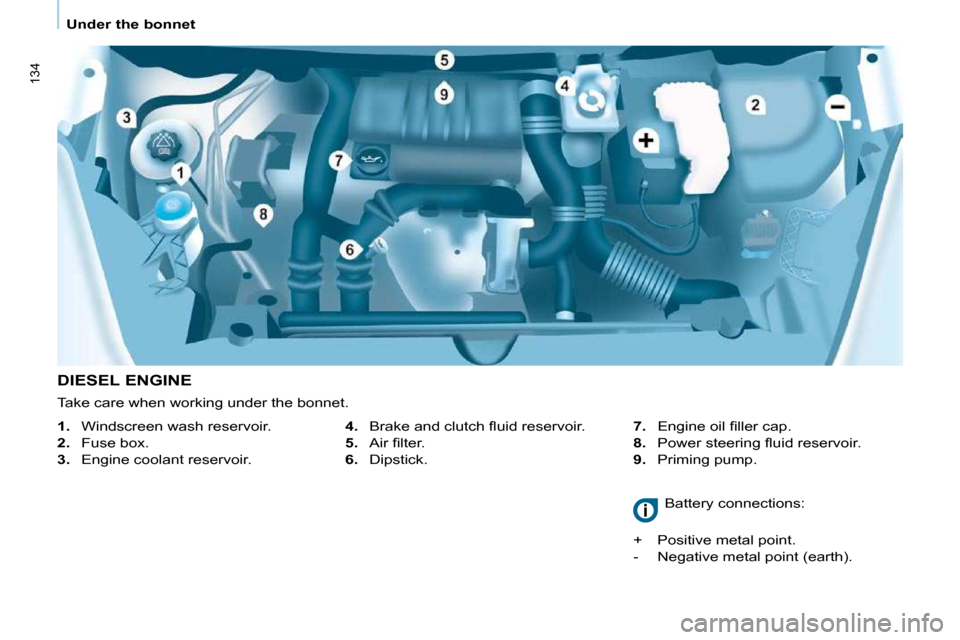

Under the bonnet

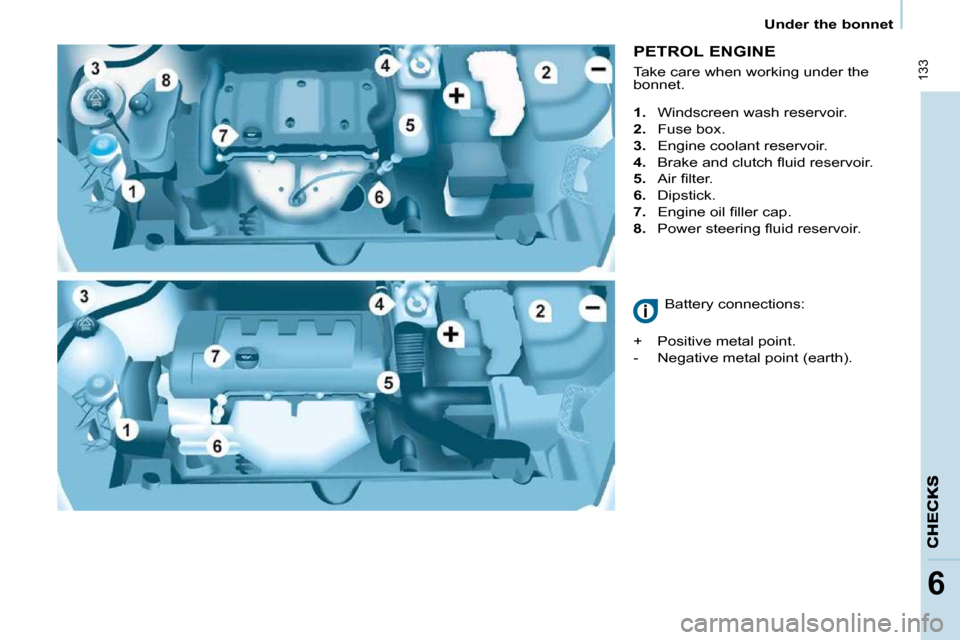

PETROL ENGINE
1. Windscreen wash reservoir.
2. Fuse box.
3. Engine coolant reservoir.
4. B r a k e a n d c l u t c h fl u i d r e s e r v o i r .
5. A i r fi l t e r .
6. D i p s t i c k .
7. E n g i n e o i l fi l l e r c a p .
8. P o w e r s t e e r i n g fl u i d r e s e r v o i r .
Battery connections:
+ Positive metal point.
- N e g a t i v e m e t a l p o i n t ( e a r t h ) .
T a k e c a r e w h e n w o r k i n g u n d e r t h e
bonnet.
Page 137 of 223
134
Under the bonnet
DIESEL ENGINE
4. B r a k e a n d c l u t c h fl u i d r e s e r v o i r .
5. A i r fi l t e r .
6. D i p s t i c k .
7. E n g i n e o i l fi l l e r c a p .
8. P o w e r s t e e r i n g fl u i d r e s e r v o i r .
9. Priming pump.
1. Windscreen wash reservoir.
2. Fuse box.
3. Engine coolant reservoir.
Battery connections:
+ Positive metal point.
- N e g a t i v e m e t a l p o i n t ( e a r t h ) .
T a k e c a r e w h e n w o r k i n g u n d e r t h e b o n n e t .
Page 138 of 223
135
CHECKS
6
Levels
LEVELS
Oil change
This must be carried out at the
i n t e r v a l s s p e c i fi e d a n d t h e v i s c o s i t y
g r a d e o f t h e o i l s e l e c t e d m u s t f u l fi l t h e
requirements in the manufacturer's
s e r v i c i n g s c h e d u l e . A s k f o r a d v i c e f r o m
a CITROËN dealer.
R e m o v e t h e d i p s t i c k b e f o r e fi l l i n g .
C h e c k t h e l e v e l a f t e r fi l l i n g ( n e v e r
e x c e e d t h e m a x m a r k ) .
R e fi t t h e o i l fi l l e r c a p b e f o r e c l o s i n g t h e
bonnet. Changing the brake fluid
T h e b r a k e fl u i d m u s t b e c h a n g e d a t
the intervals stated, according to the
manufacturer's servicing schedule.
U s e fl u i d s r e c o m m e n d e d b y t h e
m a n u f a c t u r e r , w h i c h f u l fi l D O T 4
standards.
The level must be between the MIN
a n d M A X m a r k s o n t h e r e s e r v o i r .
I f fl u i d h a s t o b e a d d e d f r e q u e n t l y ,
this indicates a fault which must be
c h e c k e d b y a C I T R O Ë N d e a l e r a s
soon as possible.
Warning lamps
I f y o u h a v e t o r e m o v e / r e fi t t h e
engine style cover, handle it with
c a r e t o a v o i d d a m a g i n g t h e fi x i n g
clips.
Oil level
C h e c k t h e l e v e l r e g u l a r l y a n d t o p u p
between changes.
C h e c k t h e l e v e l w i t h t h e v e h i c l e l e v e l ,
e n g i n e c o l d , u s i n g t h e d i p s t i c k .

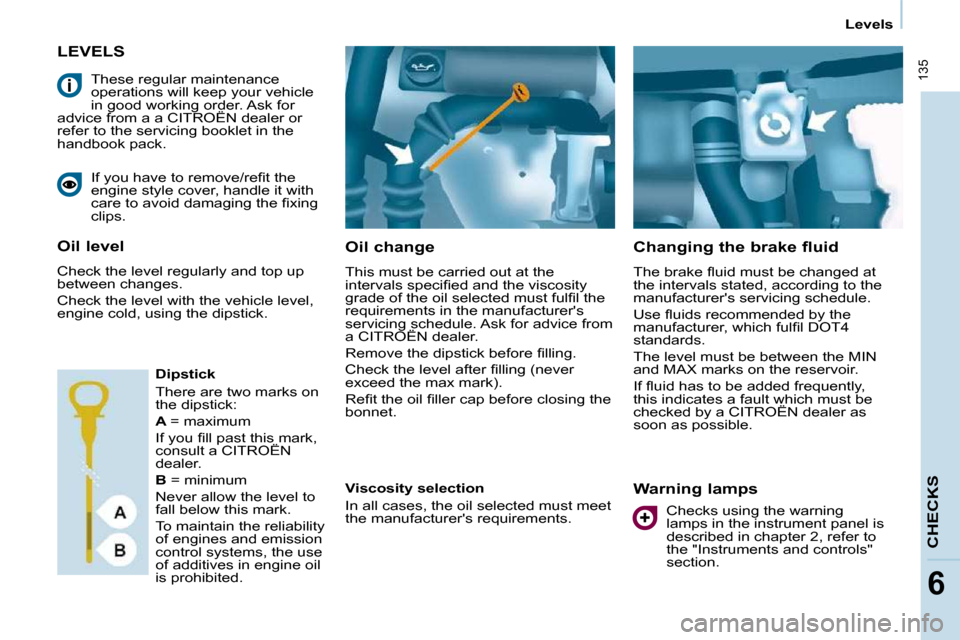

Dipstick
T h e r e a r e t w o m a r k s o n
t h e d i p s t i c k :
A = maximum
I f y o u fi l l p a s t t h i s m a r k ,
consult a CITROËN
dealer.
B = minimum
Never allow the level to
f a l l b e l o w t h i s m a r k .
To maintain the reliability
of engines and emission
control systems, the use
of additives in engine oil
is prohibited. Viscosity selection
In all cases, the oil selected must meet
the manufacturer's requirements.
These regular maintenance
o p e r a t i o n s w i l l k e e p y o u r v e h i c l e
i n g o o d w o r k i n g o r d e r . A s k f o r
advice from a a CITROËN dealer or
r e f e r t o t h e s e r v i c i n g b o o k l e t i n t h e
h a n d b o o k p a c k .
C h e c k s u s i n g t h e w a r n i n g
lamps in the instrument panel is
described in chapter 2, refer to
the "Instruments and controls"
section.
Page 139 of 223
136
Levels
Cooling system
O n l y u s e t h e fl u i d r e c o m m e n d e d b y t h e
manufacturer.
O t h e r w i s e , y o u r i s k s e r i o u s l y d a m a g i n g
your engine.
When the engine is warm, the
temperature of the coolant is controlled
by the engine fan. As this fan can
o p e r a t e w i t h t h e i g n i t i o n k e y r e m o v e d
and because the cooling system is
pressurised, wait for at least one hour
after the engine has stopped before
c a r r y i n g o u t a n y w o r k .
S l a c k e n t h e c a p b y 1 / 4 o f a t u r n t o
release the pressure to prevent any
r i s k o f s c a l d i n g . W h e n t h e p r e s s u r e
has dropped, remove the cap and top
up the level with coolant.
I f fl u i d h a s t o b e a d d e d f r e q u e n t l y ,
this indicates a fault which must be
c h e c k e d b y a C I T R O Ë N d e a l e r a s
soon as possible. Power steering fluid level
T h e v e h i c l e m u s t b e p a r k e d o n l e v e l
ground with the engine cold. Unscrew
the cap integrated with the gauge and
c h e c k t h e l e v e l w h i c h m u s t b e b e t w e e n
t h e M I N a n d M A X m a r k s .
I n o r d e r t o r e g e n e r a t e t h e fi l t e r , y o u a r e
advised to drive at a speed higher than
4 0 m p h ( 6 0 k m / h ) f o r a t l e a s t fi v e m i n u t e s
a s s o o n a s p o s s i b l e , w h e n t r a f fi c c o n d i t i o n s
p e r m i t ( u n t i l t h e m e s s a g e d i s a p p e a r s a n d
t h e s e r v i c e w a r n i n g l a m p g o e s o f f ) .
During regeneration of the particle emission
fi l t e r , t h e n o i s e o f a r e l a y o p e r a t i n g m a y b e
heard under the dashboard.
If the message is still displayed and if the
service warning lamp remains on, consult a
CITROËN dealer.
Topping up
The level must be between the MIN
a n d M A X m a r k s o n t h e e x p a n s i o n
b o t t l e . I f m o r e t h a n 1 l i t r e o f fl u i d i s
required to top up the level, have the
s y s t e m c h e c k e d b y a C I T R O Ë N d e a l e r . Screenwash and headlamp
wash level
For best quality cleaning and for your
safety, we would advise that you use
products of the CITROËN range.
For optimum cleaning and to avoid
f r e e z i n g , t h i s fl u i d m u s t n o t b e t o p p e d
up or replaced with plain water.
Capacity of the screenwash reservoir:
approximately 3 litres.
I f y o u r v e h i c l e i s fi t t e d w i t h h e a d l a m p
washers, the capacity of the reservoir
is 6 litres.
Diesel additive level
(Diesel with particle
emission filter)
The minimum level of this
additive is indicated by lighting of the
service warning lamp, accompanied
by an audible signal and a message in
the screen.
When this occurs with the engine
running it is due to the start of
s a t u r a t i o n o f t h e p a r t i c l e e m i s s i o n fi l t e r
( e x c e p t i o n a l l y p r o l o n g e d u r b a n t y p e
driving conditions: low speed, long
t r a f fi c j a m s , . . . ) . Topping up
It is imperative that this additive is
topped up by a CITROËN dealer
without delay.
Used oil
Avoid prolonged contact of used oil
w i t h t h e s k i n .
B r a k e fl u i d i s h a r m f u l t o h e a l t h a n d
very corrosive.
D o n o t d i s p o s e o f u s e d o i l , b r a k e fl u i d
or coolant into drains or into the ground
but into the containers dedicated to this
u s e a t C I T R O Ë N d e a l e r ( F r a n c e ) o r a n
authorised waste disposal site.
Page 140 of 223
137
CHECKS
6
Checks
CHECKS
Carbon filter and passenger
compartment filter
A n a c c e s s fl a p b e l o w t h e g l o v e b o x
p e r m i t s r e p l a c e m e n t o f t h e fi l t e r s .
T h e c a r b o n fi l t e r p e r m i t s c o n t i n u o u s
a n d e f f e c t i v e fi l t e r i n g o f d u s t .
I f t h e p a s s e n g e r c o m p a r t m e n t fi l t e r
b e c o m e s b l o c k e d , t h i s m a y r e d u c e t h e
performance of the air conditioning
system and generate unpleasant
odours.
We recommend the use of a combined
p a s s e n g e r c o m p a r t m e n t fi l t e r . B y
means of its second special active
fi l t e r , i t c o n t r i b u t e s t o t h e p u r i fi c a t i o n
of the air breathed by the occupants
and the cleanness of the passenger
c o m p a r t m e n t ( r e d u c t i o n o f a l l e r g i c
symptoms, unpleasant odours and
g r e a s y d e p o s i t s ) . Particle emission filter (Diesel)
maintenance of the particle emission
fi l t e r m u s t b e c a r r i e d o u t b y a
CITROËN dealer.
On acceleration after the vehicle has
been running for a prolonged period
at very low speed or at idle, you may,
in exceptional circumstances, notice
the emission of water vapour at the
exhaust. This water vapour does not
have any adverse effect on vehicle
handling or the environment.
Battery
At the start of winter, have your battery
c h e c k e d b y a C I T R O Ë N d e a l e r .
Brake pads
B r a k e p a d w e a r d e p e n d s o n t h e s t y l e
of driving, in particular for vehicles
which are used in town, over short
distances. It may be necessary to
c h e c k t h e t h i c k n e s s o f t h e p a d s , e v e n
between services.
U n l e s s t h e r e i s a l e a k o n t h e c i r c u i t , a
d r o p i n t h e b r a k e fl u i d l e v e l i n d i c a t e s
t h a t t h e b r a k e p a d s a r e w o r n .
Brake disc/drum wear
F o r i n f o r m a t i o n o n c h e c k i n g t h e b r a k e
disc/drum wear, consult a CITROËN
dealer.
Parking brake
W h e r e t h e p a r k i n g b r a k e t r a v e l i s t o o
great or there is a reduction in the
p e r f o r m a n c e o f t h e s y s t e m , t h e p a r k i n g
b r a k e s h o u l d b e a d j u s t e d , e v e n
between services.
H a v e t h e s y s t e m c h e c k e d b y a
CITROËN dealer.
Oil filter
C h a n g e t h e fi l t e r r e g u l a r l y i n
accordance with the servicing
schedule.
R e f e r t o t h e s e r v i c i n g b o o k l e t f o r
the replacement interval for these
components.
D e p e n d i n g o n t h e e n v i r o n m e n t ( d u s t y
a t m o s p h e r e . . . ) a n d t h e u s e o f t h e
v e h i c l e ( u r b a n d r i v i n g . . . ) , c h a n g e t h e m
twice as often if necessary.
